FC Fibre Pigtails Price in Kenya
FC fibre pigtails are precision fibre optic termination cables featuring an FC connector on one end and a bare optical fibre on the other, making them ideal for permanent fibre termination using fusion splicing. The FC (Ferrule Connector or Fixed Connector) uses a threaded metal coupling mechanism, providing a secure connection that resists vibration and accidental disconnection. This makes FC fibre pigtails particularly suitable for telecommunications, CATV systems, industrial networking, optical testing equipment, and laboratory environments.
At Fiber Optics Kenya, we supply premium FC/UPC and FC/APC fibre pigtails manufactured using high-quality Single Mode (OS2) and Multimode (OM2, OM3, and OM4) optical fibres. Every FC fibre pigtail is factory polished and individually tested to ensure low insertion loss, excellent return loss, and dependable long-term performance. Their rugged metal connector design makes them ideal for applications where stability and precision are critical.
Our range includes FC/APC, FC/UPC, OS2 Single Mode, OM2, OM3, OM4, G657A2 Bend-Insensitive, and 12-colour FC fibre pigtail kits, providing reliable solutions for professional fibre optic installations across Kenya.

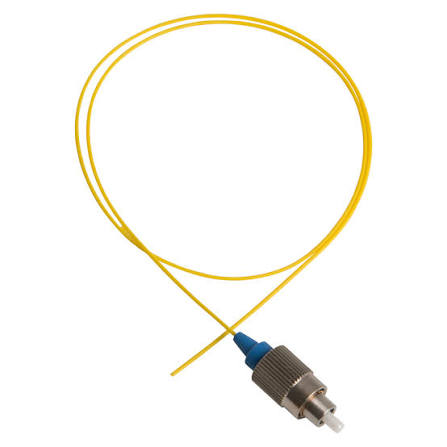

FC Fibre Pigtail Images
FC Fibre Pigtails Price List in Kenya
| FC Fibre Pigtail | Approximate Price (KES) |
|---|---|
| FC/UPC Single Mode Pigtail | 120 – 250 |
| FC/APC Single Mode Pigtail | 150 – 300 |
| FC Multimode OM2 | 150 – 280 |
| FC Multimode OM3 | 180 – 350 |
| FC Multimode OM4 | 220 – 400 |
| 12 Core FC Pigtail Kit | 1,800 – 3,500 |
| FC G657A2 Bend Insensitive | 180 – 320 |
| Armoured FC Pigtail | 300 – 600 |
| Custom FC Fibre Pigtail | Available on Request |
Note: Prices vary depending on fibre type, connector polish, cable specification, and order quantity. Special discounts are available for bulk purchases.
FC Fibre Pigtail Specifications
| Specification | Details |
|---|---|
| Connector Type | FC/APC or FC/UPC |
| Fibre Type | OS2, OM2, OM3, OM4 |
| Fibre Size | 9/125µm, 50/125µm, 62.5/125µm |
| Cable Diameter | 0.9mm Tight Buffered |
| Connector Ferrule | Precision Zirconia Ceramic |
| Connector Housing | Nickel-Plated Metal |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB (APC), ≥50 dB (UPC) |
| Standard Length | 1.5 Metres |
| Standards | IEC, TIA/EIA, RoHS |
Types of FC Fibre Pigtails
| FC Fibre Pigtail | Recommended Application |
|---|---|
| FC/APC OS2 | CATV Networks |
| FC/UPC OS2 | Telecommunications |
| FC OM3 | Enterprise Networks |
| FC OM4 | Data Centres |
| Armoured FC Pigtail | Industrial Networks |
| Bend-Insensitive FC | Fibre Distribution Boxes |
| 12 Core FC Kit | ODF Terminations |
Features of FC Fibre Pigtails
Threaded FC metal connector
Secure vibration-resistant connection
Factory-polished connector
APC and UPC polishing options
Low insertion loss
High return loss
Precision zirconia ceramic ferrule
Single Mode and Multimode options
Ideal for fusion splicing
Factory-tested optical performance
Benefits of FC Fibre Pigtails
| Benefit | Description |
|---|---|
| Secure Threaded Connection | Prevents accidental disconnection in demanding environments |
| Excellent Optical Performance | Factory-polished connector ensures minimal signal loss |
| Reliable Fusion Splicing | Designed for permanent fibre termination |
| High Mechanical Strength | Metal connector withstands vibration and repeated use |
| Broad Compatibility | Works with FC adapters, ODFs, and test equipment |
| Long Service Life | Durable construction for continuous operation |
| Reduced Maintenance | Stable connections minimize network interruptions |
| Professional Installation | Ideal for mission-critical fibre networks |
Applications of FC Fibre Pigtails
FC fibre pigtails are commonly used in:
Telecommunications Networks
CATV Systems
Optical Distribution Frames (ODFs)
Fibre Patch Panels
Fibre Distribution Boxes
Optical Test Equipment
Enterprise Networks
Internet Service Providers (ISPs)
Industrial Automation
Laboratory Applications
Data Centres
Government Networks
Military Communication Systems
Fibre Optic Backbone Networks
Why Buy FC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya supplies genuine FC fibre pigtails manufactured to international quality standards for superior optical performance and long-term durability. Every FC pigtail is precision factory polished and tested before delivery to ensure dependable operation, low attenuation, and excellent return loss.
Our experienced fibre optic specialists help customers choose the correct FC connector type, polishing option, fibre mode, and accessories required for each installation. Whether you require FC pigtails for telecommunications, CATV, industrial automation, or optical testing, we provide competitive pricing, expert technical support, and fast nationwide delivery.
Besides FC fibre pigtails, Fiber Optics Kenya also stocks fibre optic cables, fibre patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing machines, and complete fibre optic networking solutions.
FC Fibre Pigtail Buying Guide
| Project Type | Recommended FC Pigtail |
|---|---|
| CATV Network | FC/APC OS2 |
| Telecommunications | FC/UPC OS2 |
| Data Centre | FC OM4 |
| Optical Testing | FC/UPC |
| ODF Installation | 12 Core FC Kit |
| Industrial Network | Armoured FC Pigtail |

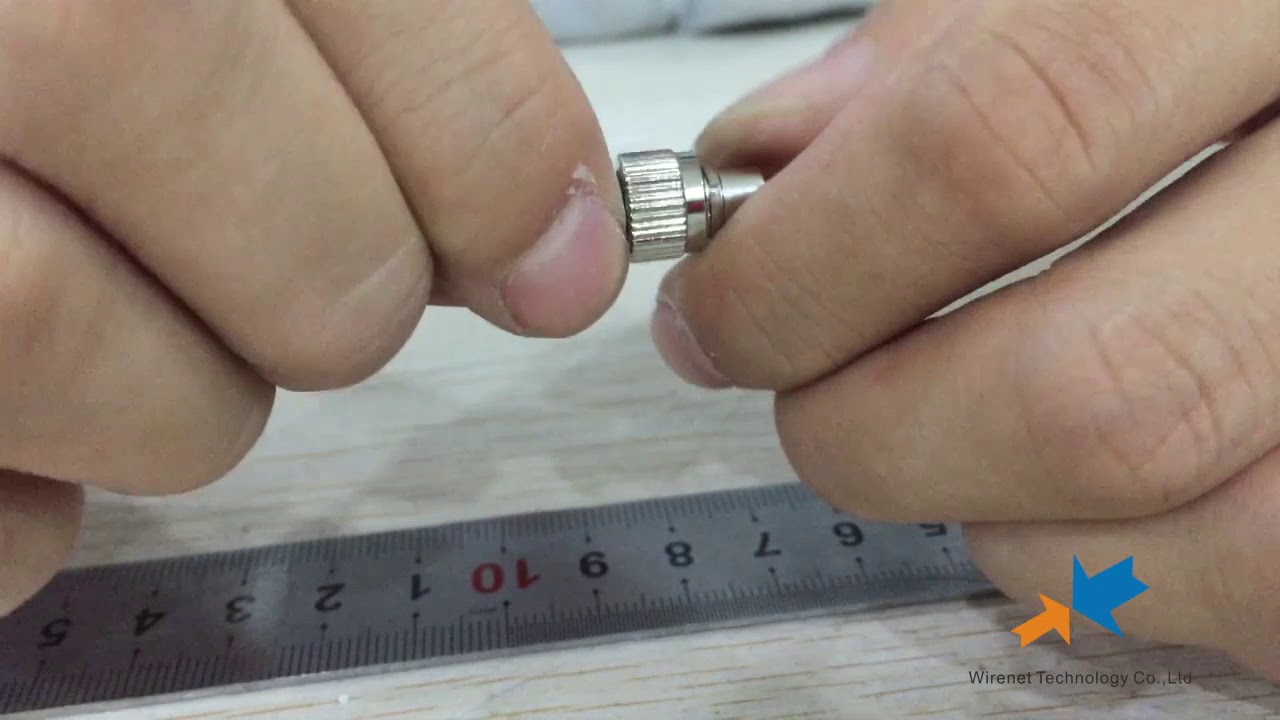

Watch FC Fibre Pigtail Installation
YouTube Video
Video Thumbnail
FC fibre pigtails are trusted for fibre optic installations where a secure, vibration-resistant connection is essential. The video above demonstrates how FC fibre pigtails are fusion spliced and installed inside optical distribution frames, splice closures, fibre termination boxes, and telecommunications cabinets to create permanent, low-loss fibre optic connections.
The distinguishing feature of the FC connector is its threaded metal coupling mechanism, which securely locks the connector into place. This threaded design makes FC fibre pigtails highly suitable for environments exposed to vibration or movement, including industrial facilities, telecommunications exchanges, optical laboratories, and CATV systems. Factory-polished FC connectors also provide excellent insertion loss and return loss characteristics, ensuring stable and reliable optical communication.
At Fiber Optics Kenya, we supply premium FC fibre pigtails together with fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing services, and complete fibre optic networking solutions. Our experienced engineers offer expert consultation, professional installation services, and nationwide delivery for projects throughout Kenya.
Frequently Asked Questions (FAQs)
1. What is an FC fibre pigtail?
An FC fibre pigtail is a fibre optic cable with an FC connector on one end and a bare fibre on the other for permanent fusion splicing.
2. What is the price of FC fibre pigtails in Kenya?
FC fibre pigtails typically cost between KES 120 and KES 400, depending on the fibre type, connector polish, and specification.
3. What makes FC connectors different?
FC connectors use a threaded metal coupling mechanism that provides a secure, vibration-resistant connection, making them ideal for industrial and telecommunications applications.
4. What is the difference between FC/APC and FC/UPC?
FC/APC connectors feature an angled polished end face for reduced back reflection, while FC/UPC connectors use an ultra-physical contact polish suitable for most telecommunications and enterprise applications.
5. Are FC fibre pigtails available in Single Mode and Multimode?
Yes. Fiber Optics Kenya supplies OS2 Single Mode and OM2, OM3, and OM4 Multimode FC fibre pigtails.
6. Where are FC fibre pigtails commonly used?
They are widely used in telecommunications, CATV systems, optical test laboratories, ODFs, enterprise networks, industrial automation, and fibre optic backbone installations.
7. Why buy FC fibre pigtails from Fiber Optics Kenya?
Fiber Optics Kenya offers genuine fibre optic products, competitive pricing, expert technical support, professional installation services, nationwide delivery, and dependable after-sales support.
8. Do you deliver FC fibre pigtails across Kenya?
Yes. We supply and deliver FC fibre pigtails throughout Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Nyeri, Machakos, Meru, Kakamega, Kisii, Bungoma, Kitale, and all counties across Kenya.
Contact Fiber Optics Kenya Today
Whether you require FC fibre pigtails for telecommunications, CATV, enterprise networking, industrial automation, or optical testing applications, Fiber Optics Kenya is your trusted supplier of premium fibre optic networking products.
Our Contact Information
Location:
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
Phone Number:
Call/Text/WhatsApp: +254 704 991 492
Email:
info@fibreopticskenya.co.ke
FC fibre pigtails provide a secure, reliable, and high-performance solution for permanent fibre optic terminations in demanding networking environments. Their threaded metal connector design, factory-polished ferrules, and excellent optical characteristics make them ideal for telecommunications, CATV, industrial applications, and optical testing.
Choose Fiber Optics Kenya for genuine FC fibre pigtails, competitive prices, expert technical guidance, nationwide delivery, and professional fibre optic installation services. Contact us today for a free quotation and let our experienced team help you build a reliable, high-performance, and future-ready fibre optic network.
