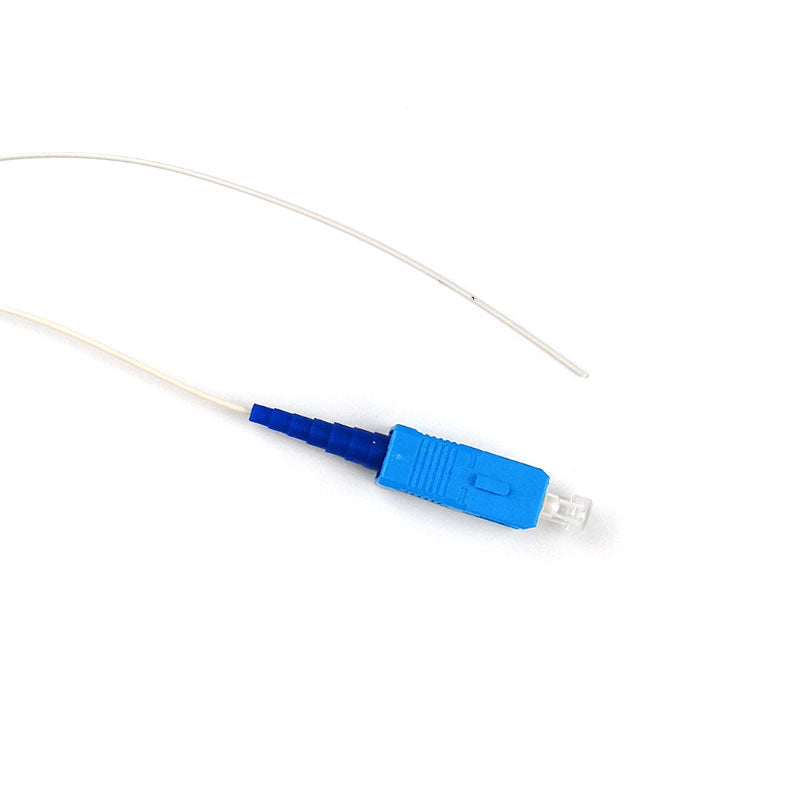

SC/UPC Simplex Single Mode Fibre Pigtail in Kenya
KSh 70.00
1 available
Continue shoppingSC/UPC Simplex Single Mode Fibre Pigtail in Kenya
The SC/UPC Simplex Single Mode Fibre Pigtail is a factory-terminated optical fibre lead designed for professional fibre termination through fusion splicing. It has a blue SC/UPC connector on one end and an unterminated bare fibre end on the other, allowing installers to splice it directly onto incoming single-mode fibre inside an ODF, fibre distribution box, patch panel, termination enclosure or splice tray.
Modern SC/UPC single-mode pigtails are commonly manufactured using OS2 9/125 µm fibre, with G.652.D, G.657.A1 and G.657.A2 fibre options available depending on the application. Corning lists SC UPC simplex single-mode OS2 pigtails with 900 µm tight-buffered construction, while CommScope offers single-fibre SC/UPC pigtails using G.657.A2 fibre and yellow LSZH construction.
At Fiber Optics Kenya, SC/UPC Simplex Single Mode Fibre Pigtails are ideal for ISPs, fibre contractors, telecommunications companies, enterprises, campuses, CCTV fibre installations and other organisations requiring clean and reliable single-mode fibre termination. Matching SC/UPC adapters, splice sleeves, ODFs, fibre boxes, patch cords, media converters, SFP modules and fibre testing accessories can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | SC/UPC Simplex Single Mode Fibre Pigtail |
| Product Type | Fibre Optic Pigtail |
| Connector Type | SC/UPC |
| Connector Polish | UPC |
| Typical Connector Colour | Blue |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | 9/125 µm |
| Common Fibre Types | G.652.D / G.657.A1 / G.657.A2 |
| Configuration | Simplex |
| Fibre Count | 1 |
| Connectorized Ends | 1 |
| Bare Fibre End | Yes |
| Typical Buffer Diameter | 900 µm / 0.9 mm |
| Typical Buffer Colour | Yellow |
| Common Lengths | 1 m / 1.5 m / 2 m / 3 m |
| Typical Jacket Type | LSZH / tight-buffered construction |
| Common Wavelengths | 1310 nm / 1550 nm |
| Typical Insertion Loss | Low; model dependent |
| Typical UPC Return Loss | High; model dependent |
| Primary Installation Method | Fusion splicing |
| Applications | ODF, FTTH, LAN, telecom, FDB, patch panel |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Corning's pigtail portfolio specifically includes SC UPC Simplex, Single-mode OS2 pigtails in 900 µm LSZH construction, while commercial SC/UPC pigtails are also available in 1 m, 2 m and 3 m formats.
What Is an SC/UPC Fibre Pigtail?
A fibre pigtail differs from a normal fibre patch cord because only one end has a connector.
| Feature | SC/UPC Fibre Pigtail |
|---|---|
| Connectorized End | SC/UPC |
| Opposite End | Bare fibre |
| Number of Fibres | 1 |
| Fibre Mode | Single Mode |
| Typical Fibre Size | 9/125 µm |
| Primary Purpose | Fibre termination |
| Installation Method | Fusion splicing |
| Typical Location | ODF / FDB / Patch Panel / Splice Tray |
The bare fibre end is normally fusion-spliced to the installed cable fibre, while the factory-polished SC/UPC connector plugs into an SC/UPC adapter.
What Does SC/UPC Simplex Single Mode Mean?
| Term | Meaning |
|---|---|
| SC | Standard / Subscriber Connector |
| UPC | Ultra Physical Contact |
| SC/UPC | SC connector using UPC-polished ferrule |
| Simplex | One optical fibre |
| Single Mode | Fibre designed for single-mode transmission |
| 9/125 | Approx. 9 µm core and 125 µm cladding |
| OS2 | Single-mode optical fibre category |
| Pigtail | Connector on one end and bare fibre on the other |
SC/UPC Connector Features
The SC/UPC connector is widely used in telecom, LAN, optical distribution and fibre testing systems.
| Feature | Description |
|---|---|
| Connector Type | SC |
| Polish Type | UPC |
| Typical Colour | Blue |
| Ferrule Diameter | Approx. 2.5 mm |
| Ferrule Material | Ceramic commonly |
| Connection Mechanism | Push-Pull |
| Fibre Mode | Single Mode |
| ODF Compatibility | Excellent |
| Patch Panel Compatibility | Excellent |
| Telecommunications Use | Excellent |
| Media Converter Use | Very Common |
Commercial SC/UPC single-mode pigtails are readily identifiable by their yellow fibre and blue connector housing.
9/125 Single Mode Fibre Explained
The 9/125 designation describes the approximate dimensions of the optical fibre.
| Fibre Component | Typical Diameter |
|---|---|
| Optical Core | Approx. 9 µm |
| Cladding | 125 µm |
| Tight Buffer | 900 µm / 0.9 mm commonly |
This small core enables single-mode fibre to support very long optical distances when compared with conventional multimode fibre.
OS2 Single Mode Fibre Characteristics
| Characteristic | Typical Description |
|---|---|
| Fibre Category | OS2 |
| Fibre Mode | Single Mode |
| Typical Core / Cladding | 9/125 µm |
| Typical Colour | Yellow |
| Common Wavelengths | 1310 / 1550 nm |
| Attenuation | Low |
| Long-Distance Networks | Excellent |
| Telecommunications | Excellent |
| ISP Networks | Excellent |
| Enterprise LANs | Excellent |
| Campus Networks | Excellent |
Corning specifically categorises its SC UPC simplex pigtails as single-mode OS2 products for indoor fibre networks and fibre-to-the-premises applications.
G.652D vs G.657A1 vs G.657A2 Pigtails
| Feature | G.652D | G.657A1 | G.657A2 |
|---|---|---|---|
| Mode | Single Mode | Single Mode | Single Mode |
| Typical Size | 9/125 µm | 9/125 µm | 9/125 µm |
| Long-Distance Performance | Excellent | Excellent | Excellent |
| Bend Resistance | Standard | Improved | More Improved |
| ODF Installation | Excellent | Excellent | Excellent |
| Compact Fibre Boxes | Good | Better | Excellent |
| FTTH Applications | Good | Excellent | Excellent |
| Indoor Routing | Excellent | Excellent | Excellent |
CommScope lists SC/UPC single-mode pigtails using G.657.A2, while its broader pigtail portfolio also includes G.652.D and G.657.A1 single-mode products.
Typical Optical Performance
| Optical Parameter | Typical / Representative Description |
|---|---|
| Fibre Mode | Single Mode |
| Fibre Size | 9/125 µm |
| Common Fibre Grade | OS2 |
| Connector Type | SC/UPC |
| Operating Wavelength | 1310 nm |
| Operating Wavelength | 1550 nm |
| Insertion Loss | Typically around 0.2–0.3 dB depending on product |
| Return Loss | High for UPC termination |
| Transmission Distance | Determined by network optics |
| Ethernet Compatibility | Depends on connected transceivers |
One commercial 1 m OS2 SC pigtail specifies 0.25 dB insertion loss, while another SC/UPC G.657A2 pigtail specifies insertion loss below 0.2 dB. Exact performance varies by manufacturer.
Typical Mechanical Characteristics
| Parameter | Typical Description |
|---|---|
| Configuration | Simplex |
| Fibre Count | 1 |
| Connector | SC/UPC |
| Connector Colour | Blue |
| Fibre Colour | Yellow |
| Buffer Diameter | 0.9 mm commonly |
| Fibre Type | OS2 |
| Cable Construction | Tight Buffered |
| Jacket Type | LSZH / model dependent |
| Ferrule Material | Ceramic commonly |
| Installation Method | Fusion Splicing |
| Available Lengths | Model dependent |
Corning manufactures its simplex pigtail family with 900 µm tight-buffered construction, while CommScope also offers yellow single-fibre SC/UPC pigtails with LSZH designs.
SC/UPC vs SC/APC Fibre Pigtail
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Connector Colour | Blue | Green |
| Polish Type | Ultra Physical Contact | Angled Physical Contact |
| End-Face Geometry | Non-angled polished contact | Angled polished contact |
| Return Reflection | Low | Lower |
| Enterprise LAN | Very Common | Application dependent |
| Telecommunications | Excellent | Excellent |
| FTTH / PON | Used | Very Common |
| CATV | Less preferred | Excellent |
| Direct UPC-to-APC Connection | No | No |
Choose SC/UPC only where the adapter or equipment uses a compatible UPC interface. UPC and APC connectors should not be directly mated.
SC/UPC Pigtail vs SC/UPC Patch Cord
| Feature | SC/UPC Pigtail | SC/UPC Patch Cord |
|---|---|---|
| Connectorized Ends | 1 | 2 |
| Bare Fibre End | Yes | No |
| Requires Fusion Splicing | Yes | No |
| Primary Use | Fibre termination | Equipment connection |
| ODF Use | Excellent | Used after termination |
| Patch Panel Use | Excellent | Excellent |
| Factory Polished | Connector end | Both ends |
| Common Length | 1–3 m | Wide range |
Why Use Fusion-Spliced Pigtails?
Pigtails are commonly used to create professional, permanent terminations inside fibre enclosures.
| Advantage | Benefit |
|---|---|
| Factory-Polished Connector | Consistent connector quality |
| Fusion-Spliced Joint | Low-loss permanent connection |
| Organized Termination | Suitable for ODFs and trays |
| Easy Adapter Connection | Standard SC interface |
| Replaceable Patch Cord | Permanent fibre remains protected |
| Professional Cable Management | Cleaner fibre distribution |
| Scalable Installation | Suitable for multi-core fibre cables |
Key Benefits of SC/UPC Simplex Single Mode Fibre Pigtail
Factory-Polished SC/UPC Connector
The connector is terminated and polished during manufacturing, helping provide consistent optical performance.
Professional Fusion-Splice Termination
The bare fibre end can be fusion-spliced directly to installed single-mode fibre.
OS2 Single-Mode Performance
OS2 fibre is well suited to long-distance optical infrastructure and high-bandwidth networks.
G.657 Bend-Insensitive Options
G.657A1 and G.657A2 pigtails can simplify routing inside compact ODFs and fibre boxes.
Easy Connector Identification
SC/UPC connectors are commonly blue, helping installers distinguish them from green APC interfaces.
Simplex Design
A single fibre makes the pigtail suitable for terminating individual fibres within multi-core optical cables.
Multiple Length Options
Different lengths allow installers to match the size of the ODF, splice tray or enclosure.
Watch SC/UPC Simplex Single Mode Fibre Pigtail
Watch on YouTube: https://youtu.be/fPoOJwUxwGw
The SC/UPC Simplex Single Mode Fibre Pigtail provides an effective way to terminate installed optical fibre while retaining the precision of a factory-polished connector. One end has the familiar blue SC/UPC connector, while the other remains unterminated so technicians can fusion-splice it onto the required fibre. Corning offers SC UPC simplex OS2 pigtails specifically for this type of network termination.
Modern versions can use G.652D, G.657A1 or G.657A2 single-mode fibre, depending on installation requirements. G.657 variants are particularly useful where the pigtail must be routed through compact trays, ODFs and termination boxes because of their improved bend performance. CommScope currently lists single-fibre SC/UPC G.657A2 pigtails with yellow LSZH construction.
For fibre installers, combining a factory-terminated pigtail with fusion splicing provides a practical and professional way to finish backbone, distribution and access fibres. Fiber Optics Kenya can supply SC/UPC pigtails together with SC/UPC adapters, fusion splice sleeves, ODFs, splice trays, patch cords, media converters and optical testing tools, helping installers source the components required for complete fibre termination projects.
Applications of SC/UPC Simplex Single Mode Fibre Pigtail
1. Optical Distribution Frames
Fusion-splice installed fibre onto the pigtail and connect the SC/UPC end to the ODF adapter.
2. Fibre Patch Panels
Create connectorized SC/UPC ports from incoming bare fibres.
3. Telecommunications Networks
Terminate single-mode fibres in telecommunications racks and distribution systems.
4. ISP Infrastructure
Use inside ODFs, cabinets and network distribution enclosures.
5. Enterprise LANs
Terminate single-mode backbone connections in communications rooms.
6. Fibre Distribution Boxes
Organize and terminate individual fibres inside distribution enclosures.
7. CCTV Fibre Systems
Terminate single-mode links for compatible optical CCTV equipment.
8. Campus Fibre Networks
Terminate building-to-building backbone fibres.
9. Data and Server Rooms
Provide organized single-mode fibre interfaces inside network racks.
10. Fibre Testing and Maintenance
Create standardized SC/UPC interfaces for testing and troubleshooting.
Typical ODF Termination Process
| Step | Installation Process |
|---|---|
| 1 | Route fibre cable into the ODF |
| 2 | Remove outer cable sheath |
| 3 | Prepare the individual optical fibre |
| 4 | Strip SC/UPC pigtail bare end |
| 5 | Clean both fibres |
| 6 | Precision-cleave both fibres |
| 7 | Fusion-splice fibre to pigtail |
| 8 | Protect splice using heat-shrink sleeve |
| 9 | Arrange splice in fibre tray |
| 10 | Plug SC/UPC connector into adapter |
| 11 | Clean connector interface |
| 12 | Test optical loss |
SC/UPC Pigtail vs Fast Connector
| Feature | Fusion-Spliced Pigtail | Fast Connector |
|---|---|---|
| Connector Polish | Factory polished | Factory-prepared internal interface |
| Fibre Joint | Fusion splice | Mechanical termination |
| Consistency | Excellent when properly spliced | Installation dependent |
| Fusion Splicer Required | Yes | No |
| Installation Speed | Moderate | Faster |
| ODF Use | Excellent | Good |
| Permanent Infrastructure | Excellent | Good |
| Professional Backbone Termination | Common | Application dependent |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Adapter | Provides connector coupling |
| Fusion Splice Sleeve | Protects completed splice |
| Fibre Splice Tray | Organizes fibre and pigtails |
| Fibre ODF | Provides structured fibre termination |
| Fibre Patch Panel | Rack-mounted termination |
| SC/UPC Patch Cord | Connects terminated fibre to equipment |
| Fibre Distribution Box | Protects fibre terminations |
| Fibre Stripper | Removes fibre coating |
| Precision Cleaver | Prepares fibre for splicing |
| Fusion Splicer | Creates low-loss permanent splice |
| Optical Power Meter | Measures optical signal |
| Visual Fault Locator | Helps trace fibre faults |
| OTDR | Tests single-mode fibre links |
| SC Connector Cleaner | Keeps connector ferrule clean |
Why Buy SC/UPC Simplex Single Mode Fibre Pigtail from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| SC/UPC Pigtail Options | Reliable fibre termination |
| OS2 Single Mode Options | Suitable for professional networks |
| G.657 Fibre Options | Better bend performance |
| Multiple Lengths | Match different enclosure sizes |
| SC/UPC Adapters | Compatible accessories available |
| Splicing Accessories | Complete termination solution |
| ODFs & Patch Panels | Build professional fibre distribution |
| Testing Equipment | Support installation and maintenance |
| Technical Guidance | Help selecting compatible components |
| Bulk Supply | Suitable for ISPs and installers |
| Competitive Pricing | Cost-effective project procurement |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an SC/UPC Simplex Single Mode Fibre Pigtail?
It is a single fibre lead with an SC/UPC connector on one end and bare fibre on the other, designed primarily for fusion-splice termination.
What does simplex mean?
Simplex means the pigtail contains one optical fibre.
Is SC/UPC single mode?
Yes. SC/UPC connectors are widely available on single-mode OS2 pigtails. Corning currently lists SC UPC simplex single-mode OS2 pigtail products.
What colour is the SC/UPC connector?
SC/UPC connectors are commonly blue.
What colour is a single-mode pigtail?
Single-mode pigtails commonly use yellow fibre or buffer identification.
What fibre size is normally used?
Single-mode SC/UPC pigtails commonly use approximately 9/125 µm fibre.
What is the common buffer size?
A 900 µm / 0.9 mm tight buffer is common in professional fibre pigtails. Corning specifically offers SC UPC simplex products in 900 µm construction.
Is G.652D available?
Yes. Commercial SC/UPC 9/125 pigtails using G.652D fibre are available.
Is G.657A2 available?
Yes. CommScope lists SC/UPC single-mode pigtails using G.657.A2 fibre, and commercial versions are also available from other manufacturers.
What is the typical insertion loss?
Depending on the product, SC/UPC pigtails can specify insertion loss around 0.2–0.3 dB.
What is the difference between SC/UPC and SC/APC?
SC/UPC normally uses a blue connector with an Ultra Physical Contact polish, while SC/APC normally uses a green connector with an angled polish.
Can SC/UPC connect directly to SC/APC?
No. The connector end-face geometries differ and should not be directly mated.
Does a fibre pigtail require splicing?
Yes. The bare end is normally fusion-spliced to the installed optical fibre.
Can it be installed in an ODF?
Yes. ODF termination is one of the primary uses of fibre pigtails.
Can it be used in a fibre patch panel?
Yes. The pigtail can be fusion-spliced to the incoming fibre and connected to an SC/UPC adapter mounted in the patch panel.
Is SC/UPC suitable for FTTH?
Yes where the installed infrastructure uses UPC interfaces. Some PON networks instead use SC/APC, so connector polish should always be matched correctly.
What lengths are available?
Commercial SC/UPC pigtails are available in lengths including 1 m, 1.5 m, 2 m and 3 m, depending on manufacturer.
Do you supply SC/UPC adapters?
Yes. Fiber Optics Kenya can supply compatible SC/UPC adapters and termination accessories.
Do you supply fusion splice sleeves?
Yes. Splice protection sleeves can be supplied for ODF and fibre-box installations.
Do you supply ODFs and patch panels?
Yes. Compatible ODFs, fibre patch panels and fibre enclosures can be supplied.
Do you provide fibre splicing and termination?
Yes. Professional fibre installation, fusion splicing, termination and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The SC/UPC Simplex Single Mode Fibre Pigtail provides a clean and dependable solution for fusion-splice termination in ODFs, patch panels, telecom and enterprise fibre networks.
Contact Fiber Optics Kenya for competitive pricing, SC/UPC accessories, ODFs, fibre termination products, bulk orders and nationwide delivery across Kenya.
