LC Fibre Pigtails Price in Kenya
LC fibre pigtails are premium fibre optic termination cables featuring an LC connector on one end and a bare optical fibre on the other, making them ideal for permanent fibre terminations through fusion splicing. Due to their compact Small Form Factor (SFF) design, LC fibre pigtails are widely used in high-density fibre optic installations such as data centres, enterprise LANs, optical distribution frames (ODFs), FTTH deployments, telecommunications networks, and fibre termination boxes.
At Fiber Optics Kenya, we supply high-quality LC/UPC and LC/APC fibre pigtails manufactured using premium Single Mode (OS2) and Multimode (OM2, OM3, and OM4) optical fibres. Every LC fibre pigtail is factory polished and tested to ensure low insertion loss, excellent return loss, and dependable long-term performance. Their compact LC connector design makes them ideal for modern high-density networking equipment including switches, routers, SFP modules, patch panels, and fibre distribution frames.
Our product range includes LC/APC, LC/UPC, OS2 Single Mode, OM2, OM3, OM4, G657A2 Bend-Insensitive, and 12-colour LC pigtail kits, suitable for professional fibre optic installations of every size.

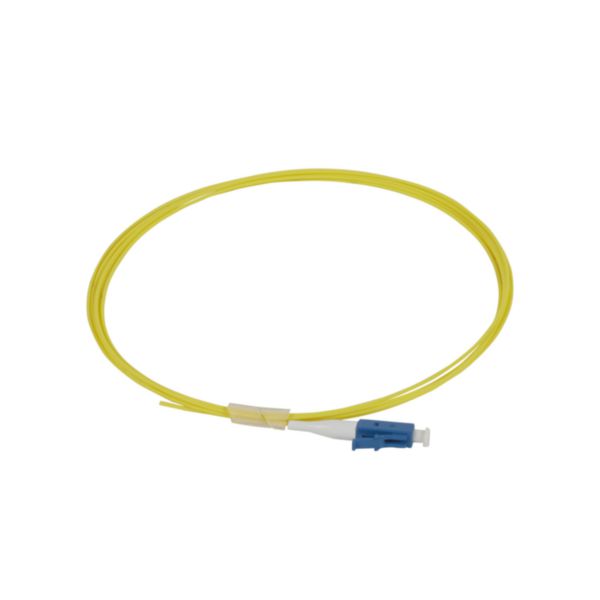

LC Fibre Pigtail Image
LC Fibre Pigtails Price List in Kenya
| LC Fibre Pigtail | Approximate Price (KES) |
|---|---|
| LC/UPC Single Mode Pigtail | 100 – 220 |
| LC/APC Single Mode Pigtail | 120 – 250 |
| LC Multimode OM2 | 120 – 240 |
| LC Multimode OM3 | 150 – 300 |
| LC Multimode OM4 | 180 – 350 |
| 12 Core LC Pigtail Kit | 1,500 – 3,000 |
| LC G657A2 Bend Insensitive | 150 – 280 |
| Armoured LC Pigtail | 250 – 500 |
| Custom LC Fibre Pigtail | Available on Request |
Note: Prices vary depending on fibre type, connector polish, fibre standard, and quantity ordered. Special discounts are available for bulk orders.
LC Fibre Pigtail Specifications
| Specification | Details |
|---|---|
| Connector Type | LC/APC or LC/UPC |
| Fibre Type | OS2, OM2, OM3, OM4 |
| Fibre Size | 9/125µm, 50/125µm, 62.5/125µm |
| Cable Diameter | 0.9mm Tight Buffered |
| Connector Ferrule | Zirconia Ceramic |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB (APC), ≥50 dB (UPC) |
| Standard Length | 1.5 Metres |
| Operating Temperature | -20°C to +70°C |
| Standards | IEC, TIA/EIA, RoHS |
Types of LC Fibre Pigtails
| LC Fibre Pigtail | Recommended Application |
|---|---|
| LC/APC OS2 | FTTH & GPON Networks |
| LC/UPC OS2 | Enterprise Networks |
| LC OM3 | Data Centres |
| LC OM4 | High-Speed Networks |
| Bend-Insensitive LC | Fibre Distribution Boxes |
| Armoured LC Pigtail | Industrial Installations |
| 12 Core LC Kit | ODF Terminations |
Features of LC Fibre Pigtails
Compact LC Small Form Factor connector
Factory-polished connector
APC and UPC polishing options
Low insertion loss
High return loss
Precision zirconia ceramic ferrule
Tight-buffered fibre construction
Single Mode and Multimode versions
Ideal for fusion splicing
Factory-tested optical performance
Benefits of LC Fibre Pigtails
| Benefit | Description |
|---|---|
| High-Density Connectivity | Compact LC connector maximises port density |
| Reliable Fibre Termination | Factory-polished connector ensures low optical loss |
| Easy Fusion Splicing | Simplifies permanent fibre installations |
| Excellent Optical Performance | Stable long-term signal quality |
| Broad Equipment Compatibility | Compatible with modern networking equipment |
| Cost-Effective Installation | Reduces field termination time |
| Long Service Life | Durable construction for years of reliable operation |
| Future-Proof Networking | Supports high-speed optical networks |
Applications of LC Fibre Pigtails
LC fibre pigtails are widely used in:
Data Centres
Enterprise Networks
FTTH Networks
GPON & EPON Systems
Optical Distribution Frames (ODFs)
Fibre Patch Panels
Fibre Distribution Boxes
Telecommunications Networks
Internet Service Providers (ISPs)
Cloud Computing Infrastructure
Server Rooms
Educational Institutions
Government Networks
High-Speed Ethernet Networks
Why Buy LC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya supplies genuine LC fibre pigtails manufactured to international quality standards for dependable optical performance. Every LC pigtail is precision factory polished and rigorously tested before delivery to ensure low insertion loss, excellent return loss, and reliable long-term operation.
Our experienced fibre optic engineers help customers select the correct LC connector type, polishing option, fibre specification, and accessories required for each installation. Whether you require LC pigtails for enterprise networking, FTTH, telecommunications, or data centre infrastructure, we provide expert technical support, competitive pricing, and fast nationwide delivery.
Besides LC fibre pigtails, Fiber Optics Kenya also stocks fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing machines, and complete fibre optic networking solutions.
LC Fibre Pigtail Buying Guide
| Project Type | Recommended LC Pigtail |
|---|---|
| Data Centre | LC/UPC OM4 |
| Enterprise LAN | LC/UPC OS2 |
| FTTH GPON | LC/APC OS2 |
| ODF Installation | 12 Core LC Kit |
| Industrial Network | Armoured LC Pigtail |
| Cloud Infrastructure | Bend-Insensitive LC |

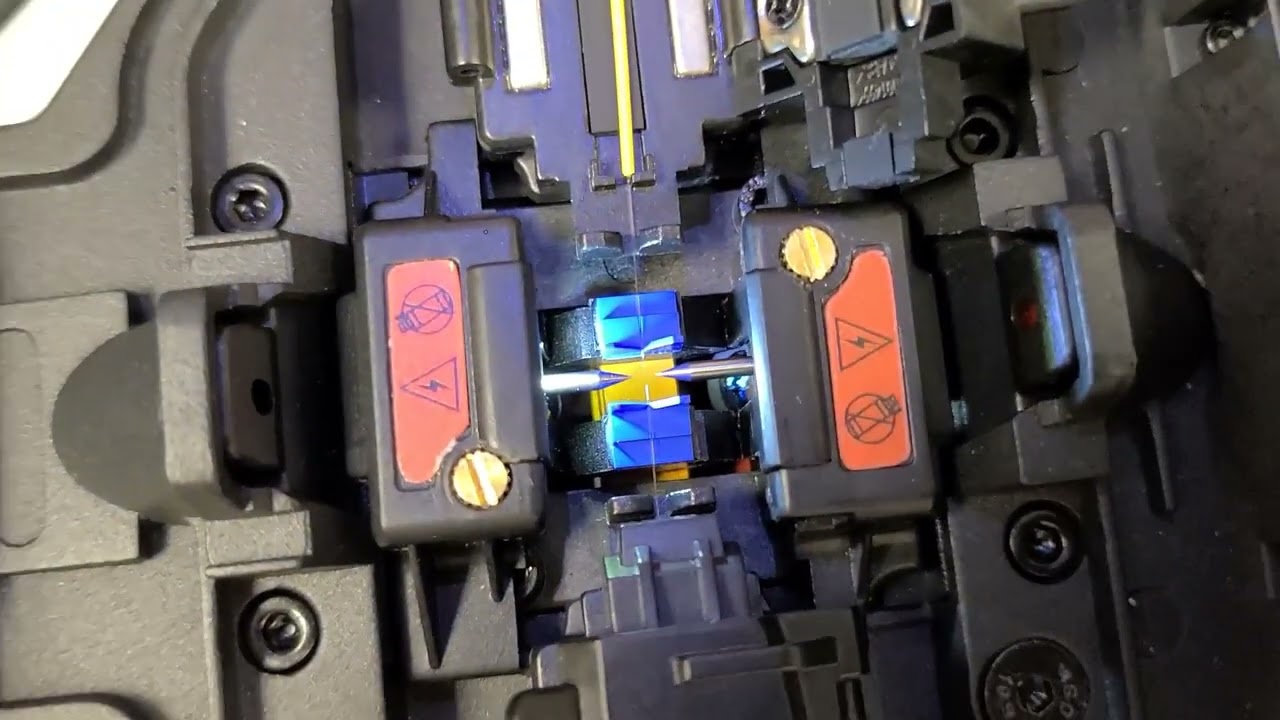

Watch LC Fibre Pigtail Installation
YouTube Video
Video Thumbnail
LC fibre pigtails have become the preferred choice for modern fibre optic installations because their compact connector design allows significantly higher port density than larger connector types. The video above demonstrates how LC fibre pigtails are fusion spliced and installed in optical distribution frames, fibre termination boxes, patch panels, and data centre cabinets to create permanent, low-loss fibre optic connections.
Unlike fibre patch cords that have connectors at both ends, LC fibre pigtails feature a factory-terminated LC connector on one end and a bare fibre on the other for fusion splicing. This provides more consistent optical performance, lower insertion loss, and improved long-term reliability compared to field-installed connectors. LC connectors are particularly popular in high-density data centres, enterprise networks, GPON systems, and cloud computing environments because of their compact size and outstanding performance.
At Fiber Optics Kenya, we supply premium LC fibre pigtails together with fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing services, and complete fibre optic networking solutions. Our experienced fibre engineers provide expert consultation, professional installation support, and nationwide delivery to ensure every fibre project is completed to the highest standards.
Frequently Asked Questions (FAQs)
1. What is an LC fibre pigtail?
An LC fibre pigtail is a fibre optic cable with an LC connector on one end and a bare fibre on the other, designed for permanent fusion splicing.
2. What is the price of LC fibre pigtails in Kenya?
LC fibre pigtails typically cost between KES 100 and KES 350, depending on the fibre type, connector polish, and specification.
3. What is the difference between LC/APC and LC/UPC?
LC/APC connectors have an angled end face that reduces back reflection, while LC/UPC connectors have a flat polished surface suitable for most enterprise and data centre applications.
4. Why are LC connectors popular?
LC connectors have a compact Small Form Factor (SFF) design that allows twice the connection density of larger connectors such as SC, making them ideal for data centres and high-density networking.
5. Are LC fibre pigtails available in Single Mode and Multimode?
Yes. Fiber Optics Kenya supplies OS2 Single Mode and OM2, OM3, and OM4 Multimode LC fibre pigtails.
6. Where are LC fibre pigtails commonly used?
They are commonly used in data centres, enterprise networks, FTTH, GPON systems, ODFs, patch panels, telecommunications, cloud infrastructure, and server rooms.
7. Why buy LC fibre pigtails from Fiber Optics Kenya?
Fiber Optics Kenya offers genuine fibre optic products, competitive prices, expert technical support, professional installation services, nationwide delivery, and dependable after-sales support.
8. Do you deliver LC fibre pigtails across Kenya?
Yes. We supply and deliver LC fibre pigtails throughout Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Nyeri, Machakos, Meru, Kakamega, Kisii, Bungoma, Kitale, and all counties across Kenya.
Contact Fiber Optics Kenya Today
Whether you require LC fibre pigtails for data centres, FTTH, enterprise networking, GPON, or telecommunications infrastructure, Fiber Optics Kenya is your trusted supplier of premium fibre optic networking products.
Our Contact Information
Location:
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
Phone Number:
Call/Text/WhatsApp: +254 704 991 492
Email:
info@fibreopticskenya.co.ke
LC fibre pigtails provide a reliable, low-loss, and space-efficient solution for permanent fibre optic terminations in modern networking environments. Their compact design, factory-polished connectors, and compatibility with high-density fibre infrastructure make them the preferred choice for data centres, FTTH deployments, enterprise networks, and telecommunications systems.
Choose Fiber Optics Kenya for genuine LC fibre pigtails, competitive prices, expert technical guidance, nationwide delivery, and professional fibre optic installation services. Contact us today for a free quotation and let our experienced team help you build a reliable, scalable, and future-ready fibre optic network.
