MM LC-LC Fibre Patch Cord 3m in Kenya
KSh 1,950.00
1 available
Continue shoppingMM LC-LC Fibre Patch Cord 3m in Kenya
The MM LC-LC Fibre Patch Cord 3m is a factory-terminated multimode fibre optic cable designed for connecting network equipment fitted with LC optical interfaces. With LC/UPC connectors on both ends and a practical 3-metre cable length, it is suitable for switches, servers, patch panels, SFP/SFP+ modules, storage systems, ODFs and other fibre equipment installed within network cabinets, server rooms and data centres.
Modern multimode LC-LC patch cords are commonly available in OM3 and OM4 50/125 µm fibre, although OM1, OM2 and OM5 variants also exist for particular network requirements. Corning currently offers a 3 m OM3 multimode LC UPC duplex-to-LC UPC duplex patch cord, while OM4 3 m LC-LC configurations are also available.
At Fiber Optics Kenya, the MM LC-LC Fibre Patch Cord 3m is suitable for enterprise LANs, data centres, server rooms, ISPs, CCTV networks, schools, hospitals and commercial fibre networks. Customers can also source compatible LC adapters, multimode pigtails, fibre patch panels, SFP modules and other networking accessories.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | MM LC-LC Fibre Patch Cord 3m |
| Product Type | Multimode Fibre Optic Patch Cord |
| Connector A | LC/UPC |
| Connector B | LC/UPC |
| Cable Length | 3 Metres |
| Fibre Mode | Multimode |
| Common Fibre Categories | OM1 / OM2 / OM3 / OM4 / OM5 |
| Common Modern Options | OM3 / OM4 |
| OM3 / OM4 Fibre Size | 50/125 µm |
| Typical Configuration | Duplex |
| Connector Polish | UPC |
| Typical OM3 Jacket Colour | Aqua |
| Typical OM4 Jacket Colour | Aqua / Violet depending on manufacturer |
| Typical Cable Diameter | 2.0 mm |
| Common Jacket Types | LSZH / OFNR / PVC depending on model |
| Common Wavelengths | 850 nm / 1300 nm |
| Primary Applications | LAN, data centre, SFP, switches, servers |
| Installation Environment | Indoor |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
A current Corning OM3 3 m LC-LC duplex patch cord uses 50/125 µm multimode fibre and a 2.0 mm cable construction.
What Does MM LC-LC Mean?
| Term | Meaning |
|---|---|
| MM | Multimode Fibre |
| LC | Small-form-factor fibre connector |
| LC-LC | LC connector at both ends |
| UPC | Ultra Physical Contact polish |
| Patch Cord | Factory-terminated fibre interconnection cable |
| 3m | Cable length is 3 metres |
The LC connector's compact design makes it particularly useful for network switches and high-density fibre patch panels.
LC Connector Features
LC connectors are widely used in modern optical networking because they provide a compact interface suitable for high-density equipment.
| LC Feature | Network Benefit |
|---|---|
| Small Form Factor | Supports high port density |
| 1.25 mm Ferrule | Compact optical connection |
| Latch Mechanism | Secure connection |
| SFP Compatibility | Widely used with SFP/SFP+ modules |
| Duplex Design | Supports transmit and receive fibres |
| Data Centre Use | Excellent |
| Enterprise LAN Use | Excellent |
| Patch Panel Use | Excellent |
Multimode Fibre Categories
| Fibre Grade | Core / Cladding | Typical Application |
|---|---|---|
| OM1 | 62.5/125 µm | Legacy multimode networks |
| OM2 | 50/125 µm | Standard LAN installations |
| OM3 | 50/125 µm | High-speed laser-optimized Ethernet |
| OM4 | 50/125 µm | Higher-bandwidth data-centre networking |
| OM5 | 50/125 µm | Wideband multimode applications |
For modern high-speed installations, OM3 and OM4 are generally the most relevant options. Corning's current product line includes 3 m OM3 and OM4 LC-LC patch cords.
OM3 Multimode Fibre Characteristics
| Characteristic | Typical Description |
|---|---|
| Fibre Category | OM3 |
| Fibre Mode | Multimode |
| Core Diameter | 50 µm |
| Cladding Diameter | 125 µm |
| Laser Optimized | Yes |
| Typical Jacket Colour | Aqua |
| Primary Wavelength | 850 nm |
| Secondary Wavelength | 1300 nm |
| 10GbE Suitability | Excellent |
| 40G / 100G Short Reach | Supported with appropriate optics |
| Data Centre Use | Excellent |
| Enterprise LAN | Excellent |
FS currently positions OM3 fibre patch cable for 10/40/100G Ethernet over short-to-medium multimode distances.
OM3 vs OM4 LC-LC Patch Cord
| Feature | OM3 | OM4 |
|---|---|---|
| Core / Cladding | 50/125 µm | 50/125 µm |
| Laser Optimized | Yes | Yes |
| Typical Jacket | Aqua | Aqua / Violet |
| Modal Bandwidth | High | Higher |
| 10GbE | Excellent | Excellent |
| 40G/100G | Supported | Better reach/headroom |
| Data Centre Networks | Excellent | Excellent |
| Enterprise LAN | Excellent | Excellent |
| Future Upgrade Potential | High | Higher |
OM4 generally provides additional performance headroom for higher-speed multimode networks.
Typical Optical Performance
| Optical Parameter | Typical / Representative Specification |
|---|---|
| Fibre Mode | Multimode |
| Common Fibre Grade | OM3 / OM4 |
| Core / Cladding | 50/125 µm |
| Connector Type | LC/UPC |
| Operating Wavelengths | 850 / 1300 nm |
| Typical Insertion Loss | Around 0.1–0.3 dB depending on model |
| Typical Reflectance / Return Loss | Product dependent |
| 1 Gigabit Ethernet | Supported |
| 10 Gigabit Ethernet | Supported |
| 40 Gigabit Ethernet | Supported with appropriate optics |
| 100 Gigabit Ethernet | Supported with appropriate architecture |
For example, Corning's 3 m OM3 LC UPC uniboot patch cord lists typical insertion loss of 0.1 dB, maximum insertion loss of 0.15 dB and reflectance of ≤ -40 dB.
Typical Mechanical Specifications
| Mechanical Parameter | Representative Specification |
|---|---|
| Cable Length | 3 m |
| Outer Diameter | 2.0 mm |
| Connector Type | LC UPC |
| Ferrule Material | Ceramic |
| Cable Assembly | Two Fibre / Duplex |
| Typical Jacket | LSZH |
| Tensile Strength – Jacketed Cable | 50–70 N depending on model |
| Durability | Up to 500 rematings on representative Corning products |
| Installation Environment | Indoor |
Corning's current 3 m OM3 products specify 2 mm cable diameter, while one standard duplex model lists 70 N tensile strength and its EDGE uniboot version lists 50 N.
Duplex LC-LC Fibre Patch Cord
A standard duplex LC-LC multimode patch cord contains two optical fibres.
| Fibre | Typical Function |
|---|---|
| Fibre A | Transmit |
| Fibre B | Receive |
This is ideal for conventional full-duplex Ethernet links between switches, servers and network equipment.
| Duplex Feature | Benefit |
|---|---|
| Two Optical Fibres | Separate transmit and receive paths |
| LC Pair at Each End | Matches common transceiver interfaces |
| Polarity Control | Maintains Tx/Rx orientation |
| SFP Compatibility | Excellent |
| Ethernet Networks | Excellent |
| Data Centre Use | Excellent |
Why Choose a 3 Metre Patch Cord?
A 3m fibre patch cord provides additional routing flexibility compared with shorter 1m or 2m cables.
| Application | Benefit of 3m Length |
|---|---|
| Switch to Patch Panel | Allows flexible rack routing |
| Rack-to-Rack Connection | Suitable for nearby cabinets |
| SFP to ODF | Provides extra routing distance |
| Server to Switch | Useful across larger cabinets |
| Vertical Cable Management | Allows clean routing through managers |
| Data Centre Cabinets | More flexibility than 1m |
| Testing Equipment | Convenient temporary connection |
| Media Converter Links | Useful where equipment is separated |
1m vs 3m LC-LC Fibre Patch Cord
| Feature | 1m | 3m |
|---|---|---|
| Cable Length | 1 metre | 3 metres |
| Same-Rack Equipment | Excellent | Excellent |
| Large Rack Routing | Limited | Better |
| Nearby Rack Connection | Sometimes short | Better |
| Cable Clutter | Lower | Higher if excess is unused |
| Routing Flexibility | Moderate | High |
| Vertical Cable Manager Use | Limited | Excellent |
| Best For | Very close equipment | Flexible rack layouts |
A 3m cable is a better choice where devices are not directly adjacent or where routing through cable management increases the actual required path.
Key Benefits of MM LC-LC Fibre Patch Cord 3m
High-Speed Multimode Connectivity
OM3 and OM4 versions support modern high-speed Ethernet networks when paired with compatible optical transceivers.
Compact LC Connectors
LC connectors support high port density on switches, patch panels and servers.
Duplex Transmission
Two fibres provide separate Tx and Rx channels for standard optical Ethernet.
Factory Terminated
The connectors are installed and polished during manufacturing, providing a ready-to-use cable.
Flexible 3m Length
Three metres provides greater routing flexibility within and between adjacent racks.
OM3 and OM4 Options
Choose the fibre category according to network speed, distance and installed infrastructure.
Suitable for SFP/SFP+ Modules
Duplex LC is one of the most common connector interfaces used by Ethernet optical transceivers.
Watch MM LC-LC Fibre Patch Cord 3m
Watch on YouTube: https://youtu.be/tWtCAuYwpb0
The MM LC-LC Fibre Patch Cord 3m provides an efficient optical connection between LC-equipped network devices while offering more routing flexibility than shorter one-metre patch leads. A standard modern configuration uses OM3 50/125 µm multimode fibre with LC/UPC duplex connectors, and Corning currently manufactures this configuration in an exact 3 m length.
For high-speed network applications, OM3 and OM4 fibres provide significantly better performance than older multimode generations. OM3 fibre is widely used with 10G and suitable 40G/100G architectures, while OM4 provides additional bandwidth headroom. The patch cord itself should always match the fibre grade of the permanent link and the optical transceivers installed in the equipment.
The 3-metre length is particularly useful in larger racks and telecommunications cabinets because it allows fibre to be routed through horizontal or vertical cable-management systems rather than stretching directly between devices. Fiber Optics Kenya can supply MM LC-LC patch cords together with LC adapters, multimode pigtails, ODFs, patch panels, SFP/SFP+ modules and fibre management accessories for complete network installations.
Applications of MM LC-LC Fibre Patch Cord 3m
1. Data Centre Networks
Connect servers, switches and patch panels within and between nearby network racks.
2. Enterprise LAN Networks
Provide reliable fibre interconnections between switches and telecommunications equipment.
3. SFP and SFP+ Modules
LC duplex interfaces are widely used on multimode optical transceivers.
4. Network Switches
Connect switches using compatible multimode optical modules.
5. Fibre Patch Panels
Connect LC-equipped fibre panels to active networking equipment.
6. Server Rooms
The 3m length provides additional routing flexibility inside larger cabinets.
7. Storage Networks
Connect compatible optical storage and networking equipment.
8. CCTV Networks
Use for multimode fibre interconnections between compatible CCTV network switches.
9. Universities and Hospitals
Suitable for internal campus and building optical network infrastructure.
10. Industrial Networks
Provides optical connectivity in electrically noisy environments where fibre's EMI immunity is valuable.

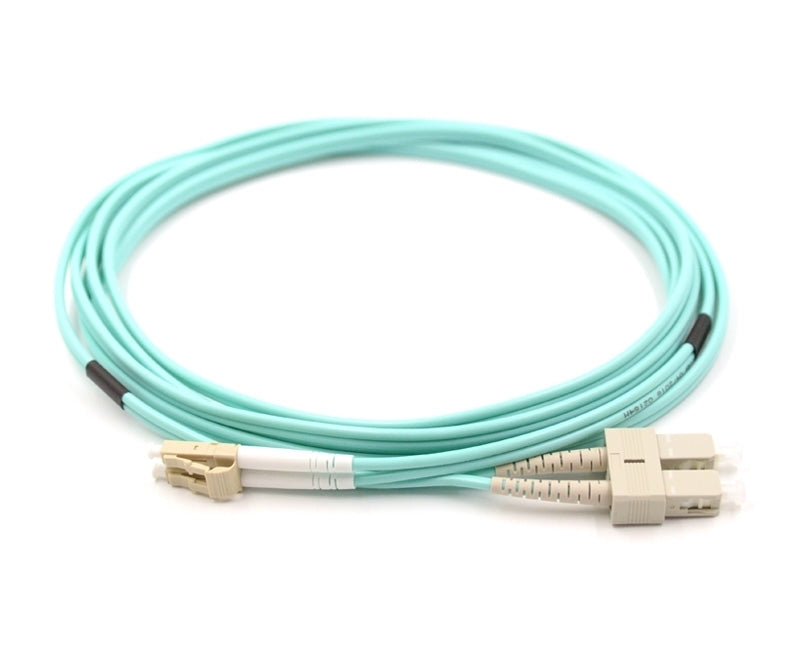

LC-LC vs LC-SC Multimode Patch Cord
| Feature | LC-LC | LC-SC |
|---|---|---|
| Connector A | LC | LC |
| Connector B | LC | SC |
| SFP-to-SFP Connection | Excellent | No |
| LC Patch Panel | Excellent | LC side only |
| SC Patch Panel | Requires another interface | Excellent |
| High-Density Equipment | Excellent | Mixed |
| Data Centres | Very Common | Application dependent |
| Best Use | LC-to-LC equipment | Mixed LC/SC networks |
Multimode vs Single Mode LC-LC Patch Cord
| Feature | Multimode LC-LC | Single Mode LC-LC |
|---|---|---|
| Typical Core Size | 50 µm | Approx. 9 µm |
| Cladding Diameter | 125 µm | 125 µm |
| Typical Wavelengths | 850 / 1300 nm | 1310 / 1550 nm |
| Short High-Speed Links | Excellent | Excellent |
| Long-Distance Links | Limited | Excellent |
| Multimode SFP | Compatible | No |
| Single-Mode SFP | No | Compatible |
| Typical OM3 Jacket | Aqua | Usually Yellow |
Always match the patch cord to the fibre type and transceivers already installed.
OM2 vs OM3 vs OM4 LC-LC Patch Cord
| Feature | OM2 | OM3 | OM4 |
|---|---|---|---|
| Core / Cladding | 50/125 µm | 50/125 µm | 50/125 µm |
| Laser Optimized | Limited | Yes | Yes |
| 10GbE Performance | Lower | Excellent | Excellent |
| 40G/100G Applications | Limited | Supported | Better |
| Data Centre Use | Legacy/moderate | Excellent | Excellent |
| Upgrade Potential | Moderate | High | Higher |
| Typical Jacket | Orange | Aqua | Aqua/Violet |
LC-LC Patch Cord and Optical Transceivers
| Optical Module | Typical Patch Cord Requirement |
|---|---|
| 1000BASE-SX SFP | Multimode LC-LC |
| 10GBASE-SR SFP+ | OM3/OM4 LC-LC |
| 25GBASE-SR SFP28 | Compatible multimode LC-LC |
| Server NIC with LC | LC-LC patch cord |
| Switch with Duplex LC | LC-LC duplex patch cord |
| Media Converter with LC | LC-LC where remote interface is LC |
The optical transceiver specifications ultimately determine the appropriate fibre grade and supported link distance.
Recommended Accessories
| Accessory | Purpose |
|---|---|
| LC Duplex Adapter | Joins LC fibre connectors |
| LC Multimode Pigtail | Fibre termination |
| LC Fibre ODF | Organises optical fibres |
| LC Patch Panel | Provides rack-mounted distribution |
| Multimode SFP Module | Provides optical switch interface |
| SFP+ SR Module | 10G multimode optical connectivity |
| Fibre Splice Tray | Organises fibre terminations |
| Cable Management Panel | Keeps patch cords organised |
| Fibre Cleaner | Cleans connector end faces |
| Optical Power Meter | Measures optical power |
| Visual Fault Locator | Helps trace fibre faults |
| Fibre Tester | Tests installed connections |
Why Buy MM LC-LC Fibre Patch Cord 3m from Fiber Optics Kenya?
Selecting the right patch cord requires matching the connector type, fibre grade, cable length and optical modules used by the network.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| LC-LC Patch Cord Options | Direct LC equipment connections |
| 3m Length | Greater routing flexibility |
| OM3 / OM4 Options | High-speed multimode networking |
| Duplex Options | Suitable for Tx/Rx Ethernet links |
| Compatible SFP Modules | Complete optical connectivity |
| LC Adapters & Pigtails | Matching termination accessories |
| Technical Guidance | Help choosing the correct fibre grade |
| Bulk Supply | Suitable for installers and projects |
| Competitive Pricing | Cost-effective network procurement |
| Professional Installation | Fibre installation support |
| Testing Support | Help verify network performance |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an MM LC-LC Fibre Patch Cord 3m?
It is a 3-metre multimode fibre optic patch cable with LC connectors on both ends, designed to interconnect compatible optical networking equipment.
What does MM mean?
MM means multimode fibre.
How long is this cable?
The patch cord is 3 metres long.
Is a 3m LC-LC multimode patch cord commercially available?
Yes. Corning currently offers both OM3 and OM4 3 m LC UPC duplex-to-LC UPC duplex patch cords.
Is LC-LC usually duplex?
Yes. Ethernet multimode LC-LC patch cords commonly use two fibres, one for transmit and one for receive.
What is OM3?
OM3 is laser-optimized 50/125 µm multimode fibre designed for high-speed network applications.
What colour is OM3 cable?
OM3 patch cords are typically aqua, as seen across current 3m OM3 product examples.
Can OM3 support 10 Gigabit Ethernet?
Yes. OM3 is widely used for 10 Gigabit Ethernet and appropriate higher-speed short-reach applications.
Can it support 40G and 100G?
Yes, with compatible multimode optics and the correct Ethernet architecture.
Is OM4 better than OM3?
OM4 provides greater modal bandwidth and usually greater reach or performance headroom for higher-speed links.
Can OM3 and OM4 be connected?
They use the same 50/125 µm geometry, but mixing fibre categories means overall link performance should be designed around the lowest-performing component.
Can this patch cord connect two switches?
Yes, provided both switches use compatible multimode LC optical transceivers.
Can it connect two SFP+ modules?
Yes, where the SFP+ modules are multimode units such as compatible SR optics.
Is the 3m cable good for server racks?
Yes. The extra length is useful where cables need to pass through horizontal or vertical cable managers before reaching equipment.
Is this cable single mode?
No. This product is multimode. Single-mode LC-LC cables use a different fibre type and typically a different jacket colour.
Do you supply OM4 LC-LC patch cords?
Yes. Fiber Optics Kenya can supply different multimode fibre grades according to network requirements.
Do you supply different lengths?
Yes. Different LC-LC patch-cord lengths can be supplied for different rack and network layouts.
Do you supply LC adapters and pigtails?
Yes. Compatible LC adapters, pigtails, ODFs and patch panels can be supplied.
Do you supply multimode SFP and SFP+ modules?
Yes. Compatible optical modules can be supplied according to the required network speed and fibre grade.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and networking accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The MM LC-LC Fibre Patch Cord 3m provides reliable, high-speed multimode connectivity for switches, SFP modules, servers, patch panels and data-centre equipment while offering more routing flexibility than shorter patch leads.
Contact Fiber Optics Kenya for competitive pricing, OM3 and OM4 options, bulk orders, compatible fibre accessories and nationwide delivery across Kenya.
