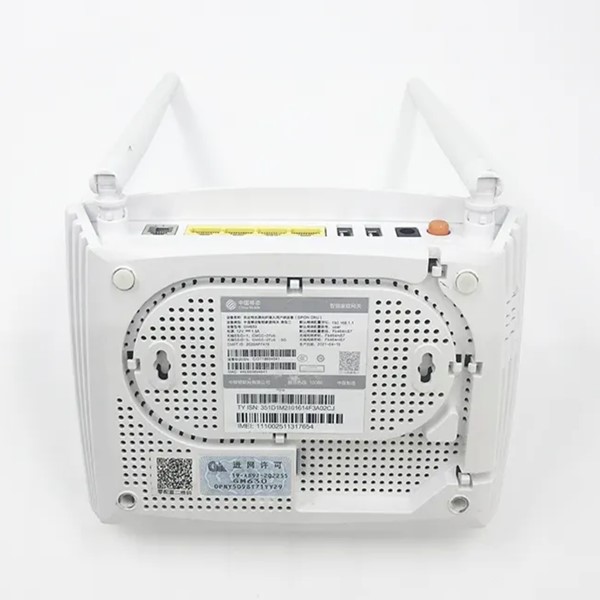

ZTE GM630 XPON Router in Kenya

The ZTE GM630 XPON Router is a fibre subscriber gateway designed for FTTH, GPON, EPON and XPON networks. It combines optical network termination with Ethernet LAN ports and dual-band Wi-Fi, allowing the same unit to receive the fibre connection from an OLT and provide wired and wireless connectivity to homes, offices and ISP subscribers.

GM630 units commonly sold in the market are based on ZTE chipsets or firmware and are often marketed as XPON GPON/EPON ONUs rather than as a standard current ZTE retail model. Third-party listings describe variants with dual-band 2.4 GHz and 5 GHz Wi-Fi, four LAN ports, USB and GPON/EPON operation. Because there are several hardware revisions, the exact LAN-port configuration and firmware should be confirmed before bulk deployment.

ZTE's own 1G PON gateway family supports both EPON and GPON uplinks across different models, with GE, POTS, Wi-Fi and USB interfaces and management through OAM/OMCI, WEB and TR-069. This provides useful technical context for the type of subscriber gateway the GM630 is designed to emulate or implement.

ZTE GM630 XPON Key Specifications

One current GM630 listing specifies dual-band Wi-Fi at 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, four Gigabit LAN ports, USB and XPON support. Another common market configuration uses 1GE + 3FE, which shows why checking the physical unit before purchase matters.

What Is the ZTE GM630 XPON?

The GM630 XPON is installed at the subscriber end of a passive optical fibre network.

A typical FTTH connection is:

Internet → Core Router → OLT → PLC Splitter → FTTH Drop Cable → GM630 → Customer Devices

The GM630 converts the optical PON signal into:

• Ethernet

• 2.4 GHz Wi-Fi

• 5 GHz Wi-Fi

• Local routing

• USB services

• Voice on supported versions

This makes it more versatile than a basic bridge-only ONU.

XPON GPON and EPON Compatibility

The main advantage of an XPON ONU is that compatible versions can work with either GPON or EPON infrastructure.

A configuration video for the GM630 reports operation with VSOL, HSGQ and CDATA third-party OLTs, while Huawei OLT use may require extra compatibility configuration. That should be treated as practical interoperability guidance rather than a universal guarantee.

GPON vs EPON Operation

The PON line rate should not be confused with a customer's actual Internet package speed.

Dual-Band Wi-Fi

One of the strongest features of the GM630 is its dual-band wireless connectivity.

It can provide both:

• 2.4 GHz Wi-Fi

• 5 GHz Wi-Fi

A common AC1200-class version is marketed at approximately 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.

The 5 GHz band is particularly useful for high-speed fibre packages, streaming and applications where nearby Wi-Fi interference is high.

External Wi-Fi Antennas

Most GM630 units shown in current market listings use two external antennas.

These help provide:

• Better coverage

• More stable indoor Wi-Fi

• Improved antenna positioning

• Better performance than some internal-antenna ONUs

Actual range still depends on wall construction, interference, client devices and router placement.

Four Ethernet Ports

Several GM630 variants provide four LAN ports.

However, the exact port speeds differ by revision.

One current seller advertises four Gigabit LAN interfaces, while another documented GM630 inventory lists a 4GE configuration. Other renewed units are sold with 1GE + 3FE.

Why Gigabit LAN Matters

For modern FTTH, Gigabit Ethernet is preferable where customers subscribe to packages above 100 Mbps.

A Fast Ethernet port can become the bottleneck even if the fibre network itself supports much higher speeds.

USB Connectivity

GM630 variants commonly provide USB interfaces.

Depending on hardware, there may be:

• 1 USB port

• 2 USB ports

Possible uses depend entirely on firmware and may include storage, file sharing or maintenance functions.

Voice / POTS Support

Some GM630 variants also include a POTS telephone port.

This can allow one fibre connection to provide:

Internet + Wi-Fi + Telephone

However, voice support depends on:

• The physical hardware

• ISP VoIP provisioning

• Firmware

• OLT configuration

Always confirm the actual rear-panel interface before ordering.

Bridge Mode

The GM630 can be useful in bridge-mode deployments where an external router handles subscriber networking.

Typical topology:

OLT → GM630 → MikroTik Router → Customer

The external router can then handle:

• PPPoE

• DHCP

• NAT

• Firewall

• VLANs

• Bandwidth control

• Hotspot

• VPN

• Wi-Fi management

This is useful for ISPs that want to separate the optical network terminal from advanced routing functions.

Router Mode

In router mode, compatible GM630 firmware can perform functions such as:

• PPPoE

• NAT

• DHCP

• Wi-Fi routing

• LAN management

• VLAN configuration

• IPv4/IPv6 functions

• Basic firewall services

This makes it suitable as an all-in-one FTTH customer router.

ZTE GM630 with MikroTik

The GM630 can fit into a MikroTik-based ISP architecture.

Typical design:

Internet → MikroTik Core Router → OLT → Splitter → GM630 → Subscriber

Or:

OLT → GM630 Bridge → MikroTik Customer Router

The MikroTik can manage:

• PPPoE

• RADIUS

• Subscriber queues

• Billing-system integration

• NAT

• Firewall

• DHCP

• VLANs

• VPN

OLT Compatibility

OLT compatibility should be checked before large-scale deployment.

Practical user documentation reports the GM630 working with various third-party OLTs, including VSOL and CDATA, but interoperability may depend on firmware and vendor settings.

Before purchasing in bulk, test:

• ONU registration

• Serial-number authentication

• LOID

• VLANs

• Bridge mode

• Router mode

• Optical levels

• Remote management

• Firmware stability

ONU Management

ZTE's broader PON gateway family supports management methods such as:

• OAM

• OMCI

• WEB

• TR-069

depending on GPON or EPON mode and the exact product.

GM630 third-party variants may expose similar functions, but the exact implementation depends on firmware.

VLAN Support

VLAN capability is important for ISP service separation.

Typical VLAN use cases include:

Web Configuration

GM630 units typically provide a browser-based management interface.

Depending on firmware, settings may include:

• WAN

• LAN

• WLAN

• PPPoE

• VLAN

• DHCP

• Firewall

• Optical information

• ONU registration

• Remote management

• Firmware

Because the same GM630 hardware is sold under several branding and firmware variants, the management address and passwords should be checked from the actual unit.

Wi-Fi Security

Some current sellers advertise modern security functions such as WPA3 on their GM630 firmware builds.

However, security capabilities are firmware-dependent, so verify the actual software version before promising WPA3 support to customers.

GM630 vs Huawei HG8546M

The GM630 is particularly attractive where dual-band Wi-Fi is required without adding a separate router.

GM630 vs Basic 1GE XPON ONU

GM630 vs Wi-Fi 6 XPON ONT

Watch ZTE GM630 XPON Router

https://youtu.be/foBFenecbTw

The GM630 XPON offers a useful combination of GPON/EPON flexibility and integrated dual-band wireless networking. For residential users, the built-in 2.4 GHz and 5 GHz radios can eliminate the need for a second Wi-Fi router, while Ethernet ports allow PCs, smart TVs, switches and other wired devices to connect directly.

For ISPs, XPON capability can simplify subscriber-equipment inventory where both GPON and EPON networks are in use. However, the GM630 is sold in several firmware and hardware variations, and even the Ethernet configuration can differ between 4GE and 1GE + 3FE versions. That makes interoperability testing particularly important before a large subscriber rollout.

For a complete FTTH deployment, Fiber Optics Kenya can supply the GM630 together with GPON and EPON OLTs, PLC splitters, ODFs, FAT boxes, fibre closures, FTTH drop cables, adapters, patch cords, pigtails, fusion-splicing tools and fibre testing equipment.

Applications of ZTE GM630 XPON

Residential FTTH

Provides fibre termination and dual-band Wi-Fi in one unit.

ISP Subscriber Networks

Can be deployed as customer-premises equipment for GPON or EPON networks.

Apartment Networks

Suitable for individual FTTH subscriber installations.

Residential Estates

Can be deployed across large estate fibre networks.

Small Offices

Multiple LAN ports and dual-band Wi-Fi provide convenient office connectivity.

MikroTik Networks

Can operate in bridge mode while MikroTik performs subscriber routing and PPPoE.

Rural ISPs

XPON compatibility can be useful where different PON standards are deployed.

High-Speed Home Internet

5 GHz Wi-Fi is useful for customers who need better wireless throughput than 2.4 GHz alone can provide.

Typical FTTH Architecture

What to Check Before Buying GM630 XPON

Before purchasing, confirm:

1. GPON and EPON support

2. OLT interoperability

3. 4GE or 1GE + 3FE LAN layout

4. 2.4 GHz + 5 GHz Wi-Fi

5. USB port count

6. Whether POTS is included

7. Bridge mode

8. Router mode

9. Optical connector type

10. Firmware version

11. TR-069 or remote management support

12. New, refurbished or renewed condition

This is especially important because many GM630 units on the market are refurbished operator equipment or third-party branded devices rather than one standardized retail configuration.

Recommended Accessories

Why Buy ZTE GM630 XPON from Fiber Optics Kenya?

Frequently Asked Questions

What is the ZTE GM630 XPON?

The GM630 is an XPON fibre ONU/ONT router commonly sold for GPON and EPON FTTH networks.

Is GM630 an official ZTE retail model?

The market is mixed. GM630 units are widely associated with ZTE chipsets or firmware, but they also appear under China Mobile, Think Tides and other branding. It is best to verify the physical label and firmware rather than relying only on the product name.

Does GM630 support GPON?

Compatible XPON variants do.

Does GM630 support EPON?

Yes, on compatible XPON firmware.

Does GM630 automatically switch between GPON and EPON?

Many XPON variants support automatic or configurable PON mode selection, but confirm the actual firmware.

Does GM630 have dual-band Wi-Fi?

Yes. Common GM630 models provide 2.4 GHz and 5 GHz Wi-Fi.

What Wi-Fi speed does GM630 support?

A common AC1200 version is advertised at approximately 300 Mbps on 2.4 GHz plus 867 Mbps on 5 GHz.

Does GM630 have Gigabit Ethernet?

Yes on higher-spec models.

Are all four ports Gigabit?

Some GM630 versions have 4GE, while others use 1GE + 3FE. Confirm the exact unit.

How many antennas does GM630 have?

Common versions use two external antennas.

Does GM630 have USB?

Yes. One or two USB ports can be present depending on the revision.

Does GM630 have a telephone port?

Some versions include POTS, while others do not.

Can GM630 work with VSOL OLT?

Practical configuration reports indicate compatibility with some VSOL OLT setups, but test the exact firmware before bulk deployment.

Can GM630 work with CDATA OLT?

Some users report successful operation with CDATA OLTs.

Can GM630 work with HSGQ OLT?

Some firmware variants reportedly can.

Can GM630 work with Huawei OLT?

It may, but compatibility can require additional configuration depending on the OLT and GM630 firmware.

Can I connect a MikroTik router to GM630?

Yes. Bridge mode can be used with a MikroTik router.

Can MikroTik handle PPPoE behind GM630?

Yes, when the GM630 is configured for bridging.

Can GM630 itself handle PPPoE?

Router-mode firmware commonly can.

Does GM630 support VLANs?

Yes on compatible firmware.

Does GM630 support IPv6?

Some current GM630 firmware listings advertise IPv6 support.

Does GM630 support TR-069?

Some GM630 variants and related PON gateway firmware support remote management through TR-069. Verify the exact software revision. ZTE's own 1G PON gateway family supports TR-069.

Does GM630 support Wi-Fi 6?

The common GM630 is generally an AC-class dual-band router rather than Wi-Fi 6.

Is GM630 good for high-speed FTTH?

Yes for many home packages, especially when using its 5 GHz Wi-Fi and Gigabit LAN ports.

Is GM630 suitable for an ISP?

Yes, provided the OLT compatibility and firmware have been tested.

Should I test GM630 before bulk ordering?

Yes. Test registration, optical performance, VLANs, bridge mode and remote management with your actual OLT.

Can GM630 be used in apartments?

Yes.

Can GM630 be used for office Internet?

Yes.

Does GM630 need electricity?

Yes. It is an active ONU/router and requires a DC power adapter.

Can a PLC splitter connect to the GM630?

Yes. The GM630 connects downstream of the passive splitter in a properly designed PON network.

What connector does GM630 use?

Many market versions use SC/APC, but confirm the actual unit before ordering.

What is the difference between GM630 and a normal Wi-Fi router?

The GM630 contains a PON optical interface and can register directly to compatible GPON/EPON OLTs. A standard Wi-Fi router normally cannot.

Do you supply GPON OLTs?

Yes. Fiber Optics Kenya can supply GPON OLTs in different port capacities.

Do you supply EPON OLTs?

Yes. EPON OLTs are available for ISP networks.

Do you supply XPON ONUs?

Yes. Multiple XPON subscriber-device options can be supplied.

Do you supply PLC splitters?

Yes. 1x2, 1x4, 1x8, 1x16, 1x32 and 1x64 configurations can be supplied.

Do you supply ODFs and FAT boxes?

Yes. Rack ODFs, terminal boxes and FAT boxes can be supplied.

Do you supply FTTH fibre cable?

Yes. FTTH drop cable, ADSS fibre and other fibre cables can be supplied.

Do you supply fibre testing tools?

Yes. Optical power meters, PON power meters, VFLs and OTDRs can be supplied.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic equipment throughout Kenya.

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The ZTE GM630 XPON Router is a practical option for FTTH networks requiring GPON/EPON flexibility, dual-band 2.4 GHz and 5 GHz Wi-Fi, multiple Ethernet interfaces and integrated routing. Common high-spec variants provide four Gigabit LAN ports and AC1200-class wireless connectivity, while other units use a 1GE + 3FE port arrangement.

Its ability to operate as either an all-in-one subscriber gateway or a bridge to an external MikroTik router makes it suitable for residential, apartment, office and ISP deployments. Because GM630 hardware appears under several brands and firmware versions, OLT interoperability and the exact physical interfaces should always be verified before bulk purchasing.

Contact Fiber Optics Kenya for ZTE GM630 XPON Router prices in Kenya, XPON ONU bulk orders, GPON/EPON OLTs, PLC splitters, ODFs, FAT boxes, fibre cables, configuration support and nationwide delivery.
