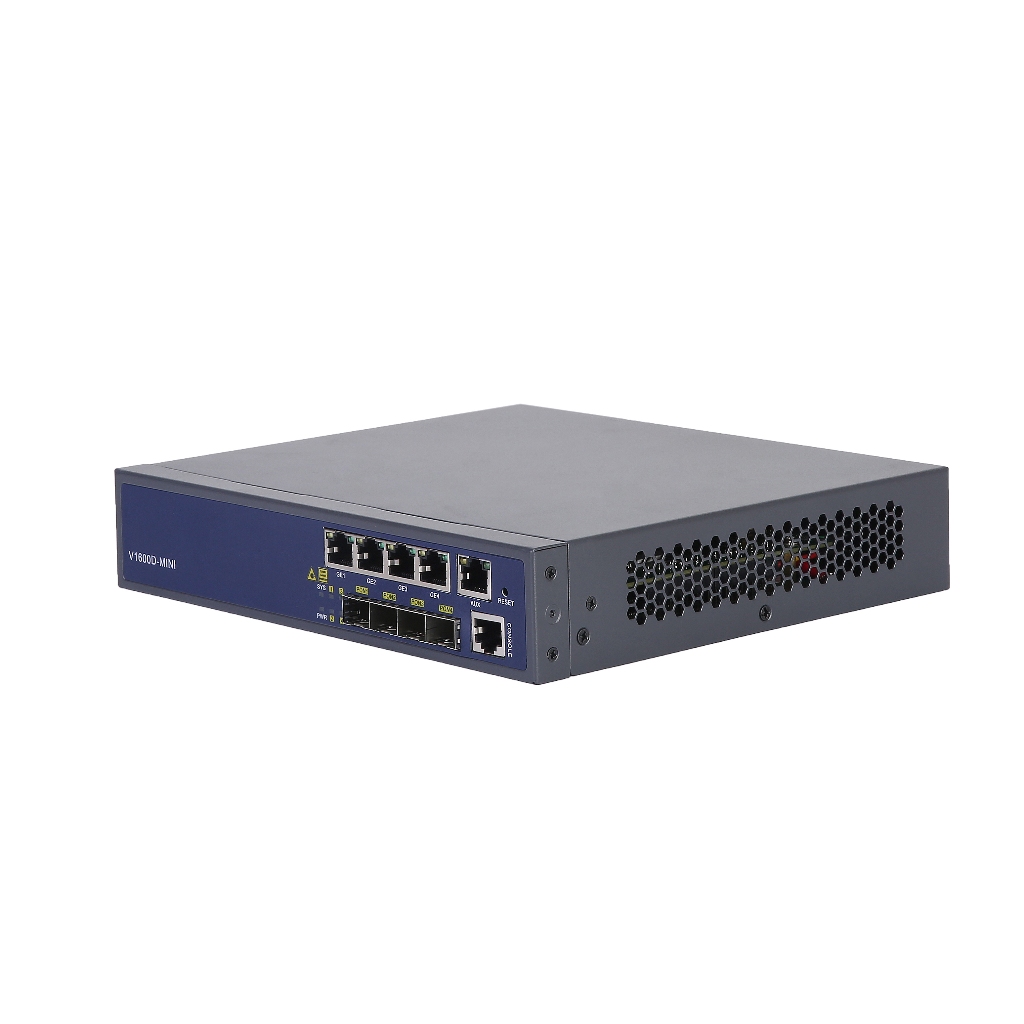

VSOL V1600D Mini 4-Port EPON OLT in Kenya
KSh 32,000.00
1 available
Continue shoppingVSOL V1600D Mini 4-Port EPON OLT in Kenya
The VSOL V1600D Mini 4-Port EPON OLT is a compact Optical Line Terminal designed for small and medium FTTH, FTTB, enterprise and ISP fibre networks. It combines four EPON PON ports with four Gigabit Ethernet uplink ports in a compact chassis, making it suitable for operators that need more subscriber capacity than a 1-port or 2-port OLT without moving immediately to a larger 8- or 16-port platform.
Each EPON interface supports a maximum 1:64 optical split ratio, giving the four-port OLT a theoretical capacity of up to 256 ONU positions. VSOL specifies symmetrical 1.25 Gbps EPON operation, a transmission distance of up to 20 km, TX wavelength of 1490 nm and RX wavelength of 1310 nm.
The V1600D-MINI also supports DBA, ONU auto-discovery, remote ONU software upgrades, VLANs, RSTP, IGMP, QoS, port isolation, rate limiting and SNMP/Telnet/CLI management, making it a practical platform for professional broadband access networks.
Key Specifications
| Specification | Details |
|---|---|
| Product Name | VSOL V1600D Mini 4-Port EPON OLT |
| Model | V1600D-MINI |
| Technology | EPON |
| EPON Ports | 4 |
| PON Interface | SFP Slots |
| EPON Port Speed | Symmetrical 1.25 Gbps |
| Maximum Split Ratio | 1:64 per PON |
| Theoretical Maximum Endpoints | 256 |
| Transmission Distance | Up to 20 km |
| TX Wavelength | 1490 nm |
| RX Wavelength | 1310 nm |
| Fibre Type | 9/125 µm Single Mode |
| Supported PON Modules | PX20, PX20+, PX20++, PX20+++ |
| Uplink Ports | 4 × 10/100/1000M RJ45 |
| Management Port | 1 × 10/100BASE-T |
| Console Port | 1 |
| Backplane Bandwidth | 16 Gbps |
| Forwarding Rate | 11.904 Mpps |
| MAC Table | Up to 16K |
| VLAN Support | Yes |
| DBA | Yes |
| QoS | Yes |
| IGMP | Yes |
| RSTP | Yes |
| ONU Auto Discovery | Yes |
| Remote ONU Upgrade | Yes |
| Management | SNMP / Telnet / CLI |
| Dimensions | 224 × 200 × 43.6 mm |
| Weight | Approx. 2 kg |
| Power Supply | 90–264 V AC, 47/63 Hz |
| Power Consumption | Approx. 15 W |
| Operating Temperature | -20°C to +60°C |
| Applications | FTTH, FTTB, ISP, CCTV, Campus Networks |
These specifications are published by VSOL for the V1600D-MINI.
What Is the VSOL V1600D Mini?
The VSOL V1600D-MINI is the central active network device used on the service-provider side of an EPON fibre network.
It communicates with subscriber ONUs through a passive optical distribution network consisting of fibre cables, ODFs, PLC splitters, fibre closures, FAT boxes and drop cables.
| Component | Function |
|---|---|
| OLT | Controls and manages subscriber ONUs |
| PON SFP | Provides optical PON interface |
| ODF | Terminates feeder fibres |
| PLC Splitter | Splits one PON signal |
| Feeder Fibre | Carries signal toward distribution |
| FAT Box | Distributes connections |
| Drop Cable | Connects subscribers |
| ONU / ONT | Terminates fibre at customer |
| Router | Provides LAN and Wi-Fi |
Four EPON PON Ports
The V1600D-MINI provides four SFP-based EPON PON interfaces.
| PON Port | Maximum Split Ratio |
|---|---|
| PON 1 | 1:64 |
| PON 2 | 1:64 |
| PON 3 | 1:64 |
| PON 4 | 1:64 |
| Total Theoretical ONU Positions | 256 |
This means each port can serve its own geographical fibre distribution zone.
Maximum Subscriber Capacity
At different split ratios:
| Split Ratio | Subscribers per PON | Four-Port Total |
|---|---|---|
| 1:8 | 8 | 32 |
| 1:16 | 16 | 64 |
| 1:32 | 32 | 128 |
| 1:64 | 64 | 256 |
The 256 figure is a theoretical endpoint count. Actual subscriber capacity should be based on optical budget, bandwidth demand, uplink capacity and the intended customer packages.
1:64 Optical Split Ratio
VSOL specifies a maximum split ratio of 1:64 per EPON interface.
Possible splitter choices include:
| PLC Splitter | Outputs |
|---|---|
| 1x2 | 2 |
| 1x4 | 4 |
| 1x8 | 8 |
| 1x16 | 16 |
| 1x32 | 32 |
| 1x64 | 64 |
For many Kenyan ISP deployments, 1:16 or 1:32 can provide more optical margin and more bandwidth headroom per subscriber than using the maximum split immediately.
EPON Port Speed
Each PON interface operates at symmetrical 1.25 Gbps.
| Direction | Nominal Speed |
|---|---|
| Downstream | 1.25 Gbps |
| Upstream | 1.25 Gbps |
This bandwidth is shared among the ONUs connected to that particular PON tree.
Supported PON Modules
The V1600D Mini supports several EPON optical module classes.
| PON Module | Supported |
|---|---|
| PX20 | Yes |
| PX20+ | Yes |
| PX20++ | Yes |
| PX20+++ | Yes |
The optical module selected should match the network's fibre distance, splitter loss and total optical budget.
20 km Transmission Distance
VSOL specifies a maximum transmission distance of up to 20 km for the EPON interfaces.
Actual usable distance depends on:
PLC splitter loss
Fibre attenuation
Connector losses
Fusion splice losses
PON module class
Patch cord losses
Engineering safety margin
A network should always be designed using an optical power-budget calculation rather than distance alone.
EPON Wavelengths
| Direction | Wavelength |
|---|---|
| OLT to ONU | 1490 nm |
| ONU to OLT | 1310 nm |
VSOL specifies TX at 1490 nm and RX at 1310 nm.
Four Gigabit Uplink Ports
The V1600D Mini provides four 10/100/1000 Mbps RJ45 uplink interfaces.
| Interface | Quantity |
|---|---|
| 10/100/1000M RJ45 Uplink | 4 |
| PON SFP Slots | 4 |
| Out-of-Band Management | 1 |
| Console | 1 |
The uplinks can connect the OLT to equipment such as a MikroTik router, aggregation switch or ISP core network.
Backplane and Forwarding Performance
| Performance Metric | Specification |
|---|---|
| Backplane Bandwidth | 16 Gbps |
| Forwarding Rate | 11.904 Mpps |
| MAC Address Capacity | Up to 16K |
These specifications are listed in VSOL's V1600D-MINI datasheet.
ONU Auto Discovery
The V1600D-MINI supports ONU auto-discovery, link detection and remote software upgrades.
This can reduce installation time because the OLT can detect newly connected subscriber ONUs and allow the network administrator to authorize and configure them centrally.
Dynamic Bandwidth Allocation
The OLT supports Dynamic Bandwidth Allocation (DBA).
| DBA Benefit | Function |
|---|---|
| Dynamic Allocation | Shares upstream bandwidth according to demand |
| Better Utilization | Reduces wasted capacity |
| Subscriber Profiles | Supports different service levels |
| QoS Support | Helps prioritize services |
VLAN Support
VSOL lists support for port VLAN, VLAN tags and VLAN transparent transmission.
| VLAN Use | Example |
|---|---|
| Internet VLAN | Subscriber broadband |
| Management VLAN | OLT and ONU management |
| CCTV VLAN | IP surveillance |
| IPTV VLAN | Multicast video |
| Corporate VLAN | Business subscribers |
| Voice VLAN | VoIP services |
QoS Support
The OLT supports different LLID configurations, allowing users and services to be assigned different QoS treatment.
This is useful where an ISP offers:
Residential Internet
Business Internet
IPTV
CCTV
VoIP
Managed enterprise services
Port Isolation
The V1600D Mini supports port isolation between different ports, helping improve subscriber and network segmentation.
This is especially useful in shared FTTH access environments where customers should not communicate directly at Layer 2 unless explicitly allowed.
Rate Limiting and Bandwidth Control
The OLT supports port-based rate limitation and bandwidth control.
This gives network administrators another mechanism for managing service performance alongside upstream PPPoE, MikroTik queues or other subscriber-management systems.
IGMP and Multicast
The V1600D-MINI supports IGMP functionality as part of its Layer 2 feature set.
This is useful for multicast services such as IPTV, where one stream can be efficiently delivered to multiple subscribers.
RSTP Support
Rapid Spanning Tree Protocol is supported, helping prevent Layer 2 loops when the OLT is connected to switched network infrastructure.
Management Options
| Management Method | Supported |
|---|---|
| SNMP | Yes |
| Telnet | Yes |
| CLI | Yes |
| Out-of-Band Ethernet | Yes |
| Console | Yes |
VSOL lists SNMP, Telnet and CLI as supported management modes.
Compact Mini Design
One of the main advantages of the V1600D-MINI is its compact physical size.
| Physical Specification | Value |
|---|---|
| Length | 224 mm |
| Depth | 200 mm |
| Height | 43.6 mm |
| Weight | Approx. 2 kg |
| Form Factor | 1U Height |
VSOL describes the model as a small and flexible OLT designed to save server-room space.
Power Supply and Consumption
| Power Specification | Details |
|---|---|
| Input Voltage | AC 90–264 V |
| Frequency | 47–63 Hz |
| Power Consumption | Approx. 15 W |
The low power consumption makes it suitable for smaller ISP POPs where backup-power capacity is limited.
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5–95% non-condensing |
VSOL V1600D Mini vs 2-Port EPON OLT
| Feature | 2-Port EPON OLT | V1600D Mini |
|---|---|---|
| PON Ports | 2 | 4 |
| Endpoints at 1:64 | 128 | 256 |
| Network Zones | 2 | 4 |
| Small ISP | Excellent | Excellent |
| Expansion Capacity | Moderate | Higher |
| Subscriber Growth | Good | Better |
VSOL V1600D Mini vs 8-Port EPON OLT
| Feature | V1600D Mini | 8-Port EPON OLT |
|---|---|---|
| PON Ports | 4 | 8 |
| Endpoints at 1:64 | 256 | 512 |
| Initial Cost | Lower | Higher |
| Small ISP | Excellent | Good |
| Medium ISP | Excellent | Excellent |
| Expansion Capacity | Good | Higher |
| Management Complexity | Lower | Higher |
V1600D Mini vs V1600D4-L
| Feature | V1600D-MINI | V1600D4-L |
|---|---|---|
| PON Ports | 4 | 4 |
| Form Factor | Compact Mini | Larger Rack Model |
| Maximum Split | 1:64 | 1:64 |
| Typical Market Position | Compact / Cost Effective | Full Rack Deployment |
| Space Requirement | Lower | Higher |
| FTTH Use | Excellent | Excellent |
VSOL also offers the V1600D4-L as a separate 4-port EPON OLT with Web/SNMP/Telnet/CLI management and similar core EPON functions.
EPON vs GPON
| Feature | EPON | GPON |
|---|---|---|
| Standard | IEEE 802.3ah | ITU-T G.984 |
| V1600D-MINI Support | Yes | No |
| Nominal Downstream | 1.25 Gbps | 2.488 Gbps |
| Nominal Upstream | 1.25 Gbps | 1.244 Gbps |
| Passive Splitters | Yes | Yes |
| FTTH Use | Excellent | Excellent |
| Entry Equipment Cost | Often Lower | Often Higher |
The V1600D-MINI is specifically an EPON OLT, so subscriber ONUs must support EPON operation.
Watch VSOL V1600D Mini 4-Port EPON OLT
Watch on YouTube: https://youtu.be/490lhDcVT6I
The VSOL V1600D Mini 4-Port EPON OLT provides a useful balance between compact size and subscriber capacity. Its four independent PON interfaces can each support optical splitting up to 1:64, giving an ISP a theoretical maximum of 256 ONU positions while allowing the network to be divided into four separate distribution zones.
Its compact chassis is one of the product's main strengths. Measuring approximately 224 × 200 × 43.6 mm and consuming about 15 W, the V1600D-MINI can be deployed in smaller POPs and network cabinets where space and backup-power capacity are important considerations. Despite its small size, it still provides four Gigabit copper uplinks, DBA, ONU auto-discovery, VLANs, QoS and remote ONU management.
For a complete FTTH deployment, the OLT should be paired with compatible EPON optics and ONUs alongside a properly designed passive optical distribution network. Fiber Optics Kenya can supply the VSOL V1600D Mini together with PX20++ and PX20+++ SFP modules, EPON/XPON ONUs, PLC splitters, ODFs, FAT boxes, fibre closures, ADSS cables, FTTH drop cables, fusion-splicing equipment and optical testing tools.
Applications of VSOL V1600D Mini 4-Port EPON OLT
1. Small and Medium ISPs
Provides four independent PON zones without requiring a large OLT chassis.
2. FTTH Networks
Suitable for residential broadband deployment.
3. Residential Estates
Each PON port can serve a separate estate zone.
4. Apartment Networks
Provides fibre connectivity to multiple apartment blocks.
5. FTTB Networks
Supports fibre-to-the-building deployments.
6. Campus Networks
Connects multiple buildings through passive fibre infrastructure.
7. CCTV Networks
Can transport IP surveillance traffic over EPON.
8. Hotels and Resorts
Suitable for distributing broadband and network services across multiple buildings.
9. Commercial Properties
Can support offices, shops and commercial tenants.
10. Rural Broadband
The compact design is suitable for smaller regional POPs and fibre access sites.
Example Four-Port Network Design
| PON Port | Example Allocation |
|---|---|
| PON 1 | Residential Zone A |
| PON 2 | Residential Zone B |
| PON 3 | Commercial Customers |
| PON 4 | Future Expansion |
This allows an ISP to keep different distribution branches physically separated at the OLT level.
Typical FTTH Architecture
| Network Stage | Equipment |
|---|---|
| Internet Feed | Upstream Provider |
| Core Router | MikroTik / Enterprise Router |
| OLT | VSOL V1600D-MINI |
| PON Modules | PX20 / PX20+ / PX20++ / PX20+++ |
| ODF | Rack Fibre Termination |
| Feeder Cable | Single-Mode Fibre |
| PLC Splitter | 1x8 / 1x16 / 1x32 / 1x64 |
| Fibre Closure | Splice Protection |
| FAT Box | Subscriber Distribution |
| FTTH Drop Cable | Customer Connection |
| ATB | Indoor Termination |
| ONU / ONT | Subscriber Endpoint |
| Wi-Fi Router | Customer Connectivity |
Installation Considerations
| Factor | Recommendation |
|---|---|
| Subscriber Count | Plan current and future users |
| Split Ratio | Calculate optical budget |
| PON Module Class | Match required optical margin |
| ONU Compatibility | Verify before bulk deployment |
| Fibre Distance | Keep within engineered budget |
| Splitter Loss | Include in calculations |
| Splice Loss | Include all fusion splices |
| Connector Loss | Include adapters and patch cords |
| Uplink Capacity | Avoid congestion |
| Cooling | Provide adequate ventilation |
| Power Backup | Use UPS |
| Surge Protection | Recommended |
| VLAN Design | Plan before commissioning |
| Network Monitoring | Configure SNMP |
| Documentation | Record PON and ONU allocation |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| PX20 EPON SFP | Basic EPON optical interface |
| PX20+ EPON SFP | Higher optical budget |
| PX20++ EPON SFP | Extended optical budget |
| PX20+++ EPON SFP | Higher-loss network option |
| EPON ONU | Subscriber termination |
| Compatible XPON ONU | Flexible endpoint where supported |
| 1x8 PLC Splitter | Eight-way split |
| 1x16 PLC Splitter | Sixteen-way split |
| 1x32 PLC Splitter | Thirty-two-way split |
| 1x64 PLC Splitter | Maximum supported split |
| ODF | Fibre termination |
| FAT Box | Subscriber distribution |
| Fibre Closure | Protects fibre splices |
| SC/UPC Patch Cord | Optical interconnection where required |
| ADSS Fibre Cable | Aerial network deployment |
| FTTH Drop Cable | Subscriber fibre link |
| Fusion Splicer | Fibre joining |
| PON Power Meter | EPON signal measurement |
| Optical Power Meter | Fibre testing |
| OTDR | Network diagnostics |
Why Buy VSOL V1600D Mini from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| VSOL EPON OLTs | Professional ISP equipment |
| EPON PON Modules | Complete optical interfaces |
| EPON / XPON ONUs | Subscriber equipment |
| PLC Splitters | Passive optical distribution |
| ODFs | Structured fibre termination |
| FAT Boxes | Subscriber distribution |
| Fibre Closures | Outdoor splice protection |
| ADSS Fibre Cables | Aerial network deployment |
| FTTH Drop Cables | Customer connectivity |
| Fusion-Splicing Equipment | Professional installation |
| Testing Equipment | Reliable network commissioning |
| Technical Guidance | Correct network design |
| Configuration Support | Faster deployment |
| Bulk Supply | Suitable for ISP rollouts |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is the VSOL V1600D Mini?
The VSOL V1600D-MINI is a compact four-port EPON Optical Line Terminal designed for FTTH and other FTTx networks.
How many PON ports does it have?
It has 4 EPON PON SFP slots.
What is the maximum split ratio?
The maximum specified split ratio is 1:64 per PON port.
How many ONUs can it theoretically serve?
At 1:64 on all four PON ports, it provides up to 256 theoretical ONU positions.
What is the EPON port speed?
Each PON port operates at symmetrical 1.25 Gbps.
What is the maximum transmission distance?
VSOL specifies up to 20 km.
What wavelengths does it use?
It uses 1490 nm TX and 1310 nm RX.
What fibre type does it use?
The published specification lists 9/125 µm single-mode fibre.
Does it support PX20++ modules?
Yes.
Does it support PX20+++ modules?
Yes.
How many uplink ports does it have?
It provides four 10/100/1000M copper uplink ports.
Does it have SFP+ 10G uplinks?
No. The official V1600D-MINI specification lists four Gigabit copper uplinks, not 10G SFP+ uplinks.
What is the backplane bandwidth?
It is specified at 16 Gbps.
What is the forwarding rate?
Approximately 11.904 Mpps.
How many MAC addresses does it support?
The OLT supports up to 16K MAC addresses.
Does it support VLANs?
Yes. Port VLAN, VLAN tags and transparent VLAN transmission are supported.
Does it support DBA?
Yes. Dynamic Bandwidth Allocation is supported.
Does it support ONU auto-discovery?
Yes.
Can ONU firmware be upgraded remotely?
Yes. Remote ONU software upgrading is supported.
Does it support QoS?
Yes. QoS can be applied using different LLID configurations.
Does it support IGMP?
Yes. IGMP is included among its Layer 2 capabilities.
Does it support RSTP?
Yes.
Does it support port isolation?
Yes.
Does it support bandwidth control?
Yes. Port-based rate limitation and bandwidth control are supported.
What management methods does it support?
VSOL lists SNMP, Telnet and CLI.
Is it rack mounted?
VSOL describes it as a 1U-height compact OLT.
What are its dimensions?
Approximately 224 × 200 × 43.6 mm.
How much does it weigh?
Approximately 2 kg.
What power input does it use?
It supports 90–264 V AC, 47–63 Hz.
What is the power consumption?
Approximately 15 W.
What is its operating temperature?
Approximately -20°C to +60°C.
Is the V1600D Mini suitable for a small ISP?
Yes. Its four PON ports and compact design make it well suited to small and medium fibre ISPs.
Is it suitable for FTTH?
Yes. VSOL specifically positions the V1600D-MINI for FTTH deployment.
Can it work with MikroTik?
Yes. MikroTik routers can be used upstream for routing, PPPoE, authentication and bandwidth management.
Is it GPON?
No. The V1600D-MINI is an EPON OLT.
Can GPON ONTs work with it?
GPON-only ONTs cannot normally register on an EPON OLT. Use EPON ONUs or compatible XPON devices that support EPON mode.
Do you supply EPON ONUs?
Yes. Fiber Optics Kenya can supply compatible EPON and XPON ONUs.
Do you supply PON SFP modules?
Yes. PX20, PX20+, PX20++ and PX20+++ modules can be supplied.
Do you supply PLC splitters?
Yes. Bare and connectorized PLC splitters are available.
Do you supply ODFs?
Yes. Rack-mounted and wall-mounted ODFs can be supplied.
Do you supply FAT boxes?
Yes. Empty and loaded FTTH FAT boxes can be supplied.
Do you supply fibre optic cables?
Yes. Outdoor, ADSS, armoured and FTTH drop fibre cables can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON power meters, VFLs and OTDRs can be supplied.
Do you configure VSOL OLTs?
Yes. Professional OLT configuration, ONU provisioning, VLAN setup and fibre network commissioning support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The VSOL V1600D Mini 4-Port EPON OLT provides a compact and cost-effective platform for small and medium FTTH and ISP networks. Its combination of four EPON ports, 1:64 splitting per PON, theoretical support for up to 256 subscriber endpoints, four Gigabit uplinks, 20 km reach, DBA, VLANs, QoS and centralized ONU management makes it a practical option for operators building or expanding an EPON network.
Contact Fiber Optics Kenya for VSOL V1600D Mini 4-Port EPON OLTs, PON modules, EPON/XPON ONUs, PLC splitters, ODFs, FAT boxes, fibre optic cables, OLT configuration, installation support, bulk orders and nationwide delivery across Kenya.
