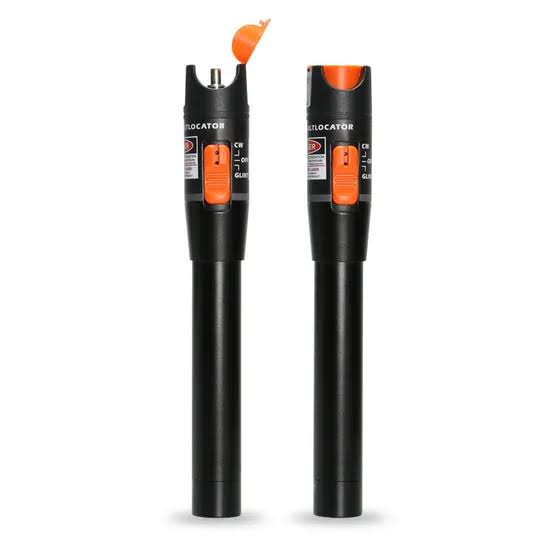

Visual Fault Locator Red Light Pen 10mW Price in Kenya

A Visual Fault Locator Red Light Pen 10mW is a compact fibre optic testing tool used to send visible red laser light through an optical fibre so technicians can quickly identify breaks, sharp bends, poor splices, damaged connectors and continuity problems.

This type of VFL is widely used by FTTH installers, ISP technicians, fibre contractors, telecom engineers and CCTV network installers because it is small, portable and easy to use in the field.

A 10mW VFL typically uses a visible red wavelength around 650 nm, allowing faults to be seen directly where light escapes from damaged fibre. It is especially useful for short-distance troubleshooting, fibre identification and continuity testing.

Key Specifications

What Is a Visual Fault Locator?

A Visual Fault Locator, commonly called a VFL, is a fibre troubleshooting tool that injects visible red light into an optical fibre.

If the fibre has a serious bend, break or poor connection, some of the red light escapes and becomes visible to the technician.

The basic testing path is:

VFL → Fibre Connector → Fibre Cable → Fault Location

The tool does not measure optical power or exact distance. Its role is visual identification.

What Does a 10mW VFL Do?

The 10mW output provides stronger visible red light than lower-powered 1mW or 5mW units.

It can be used for:

• Fibre continuity checks

• Identifying broken fibre

• Finding sharp bends

• Testing patch cords

• Checking pigtails

• Testing connector termination

• Finding poor mechanical splices

• Identifying fibres in a bundle

• Checking FTTH drop cables

Visual Fault Locator Applications

FTTH Installations

A VFL can be used to verify the continuity of FTTH drop cable before or after installation.

ISP Networks

Technicians can identify faults in subscriber fibre connections and distribution links.

Fibre Patch Cords

Patch cords can be checked for continuity and visible damage.

Fibre Pigtails

A VFL can confirm whether a pigtail is intact before splicing.

ODF Testing

It can help identify the correct fibre or trace a connection through an Optical Distribution Frame.

FAT Box Troubleshooting

The VFL is useful for tracing subscriber fibres in FAT boxes.

Fibre Closure Work

Technicians can use it to identify fibres or check short sections before closing a splice enclosure.

CCTV Fibre Networks

It can help find faults on short fibre runs between CCTV locations.

650nm Visible Red Laser

Most pen-type VFLs operate around 650 nm, producing visible red light.

This is important because ordinary telecom wavelengths such as 1310 nm or 1550 nm are invisible to the human eye.

The visible red output makes fault tracing much easier.

Continuous and Pulsed Modes

Many 10mW VFL pens offer two operating modes:

• Continuous red light

• Flashing / pulsed red light

The pulsed mode can make the fibre easier to identify in areas with many cables.

How to Use a Visual Fault Locator

1. Clean the fibre connector.

2. Remove the VFL dust cap.

3. Connect the fibre to the VFL.

4. Switch on continuous or pulsed mode.

5. Trace the fibre path.

6. Look for visible red light leaking from the cable.

7. Check connectors, bends and joints.

8. Switch the VFL off after testing.

9. Replace the protective cap.

Watch Visual Fault Locator Red Light Pen 10mW

https://youtu.be/YsZd7zQZcnY

A 10mW Visual Fault Locator is especially useful when a technician needs a quick answer about whether a fibre path is continuous or physically damaged. It is much faster than setting up an OTDR for simple short-range troubleshooting.

The pen-style design also makes it convenient to carry together with a fibre cleaver, optical power meter, fusion splicer and fibre stripper during FTTH installations.

For more detailed measurements such as exact fault distance, splice loss or attenuation, a VFL should be used together with an OTDR or Optical Power Meter rather than as a replacement for those instruments.

VFL vs Optical Power Meter

VFL vs OTDR

A VFL is ideal for fast troubleshooting, while an OTDR provides much more detailed fibre analysis.

VFL vs Fibre Identifier

Using a VFL on FTTH Drop Cable

A typical FTTH troubleshooting workflow can be:

FAT Box → Drop Cable → ATB → Patch Cord → ONU

The VFL can be connected at one end of the fibre and used to inspect:

• Drop cable bends

• Connector faults

• ATB termination

• Patch cords

• Mechanical connectors

Using a VFL on Fibre Patch Cords

A VFL is useful for testing patch cords because faults are often close to connectors.

Common problems include:

• Broken fibre near the boot

• Damaged connector

• Excessive bend

• Poor termination

• Cracked fibre

Using a VFL on Pigtails

Before fusion splicing, technicians can use a VFL to verify that a pigtail is continuous and not damaged.

This helps avoid wasting time splicing a faulty pigtail into an ODF or FAT box.

Connector Compatibility

Many VFL pens use a 2.5 mm universal adapter.

This commonly accommodates:

• SC

• FC

• ST

For LC connectors, a 1.25 mm adapter may be required.

Single Mode and Multimode Support

A VFL can be used with both:

• Single-mode fibre

• Multimode fibre

This makes it versatile for:

• FTTH

• Telecom networks

• LAN fibre

• CCTV networks

• Data centres

Visual Fault Locator Safety

A 10mW VFL is a laser device and should be handled carefully.

Never:

• Look directly into the laser output.

• Look directly into a connected fibre end.

• Point the VFL at another person's eyes.

• Use optical magnification to inspect an active fibre.

• Leave the VFL switched on unnecessarily.

Always assume the fibre may be carrying optical energy.

Visual Fault Locator Price in Kenya

The Visual Fault Locator Red Light Pen 10mW price in Kenya depends on:

• Brand

• Output power

• Connector type

• Battery configuration

• Rechargeable or disposable batteries

• Build quality

• Included adapters

• Protective case

• Warranty

Basic VFL pens are usually among the more affordable fibre testing tools, making them useful for both beginner technicians and professional field teams.

Visual Fault Locator 1mW vs 5mW vs 10mW

Actual usable distance depends heavily on fibre type, connector loss and cable construction.

Recommended Fibre Testing Tools

Why Buy a Visual Fault Locator from Fiber Optics Kenya?

Frequently Asked Questions

What is a Visual Fault Locator?

A Visual Fault Locator is a fibre testing tool that sends visible red laser light through optical fibre to help identify faults.

What does VFL stand for?

VFL means Visual Fault Locator.

What is the wavelength of a VFL?

Most red-light VFLs operate around 650 nm.

What does 10mW mean?

It refers to the approximate laser output power.

Is 10mW stronger than 5mW?

Yes. A 10mW unit generally produces stronger visible output than a 5mW unit.

Can a VFL test single-mode fibre?

Yes.

Can it test multimode fibre?

Yes.

Can it test FTTH drop cable?

Yes.

Can it test patch cords?

Yes.

Can it test pigtails?

Yes.

Can it test SC/APC fibre?

Yes, if the connector fits the VFL adapter.

Can it test SC/UPC fibre?

Yes.

Can it test LC connectors?

Yes, but many VFL pens require a 1.25 mm LC adapter.

Can a VFL find fibre breaks?

Yes, especially short-distance breaks where visible light can escape.

Can it find bends?

Yes. Severe bends may cause visible red light leakage.

Can it detect bad connectors?

It can help reveal some severe connector or termination faults.

Can a VFL measure optical power?

No. Use an Optical Power Meter.

Can a VFL measure fibre distance?

No. Use an OTDR.

Can a VFL replace an OTDR?

No. The two tools serve different purposes.

Can a VFL replace an Optical Power Meter?

No.

Can I use a VFL on live fibre?

It is better to isolate the fibre where possible and follow network safety procedures.

Should I look into the VFL?

No.

Is the red light dangerous to the eyes?

Direct laser exposure can be hazardous. Never look directly into the output.

Can I use a VFL for fibre identification?

Yes. The flashing mode is especially useful when tracing one fibre among several.

Does a VFL require electricity?

Yes, but pen-type units normally use small batteries.

Is a VFL suitable for FTTH installers?

Yes.

Is it suitable for ISP technicians?

Yes.

Can I use it inside an ODF?

Yes.

Can I use it inside a FAT box?

Yes.

Can I use it with fibre closures?

Yes.

Can it help during fibre repairs?

Yes.

What is the Visual Fault Locator Red Light Pen 10mW price in Kenya?

The price depends on brand, battery type, accessories and supplier. Contact Fiber Optics Kenya for the current price.

Do you supply VFLs?

Yes. Fiber Optics Kenya can supply 10mW Visual Fault Locators and other fibre testing tools.

Do you supply Optical Power Meters?

Yes.

Do you supply PON Power Meters?

Yes.

Do you supply OTDRs?

Yes.

Do you supply fibre cleavers?

Yes.

Do you supply fusion splicing machines?

Yes.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic equipment throughout Kenya.

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The Visual Fault Locator Red Light Pen 10mW is a simple but essential fibre troubleshooting tool for FTTH installers, ISP technicians and fibre contractors. Its visible red laser output makes it easy to identify breaks, tight bends, faulty connectors, damaged patch cords and continuity problems without requiring a complex test setup.

Its compact pen design also makes it an excellent companion to a fusion splicer, fibre cleaver, optical power meter and OTDR during everyday fibre installation and maintenance work.
