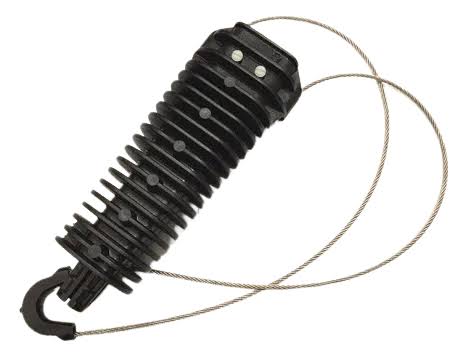

Tension Anchor Clamp PA3000 Price in Kenya

The Tension Anchor Clamp PA3000 is a heavy-duty aerial fibre accessory designed to anchor and tension ADSS (All-Dielectric Self-Supporting) fibre optic cable on overhead telecommunications networks.

Unlike a suspension clamp, which primarily supports cable at intermediate points, the PA3000 provides a firm anchoring point where the mechanical tension of an ADSS span needs to be secured. It uses self-adjusting wedges that tighten around the cable as tension increases while distributing the gripping force across the cable jacket.

The PA3000 is suitable for ISP networks, FTTH feeder routes, metropolitan fibre networks, CATV infrastructure and other aerial fibre installations.

PA3000 Key Specifications

It is important to check the exact PA3000 being supplied. Jera's current PA-3000 specifies 8–12mm cable, 8kN MBL and spans up to 100m, while other manufacturers offer PA3000-family variants for 8–12mm, 12–16mm and 16–20mm cables with different breaking-load ratings.

What Is a PA3000 Tension Anchor Clamp?

The PA3000 is installed between the ADSS cable and the supporting pole hardware.

A typical arrangement is:

ADSS Cable → PA3000 Anchor Clamp → Universal Pole Bracket → Pole

The clamp grips the cable while its flexible stainless-steel bail attaches to a:

• Universal Pole Bracket (UPB)

• Pole hook

• Eye bolt

• Cross-arm

• Compatible anchor bracket

This transfers the longitudinal force from the cable span to the supporting pole.

Self-Adjusting Wedge Design

One of the main features of the PA3000 is its self-adjusting wedge mechanism.

As the ADSS cable experiences tension, the wedges grip the cable more securely.

This provides:

• Strong cable retention

• Fast installation

• No specialized tensioning tool

• Reduced cable slippage

• Even gripping

• Better protection of the outer cable jacket

The wedge mechanism is specifically designed to grip the optical cable without unnecessarily damaging its jacket.

Tool-Free Installation

The PA3000 can be installed without a specialized clamp-installation tool.

This is particularly useful for technicians working:

• On utility poles

• On telecom poles

• At elevated positions

• Across rural fibre routes

• During large ISP deployments

The open bail and self-adjusting wedges allow technicians to install the clamp quickly using basic field procedures.

Stainless-Steel Bail

The clamp incorporates a stainless-steel wire bail that connects it to the pole hardware.

Stainless steel provides:

• Corrosion resistance

• Mechanical strength

• Outdoor durability

• Resistance to moisture

• Long service life

Some PA3000 designs also incorporate an insulating thimble around the bail.

UV-Resistant Polymer Body

The body and wedges are commonly manufactured from UV-resistant engineering polymer or PA66.

This is important because aerial fibre accessories remain exposed to sunlight for years.

UV-resistant construction helps protect against:

• Sunlight degradation

• Cracking

• Premature ageing

• Weather exposure

Some PA3000-family manufacturers specify UV-resistant plastic components designed for prolonged tropical outdoor service.

PA3000 Cable Diameter

The cable diameter must be matched carefully to the clamp.

A common PA3000 specification is:

8–12mm ADSS Cable

However, PA3000-family products are also manufactured in other ranges.

These wider variants are manufacturer-specific rather than universal PA3000 specifications.

Why Cable Diameter Matters

Using the wrong clamp size can cause serious installation problems.

Clamp Too Large

The cable may:

• Slip

• Move inside the wedges

• Lose correct tension

• Experience abrasion

Clamp Too Small

The clamp may:

• Over-compress the cable

• Damage the outer jacket

• Create excessive fibre stress

• Fail to close correctly

Always check the ADSS cable's outside diameter before choosing the PA3000 variant.

Maximum Breaking Load

Mechanical capacity varies by manufacturer.

For example, Jera currently specifies:

PA-3000 8–12mm – 8.0kN MBL

Other manufacturers list PA3000 variants at 5kN, while some PA3000 products are advertised with higher ratings.

Therefore, installers should not assume that every PA3000 clamp has the same breaking load simply because the model name is similar.

PA3000 for Up to 100m Spans

Some PA3000 models are designed for aerial ADSS installations with spans of up to approximately 100 metres.

However, the permitted span depends on more than the clamp.

It also depends on:

• ADSS cable construction

• Cable tensile rating

• Pole spacing

• Cable weight

• Wind loading

• Route angle

• Sag

• Pole strength

• Environmental conditions

The complete aerial route should therefore be designed around the cable and hardware specifications.

Where Is PA3000 Used?

The clamp can be used at:

• Route termination points

• End poles

• Selected intermediate strain points

• Jointing poles

• Major direction changes

• Unequal span points

• Hilly routes

Some PA3000-family manufacturers specifically recommend double dead-ending at jointing poles, intermediate poles where the route changes by more than approximately 20°, unequal spans and hilly terrain.

PA3000 at End Poles

At the end of an ADSS route, the cable needs to be securely terminated.

Typical configuration:

ADSS Cable → PA3000 → UPB → End Pole

The PA3000 carries the longitudinal tension while the UPB transfers that load into the pole.

PA3000 for Double Dead-Ending

Two PA3000 clamps can be used at selected poles.

Example:

ADSS Cable ← PA3000 ← Pole → PA3000 → ADSS Cable

This allows each span to be mechanically terminated independently.

Double dead-ending can be useful at:

• Fibre jointing points

• Unequal spans

• Significant direction changes

• Difficult terrain

PA3000 with Universal Pole Bracket

The Universal Pole Bracket UPB provides an ideal mounting platform for compatible PA3000 installations.

Typical arrangement:

Pole
↓
Stainless-Steel Banding
↓
Universal Pole Bracket
↓
PA3000 Tension Clamp
↓
ADSS Fibre Cable

The bracket provides the pole attachment while the PA3000 grips the cable.

PA3000 with Stainless-Steel Banding

Where the UPB is mounted to a concrete or metal pole, stainless-steel banding can provide the attachment.

Typical hardware:

Stainless-Steel Band + Buckle + UPB + PA3000

A BAND-IT or compatible banding tool can be used to tension and secure the stainless-steel straps.

Watch Tension Anchor Clamp PA3000 Video

The PA3000 Tension Anchor Clamp provides a straightforward way of dead-ending ADSS fibre cable without requiring complicated installation tools. Its self-adjusting wedges grip the cable while the stainless-steel bail connects the assembly to a pole bracket or hook.

For ISP technicians, the tool-free design can reduce installation time during large aerial network deployments. The clamp can be opened, positioned around the compatible ADSS cable and attached to the supporting pole hardware relatively quickly.

The most important consideration is matching the exact PA3000 variant to the cable and expected mechanical load. Cable ranges and breaking loads vary among manufacturers, so cable diameter alone should not be the only specification checked.

PA3000 vs PA2000

*Specifications vary by manufacturer.

For example, one PA-series manufacturer lists PA3000 at 8–12mm / 8kN and PA2000 at 10–15mm / 10kN.

PA3000 vs J-Hook Suspension Clamp

These products should not be treated as interchangeable.

Tension Clamp vs Suspension Clamp

A simple way to understand the difference is:

Tension Clamp = Anchor

Suspension Clamp = Support

An aerial ADSS route normally requires both types of hardware.

Example ADSS Route

A properly configured route may look like:

PA3000 → ADSS → J-Hook → ADSS → J-Hook → ADSS → PA3000

The PA3000 clamps establish the mechanical anchor points while the J-hooks support the cable between them.

PA3000 Applications

FTTH Feeder Networks

Used for aerial fibre feeding distribution points and FAT boxes.

ISP Fibre Networks

Suitable for pole-to-pole ISP fibre infrastructure.

FTTx Networks

Can be used across various fibre-access network architectures.

GPON Networks

Suitable for aerial feeder and distribution fibre carrying GPON traffic.

CATV Networks

Can support compatible aerial optical distribution infrastructure.

Metropolitan Fibre Networks

Useful for short-span urban aerial fibre routes.

Rural Fibre Networks

Useful where aerial deployment is more practical than underground trenching.

Campus Networks

Can anchor ADSS links between buildings.

How to Install a PA3000 Tension Clamp

A typical installation involves:

1. Confirm the ADSS cable diameter.

2. Verify the PA3000 specification.

3. Install the appropriate pole bracket.

4. Open the PA3000 bail.

5. Position the cable inside the clamp.

6. Place the cable correctly between the wedges.

7. Allow the self-adjusting wedges to engage.

8. Connect the stainless-steel bail to the bracket.

9. Apply the required cable tension.

10. Check that the cable is securely seated.

11. Verify cable sag.

12. Inspect the cable jacket.

The self-adjusting wedge design allows installation without specialized clamp tools.

Benefits of PA3000 Tension Anchor Clamp

Fast Installation

Tool-free installation can reduce technician setup time.

Self-Adjusting Grip

The wedges automatically tighten around the cable as load is applied.

Cable Protection

The gripping system is designed to avoid unnecessary damage to the cable jacket.

UV Resistance

Polymer components are designed for outdoor exposure.

Stainless-Steel Bail

Provides strength and corrosion resistance.

Lightweight Construction

Polymer construction makes the clamp easier for technicians to carry during pole work.

Outdoor Durability

Designed specifically for aerial telecommunications environments.

Tension Anchor Clamp PA3000 Price in Kenya

The Tension Anchor Clamp PA3000 price in Kenya varies according to manufacturer, mechanical rating and supplier.

Current Kenyan online references include:

These are third-party market references rather than fixed Fiber Optics Kenya prices, and prices can change.

What Affects PA3000 Price?

The final price can depend on:

• Cable diameter range

• Minimum breaking load

• Polymer quality

• Stainless-steel grade

• Bail length

• Manufacturer

• Quantity

• Packaging

• Import costs

• VAT

For ISP projects, request bulk quotations for the exact quantity required.

Recommended PA3000 Accessories

Frequently Asked Questions

What is a PA3000 Tension Anchor Clamp?

It is a wedge-type clamp used to anchor ADSS fibre optic cable on overhead telecommunications lines.

What does PA3000 do?

It grips the ADSS cable and transfers the cable's mechanical tension to a pole bracket or other supporting hardware.

What cable does PA3000 support?

A common PA3000 model supports 8–12mm ADSS cable.

Are other PA3000 sizes available?

Yes. Some manufacturers offer PA3000-family variants for 8–12mm, 12–16mm and 16–20mm cables.

What does ADSS mean?

ADSS means All-Dielectric Self-Supporting.

Does the PA3000 need a messenger wire?

No. It is designed for self-supporting ADSS fibre cable.

Does PA3000 require special installation tools?

No. Tool-free installation is one of its main features.

How does the PA3000 grip the cable?

It uses self-adjusting wedges.

Does it damage the cable jacket?

A correctly sized and installed PA3000 is designed to grip the cable without damaging its jacket.

Is the PA3000 UV resistant?

Common PA3000 designs use UV-resistant polymer components.

Does it have a stainless-steel bail?

Yes.

Can PA3000 be used outdoors?

Yes. It is specifically designed for outdoor aerial fibre networks.

Can it be installed on concrete poles?

Yes, using appropriate pole hardware.

Can it be installed on wooden poles?

Yes.

Can it be installed on steel poles?

Yes, provided compatible mounting hardware is used.

Can PA3000 attach to a Universal Pole Bracket?

Yes. Pole brackets and hooks are common mounting points for PA3000 clamps.

Can it attach to an eye bolt?

Some PA3000 designs can attach to compatible eye bolts.

Can it attach to a cross-arm?

Yes, where the cross-arm provides suitable anchoring hardware.

Can PA3000 be used at an end pole?

Yes. Dead-ending is one of its main applications.

Can two PA3000 clamps be installed on one pole?

Yes. Double dead-ending may be used at selected jointing, angle or unequal-span poles.

Can PA3000 be used at intermediate poles?

Yes, where an anchor or strain point is required.

Can it replace a J-hook suspension clamp?

No. PA3000 anchors the cable, while a J-hook suspension clamp primarily supports it.

Can it be used for 100m spans?

Some PA3000 models are specified for spans up to approximately 100m, subject to the cable and complete route design.

What is the PA3000 MBL?

It varies by manufacturer. Jera's PA3000 8–12mm model is rated at 8kN MBL.

Are all PA3000 clamps rated 8kN?

No. Other manufacturers publish different breaking loads, so check the datasheet for the exact product.

Can PA3000 be used for FTTH?

Yes, especially for aerial feeder and distribution sections.

Can it be used in GPON networks?

Yes.

Can it be used in CATV fibre networks?

Yes.

Is PA3000 suitable for ISPs?

Yes.

Is it suitable for rural fibre networks?

Yes.

Is it suitable for metropolitan fibre?

Yes.

What is the Tension Anchor Clamp PA3000 price in Kenya?

Current Kenyan listings vary from approximately KES 350 to over KES 1,000, depending on supplier, tax treatment and specification.

Do you supply PA3000 Tension Anchor Clamps?

Yes. Fiber Optics Kenya can supply ADSS tension and pole-line accessories subject to stock availability.

Do you supply Universal Pole Brackets?

Yes.

Do you supply J-Hook Suspension Clamps?

Yes.

Do you supply ADSS fibre cable?

Yes.

Do you supply stainless-steel banding?

Yes.

Do you supply BAND-IT tools?

Yes, subject to availability.

Do you supply downlead clamps?

Yes.

Do you supply cable storage brackets?

Yes.

Do you supply fibre closures?

Yes.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic equipment and aerial fibre accessories throughout Kenya.

Why Buy Tension Anchor Clamp PA3000 from Fiber Optics Kenya?

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The Tension Anchor Clamp PA3000 is an important component in professional ADSS aerial fibre networks. Its self-adjusting wedge mechanism, UV-resistant polymer construction, stainless-steel bail and tool-free installation provide a simple and reliable way to anchor compatible ADSS fibre cables.

A common PA3000 model supports 8–12mm ADSS cable with an 8kN MBL and applications up to approximately 100m spans, although PA3000 specifications vary significantly between manufacturers. Other versions are available for larger cable diameters, making it important to match the exact clamp to the cable diameter and required mechanical load.

When combined with Universal Pole Brackets, J-Hook Suspension Clamps, stainless-steel banding, downlead clamps and ADSS fibre cable, the PA3000 forms part of a complete pole-line system for FTTH, ISP and telecommunications fibre deployments.

Contact Fiber Optics Kenya for Tension Anchor Clamp PA3000 prices in Kenya, ADSS tension clamps, Universal Pole Brackets, J-Hook suspension clamps, ADSS fibre cable, stainless-steel banding, BAND-IT tools, fibre closures, bulk ISP orders and nationwide delivery.
