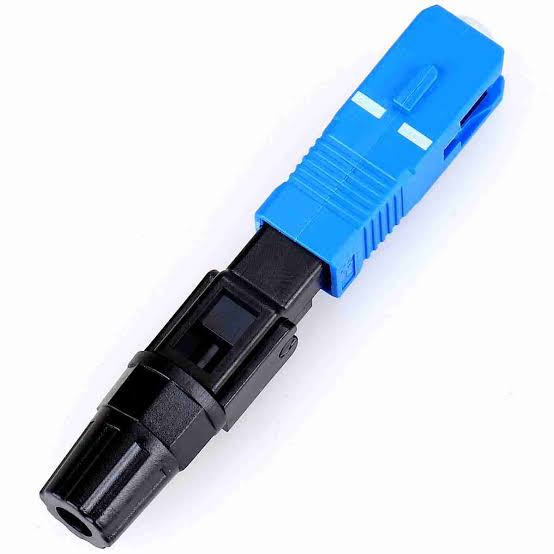

SC/UPC Fast Connector in Kenya
KSh 40.00
1 available
Continue shoppingSC/UPC Fast Connector in Kenya

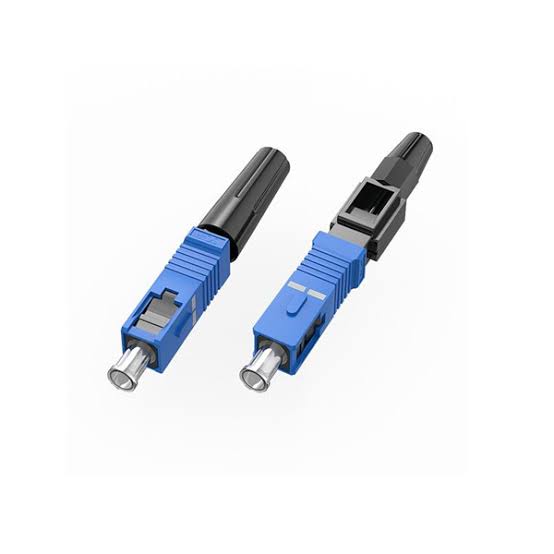

The SC/UPC Fast Connector is a field-installable fibre optic connector designed to create an SC/UPC termination quickly without conventional epoxy polishing or fusion-splicing a separate pigtail. Its characteristic blue SC housing identifies the UPC interface, making it easy for technicians to distinguish it from green SC/APC connectors used elsewhere in fibre networks.
Modern SC/UPC fast connectors are commonly designed for single-mode OS2 fibre. Corning's current OptiSnap SC/UPC field-installable connector is specified for OS2 single-mode fibre and uses no-epoxy/no-polish technology, while FS offers factory pre-polished SC/UPC fast connectors specifically intended for field installation.
At Fiber Optics Kenya, SC/UPC Fast Connectors are ideal for FTTH installers, ISPs, fibre contractors, CCTV technicians and telecommunications teams that need efficient fibre termination and repair solutions. Customers can also source compatible drop cables, SC/UPC adapters, fibre cleavers, strippers, optical power meters, VFLs, ODFs and fibre distribution boxes.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | SC/UPC Fast Connector |
| Product Type | Field-Installable Fibre Optic Connector |
| Connector Type | SC |
| Connector Polish | UPC |
| Typical Connector Colour | Blue |
| Common Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | Approx. 9/125 µm |
| Common Fibre Types | G.652D / G.657A depending on model |
| Termination Technology | Mechanical / factory pre-polished |
| Field Polishing Required | No on pre-polished designs |
| Epoxy Required | No on no-epoxy designs |
| Fusion Splicer Required | No for mechanical fast connectors |
| Typical Compatible Fibre | 250 µm / 900 µm depending on model |
| Drop Cable Compatibility | Model dependent |
| Common Cable Sizes | 0.9 / 2.0 / 3.0 mm depending on model |
| Typical Installation | Field termination |
| Main Applications | FTTH, repairs, ODF, FDB, drop cable |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Corning's OptiSnap SC/UPC connector is offered in versions for 900 µm and 250 µm OS2 fibre, while Corning's NPC SC UPC range also supports field-installable single-mode connections using no-epoxy/no-polish technology.
What Does SC/UPC Fast Connector Mean?
| Term | Meaning |
|---|---|
| SC | Subscriber / Standard Connector |
| UPC | Ultra Physical Contact |
| SC/UPC | SC connector with UPC-polished optical interface |
| Fast Connector | Connector designed for quick field termination |
| Single Mode | Fibre optimized for single-mode transmission |
| OS2 | Single-mode fibre category |
| Pre-Polished | Ferrule prepared at the factory |
| Field Installable | Can be terminated directly on-site |
The main advantage is that technicians can create a standardized SC/UPC connector directly on installed fibre without needing a pre-terminated patch cord.
SC/UPC Connector Features
| Feature | Benefit |
|---|---|
| Blue Housing | Easy UPC identification |
| SC Push-Pull Design | Simple connection and removal |
| Approx. 2.5 mm Ferrule | Stable optical alignment |
| UPC Polish | Low optical reflection |
| Factory Pre-Polished Options | No field polishing required |
| OS2 Compatibility | Suitable for single-mode networks |
| ODF Compatibility | Excellent |
| Media Converter Compatibility | Very Common |
| FTTH Use | Suitable where UPC interfaces are specified |
Corning's fibre connectivity portfolio includes SC UPC among its standard connector types.
How Does an SC/UPC Fast Connector Work?
Many fast connectors use a factory-polished ferrule assembly combined with a mechanical connection or splice mechanism.
| Internal Component | Function |
|---|---|
| SC Housing | Provides the external connector interface |
| Ceramic Ferrule | Aligns optical fibre |
| Factory-Polished Fibre Stub | Provides prepared connector end face |
| Mechanical Alignment System | Aligns incoming field fibre |
| Locking Mechanism | Secures fibre inside connector |
| Cable Clamp / Boot | Provides strain relief |
Corning describes its no-polish field connectors as using a factory-polished ferrule assembly and mechanical splice, which allows quick installation without conventional field polishing.
SC/UPC vs SC/APC Fast Connector
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Colour | Blue | Green |
| Polish Type | Ultra Physical Contact | Angled Physical Contact |
| Back Reflection | Low | Lower |
| General Fibre Networking | Excellent | Excellent |
| Enterprise Networks | Very Common | Application dependent |
| FTTH / PON | Used where UPC specified | Very Common |
| CATV | Less preferred | Excellent |
| Direct UPC-to-APC Mating | No | No |
Always choose the fast connector that matches the adapter, ONT, ODF or equipment interface already installed.
SC/UPC Fast Connector vs SC/UPC Pigtail
| Feature | SC/UPC Fast Connector | SC/UPC Pigtail |
|---|---|---|
| Connector Installed Where? | In the field | Factory |
| Fusion Splicing Required | No normally | Yes |
| Fusion Splicer Required | No | Yes |
| Bare Fibre Termination | Directly inside connector | Spliced to pigtail |
| Installation Speed | Fast | Moderate |
| Connector End Face | Factory polished on quality models | Factory polished |
| Repairs | Excellent | More involved |
| ODF Termination | Suitable | Very Common |
| FTTH Customer Drops | Excellent | Excellent |
A fast connector can be attractive when installation speed and portability are priorities, while fusion-spliced pigtails are often preferred for structured permanent ODF termination.
SC/UPC Fast Connector vs Factory Patch Cord
| Feature | Fast Connector | Patch Cord |
|---|---|---|
| Installed on Existing Fibre | Yes | No |
| Connectorized Ends | Created in field | Factory terminated |
| Custom Cable Length | Excellent | Fixed |
| Requires Fibre Cleaving | Yes | No |
| Suitable for Repairs | Excellent | Limited |
| Immediate Plug-and-Play | After termination | Yes |
| Typical FTTH Drop Use | Excellent | Application dependent |
Fibre Compatibility
| Fibre / Cable Type | Typical Compatibility |
|---|---|
| 250 µm Fibre | Supported by some models |
| 900 µm Buffered Fibre | Very Common |
| 2.0 mm Cable | Supported by many fast connectors |
| 3.0 mm Cable | Supported by many models |
| FTTH Drop Cable | Supported by dedicated designs |
| G.652D Single Mode | Common |
| G.657A Single Mode | Common |
| OS2 Fibre | Very Common |
Corning offers SC/UPC field-installable OptiSnap connectors for both 250 µm and 900 µm OS2 fibre, while other no-polish designs support larger cable constructions.
Typical Optical Performance
| Optical Parameter | Typical / Representative Description |
|---|---|
| Fibre Mode | Single Mode |
| Fibre Category | OS2 |
| Connector | SC/UPC |
| Typical Operating Wavelengths | 1310 / 1550 nm |
| Insertion Loss | Low, model dependent |
| Return Loss | UPC performance, model dependent |
| Field Polishing | Not required on pre-polished models |
| Mechanical Connection | Common |
| Fusion Splice | Not required on mechanical fast connectors |
Because field-installed performance depends heavily on correct fibre preparation, the exact optical loss should be tested after installation.
Tools Needed to Install an SC/UPC Fast Connector
| Tool | Purpose |
|---|---|
| Fibre Stripper | Removes fibre coating |
| Drop Cable Stripper | Removes FTTH cable jacket |
| Precision Fibre Cleaver | Produces accurate cleave |
| Lint-Free Wipes | Cleans fibre |
| Isopropyl Alcohol | Removes contamination |
| Visual Fault Locator | Checks continuity |
| Optical Power Meter | Measures optical power |
| Connector Assembly Tool | Used by certain connector models |
The precision cleaver is especially important because a poor cleave can create higher optical loss at the internal fibre interface.
Typical SC/UPC Fast Connector Installation Process
| Step | Procedure |
|---|---|
| 1 | Prepare the drop cable or buffered fibre |
| 2 | Strip the outer jacket where necessary |
| 3 | Remove fibre coating |
| 4 | Clean exposed glass fibre |
| 5 | Precision-cleave the fibre |
| 6 | Prepare the SC/UPC fast connector |
| 7 | Insert fibre to specified depth |
| 8 | Activate internal locking mechanism |
| 9 | Secure boot or cable clamp |
| 10 | Inspect the termination |
| 11 | Test with a VFL |
| 12 | Measure optical loss if required |
Different fast connector models have different cleave lengths and locking methods, so the manufacturer's installation instructions should always be followed.
Why Use an SC/UPC Fast Connector?
Quick Field Termination
SC/UPC fast connectors allow fibre to be terminated directly at the installation location.
No Field Polishing
FS describes its SC/UPC fast connector as factory pre-polished, eliminating hand polishing during installation.
No Epoxy on Compatible Designs
Corning's OptiSnap SC/UPC connector uses no-epoxy/no-polish technology.
No Fusion Splicer Required
Mechanical fast connectors can be installed without a fusion-splicing machine.
Ideal for Fibre Repairs
A damaged connector can be replaced quickly without replacing the entire fibre cable.
Suitable for FTTH Installations
Fast connectors are useful at subscriber termination points where an SC/UPC interface is required.
Easy Identification
The blue housing allows technicians to recognize the UPC interface quickly.
Watch SC/UPC Fast Connector
Watch on YouTube: https://youtu.be/dszkKGO6J6o
The SC/UPC Fast Connector provides technicians with a practical alternative to traditional fibre termination when a quick field-installed SC interface is required. Current professional SC/UPC field connectors are available for OS2 single-mode fibre, and pre-polished designs eliminate the need to manually polish the connector after installation. Corning's OptiSnap SC/UPC connector is specifically designed around this no-epoxy/no-polish approach.
Successful installation depends heavily on preparing the fibre correctly. The incoming fibre must be stripped, thoroughly cleaned and accurately cleaved before it is inserted into the connector's internal alignment mechanism. Corning's no-polish designs use a factory-polished ferrule and mechanical connection system, helping technicians create standardized fibre terminations without conventional connector polishing.
For installers working on FTTH deployments, subscriber connections, ODFs or fibre repairs, keeping SC/UPC fast connectors together with the correct preparation and testing tools can significantly simplify field work. Fiber Optics Kenya can supply SC/UPC fast connectors, FTTH drop cables, fibre cleavers, strippers, SC adapters, VFLs, optical power meters, ODFs and fibre distribution boxes, providing the products needed for complete fibre installation and maintenance.
Applications of SC/UPC Fast Connector
1. FTTH Installations
Terminate compatible single-mode drop fibre at customer premises.
2. Fibre Repairs
Replace damaged SC/UPC connectors quickly in the field.
3. Fibre Distribution Boxes
Create connectorized outputs from subscriber fibres.
4. Optical Distribution Frames
Use for selected field termination applications where SC/UPC interfaces are required.
5. Fibre Wall Outlets
Terminate installed fibre at customer or office outlets.
6. Telecommunications Networks
Provide rapid field termination within access networks.
7. ISP Deployments
Useful for subscriber installation and maintenance teams.
8. CCTV Fibre Networks
Terminate compatible single-mode optical CCTV connections.
9. Enterprise Fibre Networks
Useful where SC/UPC termination is required without fusion splicing.
10. Emergency Fibre Restoration
Restore a damaged fibre connector quickly using basic field tools.
Typical FTTH Connection Using SC/UPC Fast Connector
| Network Stage | Typical Component |
|---|---|
| Provider Network | OLT |
| Fibre Distribution | ODF |
| Distribution Fibre | Single Mode |
| Fibre Distribution Box | FDB / FAT Box |
| Subscriber Drop | FTTH Drop Cable |
| Field Termination | SC/UPC Fast Connector |
| Subscriber Equipment | Compatible ONT / ONU |
The connector polish must match the subscriber equipment. If the ONT uses SC/APC, an SC/UPC fast connector should not be substituted.
SC/UPC Fast Connector vs SC/APC Fast Connector
| Application | SC/UPC | SC/APC |
|---|---|---|
| Blue UPC Adapter | Correct | Incorrect |
| Green APC Adapter | Incorrect | Correct |
| General UPC Infrastructure | Excellent | No |
| Many PON Systems | Equipment dependent | Very Common |
| Media Converters with UPC | Excellent | No |
| CATV / Reflection-Sensitive Links | Less preferred | Better |
| Direct Interchangeable? | No | No |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Adapter | Couples SC/UPC connectors |
| FTTH Drop Cable | Subscriber fibre link |
| Fibre Cleaver | Precision-cleaves fibre |
| Fibre Stripper | Removes fibre coating |
| Drop Cable Stripper | Removes FTTH outer jacket |
| Fibre Cleaning Kit | Prevents contamination |
| Visual Fault Locator | Checks continuity |
| Optical Power Meter | Measures signal strength |
| Fibre Distribution Box | Organizes subscriber fibre |
| ODF | Structured optical distribution |
| Fibre Termination Box | Protects connectorized fibre |
| SC/UPC Patch Cord | Connects terminated fibre to equipment |
| OTDR | Tests fibre network performance |
Why Buy SC/UPC Fast Connector from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| SC/UPC Fast Connectors | Rapid field fibre termination |
| Single Mode Options | Suitable for professional optical networks |
| FTTH Compatibility | Ideal for subscriber installation |
| Drop Cables Available | Complete customer-drop solutions |
| Fibre Cleavers & Strippers | Preparation tools from one supplier |
| SC/UPC Adapters | Compatible connection accessories |
| Testing Equipment | Verify completed installations |
| ODFs & Fibre Boxes | Complete distribution solutions |
| Technical Guidance | Help choosing compatible connectors |
| Bulk Supply | Suitable for ISPs and contractors |
| Competitive Pricing | Cost-effective project procurement |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an SC/UPC Fast Connector?
It is a field-installable fibre optic connector with an SC/UPC interface, designed to terminate fibre quickly at the installation site.
What colour is an SC/UPC fast connector?
SC/UPC connectors are normally blue.
What does UPC mean?
UPC means Ultra Physical Contact, referring to the polished optical connector interface.
Is SC/UPC available as a field-installable connector?
Yes. Corning currently offers SC/UPC OptiSnap connectors for single-mode OS2 fibre.
Is it single mode?
SC/UPC fast connectors are widely available for single-mode OS2 fibre.
Can it be used with 900 µm fibre?
Yes. Corning's SC/UPC OptiSnap model is available specifically for 900 µm OS2 fibre.
Can it be used with 250 µm fibre?
Yes. Corning also offers an SC/UPC OptiSnap version for 250 µm fibre.
Does it require epoxy?
No on suitable no-epoxy designs. Corning's OptiSnap SC/UPC connector uses no-epoxy/no-polish technology.
Does it require field polishing?
No. Factory pre-polished designs eliminate manual polishing. FS specifically describes its SC/UPC fast connector this way.
Does it need a fusion splicer?
Typical mechanical SC/UPC fast connectors do not require a fusion splicer.
What tools are normally required?
A fibre stripper, precision cleaver, cleaning materials and preferably a VFL or optical power meter.
Why is a precision cleaver important?
The incoming field fibre must align correctly inside the connector. A poor fibre end face can significantly increase optical loss.
Is SC/UPC suitable for FTTH?
Yes, where the FTTH network and ONT use compatible UPC interfaces.
Can I use SC/UPC with an SC/APC ONT?
No. SC/UPC and SC/APC end faces should not be directly mated.
What is the difference between SC/UPC and SC/APC?
SC/UPC is normally blue and uses an Ultra Physical Contact polish, while SC/APC is normally green and uses an angled polished interface.
Can fast connectors be used for fibre repairs?
Yes. Rapid field repair is one of their most useful applications.
Can they be installed in an FDB?
Yes. They can be used inside fibre distribution boxes where connectorized subscriber fibre is required.
Can they be installed in an ODF?
Yes, depending on the network design, although fusion-spliced pigtails are also commonly used for permanent ODF termination.
Are fast connectors reusable?
Some designs allow retermination, while others are intended for limited or single installation. Follow the specific manufacturer's instructions.
Do you supply SC/UPC adapters?
Yes. Fiber Optics Kenya can supply matching SC/UPC adapters and accessories.
Do you supply fibre cleavers and strippers?
Yes. Compatible fibre preparation tools can be supplied.
Do you supply FTTH drop cables?
Yes. Compatible FTTH drop cables and fibre termination products are available.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, installation and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The SC/UPC Fast Connector provides a quick and convenient solution for FTTH installations, fibre repairs and on-site single-mode fibre termination without conventional field polishing.
Contact Fiber Optics Kenya for competitive pricing, SC/UPC fast connectors, fibre installation tools, FTTH accessories, bulk orders and nationwide delivery across Kenya.
