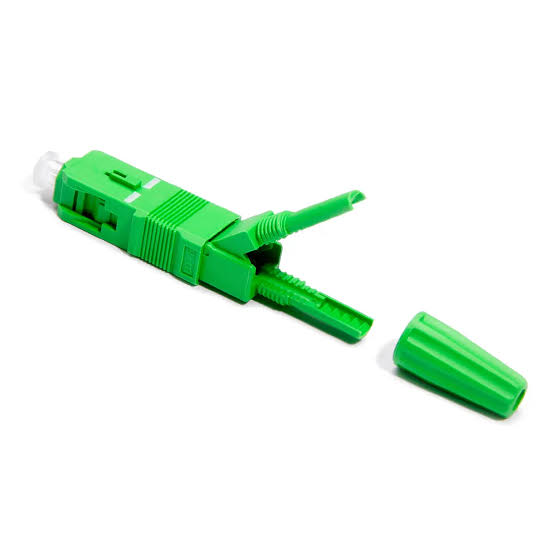

SC/APC Fast Connector in Kenya
KSh 50.00
1 available
Continue shoppingSC/APC Fast Connector in Kenya
The SC/APC Fast Connector is a field-installable fibre optic connector designed for rapid termination of single-mode optical fibre without conventional epoxy polishing. It uses the familiar green SC/APC interface, making it especially suitable for FTTH, GPON, PON, fibre distribution and subscriber-access networks where APC connectors are specified.
Professional SC/APC field-installable connectors are available for OS2 single-mode fibre, including 250 µm and 900 µm fibre constructions. Corning currently offers SC/APC OptiSnap connectors using no-epoxy/no-polish technology, while FS offers factory pre-polished SC/APC fast connectors compatible with 0.9, 2.0 and 3.0 mm cable formats.
At Fiber Optics Kenya, SC/APC Fast Connectors are ideal for ISPs, FTTH contractors, telecommunications technicians, CCTV installers and network-maintenance teams. Customers can also source matching FTTH drop cables, SC/APC adapters, PLC splitters, fibre cleavers, strippers, VFLs, optical power meters, FDBs and ODFs for complete field fibre installations.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | SC/APC Fast Connector |
| Product Type | Field-Installable Fibre Optic Connector |
| Connector Type | SC |
| Connector Polish | APC |
| Typical Connector Colour | Green |
| Typical Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | Approx. 9/125 µm |
| Common Fibre Types | G.652D / G.657A depending on model |
| Common Compatibility | 250 µm / 900 µm / drop cable depending on model |
| Common Cable Diameters | 0.9 / 2.0 / 3.0 mm on representative products |
| Termination Technology | Factory pre-polished / mechanical field termination |
| Field Polishing Required | No on pre-polished models |
| Epoxy Required | No on no-epoxy designs |
| Connector Ferrule | Ceramic commonly |
| Typical Insertion Loss | Around ≤0.35 dB on representative models |
| Typical Return Loss | High, APC dependent |
| Common Wavelengths | 1310 / 1490 / 1550 nm |
| Primary Applications | FTTH, GPON, FDB, ODF, drop cable, repairs |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
FS's current SC/APC fast connector is factory pre-polished and designed for single-mode fibre with 0.9, 2.0 and 3.0 mm cable compatibility. Corning's OptiSnap SC/APC connector is available for OS2 single-mode fibre with 900 µm compatibility and no-epoxy/no-polish installation.
What Does SC/APC Fast Connector Mean?
| Term | Meaning |
|---|---|
| SC | Standard / Subscriber Connector |
| APC | Angled Physical Contact |
| SC/APC | SC connector using an angled polished optical interface |
| Fast Connector | Connector designed for rapid field installation |
| Single Mode | Fibre optimized for single-mode transmission |
| OS2 | Single-mode optical fibre category |
| Pre-Polished | Connector ferrule prepared at factory |
| Field Installable | Can be terminated directly at site |
APC connectors are easily recognized by their green housings and use an angled optical interface to reduce reflected light. Corning describes APC ferrules as using an approximately 8° angled surface and notes their improved return-loss performance.
SC/APC Connector Features
| Feature | Benefit |
|---|---|
| Green Housing | Easy APC identification |
| Push-Pull SC Design | Simple connection and removal |
| Approx. 2.5 mm Ferrule | Stable fibre alignment |
| Angled Polish | Reduced back reflection |
| Single-Mode Compatibility | Excellent |
| FTTH Compatibility | Excellent |
| GPON Compatibility | Excellent |
| CATV Compatibility | Excellent |
| ODF / FDB Compatibility | Excellent |
Corning currently lists SC/APC field-installable connectors as single-mode OS2 products, including OptiSnap, UniCam and no-polish connector families.
How Does an SC/APC Fast Connector Work?
Many fast connectors combine a factory-prepared connector interface with a field fibre alignment and locking mechanism.
| Component | Function |
|---|---|
| Green SC Housing | Provides SC/APC equipment interface |
| Ceramic Ferrule | Precisely aligns the optical fibre |
| Pre-Polished Fibre Stub | Provides factory-finished optical end face |
| Mechanical Alignment System | Aligns field fibre with connector fibre |
| Internal Lock | Secures inserted fibre |
| Cable Clamp | Holds drop cable or buffer |
| Boot / Rear Cap | Provides strain relief |
Corning explains that no-epoxy/no-polish connectors avoid field polishing because those processes are completed by the manufacturer before installation.
SC/APC vs SC/UPC Fast Connector
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Back Reflection | Lower | Low |
| FTTH / PON Use | Very Common | Equipment dependent |
| CATV | Excellent | Less preferred |
| General Enterprise Fibre | Application dependent | Common |
| Direct APC-to-UPC Mating | No | No |
SC/APC and SC/UPC should not be directly mated, because their ferrule geometries differ.
Fibre Compatibility
| Fibre / Cable Type | Typical Compatibility |
|---|---|
| 250 µm Fibre | Supported by selected models |
| 900 µm Buffered Fibre | Common |
| 2.0 mm Cable | Supported by many fast connectors |
| 3.0 mm Cable | Supported by many models |
| 2 × 3 mm FTTH Drop Cable | Common on FTTH-specific models |
| G.652D Fibre | Common |
| G.657A Fibre | Common |
| OS2 Single Mode | Very Common |
Corning's field-installable SC/APC connector portfolio includes 900 µm OS2 products, while other Corning designs support 250/900 µm fibre.
Typical Optical Performance
| Optical Parameter | Typical / Representative Description |
|---|---|
| Fibre Mode | Single Mode |
| Fibre Category | OS2 |
| Connector Type | SC/APC |
| Operating Wavelengths | 1310 / 1490 / 1550 nm commonly |
| Typical Insertion Loss | Around ≤0.35 dB depending on model |
| Return Loss | High because of APC interface |
| Back Reflection | Low |
| Field Polishing | Not required on pre-polished designs |
| Fusion Splicer Required | No on mechanical fast-connector designs |
FS specifies its current SC/APC fast connector with a maximum insertion loss of 0.35 dB, while a representative commercial SC/APC fast connector lists return loss above 55 dB.
Typical Mechanical Characteristics
| Parameter | Typical Description |
|---|---|
| Connector Type | SC/APC |
| Housing Colour | Green |
| Fibre Mode | Single Mode |
| Ferrule | Ceramic |
| Field Installation | Yes |
| Cable Clamp | Integrated on many models |
| Mechanical Splice | Common |
| Operating Environment | Model dependent |
| Temperature Range | Product dependent |
| Re-Termination | Model dependent |
Corning's SC/APC OptiSnap field connector operates from -40°C to +75°C on the cited model.
Tools Needed to Install an SC/APC Fast Connector
| Tool | Purpose |
|---|---|
| FTTH Drop Cable Stripper | Removes outer drop-cable jacket |
| Fibre Stripper | Removes fibre coating |
| Precision Fibre Cleaver | Produces clean fibre end face |
| Lint-Free Wipes | Cleans bare fibre |
| Isopropyl Alcohol | Removes contaminants |
| Visual Fault Locator | Checks continuity |
| Optical Power Meter | Measures received optical power |
| PON Power Meter | Tests PON signals |
| Assembly Tool | Required by some connector designs |
The cleave is especially important because field-installed connector performance depends heavily on accurate fibre preparation.
Typical SC/APC Fast Connector Installation Process
| Step | Installation Process |
|---|---|
| 1 | Prepare the FTTH drop cable |
| 2 | Strip the required outer jacket |
| 3 | Remove fibre coating |
| 4 | Clean exposed optical fibre |
| 5 | Precision-cleave the fibre |
| 6 | Open the fast connector |
| 7 | Insert fibre to specified depth |
| 8 | Activate the connector locking mechanism |
| 9 | Secure cable clamp or rear boot |
| 10 | Close connector housing |
| 11 | Test continuity using VFL |
| 12 | Measure optical power where required |
Always follow the exact installation measurements provided by the connector manufacturer because strip and cleave lengths vary by design.
SC/APC Fast Connector vs Fusion-Spliced Pigtail
| Feature | SC/APC Fast Connector | SC/APC Pigtail + Fusion Splice |
|---|---|---|
| Fusion Splicer Needed | No | Yes |
| Installation Speed | Fast | Moderate |
| Factory-Prepared Connector Face | Yes | Yes |
| Fibre Joint | Mechanical on common designs | Fusion |
| Field Equipment Required | Lower | Higher |
| FTTH Customer Drop | Excellent | Excellent |
| ODF Termination | Suitable | Very Common |
| Repairs | Excellent | More involved |
| Optical Consistency | Installation dependent | Usually excellent |
Fast connectors are attractive for rapid subscriber installations, while fusion-spliced pigtails remain popular for structured, permanent fibre termination.
SC/APC Fast Connector vs SC/APC Patch Cord
| Feature | Fast Connector | Patch Cord |
|---|---|---|
| Field Installed | Yes | No |
| Connectors | Installed on existing fibre | Factory terminated |
| Custom Installed Cable Length | Excellent | Fixed |
| Requires Cleaving | Yes | No |
| Repair Application | Excellent | Limited |
| Plug-and-Play | After installation | Immediately |
| FTTH Drop Cable Termination | Excellent | Different function |
Why Choose an SC/APC Fast Connector?
Fast Field Termination
The connector allows installers to terminate fibre directly at the subscriber or distribution point.
No Field Polishing
Factory pre-polished products remove the need to hand polish the connector. FS explicitly describes its SC/APC connector as factory pre-polished.
No Epoxy on Compatible Designs
Corning's SC/APC OptiSnap product uses no-epoxy/no-polish technology.
No Fusion Splicer Required
Mechanical fast connectors can be installed without carrying a fusion-splicing machine.
Excellent for FTTH and GPON
SC/APC is particularly common in PON access networks because of its low-reflection optical interface.
Rapid Fibre Repairs
Damaged subscriber connectors can be replaced quickly on site.
Green Colour Identification
The green housing helps avoid accidentally mixing APC and UPC interfaces.
Watch SC/APC Fast Connector
Watch on YouTube: https://youtu.be/fR39zrTgd-c
The SC/APC Fast Connector provides a convenient way to terminate single-mode fibre directly in the field while creating the green SC/APC interface widely used in FTTH and PON networks. Professional products are available using pre-polished connector technology, which removes the need for manual connector polishing and simplifies installation for technicians working at customer premises and distribution points.
One of the biggest advantages of the SC/APC design is its low optical back reflection. APC connectors use an angled ferrule interface, and Corning notes that this geometry can provide return-loss performance below -60 dB in appropriate assemblies. This makes APC connectivity particularly useful in reflection-sensitive optical systems such as access networks and CATV infrastructure.
For reliable installation, however, fibre preparation remains critical. A clean strip, proper cleaning and an accurate precision cleave are needed before the fibre is inserted into the connector. Fiber Optics Kenya can supply the SC/APC Fast Connector alongside FTTH drop cables, fibre cleavers, strippers, SC/APC adapters, PLC splitters, VFLs, optical power meters, PON meters, FDBs and ODFs, providing installers with the main equipment needed for professional field termination.
Applications of SC/APC Fast Connector
1. FTTH Customer Installations
Terminate drop cable before connecting to compatible subscriber equipment.
2. GPON Networks
Create field-installed APC terminations throughout PON access networks.
3. Fibre Distribution Boxes
Terminate subscriber fibres inside FDB and FAT boxes.
4. FTTH Wall Outlets
Create an SC/APC interface at the customer termination point.
5. Fibre Repairs
Replace damaged APC connectors without replacing the complete cable.
6. ISP Subscriber Installations
Useful for rapid customer activation and maintenance.
7. Optical Distribution Frames
Suitable for selected field termination applications.
8. CATV Networks
Useful where low optical reflection is required.
9. Telecommunications Infrastructure
Provide field-installable single-mode optical termination.
10. Emergency Fibre Restoration
Restore damaged fibre connections quickly with portable tools.
Typical FTTH Network Using SC/APC Fast Connector
| Network Stage | Typical Component |
|---|---|
| Provider Equipment | OLT |
| Optical Distribution | ODF |
| Signal Splitting | PLC Splitter |
| Distribution Fibre | Single Mode |
| Fibre Distribution Point | FDB / FAT Box |
| Subscriber Drop | FTTH Drop Cable |
| Field Connector | SC/APC Fast Connector |
| Subscriber Termination | Fibre Wall Box |
| Subscriber Equipment | Compatible ONT / ONU |
SC/APC Fast Connector vs SC/UPC Fast Connector
| Application | SC/APC | SC/UPC |
|---|---|---|
| Green APC Adapter | Correct | Incorrect |
| Blue UPC Adapter | Incorrect | Correct |
| PON Networks | Very Common | Equipment dependent |
| CATV | Excellent | Less preferred |
| Reflection-Sensitive Links | Better | Good |
| UPC Infrastructure | No | Excellent |
| Directly Interchangeable | No | No |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapter | Couples SC/APC connectors |
| FTTH Drop Cable | Provides subscriber fibre link |
| Drop Cable Stripper | Removes FTTH cable sheath |
| Fibre Stripper | Removes fibre coating |
| Precision Cleaver | Produces accurate fibre end |
| Fibre Cleaning Kit | Keeps fibre clean |
| Visual Fault Locator | Tests continuity |
| Optical Power Meter | Measures optical signal |
| PON Power Meter | Tests PON wavelengths |
| PLC Splitter | Splits optical signals |
| FDB / FAT Box | Distributes subscriber fibres |
| FTTH Termination Box | Protects customer termination |
| SC/APC Patch Cord | Connects termination to equipment |
| OTDR | Tests fibre link quality |
Why Buy SC/APC Fast Connector from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| SC/APC Fast Connectors | Quick professional fibre termination |
| FTTH & GPON Compatibility | Suitable for access-network projects |
| Single-Mode Options | Professional long-distance fibre connectivity |
| Drop Cable Products | Complete subscriber installations |
| SC/APC Adapters | Matching network accessories |
| PLC Splitters | PON distribution components |
| Cleavers & Strippers | Fibre preparation tools |
| VFLs & Power Meters | Installation testing equipment |
| ODFs & FDBs | Complete fibre distribution solutions |
| Technical Guidance | Help selecting compatible products |
| Bulk Supply | Suitable for ISPs and fibre contractors |
| Competitive Pricing | Cost-effective project procurement |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an SC/APC Fast Connector?
It is a field-installable optical connector with an SC/APC interface, designed to terminate compatible single-mode fibre directly on site.
What colour is an SC/APC fast connector?
SC/APC connectors are normally green.
What does APC mean?
APC means Angled Physical Contact.
Is SC/APC suitable for single-mode fibre?
Yes. Corning's current OptiSnap SC/APC connector is specifically classified as single-mode OS2.
Is it suitable for FTTH?
Yes. SC/APC fast connectors are widely used for FTTH drop-cable termination and subscriber connections.
Is it suitable for GPON?
Yes. APC connectivity is commonly used across GPON and other passive optical networks.
Does an SC/APC fast connector require epoxy?
Not on no-epoxy models. Corning's OptiSnap product uses no-epoxy/no-polish technology.
Does it require field polishing?
No on factory pre-polished versions. FS specifically describes its SC/APC fast connector as factory pre-polished.
Does it require a fusion splicer?
Mechanical fast connectors generally do not require a fusion splicer.
Can it work with 900 µm fibre?
Yes. Corning's SC/APC OptiSnap model supports 900 µm OS2 fibre.
Can it work with 250 µm fibre?
Yes. Other SC/APC field-installable products support 250/900 µm single-mode fibre.
Can it work with 2.0 or 3.0 mm cable?
Representative FS products support 0.9, 2.0 and 3.0 mm cable sizes.
What is the typical insertion loss?
One representative SC/APC fast connector specifies maximum insertion loss of 0.35 dB.
Why is APC preferred for some FTTH networks?
The angled optical interface reduces reflected light, which is useful in reflection-sensitive optical systems.
What tools do I need?
Typical tools include a drop-cable stripper, fibre stripper, precision cleaver, cleaning supplies and ideally a VFL or optical power meter.
Why is cleaving important?
The field fibre needs a clean and accurately positioned end face to align properly inside the connector.
Can SC/APC connect directly to SC/UPC?
No. APC and UPC connector end faces are different and should not be directly mated.
Can it connect to an ONT?
Yes, provided the ONT has a compatible SC/APC optical interface.
Can it be installed inside an FDB?
Yes. Fibre distribution boxes are a common place to use field-installed fibre connectors.
Can it be used for fibre repairs?
Yes. Fast connectors are useful for replacing damaged connectors and restoring service quickly.
Are fast connectors reusable?
Some models permit retermination, but this varies by manufacturer and should be verified for the exact connector.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply compatible SC/APC adapters and other FTTH accessories.
Do you supply fibre cleavers and strippers?
Yes. Fibre preparation and installation tools can be supplied.
Do you supply FTTH drop cables and PLC splitters?
Yes. Compatible drop cables, PLC splitters and PON accessories are available.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, installation and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The SC/APC Fast Connector provides a quick, low-reflection field termination solution for FTTH, GPON, fibre repairs and subscriber drop installations.
Contact Fiber Optics Kenya for competitive pricing, SC/APC fast connectors, FTTH accessories, fibre installation tools, bulk orders and nationwide delivery across Kenya.
