SC Fibre Patch Cords Price in Kenya

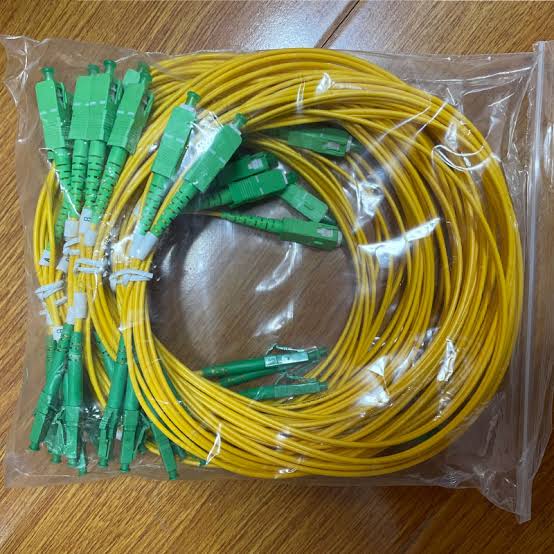

SC APC Fibre Patch Cord in Kenya
KSh 150.00
1 available
Continue shoppingSC APC Fibre Patch Cord in Kenya
The SC APC Fibre Patch Cord is a single-mode fibre optic patch cable designed for reliable, low-loss connections in FTTH, PON, telecommunications, CATV, ODF and fibre access networks. It is commonly supplied with SC/APC connectors, easily identified by their green connector housings, and is particularly useful in networks where low back reflection is important.
SC/APC patch cords commonly use OS2 single-mode G.657.A1 or G.657.A2 fibre. Current professional SC/APC-to-SC/APC products are available as simplex assemblies with one fibre, yellow jackets and APC angled connector interfaces. CommScope, for example, specifies SC/APC-to-SC/APC simplex assemblies using G.657.A1 or G.657.A2 single-mode fibre.
At Fiber Optics Kenya, SC APC Fibre Patch Cords are suitable for fibre installers, ISPs, telecommunications companies, businesses, residential FTTH deployments, CCTV fibre networks and enterprise installations. Customers can also source matching SC/APC adapters, pigtails, PLC splitters, ODFs, termination boxes, FTTH accessories and fibre testing equipment.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | SC APC Fibre Patch Cord |
| Product Type | Fibre Optic Patch Cord |
| Common Connector Configuration | SC/APC to SC/APC |
| Connector Polish | APC |
| Connector Colour | Green |
| Fibre Mode | Single Mode |
| Common Fibre Type | OS2 |
| Common Fibre Standards | G.657.A1 / G.657.A2 |
| Typical Configuration | Simplex |
| Fibre Count | 1 |
| Cladding Diameter | 125 µm |
| Typical Jacket Colour | Yellow |
| Common Wavelengths | 1310 / 1490 / 1550 nm |
| Typical Jacket | LSZH / PVC depending on model |
| Common Cable Diameter | Around 2.0 mm |
| Ferrule Material | Zirconia Ceramic commonly |
| Common Applications | FTTH, PON, CATV, ODF, ONT, telecom |
| Indoor Use | Yes |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Professional SC/APC assemblies are available in both G.657.A1 and G.657.A2 bend-insensitive single-mode fibre, making them especially suitable for compact FTTH and access-network installations.
What Does SC APC Mean?
| Term | Meaning |
|---|---|
| SC | Subscriber / Standard Connector |
| APC | Angled Physical Contact |
| SC/APC | SC connector with an angled polished ferrule |
| Single Mode | Fibre designed primarily for one propagation mode |
| Simplex | One optical fibre |
| Patch Cord | Factory-terminated fibre interconnection cable |
| OS2 | Single-mode optical fibre category |
| G.657 | Bend-insensitive single-mode fibre family |
The APC-polished connector end face is what distinguishes this cable from a conventional SC/UPC patch cord.
SC/APC Connector Features
| Feature | Description |
|---|---|
| Connector Type | SC |
| Polish Type | APC |
| Connector Colour | Green |
| Ferrule | Ceramic commonly |
| Connection Mechanism | Push-Pull |
| Fibre Mode | Single Mode |
| Typical Configuration | Simplex |
| Return-Loss Performance | Excellent |
| FTTH Suitability | Excellent |
| PON Suitability | Excellent |
| CATV Suitability | Excellent |
A current CommScope SC/APC patch cord uses green SC/APC connectors on both ends and specifies an APC angled interface.
SC/APC vs SC/UPC Fibre Patch Cord
One of the most important considerations when buying this cable is understanding the difference between APC and UPC connectors.
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Connector Colour | Green | Blue |
| End-Face Polish | Angled | Ultra Physical Contact |
| Back Reflection | Lower | Higher than APC |
| FTTH / PON Use | Excellent | Application dependent |
| CATV Networks | Excellent | Less preferred where reflection matters |
| Optical Distribution | Excellent | Excellent |
| Direct APC-to-UPC Mating | Not Recommended | Not Recommended |
SC/APC and SC/UPC connectors should not be directly mated. Their different end-face geometries can create excessive loss and potentially damage the connector surfaces.
G.657.A1 vs G.657.A2 Fibre
SC APC patch cords are commonly manufactured using bend-insensitive G.657 fibre.
| Feature | G.657.A1 | G.657.A2 |
|---|---|---|
| Fibre Mode | Single Mode | Single Mode |
| Bend Insensitive | Yes | Yes |
| Bending Performance | Excellent | Enhanced |
| FTTH Use | Excellent | Excellent |
| Indoor Routing | Excellent | Excellent |
| Tight Installation Spaces | Excellent | Particularly suitable |
| Access Networks | Excellent | Excellent |
| Patch Cord Applications | Very Common | Very Common |
CommScope currently offers SC/APC-to-SC/APC patch cords using both G.657.A1 and G.657.A2 fibre.
Typical Optical Specifications
| Optical Parameter | Typical / Representative Value |
|---|---|
| Fibre Mode | Single Mode |
| Fibre Type | G.657.A1 / G.657.A2 |
| Connector | SC/APC |
| Operating Wavelengths | 1310 / 1490 / 1550 nm commonly |
| Insertion Loss | ≤0.30 dB typical product specification |
| Return Loss | ≥60–65 dB depending on product |
| Cladding Diameter | Approx. 125 µm |
| Connector Polish | APC |
| Connector Colour | Green |
| Fibre Count | 1 for simplex models |
A representative G.657.A1 SC patch-cord specification lists APC insertion loss ≤0.30 dB and return loss ≥65 dB, while CommScope's G.657.A2 SC/APC assembly specifies maximum connector insertion loss of 0.25 dB and minimum return loss of 65 dB.
Exact performance should always be confirmed against the specification of the particular patch cord supplied.
Typical Fibre Attenuation
Representative G.657.A1 fibre specifications include:
| Wavelength | Maximum Attenuation |
|---|---|
| 1310 nm | ≤0.38 dB/km |
| 1383 nm | ≤0.35 dB/km |
| 1490 nm | ≤0.30 dB/km |
| 1550 nm | ≤0.28 dB/km |
| 1625 nm | ≤0.30 dB/km |
These figures are representative of one documented G.657.A1 SC/APC patch-cord construction rather than guaranteed specifications for every model.
Typical Mechanical Specifications
| Parameter | Typical Description |
|---|---|
| Connector Type | SC/APC |
| Configuration | Simplex |
| Number of Fibres | 1 |
| Cable Diameter | Around 2.0 mm on common patch leads |
| Jacket Material | LSZH / PVC |
| Jacket Colour | Yellow commonly |
| Connector Colour | Green |
| Ferrule | Zirconia ceramic commonly |
| Strength Member | Aramid or model dependent |
| Operating Temperature | Manufacturer dependent |
| Minimum Bend Radius | Product dependent |
| Available Lengths | Multiple options |
CommScope's G.657.A2 SC/APC patch-cord family includes a 1.6 mm jacket, while other G.657.A1 simplex assemblies commonly use approximately 2.0 mm cable.
Why APC Connectors Are Used in FTTH Networks
APC connectors are especially useful where reflected optical power must be minimized.
| Benefit | Importance |
|---|---|
| Low Back Reflection | Helps maintain optical signal quality |
| Suitable for PON | Excellent for FTTH infrastructure |
| Single-Mode Performance | Designed for precision optical networks |
| Stable Connection | Useful in permanent fibre installations |
| Green Colour Coding | Easy identification |
| Push-Pull SC Design | Simple installation |
| Low Insertion Loss | Helps preserve optical power budget |
Common SC APC Patch Cord Lengths
| Length | Typical Application |
|---|---|
| 1m | ONT and nearby termination box |
| 2m | Short FTTH connections |
| 3m | General indoor FTTH installations |
| 5m | Larger rooms and cabinets |
| 10m | Longer indoor fibre routing |
| 15m | Extended equipment connections |
| 20m | Larger installations |
| 30m+ | Specialized fibre routing |
Professional SC/APC patch-cord ranges are available in numerous lengths, including 1m, 3m, 10m and 15m configurations.
Key Benefits of SC APC Fibre Patch Cord
Low Optical Reflection
The angled APC connector design provides excellent return-loss performance, which is particularly valuable in PON and FTTH systems.
Bend-Insensitive Fibre Options
G.657.A1 and G.657.A2 options tolerate tighter routing conditions better than conventional single-mode fibre.
Ideal for FTTH Networks
SC/APC connectors are extensively used for connecting FTTH termination and subscriber equipment.
Simple Push-Pull Connection
The SC connector design makes installation and disconnection straightforward.
Factory Terminated
The patch cord arrives terminated and polished, reducing field-termination work.
Multiple Lengths
Different cable lengths allow installers to select the most appropriate option for each installation.
Easy Identification
The characteristic green SC/APC connector helps technicians distinguish APC connectors from UPC connectors.
Watch SC APC Fibre Patch Cord
Watch SC APC Fibre Patch Cord on YouTube
The SC APC Fibre Patch Cord is particularly important in modern FTTH and PON installations because its angled connector interface is designed to reduce reflected optical power. Professional products are commonly manufactured using single-mode G.657.A1 or G.657.A2 bend-insensitive fibre, allowing the cable to perform reliably even where fibre must be routed through compact indoor spaces.
Its green SC/APC connector housing makes the cable easy for installers to distinguish from blue SC/UPC connectors. SC/APC-to-SC/APC patch cords are typically simplex, meaning a single optical fibre carries the signal between compatible network components. This configuration is widely applicable to FTTH, CATV, access networks, data centres, enterprise networks, telecommunications and optical test equipment.
For FTTH installations, the patch cord can provide the final optical interconnection between compatible fibre termination infrastructure and subscriber equipment. Fiber Optics Kenya can supply SC APC patch cords together with SC/APC adapters, pigtails, PLC splitters, fibre termination boxes, ODFs, drop cables, optical power meters and other FTTH accessories, allowing installers and network operators to source the components required for complete fibre deployments.
Applications of SC APC Fibre Patch Cord
1. FTTH Networks
SC/APC patch cords are widely suited to fibre-to-the-home subscriber connections.
2. Passive Optical Networks
Use them to connect compatible components within GPON and other PON infrastructures.
3. Optical Network Terminals
Connect compatible ONTs/ONUs to fibre termination infrastructure.
4. Fibre Distribution Boxes
Provide patch connections between SC/APC termination points.
5. Optical Distribution Frames
Connect SC/APC-equipped ODF ports to compatible network equipment.
6. PLC Splitters
Connect SC/APC-terminated splitters within FTTH distribution systems.
7. CATV Networks
Low reflection makes APC connectors particularly useful in optical video-distribution applications.
8. Telecommunications Networks
Suitable for access and metropolitan fibre infrastructure.
9. Enterprise Fibre Networks
Can be used where single-mode SC/APC interfaces are deployed.
10. Fibre Testing
Useful for connecting compatible optical power meters, PON meters and other fibre-testing equipment.
SC/APC Patch Cord in a Typical FTTH Network
| Network Stage | Typical Component |
|---|---|
| Service Provider Network | OLT |
| Optical Distribution | ODF |
| Signal Splitting | PLC Splitter |
| Distribution Fibre | Single-Mode Fibre |
| Drop Fibre | FTTH Drop Cable |
| Subscriber Termination | Fibre Termination Box |
| Patch Connection | SC APC Fibre Patch Cord |
| Subscriber Equipment | ONT / ONU |
SC APC vs LC APC Patch Cord
| Feature | SC/APC | LC/APC |
|---|---|---|
| Connector Size | Larger | Smaller |
| Connector Colour | Green | Green commonly |
| Ferrule Size | Approx. 2.5 mm | Approx. 1.25 mm |
| FTTH Use | Very Common | Application dependent |
| High-Density Panels | Moderate | Excellent |
| Push-Pull Design | Yes | Latch design |
| PON Networks | Excellent | Excellent where specified |
SC APC vs SC UPC – Which Should You Choose?
Choose SC/APC when the installed equipment specifically requires APC connectors, particularly in many FTTH, PON and CATV applications.
Choose SC/UPC where the equipment uses UPC interfaces.
Do not choose based only on connector shape. Always check the connector polish required by the ODF, adapter, ONT, splitter or other optical equipment.
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapter | Joins compatible SC/APC connectors |
| SC/APC Pigtail | Fibre termination |
| PLC Splitter | Splits optical signals in PON networks |
| FTTH Drop Cable | Connects distribution fibre to subscribers |
| Fibre Termination Box | Protects subscriber fibre terminations |
| Fibre ODF | Organizes fibre connections |
| Fibre Splice Tray | Organizes fusion splices |
| SC/APC Fast Connector | Field termination |
| Optical Power Meter | Measures optical signal power |
| PON Power Meter | Tests PON optical levels |
| Visual Fault Locator | Helps identify fibre faults |
| Fibre Cleaner | Cleans connector end faces |
| Fusion Splicer | Joins optical fibres |
Why Buy SC APC Fibre Patch Cord from Fiber Optics Kenya?
Choosing the correct patch cord requires matching the connector polish, fibre type, cable length and network equipment.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| SC/APC Patch Cord Options | Suitable for FTTH and PON installations |
| Different Cable Lengths | Match different installation layouts |
| Single-Mode Fibre Options | Suitable for access networks |
| G.657 Fibre Options | Better flexibility for FTTH routing |
| SC/APC Accessories | Source matching adapters and pigtails |
| FTTH Products | Build complete subscriber installations |
| PLC Splitters & ODFs | Complete optical distribution solutions |
| Technical Guidance | Help selecting compatible components |
| Bulk Supply | Suitable for ISPs, installers and projects |
| Competitive Pricing | Cost-effective fibre procurement |
| Professional Installation | Installation support available |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an SC APC Fibre Patch Cord?
An SC APC Fibre Patch Cord is a single-mode fibre cable terminated with an SC connector using an Angled Physical Contact polished end face.
What colour is an SC/APC connector?
SC/APC connectors are conventionally green. CommScope's current SC/APC patch-cord specifications also identify both connector ends as green.
Is SC APC single mode?
SC/APC is commonly used with single-mode fibre, including G.657.A1 and G.657.A2 fibre.
What is G.657.A1 fibre?
G.657.A1 is a bend-insensitive single-mode fibre commonly used for FTTH, access networks and indoor fibre routing.
What is G.657.A2 fibre?
G.657.A2 is another bend-insensitive single-mode fibre class with enhanced bending performance for tight installation environments.
Is an SC APC patch cord suitable for FTTH?
Yes. FTTH is one of the common applications for G.657 single-mode SC patch cords.
Can I use SC APC for PON networks?
Yes. SC/APC connectors are widely suited to passive optical network applications where low back reflection is important.
What is the difference between SC APC and SC UPC?
SC/APC has an angled polished end face and is normally green, while SC/UPC uses a different polished geometry and is commonly blue.
Can SC APC connect directly to SC UPC?
No. APC and UPC connectors should not be directly mated because their end-face geometries differ.
What is the typical insertion loss?
Representative professional products specify ≤0.30 dB, although the exact value depends on the manufacturer.
What is the typical return loss?
Representative SC/APC products specify approximately 60–65 dB or better, depending on the particular assembly.
What wavelengths can SC APC patch cords carry?
Common single-mode access-network wavelengths include 1310 nm, 1490 nm and 1550 nm. A documented G.657.A1 product also specifies attenuation through 1625 nm.
Is the cable simplex?
SC/APC FTTH patch cords are commonly simplex, meaning they contain one optical fibre.
What colour is the cable jacket?
Single-mode patch cords commonly use a yellow jacket.
Are different lengths available?
Yes. SC/APC patch cords are available in numerous lengths for different network installations.
Can I use SC APC with an ONT?
Yes, where the ONT has a compatible SC/APC optical interface.
Can SC APC be used with PLC splitters?
Yes, provided the splitter uses compatible SC/APC connectors.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply compatible adapters and termination accessories.
Do you supply FTTH drop cables?
Yes. FTTH drop cables and related fibre accessories can be supplied for complete subscriber installations.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The SC APC Fibre Patch Cord provides a reliable, low-reflection single-mode connection for FTTH, PON, CATV, ODF and telecommunications networks.
Contact Fiber Optics Kenya for competitive pricing, different cable lengths, SC/APC accessories, bulk orders and nationwide delivery across Kenya.
