SC APC Adapter in Kenya
KSh 20.00
1 available
Continue shoppingSC APC Adapter in Kenya

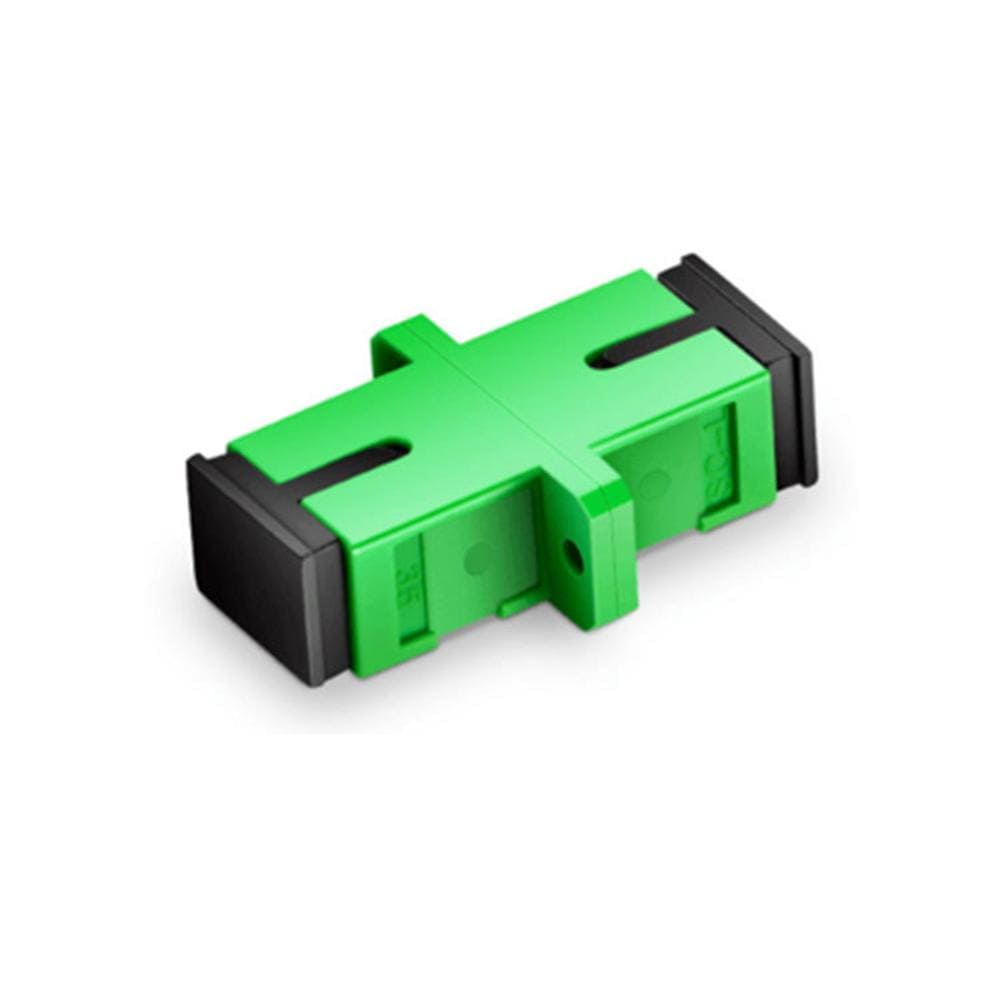

The SC APC Adapter is a passive fibre optic component used to connect two SC/APC fibre connectors while maintaining precise optical alignment between their ferrules. It is commonly used in FTTH, GPON, CATV, telecommunications and single-mode fibre distribution systems where green SC/APC interfaces are required.
A typical SC/APC adapter uses a precision zirconia ceramic alignment sleeve inside a durable plastic housing. The ceramic sleeve keeps both connector ferrules accurately centred to minimize insertion loss and maintain stable optical performance. Corning currently specifies SC APC simplex adapters for single-mode OS2 fibre with green composite housings and ceramic inserts, while CommScope also lists green single-mode SC/APC simplex adapters with ceramic sleeves.
At Fiber Optics Kenya, SC APC Adapters are suitable for ISPs, FTTH contractors, fibre installers, telecommunications companies, CCTV projects and enterprise fibre networks. Customers can also source compatible SC/APC patch cords, pigtails, fast connectors, ODFs, PLC splitters, FDB/FAT boxes and fibre installation tools.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | SC APC Adapter |
| Product Type | Fibre Optic Adapter / Coupler |
| Connector Interface | SC/APC to SC/APC |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Connector Polish | APC |
| Typical Housing Colour | Green |
| Common Configuration | Simplex |
| Alignment Sleeve | Zirconia Ceramic commonly |
| Housing Material | Engineering Plastic / Composite |
| Mounting Style | Flanged / Flangeless depending on model |
| Typical Insertion Loss | ≤0.2 dB on representative products |
| Typical APC Return Loss | ≥60 dB on representative products |
| Repeatability | Typically ≤0.2 dB |
| Durability | Up to 1,000 mating cycles on representative models |
| Primary Applications | FTTH, GPON, ODF, FDB, patch panels |
| Installation Environment | Indoor / protected fibre enclosures |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
A representative SC/APC simplex adapter specifies ≤0.2 dB insertion loss, ≥60 dB return loss and more than 1,000 mating cycles.
What Is an SC APC Adapter?
An SC APC Adapter is sometimes also called an SC APC coupler because it couples two matching SC/APC connectors together.
| Feature | Description |
|---|---|
| Connector Side A | SC/APC |
| Connector Side B | SC/APC |
| Connector Colour | Green commonly |
| Optical Function | Joins and aligns two fibre connectors |
| Electrical Function | None |
| Fibre Mode | Single Mode |
| Typical Network | FTTH / GPON / CATV / Telecom |
| Primary Installation Location | ODF / FDB / Patch Panel / Wall Box |
The adapter does not convert the optical signal. Its purpose is simply to maintain precise mechanical alignment between the two fibre connectors.
What Does SC/APC Mean?
| Term | Meaning |
|---|---|
| SC | Standard / Subscriber Connector |
| APC | Angled Physical Contact |
| SC/APC | SC connector with angled polished end face |
| Adapter | Passive component joining two compatible connectors |
| Single Mode | Fibre optimized for one propagation mode |
| OS2 | Single-mode fibre category |
SC/APC connectors are commonly coloured green, making them easy to distinguish from blue SC/UPC interfaces. Corning's SC/APC adapter panels similarly specify green housings for single-mode APC interfaces.
How Does an SC APC Adapter Work?
Inside the adapter is a precision alignment sleeve that keeps two SC ferrules perfectly centred.
| Component | Function |
|---|---|
| Outer Housing | Holds connector interfaces |
| Alignment Sleeve | Aligns both ceramic ferrules |
| Retention Clip | Secures adapter in panel |
| Flange | Supports panel mounting on some models |
| Dust Caps | Protect unused ports |
| SC Interface | Accepts compatible SC/APC connectors |
Single-mode SC adapters commonly use zirconia ceramic split sleeves because they provide very precise ferrule alignment. This contrasts with many multimode adapter designs that may use phosphor-bronze sleeves.
Why Ceramic Alignment Sleeves Matter
| Ceramic Sleeve Advantage | Benefit |
|---|---|
| High Dimensional Accuracy | Better ferrule alignment |
| Low Wear | Stable repeated connections |
| Low Optical Loss | Helps preserve link budget |
| Temperature Stability | Reliable fibre alignment |
| Single-Mode Suitability | Excellent |
| Long Service Life | Suitable for repeated mating |
A current single-mode SC/APC adapter specification uses a zirconia ceramic sleeve and lists insertion loss of no more than 0.2 dB.
Typical Optical Performance
| Optical Parameter | Typical / Representative Value |
|---|---|
| Fibre Mode | Single Mode |
| Connector Interface | SC/APC |
| Typical Insertion Loss | ≤0.2 dB |
| Typical Return Loss | ≥60 dB |
| Repeatability | ≤0.2 dB |
| Exchangeability | ≤0.2 dB on representative models |
| Operating Wavelength | Determined by connected fibre |
| 1310 nm Compatibility | Yes |
| 1490 nm Compatibility | Yes |
| 1550 nm Compatibility | Yes |
| 1625 nm Compatibility | Depending on fibre/network |
The adapter itself is wavelength-transparent within the normal single-mode operating range; optical performance primarily depends on ferrule alignment, connector cleanliness and the attached fibre system.
Typical Mechanical Characteristics
| Mechanical Parameter | Typical Description |
|---|---|
| Configuration | Simplex |
| Housing Colour | Green |
| Housing Material | PBT / Composite |
| Alignment Sleeve | Zirconia Ceramic |
| Mounting Type | Flanged / Flangeless |
| Retention Clip | Available on many models |
| Dust Caps | Commonly supplied |
| Mating Durability | Around 1,000 cycles on representative models |
| Operating Temperature | Around -40°C to +85°C on representative products |
| RoHS Compliance | Available on professional products |
One professional SC/APC simplex adapter lists ≤0.2 dB insertion loss, 1,000 mating-cycle durability and an operating temperature range of -40°C to +85°C.
SC APC Simplex Adapter
A simplex adapter connects one fibre path.
| Simplex Feature | Description |
|---|---|
| Number of Fibre Channels | 1 |
| SC Ports per Side | 1 |
| FTTH Use | Very Common |
| GPON Use | Excellent |
| ODF Use | Excellent |
| FDB Use | Excellent |
| Subscriber Termination | Excellent |
Corning currently specifies SC Simplex APC adapters for single-mode OS2 fibre in its connector-housing panels.
Flanged vs Flangeless SC APC Adapter
| Feature | Flanged | Flangeless |
|---|---|---|
| Mounting Flange | Yes | No |
| Panel Installation | Very Common | Excellent |
| Space Requirement | Slightly larger | More compact |
| Retention Clip | Often included | Common |
| ODF Use | Excellent | Excellent |
| Fibre Box Use | Excellent | Excellent |
Both styles perform the same optical coupling function; the difference is primarily mechanical mounting.
SC APC vs SC UPC Adapter
| Feature | SC/APC Adapter | SC/UPC Adapter |
|---|---|---|
| Typical Colour | Green | Blue |
| Connector Polish Supported | APC | UPC |
| Back Reflection | Lower | Low |
| FTTH / GPON | Very Common | Equipment dependent |
| CATV | Excellent | Less preferred |
| Enterprise Fibre | Application dependent | Very Common |
| Can APC and UPC Be Mixed? | No | No |
Do not plug SC/UPC connectors into an SC/APC adapter just because both use the same SC body. The connector end-face geometry is different.
SC APC Adapter vs SC APC Fast Connector
| Feature | SC APC Adapter | SC APC Fast Connector |
|---|---|---|
| Purpose | Join two connectors | Terminate bare fibre |
| Fibre Preparation Required | No | Yes |
| Precision Cleaver Required | No | Yes |
| Has Two Connector Ports | Yes | No |
| Installed in ODF/FDB | Very Common | Common |
| Field Fibre Termination | No | Yes |
| Reusable Connection Point | Yes | Yes |
These two products perform entirely different functions and are often used together in FTTH networks.
SC APC Adapter vs SC APC Pigtail
| Feature | SC APC Adapter | SC APC Pigtail |
|---|---|---|
| Function | Couples connectors | Terminates fibre |
| Contains Fibre | No | Yes |
| Requires Fusion Splicing | No | Usually Yes |
| Connectorized End | Adapter ports | One SC/APC connector |
| ODF Use | Holds connector | Creates connectorized fibre |
| Typical Installation Together | Yes | Yes |
A common ODF installation uses an SC/APC pigtail plugged directly into an SC/APC adapter.
Where Is an SC APC Adapter Installed?
| Installation Point | Role |
|---|---|
| Optical Distribution Frame | Provides fibre patching interface |
| Fibre Distribution Box | Couples subscriber connections |
| FAT Box | Connects FTTH distribution fibres |
| Wall Outlet | Provides subscriber connector interface |
| Patch Panel | Organizes fibre terminations |
| PLC Splitter Box | Couples splitter connectors |
| FTTH Termination Box | Connects subscriber drop fibre |
| Testing Panel | Provides accessible SC/APC port |
Why Choose SC APC Adapters?
Low Insertion Loss
Precision ceramic alignment allows quality adapters to achieve insertion loss around 0.2 dB or lower on representative products.
Excellent Return-Loss Performance
APC interfaces are designed for low optical back reflection, useful in FTTH, PON and CATV systems.
Precision Zirconia Sleeve
Single-mode adapters commonly use ceramic sleeves to maintain precise ferrule alignment.
Easy APC Identification
The green housing allows technicians to identify APC interfaces quickly.
Compact Passive Component
No electrical power or configuration is required.
Multiple Mounting Options
Flanged and flangeless designs accommodate different ODFs, panels and fibre boxes.
Long Service Life
Professional models can support around 1,000 connection cycles.
Watch SC APC Adapter
Watch on YouTube: https://youtu.be/ORZ_-fStAj4
The SC APC Adapter is a small but critical component in FTTH and PON infrastructure because it provides the precision alignment needed to couple two SC/APC connectors. Corning's current SC adapter products use green housings, ceramic inserts and single-mode OS2 compatibility, confirming the design commonly used in professional fibre distribution systems.
Inside the adapter, the zirconia ceramic sleeve keeps both connector ferrules accurately aligned. Even small misalignment can increase optical loss, which is why quality adapters use precision-manufactured sleeves and properly fitted connector retention systems. Representative professional SC/APC adapters achieve insertion loss of ≤0.2 dB and can withstand hundreds or thousands of mating cycles.
The adapter is particularly useful inside ODFs, FDB boxes, FAT boxes, patch panels and FTTH termination boxes where a permanent fibre termination needs to connect to a removable patch cord or subscriber cable. Fiber Optics Kenya can supply SC APC adapters together with SC/APC pigtails, patch cords, fast connectors, PLC splitters, ODFs, FDB boxes, fibre cleaners and testing equipment, allowing customers to source complete FTTH connectivity solutions.
Applications of SC APC Adapter
1. FTTH Networks
Connect subscriber and distribution SC/APC fibre interfaces.
2. GPON Networks
Provide reliable APC coupling throughout passive optical networks.
3. Optical Distribution Frames
Mount SC/APC adapters on ODF panels to provide accessible fibre ports.
4. Fibre Distribution Boxes
Connect pigtails, splitters and subscriber fibres.
5. FAT Boxes
Provide coupling points for FTTH distribution and drop cables.
6. PLC Splitter Installations
Connect SC/APC-terminated splitter outputs to distribution fibres.
7. Fibre Patch Panels
Create structured SC/APC termination ports.
8. FTTH Wall Outlets
Provide an SC/APC connection point at customer premises.
9. CATV Networks
Support low-reflection single-mode optical connections.
10. Fibre Testing
Create accessible connector interfaces for optical testing and maintenance.
Typical SC APC Adapter Connection
| Network Component | Connection |
|---|---|
| Incoming Fibre | Fusion-spliced to SC/APC pigtail |
| SC/APC Pigtail | Plugs into rear of adapter |
| SC/APC Adapter | Aligns both connectors |
| SC/APC Patch Cord | Plugs into front of adapter |
| Optical Equipment | Receives the patch cord |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Pigtail | Terminates bare fibre |
| SC/APC Patch Cord | Connects fibre equipment |
| SC/APC Fast Connector | Field-terminates drop fibre |
| PLC Splitter | Splits PON optical signal |
| ODF | Organizes fibre termination |
| FDB / FAT Box | Distributes FTTH fibres |
| FTTH Termination Box | Subscriber connection point |
| Fusion Splice Sleeve | Protects pigtail splice |
| Fibre Splice Tray | Organizes fibre splices |
| Connector Cleaner | Cleans SC/APC ferrules |
| Optical Power Meter | Measures optical signal |
| PON Power Meter | Tests FTTH wavelengths |
| Visual Fault Locator | Helps identify fibre faults |
| OTDR | Tests installed fibre links |
Why Buy SC APC Adapter from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| SC/APC Adapter Options | Reliable FTTH connectivity |
| Single-Mode Compatibility | Suitable for OS2 networks |
| Ceramic Sleeve Options | Precise connector alignment |
| Pigtails & Patch Cords | Matching components available |
| Fast Connectors | Complete field-termination solutions |
| PLC Splitters | PON distribution products |
| ODFs & FDBs | Complete fibre-distribution systems |
| Fibre Testing Tools | Support installation and maintenance |
| Technical Guidance | Help matching APC components |
| Bulk Supply | Suitable for ISPs and contractors |
| Competitive Pricing | Cost-effective project procurement |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an SC APC Adapter?
It is a passive fibre optic coupler used to connect and precisely align two SC/APC fibre connectors.
What colour is an SC/APC adapter?
SC/APC adapters are normally green. Corning specifies green housings for its SC APC simplex single-mode adapters.
Is an SC APC Adapter single mode?
Yes. SC/APC adapters are primarily used in single-mode networks. Corning lists its SC APC simplex adapter panels as single-mode OS2.
What type of alignment sleeve is used?
Quality single-mode SC adapters commonly use a zirconia ceramic alignment sleeve.
What is the typical insertion loss?
Representative SC/APC adapters specify insertion loss of approximately ≤0.2 dB.
What is the typical return loss?
Representative APC adapters can specify approximately ≥60 dB return loss.
What does APC mean?
APC means Angled Physical Contact.
Can an SC/APC adapter connect two SC/APC patch cords?
Yes. That is one of its basic functions.
Can it connect an SC/APC pigtail to an SC/APC patch cord?
Yes. This is a very common ODF and fibre-box configuration.
Can SC/APC connect to SC/UPC?
No. APC and UPC connector end-face geometries are different and should not be directly mated.
What is the difference between SC APC and SC UPC adapters?
SC/APC adapters are usually green and designed for APC connectors, while SC/UPC adapters are normally blue and designed for UPC connectors.
Is an SC APC Adapter suitable for FTTH?
Yes. It is widely used in FTTH termination and distribution infrastructure.
Can it be used in GPON?
Yes. SC/APC adapters are commonly used in GPON networks.
Can it be installed in an ODF?
Yes. Corning currently offers ODF-style panels containing SC APC simplex adapters for single-mode OS2 systems.
Can it be installed in an FDB or FAT box?
Yes. Fibre distribution and access terminal boxes are common applications.
Can it be used with PLC splitters?
Yes, provided the splitter and connected cables use SC/APC connectors.
What is a simplex adapter?
A simplex adapter carries one fibre connection.
Are flanged SC APC adapters available?
Yes. SC/APC simplex adapters are available with flanges and retention clips. CommScope currently lists a green single-mode SC/APC simplex adapter with flanges.
Are flangeless adapters available?
Yes. Compact flangeless SC/APC adapter designs are also available.
How long does an SC APC adapter last?
Representative professional models are rated for around 1,000 mating cycles, depending on manufacturer.
Does the adapter need power?
No. It is a completely passive fibre component.
Does it need configuration?
No. Simply install it correctly and keep the fibre connector end faces clean.
Why is connector cleaning important?
Dust or contamination on the connector ferrule can increase insertion loss and degrade network performance.
Do you supply SC/APC pigtails and patch cords?
Yes. Fiber Optics Kenya can supply compatible pigtails, patch cords and other APC fibre accessories.
Do you supply SC/APC fast connectors?
Yes. Field-installable SC/APC fast connectors can also be supplied.
Do you supply ODFs and FDB boxes?
Yes. Compatible optical distribution frames, fibre boxes and FTTH accessories can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, installation and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The SC APC Adapter provides precise and reliable coupling for SC/APC single-mode connections in FTTH, GPON, ODF and fibre-distribution networks.
Contact Fiber Optics Kenya for competitive pricing, SC/APC adapters, matching pigtails and patch cords, FTTH accessories, bulk orders and nationwide delivery across Kenya.
