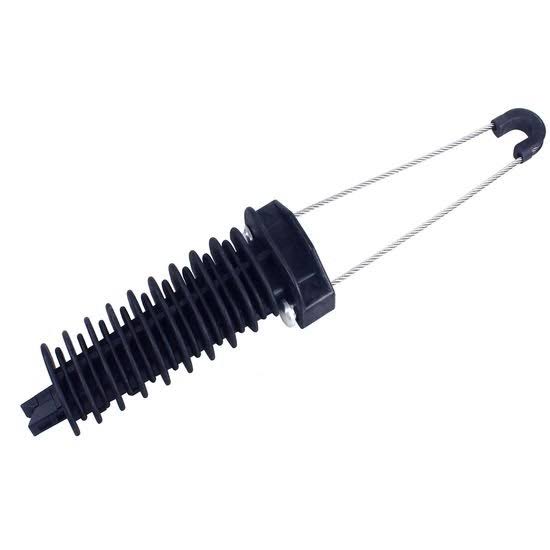

PA2000 Tension Clamp Price in Kenya

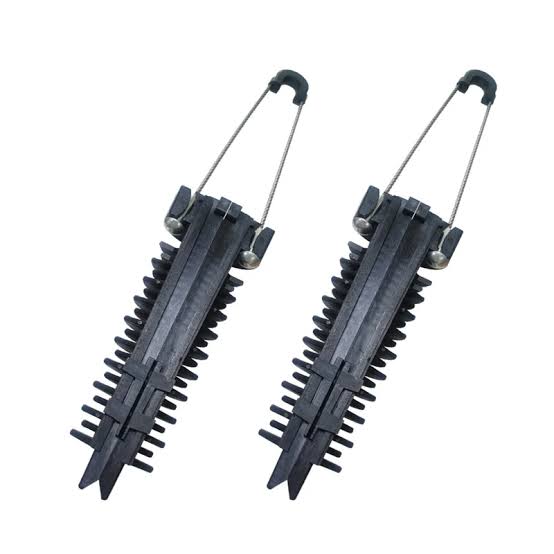

The PA2000 Tension Clamp is a heavy-duty aerial fibre anchor designed to secure and tension ADSS (All-Dielectric Self-Supporting) fibre optic cable on poles, cross-arms, brackets and other overhead telecommunications infrastructure.

A common PA2000 configuration supports approximately 12–16mm round ADSS cable, uses a nylon body with a steel bail, and provides a breaking force of around 12kN. This places it above common PA500 and PA1500 clamps in cable size and mechanical capacity within the same clamp family.

The PA2000 is commonly used at end poles, jointing poles and intermediate angle poles, where the longitudinal tension of an aerial cable needs to be transferred securely to pole-line hardware.

PA2000 Tension Clamp Specifications

The PA2000 designation is not completely standardized across manufacturers. One common telecom version specifies 12–16mm cable and 12kN breaking force, while another PA2000 design specifies an 8–14mm cable range and 8kN breaking load.

What Is a PA2000 Tension Clamp?

The PA2000 is a wedge-type anchoring clamp used to dead-end aerial fibre cables.

A typical installation is:

ADSS Cable → PA2000 Tension Clamp → Universal Pole Bracket → Pole

The clamp grips the cable while the bracket or pole hardware transfers the mechanical load into the pole.

Unlike a suspension clamp, which primarily carries the weight of the cable at an intermediate point, a PA2000 is designed to resist longitudinal tensile forces.

PA2000 for 12–16mm ADSS Cable

A widely documented PA2000 version is intended for:

12–16mm round ADSS fibre cable.

This makes the PA2000 suitable for larger ADSS cables than common PA500 and PA1500 models.

A typical product-family comparison is:

These figures apply to the cited product family and should not be assumed for every manufacturer.

PA2000 Breaking Force

A common PA2000 model provides a rated breaking force of approximately:

12kN

This corresponds to roughly 1,200kg-force in idealized force conversion terms, although it should not be interpreted as a permissible suspended working load. Cable-system engineering must use the manufacturer's specified working limits and safety factors.

Other PA2000 variants have different capacities. For example, one PA2000 with an 8–14mm cable range lists an 8kN breaking load.

Always verify:

• Manufacturer

• Cable diameter

• MBL or breaking force

• Recommended span

• Cable tensile rating

before installation.

Self-Adjusting Conical Wedges

The PA2000 commonly uses self-adjusting plastic wedges.

These wedges tighten around the cable as tensile load is applied.

The design provides:

• Secure cable gripping

• Progressive locking

• Reduced cable slippage

• Fast installation

• No special clamp tools

• Distributed pressure on the cable jacket

One PA2000 specification describes a 230mm gripping length created by the conical wedge design.

Why Long Wedges Matter

A longer gripping surface spreads pressure over a larger area of the ADSS jacket.

This helps reduce:

• Localized compression

• Jacket deformation

• Cable slippage

• Concentrated mechanical stress

Correctly designed anchor clamps should hold the cable securely while preserving its mechanical and optical performance.

Nylon Body Construction

Common PA2000 variants use a nylon body with steel bail.

Another PA2000 model specifies:

• UV-resistant nylon PA66

• Glass-fibre reinforcement

• Stainless-steel 304 bail

for outdoor installation.

Engineering polymer provides several advantages:

• High strength-to-weight ratio

• Corrosion resistance

• Electrical insulation

• Low weight

• Outdoor durability

• Cable-friendly contact surfaces

Stainless-Steel or Steel Bail

The PA2000 uses a flexible metal bail to attach to pole-line hardware.

Depending on manufacturer, this may be:

• Galvanized steel

• Stainless steel

• Stainless-steel 304

The bail allows attachment to:

• Universal Pole Brackets

• Eye bolts

• Cross-arms

• Pole hooks

• Dead-end brackets

One common PA2000 specification permits mounting on open or closed pole hardware with an eye diameter of at least approximately 15mm.

PA2000 Tool-Free Installation

PA2000 wedge clamps are designed for simple and fast installation without specialized tools.

A typical procedure is:

1. Confirm the ADSS cable diameter.

2. Check the PA2000 cable range.

3. Install the appropriate pole bracket.

4. Open the clamp assembly.

5. Position the cable inside the wedges.

6. Seat the cable correctly.

7. Attach the bail to the bracket.

8. Apply the designed tension.

9. Allow the wedges to self-lock.

10. Verify cable sag.

11. Inspect the cable jacket.

12. Check the bracket and bail connection.

PA2000 for Short-Span ADSS Networks

A common PA2000 is specified for span lengths of less than 100m.

Another product description discusses dead-ending FTTH cables for spans up to approximately 70m, demonstrating that actual supported span depends on the particular cable and clamp configuration.

The final permitted span depends on:

• Cable tensile rating

• Cable diameter

• Cable weight

• Wind load

• Pole spacing

• Cable sag

• Route angle

• Pole strength

• Clamp rating

Never determine span capability from the clamp model alone.

PA2000 at End Poles

The PA2000 is commonly installed at the end of an aerial fibre route.

Typical configuration:

ADSS Cable → PA2000 → Universal Pole Bracket → End Pole

This creates a mechanical dead-end where longitudinal cable tension terminates.

PA2000 at Jointing Poles

PA2000 anchor clamps can also be installed at fibre jointing poles.

A typical configuration is:

ADSS ← PA2000 ← Pole → PA2000 → ADSS

Each cable span is anchored separately, allowing the fibre joint and closure to remain mechanically independent of the span tension.

Anchor-clamp manufacturers specifically list jointing poles among PA2000 applications.

PA2000 at Intermediate Angle Poles

A straight intermediate pole normally uses a suspension clamp.

However, where the fibre route changes direction significantly, an anchor clamp may be preferable.

The PA2000 is commonly specified for:

• End poles

• Jointing poles

• Intermediate angle poles

Double Dead-Ending with PA2000

Two PA2000 clamps can be installed on one pole where separate spans need independent anchoring.

Example:

ADSS Cable ← PA2000 ← UPB/Pole → PA2000 → ADSS Cable

This arrangement is useful at:

• Major turns

• Fibre jointing locations

• Unequal spans

• Network branches

• High-strain points

PA2000 with Universal Pole Bracket UPB

The Universal Pole Bracket UPB provides an effective mounting point for the PA2000.

Typical assembly:

Concrete Pole
↓
Stainless-Steel Band
↓
Universal Pole Bracket UPB
↓
PA2000 Tension Clamp
↓
ADSS Fibre Cable

The PA2000 grips the cable, while the UPB transfers that load to the pole.

PA2000 with Stainless-Steel Banding

Where the UPB is installed on a concrete or steel pole, stainless-steel band can be used.

Typical hardware:

Stainless-Steel Band + Buckle + UPB + PA2000

A professional BAND-IT or equivalent tensioning tool secures the bracket to the pole.

PA2000 with Eye Bolt

Common PA2000 clamps can be mounted directly to compatible eye bolts.

A cited PA2000 design supports attachment to pole-line fittings with an opening of at least approximately 15mm diameter.

PA2000 with Cross-Arms

The bail can also connect to suitable cross-arm fittings.

This makes the PA2000 useful across:

• Timber poles

• Concrete poles

• Steel poles

• Telecom towers

• Cross-arm installations

provided the mounting hardware is correctly engineered.

Watch PA2000 Tension Clamp Video

https://youtu.be/aUZLDfZr_Yw

The PA2000 belongs to the heavier end of the commonly used PA-series wedge clamps. In one documented family, the PA500 handles 4–8mm cable at 4kN, the PA1500 handles 9–12mm cable at 10kN, and the PA2000 handles 12–16mm cable at 12kN.

For ISP and FTTH installations, this makes the PA2000 useful when the deployed ADSS cable is larger or the mechanical requirement exceeds the capacity of smaller anchor clamps. The model number alone should nevertheless never determine suitability, because PA2000 products from different manufacturers can vary in cable range and rated load.

A complete installation normally combines the PA2000 with compatible ADSS fibre cable, Universal Pole Brackets, J-Hook suspension clamps, stainless-steel banding, downlead clamps and fibre cable storage hardware.

PA2000 vs PA1500

These specifications apply to one commonly documented PA-series family.

PA2000 vs PA500

PA2000 vs PA3000

The PA2000 and PA3000 are both heavy-duty wedge-type ADSS anchor clamps, but their designations are not universally standardized.

For purchasing, compare cable diameter and mechanical rating, rather than choosing solely by model number.

PA2000 vs J-Hook Suspension Clamp

These products complement rather than replace each other.

Example ADSS Route Using PA2000

A simplified overhead fibre route may be:

PA2000 → ADSS → J-Hook → ADSS → J-Hook → ADSS → PA2000

At an angle or jointing pole:

PA2000 ← Pole → PA2000

This combination provides both cable support and controlled mechanical anchoring.

Applications of PA2000 Tension Clamp

FTTH Feeder Networks

The PA2000 can anchor larger aerial feeder cables supplying FAT boxes and downstream distribution networks.

ISP Networks

Suitable for aerial fibre routes connecting:

• POPs

• Estates

• Towers

• Buildings

• Distribution cabinets

• Rural sites

GPON Networks

The PA2000 can secure aerial fibre carrying GPON services between an OLT network and downstream splitters or distribution points.

EPON Networks

It can equally support compatible aerial EPON infrastructure.

Rural Fibre Networks

Aerial ADSS can reduce the need for extensive trenching, making tension clamps important in rural fibre expansion.

Estate Networks

PA2000 clamps can form part of pole-based estate fibre distribution.

Campus Networks

Useful where ADSS fibre connects multiple buildings.

CCTV Fibre Backbones

Can support longer aerial CCTV backbone links where suitable ADSS cable is used.

Metropolitan Fibre

Suitable for appropriate short-span urban aerial routes.

PA2000 Tension Clamp Price in Kenya

Current Kenyan online retail references show the PA2000 at approximately KES 300 from one fibre equipment supplier, reduced from around KES 450 at the time checked.

This is a third-party market reference and not a fixed Fiber Optics Kenya price.

PA2000 pricing can vary according to:

• Cable diameter

• Breaking-force rating

• Body material

• Bail material

• Manufacturer

• Imported quantity

• Retail vs wholesale purchase

• VAT

• Exchange rates

For ISP projects requiring dozens or hundreds of clamps, request a bulk quotation.

How to Choose the Correct PA2000 Clamp

1. Confirm Cable Diameter

Measure the ADSS cable outside diameter.

A common PA2000 requires:

12–16mm cable.

2. Check Cable Tensile Rating

The fibre cable itself must support the designed aerial tension.

3. Check Clamp Breaking Force

A common PA2000 is specified at 12kN, but other PA2000 variants can be lower-rated.

4. Check Span Length

Do not automatically assume that a higher-load clamp allows a longer span.

5. Check Pole Hardware

Confirm compatibility with:

• UPB

• Eye bolt

• Cross-arm

• Hook

6. Confirm Environmental Rating

Choose components intended for outdoor UV and weather exposure.

Common PA2000 Installation Mistakes

Avoid:

• Using an undersized clamp

• Using an oversized clamp

• Mixing incompatible wedges

• Exceeding the cable's tensile rating

• Attaching the bail to weak pole hardware

• Using an unrated bracket

• Over-tensioning ADSS cable

• Ignoring cable sag

• Allowing sharp cable bends

• Installing on damaged cable jacket

Advantages of PA2000 Tension Clamp

The PA2000 provides:

• Strong ADSS anchoring

• Up to 12kN breaking force on common models

• 12–16mm cable compatibility on common models

• Tool-free installation

• Self-adjusting wedges

• Long gripping surface

• UV-resistant polymer construction

• Steel or stainless-steel bail

• Compatibility with common pole fittings

• Lightweight design

• Outdoor durability

Recommended Accessories for PA2000

Frequently Asked Questions About PA2000 Tension Clamps

What is a PA2000 Tension Clamp?

It is a wedge-type anchor clamp designed to tension and dead-end round aerial ADSS fibre optic cables.

Is PA2000 an anchor clamp?

Yes. It is commonly called an anchor clamp, tension clamp, strain clamp or dead-end clamp.

What cable size does PA2000 support?

One common PA2000 supports 12–16mm round ADSS cable.

Are there PA2000 clamps for 8–14mm cables?

Yes. Some manufacturers offer an 8–14mm PA2000 variant.

Are there PA2000 clamps for 10–20mm cable?

Some manufacturers market broader PA2000 variants covering approximately 10–20mm, which is why the exact datasheet should be checked.

Why do PA2000 specifications differ?

Because several manufacturers use the PA2000 model designation for slightly different clamp designs.

What is the breaking force of PA2000?

A common version is rated at approximately 12kN.

Are all PA2000 clamps rated 12kN?

No. An alternative PA2000 product lists an 8kN breaking load.

What is PA2000 made from?

A common model uses nylon and steel.

Are PA2000 clamps made from PA66?

Some variants use UV-resistant PA66 reinforced polymer.

Does PA2000 have a stainless-steel bail?

Some variants do. Others use steel bail construction, so confirm the exact product.

Does PA2000 use self-adjusting wedges?

Yes. Common PA2000 designs use self-adjusting plastic conical wedges.

Does the PA2000 require special installation tools?

No. Common models are designed for tool-free cable installation.

How long is the gripping area?

One common PA2000 design provides approximately 230mm of gripping length.

Can PA2000 be used for spans up to 100m?

Some models are specified for spans of less than approximately 100m.

Does that mean every PA2000 can handle a 100m span?

No. Span capability depends on the cable, clamp, poles, wind loading, sag and complete network design.

Can PA2000 be used at end poles?

Yes.

Can PA2000 be used at jointing poles?

Yes.

Can PA2000 be used at intermediate angle poles?

Yes.

Can two PA2000 clamps be installed on one pole?

Yes, where a double dead-end configuration is required.

Can PA2000 attach to a Universal Pole Bracket?

Yes.

Can it attach to an eye bolt?

Yes. One common design allows mounting on an eye of at least approximately 15mm diameter.

Can it attach to a cross-arm?

Yes.

Can PA2000 be installed on concrete poles?

Yes, using suitable pole hardware.

Can it be used on wooden poles?

Yes.

Can it be used on steel poles?

Yes.

Can PA2000 replace a suspension clamp?

No. A PA2000 anchors the cable; a suspension clamp primarily supports cable at intermediate poles.

Can PA2000 replace a J-Hook clamp?

No. They perform different mechanical functions.

Is PA2000 larger than PA1500?

In the commonly published PA-series range, yes. PA1500 supports 9–12mm while PA2000 supports 12–16mm.

Is PA2000 larger than PA500?

Yes. PA500 commonly supports 4–8mm Mini ADSS cable.

Is PA2000 suitable for Mini ADSS?

Normally only if the particular Mini ADSS cable diameter falls within the clamp's supported range. Most small Mini ADSS cables would use a smaller PA500-type clamp.

Can PA2000 be used for FTTH?

Yes.

Can PA2000 be used for GPON networks?

Yes. It is a mechanical fibre accessory and does not depend on the optical access protocol.

Can it be used with EPON?

Yes.

Is PA2000 suitable for ISP networks?

Yes.

Can it be used in rural fibre networks?

Yes.

Can it be used for estate fibre networks?

Yes.

Can it be used for CCTV fibre?

Yes, where suitable ADSS fibre is used.

What is the PA2000 Tension Clamp price in Kenya?

A current Kenyan supplier listing shows approximately KES 300, although retail prices vary by supplier, specification and VAT treatment.

Do you supply PA2000 Tension Clamps?

Yes. Fiber Optics Kenya can supply PA2000 ADSS tension clamps subject to stock availability.

Do you supply PA500 clamps?

Yes.

Do you supply PA1500 clamps?

Yes.

Do you supply PA3000 clamps?

Yes.

Do you supply Universal Pole Brackets?

Yes.

Do you supply J-Hook Suspension Clamps?

Yes.

Do you supply ADSS fibre cables?

Yes.

Do you supply stainless-steel banding?

Yes.

Do you supply BAND-IT tools?

Yes, subject to availability.

Do you supply downlead clamps?

Yes.

Do you supply cable storage brackets?

Yes.

Do you supply fibre closures?

Yes.

Do you supply FAT boxes?

Yes.

Can I buy PA2000 clamps in bulk?

Yes. Bulk supply is suitable for ISP, telecom, contractor and FTTH rollout projects.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic and pole-line accessories throughout Kenya.

Why Buy PA2000 Tension Clamps from Fiber Optics Kenya?

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The PA2000 Tension Clamp is a robust aerial fibre anchoring solution for ADSS networks. One widely available PA2000 design supports 12–16mm round cable, provides approximately 12kN breaking force and uses nylon construction with a steel bail and self-adjusting wedges.

Its tool-free wedge mechanism and compatibility with Universal Pole Brackets, cross-arms and eye bolts make it suitable for end poles, jointing poles and intermediate angle points in FTTH, ISP, GPON, rural and metropolitan fibre deployments.

Because PA2000 specifications are not completely standardized, buyers should confirm the cable diameter, breaking force, span requirement and bail construction of the exact clamp before installation. Some variants cover 8–14mm cable with an 8kN rating, while the common larger version covers 12–16mm at 12kN.

Contact Fiber Optics Kenya for PA2000 Tension Clamp prices in Kenya, PA500/PA1500/PA3000 clamps, Universal Pole Brackets, J-Hook suspension clamps, ADSS fibre cables, stainless-steel banding, downlead clamps, bulk ISP orders and nationwide delivery.
