NK4000 Mini OTDR Price in Kenya

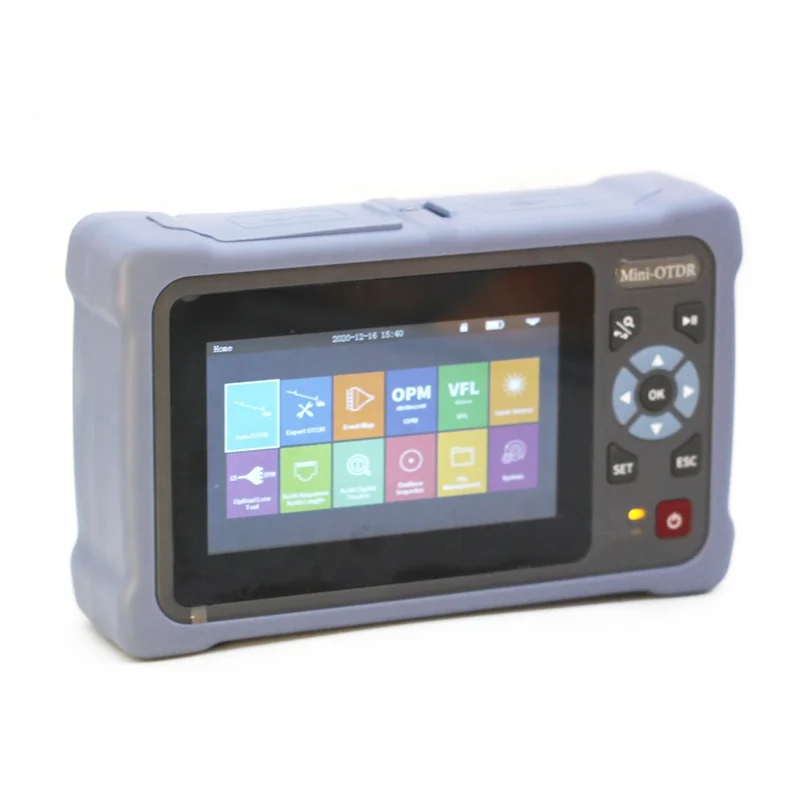

The NK4000 Mini OTDR is a compact multifunction optical fibre tester designed for installation, maintenance, troubleshooting and emergency repair of FTTH, FTTX, ISP, metro and secondary backbone fibre networks. Despite its small size, the NK4000 series combines conventional OTDR testing with several additional fibre and copper-network diagnostic tools.

The most versatile version for general fibre work is the NK4000D, which provides dual 1310nm and 1550nm wavelengths, a maximum dynamic range of approximately 26dB at 1310nm and 24dB at 1550nm, and selectable test ranges up to 100km. The NK4000 family also includes single-wavelength and live-fibre variants for specialized network testing.

In addition to OTDR testing, the NK4000 series can include Auto OTDR, Expert OTDR, Event Map, Optical Power Meter, Visual Fault Locator, stable Optical Light Source, optical loss testing, RJ45 cable-sequence testing, RJ45 length testing and digital cable tracing.

NK4000 Mini OTDR Key Specifications

The manufacturer publishes the NK4000 Mini-OTDR as an official product and provides dedicated English technical documentation for it.

NK4000 Mini OTDR Models

The NK4000 is a series, not just one configuration.

These model distinctions are important when purchasing because the optical wavelength and live-fibre capabilities differ.

NK4000D Dual-Wavelength OTDR

For most ISP and fibre-contractor applications, the NK4000D is particularly attractive because it combines both:

• 1310nm

• 1550nm

These wavelengths provide complementary information when testing single-mode fibre.

Comparing the two wavelengths can help identify macro-bending because bending losses typically become more pronounced at 1550nm.

Up to 100KM Test Range

The NK4000 supports selectable ranges up to 100km:

• 500m

• 1km

• 2km

• 4km

• 8km

• 16km

• 32km

• 64km

• 100km

This makes it useful for much more than short FTTH subscriber drops.

It can be used for:

• FTTH feeder links

• Fibre distribution networks

• Metro fibre

• Inter-building fibre

• ISP backbones

• Enterprise campuses

• CCTV backbone links

• Long point-to-point fibre

Actual usable range depends on optical loss, fibre attenuation, splitters, connectors and splices.

26/24dB Dynamic Range

The NK4000D provides approximately:

26dB at 1310nm
24dB at 1550nm

Dynamic range affects how much total optical loss the tester can handle while still receiving enough backscatter to analyse the link.

This gives the NK4000D useful capability for access, distribution and many backbone networks.

Event Dead Zone

The NK4000 series specifies an event dead zone of approximately 2.5 metres.

A smaller dead zone helps the instrument distinguish events that are positioned relatively close together.

This is useful around:

• ODFs

• Patch panels

• Fibre closures

• Multiple connector points

• Short fibre sections

Attenuation Dead Zone

The specified attenuation dead zone is approximately 8 metres.

Dead-zone performance matters when analysing events close to strong reflections such as connectors.

High Sampling Resolution

The NK4000 supports approximately 16,000 to 128,000 sampling points, depending on the configuration and range.

More sampling points can provide a more detailed representation of events along the fibre.

Auto OTDR

The Auto OTDR function simplifies testing for technicians who do not want to manually configure all measurement parameters.

The instrument can automatically optimize items such as:

• Range

• Pulse width

• Measurement settings

This is useful for:

• FTTH installers

• Junior technicians

• Rapid maintenance checks

• Routine acceptance tests

Expert OTDR Mode

More experienced technicians can use the Expert OTDR function for greater control over measurement parameters.

This is useful when:

• Investigating difficult events

• Testing longer fibre links

• Comparing wavelengths

• Adjusting pulse width

• Optimizing event resolution

Event Map

The NK4000 also provides an Event Map function.

Instead of relying only on the conventional OTDR waveform, the link can be presented as a simplified series of events.

Potential events include:

• Connectors

• Fusion splices

• Fibre sections

• High-loss points

• Fibre end

• Breaks

This makes fibre analysis easier for less experienced users.

OTDR Trace Analysis

A conventional OTDR trace can show:

The NK4000 allows technicians to use both conventional and simplified event-analysis methods.

Built-In Optical Power Meter

The NK4000 series can include an integrated Optical Power Meter.

This can be used to measure optical signal levels for:

• Fibre commissioning

• Receiver-power verification

• Link troubleshooting

• Loss testing

Having an OPM inside the same device reduces the number of separate instruments a technician needs to carry.

Built-In Visual Fault Locator

The NK4000 can also include a Visual Fault Locator for visible fibre tracing.

A VFL helps technicians identify:

• Fibre breaks

• Severe bends

• Damaged patch cords

• Broken pigtails

• Short-distance continuity faults

Optical Light Source

A built-in stable light source is another function of the NK4000 series.

An Optical Light Source can be paired with an Optical Power Meter:

Light Source → Fibre Link → OPM

This allows technicians to perform optical-loss measurements.

Optical Loss Test

The NK4000 provides a dedicated Optical Loss Test function.

This is useful when technicians want to verify the total attenuation of a fibre rather than only inspecting an OTDR trace.

RJ45 Cable Testing

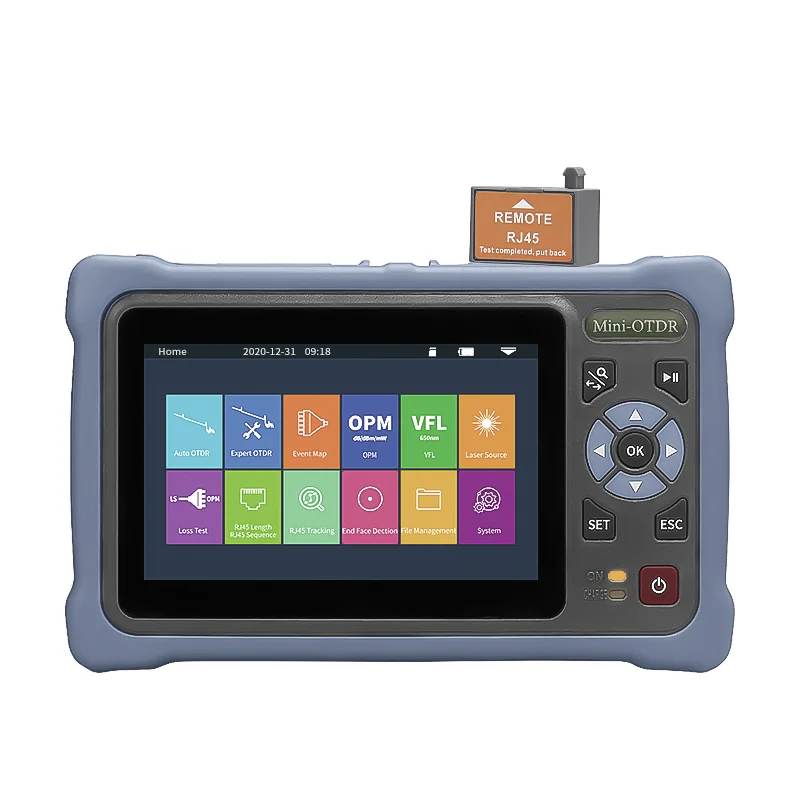

One advantage of the NK4000 over many basic mini-OTDRs is its support for copper Ethernet testing.

The series can provide:

• RJ45 wire-sequence testing

• RJ45 cable-length testing

• Digital cable tracing

• Remote identification

This is particularly useful for technicians who work on both fibre and Ethernet networks.

RJ45 Wire Sequence Test

The wire-sequence test can help identify:

• Incorrect terminations

• Open conductors

• Miswired pairs

• Cable assembly faults

This can reduce the need to carry a separate basic network-cable tester.

RJ45 Cable Length Test

The NK4000 can estimate the length of Ethernet cables.

This can help when troubleshooting:

• Office cabling

• CCTV networks

• Network cabinets

• LAN deployments

Digital Cable Tracing

The cable-tracing function helps identify a particular Ethernet cable among multiple cables.

This is useful in:

• Server rooms

• Patch panels

• Communication cabinets

• CCTV racks

• Office networks

8GB Storage

A common NK4000 configuration provides 8GB internal memory and can store more than 200,000 OTDR curves.

This is useful for technicians who need to save:

• Installation records

• Acceptance results

• Fault traces

• Before/after repair tests

• Customer documentation

Standard SOR File Format

The NK4000 supports standard SOR OTDR files.

SOR compatibility allows traces to be stored and potentially analysed using compatible OTDR software.

4000mAh Battery

A common configuration uses a 4000mAh high-density lithium-polymer battery.

Published operating time is more than approximately 8 hours under specified conditions.

This makes the Mini OTDR suitable for all-day field work.

Power-Bank Support

The NK4000 can also be powered or charged using compatible power-bank equipment.

This is useful for technicians working:

• In rural areas

• On roadside fibre

• At construction sites

• Inside remote POPs

• During outage restoration

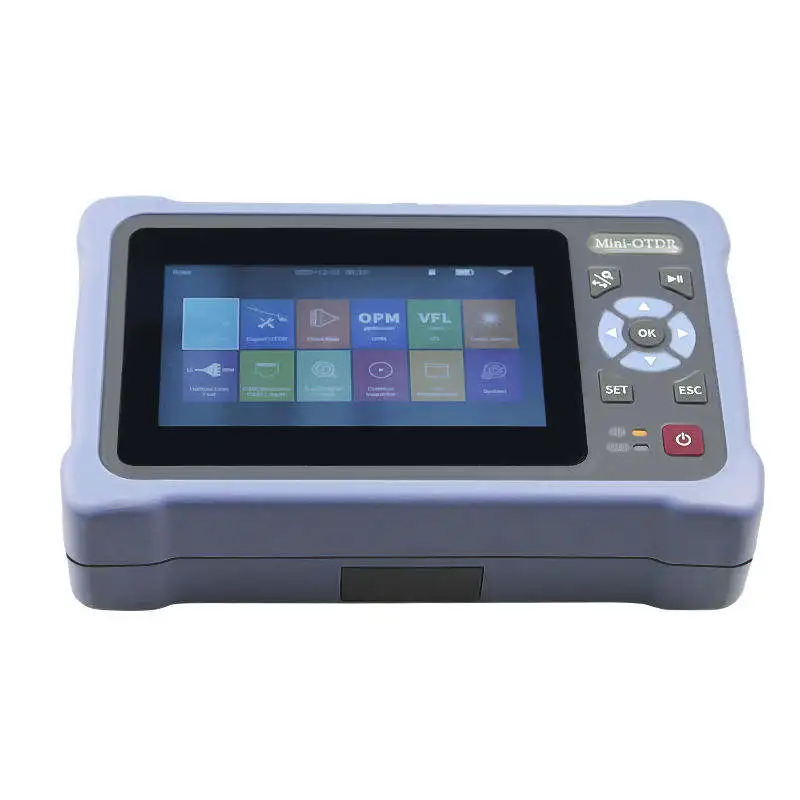

Compact Field Design

The NK4000's Mini-OTDR format is intended to provide professional testing capability without the size and weight of traditional full-size OTDR equipment.

This makes it convenient for technicians working at:

• Customer premises

• Fibre cabinets

• FAT boxes

• ODF rooms

• Telecom towers

• Underground chambers

Watch NK4000 Mini OTDR

https://youtu.be/-7R_toTyk2w

The NK4000 Mini OTDR is particularly useful for technicians who want a single compact tester capable of handling both fibre and copper-network diagnostics. Its combination of OTDR trace analysis, Event Map, OPM, VFL, Optical Light Source and RJ45 testing makes it suitable for technicians working across complete ISP and FTTH installations rather than fibre alone.

The dual-wavelength NK4000D offers a particularly practical configuration for single-mode networks because 1310nm and 1550nm testing can be compared while troubleshooting attenuation, fibre events and macro-bending. Its 26/24dB dynamic range and selectable ranges up to 100km provide significantly more capability than a basic short-range fibre fault locator.

For complete field deployment, Fiber Optics Kenya can supply the NK4000 Mini OTDR alongside OTDR launch cables, fibre cleaning tools, PON power meters, VFLs, fibre cleavers, fusion splicers, patch cords and connector adapters.

What Can NK4000 Detect?

Finding a Fibre Break

Suppose a fibre route is 24km long and has been damaged somewhere underground.

A VFL cannot reliably tell the technician where the break is located.

An OTDR can calculate the approximate distance from the testing point to the fibre end or fault.

This allows the field team to narrow the repair area rather than inspecting the entire route.

Measuring Fibre Length

The NK4000 can measure fibre distance and help verify:

• Installed cable lengths

• Fibre-route records

• Distance to closures

• Distance to fibre breaks

• Backbone link lengths

This is valuable where construction records are incomplete.

Testing Fusion Splices

Fusion splices typically appear as loss events on the trace.

A technician can identify:

• Splice location

• Approximate splice loss

• High-loss joints

• Unexpected fibre events

This is particularly useful after installing a fibre closure or ODF.

Testing Connectors

Connectors generally create reflective events.

A high-reflection or high-loss connector can result from:

• Dirt

• Damage

• Poor mating

• Incorrect polishing combination

• Loose connection

An OTDR trace helps technicians locate these events.

Testing Fibre Bends

Testing at both 1310nm and 1550nm can help identify bending problems because macro-bending generally causes greater attenuation at the longer wavelength.

The NK4000D therefore provides useful diagnostic flexibility.

NK4000 Mini OTDR for FTTH

A typical FTTH topology is:

OLT → ODF → Feeder Fibre → PLC Splitter → Distribution Fibre → FAT → Drop Cable → ATB → ONT

The NK4000 can support testing across sections of this infrastructure.

Potential applications include:

• Feeder fibre testing

• Distribution fibre

• Drop cable troubleshooting

• Splice verification

• Fibre-break location

• Optical-loss testing

NK4000 for ISP Networks

ISPs can use the NK4000 for:

• Fibre rollout

• Backbone maintenance

• Subscriber troubleshooting

• Emergency fault response

• Network commissioning

• Fibre acceptance testing

• ODF verification

• Closure testing

• Documentation

NK4000 vs ZS-1000A

The NK4000 offers stronger long-distance specifications and integrated Ethernet testing, while the ZS-1000A remains attractive where a very compact tester is preferred.

NK4000 vs COMPTYCO AUA800

NK4000 vs Visual Fault Locator

NK4000 vs Optical Power Meter

OTDR Launch Cable

Using an OTDR launch cable is recommended when accurate characterization of the near-end connector is required.

Typical setup:

NK4000 → Launch Cable → Fibre Under Test

A receive cable may also be connected at the far end if the final connector needs to be measured accurately.

Why Use a Launch Cable?

Without a launch cable, the OTDR's initial reflection can hide the first connector within the instrument's dead zone.

A launch cable provides sufficient fibre between the OTDR and the first event.

NK4000 Mini OTDR Price in Kenya

The NK4000 Mini OTDR price in Kenya depends on the exact model selected.

Important price factors include:

• NK4000S vs NK4000D

• Single or dual wavelength

• Live-fibre capability

• Included VFL

• OPM/OLS configuration

• RJ45 accessories

• Launch cable

• Carrying case

• Warranty

• Calibration

• Quantity ordered

Because the NK4000 family contains multiple variants, the model should always be confirmed before comparing quotations.

What to Check Before Buying NK4000

1. Exact model: S, D, F1, F2 or T

2. Required wavelength

3. Dynamic range

4. Need for live-fibre testing

5. Connector interface

6. RJ45 functions

7. Battery condition

8. Included remote cable tracer

9. Launch cable

10. Warranty and calibration

Recommended Accessories

Frequently Asked Questions

What is the NK4000 Mini OTDR?

The NK4000 is a compact multifunction Optical Time Domain Reflectometer designed for FTTH, FTTX, ISP and fibre-maintenance applications.

Who manufactures the NK4000?

Novker lists the NK4000 Mini-OTDR in its official technical-support documentation.

Is there more than one NK4000?

Yes. The series includes NK4000S, NK4000D, NK4000F1, NK4000F2 and NK4000T variants.

Which NK4000 has 1310nm and 1550nm?

The NK4000D supports both 1310nm and 1550nm.

What is the NK4000D dynamic range?

Approximately 26dB at 1310nm and 24dB at 1550nm.

What is the maximum testing range?

Up to 100km.

Can the NK4000 test short fibre?

Yes. The selectable range starts from approximately 500m on common specifications.

What is the event dead zone?

Approximately 2.5m.

What is the attenuation dead zone?

Approximately 8m.

Does NK4000 have Auto OTDR?

Yes.

Does it have Expert OTDR?

Yes.

Does it have an Event Map?

Yes.

Does it have an Optical Power Meter?

Yes.

Does it have a VFL?

The series supports VFL functionality, with availability depending on model.

Does it have an Optical Light Source?

Yes.

Can it perform optical-loss testing?

Yes.

Does it test RJ45 network cables?

Yes.

Can it check RJ45 wire sequence?

Yes.

Can it measure Ethernet cable length?

Yes.

Can it trace Ethernet cables?

Yes. The NK4000 supports digital cable tracing and remote identification.

How much storage does it have?

A common configuration provides 8GB and can store more than 200,000 curves.

Does it save SOR files?

Yes. The specification lists the standard SOR file format.

What battery does it use?

A common NK4000 configuration uses a 4000mAh lithium-polymer battery.

How long can it operate?

Published information states more than approximately 8 hours under specified conditions.

Can I charge it using a power bank?

Yes. Power-bank supply and charging are supported on documented configurations.

Can the NK4000 locate a fibre break?

Yes.

Can it tell me the distance to the break?

Yes. That is one of the primary functions of an OTDR.

Can it measure total fibre length?

Yes.

Can it identify fusion splices?

Yes.

Can it identify connectors?

Yes.

Can it detect high-loss splices?

Yes.

Can it detect fibre bends?

Significant bend losses can be detected, and comparing 1310nm and 1550nm can assist with diagnosis.

Is NK4000 suitable for FTTH?

Yes. FTTH/FTTX construction and maintenance are among its stated applications.

Can an ISP use NK4000?

Yes. It is suitable for subscriber networks, distribution fibre, secondary backbones and emergency repairs.

Can it test ODF fibre?

Yes.

Can it test FAT box connections?

Yes.

Can it test fibre closures?

Yes.

Can it test backbone fibre?

Yes, where the distance and optical-loss budget are within the instrument's capability.

Can it test a live fibre?

Certain models such as NK4000D/F1/F2/T are listed with live-fibre testing capability depending on version. Verify the exact instrument before using it on an active network.

Do I need a launch cable?

A launch cable is recommended where accurate near-end connector measurement is required.

Can NK4000 replace a basic VFL?

It can include VFL functionality, although a standalone pen VFL may still be more convenient for very quick field tests.

Can it replace an Optical Power Meter?

For many routine tasks, the built-in OPM can reduce the need for a separate basic meter.

Can it replace a PON Power Meter?

No. A dedicated PON meter is preferable for live multi-wavelength PON power measurements.

Do you supply NK4000 Mini OTDRs?

Yes. Fiber Optics Kenya can supply OTDRs and related fibre-testing equipment subject to stock availability.

Do you supply OTDR launch cables?

Yes.

Do you supply PON Power Meters?

Yes.

Do you supply Optical Power Meters?

Yes.

Do you supply Visual Fault Locators?

Yes.

Do you supply fusion splicing machines?

Yes.

Do you supply fibre cleavers?

Yes.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic equipment throughout Kenya.

Why Buy NK4000 Mini OTDR from Fiber Optics Kenya?

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The NK4000 Mini OTDR is a versatile portable fibre tester suitable for FTTH installers, ISP technicians, fibre contractors and telecom maintenance teams. The dual-wavelength NK4000D combines 1310/1550nm testing, 26/24dB dynamic range, up to 100km range, approximately 2.5m event dead zone, Event Map, OPM, VFL, Optical Light Source and RJ45 cable diagnostics in one field instrument.

Its 8GB storage, support for standard SOR traces and approximately 4000mAh battery with more than eight hours of specified operation further strengthen its value for technicians who need to perform and document multiple tests during a full day in the field.

Contact Fiber Optics Kenya for NK4000 Mini OTDR prices in Kenya, NK4000D dual-wavelength OTDRs, launch cables, PON Power Meters, VFLs, fusion splicers, fibre cleavers, complete fibre testing kits, bulk orders and nationwide delivery.
