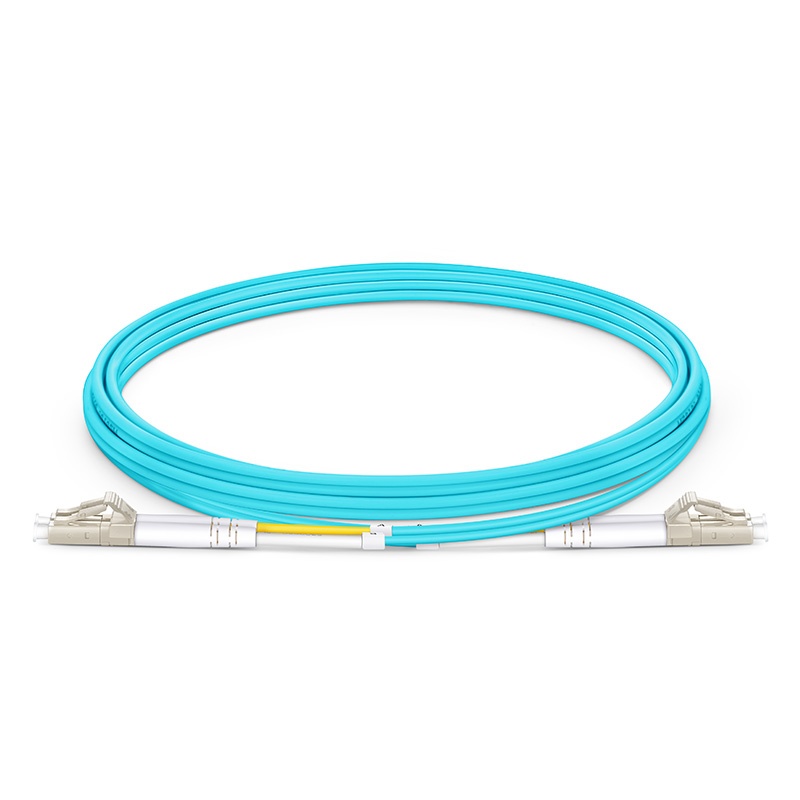

MM LC-LC Fibre Patch Cord 1m in Kenya
KSh 1,300.00
1 available
Continue shoppingMM LC-LC Fibre Patch Cord 1m in Kenya
The MM LC-LC Fibre Patch Cord 1m is a short, factory-terminated multimode fibre optic cable designed for connecting network equipment fitted with LC fibre interfaces. With LC connectors on both ends and a practical 1-metre length, it is particularly suitable for switches, SFP/SFP+ modules, servers, fibre patch panels, ODFs and other equipment installed within the same rack or communications cabinet.
Multimode LC-LC patch cords are available in fibre categories such as OM1, OM2, OM3, OM4 and OM5, although OM3 and OM4 are especially common in modern high-speed LAN and data-centre installations. Corning currently offers a 1 m OM3 50 µm multimode LC UPC duplex-to-LC UPC duplex patch cord for indoor LAN, central-office and fibre-to-the-premises applications.
At Fiber Optics Kenya, the MM LC-LC Fibre Patch Cord 1m is suitable for businesses, data centres, ISPs, schools, hospitals, CCTV installations, server rooms and enterprise LANs. Customers can also source compatible LC adapters, multimode pigtails, ODFs, patch panels, SFP modules and fibre management accessories for complete optical-network installations.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | MM LC-LC Fibre Patch Cord 1m |
| Product Type | Multimode Fibre Optic Patch Cord |
| Connector A | LC/UPC |
| Connector B | LC/UPC |
| Cable Length | 1 Metre |
| Fibre Mode | Multimode |
| Common Fibre Categories | OM1 / OM2 / OM3 / OM4 / OM5 |
| Common Modern Option | OM3 / OM4 |
| OM3/OM4 Core Size | 50/125 µm |
| Connector Configuration | Duplex commonly |
| Connector Polish | UPC |
| Typical Jacket Colour – OM3 | Aqua |
| Typical Jacket Colour – OM4 | Aqua or Violet depending on manufacturer |
| Typical Cable Diameter | 2.0 mm or model dependent |
| Common Jacket | LSZH / OFNR / PVC depending on model |
| Typical Operating Wavelengths | 850 nm / 1300 nm |
| Installation Environment | Indoor |
| Applications | LAN, data centre, SFP, switch, server, ODF |
| Professional Installation | Available |
| Delivery | Available across Kenya |
Corning's current 1 m OM3 LC-LC duplex patch cord uses 50 µm multimode fibre, a 2.0 mm tight-buffered cable and LSZH/FRNC construction.
What Does MM LC-LC Mean?
The product name identifies the fibre type and connector arrangement.
| Term | Meaning |
|---|---|
| MM | Multimode |
| LC | Lucent Connector / small-form-factor fibre connector |
| LC-LC | LC connector on both ends |
| UPC | Ultra Physical Contact polish |
| Patch Cord | Factory-terminated optical interconnection cable |
| 1m | Cable length is one metre |
The compact LC connector is particularly useful in high-density network environments because it occupies less panel space than larger connector formats such as SC.
LC Connector Features
The LC connector uses a compact 1.25 mm ferrule and latch-style mechanism, making it one of the most widely used connectors for modern Ethernet transceivers and fibre patch panels.
| LC Connector Feature | Benefit |
|---|---|
| Small Form Factor | Supports high port density |
| 1.25 mm Ferrule | Compact optical interface |
| Latch Mechanism | Secure connection |
| SFP Compatibility | Widely used on SFP/SFP+ modules |
| Duplex Configuration | Ideal for transmit/receive Ethernet links |
| Patch Panel Compatibility | Excellent |
| Data Centre Use | Excellent |
| Enterprise LAN Use | Excellent |
LC-LC multimode patch cords are widely used to connect optical transceivers to patch panels and other network equipment.
Multimode Fibre Categories
| Fibre Type | Core / Cladding | Typical Positioning |
|---|---|---|
| OM1 | 62.5/125 µm | Legacy multimode installations |
| OM2 | 50/125 µm | General multimode LAN |
| OM3 | 50/125 µm | Laser-optimized high-speed networking |
| OM4 | 50/125 µm | Higher-bandwidth high-speed networking |
| OM5 | 50/125 µm | Wideband multimode applications |
For new high-speed installations, OM3 and OM4 are generally much more relevant than older OM1 and OM2 cabling. Corning currently manufactures LC-LC patch cords in OM3, OM4 and OM5 variants.
OM3 Multimode Fibre Characteristics
| Characteristic | Typical Description |
|---|---|
| Fibre Category | OM3 |
| Fibre Mode | Multimode |
| Core Diameter | 50 µm |
| Cladding Diameter | 125 µm |
| Laser Optimized | Yes |
| Typical Jacket Colour | Aqua |
| Primary Wavelength | 850 nm |
| Secondary Wavelength | 1300 nm |
| 10 Gigabit Ethernet | Excellent |
| 40G / 100G Short Reach | Supported with appropriate architecture |
| Data Centre Use | Excellent |
| Enterprise LAN | Excellent |
OM3 is designed for high-speed multimode Ethernet and is commonly recognized by an aqua jacket. It supports 10 Gigabit Ethernet to around 300 m under the applicable standard.
OM3 vs OM4 Fibre Patch Cord
| Feature | OM3 | OM4 |
|---|---|---|
| Core / Cladding | 50/125 µm | 50/125 µm |
| Laser Optimized | Yes | Yes |
| Typical Jacket | Aqua | Aqua / Violet |
| Modal Bandwidth | High | Higher |
| 10GbE | Excellent | Excellent |
| 40G/100G Short Reach | Excellent | Better reach/headroom |
| Data Centre Use | Excellent | Excellent |
| Enterprise LAN | Excellent | Excellent |
| Future Upgrade Capacity | High | Higher |
OM4 offers greater modal bandwidth than OM3 and can provide more transmission headroom for demanding applications.
Typical Optical Performance
| Parameter | Typical / Representative Description |
|---|---|
| Fibre Mode | Multimode |
| Common Fibre Grade | OM3 / OM4 |
| Core / Cladding | 50/125 µm |
| Connector Type | LC/UPC |
| Operating Wavelength | 850 / 1300 nm |
| Insertion Loss | Low; model dependent |
| Return Loss | Product dependent |
| 1 Gigabit Ethernet | Supported |
| 10 Gigabit Ethernet | Supported |
| 40 Gigabit Ethernet | Supported with appropriate optics |
| 100 Gigabit Ethernet | Supported with appropriate architecture |
| Cable Length | 1 m |
FS lists OM3 LC-LC multimode patch cords for 10G, 40G and 100G Ethernet over appropriate short-to-medium multimode distances.
Duplex LC-LC Fibre Patch Cord
Most multimode LC-LC Ethernet patch cords use duplex construction, meaning two fibres are paired together.
| Fibre | Typical Function |
|---|---|
| Fibre A | Transmit |
| Fibre B | Receive |
This allows full-duplex optical communication between two compatible network devices.
| Duplex Feature | Benefit |
|---|---|
| 2 Optical Fibres | Separate transmit and receive paths |
| 2 LC Connectors per End | Matches duplex transceiver interfaces |
| Polarity Identification | Helps maintain Tx/Rx orientation |
| Suitable for Ethernet | Excellent |
| SFP/SFP+ Use | Very Common |
| Network Switches | Excellent |
| Server Connections | Excellent |
Corning's 1 m OM3 LC-LC patch cord is specifically offered as a two-fibre duplex cable assembly.
Typical MM LC-LC Patch Cord Construction
| Component | Function |
|---|---|
| Multimode Optical Fibres | Carry optical signals |
| Primary Coating | Protects glass fibres |
| Tight Buffer | Adds mechanical protection |
| Aramid Yarn | Provides tensile reinforcement |
| Outer Jacket | Protects the cable |
| LC/UPC Connectors | Provide optical connection at each end |
| Ceramic Ferrules | Precisely align the fibres |
| Strain Relief Boots | Protect cable near connectors |
| Duplex Clip | Keeps fibre pairs correctly oriented |
Factory termination helps ensure consistent connector polish and reduces the need for field connectorization.
Why Choose a 1 Metre Patch Cord?
A 1m patch cord is particularly convenient for equipment located within the same network rack or cabinet.
| Application | Benefit of 1m Length |
|---|---|
| Switch to Patch Panel | Short, neat connection |
| SFP to ODF | Minimal excess cable |
| Server to Fibre Switch | Easy rack management |
| Rack Equipment Interconnection | Reduces cable clutter |
| Media Converter Connection | Convenient short run |
| Testing Equipment | Easy temporary connection |
| Network Cabinet | Cleaner fibre organization |
Excessively long patch cords inside small cabinets can create loops and make fibre management more difficult, so a 1m cable can be ideal where equipment is close together.
Key Benefits of MM LC-LC Fibre Patch Cord 1m
High-Speed Fibre Connectivity
OM3 and OM4 versions are suitable for modern high-speed Ethernet networks using compatible multimode optics.
Compact LC Connectors
LC connectors allow more fibre ports to fit into switches and patch panels.
Duplex Transmission
Two fibres provide separate transmit and receive channels for common Ethernet links.
Factory Terminated
The cable arrives ready to connect without field polishing or fusion splicing.
Convenient 1m Length
Ideal for short connections inside server racks, network cabinets and communications rooms.
Multimode Compatibility
The patch cord can be matched with compatible OM1, OM2, OM3, OM4 or OM5 infrastructure.
Suitable for SFP Modules
LC duplex interfaces are widely used on SFP and SFP+ optical transceivers.
Watch MM LC-LC Fibre Patch Cord 1m
Watch on YouTube: https://youtu.be/Ye_EdFLSU30
The MM LC-LC Fibre Patch Cord 1m provides a compact optical connection between compatible LC-equipped network devices. A common modern configuration uses OM3 50/125 µm multimode fibre with duplex LC/UPC connectors at both ends, making it especially useful for connecting switches, SFP modules, patch panels and other equipment within the same network rack. Corning currently offers exactly this type of 1 m OM3 LC UPC duplex patch cord for LAN and other indoor network applications.
For high-speed networks, fibre grade matters. OM3 and OM4 are laser-optimized multimode fibres intended for higher-bandwidth networking, while older OM1 and OM2 grades are more commonly associated with legacy installations. OM3 LC-LC patch cables are used with appropriate 10G, 40G and 100G Ethernet architectures, while OM4 provides additional modal bandwidth and greater transmission headroom.
The 1-metre length is particularly useful where equipment is installed close together, helping technicians avoid unnecessary cable loops inside network cabinets. Fiber Optics Kenya can supply MM LC-LC patch cords together with LC adapters, multimode ODFs, patch panels, pigtails, SFP/SFP+ modules and fibre management accessories to create a complete multimode network solution.
Applications of MM LC-LC Fibre Patch Cord 1m
1. Data Centre Networks
Connect servers, switches, storage equipment and patch panels using compatible multimode optics.
2. Enterprise LAN Networks
Create high-speed fibre connections inside server rooms and telecommunications cabinets.
3. SFP and SFP+ Modules
LC connectors are widely used on optical transceiver modules.
4. Network Switches
Connect one fibre switch to another or connect switches to optical distribution infrastructure.
5. Fibre Patch Panels
Use the patch cord between LC-equipped patch panels and active network equipment.
6. Server Rooms
The 1m length is particularly practical for short rack-level connections.
7. CCTV Networks
Connect compatible multimode fibre switches and aggregation equipment.
8. Hospitals
Suitable for high-speed internal optical network infrastructure.
9. Universities and Schools
Connect network switches and patch panels within ICT and server facilities.
10. Industrial Networks
Multimode fibre can provide high-speed connectivity while remaining immune to electromagnetic interference.
LC-LC vs LC-SC Multimode Patch Cord
| Feature | LC-LC | LC-SC |
|---|---|---|
| Connector A | LC | LC |
| Connector B | LC | SC |
| SFP-to-SFP Connection | Excellent | No |
| SFP-to-SC ODF | Adapter/alternative cable needed | Excellent |
| High-Density Equipment | Excellent | LC side only |
| Modern Data Centres | Very Common | Application dependent |
| Patch Panel Use | Excellent with LC panels | Excellent with SC panels |
Choose LC-LC where both devices use LC interfaces and LC-SC where one side uses an SC port.

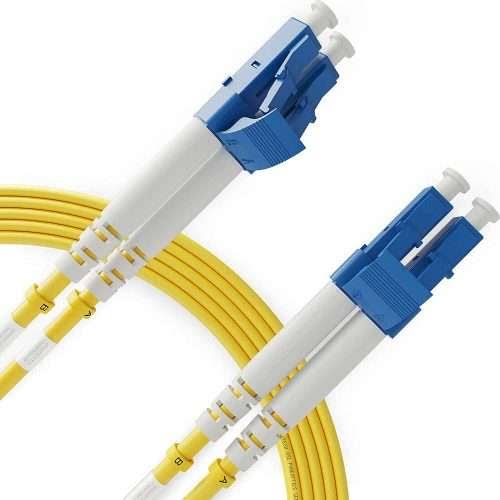

Multimode vs Single Mode LC-LC Patch Cord
| Feature | Multimode LC-LC | Single Mode LC-LC |
|---|---|---|
| Typical Fibre Core | 50 µm for OM2/OM3/OM4 | Approx. 9 µm |
| Cladding | 125 µm | 125 µm |
| Common Wavelengths | 850 / 1300 nm | 1310 / 1550 nm |
| Short Data-Centre Links | Excellent | Excellent |
| Very Long Distances | Limited | Excellent |
| Multimode SFP Compatibility | Yes | No |
| Single-Mode SFP Compatibility | No | Yes |
| Typical Jacket – OM3 | Aqua | Usually Yellow |
The fibre mode must match the transceivers and installed fibre infrastructure.
OM2 vs OM3 vs OM4 LC-LC Patch Cord
| Feature | OM2 | OM3 | OM4 |
|---|---|---|---|
| Core/Cladding | 50/125 µm | 50/125 µm | 50/125 µm |
| Laser Optimized | Less optimized than OM3/OM4 | Yes | Yes |
| 10GbE Suitability | Limited distance | Excellent | Excellent |
| 40G/100G | Limited | Supported | Better reach |
| Data Centre Use | Legacy/moderate | Excellent | Excellent |
| Future Upgrade Potential | Moderate | High | Higher |
| Typical Jacket | Orange | Aqua | Aqua/Violet |
LC-LC Patch Cord and SFP Modules
LC duplex connectors are common on multimode SFP transceivers.
| Network Equipment | Patch Cord Use |
|---|---|
| 1G SX SFP | Multimode LC-LC |
| 10G SR SFP+ | OM3/OM4 LC-LC commonly |
| 25G SR SFP28 | Compatible multimode LC-LC where specified |
| Switch LC Port | Direct connection |
| Server NIC LC Port | Direct connection |
| Media Converter LC Port | Direct connection |
Always match the patch cord fibre type to the transceiver specifications.
Recommended Accessories
| Accessory | Purpose |
|---|---|
| LC Duplex Adapter | Joins LC patch cords |
| LC Multimode Pigtail | Fibre termination |
| LC Fibre ODF | Organises fibre connections |
| LC Patch Panel | Rack-mounted fibre distribution |
| Multimode SFP Module | Connects switches to fibre |
| 10G SFP+ SR Module | Provides high-speed multimode Ethernet |
| Fibre Splice Tray | Organises terminated fibres |
| Cable Management Panel | Organises patch cords |
| Fibre Cleaner | Cleans connector end faces |
| Visual Fault Locator | Assists basic fault tracing |
| Optical Power Meter | Measures optical power |
| Fibre Tester | Verifies network links |
Why Buy MM LC-LC Fibre Patch Cord 1m from Fiber Optics Kenya?
Choosing the correct multimode patch cord means matching fibre grade, connector type, cable length and optical transceiver requirements.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| LC-LC Patch Cord Options | Direct connection between LC devices |
| Multimode Fibre Options | Suitable for LAN and data-centre networks |
| OM3 / OM4 Options | High-speed network performance |
| 1m Length | Ideal for rack connections |
| Duplex Options | Suitable for Ethernet Tx/Rx links |
| Compatible SFP Modules | Complete optical-network solution |
| LC Adapters & Pigtails | Compatible termination accessories |
| Technical Guidance | Help choosing the correct fibre category |
| Bulk Supply | Suitable for installers and large projects |
| Competitive Pricing | Cost-effective network procurement |
| Professional Installation | Fibre installation support available |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an MM LC-LC Fibre Patch Cord?
It is a multimode fibre optic patch cable with LC connectors on both ends, designed to connect compatible fibre network equipment.
What does MM mean?
MM means multimode fibre.
How long is this patch cord?
This product is 1 metre long.
Is LC-LC normally duplex?
Yes. Many Ethernet LC-LC patch cords are duplex, carrying transmit and receive signals over two optical fibres. Corning's current 1 m OM3 LC-LC product is a two-fibre duplex assembly.
What is OM3 fibre?
OM3 is 50/125 µm laser-optimized multimode fibre developed for high-speed optical networking.
What colour is OM3 fibre cable?
OM3 patch cords commonly use an aqua jacket.
Can OM3 support 10 Gigabit Ethernet?
Yes. OM3 supports 10GbE to approximately 300 metres under the applicable Ethernet standard.
Can this cable support 40G or 100G?
OM3 and OM4 fibre can support appropriate 40G and 100G multimode architectures, although the exact distance depends on the transceiver and Ethernet standard.
Is OM4 better than OM3?
OM4 offers higher modal bandwidth and additional transmission headroom, making it attractive for demanding high-speed networks.
Can I connect an OM3 patch cord to OM4 infrastructure?
They are physically compatible because both use 50/125 µm multimode fibre, but the overall link performance is governed by the lowest-performing component. For best results, keep the fibre category consistent across the link.
Can multimode cable connect to a single-mode SFP?
No. The fibre and optical transceiver types should match. Use multimode fibre with compatible multimode transceivers.
Is this suitable for SFP modules?
Yes. LC duplex connectors are widely used on multimode SFP and SFP+ modules.
Can it connect two switches?
Yes, provided both switches use compatible multimode optical transceivers.
Is it suitable for data centres?
Yes. Corning specifically lists its OM3 LC-LC multimode patch-cord family for data-centre applications.
Can it be used in a server rack?
Yes. A 1m cable is particularly convenient for short rack-level fibre connections.
What does UPC mean?
UPC means Ultra Physical Contact, describing the polished end face of the LC connector.
Do you supply OM4 LC-LC patch cords?
Yes. Fiber Optics Kenya can supply different multimode fibre categories according to network requirements.
Do you supply longer patch cords?
Yes. Different cable lengths can be supplied depending on the installation.
Do you supply LC adapters and pigtails?
Yes. Compatible LC multimode adapters, pigtails and other fibre termination accessories can be supplied.
Do you supply multimode SFP modules?
Yes. Compatible optical transceiver options can be supplied according to the network speed and fibre category.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic cables and networking accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The MM LC-LC Fibre Patch Cord 1m provides a compact and reliable connection for multimode switches, SFP modules, patch panels and data-centre equipment.
Contact Fiber Optics Kenya for competitive pricing, OM3 and OM4 options, compatible fibre accessories, bulk orders and nationwide delivery across Kenya.
