Loaded ATB Access Terminal Box in Kenya
KSh 150.00
1 available
Continue shoppingLoaded ATB Access Terminal Box in Kenya
The Loaded ATB Access Terminal Box is a compact fibre termination enclosure supplied with some or all of the components needed to connect an incoming FTTH drop cable to subscriber-side optical equipment. Depending on the configuration, a loaded ATB may include SC/APC or SC/UPC adapters, fibre pigtails, pre-terminated cable, splice-protection components or other termination accessories, reducing the amount of assembly required during installation. ATBs are commonly installed on indoor walls to provide the final optical connection between the drop fibre and an ONU or ONT.
Unlike an empty ATB, which requires the technician to source and install the termination components separately, a loaded model is designed to make FTTH deployment faster and more standardized. Pre-terminated ATBs are available in 1-, 2-, 4- and 8-fibre configurations, with SC or LC connectors and APC or UPC polishing depending on the network design.
At Fiber Optics Kenya, Loaded ATB Access Terminal Boxes are suitable for ISPs, telecommunications contractors, FTTH installers, property developers, offices, apartments and residential connections. Matching FTTH drop cables, SC/APC and SC/UPC patch cords, fast connectors, fibre cleaners, optical power meters and other installation accessories can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | Loaded ATB Access Terminal Box |
| Product Type | Fibre Access / Termination Box |
| Configuration | Loaded / Pre-Configured |
| Typical Capacity | 1, 2, 4 or 8 fibres depending on model |
| Typical Connector Options | SC/APC, SC/UPC, LC/APC, LC/UPC |
| Adapters Included | Yes, depending on model |
| Pigtails Included | Common on loaded models |
| Pre-Terminated Cable | Available on some models |
| Fibre Mode | Single Mode commonly |
| Typical Fibre Type | G.657A1 / G.657A2 depending on model |
| Drop Cable Support | Yes |
| Fusion Splicing | Supported |
| Mechanical Splicing | Supported on compatible models |
| Fast Connector Support | Yes |
| Fibre Storage | Integrated |
| Cable Management | Integrated |
| Typical Installation | Wall Mount |
| Typical Material | ABS / PC+ABS |
| Indoor Use | Common |
| Outdoor Use | Model dependent |
| Typical Protection | IP20–IP65 depending on enclosure |
| Power Requirement | None |
| Applications | FTTH, FTTR, FTTB, FTTD, PON |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Loaded ATBs vary significantly by model. For example, one current 4-port solution comes pre-assembled with four SC/APC pigtails and a 30 m installation cable, while another loaded Kenyan ATB is supplied with LC/APC duplex adapters and pigtails.
What Is a Loaded ATB Access Terminal Box?
A loaded ATB combines the enclosure with fibre termination components so that less work is required during installation.
| Component | Typical Status |
|---|---|
| Outer Enclosure | Included |
| Fibre Routing Area | Included |
| Adapter Positions | Included |
| Adapters | Included |
| Pigtails | Included on many models |
| Pre-Terminated Fibre | Available on some models |
| Splice Management | Included |
| Cable Entry | Included |
| Wall-Mount Hardware | Commonly Included |
| Patch Cord | Model dependent |
| PLC Splitter | Usually Not Required for basic subscriber ATB |
Pre-terminated ATBs integrate the fibre cable, connectors and internal management into one compact enclosure, helping reduce field installation time.
What Does ATB Mean?
| Term | Meaning |
|---|---|
| ATB | Access Terminal Box |
| Loaded | Supplied with termination components |
| SC/APC | SC Angled Physical Contact |
| SC/UPC | SC Ultra Physical Contact |
| FTTH | Fibre to the Home |
| FTTR | Fibre to the Room |
| FTTB | Fibre to the Building |
| PON | Passive Optical Network |
| ONU | Optical Network Unit |
| ONT | Optical Network Terminal |
Huawei describes an ATB as an indoor wall-mounted fibre socket used to connect the drop cable to passive ONU equipment.
How a Loaded ATB Works
The incoming FTTH drop cable is routed into the box and terminated through the installed pigtail, connector or pre-terminated optical assembly.
| Stage | Function |
|---|---|
| FTTH Drop Cable | Brings fibre to subscriber premises |
| ATB Cable Entry | Routes cable into enclosure |
| Splice / Pre-Termination | Creates optical termination |
| Installed Pigtail | Connects fibre to adapter |
| Installed Adapter | Provides accessible optical interface |
| Patch Cord | Connects ATB to ONT |
| ONT / ONU | Converts optical connection for customer use |
ATB designs can support fusion splicing, mechanical splicing and field-assembly fast connectors, giving installers several ways to complete the fibre connection.
Loaded ATB vs Empty ATB
| Feature | Loaded ATB | Empty ATB |
|---|---|---|
| Enclosure Included | Yes | Yes |
| Adapters | Included | Usually Not |
| Pigtails | Often Included | Usually Not |
| Pre-Terminated Cable | Available | No |
| Ready for Installation | Higher | Lower |
| Installation Time | Faster | Longer |
| Configuration Flexibility | Moderate | Excellent |
| Component Selection | Predefined | Installer Controlled |
| Ideal Use | Standardized FTTH Rollout | Customized Installations |
The main advantage of the loaded version is faster deployment, while the empty version provides greater customization.
Common Loaded ATB Configurations
| Configuration | Typical Application |
|---|---|
| 1 Port SC/APC | Residential FTTH |
| 1 Port SC/UPC | Subscriber fibre termination |
| 2 Port SC/APC | Dual-fibre connection |
| 2 Port SC/UPC | Small office / dual service |
| 4 Port SC/APC | Apartment / small business |
| 4 Port SC/UPC | Multi-service installation |
| 8 Port SC/APC | Small multi-user deployment |
| LC/APC Duplex | Compact multi-fibre termination |
Current ATB product families cover 1-, 2-, 4- and 8-fibre configurations, with SC and LC connector options.
SC/APC Loaded ATB
A loaded SC/APC ATB uses green APC-polished fibre interfaces.
| Feature | Description |
|---|---|
| Connector Colour | Green |
| Polish | Angled Physical Contact |
| Fibre Mode | Single Mode |
| FTTH / GPON | Excellent |
| Back Reflection | Very Low |
| Typical Application | Subscriber-side PON termination |
Pre-terminated SC/APC terminal boxes are commercially available with several ports and integrated fibre cable.
SC/UPC Loaded ATB
A loaded SC/UPC ATB typically uses blue UPC-polished interfaces.
| Feature | Description |
|---|---|
| Connector Colour | Blue |
| Polish | Ultra Physical Contact |
| Fibre Mode | Single Mode |
| FTTH Use | Supported |
| LAN Fibre Use | Excellent |
| Plug-and-Play Connection | Yes |
ATBs can be supplied with either SC/UPC or SC/APC connectors depending on the network configuration.
SC/APC vs SC/UPC Loaded ATB
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| End Face | Angled | Ultra-Polished |
| Back Reflection | Lower | Low |
| GPON / FTTH | Very Common | Network dependent |
| CATV | Excellent | Less Preferred |
| Direct APC/UPC Mating | No | No |
The connector polish must match the subscriber equipment and the rest of the fibre path.
Pigtail-Loaded ATB

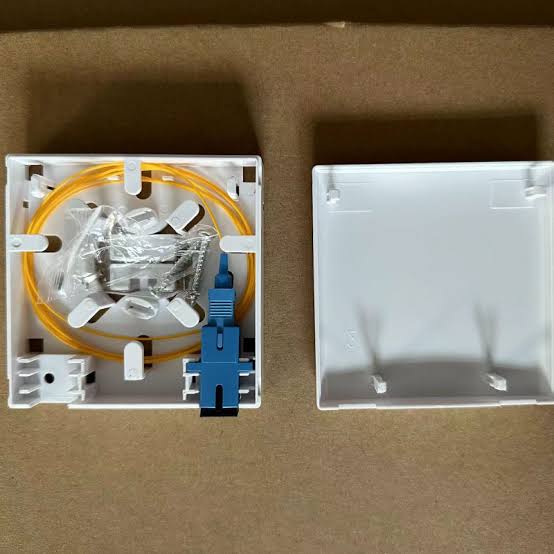

One common loaded configuration includes a fibre pigtail already installed in the enclosure.
| Pigtail Feature | Benefit |
|---|---|
| Factory Installed | Reduces field assembly |
| Adapter Ready | Easy patch-cord connection |
| Fusion-Splice Compatible | Permanent drop-fibre termination |
| SC/APC Option | GPON-friendly termination |
| SC/UPC Option | Suitable where UPC is required |
| Organized Fibre Routing | Cleaner installation |
A commercial 2-core ATB is available with SC shuttered adapters and an SC/APC pigtail, showing a typical loaded configuration.
Pre-Terminated Cable ATB
Some loaded ATBs include an installation cable already coiled inside the enclosure.
| Feature | Benefit |
|---|---|
| Factory-Terminated Cable | Faster installation |
| Pre-Installed Connectors | Less fibre field work |
| Internal Cable Coil | Easy deployment |
| Reduced Splicing | Lower installation time |
| Factory Quality Control | Consistent termination |
Pre-terminated ATB solutions are specifically intended to reduce installation time and labour costs.
Fibre Types Used in Loaded ATBs
| Fibre Type | Typical Use |
|---|---|
| G.657A1 | FTTH drop and indoor routing |
| G.657A2 | Tighter bend requirements |
| G.657B3 | Very bend-sensitive environments |
| OS2 Single Mode | Long-distance optical transmission |
Modern ATBs are available using G.657A1, G.657A2 and G.657B3 fibre standards.
Fibre Management Inside the ATB
| Internal Feature | Purpose |
|---|---|
| Fibre Guides | Maintain organized routing |
| Storage Rings | Store service slack |
| Splice Position | Secure fusion splice |
| Adapter Mount | Holds optical connector |
| Cable Clamp | Secures drop fibre |
| Cover | Protects connections |
| Shutter Adapter | Provides dust and laser protection on some models |
Professional ATB designs emphasize maintaining a reasonable fibre bend radius and protecting the fibre splice or termination.
Loaded ATB vs FAT Box
| Feature | Loaded ATB | FAT Box |
|---|---|---|
| Typical Location | Subscriber Premises | Distribution Network |
| Typical Capacity | 1–8 Fibres | 8–32+ Fibres |
| Subscriber Role | Final Termination | Multi-Subscriber Distribution |
| PLC Splitter | Usually Not Needed | Common |
| Adapters | Usually Included | Common |
| ONT Connection | Direct / Near Direct | Downstream |
| Wall Mounting | Very Common | Common |
Loaded ATB vs Fibre Wall Socket
| Feature | Loaded ATB | Fibre Wall Socket |
|---|---|---|
| Splice Management | Better | Basic |
| Fibre Storage | More | Less |
| Protection | Better | Moderate |
| Adapters | Included | Usually Included |
| FTTH Termination | Excellent | Excellent |
| Installation Flexibility | Higher | Lower |
Key Benefits of Loaded ATB Access Terminal Box
Faster Installation
Factory-loaded adapters and pigtails reduce on-site assembly.
Plug-and-Play Subscriber Connection
A compatible patch cord can connect the ATB directly to an ONT or ONU.
Clean Fibre Management
Internal fibre routing helps keep subscriber installations neat and protected.
Pre-Terminated Options
Some ATBs come with pre-installed fibre cables, further reducing splicing work.
Multiple Connector Choices
SC/APC, SC/UPC, LC/APC and LC/UPC options are available depending on model.
Multiple Fibre Capacities
Loaded ATBs are available for single-user connections and small multi-fibre installations.
Passive Operation
No electrical power is required.
Watch Loaded ATB Access Terminal Box
Watch on YouTube: https://youtu.be/4qKSkrO0Vl0
The Loaded ATB Access Terminal Box is designed to simplify the final stage of an FTTH installation by combining the enclosure and termination components in one ready-to-deploy package. Depending on the model, it can arrive with SC or LC adapters, fibre pigtails and even pre-terminated installation cable, allowing technicians to complete subscriber-side fibre connections with less assembly than an empty ATB.
The ATB is typically mounted at the subscriber premises and provides the transition between the incoming drop cable and the ONT or ONU. Different termination methods can still be supported, including fusion splicing, mechanical splicing and field-assembly connectors, while the enclosure keeps fibre slack and optical interfaces protected.
For large FTTH rollouts, loaded ATBs can also help ISPs standardize installations by using the same connector, pigtail and enclosure configuration across many subscribers. Fiber Optics Kenya can supply Loaded ATB Access Terminal Boxes together with SC/APC and SC/UPC patch cords, FTTH drop cables, fast connectors, fibre cleaners, fusion-splicing tools, VFLs and optical power meters for complete customer-side fibre installations.
Applications of Loaded ATB Access Terminal Box
1. FTTH Home Connections
Provides a ready-made termination point between the subscriber drop cable and ONT.
2. GPON Subscriber Installations
Creates a convenient fibre socket at the customer premises for GPON connectivity.
3. Apartment Buildings
Provides standardized optical termination inside individual apartments.
4. Offices
Creates neat wall-mounted fibre connection points.
5. Fibre to the Room
Provides pre-configured optical endpoints in room-level fibre networks.
6. Fibre to the Desk
Can be used where fibre is extended directly to workplace endpoints.
7. Hotels
Provides compact fibre terminations inside rooms or service areas.
8. Campus Networks
Creates standardized indoor fibre endpoints.
9. Small Business Fibre
Provides convenient termination for business broadband services.
10. ISP FTTH Rollouts
Pre-loaded configurations can reduce installation time across large numbers of customer premises.
Typical FTTH Connection
| Network Stage | Component |
|---|---|
| OLT | Service Provider Equipment |
| Distribution Network | Single Mode Fibre |
| FAT / FDB | Subscriber Distribution |
| Drop Cable | Customer Fibre |
| Loaded ATB | Subscriber Termination |
| SC/APC / SC/UPC Patch Cord | Optical Connection |
| ONT / ONU | Customer Optical Equipment |
| Router | Local Wi-Fi / LAN |
Typical Installation Process
| Step | Procedure |
|---|---|
| 1 | Select suitable indoor wall location |
| 2 | Mount ATB securely |
| 3 | Route incoming FTTH drop cable |
| 4 | Prepare fibre |
| 5 | Fusion splice or terminate as required |
| 6 | Secure splice inside ATB |
| 7 | Connect installed pigtail to adapter |
| 8 | Store excess fibre safely |
| 9 | Connect patch cord to ONT |
| 10 | Test optical power |
| 11 | Close ATB enclosure |
| 12 | Label subscriber connection |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Patch Cord | Connects APC ATB to ONT |
| SC/UPC Patch Cord | Connects UPC ATB to equipment |
| FTTH Drop Cable | Brings fibre into premises |
| SC/APC Fast Connector | APC field termination |
| SC/UPC Fast Connector | UPC field termination |
| Fusion Splice Sleeve | Protects completed splice |
| Fibre Cleaver | Precision fibre cutting |
| Fibre Stripper | Prepares optical fibre |
| Fusion Splicer | Permanent fibre joining |
| Connector Cleaner | Cleans fibre interfaces |
| Optical Power Meter | Checks received optical level |
| Visual Fault Locator | Tests fibre continuity |
Why Buy Loaded ATB Access Terminal Box from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| Loaded ATB Boxes | Faster FTTH installation |
| SC/APC Options | Suitable for compatible GPON networks |
| SC/UPC Options | Flexible termination |
| Pre-Installed Pigtails | Reduced field work |
| FTTH Drop Cables | Complete subscriber connections |
| Patch Cords | Ready ONT connectivity |
| Fast Connectors | Rapid field termination |
| Fibre Installation Tools | Professional deployment |
| Testing Equipment | Verify optical levels |
| Technical Guidance | Match components correctly |
| Bulk Supply | Suitable for ISP projects |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a Loaded ATB Access Terminal Box?
It is an ATB supplied with fibre termination components such as adapters, pigtails or pre-terminated fibre, reducing the amount of work required during subscriber installation.
What does ATB mean?
ATB means Access Terminal Box. It is used to connect fibre drop cables to subscriber-side optical equipment.
What is the difference between loaded and empty ATB?
A loaded ATB includes termination components such as adapters or pigtails, while an empty ATB requires those components to be added separately.
Does a loaded ATB come with adapters?
Yes, typically. The exact adapter type and quantity depend on the model.
Does it come with pigtails?
Many loaded ATBs do. For example, loaded models are commercially available with SC/APC pigtails already installed.
Can it come with pre-terminated fibre cable?
Yes. Some loaded ATBs are supplied with pre-terminated installation cable. One current 4-port product includes 30 m of cable and four SC/APC pigtails.
Can I get SC/APC?
Yes. SC/APC is a common ATB termination option.
Can I get SC/UPC?
Yes. ATBs are also available with SC/UPC interfaces.
Are LC connectors available?
Yes. Current ATB product families also support LC connectors, including LC/APC configurations.
How many fibres can a loaded ATB support?
Depending on model, common ATBs support 1, 2, 4 or 8 fibres.
Is it suitable for FTTH?
Yes. ATBs are specifically designed for final FTTH subscriber termination.
Can it be used with GPON?
Yes. Loaded ATBs can provide the final optical interface between a GPON drop fibre and the subscriber ONT.
Does it support fusion splicing?
Yes. ATBs can support fusion-splice termination.
Can it support mechanical splicing?
Yes. Compatible ATBs support mechanical splicing as well.
Can I use a fast connector?
Yes. Field-assembly fast connectors are another supported termination method.
Can it be installed on a wall?
Yes. Wall installation is standard for ATBs.
Is it normally installed indoors?
Yes. ATBs are commonly used as indoor subscriber-side fibre sockets.
Are outdoor-loaded ATBs available?
Yes, but the exact environmental protection depends on the product. Some compact pre-terminated models offer IP65 protection.
What material is commonly used?
ABS and PC+ABS plastics are commonly used for compact fibre terminal enclosures.
Does the ATB require electricity?
No. It is a passive fibre enclosure.
Can it connect directly to an ONT?
The optical port of the loaded ATB can connect to the ONT through a compatible fibre patch cord. ATBs are designed to connect drop cables with ONU/ONT-side equipment.
Is a Loaded ATB the same as a FAT Box?
No. An ATB is usually a small subscriber-side termination point, while a FAT box typically distributes fibre to several subscribers.
What is the advantage of buying loaded instead of empty?
Loaded ATBs reduce component assembly, installation time and variability between installations.
Can unused ports remain unconnected?
Yes. Unused ports should remain covered or shuttered to protect them from dust.
Do you supply SC/APC patch cords?
Yes. Fiber Optics Kenya can supply compatible SC/APC single-mode patch cords.
Do you supply SC/UPC patch cords?
Yes. SC/UPC patch cords can also be supplied.
Do you supply FTTH drop cables?
Yes. Compatible indoor and outdoor FTTH drop cables can be supplied.
Do you supply fast connectors?
Yes. SC/APC and SC/UPC fast connectors can be supplied.
Do you supply fibre testing tools?
Yes. Optical power meters, VFLs and related fibre testing equipment can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, fusion splicing, installation and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The Loaded ATB Access Terminal Box provides a compact, pre-configured and convenient solution for completing subscriber-side FTTH fibre termination while reducing installation time.
Contact Fiber Optics Kenya for Loaded ATB boxes, matching patch cords, drop cables, fast connectors, fibre accessories, bulk orders and nationwide delivery across Kenya.
