LC/UPC to SC/UPC Single Mode Patch Cord 2m in Kenya
KSh 130.00
1 available
Continue shoppingLC/UPC to SC/UPC Single Mode Patch Cord 2m in Kenya

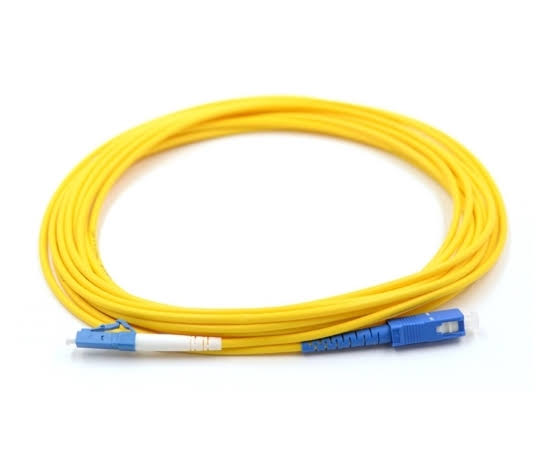

The LC/UPC to SC/UPC Single Mode Patch Cord 2m is a pre-terminated fibre optic cable designed to connect equipment or fibre termination points that use different connector interfaces. One end features an LC/UPC connector, while the other uses an SC/UPC connector, allowing direct connection between LC-equipped transceivers, switches or SFP modules and SC-equipped ODFs, patch panels, adapters or optical network devices.
The cable commonly uses OS2 9/125 µm single-mode fibre, making it suitable for long-distance and high-bandwidth optical networks. Corning lists LC UPC to SC UPC single-mode patch cords in its OS2 product range, including 2 m versions, while commercial LC-SC OS2 assemblies are widely offered for Ethernet, telecom, LAN and fibre-to-the-premises applications.
At Fiber Optics Kenya, the LC/UPC to SC/UPC Single Mode Patch Cord 2m is suitable for data centres, telecommunications rooms, ISP installations, enterprise LANs, ODFs, fibre patch panels and FTTH infrastructure. Customers can also source compatible adapters, SFP modules, pigtails, ODFs, fibre enclosures and other optical networking accessories.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | LC/UPC to SC/UPC Single Mode Patch Cord 2m |
| Cable Type | Fibre Optic Patch Cord |
| Connector A | LC/UPC |
| Connector B | SC/UPC |
| Connector Polish | UPC to UPC |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | 9/125 µm |
| Cable Length | 2 Metres |
| Typical Jacket Colour | Yellow |
| Cable Type | Simplex or Duplex depending on configuration |
| Typical Jacket Diameter | 1.6 mm / 2.0 mm / 3.0 mm depending on product |
| Common Jacket Type | LSZH / PVC / OFNR depending on model |
| Operating Wavelengths | 1310 nm / 1550 nm |
| Typical Insertion Loss | ≤0.2–0.3 dB depending on model |
| Typical Return Loss | ≥50 dB for UPC |
| Applications | LAN, FTTH, ODF, SFP, telecom, data centre |
| Installation Environment | Indoor |
| Delivery | Available throughout Kenya |
A current commercial LC/UPC-to-SC/UPC single-mode cable uses 9/125 µm G.652D fibre, a 2.0 mm jacket, insertion loss below 0.3 dB and return loss above 50 dB.
What Does LC/UPC to SC/UPC Mean?
The product name identifies the connector type and connector polish on each end.
| Term | Meaning |
|---|---|
| LC | Small-form-factor fibre connector |
| SC | Standard square push-pull fibre connector |
| UPC | Ultra Physical Contact polish |
| Single Mode | Fibre designed for long-distance optical transmission |
| Patch Cord | Pre-terminated fibre cable for equipment interconnection |
| 2m | Cable length is 2 metres |
The LC connector is physically smaller than SC, making it useful on dense network equipment such as SFP modules, while SC connectors are widely used on patch panels, ODFs and fibre termination equipment.
LC Connector vs SC Connector
| Feature | LC Connector | SC Connector |
|---|---|---|
| Connector Size | Small | Larger |
| Ferrule Diameter | Approx. 1.25 mm | Approx. 2.5 mm |
| Typical Equipment | SFP/SFP+, switches, high-density panels | ODFs, patch panels, fibre boxes |
| Insertion Method | Latch-style | Push-pull |
| High-Density Installation | Excellent | Moderate |
| Enterprise LAN | Excellent | Excellent |
| FTTH Equipment | Common | Very Common |
| Telecommunications | Excellent | Excellent |
The main benefit of an LC-to-SC cable is that it allows these two connector formats to communicate directly without an additional conversion cable.
What Is UPC Polish?
UPC means Ultra Physical Contact. The fibre connector end face is polished to create a very close physical contact between mating fibres, reducing reflection and helping maintain low optical loss.
| Connector Polish | Typical Colour | Typical Use |
|---|---|---|
| UPC | Blue | Ethernet, LAN, telecom and general fibre networks |
| APC | Green | GPON, CATV and applications requiring very low back reflection |
UPC connectors should normally be connected to other UPC interfaces, while APC connectors should be connected to APC interfaces.
UPC vs APC Fibre Connectors
| Feature | UPC | APC |
|---|---|---|
| Connector Colour | Blue | Green |
| End-Face Geometry | Ultra-polished flat/curved physical contact | Angled physical contact |
| Typical Return Loss | High | Higher |
| Ethernet Networks | Excellent | Less common |
| GPON/FTTH | Used | Very Common |
| CATV | Less common | Preferred |
| Can UPC Connect to APC? | Not recommended | Not recommended |
A UPC connector should not be intentionally mated with APC because their end-face geometry differs and can cause excessive loss or damage.
Single Mode OS2 Fibre Characteristics
| Characteristic | Typical Description |
|---|---|
| Fibre Category | OS2 |
| Fibre Mode | Single Mode |
| Core Diameter | Approx. 8–9 µm |
| Cladding Diameter | 125 µm |
| Common Wavelengths | 1310 nm / 1550 nm |
| Transmission Distance | Long |
| Attenuation | Low |
| Bandwidth Potential | Very High |
| LAN Suitability | Excellent |
| ISP Networks | Excellent |
| Telecom Networks | Excellent |
| FTTH | Excellent |
| Data Centre Links | Excellent |
Corning identifies LC UPC to SC UPC cable assemblies as single-mode OS2 and lists them for in-building networks, LANs, central-office and fibre-to-the-premises applications.
Typical Optical Performance
| Parameter | Typical / Representative Value |
|---|---|
| Fibre Type | OS2 9/125 µm |
| Operating Wavelength | 1310 / 1550 nm |
| Insertion Loss | ≤0.2–0.3 dB |
| Return Loss | ≥50 dB |
| Connector Polish | UPC |
| Transmission Mode | Single Mode |
| High-Speed Ethernet | Supported with suitable optics |
| 1G Ethernet | Yes |
| 10G Ethernet | Yes |
| 25G Ethernet | Yes with compatible optics |
| 40G/100G+ | Possible with appropriate architecture/transceivers |
An LC-SC OS2 patch cable is commonly used in high-speed Ethernet networks because the fibre itself offers low attenuation and very high bandwidth; actual speed and distance depend primarily on the optical transceivers and link design.
Why Use a 2 Metre Fibre Patch Cord?
The 2m length is particularly practical for equipment mounted within or near the same communications rack.
| Application | Why 2m Works Well |
|---|---|
| Switch to ODF | Provides enough routing flexibility |
| SFP to Patch Panel | Suitable within server/network racks |
| ODF to Equipment | Allows neat cable management |
| Media Converter to ODF | Short and manageable connection |
| ONT / Network Equipment | Useful where devices are close together |
| Rack-to-Rack Connection | Suitable for nearby equipment |
| Test Equipment | Convenient temporary connection |
A 2m cable is long enough to allow proper routing and strain relief while avoiding excessive cable loops in most rack installations.

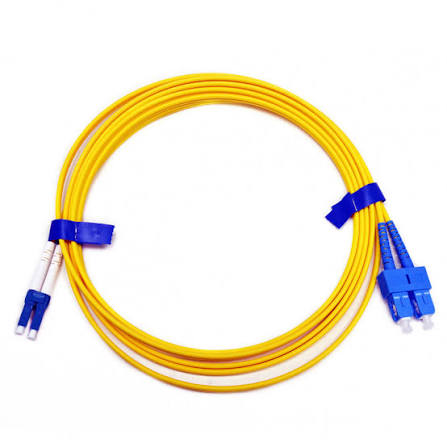

Simplex vs Duplex LC/UPC to SC/UPC Patch Cord
| Feature | Simplex | Duplex |
|---|---|---|
| Number of Fibres | 1 | 2 |
| Typical Connector Count per End | 1 | 2 |
| BiDi Optical Links | Excellent | Not required |
| Standard Duplex Ethernet | Requires two simplex leads or equivalent | Excellent |
| GPON/FTTH | Excellent | Usually unnecessary |
| Data Centre Ethernet | Possible | Very Common |
| Cable Bulk | Lower | Higher |
Corning offers both simplex and duplex single-mode patch-cord architectures, including LC and SC connector combinations.
Typical Patch Cord Construction
| Component | Purpose |
|---|---|
| Single-Mode Optical Fibre | Transmits optical data |
| Primary Coating | Protects the glass fibre |
| Tight Buffer | Provides mechanical protection |
| Aramid Yarn | Provides tensile reinforcement |
| Outer Jacket | Protects cable from handling and abrasion |
| LC/UPC Connector | Connects to LC interface |
| SC/UPC Connector | Connects to SC interface |
| Ceramic Ferrule | Precisely aligns optical fibre |
| Strain Relief Boot | Protects cable near connector |
Many quality patch cords use zirconia ceramic ferrules to maintain accurate alignment between mating optical fibres.
Key Benefits of LC/UPC to SC/UPC Single Mode Patch Cord 2m
Connects Different Fibre Interfaces
The cable directly connects an LC interface to an SC interface without requiring additional adapters or conversion leads.
Low Optical Loss
Quality UPC connectors and single-mode fibre help maintain low insertion loss across the connection.
Compact LC Connector
LC is ideal for high-density switches and SFP-based equipment.
Widely Used SC Connector
SC connectors remain common on ODFs, fibre patch panels and telecommunications equipment.
OS2 Single-Mode Performance
OS2 fibre supports long-distance optical networking and high-bandwidth applications.
Ready to Install
The cable is factory terminated, eliminating the need to splice connectors onto the patch cord during installation.
Convenient 2m Length
The short length is ideal for racks, cabinets and telecommunications rooms.
Watch LC/UPC to SC/UPC Single Mode Patch Cord 2m
Watch on YouTube: https://youtu.be/7YEdz2NlUZg
The LC/UPC to SC/UPC Single Mode Patch Cord 2m provides a straightforward connection between two of the most common fibre connector formats used in modern optical networks. The LC end is especially useful for switches, routers and SFP/SFP+ modules where equipment density is high, while the SC connector is widely found on optical distribution frames, patch panels and other fibre termination equipment. Commercial 2m LC UPC-to-SC UPC single-mode patch cords are readily available in OS2 configurations.
Its single-mode OS2 fibre is suitable for high-performance telecommunications, enterprise, ISP and fibre-to-the-premises networks. Because patch cords are factory terminated and polished, installers can connect compatible equipment immediately without performing field connectorization or fusion splicing. This helps reduce installation time while providing a controlled connector interface between network components.
The 2-metre length also makes the patch cord practical for network cabinets and equipment rooms where excessive cable length can make fibre management difficult. Fiber Optics Kenya can supply the patch cord alongside LC and SC adapters, ODFs, patch panels, SFP modules, media converters, pigtails and fibre management accessories for complete network installations.
Applications of LC/UPC to SC/UPC Single Mode Patch Cord 2m
1. Network Switch to ODF
Connect an LC-based SFP module on a switch to an SC-based optical distribution frame.
2. SFP and SFP+ Modules
LC connectors are widely used on optical transceivers, making LC-SC patch cords useful where the remote termination is SC.
3. Fibre Patch Panels
Connect SC patch-panel ports to LC-equipped network equipment.
4. Data Centres
Use the patch cord between switches, optical panels and other single-mode equipment.
5. Telecommunications Rooms
Create short optical interconnections between termination and active network equipment.
6. ISP Networks
Connect routers, switches, ODFs and optical transport equipment.
7. Enterprise LANs
Suitable for single-mode building and campus fibre networks.
8. FTTH Infrastructure
Can be used where an SC/UPC fibre termination must connect to LC-based optical equipment.
9. Media Converters
Connect compatible LC optical devices to SC termination infrastructure.
10. Fibre Testing
Useful when optical test equipment and the installed fibre have different connector formats.
LC/UPC to SC/UPC vs LC/UPC to LC/UPC
| Feature | LC/UPC–SC/UPC | LC/UPC–LC/UPC |
|---|---|---|
| Connector A | LC | LC |
| Connector B | SC | LC |
| SFP Connectivity | Excellent | Excellent |
| SC Patch Panel | Direct connection | Adapter/other lead required |
| High-Density Equipment | Excellent on LC side | Excellent |
| Best Use | Mixed LC/SC environments | LC-only environments |
LC/UPC to SC/UPC vs SC/UPC to SC/UPC
| Feature | LC–SC | SC–SC |
|---|---|---|
| Connector Types | Mixed | Same |
| SFP Connection | Excellent | Usually requires LC conversion |
| SC ODF Connection | Excellent | Excellent |
| High-Density Equipment | Better | Lower density |
| Best Application | Switch-to-ODF | SC-to-SC infrastructure |
UPC Patch Cord vs APC Patch Cord
| Feature | UPC Patch Cord | APC Patch Cord |
|---|---|---|
| Typical Connector Colour | Blue | Green |
| Return Loss | Very Good | Excellent |
| Ethernet Networks | Very Common | Less common |
| GPON Networks | Used | Very Common |
| CATV | Less preferred | Preferred |
| General LAN | Excellent | Application dependent |
| Interchangeable | No | No |
Always match UPC to UPC and APC to APC wherever possible.
Recommended Compatible Accessories
| Accessory | Purpose |
|---|---|
| LC/UPC Adapter | Connects LC UPC fibre connectors |
| SC/UPC Adapter | Connects SC UPC fibre connectors |
| Fibre ODF | Organises fibre termination |
| Fibre Patch Panel | Rack-mounted fibre distribution |
| LC/UPC Pigtail | Fibre termination |
| SC/UPC Pigtail | Fibre termination |
| SFP Module | Provides optical network interface |
| SFP+ Module | Provides higher-speed optical interface |
| Media Converter | Converts copper Ethernet to fibre |
| Fibre Splice Tray | Organises fusion splices |
| Fibre Management Panel | Manages patch cords in racks |
| Optical Power Meter | Measures optical signal level |
| Visual Fault Locator | Assists fault identification |
Why Buy LC/UPC to SC/UPC Single Mode Patch Cord 2m from Fiber Optics Kenya?
Choosing the correct patch cord helps prevent unnecessary adapters, excessive optical loss and connector compatibility issues.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| LC to SC Options | Connect different fibre interfaces |
| Single Mode OS2 | Excellent long-distance performance |
| 2m Cable Length | Ideal for network racks |
| UPC Connectors | Reliable low-loss connection |
| Compatible Accessories | Adapters, ODFs and pigtails available |
| SFP Solutions | Complete switch-to-fibre connectivity |
| Technical Guidance | Help selecting correct connectors |
| Bulk Supply | Suitable for installers and projects |
| Competitive Pricing | Cost-effective network procurement |
| Professional Installation | Fibre installation support available |
| Network Testing | Fibre testing assistance |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an LC/UPC to SC/UPC Patch Cord?
It is a fibre optic cable with an LC/UPC connector on one end and an SC/UPC connector on the other, allowing equipment with different fibre interfaces to connect directly.
Is this cable single mode?
Yes. This product uses single-mode fibre, commonly OS2 9/125 µm. Corning offers LC UPC to SC UPC patch cords in its single-mode OS2 range.
How long is the cable?
This version is 2 metres long.
What colour is a single-mode patch cord?
Yellow is the most common jacket colour for OS2 single-mode patch cords, although jacket colour can vary by manufacturer.
What does UPC mean?
UPC means Ultra Physical Contact, referring to the polished connector end face.
What colour are UPC connectors?
UPC connectors are commonly blue.
Can I connect UPC to APC?
It is not recommended. UPC and APC connectors use different end-face geometries and should normally be matched with the same polish type.
What equipment uses LC connectors?
LC is commonly used on SFP, SFP+ and other optical transceiver modules, switches and high-density network equipment.
What equipment uses SC connectors?
SC is widely used on ODFs, fibre patch panels, media converters and optical termination equipment.
Can this cable connect an SFP module to an ODF?
Yes, provided the SFP has an LC interface and the ODF uses an SC/UPC interface.
Is this suitable for FTTH?
Yes, where the network equipment specifically uses UPC interfaces. Many PON installations use SC/APC, so connector polish must be checked before purchase.
Is this suitable for data centres?
Yes. OS2 LC-SC patch cables can be used for data-centre and enterprise single-mode connections where the equipment interfaces match.
Can it support 10 Gigabit Ethernet?
Yes, when used with appropriate single-mode transceivers and network equipment. OS2 cables are used in high-speed Ethernet applications.
Can it support 100G Ethernet?
OS2 fibre can support high-speed Ethernet architectures, but the exact performance depends on transceivers, wavelength and network design.
Is the patch cord simplex or duplex?
Both configurations exist. Confirm whether your equipment requires a single fibre or two-fibre duplex connection before ordering.
What is the typical insertion loss?
Quality LC-SC UPC patch cords commonly specify insertion loss around 0.2–0.3 dB or less, depending on the model.
What is the typical return loss?
UPC single-mode connectors commonly specify return loss of 50 dB or higher, depending on product quality.
Do you supply longer LC-SC patch cords?
Yes. Different lengths can be supplied according to network requirements.
Do you supply LC and SC adapters?
Yes. Fiber Optics Kenya can supply compatible LC and SC fibre adapters and other termination accessories.
Do you provide installation?
Yes. Professional fibre installation, termination, testing and network support can be provided according to project requirements.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic cables and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The LC/UPC to SC/UPC Single Mode Patch Cord 2m provides a convenient, low-loss connection between LC-based equipment and SC-based fibre infrastructure.
Contact Fiber Optics Kenya for competitive pricing, bulk orders, compatible fibre accessories, installation support and nationwide delivery across Kenya.
