J-Hook Suspension Clamp 10–12mm Price in Kenya

The J-Hook Suspension Clamp 10–12mm is an aerial fibre cable support accessory designed to suspend ADSS and other compatible round fibre optic cables with approximately 10–12mm outside diameter.

Unlike a tension clamp such as the PA500, PA1500 or PA2000, the J-Hook does not normally dead-end the cable. Its main purpose is to support the cable at intermediate poles while allowing the aerial span to continue toward the next pole.

A current Kenyan listing for a dedicated 10–12mm J-Hook suspension clamp describes it as suitable for ADSS and round fibre optic cables, with galvanized-steel construction and UV-resistant polymer components for outdoor fibre deployments.

J-Hook 10–12mm Key Specifications

A broader family of J-Hook suspension clamps covers cable sizes from approximately 5mm to 20mm, while the exact 10–12mm version is intended for smaller ADSS cable within that range.

What Is a J-Hook Suspension Clamp?

A J-Hook is a cable support device mounted on a pole or bracket.

A typical arrangement is:

Pole → J-Hook Suspension Clamp → ADSS Fibre Cable

The curved J-shaped body supports the cable while an elastomer, neoprene or polymer insert cushions the cable jacket.

This helps:

• Maintain aerial cable position

• Control sag

• Prevent excessive movement

• Protect the cable jacket

• Reduce concentrated mechanical stress

• Keep the fibre route aligned between poles

J-Hook 10–12mm Cable Compatibility

The most important specification is the outside diameter of the cable.

This particular product is intended for approximately:

10–12mm round fibre cable

A Kenyan supplier specifically lists a J-Hooks Suspension Clamp 10–12mm for ADSS and round optical cable applications.

Other common J-Hook sizes include:

One manufacturer lists PT0812 for 8–12mm, PT1015 for 10–15mm, and PT1520 for 15–20mm, demonstrating how J-Hook ranges overlap depending on manufacturer.

Why Cable Diameter Matters

Using the correct clamp size keeps the cable properly supported without excessive compression.

If the clamp is too large:

• Cable may move inside the support

• Wind movement can increase

• The jacket can rub against the insert

• Sag control may be reduced

If the clamp is too small:

• Cable may be pinched

• Jacket deformation may occur

• Optical fibres can experience mechanical stress

• The clamp may not close correctly

Always confirm the actual outer cable diameter before selecting the J-Hook.

Galvanized-Steel J-Hook Body

A common J-Hook suspension clamp uses a galvanized-steel supporting structure.

Galvanization helps improve:

• Corrosion resistance

• Outdoor lifespan

• Structural strength

• Resistance to rain and humidity

A documented J-Hook family uses a galvanized-steel body together with a protective elastomer sleeve.

UV-Resistant Polymer Cable Insert

The cable does not normally sit directly against bare metal.

Instead, an insert made from material such as:

• UV-resistant polymer

• Nylon

• Silicone rubber

• Neoprene

• Elastomer

provides a softer contact surface.

The current Kenyan 10–12mm listing describes galvanized steel and UV-resistant polymer, while other J-Hook designs use protected neoprene or elastomer inserts.

Why the Protective Insert Is Important

The insert helps:

• Prevent cable jacket abrasion

• Spread mechanical pressure

• Maintain the cable bend radius

• Reduce movement inside the clamp

• Protect ADSS cable during vibration

• Improve long-term optical cable integrity

This is particularly important because ADSS cable has no metallic messenger wire to take the load separately.

J-Hook for Intermediate Poles

The J-Hook is primarily a suspension device.

Typical route:

Tension Clamp → ADSS → J-Hook → ADSS → J-Hook → ADSS → Tension Clamp

The tension clamps establish the anchor points.

The J-Hooks support the cable between them.

J-Hook vs Tension Clamp

The two products are complementary rather than interchangeable.

J-Hook 10–12mm for ADSS Fibre

ADSS means:

All-Dielectric Self-Supporting

It is an aerial fibre optic cable designed to support itself between poles without a separate metallic messenger wire.

Because the cable carries its own mechanical load, appropriate suspension hardware must:

• Support the cable without crushing it

• Maintain adequate bend radius

• Allow controlled movement

• Resist outdoor weather

• Maintain correct cable sag

J-Hook clamps are widely used for this purpose.

J-Hook for FTTH Networks

The J-Hook 10–12mm can be used in aerial FTTH fibre distribution networks.

A typical architecture may be:

OLT → ODF → ADSS Feeder → J-Hook Supports → Fibre Closure → FAT Box → Drop Fibre → ATB → ONT

The J-Hook belongs to the mechanical aerial infrastructure rather than the optical signal chain.

J-Hook for ISP Networks

ISPs can use 10–12mm J-Hook suspension clamps for:

• Last-mile fibre

• Backbone fibre

• FTTH feeder networks

• Estate distribution

• Rural fibre

• Campus networks

• Business fibre

• CCTV backbone networks

• Metropolitan aerial fibre

J-Hook Installation with Stainless-Steel Banding

One of the most common methods is pole banding.

Typical assembly:

Pole → Stainless-Steel Band → J-Hook → ADSS Cable

J-Hook products can be mounted directly on poles using stainless-steel bands. Current product descriptions specify compatibility with 20mm pole banding on wooden, concrete and metallic poles.

Installation on Concrete Poles

For round concrete poles, stainless-steel banding is particularly convenient.

Typical configuration:

Concrete Pole
↓
20mm Stainless-Steel Band
↓
J-Hook Clamp
↓
10–12mm ADSS Cable

This avoids drilling into the pole.

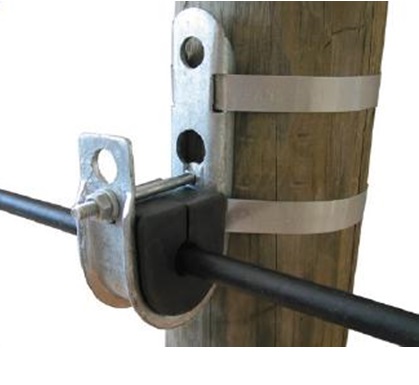

Installation on Wooden Poles

J-Hook clamps can also be fitted on wooden poles.

Common options include:

• Pole banding

• Pole head bolt

• Hook bolt

• Direct bolt installation

One J-Hook design specifically supports 14mm or 16mm bolts on drilled wooden poles.

Installation on Metal Poles

Metal poles can use stainless-steel banding where drilling is not desirable.

This provides:

• Fast installation

• Adjustable mounting position

• No drilling

• Easy future replacement

J-Hook with Pigtail Hook Bolt

Some J-Hook suspension clamps can also be mounted on pigtail hooks.

Common documented compatible diameters include:

12mm / 14mm / 16mm hook bolts.

This creates a slightly more flexible suspension arrangement.

Fixed vs Flexible Suspension

A J-Hook can be installed in different ways.

Fixed Suspension

Directly attached using:

• Pole band

• Pole bolt

• Pole-head bolt

Flexible Suspension

Attached through:

• Pigtail hook

• Hook bolt

• Suspension bracket

Flexible suspension can provide additional movement and vibration isolation depending on the network design.

J-Hook and Cable Vibration

Aerial cable is exposed to:

• Wind

• Temperature changes

• Mechanical vibration

• Cable oscillation

A suitable suspension clamp helps control these forces while preventing sharp contact with pole hardware.

Some J-Hook suspension configurations specifically use hook bolts to provide extra protection from wind-induced vibration.

Cable Span

The permitted cable span varies with the exact J-Hook model.

Current examples include:

• Up to approximately 70m for certain compact JHC designs

• Up to approximately 100m for some larger 10–15mm J-Hook designs

The exact allowable span must also consider:

• ADSS cable specification

• Cable weight

• Tensile rating

• Wind load

• Sag

• Pole spacing

• Route angle

• Local environmental conditions

Breaking Load

Breaking load also differs between designs.

For example:

This is why a 10–12mm cable size does not by itself determine the clamp's mechanical rating.

Watch J-Hook 10–12mm Suspension Clamp Video

https://youtu.be/ged4xRAsWj8

The supplied video can be embedded directly on the product page to give installers and buyers a visual reference for the J-Hook suspension clamp.

The J-Hook is particularly useful on long aerial fibre routes because most poles are normally support points rather than dead-end points. This means suspension hardware may be required in larger quantities than tension clamps on many deployments.

Correct sizing remains important. A dedicated 10–12mm J-Hook provides more suitable support for cables in that diameter range than a much larger clamp designed for 15–20mm ADSS cable.

J-Hook 10–12mm vs 10–15mm

If the deployed cable is exactly 10–12mm, the dedicated version can provide a closer mechanical fit.

J-Hook 10–12mm vs 15–20mm

Do not install a 10–12mm cable in a 15–20mm clamp unless the manufacturer's specification explicitly allows it.

J-Hook vs PA1500

J-Hook vs PA2000

The PA2000 is primarily used to anchor heavier ADSS cables, while the J-Hook supports the cable between anchor points.

A common route may use:

PA2000 → ADSS → J-Hook → J-Hook → J-Hook → PA2000

J-Hook 10–12mm Price in Kenya

Current Kenyan listings show:

These are third-party market references, not fixed Fiber Optics Kenya prices, and prices may change.

For the dedicated 10–12mm J-Hook, the clearest current Kenyan reference found is approximately KES 350.

What Affects J-Hook Price?

Price depends on:

• Cable diameter

• Mechanical rating

• Steel thickness

• Galvanization quality

• Insert material

• Manufacturer

• Quantity

• Import costs

• VAT

• Supplier

A lower-priced J-Hook should not automatically be considered equivalent to a higher-load version.

Recommended Accessories

Example Complete Aerial Installation

A simple fibre route may look like:

End Pole
PA1500/PA2000
↓
ADSS Cable
↓
J-Hook 10–12mm
↓
ADSS Cable
↓
J-Hook 10–12mm
↓
ADSS Cable
↓
PA1500/PA2000
End Pole

This provides proper anchoring at each end and suspension at intermediate points.

Advantages of J-Hook 10–12mm

The clamp provides:

• Correct support for 10–12mm cables

• Simple installation

• Galvanized-steel strength

• UV-resistant cable protection

• Reduced jacket abrasion

• Good cable bend-radius control

• Compatibility with concrete, wood and metal poles

• Pole-band mounting

• Bolt mounting

• Outdoor durability

• Low maintenance

Frequently Asked Questions About J-Hook 10–12mm

What is a J-Hook suspension clamp?

It is an aerial cable support fitting used to suspend ADSS fibre optic cable at intermediate poles.

What cable size does this J-Hook support?

This version supports approximately 10–12mm round fibre cable.

Is it suitable for ADSS?

Yes.

What does ADSS mean?

ADSS means All-Dielectric Self-Supporting.

Is the J-Hook a tension clamp?

No. It is primarily a suspension clamp.

Does it dead-end the cable?

Normally no.

Where is a J-Hook installed?

Primarily at intermediate poles.

Can it be installed at every intermediate pole?

Yes, where permitted by the aerial cable route design.

Can it be used on concrete poles?

Yes.

Can it be used on wooden poles?

Yes.

Can it be used on metal poles?

Yes.

Can it be mounted with stainless-steel banding?

Yes. J-Hook clamps can be pole-mounted using banding.

What band width is commonly used?

Some documented J-Hook designs use approximately 20mm pole banding.

Can it be bolted directly to a pole?

Yes, depending on the specific J-Hook design.

What bolt sizes can be used?

Some models support approximately 14mm or 16mm pole bolts.

Can it attach to a pigtail hook?

Yes.

What hook-bolt sizes are commonly compatible?

Some designs accommodate 12mm, 14mm and 16mm hook bolts.

Is the clamp galvanized?

Common J-Hook bodies are galvanized steel.

What protects the fibre cable?

A polymer, neoprene, silicone or elastomer insert cushions the cable.

Is the insert UV resistant?

The dedicated Kenyan 10–12mm listing describes UV-resistant polymer construction.

Does the clamp damage the cable?

A correctly sized and installed J-Hook is designed to support the cable without damaging its jacket.

Can it help maintain bending radius?

Yes. The curved support design helps maintain safe cable positioning.

Can it reduce cable sag?

It helps support the cable between anchor points and maintain the designed aerial profile.

Does it prevent wind movement?

It helps control cable movement, although the entire aerial system must still be engineered for wind loading.

Can J-Hooks be used for 70m spans?

Some JHC designs are specified for networks with spans up to approximately 70m.

Can J-Hooks support 100m spans?

Some larger models are advertised for spans up to approximately 100m, subject to cable and installation specifications.

What is the breaking load?

It varies significantly. Published J-Hook models range from about 4kN to 12kN depending on size and construction.

Is a 10–12mm J-Hook always rated 12kN?

No. Cable size and breaking load are separate specifications.

Is 10–12mm the same as 10–15mm?

No. The 10–12mm clamp has a narrower cable range.

Can I use a 10–15mm J-Hook with a 10mm cable?

Yes, if the manufacturer specifies a 10–15mm working range.

Should I use 10–12mm or 10–15mm?

If the actual cable diameter is within 10–12mm, either may be mechanically compatible depending on the manufacturer's specifications, but the dedicated 10–12mm model provides a more specific fit.

Can this clamp be used in FTTH?

Yes.

Can it be used in GPON networks?

Yes.

Can it be used in EPON networks?

Yes.

Can it be used by ISPs?

Yes.

Can it be used for rural fibre?

Yes.

Can it be used for estate fibre networks?

Yes.

Can it be used for CCTV fibre?

Yes, where compatible aerial fibre cable is used.

What is the J-Hook 10–12mm price in Kenya?

A current Kenyan listing shows approximately KES 350 for the dedicated 10–12mm version.

Are cheaper J-Hooks available?

Yes. Current 10–15mm versions can be found around KES 250–500, although specifications vary.

Do you supply J-Hook 10–12mm clamps?

Yes. Fiber Optics Kenya can supply J-Hook suspension clamps subject to stock availability.

Do you supply J-Hook 10–15mm?

Yes.

Do you supply J-Hook 15–20mm?

Yes, subject to availability.

Do you supply PA500 clamps?

Yes.

Do you supply PA1500 clamps?

Yes.

Do you supply PA2000 clamps?

Yes.

Do you supply PA3000 clamps?

Yes.

Do you supply Universal Pole Brackets?

Yes.

Do you supply ADSS fibre cable?

Yes.

Do you supply stainless-steel bands?

Yes.

Do you supply BAND-IT tools?

Yes, subject to availability.

Do you supply downlead clamps?

Yes.

Do you supply cable storage brackets?

Yes.

Do you supply fibre closures?

Yes.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies aerial fibre equipment throughout Kenya.

Why Buy J-Hook Suspension Clamps from Fiber Optics Kenya?

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The J-Hook Suspension Clamp 10–12mm is designed to provide safe intermediate support for smaller ADSS and round aerial fibre optic cables. A dedicated Kenyan 10–12mm model combines galvanized-steel construction with UV-resistant polymer components, making it suitable for outdoor FTTH, ISP and telecommunications fibre networks.

Unlike PA-series tension clamps, the J-Hook allows the cable route to continue through an intermediate support point. It can be mounted using stainless-steel pole banding, bolts, hooks or compatible brackets, depending on the specific pole and network design.

Current Kenyan pricing for the dedicated 10–12mm J-Hook is around KES 350, while broader 10–15mm variants currently range from approximately KES 250 upward depending on mechanical rating and supplier.

Contact Fiber Optics Kenya for J-Hook 10–12mm prices in Kenya, J-Hook 10–15mm and 15–20mm clamps, PA500/PA1500/PA2000 tension clamps, Universal Pole Brackets, ADSS fibre cables, stainless-steel banding, fibre closures, bulk ISP orders and nationwide delivery.
