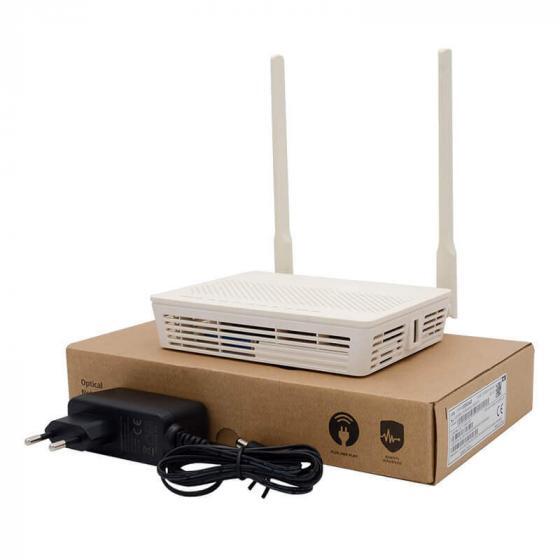

Huawei HG8546M XPON Router in Kenya

The Huawei HG8546M XPON Router is a multifunctional optical network terminal designed for FTTH subscriber installations. XPON-labelled versions are commonly used with compatible GPON and EPON OLTs, allowing the same style of subscriber equipment to be deployed across different passive optical network infrastructures.

The HG8546M family is especially popular among local ISPs because it combines optical termination with Ethernet LAN ports, Wi-Fi and voice connectivity in one compact unit. Kenyan technical sources describe commonly deployed HG8546M XPON units as supporting GPON and EPON operation, four Ethernet ports, built-in Wi-Fi and straightforward web-based provisioning.

The exact HG8546M specification can vary considerably between units. In particular, the video supplied for this page shows a dual-band variant advertised with 4GE + 2POTS + 2USB, whereas many commonly sold HG8546M units in Kenya use configurations such as 1GE + 3FE + 1 POTS + USB + 2.4 GHz Wi-Fi. The hardware, firmware and optical mode should therefore be verified before purchase or deployment.

Huawei HG8546M XPON Router Key Specifications

Because numerous OEM and firmware variants are sold under the HG8546M name, the specification on the physical unit should take precedence over generic marketplace listings. Kenyan technical guidance specifically notes that many XPON units using this model name can have different internal chipsets, firmware and management interfaces.

What Is Huawei HG8546M XPON?

The HG8546M XPON is installed at the customer end of a fibre network.

A typical FTTH network follows this path:

Internet → Core Router → OLT → PLC Splitter → Fibre Drop Cable → HG8546M → Customer Devices

The router receives the optical PON signal and converts it into services such as:

• Ethernet

• Wi-Fi

• Internet

• VoIP

• Local LAN connectivity

• USB services on supported firmware

This means the HG8546M can replace both a basic bridge ONU and a separate entry-level Wi-Fi router in many residential deployments.

XPON GPON and EPON Support

XPON is commonly used to describe subscriber units capable of working on both GPON and EPON infrastructures where the hardware, firmware and OLT are compatible.

Local Kenyan deployment guidance identifies dual GPON/EPON operation as one of the reasons the HG8546M XPON is widely used by ISPs.

GPON vs EPON Operation

These speeds describe PON line rates, not the actual Internet package received by one subscriber.

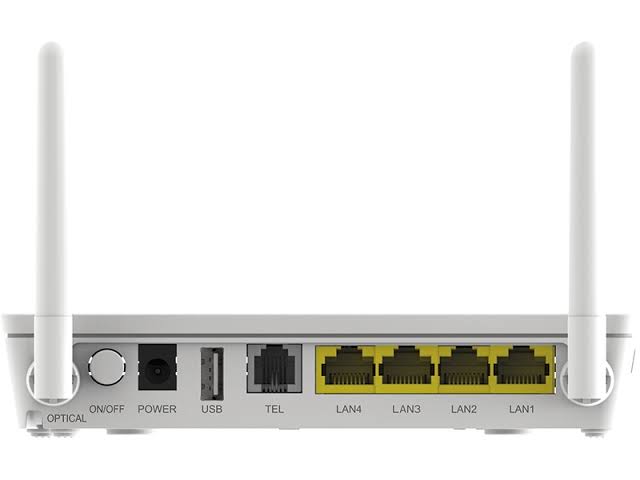

Four LAN Ports

The HG8546M commonly includes four Ethernet ports, but the exact speeds depend on the hardware revision.

Common configurations include:

The video you supplied is specifically titled as an HG8546M dual-band model with 4GE + 2POTS + 2USB.

Why Gigabit Ethernet Matters

Fast Ethernet ports are nominally limited to 100 Mbps.

For customers subscribing to packages above 100 Mbps, Gigabit Ethernet avoids the LAN port becoming the bottleneck.

Built-In Wi-Fi

One of the main advantages of the HG8546M over bridge-only ONUs is its integrated Wi-Fi.

This allows:

• Phones

• Laptops

• Smart TVs

• Tablets

• CCTV cameras

• IoT equipment

to connect without an additional router.

Many common HG8546M units use 2.4 GHz Wi-Fi, but dual-band variants are also sold. The specific model shown in your supplied video is marketed as a dual-band HG8546M.

Huawei HG8546M Dual-Band Version

A dual-band HG8546M can provide:

• 2.4 GHz Wi-Fi

• 5 GHz Wi-Fi

The 5 GHz band is particularly useful when customers are subscribing to higher-speed fibre packages and need better wireless throughput.

HG8546M Common 2.4 GHz Version vs Dual-Band Version

POTS Voice Ports

POTS interfaces allow analogue telephone handsets to connect to the fibre terminal when the ISP provides VoIP service.

A common FTTH arrangement becomes:

Fibre → HG8546M → Internet + Wi-Fi + Telephone

The dual-band variant in the provided video is advertised with 2 POTS ports, while many common HG8546M units have one.

USB Ports

USB functionality depends on firmware and hardware revision.

The video variant is advertised with 2 USB interfaces.

Possible functions on supported units may include:

• USB storage

• Local file sharing

• Firmware-dependent network services

Do not assume every HG8546M supports the same USB features.

Bridge Mode

The HG8546M can be used in bridge mode on supported firmware.

A typical configuration is:

OLT → HG8546M Bridge → MikroTik Router → Customer

This lets the MikroTik or another external router handle:

• PPPoE

• NAT

• DHCP

• Firewall

• VPN

• Queues

• Wi-Fi

• VLANs

• Bandwidth management

Bridge mode is especially useful for professional ISP and business installations.

Router Mode

In router mode, the HG8546M itself can handle subscriber routing.

Typical functions may include:

• PPPoE

• DHCP

• NAT

• Wi-Fi

• LAN routing

• VLAN configuration

• Basic firewall controls

This can remove the need for a separate router in straightforward residential installations.

HG8546M with MikroTik

The HG8546M integrates well into MikroTik-based fibre networks.

A typical topology is:

Internet → MikroTik Core Router → OLT → Splitter → HG8546M → Customer

Alternatively:

OLT → HG8546M in Bridge Mode → MikroTik Customer Router

MikroTik can provide:

• PPPoE

• RADIUS

• Hotspot

• Queues

• DHCP

• Firewall

• NAT

• Subscriber billing integration

• VPN

The ONU handles optical termination while MikroTik handles the customer networking logic.

VLAN Support

VLAN functionality is important in ISP networks where multiple services share one fibre connection.

Typical uses include:

Exact VLAN options vary with firmware. Kenyan technical references warn that HG8546M units sold under the same name can have different software interfaces and configuration menus.

Web Management

Many HG8546M variants provide a browser-based interface.

Typical configuration sections include:

• WAN

• WLAN

• LAN

• DHCP

• VLAN

• Security

• Port forwarding

• Device information

• Optical status

• System logs

• Firmware

• Reboot

One commonly reported management address is 192.168.100.1, although this should be checked on the actual device label because firmware variants differ.

Avoid Factory Reset Without Provisioning Details

Factory resetting an ISP-provisioned ONU can remove:

• PON authentication

• WAN configuration

• VLAN settings

• PPPoE credentials

• VoIP settings

• ISP management parameters

Kenyan technical guidance specifically recommends avoiding a reset unless the necessary provisioning details are available.

LED Indicators

Common indicators can include:

The arrangement varies between hardware revisions.

PON Indicator

The PON indicator shows the status of communication between the ONU and OLT.

If registration fails, possible causes include:

• Wrong PON technology

• ONU not authorized

• Incorrect SN or LOID

• Firmware incompatibility

• OLT compatibility issue

• Optical signal problem

LOS Indicator

LOS means Loss of Signal.

Common causes include:

• Broken fibre

• Disconnected patch cord

• Dirty connector

• Bent drop cable

• Excessive splitter loss

• Weak optical signal

• Faulty splice

A red LOS condition should normally be investigated on the optical side before changing Wi-Fi settings.

Huawei HG8546M vs HG8310M

The HG8310M is better where a dedicated bridge terminal is wanted, while HG8546M provides more integrated customer-premises functions.

HG8546M vs Basic 1GE XPON ONU

HG8546M vs Wi-Fi 6 XPON ONT

Watch Huawei HG8546M XPON Router

https://youtu.be/pTtYsyu6HQk

The supplied video presents an HG8546M dual-band XPON fibre router with 4GE, 2 POTS and 2 USB interfaces, which is a higher-specification configuration than the more common 1GE + 3FE HG8546M often found in the Kenyan market.

This makes it especially important for buyers to verify the exact physical interfaces before ordering. Two devices carrying the HG8546M model name may look almost identical while offering different LAN speeds, Wi-Fi bands, voice ports and firmware features. Kenyan ISP deployment guidance likewise notes that HG8546M-labelled XPON units frequently differ internally despite sharing similar external branding.

For a complete FTTH rollout, Fiber Optics Kenya can supply the HG8546M alongside compatible GPON and EPON OLTs, PLC splitters, ODFs, FAT boxes, fibre closures, FTTH drop cable, adapters, patch cords, pigtails, fusion-splicing equipment and fibre testing tools.

Applications of Huawei HG8546M XPON Router

Residential FTTH

Provides fibre termination, wired LAN and Wi-Fi from one device.

ISP Subscriber Deployments

Can serve as standard FTTH customer-premises equipment.

Apartment Networks

Suitable for individual subscribers connected through a shared PON infrastructure.

Residential Estates

Can be deployed in large numbers across estate fibre networks.

Small Offices

Multiple Ethernet ports, Wi-Fi and POTS support basic business requirements.

VoIP Networks

POTS ports can provide analogue telephone connectivity where the ISP supports voice services.

MikroTik Networks

Can be used in bridge mode with MikroTik performing routing and subscriber management.

Rural ISP Networks

XPON compatibility can simplify ONU inventory across mixed GPON and EPON deployments.

Typical FTTH Network Architecture

What to Check Before Buying HG8546M

Before purchasing, verify:

1. GPON, EPON or XPON capability

2. OLT interoperability

3. Number of Gigabit ports

4. Whether the remaining LAN ports are FE or GE

5. 2.4 GHz-only or dual-band Wi-Fi

6. Number of POTS ports

7. Number of USB ports

8. Bridge-mode support

9. Firmware version

10. Optical connector

11. Authentication method

12. Whether the unit is Huawei-manufactured or an OEM XPON variant

Recommended Accessories

Why Buy Huawei HG8546M XPON Router from Fiber Optics Kenya?

Frequently Asked Questions

What is the Huawei HG8546M XPON Router?

It is an FTTH ONU/ONT router commonly used to terminate GPON or EPON fibre connections and provide Ethernet, Wi-Fi and other subscriber services.

Is HG8546M GPON or EPON?

XPON variants can support compatible GPON and EPON networks. Kenyan deployment sources identify dual GPON/EPON support as a common feature of locally used HG8546M XPON units.

What does XPON mean?

XPON commonly refers to a subscriber ONU capable of working with GPON and EPON systems where interoperability is supported.

Does HG8546M support dual-band Wi-Fi?

Some variants do. The unit in the supplied video is explicitly presented as a dual-band HG8546M.

Do all HG8546M routers support 5 GHz?

No. Many commonly deployed versions use only 2.4 GHz Wi-Fi.

How many LAN ports does it have?

Most versions have four LAN ports.

Are all four LAN ports Gigabit?

Not necessarily. Many common HG8546M units use 1GE + 3FE, while the supplied video advertises a 4GE variant.

How many POTS ports does it have?

Common versions may have one, while the supplied video shows a model advertised with two POTS ports.

How many USB ports does it have?

This varies. The video variant is advertised with two USB ports.

Can HG8546M work with a Huawei OLT?

Compatible units can, but the exact firmware and provisioning requirements must match.

Can HG8546M work with VSOL OLT?

Some XPON units can, but interoperability should be tested before bulk deployment.

Can HG8546M work with HIOSO OLT?

Compatible XPON variants may work, but test registration, VLAN and management functionality first.

Does HG8546M support bridge mode?

Yes on many firmware variants.

Can it operate as a router?

Yes.

Can I connect MikroTik to HG8546M?

Yes. It can be bridged to a MikroTik router.

Can MikroTik handle PPPoE behind it?

Yes, if the ONU is configured for the required bridge service.

Can HG8546M handle PPPoE itself?

Router-enabled firmware can support WAN functions including PPPoE.

Does HG8546M support VLANs?

Yes on common variants, although the exact menu and features differ by firmware.

Does HG8546M have Wi-Fi?

Yes.

Can HG8546M replace a separate Wi-Fi router?

For many basic home installations, yes.

When should I use a separate router?

Use one where you need stronger coverage, Wi-Fi 6, advanced firewalling, VPN or MikroTik subscriber management.

What does PON mean on the HG8546M?

It indicates the status of the optical connection and OLT registration.

What does LOS mean?

LOS means Loss of Signal.

Why is the LOS light red?

Typical causes include disconnected fibre, weak optical power, a bad splice, a dirty connector or a damaged drop cable.

Does a red LOS light mean the Wi-Fi password is wrong?

No. LOS relates to the fibre optical link.

Can HG8546M be used in FTTH?

Yes. FTTH is one of its primary applications.

Can it be used for business Internet?

Yes, particularly when paired with a professional router.

Is the HG8546M suitable for an ISP?

Yes. It is widely deployed as ISP customer-premises equipment in local FTTH networks.

Are all HG8546M units genuine Huawei?

No. Kenyan technical sources note that many HG8546M XPON devices sold locally are OEM products using the Huawei model name but different internal hardware or firmware.

Why do different HG8546M units have different login pages?

Because firmware and chipsets can differ between hardware revisions and OEM variants.

What is the common management IP?

A commonly reported address is 192.168.100.1, but always verify the label and ISP configuration.

Should I factory reset my HG8546M?

Avoid resetting an ISP-provisioned unit unless you have the optical authentication, VLAN and WAN details required to restore service.

Can ISPs buy HG8546M routers in bulk?

Yes. Bulk orders are suitable for FTTH subscriber rollouts.

Should an ISP test the units first?

Yes. Test the exact firmware and hardware version against the target OLT before purchasing large quantities.

Do you supply OLTs?

Yes. Fiber Optics Kenya can supply GPON and EPON OLTs in various capacities.

Do you supply PLC splitters?

Yes. 1x2, 1x4, 1x8, 1x16, 1x32 and 1x64 splitter configurations can be supplied.

Do you supply FAT boxes?

Yes. Empty and loaded FAT boxes can be supplied.

Do you supply ODFs?

Yes. Different rack and wall-mounted ODF configurations are available.

Do you supply FTTH drop cable?

Yes. FTTH drop cable and related installation accessories can be supplied.

Do you supply fibre testing equipment?

Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic networking equipment throughout Kenya.

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The Huawei HG8546M XPON Router is a flexible FTTH subscriber terminal that can combine optical termination, Ethernet, Wi-Fi, voice and routing functions in one unit. XPON-labelled versions can work with compatible GPON and EPON systems, which is one reason the model remains popular among local ISPs.

The specific version shown in your supplied video is particularly notable because it is advertised as a dual-band 4GE + 2POTS + 2USB HG8546M, offering more interfaces than the common 1GE + 3FE, single-POTS version.

Because HG8546M hardware varies significantly across the market, always confirm the LAN speeds, Wi-Fi bands, PON mode, firmware, POTS/USB interfaces and OLT compatibility before placing a bulk order.

Contact Fiber Optics Kenya for Huawei HG8546M XPON Router prices in Kenya, GPON/EPON ONU bulk orders, OLTs, PLC splitters, ODFs, FAT boxes, fibre cables, configuration support, FTTH equipment and nationwide delivery.
