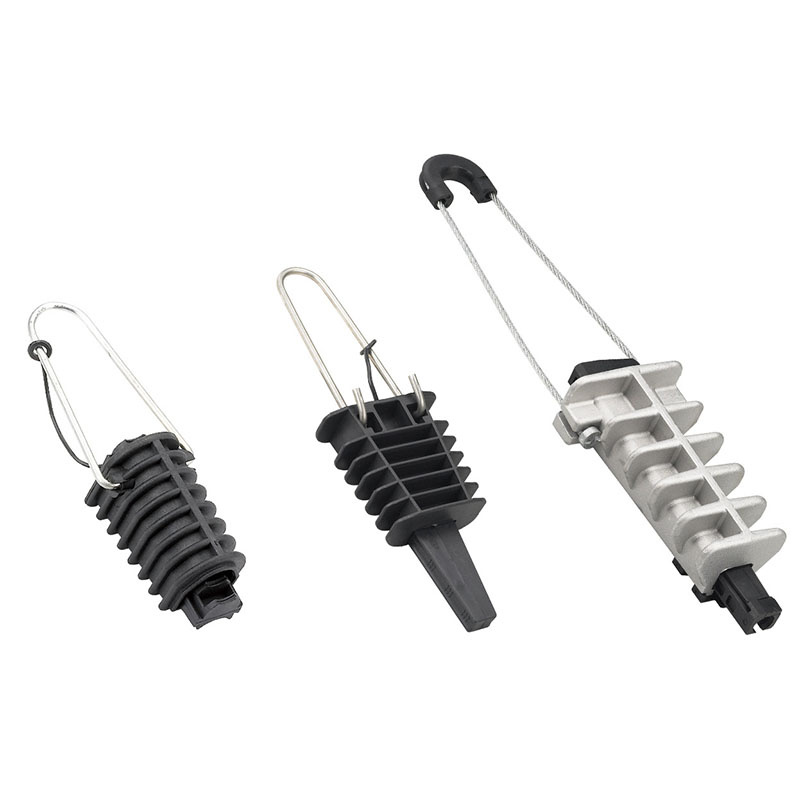

Drop Cable Tension Clamp Price in Kenya

A Drop Cable Tension Clamp is an FTTH line-hardware accessory used to secure and tension fibre optic drop cables between poles, buildings, brackets and subscriber premises. It is widely used in the last-mile section of fibre networks where aerial drop cable must be held firmly without damaging the optical fibre.

In a typical FTTH deployment, the clamp takes the mechanical load of the drop cable and transfers that load to a pole hook, wall bracket or other anchoring point. This helps protect the fibre from excessive pulling force while keeping the aerial span properly tensioned.

Modern drop cable tension clamps are available for both flat and round FTTH drop cables. Common designs use UV-resistant PA66 nylon together with galvanized or stainless steel hardware, while other versions use all-metal clamp bodies for demanding outdoor installations.

Typical Drop Cable Tension Clamp Specifications

For example, one PA66 and galvanized-steel drop clamp specifies a minimum tensile strength of 0.7kN for flat or round cable up to roughly 2 × 4mm, while an ODWAC-22 stainless-steel version supports 3–7mm cable and lists approximately 450N tensile strength.

What Is a Drop Cable Tension Clamp?

A Drop Cable Tension Clamp is designed to anchor an FTTH subscriber cable at a mechanical support point.

A typical arrangement is:

FAT Box → FTTH Drop Cable → Tension Clamp → Pole / Building → Subscriber

The clamp grips the cable while its bail, hook or loop attaches to:

• Pole hooks

• Wall hooks

• Drive hooks

• Cross-arms

• Suspension brackets

• FTTH brackets

The goal is to hold the cable securely while minimizing direct mechanical stress on the optical fibre.

Why Tensioning FTTH Drop Cable Matters

Aerial fibre cable should not simply hang loosely between supports.

Correct tensioning helps:

• Keep the fibre span stable

• Reduce sag

• Prevent excessive movement in wind

• Protect the fibre from pulling forces

• Maintain installation clearance

• Keep subscriber drops organized

• Reduce risk of cable damage

The clamp is therefore a structural part of the last-mile FTTH installation rather than merely a cable accessory.

Flat Drop Cable Compatibility

Many tension clamps are designed specifically for flat FTTH drop cable.

Common flat drop constructions include dimensions such as:

• 2 × 3mm

• 2 × 4mm

• 2 × 5mm

• 4 × 8mm

• Other model-specific sizes

Some professional drop clamps are designed to accommodate flat fibre drops ranging from small subscriber cables to larger hard-jacketed fibre drops.

Round Drop Cable Compatibility

Certain universal tension clamps can also accommodate round fibre drop cable.

A typical universal clamp may support cable diameters in the region of:

2.5–5mm or 3–7mm

depending on the model.

This flexibility is useful for ISPs that deploy more than one type of subscriber drop cable.

Plastic Drop Cable Tension Clamp

Plastic-body clamps commonly use UV-resistant PA66 nylon.

Advantages include:

• Low weight

• Corrosion resistance

• Electrical insulation

• Easy installation

• Good outdoor durability

• Lower cost

One documented design uses PA66 nylon with galvanized-steel hardware and specifies suitability for outdoor telecommunications installations.

Stainless Steel Drop Cable Clamp

Metal drop-wire clamps are also available for installations requiring stronger mechanical construction.

Typical materials include:

• Stainless Steel 201

• Stainless Steel 304

• Stainless Steel 430

The ODWAC-22 type, for example, uses a stainless-steel shell, shim and wedge assembly and supports fibre cable diameters of approximately 3–7mm.

Drop Cable Tension Clamp Components

Depending on the design, a tension clamp may include:

Wedge-type clamps are designed so that increasing cable tension causes the gripping mechanism to hold the cable more securely.

Self-Adjusting Wedge Design

Some modern FTTH drop clamps use a self-adjusting wedge.

This design offers:

• Quick cable insertion

• Automatic gripping

• Tool-free installation

• Easier field work

• Reduced installation time

A current Jera Line outdoor FTTH tension clamp specifically highlights a self-adjusting wedge, UV-resistant thermoplastic construction and open wire bail for attaching to hooks or brackets.

Open Bail Design

An open bail makes it possible to attach the clamp directly to:

• Closed hooks

• Pole brackets

• Wall brackets

• Cross-arms

without removing the support hardware.

This can significantly speed up subscriber installations.

Tool-Free Installation

Many modern drop clamps are designed for installation without specialized tools.

One professional drop-wire clamp specification describes quick installation without tools and installation onto pole or wall fittings via an open bail.

This is useful for technicians working:

• On poles

• At height

• In estates

• At subscriber premises

• During high-volume FTTH rollouts

Drop Cable Tension Clamp Installation

A typical installation procedure is:

1. Identify the correct anchoring point.

2. Select a clamp compatible with the cable size.

3. Open or prepare the clamp.

4. Position the fibre drop cable inside the gripping section.

5. Insert or engage the wedge.

6. Attach the bail or hook to the pole or wall bracket.

7. Apply the required cable tension.

8. Ensure the cable is firmly secured.

9. Check that the fibre is not sharply bent.

10. Inspect the span before completing the installation.

Exact installation depends on clamp design.

Watch Drop Cable Tension Clamp Video

https://youtu.be/FOutvAOJjag

A Drop Cable Tension Clamp is particularly useful during aerial FTTH installation because the subscriber cable must be mechanically supported before it enters the customer premises. Without proper anchoring, wind movement and cable weight can transfer excessive stress directly to the fibre or connector.

Universal clamps can simplify inventory for ISPs because one clamp design may accommodate both round and flat subscriber cables. However, the cable size and rated tensile load should always be checked before installation. Different tension clamps vary significantly in capacity, from around 450N for some stainless-steel models to 900N for heavier PA66/steel designs.

For a complete FTTH aerial installation, Fiber Optics Kenya can supply drop cable tension clamps together with pole brackets, stainless-steel bands, FAT boxes, fibre closures, FTTH drop cables, fast connectors, ATBs and other last-mile accessories.

Drop Cable Tension Clamp for Pole Installation

Poles are one of the most common anchoring points.

A typical setup is:

Pole → Pole Bracket / Hook → Drop Cable Clamp → FTTH Drop Cable

This allows the fibre to remain suspended between:

• Utility pole and subscriber

• Pole and building

• Pole and pole

• FAT box and customer

Drop Cable Tension Clamp for Wall Installation

The clamp can also be attached to a wall-mounted hook or bracket.

Typical configuration:

Building Wall → FTTH Hook → Tension Clamp → Drop Cable

This is common where the fibre arrives directly at the subscriber's home or office.

Drop Cable Tension Clamp for FAT Box Connections

Aerial subscriber drops commonly originate near a pole-mounted FAT box.

A typical connection is:

FAT Box → SC/APC Adapter → Drop Cable → Tension Clamp → Subscriber

The clamp supports the mechanical span while the optical connection remains protected.

Drop Cable Tension Clamp for Short Aerial Spans

Certain S-type clamps are designed particularly for relatively short aerial spans.

One manufacturer specifies a clamp designed for outdoor routes and short-span FTTH applications with PA66 and stainless-steel construction.

The maximum span should always follow the cable and clamp manufacturer's design limits.

Tension Clamp vs Suspension Clamp

A tension clamp is generally used where the cable needs to be anchored, while suspension hardware supports the cable without terminating the mechanical span.

Tension Clamp vs S-Hook

An S-hook is only one part of an aerial mounting system.

Some tension clamps include an integrated S-hook or open bail.

Tension Clamp vs Cable Tie

A cable tie should not normally replace purpose-designed anchoring hardware.

UV Resistance

Outdoor plastic clamps should use UV-resistant material because sunlight can degrade ordinary plastics over time.

PA66 with UV stabilization is widely used for FTTH tension-clamp bodies.

Corrosion Resistance

Metal components are typically made from:

• Galvanized steel

• Stainless steel

These materials help provide reliable outdoor performance in:

• Rain

• Humidity

• Coastal conditions

• Urban environments

Stainless-steel models offer particularly good corrosion resistance.

Temperature Resistance

Outdoor FTTH clamps must tolerate environmental temperature changes.

Some documented models have undergone operating or environmental tests ranging from approximately -60°C to +60°C, although actual rated operating ranges vary by product.

Tensile Strength

Tensile capacity depends heavily on clamp type.

Examples include:

The correct clamp should be selected based on the intended cable and span.

Drop Cable Tension Clamp Price in Kenya

The Drop Cable Tension Clamp price in Kenya depends on:

• Clamp design

• Cable size

• PA66 or stainless-steel construction

• Included S-hook

• Tensile strength

• Brand

• Quantity

• Import costs

Because clamps are frequently purchased in bulk for FTTH rollouts, unit pricing can reduce significantly at larger quantities.

Contact Fiber Optics Kenya for the current price and wholesale quotation.

Recommended Accessories

Frequently Asked Questions

What is a Drop Cable Tension Clamp?

It is an FTTH anchoring accessory used to hold and tension aerial fibre drop cable between poles, buildings and subscriber locations.

What is another name for it?

It may also be called:

• Drop wire clamp

• Anchor clamp

• FTTH tension clamp

• Drop cable anchor clamp

• Strain clamp

Can it be used with flat drop cable?

Yes. Many models are specifically designed for flat FTTH drop cable.

Can it be used with round fibre cable?

Universal models can. Some support round cable diameters around 3–7mm.

Can one clamp work with both flat and round cable?

Yes, depending on the design. Universal clamps are available for both types.

What material is the clamp made from?

Common materials include:

• UV-resistant PA66 nylon

• Stainless steel

• Galvanized steel

Is PA66 suitable outdoors?

Yes, when UV stabilized for outdoor telecommunications use.

Is stainless steel better?

Stainless steel provides excellent mechanical strength and corrosion resistance, but the best choice depends on the cable and mounting system.

Can the clamp be installed without tools?

Many wedge-type FTTH clamps can be installed without specialized tools.

Does it damage the fibre?

A properly sized and correctly installed clamp is designed to grip the drop cable without damaging its optical performance.

What is the tensile strength?

It varies. Typical products range from roughly 450N to 900N, depending on design.

Can it be used on utility poles?

Yes.

Can it be used on concrete poles?

Yes, with suitable hooks or brackets.

Can it be used on wooden poles?

Yes.

Can it be used on steel poles?

Yes.

Can it be attached to a building?

Yes. It can attach to an appropriate wall hook or bracket.

Can it be used with pole brackets?

Yes.

Can it be used with an S-hook?

Yes. Some models include an S-hook, while others use a bail.

Can I use it near a FAT box?

Yes. This is a common FTTH subscriber-drop application.

Can I use it for aerial drop cable?

Yes. That is its primary application.

Is it suitable for FTTH?

Yes.

Is it suitable for ISPs?

Yes. ISPs commonly use tension clamps for last-mile subscriber fibre.

Is it suitable for telecom contractors?

Yes.

Can I use cable ties instead?

Cable ties should not normally replace purpose-designed tension clamps for load-bearing aerial fibre spans.

What is the difference between a tension clamp and a suspension clamp?

A tension clamp anchors the cable and carries pulling force, while a suspension clamp mainly supports the cable along the route.

Does it need electricity?

No.

Does it require maintenance?

Most designs require little maintenance once correctly installed.

Can it withstand rain?

Outdoor-rated models are designed for weather exposure.

Can it resist UV light?

Plastic FTTH models commonly use UV-resistant thermoplastic.

Can it resist corrosion?

Yes, when galvanized or stainless-steel hardware is used.

What cable size should I buy the clamp for?

Match the clamp to the exact diameter or dimensions of your drop cable.

Can I use a clamp that is too large?

It may not grip the cable correctly, so the specified cable range should be followed.

Can I use one designed for round cable on flat cable?

Only when the manufacturer specifically states compatibility with both cable types.

Can the clamp support long spans?

Maximum span depends on the clamp and cable design. Do not rely only on the clamp's tensile rating.

What is the Drop Cable Tension Clamp price in Kenya?

Pricing varies by design, material and quantity. Contact Fiber Optics Kenya for the current retail and bulk price.

Do you supply Drop Cable Tension Clamps?

Yes. Fiber Optics Kenya can supply FTTH drop clamps and related aerial installation accessories.

Do you supply FTTH drop cable?

Yes.

Do you supply pole brackets?

Yes, subject to stock and project requirements.

Do you supply BAND-IT banding tools?

Yes, subject to availability.

Do you supply stainless-steel banding?

Yes.

Do you supply FAT boxes?

Yes.

Do you supply ATB boxes?

Yes.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic equipment and FTTH accessories throughout Kenya.
