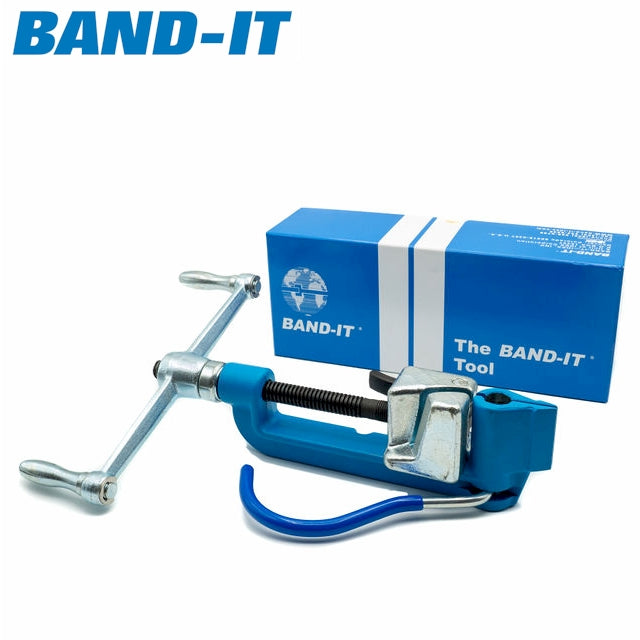

BAND-IT Standard Banding Tool Price in Kenya

The BAND-IT Standard Banding Tool, commonly identified as model C00169, is a professional hand tool used to tension, secure and cut stainless-steel banding around poles, pipes, brackets, cable-support hardware and other structures.

BAND-IT specifies the C00169 for band widths from 1/4 inch to 3/4 inch and material thicknesses from approximately 0.015 inch to 0.030 inch. The tool features a drop-forged construction, built-in cutter and spring-loaded gripper lever to improve handling during installation.

For fibre and telecom installers, the tool is particularly useful when mounting outdoor equipment such as FAT boxes, fibre closures, cable brackets, distribution hardware and other pole-mounted accessories using stainless-steel band and buckle systems.

BAND-IT C00169 Key Specifications

BAND-IT describes the C00169 as its standard hand tool for BAND-FAST products and band widths between 1/4 and 3/4 inch.

What Is a BAND-IT Standard Banding Tool?

A banding tool is used to tighten stainless-steel band around an object and secure it with a buckle or clamp.

A typical installation process is:

Measure Band → Pass Through Buckle → Wrap Around Pole → Insert Into Tool → Tension → Lock Buckle → Cut Excess Band

The C00169 combines the tensioning and cutting functions in one manual tool.

1/4-Inch to 3/4-Inch Band Capacity

The C00169 supports a broad range of standard BAND-IT band widths:

The official specification allows use with bands between 1/4" and 3/4" wide and 0.015"–0.030" thick.

Built-In Band Cutter

The C00169 includes a built-in cutter, allowing the technician to tension the band and trim the excess material using the same tool.

This helps reduce:

• Installation time

• Number of tools required

• Uneven manual cuts

• Excess loose band after tightening

Spring-Loaded Gripper Lever

BAND-IT also specifies a spring-loaded gripper lever.

The gripper helps hold the stainless-steel band securely as tension is applied, while the spring mechanism improves ease of operation.

Drop-Forged Construction

The Standard Banding Tool uses a drop-forged body designed for repeated mechanical tensioning work.

This is important for installers who regularly use stainless-steel banding for outdoor work such as:

• Utility poles

• Telecom poles

• Fibre infrastructure

• Street signs

• Pipes

• Industrial mounting

BAND-IT Band and Buckle System

The C00169 is commonly used with BAND-IT stainless-steel band and matching buckles.

Typical setup:

Band Roll + Buckle + BAND-IT C00169

The band is cut to the required length, inserted through the buckle, wrapped around the structure and tensioned using the tool.

Compatible BAND-IT Stainless Steel Band

BAND-IT's current product guide shows the C00169 among the application tools for standard 201 stainless-steel band.

Examples include:

The company identifies Type 201 stainless steel as a common general-use banding material with high strength and resistance to weathering and oxidation.

BAND-FAST Compatibility

The Standard Banding Tool can also be used with BAND-FAST products.

BAND-FAST products provide pre-cut or preassembled band-and-buckle solutions for faster installation.

BAND-IT Standard Banding Tool for Fibre Installations

The C00169 can be useful in outdoor fibre deployments where equipment needs to be secured to poles.

Typical fibre applications include:

• FAT box mounting

• Fibre closure mounting

• Pole brackets

• Cable-management brackets

• Outdoor termination boxes

• Distribution enclosures

• ADSS cable accessories

The stainless-steel band provides a durable alternative where drilling into the pole is undesirable or prohibited.

Pole-Mounted FAT Box Installation

A common outdoor FTTH installation may require a FAT box to be fixed to a utility pole.

Typical setup:

Pole → Stainless-Steel Band → Mounting Bracket → FAT Box

The BAND-IT tool tightens the band securely around the pole while the buckle locks it in position.

Fibre Closure Mounting

Some horizontal or dome fibre closures are installed on:

• Concrete poles

• Wooden poles

• Steel poles

• Telecom structures

Stainless-steel banding can be used with compatible brackets to secure the closure without drilling into the structure.

Telecom Cable Management

BAND-IT includes communications cable management among its documented banding applications, particularly where stainless-steel fastening systems are required.

The standard tool can therefore be useful for technicians installing fibre, coaxial or telecommunications support hardware.

Sign and Bracket Mounting

BAND-IT also identifies its stainless-steel banding systems for traffic management and sign hanging, including the C00169 with 1/2-inch and 3/4-inch band-and-buckle combinations.

This means the same tool can be used by:

• Fibre installers

• Telecom technicians

• Sign installers

• Electrical contractors

• Industrial maintenance teams

How to Use the BAND-IT Standard Banding Tool

A typical procedure is:

1. Select the correct stainless-steel band width.

2. Cut sufficient band to wrap around the object.

3. Slide the buckle onto the band.

4. Wrap the band around the pole or equipment.

5. Pass the band back through the buckle.

6. Insert the free end into the BAND-IT tool.

7. Engage the gripper.

8. Turn the tension handle.

9. Tighten until the required tension is achieved.

10. Roll or reposition the tool as specified by the buckle installation method.

11. Secure the buckle.

12. Use the built-in cutter to remove excess band.

13. Inspect the finished installation.

BAND-IT publishes dedicated operating instructions and a walkthrough for the C00169.

Watch BAND-IT Standard Banding Tool Video

https://youtu.be/jSnfT1Km7zo

The BAND-IT Standard Banding Tool is designed to perform the main mechanical operations required during stainless-steel band installation: gripping, tensioning and cutting. For field technicians, having these functions integrated into one tool simplifies repeated pole-mounting work.

For fibre installations, stainless-steel banding is particularly useful where technicians must mount FAT boxes, closures or support brackets on poles without relying on permanent drilled fasteners. The band wraps around the structure, distributes the clamping force and can withstand harsh outdoor conditions when the correct stainless-steel material is selected.

The tool should always be paired with the correct band width, thickness and buckle. The standard C00169 is intended for material up to 0.030 inch thick; thicker Giant Band applications are better suited to BAND-IT's C00369 Heavy Duty Tool.

BAND-IT Standard Tool vs Heavy Duty Tool

BAND-IT specifically describes the C00369 as the heavier-duty version of the C00169 and notes that it is designed for thicker material, including 0.044-inch × 3/4-inch Giant Band.

BAND-IT Tool vs Ratchet Banding Tool

Tool choice depends on band system, installation preference and required tension.

BAND-IT Tool vs Cable Ties

For outdoor fibre equipment, stainless-steel banding provides a more robust mounting solution than ordinary plastic ties.

Replacement Parts

BAND-IT provides replacement components for the C00169.

Current official parts include:

• C02499 – gripper/slide-block related assembly

• C05887 – cutter bar assembly

• C00689 – tension handle, bearing and screw kit

This improves the long-term serviceability of the tool.

Applications of BAND-IT Standard Banding Tool

FTTH Pole Installations

Used to secure fibre equipment and mounting brackets to poles.

FAT Box Installation

Suitable for stainless-steel band mounting of compatible FAT boxes.

Fibre Closure Installation

Can secure mounting brackets for outdoor splice closures.

Telecom Equipment

Useful for telecommunications hardware mounted on poles.

Cable Management

Can help secure compatible cable-support equipment.

Traffic Signs

BAND-IT documents the C00169 for sign-hanging applications.

Pipe Banding

Suitable for compatible industrial banding applications.

Electrical Installations

Can secure brackets, boxes and accessories where stainless-steel banding is appropriate.

CCTV Pole Installations

Useful for mounting compatible CCTV brackets and enclosures.

Solar and Outdoor Equipment

Can be used for compatible support hardware where drilling is not preferred.

Why Use Stainless-Steel Banding?

Stainless-steel band provides:

• High tensile strength

• Weather resistance

• UV resistance

• Corrosion resistance

• Long service life

• Secure pole mounting

• Adjustable installation diameter

BAND-IT's standard Type 201 stainless-steel band is specifically marketed for general industrial and municipal applications where high strength and resistance to oxidation and weathering are important.

BAND-IT Standard Banding Tool Price in Kenya

The BAND-IT Standard Banding Tool price in Kenya depends on:

• Genuine BAND-IT model

• C00169 configuration

• Supplier

• Import costs

• Availability

• Included accessories

• Replacement parts

• Quantity ordered

Because professional BAND-IT tools are specialized industrial products, pricing can vary significantly from generic stainless-steel banding tools.

Contact Fiber Optics Kenya for the current price and availability.

What to Check Before Buying

Before purchasing a banding tool, confirm:

1. Tool model

2. Maximum band width

3. Band thickness compatibility

4. Built-in cutter

5. Availability of replacement parts

6. Band and buckle compatibility

7. Standard or heavy-duty requirement

8. Intended pole/equipment application

Recommended Accessories

Frequently Asked Questions

What is the BAND-IT Standard Banding Tool?

It is a manual tool used to tension and cut stainless-steel banding around poles, pipes and other structures.

What is the BAND-IT Standard Tool model number?

The standard model is C00169.

What band widths does C00169 support?

BAND-IT specifies 1/4 inch to 3/4 inch.

What thickness does it support?

Approximately 0.015 inch to 0.030 inch.

Does it have a built-in cutter?

Yes.

Does it have a band gripper?

Yes. The tool uses a spring-loaded gripper lever.

Is the tool drop forged?

Yes. BAND-IT describes it as a drop-forged tool.

Can it be used with BAND-FAST?

Yes.

Can it use ordinary BAND-IT band and buckles?

Yes. BAND-IT identifies it for both Band & Buckle and BAND-FAST applications.

Can it handle 1/4-inch band?

Yes.

Can it handle 3/8-inch band?

Yes.

Can it handle 1/2-inch band?

Yes.

Can it handle 3/4-inch band?

Yes.

Can it handle 0.044-inch Giant Band?

Use the C00369 Heavy Duty Banding Tool for that heavier material.

Can it mount FAT boxes on poles?

Yes, when used with a compatible mounting bracket and stainless-steel band.

Can it mount fibre closures?

Yes, where the closure mounting system is designed for banding.

Can it be used on concrete poles?

Yes, provided the band and mounting bracket are suitable.

Can it be used on wooden poles?

Yes.

Can it be used on steel poles?

Yes.

Can it mount signage?

Yes. BAND-IT lists the C00169 for traffic-management and sign-hanging applications.

Can it be used for telecom installations?

Yes. Stainless-steel banding is widely applicable to telecom and cable-support installations.

Does it require electricity?

No. It is a manual hand tool.

Can replacement parts be purchased?

Yes. BAND-IT lists replaceable gripper, cutter-bar and tension-handle assemblies.

What is the difference between C00169 and C00369?

C00169 is the standard banding tool, while C00369 is the heavy-duty version for thicker material.

Is stainless-steel band suitable outdoors?

Yes. BAND-IT's Type 201 stainless steel is designed for strength and resistance to oxidation and weathering.

Should gloves be worn when banding?

Yes. Stainless-steel band edges can be sharp, so suitable hand protection is recommended.

Can the excess band be cut with the tool?

Yes. The C00169 has an integrated cutter.

Do you supply stainless-steel band?

Yes, subject to size and stock availability.

Do you supply buckles?

Yes, subject to compatibility and stock.

Do you supply pole-mounting accessories?

Fiber Optics Kenya can supply fibre and FTTH mounting accessories depending on project requirements.

Do you supply FAT boxes?

Yes.

Do you supply fibre closures?

Yes.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic equipment and installation accessories throughout Kenya.

Why Buy BAND-IT Standard Banding Tool from Fiber Optics Kenya?

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House, 7th Floor Room S9
Kimathi Street, Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The BAND-IT Standard Banding Tool C00169 is a professional manual tool for installing stainless-steel band-and-buckle faste fiberopticskenya.co.k ning systems. Its support for 1/4-inch to 3/4-inch bands, 0.015-inch to 0.030-inch material thickness, built-in cutter, spring-loaded gripper and drop-forged construction makes it suitable for repeated pole-mounting and industrial fastening work.

For FTTH and telecom installers, the tool is particularly useful when securing FAT boxes, fibre closures, brackets and other outdoor infrastructure to poles, while its broader applications include signage, pipe fastening and industrial equipment mounting.

Contact Fiber Optics Kenya for BAND-IT Standard Banding Tool prices in Kenya, C00169 tools, stainless-steel band, buckles, FAT boxes, fibre closures, pole-mounting accessories, bulk orders and nationwide delivery.
