Fibre Termination Boxes Price in Kenya
96 Core Fibre Optic Termination Box in Kenya
KSh 8,500.00
1 available
Continue shopping96 Core Fibre Optic Termination Box in Kenya
The 96 Core Fibre Optic Termination Box is a high-capacity fibre management enclosure designed for the termination, fusion splicing, protection, organization and distribution of up to 96 optical fibres. It is suitable for telecommunications networks, ISP infrastructure, FTTH and FTTB projects, enterprise fibre backbones, campuses, data centres, CCTV networks and other installations requiring a large number of fibre connections.
Depending on the specific design, a 96-core termination box may be configured as a wall-mounted metal enclosure, outdoor fibre distribution box, aerial closure or underground fibre enclosure. Commercial 96-core products support configurations such as 96 SC adapters, multiple splice trays and integrated cable-management areas. CommScope, for example, offers a wall-mounted fibre distribution terminal with 96 SC/UPC adapters and a maximum 96-fibre splicing capacity.
For outdoor and underground projects, weather-resistant 96-core enclosures are also available. Kenyan-market products include IP67 96-core termination boxes designed for underground, wall-mounted, duct and aerial installations. At Fiber Optics Kenya, the box can be supplied alongside compatible pigtails, adapters, patch cords, splice sleeves, PLC splitters, fibre cables and installation tools.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 96 Core Fibre Optic Termination Box |
| Product Type | Fibre Termination / Distribution Box |
| Maximum Fibre Capacity | Up to 96 fibres |
| Splicing Capacity | Up to 96 fibres |
| Typical Adapter Capacity | Up to 96 depending on configuration |
| SC Adapter Support | Yes |
| LC Adapter Support | Yes on compatible models |
| FC/ST Support | Available on selected models |
| SC/UPC Configuration | Available |
| SC/APC Configuration | Available |
| Fibre Mode | Single Mode / Multimode depending on components |
| Fusion Splicing | Supported |
| Pigtail Termination | Supported |
| Splice Trays | Multiple |
| 12-Core Trays | Supported |
| 24-Core Trays | Supported |
| PLC Splitter Support | Model dependent |
| Cable Management | Integrated |
| Fibre Slack Storage | Integrated |
| Typical Housing | Steel / ABS / PC+ABS / HDPE |
| Wall Mounting | Available |
| Pole Mounting | Available on compatible models |
| Aerial Installation | Available |
| Underground Installation | Available |
| Outdoor Protection | IP-rated models available |
| Power Required | None |
| Applications | FTTH, FTTB, FTTx, GPON, EPON, LAN, WAN |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
The exact specifications vary significantly by enclosure. For example, one 96-core wall box uses eight 12-core splice trays and 96 SC/UPC adapters, while another 96-core FTTx box uses four 24-core trays.
What Is a 96 Core Fibre Optic Termination Box?
A 96 Core Fibre Optic Termination Box creates a centralized point where high-count fibre cables can be safely terminated and managed.
| Component | Function |
|---|---|
| Protective Enclosure | Protects internal fibre components |
| Cable Entry Ports | Receive incoming fibre cables |
| Cable Clamps | Secure incoming cables |
| Strength Member Fixing | Provides mechanical support |
| Splice Trays | Hold protected fusion splices |
| Pigtails | Provide connectorized fibre termination |
| Adapter Panel | Provides patchable optical interfaces |
| Routing Guides | Manage fibre paths |
| Slack Storage | Stores excess fibre |
| Splitter Area | Accommodates PLC splitters on compatible models |
| Cable Outputs | Route downstream fibre connections |
| Door / Cover | Protects internal connections |
A professional wall-mounted 96-core enclosure can integrate dedicated splice sections, adapter panels, cable-routing brackets and pigtail storage within one cabinet.
What Does 96 Core Mean?
The term 96 Core refers to the maximum number of individual optical fibres the enclosure is designed to manage or splice.
| Term | Meaning |
|---|---|
| 96 Core | Up to 96 individual optical fibres |
| Fibre Termination | Creating usable fibre connection points |
| Splicing | Permanently joining optical fibres |
| Pigtail | Connectorized fibre used for termination |
| Adapter | Couples two compatible connectors |
| ODF | Optical Distribution Frame |
| FTTH | Fibre to the Home |
| FTTB | Fibre to the Building |
| FTTx | Fibre to various network endpoints |
A 96-core enclosure does not necessarily have 96 external ports. Some boxes provide 96-splice capacity but fewer adapter positions, so the exact product configuration should always be confirmed. For example, one commercial 96-splice box supports 24 SC-simplex or LC-duplex adapter slots.
How a 96 Core Fibre Termination Box Works
| Stage | Function |
|---|---|
| Incoming Fibre Cable | Brings network fibres into box |
| Cable Entry | Routes cable through enclosure |
| Cable Fixing | Secures cable mechanically |
| Fibre Separation | Individual fibres are identified |
| Fusion Splicing | Fibres are joined to pigtails or other fibres |
| Splice Protection | Sleeves protect fusion joints |
| Splice Tray | Organizes completed splices |
| Pigtail Routing | Routes terminated fibres |
| Adapter Panel | Provides accessible ports |
| Patch Cords | Connect downstream equipment/network |
The termination box therefore creates an organized transition between high-count feeder or backbone cables and individual optical connections.
96 Core Splice Tray Configuration
A 96-core box may achieve its capacity using several tray arrangements.
| Splice Tray Capacity | Number Required for 96 Fibres |
|---|---|
| 12 fibres per tray | 8 trays |
| 24 fibres per tray | 4 trays |
| 48 fibres per tray | 2 trays |
| 96 fibres per tray/system | 1 high-density system |
A Kenyan 96-core wall-mounted distribution box uses eight 12-core ABS splice trays, while another commercial FTTx enclosure divides its 96-splice capacity across four 24-core trays.
Typical 96-Fibre Port Allocation
| Port Range | Fibre Allocation |
|---|---|
| 1–12 | Fibres 1–12 |
| 13–24 | Fibres 13–24 |
| 25–36 | Fibres 25–36 |
| 37–48 | Fibres 37–48 |
| 49–60 | Fibres 49–60 |
| 61–72 | Fibres 61–72 |
| 73–84 | Fibres 73–84 |
| 85–96 | Fibres 85–96 |
Breaking the capacity into 12-fibre groups makes labelling, splicing, troubleshooting and documentation easier.
96 SC Adapter Configuration
Some 96-core termination boxes provide a full 96-port SC interface.
| Feature | Typical Configuration |
|---|---|
| Number of Ports | 96 |
| Connector Format | SC |
| SC/UPC | Available |
| SC/APC | Available depending on configuration |
| Single Mode | Supported |
| Multimode | Supported with compatible components |
| Pigtail Termination | Supported |
| Patch Cord Connection | Supported |
CommScope's 96-port wall-mounted fibre distribution terminal provides 96 adapters, 96 ports and a maximum 96-splice capacity, using SC/UPC single-mode interfaces.
SC/UPC Configuration
| Feature | SC/UPC |
|---|---|
| Typical Colour | Blue |
| Polish | Ultra Physical Contact |
| Connector Format | SC |
| Single Mode | Common |
| Enterprise Networks | Excellent |
| FTTx Networks | Supported |
| Patchability | Excellent |
A 96-port ODF currently sold in Kenya is available preloaded with 96 SC/UPC single-mode adapters.
SC/APC Configuration
| Feature | SC/APC |
|---|---|
| Typical Colour | Green |
| Polish | Angled Physical Contact |
| Back Reflection | Very Low |
| FTTH / GPON | Excellent |
| CATV | Excellent |
| Single Mode | Yes |
SC/APC is especially common in PON networks where low return loss is important.
SC/UPC vs SC/APC
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Colour | Blue | Green |
| End Face | Ultra-polished | Angled |
| Back Reflection | Low | Lower |
| Enterprise Fibre | Common | Application dependent |
| FTTH / GPON | Supported | Very Common |
| CATV | Less Preferred | Excellent |
| Direct UPC/APC Mating | No | No |
SC/UPC and SC/APC connectors should not be directly mated.
LC Configuration
LC adapters can provide greater port density because of their smaller form factor.
| Feature | LC |
|---|---|
| Connector Size | Small |
| Port Density | High |
| Simplex | Available |
| Duplex | Common |
| Single Mode | Supported |
| Multimode | Supported |
| Data Centre Use | Excellent |
| Enterprise LAN | Excellent |
A wall-mounted 96-fibre enclosure can support 96 fibres using SC/FC/ST adapters or up to 192 fibres with LC duplex interfaces, depending on its panel design.
96 Core Fibre Box with PLC Splitters
Some 96-core enclosures can also accommodate PLC splitters.
| Splitter | Outputs |
|---|---|
| 1x8 | 8 |
| 1x16 | 16 |
| 1x32 | 32 |
| 2 × 1x32 | 64 |
| 3 × 1x32 | 96 |
The exact splitter arrangement depends on the optical network architecture rather than simply the box capacity.
A current 96-port outdoor distribution cabinet supports up to four 1x32 PLC splitters, while another 96-splice enclosure supports 1x8, 1x16 and 1x32 PLC splitters.
96 Core Empty vs Loaded Termination Box
| Feature | Empty Box | Loaded Box |
|---|---|---|
| Enclosure | Included | Included |
| Splice Trays | Model dependent | Usually Included |
| Adapters | Usually Separate | Included |
| Pigtails | Separate | Often Included |
| Splitter | Separate | May Be Included |
| Installation Time | Longer | Faster |
| Customization | Excellent | Moderate |
| Initial Component Cost | Lower | Higher |
| Best For | Custom Projects | Standardized Deployment |
Wall-Mounted 96 Core Fibre Termination Box
Wall-mounted configurations are ideal for buildings, ISP POPs, telecom rooms and enterprise installations.
| Feature | Benefit |
|---|---|
| Wall Installation | Saves floor space |
| Lockable Door | Protects fibre connections |
| Metal Housing | Strong mechanical protection |
| Adapter Panel | Organized patching |
| Splice Trays | Organized fusion splicing |
| Cable Knockouts | Flexible cable entry |
| Pigtail Storage | Cleaner installation |
A Kenyan-market 96-core wall-mounted box uses a powder-coated steel enclosure with a lockable door, 96 SC/UPC adapter positions and eight 12-core splice trays.
Indoor vs Outdoor 96 Core Fibre Termination Box
| Feature | Indoor Box | Outdoor Box |
|---|---|---|
| Weather Protection | Limited | High |
| Dust Protection | Good | Higher |
| Water Resistance | Limited | IP-rated |
| UV Resistance | Usually Not Critical | Important |
| Wall Mounting | Common | Common |
| Pole Mounting | Less Common | Available |
| Underground Use | No | Selected Models |
| Aerial Use | No | Selected Models |
IP67 96 Core Fibre Termination Box
Outdoor and underground 96-core termination boxes are available with IP67 protection.
| Feature | Benefit |
|---|---|
| Dust-Tight Construction | Protects fibre components |
| Water Protection | Suitable for demanding environments |
| Mechanical Sealing | Protects cable entries |
| UV Resistance | Better outdoor durability |
| Re-Entry | Allows maintenance |
| Underground Use | Available |
| Aerial Use | Available |
One Kenyan 96-core IP67 enclosure supports underground, wall-mounted and duct applications, has three input and three output ports, and accommodates cable diameters from 7 mm to 22 mm.
Aerial 96 Core Fibre Termination Box
Aerial boxes are designed for overhead fibre infrastructure.
| Feature | Typical Description |
|---|---|
| Capacity | 96 fibres |
| Mounting | Aerial |
| Weather Protection | IP67 available |
| Cable Entries | Multiple |
| Sealing | Heat-shrink / mechanical |
| Housing | Weather-resistant |
| Splice Management | Integrated |
| Application | FTTH / FTTx |
A 96-core aerial enclosure sold in Kenya provides IP67 protection, three input and three output entries, UV-resistant housing and heat-shrinkable cable entries.
96 Core vs 48 Core Fibre Termination Box
| Feature | 48 Core | 96 Core |
|---|---|---|
| Maximum Fibres | 48 | 96 |
| Capacity | Medium | High |
| Splice Management | Moderate | Larger |
| Enclosure Size | Smaller | Larger |
| ISP Distribution | Good | Excellent |
| Building Backbone | Excellent | Excellent |
| Large Network Node | Moderate | Excellent |
| Expansion Potential | Good | Higher |
The 96-core option provides twice the nominal fibre capacity of a 48-core box.
96 Core vs 24 Core Fibre Termination Box
| Feature | 24 Core | 96 Core |
|---|---|---|
| Fibre Capacity | 24 | 96 |
| Relative Capacity | 1× | 4× |
| Small Office | Excellent | Usually Oversized |
| Large Building | Good | Excellent |
| ISP Node | Small | Large |
| Campus Backbone | Limited | Excellent |
| Fibre Management Complexity | Lower | Higher |
96 Core Termination Box vs 96 Port ODF
| Feature | Termination Box | ODF |
|---|---|---|
| Wall Mounting | Common | Available |
| Rack Mounting | Less Common | Very Common |
| Outdoor Versions | Available | Less Common |
| Fusion Splicing | Yes | Yes |
| Adapter Patching | Yes | Excellent |
| High-Density Network Room | Good | Excellent |
| Outside Plant | Excellent on rated models | Less Suitable |

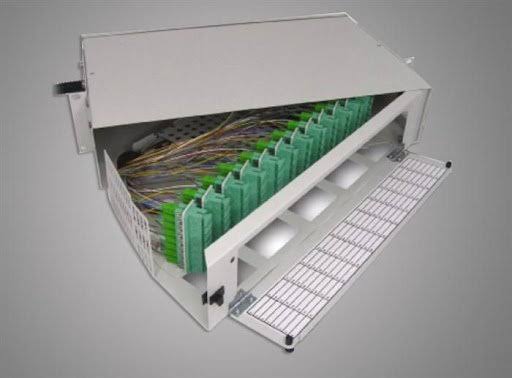

A 96-port rack-mounted ODF available in Kenya uses a 2U 19-inch format with 96 SC/UPC single-mode adapters and an integrated splice tray.
Key Benefits of 96 Core Fibre Optic Termination Box
High Fibre Capacity
The enclosure can organize and protect up to 96 optical fibres, making it suitable for large network distribution points.
Professional Fibre Management
Multiple splice trays, routing guides and cable-management areas keep high fibre counts organized.
Flexible Adapter Options
SC, LC, FC and ST interfaces are available depending on the enclosure design.
Indoor and Outdoor Options
Users can choose between indoor wall cabinets and IP-rated outdoor, aerial or underground enclosures.
Fusion-Splicing Support
The box provides protected storage for up to 96 fibre splices on appropriate models.
Network Expansion
Unused fibre positions can be reserved for future customers, buildings or network services.
Passive Operation
The termination enclosure itself requires no electrical power.
Watch 96 Core Fibre Optic Termination Box
Watch on YouTube: https://youtu.be/w0FI321_BdQ
The 96 Core Fibre Optic Termination Box provides the capacity required for large fibre networks where dozens of individual optical fibres need to be spliced, terminated and managed from a central location. Depending on the enclosure, 96 fibres can be organized using arrangements such as eight 12-core splice trays or four 24-core trays. This modular approach makes individual fibres easier to identify, maintain and troubleshoot while keeping delicate fusion splices protected.
The enclosure can also be configured according to the network's connector requirements. High-density wall-mounted models are available with 96 SC/UPC ports, while other designs accept SC, LC, FC or ST adapter formats. This flexibility allows a 96-core termination box to serve FTTH, FTTB, enterprise backbone, ISP aggregation and telecommunications applications rather than being restricted to a single network architecture.
For outside-plant projects, installers can select outdoor, aerial or underground 96-core boxes with higher environmental protection. IP67 models available in Kenya provide sealed cable entries and weather-resistant housings for demanding installations. Fiber Optics Kenya can supply the 96 Core Fibre Optic Termination Box together with matching adapters, pigtails, patch cords, PLC splitters, splice sleeves, fibre cables, fusion-splicing accessories and optical testing equipment.
Applications of 96 Core Fibre Optic Termination Box
1. FTTH Networks
Provides high-capacity fibre splicing and distribution for subscriber access networks.
2. FTTB Networks
Creates a centralized fibre distribution point within apartment and commercial buildings.
3. ISP Networks
Suitable for POPs, aggregation points and high-density fibre distribution nodes.
4. Telecommunications Networks
Provides organized termination for high-count backbone and access cables.
5. Enterprise Networks
Terminates building backbone fibres connecting floors, departments and network rooms.
6. Data Centres
Supports high-density fibre management where compatible enclosure configurations are selected.
7. Residential Estates
Provides central fibre management for multi-building developments.
8. Campus Networks
Terminates backbone fibres connecting multiple buildings.
9. CCTV Fibre Networks
Supports large-scale fibre-based surveillance infrastructure.
10. GPON and EPON Networks
Provides fibre management and splitter accommodation on compatible models.
Typical Fibre Network Architecture
| Network Stage | Component |
|---|---|
| Core / OLT Equipment | Active Network Equipment |
| Backbone Fibre | High-Core Fibre Cable |
| Distribution Point | 96 Core Termination Box |
| Fusion Splices | Up to 96 |
| Pigtails | SC / LC / Other |
| Adapters | Matching Interfaces |
| Distribution Fibres | Downstream Network |
| Final Distribution | FAT / ATB / ODF |
| Subscriber Equipment | ONT / ONU / Network Equipment |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Adapters | UPC fibre connections |
| SC/APC Adapters | APC fibre connections |
| LC Adapters | High-density connectivity |
| SC/UPC Pigtails | UPC fibre termination |
| SC/APC Pigtails | APC fibre termination |
| LC Pigtails | LC termination |
| Fusion Splice Sleeves | Protect fibre joints |
| Splice Trays | Organize fusion splices |
| PLC Splitters | Passive optical distribution |
| Fibre Patch Cords | Connect equipment |
| Fibre Optic Cable | Backbone/distribution connection |
| Fusion Splicer | Permanent fibre joining |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Fibre preparation |
| Optical Power Meter | Measures signal power |
| VFL | Continuity and fault checking |
| OTDR | Fibre link diagnostics |
Why Buy 96 Core Fibre Optic Termination Box from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 96 Core Fibre Boxes | High-capacity fibre management |
| Indoor & Outdoor Options | Flexible installation |
| SC/APC & SC/UPC Adapters | Multiple network configurations |
| LC Connectivity | High-density applications |
| Fibre Pigtails | Professional termination |
| PLC Splitters | PON distribution solutions |
| Fibre Optic Cables | Complete backbone solutions |
| Fusion-Splicing Accessories | Professional installation |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Correct product selection |
| Bulk Supply | Suitable for ISPs and contractors |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 96 Core Fibre Optic Termination Box?
It is a high-capacity fibre enclosure designed to organize, splice, terminate and protect up to 96 optical fibres.
How many fibres can a 96 Core termination box handle?
It can accommodate up to 96 optical fibres, subject to the exact model and configuration.
Can it have 96 adapter ports?
Yes. Some models provide 96 individual SC adapter ports.
Does every 96 Core box have 96 ports?
No. A box may have 96-splice capacity but fewer external adapter ports. One commercial enclosure, for example, supports 96 splices but only 24 SC-simplex/LC-duplex adapter slots.
Can it use SC/UPC adapters?
Yes. 96-port SC/UPC termination boxes are available.
Can it use SC/APC adapters?
Yes, provided the enclosure is configured with compatible SC/APC adapters and pigtails.
Can it use LC adapters?
Yes. LC configurations are available for compatible termination boxes.
Does it support fusion splicing?
Yes. Fusion splicing is one of the main functions of a 96-core termination box.
How many splice trays are required?
It depends on tray capacity. A common arrangement is eight 12-core trays or four 24-core trays.
Can PLC splitters be installed?
Yes, on compatible models. Some 96-fibre enclosures support 1x8, 1x16 and 1x32 PLC splitters.
Is it suitable for FTTH?
Yes. 96-core boxes are widely used in FTTH and FTTx distribution networks.
Is it suitable for FTTB?
Yes. Wall-mounted 96-fibre boxes are particularly suitable for high-density FTTB distribution.
Can it be used for GPON?
Yes. It can provide termination, splicing and splitter management within GPON networks.
Can it be used for EPON?
Yes. It can also support compatible EPON fibre-distribution architectures.
Can it be installed indoors?
Yes. Indoor wall-mounted 96-core boxes are available.
Can it be installed outdoors?
Yes, provided an appropriately IP-rated model is selected.
Are IP67 96 Core boxes available?
Yes. IP67 96-core termination enclosures are available in Kenya for outdoor, aerial and underground applications.
Can it be installed underground?
Yes. Certain IP67 96-core boxes are specifically designed for underground and duct installations.
Can it be installed aerially?
Yes. Dedicated aerial 96-core IP67 enclosures are available.
Can it be wall mounted?
Yes. Wall-mounted configurations are widely available.
Can it be pole mounted?
Yes, where the specific outdoor enclosure supports pole-mount hardware.
What materials are used?
Depending on the design, housings can be made from cold-rolled steel, stainless steel, ABS, PC+ABS, HDPE or similar engineering materials.
Can it terminate single-mode fibre?
Yes. Single-mode termination is a common application.
Can it terminate multimode fibre?
Yes, when populated with compatible multimode pigtails and adapters.
What is the difference between a 48 Core and 96 Core box?
The 96-core box provides approximately twice the nominal fibre capacity, making it more appropriate for larger distribution nodes.
What is the difference between a termination box and ODF?
A termination box is commonly wall-mounted or deployed in outside-plant environments, while an ODF is frequently rack-mounted and designed for centralized patching and fibre management.
Does the box require electrical power?
No. The enclosure, adapters, pigtails and passive optical components require no electrical power.
Do you supply SC/UPC adapters?
Yes. Fiber Optics Kenya can supply compatible SC/UPC adapters.
Do you supply SC/APC adapters?
Yes. Matching SC/APC adapters can be supplied.
Do you supply fibre pigtails?
Yes. SC, LC and other compatible single-mode and multimode pigtails can be supplied.
Do you supply PLC splitters?
Yes. Different PLC splitter ratios can be supplied for compatible PON deployments.
Do you supply fibre optic cables?
Yes. Indoor, outdoor, armoured, ADSS and FTTH fibre cables can be supplied depending on the project.
Do you supply fusion-splicing equipment?
Yes. Fusion splicers, cleavers, strippers, splice sleeves and related installation accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, VFLs, PON power meters and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination, fusion splicing and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic equipment and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 96 Core Fibre Optic Termination Box is an excellent solution for high-capacity fibre networks that require secure, organized and scalable management of up to 96 optical fibres. With options for wall-mounted, indoor, outdoor, aerial and underground deployment, it can support everything from ISP and FTTH infrastructure to enterprise, campus and telecommunications fibre networks.
Contact Fiber Optics Kenya for 96 Core Fibre Optic Termination Boxes, adapters, pigtails, splice trays, PLC splitters, fibre cables, installation accessories, bulk orders and nationwide delivery across Kenya.
