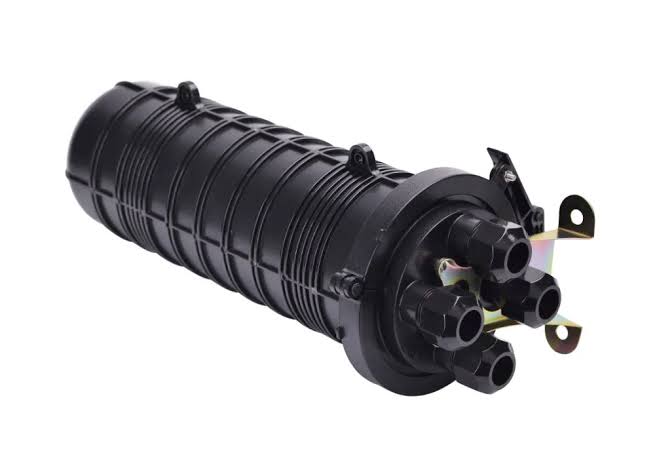

96 Core Fibre Closure in Kenya
KSh 8,000.00
1 available
Continue shopping96 Core Fibre Closure in Kenya
The 96 Core Fibre Closure is a high-capacity fibre optic splice enclosure designed to protect, organize and manage up to 96 optical fibre splices. It provides a secure jointing point for large fibre cables used in ISP, FTTH, telecom, campus, CCTV and backbone networks.
Unlike an ODF or FAT box that normally provides connectorized ports, a fibre closure is mainly designed for fibre-to-fibre fusion splicing. Individual fibres are routed into internal splice trays, fusion-spliced, protected with splice sleeves and stored inside the enclosure while the outer housing shields the joints from dust, moisture and mechanical damage.
At Fiber Optics Kenya, the 96 Core Fibre Closure is suitable for ISPs, telecommunications contractors, fibre installers, enterprise networks, residential estates, commercial developments and other high-capacity fibre infrastructure projects.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 96 Core Fibre Closure |
| Product Type | Fibre Optic Splice Closure |
| Also Known As | FOSC / Fibre Joint Closure |
| Maximum Fibre Capacity | Up to 96 Fibres |
| Typical Splice Capacity | 96 Fusion Splices |
| Typical Tray Configuration | 4 × 24 Core or 8 × 12 Core |
| Fusion Splicing | Supported |
| Mechanical Splicing | Model Dependent |
| Straight-Through Splicing | Yes |
| Branch Splicing | Yes |
| Mid-Span Access | Available on compatible models |
| Fibre Slack Storage | Integrated |
| Strength Member Fixing | Yes |
| Typical Material | ABS / PP / PC Engineering Plastic |
| Outdoor Protection | IP65 / IP67 / IP68 depending on model |
| Aerial Installation | Yes |
| Pole Mounting | Available |
| Wall Mounting | Available |
| Duct Installation | Yes |
| Underground Installation | Yes on rated models |
| Direct Burial | Model Dependent |
| Fibre Type | Single Mode / Multimode |
| Electrical Power Required | No |
| Applications | FTTH, FTTx, ISP, Telecom, CCTV, Backbone |
What Is a 96 Core Fibre Closure?
A 96 Core Fibre Closure is used at a fibre cable joint or branching point where large numbers of optical fibres need to be connected and protected.
| Internal Component | Function |
|---|---|
| Outer Housing | Protects optical joints |
| Cable Entry Ports | Receives fibre cables |
| Cable Clamps | Secures cable mechanically |
| Strength Member Anchors | Protects internal fibres from pulling forces |
| Splice Trays | Organizes fusion splices |
| Splice Sleeves | Protects individual joints |
| Fibre Routing Guides | Maintains organized fibre paths |
| Slack Storage | Stores spare fibre |
| Sealing System | Protects against dust and moisture |
| Mounting Hardware | Supports installation |
What Does 96 Core Mean?
The term 96 Core means the enclosure can manage up to 96 individual optical fibres or splice positions, depending on the design.
| Term | Meaning |
|---|---|
| 96 Core | Up to 96 optical fibres |
| FOSC | Fibre Optic Splice Closure |
| Fusion Splice | Permanent fibre-to-fibre connection |
| Splice Tray | Organizes optical joints |
| FTTH | Fibre to the Home |
| FTTx | Fibre to different endpoints |
| Backbone Fibre | Main high-capacity fibre route |
Typical 96 Core Splice Tray Configuration
A 96-core closure commonly uses multiple trays to divide the fibres into manageable groups.
| Tray Arrangement | Total Capacity |
|---|---|
| 4 × 24 Core Trays | 96 Fibres |
| 8 × 12 Core Trays | 96 Fibres |
| 2 × 48 Core Trays | 96 Fibres |
Using multiple trays makes fibre identification, maintenance and future re-entry much easier.
Typical 96 Core Fibre Organization
| Fibre Range | Typical Group |
|---|---|
| 1–12 | Group 1 |
| 13–24 | Group 2 |
| 25–36 | Group 3 |
| 37–48 | Group 4 |
| 49–60 | Group 5 |
| 61–72 | Group 6 |
| 73–84 | Group 7 |
| 85–96 | Group 8 |
Typical Fibre Colour Sequence
| Fibre | Typical Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
For a 96-core fibre cable, this sequence usually repeats across separate tubes or fibre bundles. Always follow the cable manufacturer’s actual colour coding.
How a 96 Core Fibre Closure Works
The incoming and outgoing fibre cables are routed through sealed cable-entry ports. The cables are secured mechanically before the individual fibres are prepared for splicing.
| Stage | Function |
|---|---|
| Incoming Cable | Brings optical fibres |
| Cable Entry Port | Provides protected access |
| Cable Fixing | Prevents cable movement |
| Strength Member Anchoring | Protects internal fibres |
| Buffer Tube Routing | Directs fibre groups |
| Fibre Preparation | Prepares individual fibres |
| Fusion Splicing | Joins corresponding fibres |
| Splice Sleeve | Protects joint |
| Splice Tray | Stores completed splice |
| Slack Storage | Stores spare fibre |
| Outgoing Cable | Continues network route |
Straight-Through Fibre Splicing
A 96 Core Fibre Closure can be used to join two sections of the same high-count fibre route.
| Incoming Cable | Outgoing Cable |
|---|---|
| Fibres 1–24 | Fibres 1–24 |
| Fibres 25–48 | Fibres 25–48 |
| Fibres 49–72 | Fibres 49–72 |
| Fibres 73–96 | Fibres 73–96 |
Each fibre is fusion-spliced individually and protected with a splice sleeve.
Fibre Branching
The enclosure can also function as a major branch point.
| Fibre Allocation | Example Destination |
|---|---|
| Fibres 1–24 | Zone A |
| Fibres 25–48 | Zone B |
| Fibres 49–72 | Zone C |
| Fibres 73–84 | Zone D |
| Fibres 85–96 | Spare Capacity |
This makes the 96-core closure particularly useful in large ISP and FTTH distribution networks.
Mid-Span Access
Some 96 Core Fibre Closures also support mid-span access, where selected fibres are accessed without completely cutting the main backbone cable.
| Mid-Span Feature | Benefit |
|---|---|
| Continuous Backbone Cable | Main route remains intact |
| Selected Fibre Access | Only required fibres are branched |
| Reduced Splice Count | Fewer unnecessary joints |
| Uncut Fibre Storage | Preserves unused fibres |
| Future Expansion | Additional fibres can be accessed later |
Horizontal 96 Core Fibre Closure
Horizontal closures have an inline design.
| Feature | Benefit |
|---|---|
| Inline Shape | Excellent for cable joints |
| Multiple Cable Ports | Supports branch cables |
| Splice Tray Access | Easy maintenance |
| Outdoor Housing | Protects fibre joints |
| Aerial Use | Suitable on compatible models |
| Underground Use | Suitable on rated models |

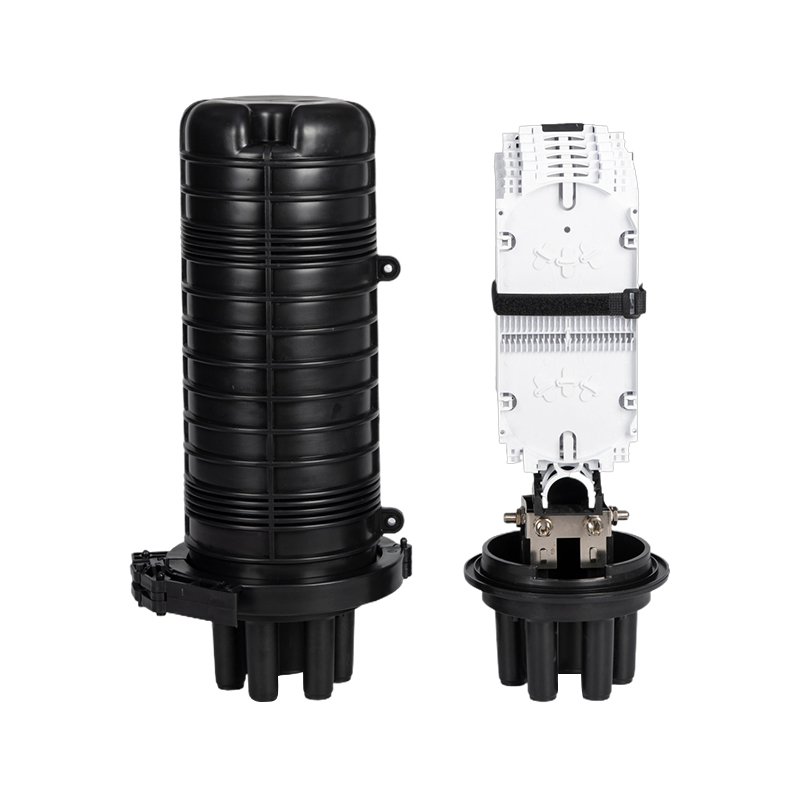

Dome 96 Core Fibre Closure
Dome closures provide a vertical fibre-management design.
| Feature | Benefit |
|---|---|
| Vertical Housing | Compact outside-plant installation |
| Multiple Cable Ports | Supports several routes |
| High Fibre Capacity | Suitable for 96 fibres |
| Pole Mounting | Common |
| Underground Use | Available |
| Splice Tray Expansion | Easy on modular models |
Horizontal vs Dome Fibre Closure
| Feature | Horizontal Closure | Dome Closure |
|---|---|---|
| Shape | Inline / Elongated | Vertical / Dome |
| Straight Cable Joint | Excellent | Good |
| Branching | Excellent | Excellent |
| Aerial Installation | Yes | Yes |
| Underground Use | Yes on rated models | Yes on rated models |
| Splice Tray Access | Excellent | Excellent |
| Backbone Use | Excellent | Excellent |
IP68 96 Core Fibre Closure
Outdoor 96-core closures are available with high levels of environmental protection.
| IP68 Feature | Benefit |
|---|---|
| Dust Protection | Protects internal fibres |
| Water Protection | Suitable for demanding outdoor environments |
| Mechanical Sealing | Protects cable entries |
| Underground Use | Suitable on rated models |
| Aerial Use | Excellent |
| Outdoor Reliability | High |
The exact IP rating should always be confirmed for the specific unit supplied.
Mechanical vs Heat-Shrink Sealing
| Feature | Mechanical Seal | Heat-Shrink Seal |
|---|---|---|
| Re-Entry | Easier | More Involved |
| Installation | Mechanical | Heat Required |
| Maintenance | Easier | Less Convenient |
| Outdoor Protection | Excellent on rated models | Excellent on rated models |
| Reusable | Often | Limited |
96 Core vs 48 Core Fibre Closure
| Feature | 48 Core | 96 Core |
|---|---|---|
| Fibre Capacity | 48 | 96 |
| Relative Capacity | 1× | 2× |
| Medium ISP Route | Excellent | Excellent |
| Large Backbone Network | Good | Excellent |
| Future Expansion | Good | Higher |
| Physical Size | Smaller | Larger |
| Splice Management | Moderate | Higher |
96 Core vs 24 Core Fibre Closure
| Feature | 24 Core | 96 Core |
|---|---|---|
| Fibre Capacity | 24 | 96 |
| Relative Capacity | 1× | 4× |
| Small FTTH Branch | Excellent | Oversized |
| Large ISP Network | Limited | Excellent |
| Backbone Application | Moderate | Excellent |
| Expansion Capacity | Moderate | High |
Fibre Closure vs ODF
| Feature | Fibre Closure | ODF |
|---|---|---|
| Primary Function | Protect fibre joints | Terminate and patch fibres |
| Typical Location | Outside Plant | Network Room |
| Fusion Splicing | Yes | Yes |
| Adapters | Usually No | Yes |
| Patch Cords | Usually No | Yes |
| Weather Protection | High | Limited |
| Rack Mounting | No | Yes |
Fibre Closure vs FAT Box
| Feature | Fibre Closure | FAT Box |
|---|---|---|
| Main Function | Fibre joint protection | Subscriber distribution |
| PLC Splitters | Usually No | Common |
| Adapter Ports | Usually No | Common |
| Backbone Use | Excellent | Limited |
| Subscriber Drops | Indirect | Direct |
| Fusion Splicing | Excellent | Supported |
Key Benefits of 96 Core Fibre Closure
High Fibre Capacity
The enclosure can manage up to 96 optical fibre splices.
Organized Splice Management
Multiple trays help divide large fibre counts into manageable groups.
Backbone Network Support
The closure is ideal for high-capacity ISP and telecommunications fibre routes.
Outdoor Protection
Weather-resistant models protect fibre joints against dust, moisture and environmental exposure.
Fibre Branching
Multiple cable ports allow feeder and branch cables to be joined in one enclosure.
Mid-Span Capability
Compatible models allow selected fibres to be accessed while other fibres remain uninterrupted.
Future Expansion
Spare fibre positions can be reserved for additional network connections.
Passive Operation
No electricity or software configuration is required.
Watch 96 Core Fibre Closure
https://youtu.be/3da7YOnOcHA
The 96 Core Fibre Closure provides the capacity needed for large fibre networks where dozens of optical fibres must be spliced, protected and organized at one jointing location. Rather than installing several smaller closures, a single 96-core enclosure can centralize multiple fibre groups while maintaining separate splice trays for easier maintenance and troubleshooting.
Its high fibre capacity makes it especially suitable for ISP backbone routes, FTTH distribution networks, telecom infrastructure, residential estates, campuses and large commercial developments. The closure can be used for straight-through cable joints, branch connections and, on compatible models, mid-span access where selected fibres are dropped without interrupting the entire backbone.
Correct installation is essential in high-count fibre closures. Technicians should secure cable strength members properly, keep fibre groups clearly labelled, maintain safe bend radii, use splice protection sleeves and test the completed links before sealing the enclosure. Fiber Optics Kenya can supply the 96 Core Fibre Closure together with 96-core fibre cable, ADSS and armoured fibre cables, fusion-splicing equipment, fibre preparation tools and optical testing equipment.
Applications of 96 Core Fibre Closure
1. ISP Backbone Networks
Provides high-capacity splice protection along ISP fibre routes.
2. FTTH Networks
Supports major feeder and distribution fibre joints.
3. FTTx Networks
Provides protected outside-plant splicing across fibre access networks.
4. Telecommunications Networks
Suitable for high-count fibre cable joints and branches.
5. Metro Fibre Networks
Provides splice protection along city-wide fibre routes.
6. Residential Estates
Supports backbone fibre distribution across multiple zones.
7. Campus Networks
Joins fibre cables connecting different buildings.
8. Commercial Developments
Suitable for malls, office parks and multi-building complexes.
9. CCTV Fibre Networks
Protects large optical backhaul networks.
10. Aerial Fibre Networks
Compatible models can be installed on overhead routes.
11. Underground Fibre Networks
Rated models can be installed in ducts, handholes and chambers.
12. Fibre Network Expansion
Provides additional spare capacity for future fibres and branches.
Typical Network Architecture
| Network Stage | Component |
|---|---|
| Core / OLT Equipment | Active Network |
| ODF | Fibre Termination |
| Backbone Fibre | 96 Core Fibre Cable |
| Joint Point | 96 Core Fibre Closure |
| Distribution Fibre | 24 / 48 Core Cable |
| FAT / FDB | Subscriber Distribution |
| FTTH Drop Cable | Customer Connection |
| ATB | Final Termination |
| ONT / ONU | Customer Equipment |
Typical Installation Process
| Step | Procedure |
|---|---|
| 1 | Select suitable closure location |
| 2 | Open fibre closure |
| 3 | Route fibre cables through entry ports |
| 4 | Strip outer cable jackets |
| 5 | Secure cable strength members |
| 6 | Route buffer tubes |
| 7 | Separate fibres by group |
| 8 | Identify matching fibres |
| 9 | Strip fibre coating |
| 10 | Clean fibres |
| 11 | Precision cleave |
| 12 | Fusion-splice fibres |
| 13 | Protect splices with sleeves |
| 14 | Store splices in trays |
| 15 | Arrange spare fibre |
| 16 | Label fibres and trays |
| 17 | Seal unused cable ports |
| 18 | Close enclosure securely |
| 19 | Test fibre links |
| 20 | Document splice assignments |
Installation Considerations
| Factor | Recommendation |
|---|---|
| Fibre Capacity | Confirm 96 fibres are sufficient |
| Cable Diameter | Match closure ports |
| Cable Quantity | Confirm feeder and branch requirements |
| Splice Tray Capacity | Verify before installation |
| IP Rating | Match environmental conditions |
| Cable Strength Members | Anchor correctly |
| Fibre Bend Radius | Maintain safe routing |
| Splice Sleeves | Protect every splice |
| Fibre Slack | Leave maintenance loops |
| Fibre Identification | Label all groups clearly |
| Unused Ports | Seal properly |
| Optical Testing | Test before final sealing |
| Documentation | Record all fibre assignments |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| 96 Core Fibre Cable | Backbone connectivity |
| Fusion Splice Sleeves | Protect fibre joints |
| Splice Trays | Organize splices |
| ADSS Fibre Cable | Aerial deployment |
| Armoured Fibre Cable | Rugged outside-plant installation |
| Cable Slitter | Opens fibre cable jacket |
| Buffer Tube Slitter | Accesses fibre tubes |
| Fibre Stripper | Removes fibre coating |
| Fibre Cleaver | Precision fibre preparation |
| Fusion Splicer | Creates optical joints |
| Fibre Labels | Identifies fibres |
| Optical Power Meter | Measures signal power |
| Visual Fault Locator | Checks continuity |
| OTDR | Tests fibre length, loss and splice events |
Why Buy 96 Core Fibre Closure from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 96 Core Fibre Closures | High-capacity splice protection |
| 96 Core Fibre Cables | Complete backbone solution |
| ADSS Fibre Cables | Aerial fibre deployment |
| Armoured Fibre Cables | Rugged outdoor installations |
| Fusion Splice Sleeves | Professional joint protection |
| Fusion Splicing Equipment | Reliable fibre installation |
| Fibre Preparation Tools | Professional cable preparation |
| Optical Testing Equipment | Verify completed fibre links |
| Technical Guidance | Better closure selection |
| Bulk Supply | Suitable for ISPs and contractors |
| Professional Installation | Fibre splicing and testing |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 96 Core Fibre Closure?
It is a high-capacity fibre splice enclosure designed to organize and protect up to 96 optical fibre splices.
What does FOSC mean?
FOSC means Fibre Optic Splice Closure.
How many fibres can it support?
It can support up to 96 optical fibres, depending on the exact closure design.
How many splice trays does it use?
A common arrangement is four 24-core trays or eight 12-core trays.
Does it support fusion splicing?
Yes. Fusion splicing is its main application.
Can it be used for straight-through fibre joints?
Yes. Two sections of a 96-core cable can be joined fibre by fibre.
Can it be used for fibre branching?
Yes. Multiple fibres can be routed toward different branch cables.
Can it support mid-span fibre access?
Yes, on compatible mid-span closure designs.
Is it suitable for FTTH?
Yes. It is suitable for large FTTH feeder and distribution networks.
Can ISPs use it?
Yes. It is particularly suitable for ISP backbone and aggregation routes.
Can it be used for telecommunications networks?
Yes. High-count fibre closures are widely used in telecom infrastructure.
Can it be used with single-mode fibre?
Yes.
Can it be used with multimode fibre?
Yes, where the cable and splicing requirements are compatible.
Is it available as a horizontal closure?
Yes. Horizontal or inline 96-core closures are available.
Is it available as a dome closure?
Yes. Dome-style 96-core closures are also available.
Is it waterproof?
Outdoor models can provide high environmental protection, including IP-rated sealing.
Are IP68 models available?
Yes. IP68-rated 96-core fibre closures are available.
Can it be installed aerially?
Yes, on models designed for aerial installation.
Can it be pole mounted?
Yes. Many outdoor closures support pole mounting.
Can it be installed underground?
Yes, provided the model is rated for underground use.
Can it be installed in ducts?
Yes. Horizontal and dome closures can be used in duct networks where specified.
Can it be direct buried?
Some closure models are specifically rated for direct burial.
Does it require fibre adapters?
Normally no. A standard splice closure mainly protects direct fibre-to-fibre joints.
Does it require pigtails?
Not for straightforward fibre-to-fibre splicing.
Can it be reopened?
Many mechanically sealed closures can be reopened for maintenance and additional splicing.
Can it be used with ADSS fibre cable?
Yes, provided the cable diameter and strength-member arrangement are compatible.
Can it be used with armoured fibre cable?
Yes, with the correct cable preparation and anchoring.
What is the difference between a 48 Core and 96 Core Fibre Closure?
The 96-core version provides twice the nominal splice capacity.
What is the difference between a 24 Core and 96 Core Fibre Closure?
The 96-core version provides four times the nominal fibre capacity.
What is the difference between a Fibre Closure and ODF?
A fibre closure is mainly used outdoors for protecting fibre joints, while an ODF is commonly used indoors for fibre termination and patching.
What is the difference between a Fibre Closure and FAT Box?
A fibre closure mainly protects fibre joints, while a FAT box distributes fibre connections toward subscribers and may include PLC splitters.
Does the closure require electricity?
No. It is completely passive.
Why are splice sleeves important?
They provide mechanical protection around the fragile fusion-spliced section.
Why should fibre slack be stored inside?
Slack allows future repairs, maintenance and re-splicing without replacing the cable.
Do you supply 96 Core fibre optic cable?
Yes. Fiber Optics Kenya can supply 96 Core backbone and distribution fibre cables.
Do you supply ADSS fibre cable?
Yes. ADSS fibre cables are available for aerial installations.
Do you supply armoured fibre cable?
Yes. Armoured fibre cables are available for rugged outside-plant applications.
Do you supply fusion splice sleeves?
Yes. Compatible splice protection sleeves can be supplied.
Do you supply fusion splicers?
Yes. Professional fusion-splicing machines and accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, VFLs, PON meters and OTDRs can be supplied.
Do you provide professional fibre installation?
Yes. Professional fibre closure installation, fusion splicing, network termination and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 96 Core Fibre Closure in Kenya provides a secure and scalable solution for protecting high-count fibre joints across FTTH, ISP, telecom, CCTV, campus and backbone networks. Its 96-fibre capacity makes it especially useful for major distribution points where multiple fibre routes need to be joined or branched.
Contact Fiber Optics Kenya for 96 Core Fibre Closures, 96 Core fibre cables, ADSS and armoured fibre cables, fusion-splicing accessories, optical testing equipment, professional installation, bulk orders and nationwide delivery across Kenya.
