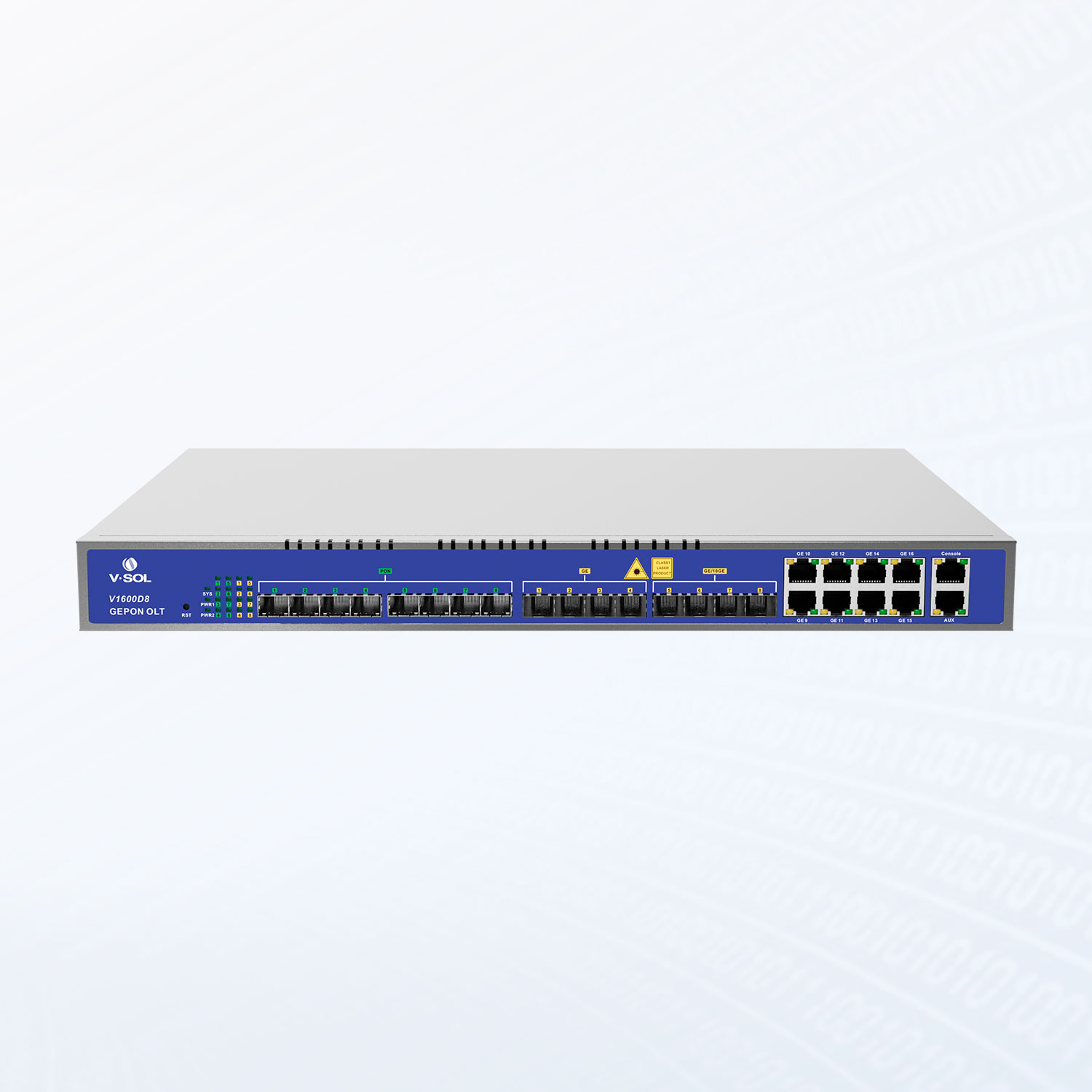

8-Port EPON OLT in Kenya
KSh 83,000.00
1 available
Continue shopping8-Port EPON OLT in Kenya
An 8-Port EPON OLT is a high-capacity Optical Line Terminal designed for medium and growing FTTH, FTTB, FTTO, ISP, estate, campus and enterprise fibre networks. With eight independent EPON interfaces, one OLT can serve several fibre distribution zones while centrally managing hundreds of subscriber ONUs.
Professional 8-port EPON OLTs commonly support the IEEE 802.3ah EPON standard, optical splitting of up to 1:64 per PON port, transmission distances of up to approximately 20 km and advanced functions such as Dynamic Bandwidth Allocation, VLAN management, QoS, multicast, ONU auto-discovery and remote network management. HiOSO's current HA7308VX, for example, supports eight EPON ports, four 10G SFP+ uplinks and four Gigabit RJ45 uplinks, with up to 512 ONUs at a 1:64 split.
At Fiber Optics Kenya, an 8-Port EPON OLT can be supplied together with EPON/XPON ONUs, PON SFP modules, PLC splitters, ODFs, FAT boxes, fibre closures, ADSS cables, patch cords, pigtails, fusion-splicing equipment and fibre testing tools for complete FTTH deployment.
Key Specifications of an 8-Port EPON OLT
| Specification | Typical Details |
|---|---|
| Product Name | 8-Port EPON OLT |
| Network Technology | EPON |
| EPON Standard | IEEE 802.3ah |
| PON Ports | 8 |
| PON Interface | SFP / model dependent |
| Typical PON Speed | 1.25 Gbps symmetrical |
| Maximum Split Ratio | Up to 1:64 per PON |
| Theoretical ONU Positions | Up to 512 |
| Typical Transmission Distance | Up to 20 km |
| Downstream Wavelength | 1490 nm |
| Upstream Wavelength | 1310 nm |
| Fibre Type | Single Mode |
| 10G Uplinks | Available on professional models |
| Gigabit Uplinks | Available |
| DBA | Yes |
| VLAN Support | Yes |
| QoS | Yes |
| Multicast | Yes |
| ONU Auto Discovery | Yes on supported models |
| Remote ONU Management | Yes |
| WEB Management | Model dependent |
| SNMP | Common |
| CLI | Common |
| Rack Format | Commonly 1U 19-inch |
| Applications | FTTH, ISP, FTTB, CCTV, Campus, Estates |
As an example, VSOL's V1600D8 provides eight PON ports, eight GE RJ45 uplinks, four 1GE SFP uplinks and four 10GE SFP+ uplinks in a 1U chassis.
What Is an 8-Port EPON OLT?
An OLT, or Optical Line Terminal, is the central active device located at the ISP or network-operator side of an EPON network.
It communicates with multiple ONUs through a passive Optical Distribution Network.
| Network Component | Function |
|---|---|
| OLT | Controls EPON subscribers |
| PON Module | Provides optical transmission |
| ODF | Terminates feeder fibres |
| PLC Splitter | Splits one optical signal |
| Feeder Fibre | Carries the PON signal |
| Fibre Closure | Protects fusion splices |
| FAT Box | Distributes subscriber fibres |
| Drop Cable | Runs to the customer |
| ONU / ONT | Terminates service |
| Router | Provides Ethernet/Wi-Fi |
Eight Independent EPON PON Ports
An 8-port OLT allows the fibre network to be divided into eight independent optical distribution trees.
| PON Port | Example Network Allocation |
|---|---|
| PON 1 | Estate Zone A |
| PON 2 | Estate Zone B |
| PON 3 | Apartment Blocks |
| PON 4 | Business Customers |
| PON 5 | Residential Area C |
| PON 6 | CCTV / Enterprise |
| PON 7 | Expansion Area |
| PON 8 | Reserved Capacity |
This separation makes network planning, troubleshooting and future expansion easier.
Up to 512 ONU Endpoint Positions
With a maximum 1:64 split:
8 PON ports × 64 endpoints = 512 theoretical ONU positions
HiOSO explicitly specifies up to 512 ONUs across eight PON ports at 1:64 splitting on the HA7308VX.
| Split Ratio | ONUs per PON | 8-Port Total |
|---|---|---|
| 1:8 | 8 | 64 |
| 1:16 | 16 | 128 |
| 1:32 | 32 | 256 |
| 1:64 | 64 | 512 |
These are endpoint counts, not guaranteed simultaneous bandwidth levels.
1:32 vs 1:64 Splitting
| Feature | 1:32 | 1:64 |
|---|---|---|
| Subscribers per PON | 32 | 64 |
| Total Across 8 PONs | 256 | 512 |
| Splitter Loss | Lower | Higher |
| Optical Margin | Better | Lower |
| Shared Bandwidth per User | Potentially Better | More Shared |
| Expansion Capacity | Moderate | Higher |
For many ISP networks, 1:16 or 1:32 provides a useful balance between subscriber density and optical margin.
EPON Port Speed
Classic EPON uses approximately 1.25 Gbps symmetrical line rate.
| Direction | Nominal Speed |
|---|---|
| Downstream | 1.25 Gbps |
| Upstream | 1.25 Gbps |
The available capacity on each PON is shared among the connected ONUs.
Up to 20 km Transmission Distance
Professional EPON OLTs commonly support fibre transmission distances of around 20 km, provided the optical budget remains within limits. VSOL's current 10G EPON V3600D8 documentation also specifies a 20 km transmission distance for the platform.
Actual reach depends on:
Fibre attenuation
PLC splitter loss
Adapter losses
Patch cords
Fusion splice losses
PON module power class
ONU receiver sensitivity
Engineering safety margin
A proper optical power-budget calculation should always be performed.
EPON Operating Wavelengths
Typical classic EPON wavelengths are:
| Direction | Wavelength |
|---|---|
| OLT to ONU | 1490 nm |
| ONU to OLT | 1310 nm |
On 10G EPON platforms, additional 10G wavelengths may also be used. VSOL's V3600D8 specifies 1577 nm for 10G downstream and 1270 nm for 10G upstream alongside the classic EPON wavelengths.
10G Uplink Support
A major advantage of many professional 8-port OLTs is 10G SFP+ uplink capability.
For example:
HiOSO HA7308VX provides 4 × 10G SFP+ uplinks.
VSOL V1600D8 provides 4 × 10GE SFP+, 4 × 1GE SFP and 8 × GE RJ45 uplinks.
10G uplinks allow the OLT to connect to:
MikroTik core routers
Aggregation switches
ISP backbone routers
Data-centre switches
Redundant uplink paths
Why 10G Uplinks Matter
Eight PON interfaces can carry traffic from hundreds of subscribers. If the OLT connects upstream using only a single 1 Gbps link, congestion may eventually occur.
10G uplinks provide more capacity for:
Broadband Internet
Business packages
CCTV traffic
IPTV
Speed-test bursts
Cloud applications
VoIP
Future subscriber growth
PON SFP Modules
Depending on the OLT, supported EPON optics can include:
| Module Type | Use |
|---|---|
| PX20 | Standard EPON |
| PX20+ | Higher optical budget |
| PX20++ | Extended optical budget |
| PX20+++ | Higher-loss networks |
VSOL's V1600D8 supports PX20, PX20+, PX20++ and PX20+++ modules.
Always confirm whether the OLT price includes PON optics or whether they must be purchased separately.
Dynamic Bandwidth Allocation
Dynamic Bandwidth Allocation (DBA) helps distribute upstream EPON capacity dynamically between connected ONUs.
| DBA Benefit | Purpose |
|---|---|
| Efficient Bandwidth Sharing | Uses PON capacity effectively |
| Dynamic Allocation | Responds to traffic demand |
| Different Subscriber Profiles | Supports varied packages |
| QoS Integration | Helps prioritize services |
VSOL includes DBA among the supported EPON features on its 8-port platforms.
VLAN Support
Professional 8-port OLTs commonly support extensive VLAN functionality.
VSOL's V1600D8 supports 4096 VLANs, VLAN tagging/untagging, transparent VLAN transmission and QinQ.
| VLAN Type | Example Application |
|---|---|
| Internet VLAN | Residential broadband |
| Management VLAN | OLT and ONU management |
| Business VLAN | Corporate clients |
| CCTV VLAN | Surveillance traffic |
| IPTV VLAN | Multicast video |
| Voice VLAN | VoIP |
Layer 3 Routing
Higher-end 8-port OLTs can include Layer 3 routing capabilities.
VSOL's V1600D8 supports RIP and OSPF dynamic routing, allowing the OLT to perform more advanced network functions than a simple Layer 2 access device.
| Routing Feature | Typical Support on L3 Models |
|---|---|
| Static Route | Yes |
| RIP | Yes |
| OSPF | Yes |
| ARP Proxy | Available |
| IPv6 Routing | Available on advanced models |
QoS Support
Quality of Service helps prioritize different classes of subscriber traffic.
Typical QoS policies can distinguish:
Residential traffic
Business traffic
Voice
IPTV
CCTV
Network management
VSOL's advanced EPON platforms support QoS based on parameters such as port, VLAN ID, TOS and MAC address.
Multicast Support
Professional EPON OLTs support multicast for services such as IPTV.
VSOL's V3600D8 supports IGMP Snooping and up to 8K IP multicast groups.
This reduces duplicate traffic when many subscribers receive the same multicast content.
DHCP Features
Higher-end OLTs can provide:
| DHCP Feature | Function |
|---|---|
| DHCP Server | Assigns IP addresses |
| DHCP Relay | Relays DHCP requests |
| DHCP Snooping | Helps protect subscriber networks |
These functions are included on VSOL's advanced 8-port platforms.
ONU Auto Discovery
Professional 8-port EPON OLTs commonly support:
ONU auto-discovery
Link detection
ONU registration
Remote configuration
Remote firmware upgrades
Alarm monitoring
VSOL explicitly lists ONU auto-discovery, link detection and remote software upgrading on its 8-port EPON platforms.
Management Options
| Management Method | Availability |
|---|---|
| WEB | Common |
| SNMP | Common |
| Telnet | Common |
| CLI | Common |
| SSH v2 | Available |
| EMS | Available on advanced models |
| Console | Yes |
VSOL's V3600D8 supports SNMP, Telnet, CLI, WEB, SSHv2 and EMS.
1U Rack-Mount Design
Most professional 8-port EPON OLTs are built for standard ISP racks.
VSOL's V1600D8 uses a 1U 19-inch chassis, as does HiOSO's HA7308VX.
This makes installation easy in:
ISP POPs
Server rooms
Data centres
Telecom racks
Estate network rooms
Commercial buildings
8-Port EPON OLT vs 4-Port EPON OLT
| Feature | 4-Port | 8-Port |
|---|---|---|
| PON Ports | 4 | 8 |
| Endpoint Positions at 1:64 | 256 | 512 |
| Distribution Zones | 4 | 8 |
| Initial Cost | Lower | Higher |
| Small ISP | Excellent | Good |
| Medium ISP | Good | Excellent |
| Expansion Capacity | Good | Higher |
8-Port EPON OLT vs 16-Port EPON OLT
| Feature | 8-Port | 16-Port |
|---|---|---|
| PON Ports | 8 | 16 |
| 1:64 Endpoint Positions | 512 | 1,024 |
| Medium ISP | Excellent | Excellent |
| Large ISP | Good | Better |
| Rack/Power Requirements | Lower | Higher |
| Initial Investment | Lower | Higher |
8-Port EPON OLT vs GPON OLT
| Feature | EPON | GPON |
|---|---|---|
| Standard | IEEE 802.3ah | ITU-T G.984 |
| Classic Downstream | Approx. 1.25 Gbps | Approx. 2.488 Gbps |
| Classic Upstream | Approx. 1.25 Gbps | Approx. 1.244 Gbps |
| Passive Splitters | Yes | Yes |
| FTTH Use | Excellent | Excellent |
| Entry Cost | Often Lower | Often Higher |
| Subscriber ONUs | EPON compatible | GPON compatible |
An EPON OLT should use compatible EPON ONUs or properly verified XPON units.
Watch 8-Port EPON OLT
Watch on YouTube: https://youtu.be/0UdRnhIqOHo
An 8-Port EPON OLT gives a growing ISP significantly more capacity and network segmentation than a 2- or 4-port platform. With eight PON interfaces and a maximum 1:64 split on many models, the OLT can provide up to 512 theoretical ONU positions while allowing subscribers to be separated into different geographical or service zones. HiOSO's HA7308VX specifically supports this 512-ONU arrangement.
The uplink architecture is equally important. Professional models such as the VSOL V1600D8 and HiOSO HA7308VX provide multiple 10G interfaces, helping prevent the upstream side of the OLT from becoming a bottleneck as subscriber traffic increases. VSOL's V1600D8 combines four 10GE SFP+, four 1GE SFP and eight GE RJ45 interfaces.
For a complete installation, Fiber Optics Kenya can supply the 8-Port EPON OLT together with compatible PON SFP modules, EPON/XPON ONUs, PLC splitters, ODFs, FAT boxes, fibre closures, fibre cables, patch cords, pigtails, fusion-splicing equipment and optical testing tools.
Applications of 8-Port EPON OLT
1. Medium and Growing ISPs
Supports hundreds of fibre subscribers from a single OLT.
2. FTTH Networks
Provides eight independent optical access branches for residential broadband.
3. Residential Estates
Different estate zones can be allocated separate PON interfaces.
4. Apartment Developments
Suitable for several blocks or apartment clusters.
5. FTTB Networks
Provides fibre connectivity to commercial and residential buildings.
6. Enterprise Networks
Can support large passive optical LAN deployments.
7. Campus Networks
Eight PON ports can serve different buildings or departments.
8. CCTV Networks
Supports IP surveillance traffic over fibre.
9. Hotels and Resorts
Provides fibre infrastructure for Internet, IPTV and other IP services.
10. Rural Broadband
Can serve several villages or distribution zones from one central POP.
Example 8-Port FTTH Architecture
| Network Stage | Equipment |
|---|---|
| Internet Feed | Upstream Provider |
| Core Router | MikroTik / Enterprise Router |
| OLT | 8-Port EPON OLT |
| Uplink | 1G / 10G depending on model |
| PON Modules | PX20 / PX20+ / PX20++ / PX20+++ |
| ODF | Fibre Termination |
| Feeder Fibre | Single-Mode Fibre |
| PLC Splitter | 1x8 / 1x16 / 1x32 / 1x64 |
| Fibre Closure | Splice Protection |
| FAT Box | Subscriber Distribution |
| FTTH Drop Cable | Customer Connection |
| ATB | Indoor Termination |
| ONU | EPON Subscriber Device |
| Router | Customer Wi-Fi |
Installation Considerations
| Factor | Recommendation |
|---|---|
| Subscriber Forecast | Plan present and future users |
| PON Allocation | Divide areas logically |
| Split Ratio | Calculate optical budget |
| PON Optics | Match optical power requirement |
| ONU Compatibility | Verify before bulk deployment |
| Uplink Capacity | Prefer 10G for growing networks |
| VLAN Architecture | Plan before commissioning |
| PPPoE Integration | Coordinate with core router |
| Fibre Distance | Stay within optical budget |
| Splitter Loss | Include in design |
| Splice Loss | Include all joints |
| Rack Space | Reserve 1U on common models |
| UPS Backup | Recommended |
| Cooling | Maintain adequate airflow |
| Monitoring | Configure SNMP and alarms |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| EPON PON SFP Modules | OLT optical interfaces |
| 10G SFP+ Modules | High-speed uplinks |
| EPON ONU | Subscriber termination |
| XPON ONU | Flexible endpoint where compatible |
| 1x8 PLC Splitter | 8-way optical distribution |
| 1x16 PLC Splitter | 16-way distribution |
| 1x32 PLC Splitter | 32-way distribution |
| 1x64 PLC Splitter | High-density distribution |
| ODF | Central fibre termination |
| FAT Box | Subscriber distribution |
| Fibre Closure | Splice protection |
| SC/UPC Patch Cord | Optical interconnection |
| Fibre Pigtails | Fibre termination |
| ADSS Fibre Cable | Aerial deployment |
| Armoured Fibre Cable | Rugged outside plant |
| FTTH Drop Cable | Subscriber connection |
| Fusion Splicer | Fibre joining |
| PON Power Meter | PON testing |
| Optical Power Meter | Signal measurement |
| OTDR | Fibre diagnostics |
Why Buy an 8-Port EPON OLT from Fiber Optics Kenya?
| Fiber Optics Kenya Solution | Customer Benefit |
|---|---|
| 8-Port EPON OLTs | Higher subscriber capacity |
| EPON PON Modules | Complete optical interfaces |
| 10G Uplink Modules | High-capacity backbone connections |
| EPON / XPON ONUs | Subscriber connectivity |
| PLC Splitters | Passive optical distribution |
| ODFs | Professional fibre termination |
| FAT Boxes | Subscriber distribution |
| Fibre Closures | Outdoor splice protection |
| ADSS Fibre Cable | Aerial network deployment |
| Armoured Fibre Cable | Rugged outdoor networks |
| FTTH Drop Cable | Last-mile connectivity |
| Fusion-Splicing Equipment | Professional installation |
| Testing Equipment | Network commissioning |
| OLT Configuration | Faster deployment |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions About 8-Port EPON OLTs
What is an 8-Port EPON OLT?
It is an Optical Line Terminal with eight EPON PON interfaces used to manage multiple ONUs over passive fibre networks.
How many PON ports does it have?
It has 8 EPON ports.
How many subscribers can it support?
A model supporting 1:64 splitting can provide up to 512 theoretical ONU endpoint positions. HiOSO's HA7308VX explicitly supports up to 512 ONUs.
What is the maximum split ratio?
Many professional 8-port EPON OLTs support 1:64 per PON. VSOL's V1600D8 does.
Can I use 1:32 splitters?
Yes. At 1:32, eight PON ports provide up to 256 endpoint positions.
Is 1:32 better than 1:64?
It can provide lower optical loss and less bandwidth sharing per PON, although it uses more PON capacity.
How far can an 8-Port EPON OLT transmit?
Many models are designed for distances up to approximately 20 km, depending on the optical budget.
What speed does EPON provide?
Classic EPON operates at approximately 1.25 Gbps symmetrical line rate per PON.
Does an 8-Port EPON OLT support 10G uplinks?
Many professional models do. The VSOL V1600D8 and HiOSO HA7308VX both provide 10G SFP+ uplinks.
Does it support VLANs?
Yes. Professional models support VLAN configuration; VSOL's V1600D8 supports up to 4096 VLANs and QinQ.
Does it support Layer 3 routing?
Advanced models do. The VSOL V1600D8 supports RIP and OSPF.
Does it support DBA?
Yes, on professional EPON platforms.
Does it support ONU auto-discovery?
Yes, on supported professional models.
Can ONUs be managed remotely?
Yes. Modern OLTs support centralized ONU configuration and management.
Does it support SNMP?
Many models do.
Does it support web management?
Many professional models provide WEB management.
Does it support CLI?
Yes, on most carrier/ISP-grade models.
Does it support SSH?
Advanced models can support SSHv2.
Is it rack mounted?
Most professional models use a 1U 19-inch rack format.
Is it suitable for FTTH?
Yes. FTTH is one of its primary applications.
Is it suitable for a growing ISP?
Yes. Eight PON interfaces provide substantially more expansion capacity than 2- or 4-port OLTs.
Can it work with MikroTik?
Yes. MikroTik can be used upstream for routing, PPPoE, authentication and bandwidth management.
Is it the same as GPON?
No. EPON and GPON are different PON standards.
Can GPON-only ONTs work with an EPON OLT?
Normally no. Use EPON ONUs or verified XPON subscriber devices operating in EPON mode.
Do you supply EPON ONUs?
Yes. Fiber Optics Kenya can supply compatible EPON and XPON ONUs.
Do you supply PON SFP modules?
Yes. Compatible EPON PON modules can be supplied.
Do you supply 10G SFP+ modules?
Yes. Compatible 10G uplink modules can be supplied.
Do you supply PLC splitters?
Yes. 1x2, 1x4, 1x8, 1x16, 1x32 and 1x64 splitters can be supplied.
Do you supply ODFs?
Yes. Rack-mounted and wall-mounted optical distribution frames are available.
Do you supply FAT boxes?
Yes. Empty and loaded FAT boxes can be supplied.
Do you supply fibre closures?
Yes. Different capacities of fibre splice closures are available.
Do you supply fibre optic cable?
Yes. Outdoor, ADSS, armoured and FTTH drop fibre cables can be supplied.
Do you supply fusion splicers?
Yes. Fusion splicers, cleavers, fibre strippers and related accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.
Can you configure an 8-Port EPON OLT?
Yes. Professional OLT configuration, ONU provisioning, VLAN setup, uplink configuration and EPON commissioning support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic equipment and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
An 8-Port EPON OLT in Kenya provides a scalable platform for medium and growing ISPs that need to serve hundreds of fibre subscribers from a single central location. With eight PON ports, up to 1:64 splitting, as many as 512 ONU positions, 10G uplinks on advanced models, VLANs, QoS, DBA, multicast and centralized subscriber management, it offers considerably more capacity than smaller 2- and 4-port OLT systems.
Contact Fiber Optics Kenya for 8-Port EPON OLTs, PON SFP modules, EPON/XPON ONUs, 10G SFP+ modules, PLC splitters, ODFs, FAT boxes, fibre closures, fibre optic cables, OLT configuration, installation support, testing equipment, bulk orders and nationwide delivery across Kenya.
