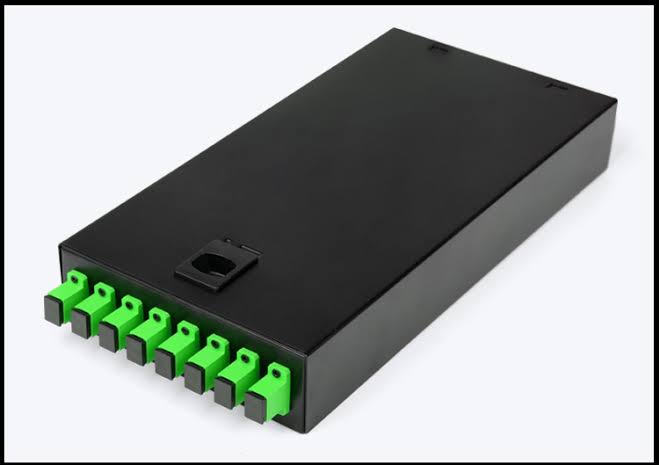

8 Core ODF with SC/APC Connectors in Kenya
KSh 6,500.00
1 available
Continue shopping8 Core ODF with SC/APC Connectors in Kenya
The 8 Core ODF with SC/APC Connectors is a compact optical distribution frame designed for the termination, fusion splicing, organization, protection and patching of up to 8 optical fibres. It provides a neat and structured connection point between incoming fibre optic cables and network equipment, making it suitable for smaller fibre installations that do not require 12, 24 or higher core-count ODFs.
This configuration uses SC/APC connectors and adapters, normally identified by their green colour. APC means Angled Physical Contact, a connector polish that helps reduce optical back reflection. This makes the 8 Core ODF especially suitable for FTTH, GPON and other single-mode fibre networks where low return reflection is important.
At Fiber Optics Kenya, the 8 Core ODF with SC/APC Connectors is suitable for ISPs, offices, CCTV installations, small server rooms, telecom cabinets, residential fibre projects and enterprise networks. Compatible SC/APC pigtails, patch cords, adapters, splice sleeves, fibre optic cables, fusion-splicing tools and optical testing equipment can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 8 Core ODF with SC/APC Connectors |
| Product Type | Optical Distribution Frame |
| Fibre Capacity | 8 Core |
| Typical Port Capacity | 8 |
| Adapter Type | SC Simplex |
| Connector Type | SC/APC |
| Typical Connector Colour | Green |
| Connector Polish | Angled Physical Contact |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | 9/125 µm |
| Fusion Splicing | Supported |
| Pigtail Termination | Supported |
| Splice Tray | Integrated / Included depending on model |
| Cable Management | Integrated |
| Fibre Slack Storage | Integrated |
| Typical Housing | Powder-Coated Steel |
| Rack / Wall Mounting | Depends on model |
| Indoor Installation | Yes |
| Electrical Power Required | No |
| Applications | FTTH, GPON, FTTB, CCTV, LAN, WAN, ISP |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
What Is an 8 Core ODF?
An 8 Core ODF is a fibre-management enclosure designed to provide up to eight organized fibre termination points.
| Component | Function |
|---|---|
| ODF Enclosure | Protects internal fibre components |
| SC/APC Adapter Panel | Provides accessible fibre ports |
| SC/APC Pigtails | Terminates incoming fibres |
| Splice Tray | Stores fusion splices |
| Cable Entry Points | Receives fibre optic cable |
| Cable Clamp | Secures incoming cable |
| Routing Guides | Maintains safe fibre routing |
| Slack Storage Area | Stores excess fibre |
| Port Labels | Identifies each connection |
The incoming cable is typically fusion-spliced to SC/APC pigtails, which connect to the green SC/APC adapters installed on the ODF.
What Does ODF Mean?
| Term | Meaning |
|---|---|
| ODF | Optical Distribution Frame |
| 8 Core | Eight fibre termination positions |
| SC | SC Fibre Connector |
| APC | Angled Physical Contact |
| FTTH | Fibre to the Home |
| GPON | Gigabit Passive Optical Network |
| Pigtail | Connectorized fibre with one bare end |
| Patch Cord | Fibre cable with connectors on both ends |
What Does SC/APC Mean?
SC/APC combines the SC connector format with an angled polished ferrule.
| Feature | Description |
|---|---|
| Connector Type | SC |
| Polish | APC |
| Typical Colour | Green |
| Fibre Mode | Single Mode |
| Typical Core / Cladding | 9/125 µm |
| Back Reflection | Very Low |
| FTTH Compatibility | Excellent |
| GPON Compatibility | Excellent |
| Connection Style | Push-Pull |
Why Use SC/APC Connectors?
| Advantage | Benefit |
|---|---|
| Low Back Reflection | Better optical return performance |
| Green Colour Coding | Easy identification |
| Single-Mode Compatibility | Suitable for long-distance fibre |
| FTTH Compatibility | Excellent |
| GPON Compatibility | Excellent |
| Easy Patch Connection | Simplifies maintenance |
SC/APC is commonly used in passive optical access networks where reflected optical power must be minimized.
How the 8 Core ODF Works
| Stage | Function |
|---|---|
| Incoming Fibre Cable | Brings network fibres |
| Cable Entry | Routes cable into enclosure |
| Cable Fixing | Secures cable mechanically |
| Fibre Preparation | Separates required cores |
| Fusion Splicing | Joins fibre to pigtail |
| Splice Sleeve | Protects fusion joint |
| Splice Tray | Stores completed splice |
| SC/APC Pigtail | Connects splice to adapter |
| SC/APC Adapter | Provides patching interface |
| Patch Cord | Connects active or passive equipment |
8 SC/APC Port Configuration
| Port | Typical Assignment |
|---|---|
| 1 | Fibre 1 |
| 2 | Fibre 2 |
| 3 | Fibre 3 |
| 4 | Fibre 4 |
| 5 | Fibre 5 |
| 6 | Fibre 6 |
| 7 | Fibre 7 |
| 8 | Fibre 8 |
The eight-port format is ideal for smaller installations where a 12- or 24-core panel would be unnecessary.
Typical SC/APC Pigtail Configuration
| Specification | Typical Configuration |
|---|---|
| Quantity | 8 |
| Connector | SC/APC |
| Typical Colour | Green |
| Fibre Mode | Single Mode |
| Core / Cladding | 9/125 µm |
| Typical Fibre Category | OS2 |
| Buffer | 900 µm commonly |
| Bare End | Fusion-Splice Ready |
SC/APC vs SC/UPC ODF
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Back Reflection | Lower | Low |
| FTTH / GPON | Very Common | Used where specified |
| CATV | Excellent | Less Preferred |
| Enterprise Fibre | Application dependent | Very Common |
| Direct APC/UPC Mating | No | No |
SC/APC and SC/UPC should not be directly mated because their ferrule end faces differ.
8 Core ODF vs 12 Core ODF
| Feature | 8 Core | 12 Core |
|---|---|---|
| Fibre Capacity | 8 | 12 |
| Port Capacity | 8 | 12 |
| Small Network | Excellent | Excellent |
| Expansion Capacity | Lower | Higher |
| Cable Management | Simpler | Slightly Higher |
| Small CCTV Network | Excellent | Excellent |
| Small ISP Node | Excellent | Better for Growth |
8 Core ODF vs 24 Core ODF
| Feature | 8 Core | 24 Core |
|---|---|---|
| Fibre Capacity | 8 | 24 |
| Relative Capacity | 1× | 3× |
| Small Fibre Network | Excellent | Often More Than Needed |
| Medium Network | Limited | Excellent |
| Rack Density | Low | Higher |
| Future Expansion | Moderate | High |
ODF vs Fibre Termination Box
| Feature | ODF | Fibre Termination Box |
|---|---|---|
| Main Purpose | Fibre termination and patching | Fibre termination and protection |
| Rack Mounting | Common | Less Common |
| Wall Mounting | Available | Very Common |
| Fusion Splicing | Yes | Yes |
| Patch Cord Access | Excellent | Good |
| Server Room Use | Excellent | Good |
| Outdoor Use | Rare | More Common |
ODF vs FAT Box
| Feature | ODF | FAT Box |
|---|---|---|
| Primary Function | Termination and patching | Subscriber distribution |
| Typical Location | Equipment Room / Rack | Access Network |
| PLC Splitters | Optional | Common |
| Patch Cord Management | Excellent | Moderate |
| Subscriber Drop Ports | Less Direct | Excellent |
| FTTH Use | Excellent | Excellent |
Fusion Splicing Inside the ODF
| Step | Procedure |
|---|---|
| 1 | Route fibre cable into ODF |
| 2 | Secure incoming cable |
| 3 | Prepare required fibre cores |
| 4 | Identify fibres |
| 5 | Strip fibre coating |
| 6 | Clean bare fibre |
| 7 | Precision cleave |
| 8 | Fusion-splice to SC/APC pigtail |
| 9 | Protect splice with sleeve |
| 10 | Store splice in tray |
| 11 | Connect pigtail to SC/APC adapter |
| 12 | Label fibre port |
| 13 | Test optical signal |
Typical 8-Core Fibre Colour Sequence
| Fibre | Typical Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
Always confirm the cable manufacturer's colour code before fusion splicing.
Empty vs Loaded 8 Core ODF
| Feature | Empty ODF | Loaded SC/APC ODF |
|---|---|---|
| Enclosure | Included | Included |
| SC/APC Adapters | Usually Not | Included |
| SC/APC Pigtails | Usually Not | Often Included |
| Splice Tray | Usually Included | Included |
| Installation Time | Longer | Faster |
| Configuration Flexibility | Excellent | Moderate |
| Best Use | Customized Networks | Standard Installations |
Key Benefits of 8 Core ODF with SC/APC Connectors
Compact 8-Fibre Capacity
Ideal for smaller fibre networks that do not require large termination panels.
SC/APC Connectivity
Provides low-reflection optical interfaces for FTTH and GPON networks.
Fusion-Splicing Support
Incoming fibres can be professionally terminated using SC/APC pigtails.
Easy Fibre Identification
Eight clearly labelled ports simplify troubleshooting and maintenance.
Organized Fibre Management
Splice trays and internal routing help protect delicate optical fibres.
Space Efficient
The small capacity makes the ODF suitable for compact network cabinets and fibre installations.
Passive Operation
The ODF does not require electrical power.
Watch 8 Core ODF with SC/APC Connectors
Watch on YouTube: https://youtu.be/TFkKg-zzED0
The 8 Core ODF with SC/APC Connectors provides a compact way to terminate a small fibre cable while maintaining professional splice protection and accessible front-facing fibre ports. Incoming fibres can be fusion-spliced to SC/APC pigtails, and the green SC/APC adapters provide convenient interfaces for patch cords connected to switches, OLTs, media converters or other optical devices.
Its smaller eight-port capacity makes it especially suitable for CCTV fibre links, small office networks, compact ISP distribution nodes and building fibre installations where a 12- or 24-port ODF would offer unnecessary capacity. The same basic termination principles remain the same: proper fibre routing, secure fusion splicing, connector cleaning, labelling and optical testing are essential for reliable performance.
For complete installations, Fiber Optics Kenya can supply the 8 Core ODF with SC/APC Connectors together with SC/APC pigtails, adapters, patch cords, fibre optic cables, fusion-splice sleeves, fibre cleaning tools, optical power meters, VFLs and OTDR equipment.
Applications of 8 Core ODF with SC/APC Connectors
1. FTTH Networks
Provides compact fibre termination at local distribution or equipment points.
2. GPON Networks
Supports SC/APC fibre connections in compatible passive optical infrastructure.
3. CCTV Fibre Networks
Ideal for terminating multiple CCTV fibre transmission links.
4. Small ISP Nodes
Provides structured fibre termination for compact POPs or distribution points.
5. Server Rooms
Terminates a small number of optical uplinks.
6. Offices
Provides organized fibre connectivity for business network equipment.
7. FTTB Networks
Terminates small building backbone fibre cables.
8. Campus Networks
Suitable for smaller building-to-building fibre links.
9. Telecommunications Networks
Provides structured low-port-count fibre termination.
10. Industrial Networks
Supports fibre connections for industrial communication systems.
Typical Network Architecture
| Network Stage | Component |
|---|---|
| Incoming Cable | 8 Core Fibre Optic Cable |
| Termination Point | 8 Core ODF |
| Splicing | Fibre to SC/APC Pigtail |
| Front Interfaces | 8 × SC/APC |
| Patch Cord | SC/APC / Hybrid APC |
| Active Equipment | Switch / OLT / Media Converter |
| Network | FTTH / LAN / CCTV / Telecom |
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Capacity Requirement | Confirm eight fibres are sufficient |
| Connector Type | Maintain SC/APC compatibility |
| Fibre Mode | Use compatible single-mode components |
| Cable Entry | Secure incoming fibre |
| Splice Protection | Use heat-shrink sleeves |
| Bend Radius | Avoid tight fibre bends |
| Port Labelling | Clearly identify ports 1–8 |
| Connector Cleaning | Clean before mating |
| Unused Ports | Keep dust caps fitted |
| Testing | Test every completed fibre |
| Documentation | Record fibre-to-port assignment |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapter | Optical coupling |
| SC/APC Pigtail | Fusion-splice termination |
| SC/APC Patch Cord | Fibre interconnection |
| SC/APC to LC/APC Patch Cord | Connects compatible LC equipment |
| 8 Core Fibre Optic Cable | Backbone or distribution connection |
| Fusion Splice Sleeve | Protects fibre joint |
| Splice Tray | Organizes fusion splices |
| Cable Gland | Secures fibre cable |
| Fibre Labels | Port identification |
| Fusion Splicer | Permanent fibre joining |
| Fibre Cleaver | Precision preparation |
| Fibre Stripper | Removes coating |
| Connector Cleaner | Cleans SC/APC connectors |
| Optical Power Meter | Measures fibre signal |
| PON Power Meter | Tests PON levels |
| Visual Fault Locator | Checks continuity |
| OTDR | Diagnoses fibre links |
Why Buy 8 Core ODF with SC/APC Connectors from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 8 Core ODFs | Compact fibre termination |
| SC/APC Adapters | Low-reflection fibre connections |
| SC/APC Pigtails | Professional fibre splicing |
| SC/APC Patch Cords | Complete optical patching |
| Hybrid Patch Cords | Connect different optical equipment |
| Fibre Optic Cables | Complete fibre infrastructure |
| Fusion-Splicing Accessories | Professional installation |
| Cleaning Equipment | Helps maintain connector quality |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Correct component selection |
| Bulk Supply | Suitable for ISPs and contractors |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions

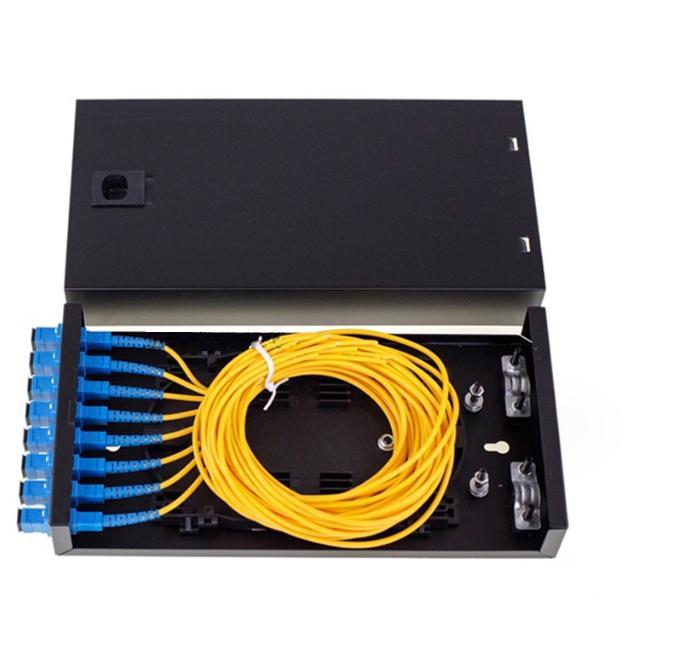

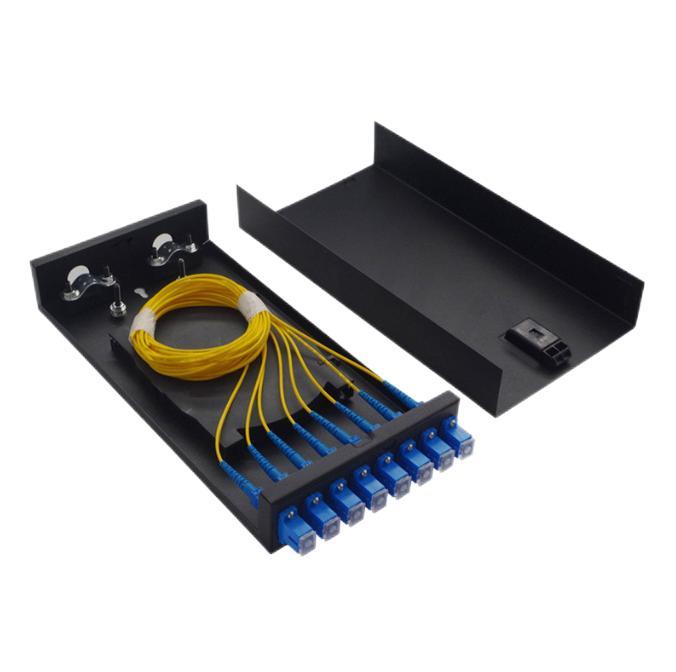

What is an 8 Core ODF with SC/APC Connectors?
It is an optical distribution frame designed to terminate, splice and patch up to eight optical fibres through SC/APC interfaces.
What does ODF mean?
ODF means Optical Distribution Frame.
How many fibres can it terminate?
It can typically terminate 8 individual optical fibres.
How many SC/APC ports does it have?
A standard 8-core configuration provides up to 8 SC/APC fibre ports.
What colour are SC/APC adapters?
They are normally green.
What does APC mean?
APC means Angled Physical Contact.
Is SC/APC suitable for single-mode fibre?
Yes. SC/APC is commonly used with single-mode fibre.
Is it suitable for FTTH?
Yes. The ODF can be used for rack- or cabinet-based fibre termination within FTTH infrastructure.
Can it be used for GPON?
Yes. SC/APC is widely used in GPON networks.
Does it support fusion splicing?
Yes. Incoming fibres can be fusion-spliced to SC/APC pigtails.
Does it come with SC/APC adapters?
A loaded SC/APC model normally includes them. Empty versions may require adapters separately.
Does it include pigtails?
Loaded models may include matching SC/APC pigtails.
Can I use SC/UPC patch cords?
Not directly. SC/APC and SC/UPC ferrule geometries are different and should not be directly mated.
Can it connect to LC/APC equipment?
Yes. Use an appropriate SC/APC-to-LC/APC fibre patch cord.
Can it be used for CCTV fibre?
Yes. Eight ports are particularly useful for smaller multi-camera or multi-link CCTV fibre deployments.
Can it be used in a small server room?
Yes. Its compact capacity makes it suitable for small network rooms and telecom cabinets.
Can it be used by ISPs?
Yes. It is suitable for smaller ISP distribution or termination points.
Is it suitable for outdoor use?
Most rack-style ODFs are designed for protected indoor environments. Outdoor applications require an appropriately rated enclosure.
Does it require electricity?
No. The ODF is completely passive.
What is the difference between an 8 Core and 12 Core ODF?
The 12-core model provides four additional fibre termination positions and greater expansion capacity.
What is the difference between an 8 Core and 24 Core ODF?
A 24-core ODF provides three times the nominal fibre capacity and is better suited to larger fibre networks.
What is the difference between an ODF and FAT box?
An ODF is mainly used for organized termination and patching, while a FAT box is normally used to distribute fibre to multiple FTTH subscribers.
Can unused ports remain spare?
Yes. Unused adapters should remain protected with dust caps.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply matching SC/APC adapters.
Do you supply SC/APC pigtails?
Yes. Compatible single-mode SC/APC pigtails can be supplied.
Do you supply SC/APC patch cords?
Yes. Matching SC/APC and hybrid patch cords can be supplied.
Do you supply fibre optic cables?
Yes. Indoor, outdoor, armoured, ADSS and other fibre optic cables can be supplied.
Do you supply fusion-splicing equipment?
Yes. Fusion splicers, fibre cleavers, strippers, splice sleeves and related accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, fusion splicing, installation and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 8 Core ODF with SC/APC Connectors provides a compact and professional solution for terminating, fusion-splicing and patching up to eight optical fibres in FTTH, GPON, CCTV, ISP and enterprise networks.
Contact Fiber Optics Kenya for 8 Core SC/APC ODFs, adapters, pigtails, patch cords, fibre optic cables, fusion-splicing accessories, bulk orders and nationwide delivery across Kenya.
