8 Core Empty FAT Box 1x8 in Kenya
KSh 800.00
1 available
Continue shopping8 Core Empty FAT Box 1x8 in Kenya

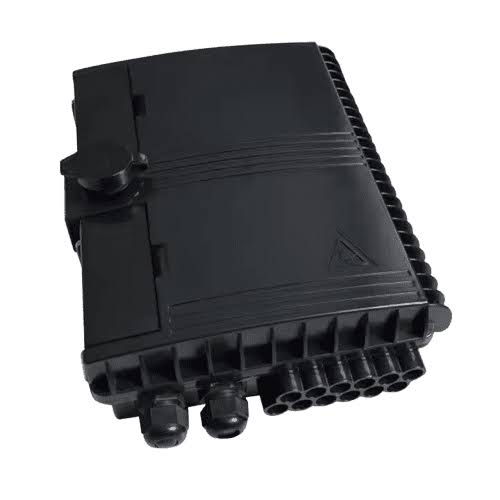

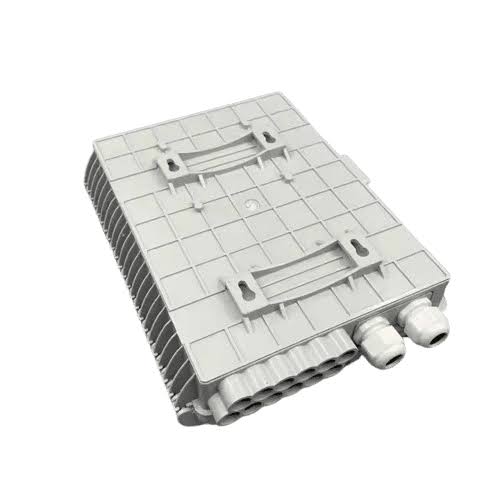

The 8 Core Empty FAT Box 1x8 is a compact fibre access terminal enclosure designed for the termination, splicing, splitting, organization and distribution of fibre optic connections in FTTH and FTTx networks. FAT stands for Fiber Access Terminal, and an 8-core model provides a practical distribution point for networks serving up to eight fibre connections or subscribers, depending on the final configuration.
Because this version is supplied empty, installers have greater flexibility when configuring the enclosure. Depending on the box design, technicians can install a 1x8 PLC splitter, SC adapters, pigtails, splice protection sleeves and other fibre-management accessories according to the specific network requirements. Professional fibre terminal boxes are designed to combine splicing and connection management in one protected enclosure, while 8-port terminal boxes are commonly used for FTTx applications serving multiple users.
At Fiber Optics Kenya, the 8 Core Empty FAT Box 1x8 is suitable for ISPs, FTTH contractors, telecommunications companies, fibre installers, apartment developments, residential estates and commercial network projects. Customers can also source compatible 1x8 PLC splitters, SC/APC adapters, SC/UPC adapters, pigtails, fast connectors, splice sleeves, FTTH drop cables and fibre testing tools, allowing the box to be configured as a complete fibre distribution point.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 8 Core Empty FAT Box 1x8 |
| Product Type | Fibre Access Terminal / Distribution Box |
| Capacity | Up to 8 fibre connections depending on configuration |
| Splitter Capacity | Typically suitable for 1x8 PLC splitter |
| Supplied Configuration | Empty / Unloaded |
| Adapter Capacity | Up to 8 simplex positions on common designs |
| Common Adapter Type | SC/APC / SC/UPC depending on installation |
| Fibre Mode Compatibility | Single Mode commonly |
| Splicing Capability | Yes |
| Splitter Installation | Yes, depending on box design |
| PLC Splitter Compatibility | 1x2 / 1x4 / 1x8 depending on available space |
| Drop Cable Outputs | Up to 8 on typical 8-port designs |
| Cable Management | Integrated routing / storage |
| Splice Tray | Integrated or installable depending on model |
| Installation Type | Wall mounting commonly |
| Indoor Use | Yes on appropriate model |
| Outdoor Use | Depends on enclosure/IP rating |
| Typical Material | ABS / PC+ABS or engineering plastic |
| FTTH Compatibility | Excellent |
| GPON Compatibility | Excellent |
| EPON Compatibility | Excellent |
| Primary Applications | FTTH, FTTx, PON, fibre distribution |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
FS currently specifies an 8-fibre terminal box for FTTx applications that supports splicing, termination and at least eight-user requirements, while CommScope's fibre access terminal portfolio is specifically designed around accessible fibre distribution in FTTx networks.
What Is an 8 Core Empty FAT Box?
An 8 Core Empty FAT Box is a fibre enclosure that provides space to organize incoming distribution fibre and outgoing subscriber drop fibres.
| Feature | Function |
|---|---|
| Incoming Cable Area | Receives feeder/distribution fibre |
| Splice Area | Holds protected fibre splices |
| Splitter Area | Can accommodate compatible PLC splitter |
| Adapter Area | Holds SC adapters where required |
| Drop Cable Ports | Routes subscriber fibre cables |
| Fibre Storage | Holds service loops and excess fibre |
| Enclosure | Protects internal fibre components |
| Mounting Points | Secure installation to wall or structure |
Fibre access terminals are designed to simplify installation, maintenance and troubleshooting by bringing fibre connections into an organized distribution point.
What Does 1x8 Mean on a FAT Box?
The 1x8 designation typically refers to the splitter capacity or distribution arrangement.
| Term | Meaning |
|---|---|
| 1 | One incoming optical feeder |
| x8 | Up to eight downstream fibre outputs |
| FAT | Fiber Access Terminal |
| 8 Core | Eight-fibre / eight-output distribution capacity |
| Empty | Components such as splitter/adapters may not be included |
| FTTH | Fibre to the Home |
| PON | Passive Optical Network |
When fitted with a 1x8 PLC splitter, one incoming optical signal can be distributed across eight subscriber fibres.
Empty vs Fully Loaded FAT Box
| Feature | Empty FAT Box | Fully Loaded FAT Box |
|---|---|---|
| Enclosure Included | Yes | Yes |
| PLC Splitter Included | Usually No | Often Yes |
| Adapters Included | Usually No | Often Yes |
| Pigtails Included | Usually No | May Be |
| Installation Flexibility | Excellent | Moderate |
| Plug-and-Play Readiness | Lower | Higher |
| Component Choice | Installer Selects | Predetermined |
| Project Customization | Excellent | Limited |
| Initial Cost | Usually Lower | Usually Higher |
The empty version is especially useful for installers who want to select their own splitter ratio, adapter polish and termination method.
Empty 8 Core FAT Box Components
Depending on the specific model, the empty enclosure can provide mounting and routing space for the following:
| Component | Purpose |
|---|---|
| 1x8 PLC Splitter | Splits one optical input into eight outputs |
| SC/APC Adapters | Provides APC subscriber interfaces |
| SC/UPC Adapters | Provides UPC subscriber interfaces |
| SC/APC Pigtails | Creates APC fibre terminations |
| SC/UPC Pigtails | Creates UPC fibre terminations |
| Fast Connectors | Field-terminates drop fibres |
| Splice Sleeves | Protects fusion splices |
| Splice Tray | Organizes splices |
| Drop Cable | Connects subscribers |
| Cable Ties / Clips | Organizes fibres |
8 Core Fibre Capacity
An 8-core FAT box provides a practical fibre-distribution capacity for small FTTH branches.
| Fibre Position | Typical Assignment |
|---|---|
| 1 | Subscriber / Output 1 |
| 2 | Subscriber / Output 2 |
| 3 | Subscriber / Output 3 |
| 4 | Subscriber / Output 4 |
| 5 | Subscriber / Output 5 |
| 6 | Subscriber / Output 6 |
| 7 | Subscriber / Output 7 |
| 8 | Subscriber / Output 8 |
An 8-port box can therefore serve up to eight endpoints where the network design provides one fibre connection per subscriber.
Typical 1x8 PLC Splitter Configuration
When the empty FAT box is fitted with a 1x8 PLC splitter, the internal distribution typically follows this arrangement:
| Network Stage | Connection |
|---|---|
| Feeder Fibre | 1 Input |
| PLC Splitter | 1x8 |
| Splitter Output 1 | Subscriber 1 |
| Splitter Output 2 | Subscriber 2 |
| Splitter Output 3 | Subscriber 3 |
| Splitter Output 4 | Subscriber 4 |
| Splitter Output 5 | Subscriber 5 |
| Splitter Output 6 | Subscriber 6 |
| Splitter Output 7 | Subscriber 7 |
| Splitter Output 8 | Subscriber 8 |
Distributed PON architectures commonly place 1:8 or similar secondary splitters close to subscriber premises inside terminal boxes.
SC/APC vs SC/UPC Configuration
Because the FAT box is empty, installers may configure compatible adapter positions according to their network.
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| FTTH / GPON | Very Common | Network dependent |
| Back Reflection | Lower | Low |
| CATV | Excellent | Less preferred |
| Enterprise Fibre | Application dependent | Common |
| Direct APC/UPC Mating | No | No |
For most modern PON installations, the adapter and splitter connector types should be matched throughout the distribution path.

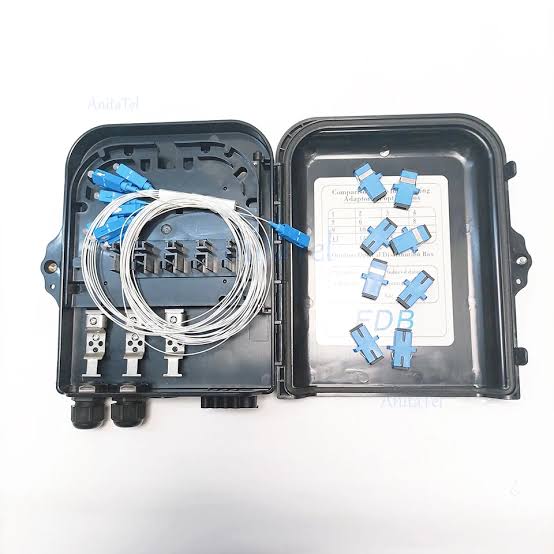

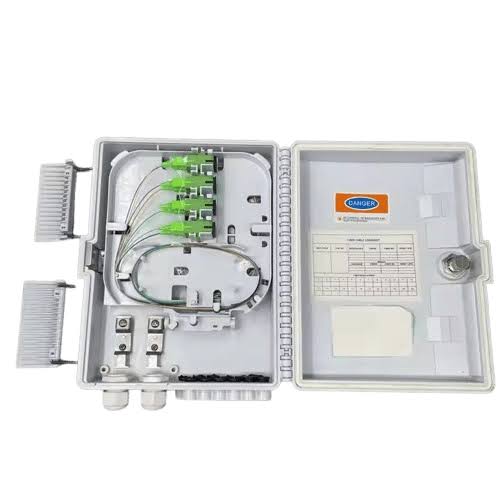

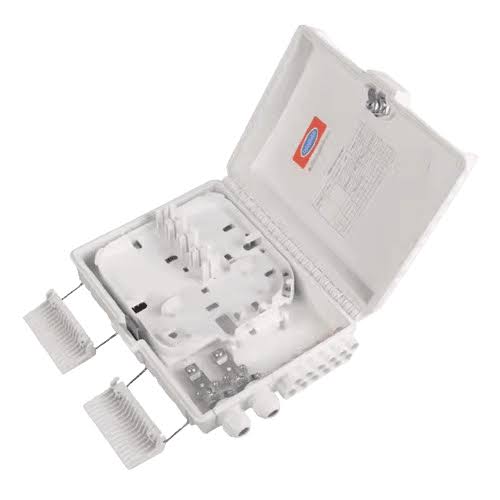

Typical FAT Box Internal Sections
| Internal Section | Purpose |
|---|---|
| Cable Entry Section | Secures incoming feeder cable |
| Strength Member Fixing Point | Anchors fibre cable |
| Fibre Routing Area | Maintains organized fibre paths |
| Splice Tray | Stores protected fusion splices |
| Splitter Mounting Area | Holds compatible PLC splitter |
| Adapter Panel | Holds SC interfaces |
| Drop Cable Management | Routes subscriber cables |
| Service Loop Area | Stores excess fibre safely |
CommScope's modern FAT designs separate fibre routing and drop-cable handling to reduce clutter and simplify installation and maintenance.
Why Fibre Management Matters
Fibre inside a terminal box must be routed carefully to protect optical performance.
| Fibre Management Feature | Benefit |
|---|---|
| Controlled Bend Radius | Helps prevent excessive attenuation |
| Splice Protection | Reduces mechanical damage |
| Cable Fixing | Prevents fibre pulling |
| Port Labelling | Simplifies subscriber identification |
| Fibre Separation | Easier troubleshooting |
| Service Loops | Simplifies future maintenance |
| Protected Enclosure | Reduces exposure to damage |
Professional fibre-access terminals are designed to make installation, testing and troubleshooting easier while providing organized access to distribution and drop fibres.
Indoor vs Outdoor 8 Core FAT Box
| Feature | Indoor Box | Outdoor Box |
|---|---|---|
| Environmental Protection | Moderate | Higher |
| Weather Exposure | No | Yes |
| Wall Mounting | Common | Common |
| Pole Mounting | Less Common | Available on some models |
| Sealed Cable Entries | Basic | More Important |
| Water Resistance | Model dependent | Essential |
| UV Resistance | Less critical | Important |
| FTTH Use | Excellent | Excellent |
Outdoor suitability must be confirmed from the specific enclosure IP rating and manufacturer's datasheet. CommScope and Corning both offer access terminals and closures specifically engineered for outside-plant FTTH environments.
Typical Enclosure Materials
| Material | Characteristics |
|---|---|
| ABS | Lightweight and impact resistant |
| PC+ABS | Combines strength and durability |
| Engineering Plastic | Suitable for telecom enclosures |
| UV-Stabilized Plastic | Preferred for outdoor applications |
The exact material depends on the particular box model.
FAT Box vs FDB Box
The names FAT and FDB are sometimes used interchangeably by suppliers, but their emphasis can differ.
| Feature | FAT Box | FDB Box |
|---|---|---|
| Full Name | Fibre Access Terminal | Fibre Distribution Box |
| Subscriber Access | Primary Focus | Primary Focus |
| Splicing | Yes | Yes |
| Splitter Housing | Common | Common |
| Adapter Mounting | Common | Common |
| FTTH Distribution | Excellent | Excellent |
| Drop Cable Management | Major Function | Major Function |
Both types serve as important distribution points between feeder and subscriber fibres.
FAT Box vs ODF
| Feature | 8 Core FAT Box | ODF |
|---|---|---|
| Typical Capacity | Small / Medium | Medium / Large |
| Subscriber Distribution | Excellent | Possible |
| Outdoor Use | Available | Usually Protected Location |
| Wall Mounting | Common | Available |
| Rack Mounting | Rare | Very Common |
| Splitter Integration | Common | Common |
| FTTH Last-Mile Use | Excellent | Less Direct |
| Central Fibre Management | Limited | Excellent |
8 Core vs 16 Core FAT Box
| Feature | 8 Core | 16 Core |
|---|---|---|
| Typical Subscriber Capacity | 8 | 16 |
| Common Splitter | 1x8 | 1x16 |
| Physical Size | Smaller | Larger |
| Small Estate / Building | Excellent | Excellent |
| Fibre Management Complexity | Lower | Higher |
| Expansion Capacity | Lower | Higher |
8 Core vs 24 Core FAT Box
| Feature | 8 Core | 24 Core |
|---|---|---|
| Fibre Capacity | 8 | 24 |
| Physical Size | Compact | Larger |
| Small Distribution Point | Excellent | Often oversized |
| High Subscriber Density | Limited | Better |
| Cable Management Requirement | Lower | Higher |
| Installation Cost | Typically Lower | Typically Higher |
Advantages of an Empty FAT Box
Flexible Splitter Choice
Install a 1x2, 1x4 or 1x8 splitter depending on the network architecture and available space.
Choose Your Connector Polish
Configure SC/APC or SC/UPC connections according to the existing network.
Lower Initial Hardware Cost
You are not forced to purchase adapters or splitters that may not suit the installation.
Easier Project Standardization
ISPs can load the enclosure with components already standardized across their network.
Future Upgrade Flexibility
Internal components can be selected or replaced according to future needs.
Compact Subscriber Distribution
Eight ports provide sufficient capacity for small FTTH clusters without installing a much larger enclosure.
Watch 8 Core Empty FAT Box 1x8
Watch on YouTube: https://youtu.be/CS8nYSe9gzI
The 8 Core Empty FAT Box 1x8 provides a practical distribution enclosure for organizing feeder fibres, fusion splices, splitters, adapters and subscriber drop connections in an FTTH network. An 8-port terminal is particularly suited to smaller subscriber clusters where a compact enclosure can provide organized connection points without using a larger distribution cabinet. Professional 8-fibre terminal boxes are specifically designed for FTTx applications and can combine fibre splicing and termination functions.
Because this version is supplied empty, the installer can configure the box according to the exact network architecture. For example, a 1x8 PLC splitter can be installed to divide one feeder signal across eight subscriber branches, or the box can be configured primarily for fibre splicing and adapter-based patching. This flexibility is particularly valuable for ISPs and fibre contractors that already use standardized splitters, adapters and pigtails throughout their network.
The enclosure also helps protect delicate fibre connections while keeping subscriber fibres organized and accessible for maintenance. Fiber Optics Kenya can supply the 8 Core Empty FAT Box together with 1x8 PLC splitters, SC/APC and SC/UPC adapters, pigtails, splice sleeves, fast connectors, FTTH drop cables, fusion-splicing tools, VFLs and optical power meters, giving installers a complete solution for building professional fibre access points.
Applications of 8 Core Empty FAT Box 1x8
1. FTTH Subscriber Distribution
Provide an organized distribution point for up to eight subscriber connections.
2. GPON Networks
House a compatible 1x8 splitter and distribute the PON optical signal to downstream ONTs.
3. EPON Networks
Provide passive distribution and fibre termination for compatible EPON deployments.
4. Residential Estates
Serve small clusters of homes from a single fibre distribution point.
5. Apartment Buildings
Distribute fibre to several apartments or floors.
6. Commercial Buildings
Provide organized fibre connections for offices, shops or tenants.
7. ISP Networks
Create standardized fibre-access points throughout subscriber areas.
8. Fibre Splicing
Protect and organize feeder-to-distribution fibre splices.
9. PLC Splitter Housing
Install a compatible 1x8 PLC splitter inside the box.
10. FTTH Drop Cable Management
Secure and route subscriber drop cables from the distribution point.
Typical FTTH Architecture Using 8 Core FAT Box
| Network Stage | Typical Component |
|---|---|
| Service Provider Equipment | OLT |
| Feeder Fibre | Single Mode Fibre |
| Distribution Cable | Outdoor / Indoor Fibre |
| Access Terminal | 8 Core FAT Box |
| Splitter | 1x8 PLC Splitter |
| Output Interfaces | Up to 8 |
| Subscriber Cable | FTTH Drop Cable |
| Customer Equipment | ONT / ONU |
FTTP/FTTH networks extend optical fibre from the operator's network toward subscriber premises, and fibre terminals serve as organized distribution points along that architecture.
Typical Installation Process
| Step | Installation Procedure |
|---|---|
| 1 | Select suitable FAT box location |
| 2 | Secure enclosure to wall/pole as supported |
| 3 | Route incoming feeder cable |
| 4 | Secure cable strength member |
| 5 | Prepare optical fibres |
| 6 | Install required PLC splitter |
| 7 | Install adapters if required |
| 8 | Fusion-splice input fibre |
| 9 | Connect or splice output fibres |
| 10 | Route subscriber drop cables |
| 11 | Protect all fusion splices |
| 12 | Label subscriber ports |
| 13 | Test optical signal |
| 14 | Close and secure enclosure |
Fibre Management Considerations
| Installation Factor | Recommendation |
|---|---|
| Bend Radius | Avoid excessive bending |
| Splice Protection | Use splice protection sleeves |
| Port Labelling | Number outputs 1–8 |
| Service Fibre | Leave suitable maintenance slack |
| Cable Fixing | Secure incoming and outgoing cables |
| Splitter Positioning | Mount firmly in designated area |
| Adapter Cleaning | Clean before connection |
| Unused Ports | Keep dust caps fitted |
| Testing | Test every active subscriber link |
Recommended 1x8 FAT Box Configuration
| Component | Suggested Quantity |
|---|---|
| 8 Core FAT Box | 1 |
| 1x8 PLC Splitter | 1 |
| SC/APC Adapters | Up to 8 |
| SC/APC Pigtails | As required |
| Fusion Splice Sleeves | As required |
| FTTH Drop Cables | Up to 8 subscriber runs |
| Cable Labels | 8+ |
| Fibre Cleaning Accessories | 1 Set |
The exact configuration depends on whether the splitter is connectorized, bare fibre or mini blockless.
Recommended Accessories
| Accessory | Purpose |
|---|---|
| 1x8 PLC Splitter | Splits one feeder into eight outputs |
| SC/APC Adapter | Provides APC interfaces |
| SC/UPC Adapter | Provides UPC interfaces |
| SC/APC Pigtail | APC fibre termination |
| SC/UPC Pigtail | UPC fibre termination |
| SC/APC Fast Connector | Field drop-cable termination |
| FTTH Drop Cable | Connects individual subscribers |
| Fusion Splice Sleeve | Protects optical splice |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Removes optical coating |
| Fusion Splicer | Creates permanent fibre joints |
| Visual Fault Locator | Traces fibres and basic faults |
| Optical Power Meter | Measures optical signal |
| PON Power Meter | Tests PON optical levels |
Why Buy 8 Core Empty FAT Box 1x8 from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 8 Core FAT Boxes | Compact FTTH distribution |
| Empty Configuration | Build the box to your requirements |
| 1x8 PLC Splitters | Matching optical distribution available |
| SC/APC & SC/UPC Adapters | Choose the correct network interface |
| Pigtails & Fast Connectors | Complete termination solutions |
| FTTH Drop Cables | Complete subscriber connectivity |
| Splicing Accessories | Professional fibre installation |
| Testing Equipment | Verify completed connections |
| Technical Guidance | Help configuring the FAT box |
| Bulk Supply | Suitable for ISPs and contractors |
| Competitive Pricing | Cost-effective network deployment |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is an 8 Core Empty FAT Box 1x8?
It is a fibre access terminal enclosure designed to organize, terminate and distribute fibre connections for up to eight outputs, depending on configuration. Professional 8-port fibre terminal boxes are designed for FTTx distribution and multi-user fibre termination.
What does FAT mean?
FAT means Fiber Access Terminal.
What does 8 Core mean?
It indicates an enclosure designed around approximately eight fibre distribution positions or outputs, depending on the exact model.
What does 1x8 mean?
It means one optical input can be distributed to eight outputs when a compatible 1x8 splitter is installed.
What does empty mean?
It means the box is supplied without some or all of the active internal accessories such as PLC splitter, adapters or pigtails.
Does an empty FAT box include a PLC splitter?
Normally no. That is one of the main differences between an empty and fully loaded FAT box.
Can I install a 1x8 PLC splitter?
Yes. An 8-core FAT box designed for a 1x8 configuration can accommodate a compatible 1x8 splitter.
Can I install a 1x4 splitter instead?
Often yes, provided the physical splitter package is compatible with the enclosure.
Can I use SC/APC adapters?
Yes, provided the adapter mounting positions support the SC form factor.
Can I use SC/UPC adapters?
Yes. The empty configuration allows the installer to choose the connector polish required by the network.
Is SC/APC recommended for GPON?
SC/APC connectivity is widely used in FTTH and GPON infrastructure because of its low-reflection angled interface.
How many customers can an 8 Core FAT Box serve?
It can typically provide up to eight individual fibre distribution positions, depending on the network design and final configuration.
Can one 1x8 splitter serve eight subscribers?
Potentially yes. Each output can connect to one subscriber, subject to the PON architecture and available optical power budget.
Is the box suitable for FTTH?
Yes. Fibre access terminals are specifically used throughout FTTx and FTTH distribution networks.
Is it suitable for GPON?
Yes. A FAT box can house the fibre splicing, splitting and subscriber distribution components used in a GPON deployment.
Can it be used for EPON?
Yes. The passive enclosure itself can also be used in compatible EPON architectures.
Can the box be used outdoors?
Some models are designed for outdoor use, while others are indoor-only. Confirm the specific IP rating, UV resistance and sealing specifications before outdoor installation. CommScope and Corning offer dedicated outside-plant FTTH terminals and closures for exposed environments.
Can it be wall mounted?
Yes. Wall mounting is common for compact 8-port fibre terminal boxes.
Can it be pole mounted?
Some outdoor FAT box designs support pole mounting, but this depends on the enclosure and mounting accessories.
Does it support fusion splicing?
Yes. Splicing and fibre termination are core functions of many fibre terminal boxes.
Can fast connectors be used?
Yes, depending on the installation design and available adapter interfaces.
Does it need electricity?
No. The FAT box itself and PLC splitter are passive fibre components.
What is the difference between a FAT box and an FDB?
Both are fibre-distribution enclosures. FAT generally emphasizes subscriber-access termination, while FDB means fibre distribution box; in many FTTH deployments their functions overlap.
What is the difference between an 8 Core and 16 Core FAT Box?
The 8-core model supports a smaller number of fibre connections and is more compact, while a 16-core model provides greater subscriber capacity.
Why buy an empty FAT box?
It allows the installer to choose the exact splitter, adapters, pigtails and connection method required by the project.
Do you supply 1x8 PLC splitters?
Yes. Fiber Optics Kenya can supply compatible bare and connectorized 1x8 PLC splitters.
Do you supply SC/APC adapters?
Yes. Matching SC/APC fibre adapters can be supplied.
Do you supply SC/UPC adapters?
Yes. SC/UPC adapter options can also be supplied.
Do you supply fibre pigtails?
Yes. SC/APC, SC/UPC, LC and other fibre pigtail options can be supplied.
Do you supply FTTH drop cables?
Yes. Compatible indoor and outdoor FTTH drop cables can be supplied.
Do you supply fibre installation tools?
Yes. Fibre cleavers, strippers, fusion-splicing accessories and connector tools can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, fusion splicing, termination and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 8 Core Empty FAT Box 1x8 provides a compact and flexible enclosure for FTTH fibre splicing, splitting and distribution to up to eight downstream connections.
Contact Fiber Optics Kenya for competitive pricing, 8 Core FAT Boxes, 1x8 PLC splitters, adapters, pigtails, FTTH accessories, bulk orders and nationwide delivery across Kenya.
