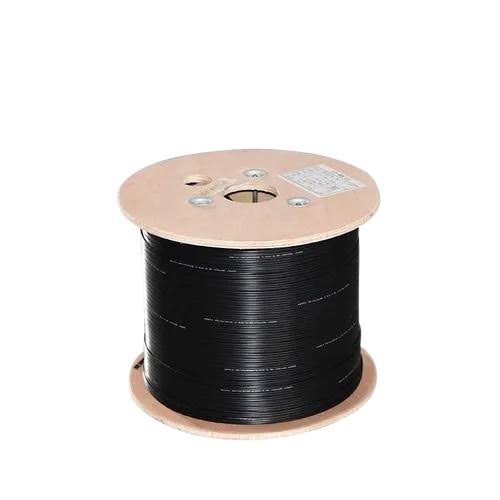

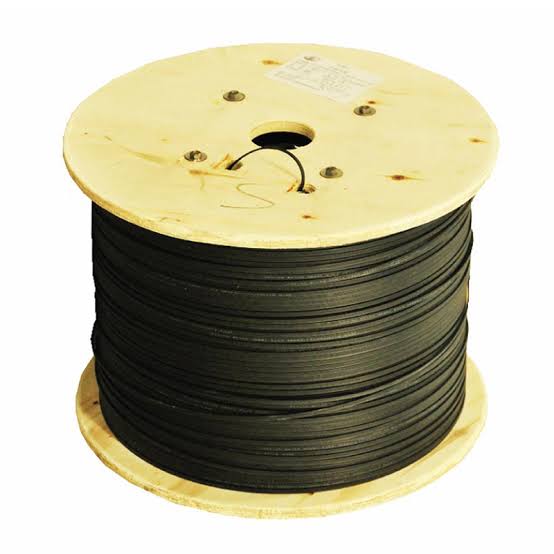

6 Core Outdoor Drop Cable 2KM in Kenya
KSh 21,000.00
1 available
Continue shopping6 Core Outdoor Drop Cable 2KM in Kenya
The 6 Core Outdoor Drop Cable 2KM is a compact, high-capacity fibre optic cable designed for outdoor subscriber connections, FTTH access networks and short-distance fibre distribution. With six individual single-mode optical fibres supplied in a convenient 2,000-metre roll, it provides considerably more capacity than standard 1-core or 2-core drop cables while maintaining a compact installation-friendly design.
Commercial outdoor FTTH drop cables are available with 6-core configurations using G657A1 or G657A2 bend-insensitive single-mode fibre. Typical designs use FRP or steel-wire reinforcement, black LSZH or other outdoor-compatible jackets, and self-supporting constructions with a messenger member for appropriate aerial routes. Current manufacturers offer drop-cable families with 2, 4, 6, 8 and 12 cores using G657A1/G657A2 fibre.
At Fiber Optics Kenya, the 6 Core Outdoor Drop Cable 2KM is suitable for ISPs, fibre contractors, estates, apartment complexes, hotels, schools, hospitals, commercial properties and organizations requiring multiple last-mile fibre connections. Customers can also source compatible SC/APC connectors, FDB boxes, PLC splitters, pigtails, closures, drop clamps and other accessories required for a complete fibre installation.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 6 Core Outdoor Drop Cable 2KM |
| Cable Category | Outdoor FTTH Fibre Drop Cable |
| Cable Length | 2,000 Metres / 2KM |
| Number of Fibres | 6 Cores |
| Fibre Mode | Single Mode |
| Common Fibre Types | G657A1 / G657A2 |
| Alternative Fibre Type | G652D available in some constructions |
| Typical Fibre Size | 9/125 µm |
| Fibre Coating Diameter | Typically 250 µm |
| Cable Profile | Flat / Self-Supporting |
| Strength Members | FRP / KFRP / Steel Wire |
| Messenger Member | Available on aerial versions |
| Outer Sheath | LSZH / PE / application-specific jacket |
| Typical Outdoor Colour | Black |
| Common Operating Wavelengths | 1310 nm / 1550 nm |
| Installation | Outdoor wall, conduit or aerial depending on design |
| Applications | FTTH, FTTB, GPON, EPON, ISP access |
| Roll Length | 2KM |
| Professional Installation | Available |
| Delivery | Available across Kenya |
One commercial outdoor drop-cable specification supports 2/4/6/8/12 cores, G657A1/G657A2/G652D fibres, FRP reinforcement and black or white LSZH jackets.
6 Core Outdoor Drop Cable Construction
A 6 Core Outdoor Drop Cable combines several optical fibres with strength elements and an outdoor protective jacket while keeping the cable compact enough for last-mile use.
| Cable Component | Function |
|---|---|
| 6 Optical Fibres | Carry optical data signals |
| G657A1/G657A2 Fibre | Provides bend-insensitive transmission |
| Primary Fibre Coating | Protects individual glass fibres |
| FRP Strength Members | Provide dielectric structural reinforcement |
| KFRP Members | Alternative lightweight reinforcement |
| Steel Strength Members | Provide enhanced tensile support |
| Messenger Member | Supports suitable aerial installations |
| LSZH / PE Jacket | Protects internal cable elements |
| Cable Groove | Helps simplify stripping and termination |
A representative self-supporting drop-cable construction places the fibre group between parallel FRP members with a reinforced messenger element above the main cable body.
G657A1 vs G657A2 Fibre
| Feature | G657A1 | G657A2 |
|---|---|---|
| Fibre Mode | Single Mode | Single Mode |
| Nominal Core / Cladding | Approx. 9/125 µm | Approx. 9/125 µm |
| Bend Insensitive | Yes | Yes |
| Bend Performance | Excellent | Enhanced |
| FTTH | Excellent | Excellent |
| GPON | Excellent | Excellent |
| EPON | Excellent | Excellent |
| Outdoor Drop Networks | Excellent | Excellent |
| Tight Routing | Very Good | Better |
| Building Entries | Excellent | Excellent |
G657A1 and G657A2 maintain the same basic 9/125 µm single-mode geometry, but G657A2 is designed for more demanding bending conditions.
Typical Optical Characteristics
| Optical Parameter | Typical Description |
|---|---|
| Fibre Type | G657A1 / G657A2 |
| Mode | Single Mode |
| Core/Cladding | Approx. 9/125 µm |
| Common Wavelength | 1310 nm |
| Common Wavelength | 1550 nm |
| Attenuation | Low |
| Bending Loss | Reduced compared with conventional single mode |
| GPON Compatibility | Excellent |
| EPON Compatibility | Excellent |
| FTTH Compatibility | Excellent |
| FTTB Compatibility | Excellent |
Actual attenuation values should be confirmed against the cable manufacturer's datasheet before performing optical link-budget calculations.
Typical Mechanical Characteristics
A current 1–12 core self-supporting FTTH cable family lists a 2.0 × 5.0 mm cable size, FRP/KFRP/steel reinforcement, black or white LSZH jackets and 600 N short-term tensile loading. These figures demonstrate typical construction but should not be assumed for every 6-core cable.
| Mechanical Parameter | Typical / Model-Dependent |
|---|---|
| Fibre Count | 6 |
| Fibre Coating | Approximately 250 µm |
| Cable Profile | Flat / Self-Supporting |
| Typical Cable Size | Around 2.0 × 5.0 mm on some designs |
| Strength Member | FRP / KFRP / Steel |
| Outer Jacket | LSZH / outdoor-rated |
| Short-Term Tensile Load | Up to around 600 N on representative designs |
| Long-Term Tensile Load | Model dependent |
| Crush Resistance | Model dependent |
| Operating Temperature | Model dependent |
| Minimum Bend Radius | Cable construction dependent |
| Cable Weight | Lightweight relative to backbone fibre |
Why Choose 6 Cores?
Six fibres provide considerably more capacity than the more common 1- or 2-core subscriber drop cables.
| Example Fibre Allocation | Number of Fibres |
|---|---|
| Primary Fibre Service | 1 |
| Secondary Service | 1 |
| CCTV / Data Link | 1 |
| Backup Fibre | 1 |
| Future Expansion | 2 |
| Total | 6 |
The fibres do not need to be used in this exact manner. Allocation depends on whether the network uses GPON, EPON, point-to-point Ethernet, BiDi or other optical architectures.
1 Core vs 2 Core vs 6 Core Outdoor Drop Cable
| Feature | 1 Core | 2 Core | 6 Core |
|---|---|---|---|
| Number of Fibres | 1 | 2 | 6 |
| Basic Subscriber Connection | Excellent | Excellent | Excellent |
| Spare Fibre Capacity | None | Good | Excellent |
| Multiple Services | Limited | Moderate | High |
| Future Expansion | Low | Good | Excellent |
| Small Residential Drop | Excellent | Excellent | More capacity than needed in some cases |
| Multi-Tenant Building | Limited | Good | Excellent |
| Small Distribution Route | Limited | Moderate | Excellent |
| Cable Size | Smallest | Small | Larger but still compact |
| Network Flexibility | Basic | Good | High |
A 6-core drop cable is especially useful where one cable route must serve multiple optical connections or where significant spare capacity is desirable.
Why Choose a 2KM Roll?
The 2KM roll makes the cable particularly suitable for ISP projects and multi-building developments.
| Advantage | Benefit |
|---|---|
| 2,000 Metres of Cable | Supports many installations |
| Fewer Roll Changes | Improves field-team productivity |
| Bulk Procurement | Suitable for ISP projects |
| Flexible Cutting | Cut cable according to route |
| Reduced Procurement Frequency | More cable available per roll |
| Estate Deployment | Suitable for many subscriber connections |
| Apartment Projects | Useful for multi-unit fibre deployment |
| Commercial Networks | Suitable for multiple business connections |
| Network Expansion | Cable stock remains available as demand grows |
Commercial FTTH drop-cable products are available in 1KM and 2KM drum configurations, including G657A1/G657A2 variants.
Approximate Number of Cable Runs from a 2KM Roll
| Average Cable Length per Run | Approximate Runs* |
|---|---|
| 20 m | 100 |
| 25 m | 80 |
| 40 m | 50 |
| 50 m | 40 |
| 80 m | 25 |
| 100 m | 20 |
| 150 m | 13 |
| 200 m | 10 |
*Theoretical estimate before accounting for installation slack, service loops, wastage and route deviations.
Standard vs Self-Supporting 6 Core Outdoor Drop Cable
| Feature | Standard Outdoor Drop | Self-Supporting Outdoor Drop |
|---|---|---|
| Fibres | 6 | 6 |
| Strength Members | Yes | Yes |
| Messenger Member | No | Yes |
| Outdoor Wall Route | Excellent | Excellent |
| Conduit Route | Excellent | Model dependent |
| Aerial Installation | Limited | Excellent for appropriate short spans |
| Pole-to-Building | Not preferred | Excellent |
| Cable Weight | Lower | Slightly higher |
| Mechanical Strength | Standard | Higher |
Commercial outdoor drop-cable families use messenger-supported designs when self-supporting aerial deployment is required.
Key Benefits of 6 Core Outdoor Drop Cable 2KM
Higher Fibre Capacity
Six optical fibres provide significantly more flexibility than standard 1-core and 2-core drop cables.
Bend-Insensitive Single Mode Fibre
G657A1 and G657A2 fibre is particularly suitable for routes involving corners, walls, poles and building entry points.
Convenient 2KM Roll
The long roll reduces the need for frequent cable changes during larger installation projects.
Suitable for Multi-Tenant Networks
Six cores can be useful for apartments, offices, hotels and other properties requiring several optical services.
Outdoor Construction
Outdoor-rated designs provide the physical protection needed for external access-network routes.
Self-Supporting Options
Suitable versions include a messenger element for aerial pole-to-building or pole-to-premises installation.
GPON and EPON Compatibility
Single-mode G657 fibre is suitable for passive optical network deployments.
Future Network Expansion
Spare fibres can remain unused until additional connections or services are required.
Watch 6 Core Outdoor Drop Cable 2KM
Watch on YouTube: https://youtu.be/-GP_yxc0-70
The 6 Core Outdoor Drop Cable 2KM provides additional fibre capacity for access networks that have outgrown the limitations of standard one- or two-core subscriber drops. Six single-mode fibres can be assigned to different services, customer connections or backup links while still retaining spare fibres for future expansion. Commercial FTTH drop-cable families are specifically available with six-core G657A1 and G657A2 configurations.
Its compact outdoor construction also makes it suitable for fibre distribution near customer premises. Depending on the exact model, FRP, KFRP or steel reinforcement protects the fibre bundle, while self-supporting versions add a messenger member for appropriate aerial links. The use of G657 fibre is particularly beneficial where the route contains bends around poles, corners, building entrances and termination boxes.
The 2KM roll is particularly attractive to ISPs, contractors and property developers deploying fibre across estates, apartment blocks or commercial developments. Instead of installing a new cable each time extra capacity is required, several of the six fibres can remain unused until needed. Fiber Optics Kenya can supply the cable together with FDB boxes, PLC splitters, SC/APC connectors, pigtails, clamps, patch cords and other FTTH accessories required for the installation.
Applications of 6 Core Outdoor Drop Cable 2KM
1. FTTH Networks
Suitable for final-access and short distribution sections of fibre-to-the-home deployments.
2. ISP Last-Mile Networks
Provides greater flexibility than basic one- or two-core customer drop cable.
3. Apartment Buildings
Six fibres can support several units, services or distribution requirements.
4. Residential Estates
Ideal for fibre deployment where multiple homes or distribution points share a cable route.
5. Commercial Buildings
Connect shops, offices or network locations from a common fibre distribution point.
6. GPON Networks
Suitable for appropriate passive optical network access applications.
7. EPON Networks
Can support compatible EPON subscriber and access-network deployments.
8. CCTV Fibre Links
Spare cores can be allocated to compatible optical CCTV backbone connections.
9. Schools and Campuses
Connect nearby buildings, ICT facilities or network distribution points.
10. Hotels and Resorts
Use the higher core count to distribute fibre connectivity to multiple areas or facilities.
6 Core Drop Cable vs ADSS Fibre Cable
| Feature | 6 Core Outdoor Drop Cable | ADSS Cable |
|---|---|---|
| Primary Purpose | Access / last mile | Distribution / backbone |
| Typical Core Count | 6 | 4–288+ |
| Cable Size | Compact | Larger |
| Short Subscriber Routes | Excellent | Usually unnecessary |
| Aerial Option | Self-supporting version | Yes |
| Long Pole Spans | Limited | Excellent |
| Multi-Tenant Access | Excellent | Possible |
| High-Capacity Backbone | Limited | Excellent |
| Installation Near Premises | Excellent | Less convenient |
6 Core Outdoor Drop Cable vs 6 Core Standard Outdoor Fibre
| Feature | 6 Core Drop Cable | 6 Core Standard Outdoor Fibre |
|---|---|---|
| Cable Profile | Flat / Compact | Round / Loose Tube commonly |
| Primary Use | Last Mile / Access | Backbone / Distribution |
| Building Entry | Excellent | More preparation required |
| G657 Fibre | Common | Depends on cable |
| Bend Performance | Excellent | Fibre dependent |
| Aerial Messenger Option | Yes | Construction dependent |
| Cable Preparation | Simple | More involved |
| Long Backbone Route | Not primary purpose | Better suited |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Fast Connector | Quick fibre termination |
| SC/UPC Fast Connector | Alternative termination |
| SC/APC Pigtails | Fusion-spliced termination |
| 6 Core Fibre Termination Box | Organises multiple fibres |
| FAT / FDB Box | Subscriber fibre distribution |
| PLC Splitter | Divides PON optical signals |
| Drop Cable Clamp | Supports appropriate aerial cable |
| Tension Clamp | Anchors self-supporting cable |
| Fibre Joint Closure | Protects external fibre joints |
| Fusion Splice Sleeves | Protect fibre splices |
| SC/APC Patch Cords | Connect optical equipment |
| ONT / ONU | Terminates customer optical service |
| Optical Power Meter | Measures signal level |
| Visual Fault Locator | Helps identify fibre faults |
| Fusion Splicer | Produces permanent optical joints |
Why Buy 6 Core Outdoor Drop Cable 2KM from Fiber Optics Kenya?
A six-core cable offers more capacity than conventional subscriber drop fibre, making correct selection particularly important for larger access-network projects.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 6 Core Capacity | More fibres for services and expansion |
| 2KM Roll | Excellent for larger projects |
| G657 Fibre Options | Improved bend performance |
| Outdoor Solutions | Suitable for external fibre routes |
| Self-Supporting Options | Available for aerial applications |
| Technical Guidance | Help selecting suitable cable |
| FTTH Accessories | Cable and accessories from one source |
| Bulk ISP Supply | Suitable for large deployments |
| Competitive Pricing | Better project cost management |
| Professional Installation | Fibre installation support available |
| Fusion Splicing | Professional termination |
| Nationwide Delivery | Supply across Kenya |
Frequently Asked Questions
What is 6 Core Outdoor Drop Cable 2KM?
It is a 2,000-metre outdoor fibre optic cable containing six optical fibres, designed for FTTH, FTTB and other fibre access-network applications.
Is 6 Core FTTH Drop Cable available?
Yes. Commercial FTTH drop-cable families are available with 6-core configurations alongside 2, 4, 8 and 12 core variants.
What fibre type does it use?
Common versions use G657A1 or G657A2 bend-insensitive single-mode fibre.
Why use six cores instead of two?
Six cores provide more spare capacity and allow multiple optical links or services to share one cable route.
Is it suitable for GPON?
Yes. G657 single-mode fibre is suitable for GPON access networks.
Can it be used for EPON?
Yes, provided compatible optical equipment and network architecture are used.
Is it suitable for outdoor installation?
Yes, when an outdoor-rated cable construction is selected.
Can 6 Core Drop Cable be installed aerially?
Yes. Self-supporting variants are available with reinforcement and messenger structures suitable for appropriate aerial routes.
What is the difference between G657A1 and G657A2?
Both are bend-insensitive single-mode fibres, but G657A2 supports tighter bending conditions than G657A1.
Can some of the six fibres remain unused?
Yes. Spare cores can remain available for future expansion, redundancy or additional services.
Is a 2KM roll suitable for ISPs?
Yes. A 2KM roll is particularly practical for high-volume fibre deployments.
How many connections can 2KM provide?
That depends on cable length per route. At an average of 50 metres, a 2KM roll theoretically provides about 40 cable runs before allowing for slack and wastage.
Can this cable serve several customers?
Potentially, yes, depending on network design and termination architecture. Six fibres provide considerably more flexibility than a conventional single-subscriber one-core drop.
What connectors are commonly used?
SC/APC connectors are widely used in FTTH and GPON systems.
Do you supply FDB boxes?
Yes. Fiber Optics Kenya can supply compatible fibre access and distribution boxes.
Do you supply PLC splitters?
Yes. PLC splitters and other passive optical network accessories can be supplied.
Do you provide fusion splicing?
Yes. Professional fibre fusion splicing and termination can be provided according to project requirements.
Can ISPs order in bulk?
Yes. Bulk supply is available for ISPs, contractors, residential developments and institutional projects.
Do you provide installation?
Yes. Professional fibre installation, termination and testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic cables and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 6 Core Outdoor Drop Cable 2KM offers additional fibre capacity, excellent bend performance and a practical 2KM roll for larger FTTH and ISP access-network projects.
Contact Fiber Optics Kenya for competitive pricing, bulk orders, FTTH accessories, installation support and nationwide delivery across Kenya.
