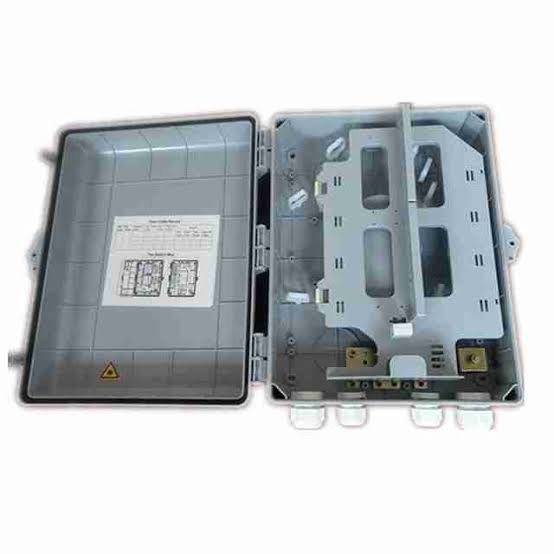

48 Core Fibre Termination Box in Kenya
KSh 7,000.00
1 available
Continue shopping48 Core Fibre Termination Box in Kenya
The 48 Core Fibre Termination Box is a high-capacity fibre optic enclosure designed for the termination, fusion splicing, organization, protection and distribution of up to 48 optical fibres. It provides a centralized point where incoming fibre cables can be securely terminated and connected to pigtails, adapters, patch cords or downstream distribution fibres.
48-core termination boxes are widely suited to FTTH, FTTB, FTTx, ISP networks, telecommunications infrastructure, commercial buildings, campuses, CCTV fibre networks and enterprise LAN/WAN installations. Depending on the model, they can be wall-mounted indoors or outdoors, while outdoor versions are available with weather-resistant housings and IP-rated protection. Current 48-core products include IP65 outdoor ABS/PC+ABS enclosures and wall-mounted steel distribution boxes.
At Fiber Optics Kenya, the 48 Core Fibre Termination Box can be supplied together with SC/APC and SC/UPC adapters, LC adapters, fibre pigtails, patch cords, splice sleeves, PLC splitters, fibre cables, fusion-splicing tools and optical testing equipment for complete fibre network installations.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 48 Core Fibre Termination Box |
| Product Type | Fibre Optic Termination / Distribution Box |
| Maximum Fibre Capacity | Up to 48 fibres |
| Typical Splicing Capacity | Up to 48 fibres |
| Typical Adapter Capacity | Up to 48 SC simplex |
| LC Capacity | Higher density possible on compatible models |
| Connector Compatibility | SC, LC, FC, ST depending on model |
| SC/APC Compatible | Yes |
| SC/UPC Compatible | Yes |
| Fibre Mode | Single Mode / Multimode depending on components |
| Fusion Splicing | Supported |
| Pigtail Termination | Supported |
| Splice Trays | Commonly 2–4 depending on model |
| PLC Splitter Support | Available on selected models |
| Fibre Storage | Integrated |
| Cable Management | Integrated |
| Typical Housing Material | ABS, PC+ABS or steel |
| Outdoor Rating | IP55/IP65/IP67 depending on model |
| Wall Mounting | Common |
| Pole Mounting | Available on outdoor models |
| Indoor Installation | Yes |
| Outdoor Installation | Yes on rated models |
| Power Requirement | None |
| Applications | FTTH, FTTB, FTTx, GPON, EPON, LAN, WAN |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
For example, one current 48-port distribution box provides 48-core splice capacity using four splice trays, SC/LC adapter support, up to two 1x32 PLC splitters, four cable inlets, 48 outlets and an IP55 steel enclosure.
What Is a 48 Core Fibre Termination Box?
A 48 Core Fibre Termination Box provides a protected location for managing a medium-to-high number of optical fibres.
| Internal Component | Function |
|---|---|
| Outer Enclosure | Protects fibre components |
| Cable Entry Ports | Receives incoming fibre cables |
| Cable Clamps | Secures cable mechanically |
| Splice Trays | Organizes fusion splices |
| Adapter Panel | Provides connector interfaces |
| Pigtails | Creates fibre termination points |
| Routing Guides | Controls fibre routing |
| Slack Storage | Stores excess fibre |
| Splitter Mounting Area | Holds PLC splitters on compatible models |
| Cover / Door | Protects internal connections |
Current 48-core termination-box designs combine splicing, splitting and fibre distribution functions inside one enclosure and are specifically intended as termination points between feeder and downstream cables in FTTx networks.
What Does 48 Core Mean?
| Term | Meaning |
|---|---|
| 48 Core | Up to 48 individual optical fibres |
| Termination | Creating accessible fibre endpoints |
| Fusion Splicing | Permanently joining fibres |
| Pigtail | Connectorized fibre with one bare end |
| Adapter | Couples two fibre connectors |
| FTTH | Fibre to the Home |
| FTTB | Fibre to the Building |
| FTTx | Fibre to various endpoints |
A 48-core box may provide 48 external ports, but 48-core capacity does not always mean exactly 48 external adapters. The arrangement depends on the enclosure design.
How a 48 Core Fibre Termination Box Works
Incoming fibre cables enter through the designated cable ports and are secured inside the enclosure. Individual fibres are then routed to splice trays, where they can be fusion-spliced to pigtails. The connectorized ends of the pigtails attach to the adapter panel, providing accessible interfaces for patch cords or downstream fibres.
| Stage | Function |
|---|---|
| Incoming Fibre Cable | Brings network fibres |
| Cable Entry | Routes cable inside |
| Cable Fixing | Provides mechanical support |
| Fibre Separation | Identifies individual fibres |
| Fusion Splicing | Connects fibres to pigtails |
| Splice Protection | Protects fusion joints |
| Splice Tray | Organizes completed splices |
| Adapter Panel | Provides optical connection points |
| Patch Cords | Connect downstream network/equipment |
Typical 48-Core Splice Configuration
A 48-core termination box can use several splice-tray arrangements.
| Splice Tray Capacity | Trays Required |
|---|---|
| 12 Fibres | 4 |
| 24 Fibres | 2 |
| 48 Fibres | 1 high-capacity system |
One current indoor 48-port wall-mount model uses four 12-fibre splice trays, providing 48-fibre splice capacity.
Typical 48-Fibre Port Allocation
| Port Range | Fibre Allocation |
|---|---|
| 1–12 | Fibres 1–12 |
| 13–24 | Fibres 13–24 |
| 25–36 | Fibres 25–36 |
| 37–48 | Fibres 37–48 |
Grouping connections in sets of twelve helps technicians organize colour sequences, splice trays, port labels and maintenance records.
SC Adapter Configuration
SC adapters are among the most common interfaces used in 48-core termination boxes.
| Feature | SC Configuration |
|---|---|
| Typical Capacity | Up to 48 SC simplex |
| SC/APC | Supported |
| SC/UPC | Supported |
| Single Mode | Supported |
| Multimode | Supported with correct components |
| FTTH | Excellent |
| GPON | Excellent |
| Enterprise Fibre | Excellent |
A current ABS 48-core box supports a maximum of 48 SC simplex couplers, while another wall-mounted model provides 48 SC or up to 96 LC connector positions.
SC/APC Configuration

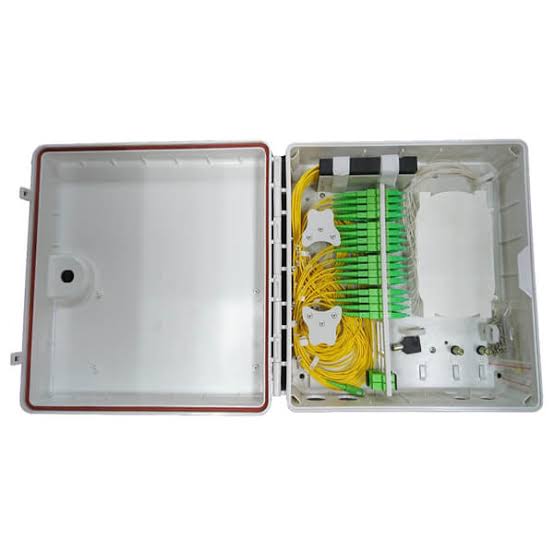

A 48 Core Fibre Termination Box can be populated with green SC/APC adapters and matching pigtails.
| Feature | Description |
|---|---|
| Typical Colour | Green |
| Polish | Angled Physical Contact |
| Fibre Mode | Single Mode |
| FTTH / GPON | Excellent |
| CATV | Excellent |
| Back Reflection | Very Low |
SC/APC is particularly useful where low optical return reflection is required.
SC/UPC Configuration
The enclosure can alternatively be populated with blue SC/UPC adapters.
| Feature | Description |
|---|---|
| Typical Colour | Blue |
| Polish | Ultra Physical Contact |
| Fibre Mode | Single Mode commonly |
| Enterprise Networks | Excellent |
| FTTx Networks | Supported |
| Patchability | Excellent |

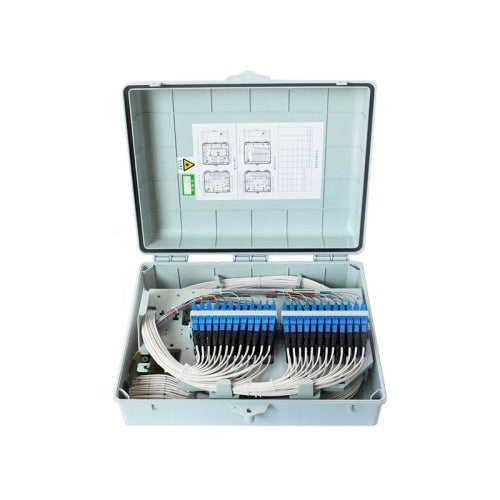

Current 48-core distribution boxes commonly appear with 48 blue SC adapter ports, illustrating the high-density SC/UPC-style arrangement.
SC/APC vs SC/UPC
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Back Reflection | Lower | Low |
| FTTH / GPON | Very Common | Used where specified |
| CATV | Excellent | Less Preferred |
| Enterprise Networks | Application dependent | Very Common |
| Direct APC/UPC Mating | No | No |
SC/APC and SC/UPC connectors should not be directly connected because the ferrule geometries differ.
LC Adapter Configuration
LC adapters offer higher port density because the connector is substantially smaller than SC.
| Feature | LC |
|---|---|
| Connector Size | Compact |
| Port Density | High |
| Simplex / Duplex | Available |
| Single Mode | Supported |
| Multimode | Supported |
| Enterprise Networks | Excellent |
| Data Centres | Excellent |
A current 48-core wall-mount enclosure supports 48 SC or as many as 96 LC connector positions, demonstrating the increased density possible with LC.
Fibre Pigtail Termination
Pigtails are commonly fusion-spliced to the installed fibre cable.
| Pigtail Feature | Benefit |
|---|---|
| Factory Connector | Reliable connector termination |
| Bare Fibre End | Fusion-splice ready |
| Colour Coding | Easier fibre identification |
| SC / LC Options | Flexible connectivity |
| Single Mode / Multimode | Available |
| Replaceable Patch Interface | Easier maintenance |
The fusion splice remains safely inside the box while the adapter provides a removable connection for patch cords.
48 Core Empty vs Loaded Termination Box
| Feature | Empty Box | Loaded Box |
|---|---|---|
| Enclosure | Included | Included |
| Adapters | Usually Separate | Included |
| Pigtails | Usually Separate | Often Included |
| Splice Trays | Usually Included | Included |
| PLC Splitter | Usually Separate | May Be Included |
| Installation Time | Longer | Faster |
| Customization | Excellent | Moderate |
| Best For | Custom Projects | Standardized Rollouts |
PLC Splitter Support
Some 48-core distribution boxes can also accommodate passive PLC splitters.
| Splitter Configuration | Optical Outputs |
|---|---|
| 1x8 | 8 |
| 1x16 | 16 |
| 1x32 | 32 |
| 2 × 1x16 | 32 |
| 1 × 1x32 + Other Distribution | Project dependent |
| 2 × 1x32 | Up to 64 splitter outputs |
One current 48-port enclosure supports up to two 1x32 PLC splitters, while another 48-port FDB specifically supports a 1x32 PLC splitter for FTTH applications.
The optical design, rather than box capacity alone, determines which splitter ratio should be used.
Indoor 48 Core Fibre Termination Box
Indoor units are commonly used in server rooms, building telecommunications spaces, offices and ISP network rooms.
| Feature | Typical Indoor Configuration |
|---|---|
| Housing | Steel / Aluminium |
| Wall Mount | Common |
| Adapter Capacity | 48 SC / higher LC density |
| Splice Capacity | Up to 48 |
| Weather Protection | Limited |
| Lockable Door | Available |
| FTTH / FTTB | Excellent |
| Enterprise Use | Excellent |
A current indoor 48-core model uses aluminium or steel construction, four 12-fibre splice trays, 48 SC or 96 LC connector capacity and wall-mounted installation.
Outdoor 48 Core Fibre Termination Box
Outdoor versions provide additional environmental protection.
| Outdoor Feature | Benefit |
|---|---|
| Weather-Resistant Housing | Protects internal fibres |
| IP65 Protection | Dust and water resistance |
| Anti-UV Material | Better outdoor durability |
| Wall Mounting | Easy building installation |
| Pole Mounting | Useful in aerial FTTH |
| Sealed Cable Entries | Reduces water ingress |
| Lockable Cover | Improves security |
Current 48-core outdoor products are available with IP65-rated anti-UV ABS+PC housings, and some designs support both wall and pole mounting.
IP65 Protection
| IP65 Element | Meaning |
|---|---|
| 6 | Dust-tight |
| 5 | Protected against water jets |
| Outdoor Use | Suitable where correctly installed |
| Cable Sealing | Must be maintained |
| Weather Resistance | Better than basic indoor enclosures |
A number of commercial 48-core fibre distribution boxes specify IP65 environmental protection.
48 Core vs 24 Core Fibre Termination Box
| Feature | 24 Core | 48 Core |
|---|---|---|
| Maximum Fibre Capacity | 24 | 48 |
| Relative Capacity | 1× | 2× |
| Splice Management | Moderate | Higher |
| Small Office | Excellent | Often More Than Needed |
| Large Building | Good | Excellent |
| ISP Node | Small / Medium | Medium / Large |
| Expansion Capacity | Moderate | Higher |
The 48-core enclosure provides twice the nominal fibre capacity of a 24-core box.
48 Core vs 96 Core Fibre Termination Box
| Feature | 48 Core | 96 Core |
|---|---|---|
| Maximum Fibres | 48 | 96 |
| Physical Size | Medium | Larger |
| Fibre Management | Moderate | High |
| Building Distribution | Excellent | Excellent |
| Small ISP Node | Excellent | Often Oversized |
| Large Aggregation Point | Good | Excellent |
| Expansion Capacity | High | Very High |
48 Core Termination Box vs FAT Box
| Feature | Fibre Termination Box | FAT Box |
|---|---|---|
| Primary Function | Fibre termination and splicing | Subscriber distribution |
| Adapter Ports | Common | Common |
| Fusion Splicing | Yes | Yes |
| PLC Splitter | Optional | Common |
| Subscriber Drop Ports | Possible | Major Feature |
| Enterprise Use | Excellent | Less Common |
| FTTH Use | Excellent | Excellent |
The terminology can overlap, particularly with outdoor FTTx enclosures that combine termination, splitting and distribution.
48 Core Termination Box vs ODF
| Feature | 48 Core Termination Box | ODF |
|---|---|---|
| Typical Mounting | Wall | Rack / Wall |
| Capacity | Medium | Medium to Very High |
| Outdoor Models | Common | Less Common |
| Fusion Splicing | Yes | Yes |
| Patch Cord Management | Good | Excellent |
| Telecom Room Use | Excellent | Excellent |
| Outside Plant Use | Excellent on rated models | Less Common |
Key Benefits of 48 Core Fibre Termination Box
High Fibre Capacity
The enclosure can manage up to 48 optical fibres.
Professional Fusion Splicing
Dedicated splice trays keep fusion joints organized and protected.
Multiple Adapter Options
Depending on the model, SC, LC, FC and ST interfaces can be supported.
Indoor and Outdoor Models
Both indoor wall-mounted metal boxes and outdoor weather-resistant products are available.
PLC Splitter Compatibility
Selected models accommodate 1x16, 1x32 or multiple PLC splitter arrangements.
Wall and Pole Mounting
Outdoor designs can support both installation methods.
Organized Cable Management
Routing sections protect bend radius while keeping pigtails, patch cords and feeder fibres separated.
Network Expansion
Unused fibre positions can remain available for future network growth.
Watch 48 Core Fibre Termination Box
Watch on YouTube: https://youtu.be/_1N_OTEbC2o
The 48 Core Fibre Termination Box provides a centralized and structured way to manage medium-to-high-count fibre optic cables. Rather than leaving individual splices and pigtails exposed, the box organizes them inside protected splice trays and presents usable optical interfaces through an adapter panel. Current 48-core solutions can accommodate 48-fibre splice capacity, SC or LC adapters, cable-management sections and multiple incoming or outgoing cable paths.
The flexibility of a 48-core enclosure allows it to support several different network architectures. It can function purely as a termination and patching point or, on compatible designs, accommodate PLC splitters for FTTH subscriber distribution. Current 48-port products support configurations including up to two 1x32 PLC splitters, while outdoor boxes can integrate fibre splicing, splitting and distribution in one location.
For outdoor deployments, installers can select IP65-rated enclosures manufactured from ABS or PC+ABS materials and mount them on walls or poles. Fiber Optics Kenya can supply the 48 Core Fibre Termination Box together with SC/APC and SC/UPC adapters, LC adapters, pigtails, patch cords, PLC splitters, splice sleeves, fibre cables, fusion-splicing tools, optical power meters, VFLs and OTDR equipment for complete professional fibre deployments.
Applications of 48 Core Fibre Termination Box
1. FTTH Networks
Provides centralized termination and distribution of feeder and subscriber fibres.
2. FTTB Networks
Suitable for apartment buildings, office blocks and commercial developments.
3. ISP Networks
Creates structured fibre termination points at distribution or aggregation nodes.
4. GPON Networks
Can accommodate passive fibre termination and PLC splitting on compatible designs.
5. EPON Networks
Provides protected fibre organization and distribution in compatible EPON architectures.
6. Enterprise Networks
Terminates backbone fibres between network rooms, floors and departments.
7. Campus Networks
Provides fibre distribution between buildings and network segments.
8. CCTV Fibre Networks
Supports high-count fibre termination for surveillance infrastructure.
9. Data Networks
Provides organized fibre patching and splicing for LAN and WAN infrastructure.
10. Telecommunications Networks
Suitable for high-capacity access and distribution fibre management.
Typical Fibre Network Architecture
| Network Stage | Typical Component |
|---|---|
| Active Equipment | OLT / Switch / Fibre Equipment |
| Backbone Fibre | Multi-Core Fibre Cable |
| Termination Point | 48 Core Fibre Termination Box |
| Splice Trays | Up to 48 fibre capacity |
| Pigtails | SC / LC / FC / ST |
| Adapters | Matching Interface |
| Patch Cords | Downstream Connections |
| Distribution Fibre | Building / Subscriber Network |
| Final Termination | FAT / ATB / ODF / Equipment |
Typical 48-Core Fibre Colour Organization
| Fibre Range | Typical Organization |
|---|---|
| 1–12 | First colour sequence |
| 13–24 | Second colour sequence / tube |
| 25–36 | Third colour sequence / tube |
| 37–48 | Fourth colour sequence / tube |
Actual fibre colour identification depends on the cable manufacturer and cable construction, so technicians should always confirm the cable datasheet before splicing.
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Capacity Requirement | Confirm number of active and spare fibres |
| Adapter Type | Match network interfaces |
| Fibre Mode | Maintain SM/MM compatibility |
| Connector Polish | Keep APC and UPC separate |
| Cable Entry | Secure incoming cable correctly |
| Strength Member | Fix mechanically |
| Splice Protection | Use suitable splice sleeves |
| Fibre Bend Radius | Avoid tight routing |
| Port Labelling | Clearly number 1–48 |
| Outdoor Sealing | Preserve enclosure IP rating |
| Unused Ports | Keep protected |
| Testing | Test every terminated fibre |
| Documentation | Record fibre-to-port allocation |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapter | APC optical coupling |
| SC/UPC Adapter | UPC optical coupling |
| LC Adapter | High-density connectivity |
| SC/APC Pigtail | APC fibre termination |
| SC/UPC Pigtail | UPC fibre termination |
| LC Pigtail | LC termination |
| Fibre Patch Cord | Optical interconnection |
| Fusion Splice Sleeve | Protects splice |
| Splice Tray | Organizes fibre joints |
| PLC Splitter | Passive FTTH distribution |
| Fibre Optic Cable | Backbone/distribution link |
| Fusion Splicer | Permanent fibre joining |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Removes fibre coating |
| Optical Power Meter | Measures optical power |
| Visual Fault Locator | Fibre continuity testing |
| PON Power Meter | Tests PON levels |
| OTDR | Diagnoses optical fibre links |
Why Buy 48 Core Fibre Termination Box from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 48 Core Fibre Boxes | High-capacity fibre management |
| Indoor & Outdoor Options | Flexible deployment |
| SC/APC Adapters | PON-ready termination |
| SC/UPC Adapters | Standard fibre connectivity |
| LC Adapter Options | High-density applications |
| Fibre Pigtails | Professional fusion-splice termination |
| PLC Splitters | FTTH network distribution |
| Fibre Cables | Complete fibre infrastructure |
| Fusion-Splicing Accessories | Professional installation |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Correct component selection |
| Bulk Supply | Suitable for ISP and contractor projects |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 48 Core Fibre Termination Box?
It is a fibre enclosure designed to terminate, splice, organize and protect up to 48 optical fibres. Current products provide 48-fibre capacity with integrated splice trays and cable-management systems.
How many fibres can it support?
It can support up to 48 optical fibres, depending on the specific model.
How many SC adapters can it hold?
Some models accommodate up to 48 SC simplex adapters.
Can it use SC/APC adapters?
Yes. Compatible 48-core boxes can be populated with SC/APC adapters and matching pigtails.
Can it use SC/UPC adapters?
Yes. SC/UPC is a common configuration for 48-core fibre termination boxes, as seen in current 48-port products.
Can it support LC adapters?
Yes. One current wall-mounted enclosure supports up to 96 LC connectors in place of 48 SC connections.
Does it support fusion splicing?
Yes. Fusion splicing is a primary function of the box. Current models provide dedicated splice trays and capacities of up to 48 fibres.
How many splice trays does it have?
This varies. Representative models use two or four splice trays, depending on tray capacity.
Can pigtails be installed?
Yes. Fibre pigtails can be fusion-spliced to the installed cable and connected to adapters.
Can PLC splitters be installed?
Yes, on compatible designs. One current 48-port box supports up to two 1x32 PLC splitters.
Is it suitable for FTTH?
Yes. 48-core distribution and termination boxes are designed for FTTx and FTTH applications.
Can it be used for GPON?
Yes. It can provide termination, splicing and passive splitter management in GPON infrastructure.
Can it be used for EPON?
Yes. The passive enclosure can also be used in compatible EPON networks.
Can it terminate single-mode fibre?
Yes, using compatible single-mode adapters, pigtails and patch cords.
Can it terminate multimode fibre?
Yes, where the box is populated with appropriate multimode termination components.
Can it be installed indoors?
Yes. Indoor steel or aluminium wall-mounted 48-core boxes are available.
Can it be installed outdoors?
Yes, provided an outdoor-rated enclosure is selected. Current 48-core products are available with IP65 protection.
What does IP65 mean?
IP65 indicates a dust-tight enclosure protected against water jets, provided the unit is correctly installed and sealed.
Can it be wall mounted?
Yes. Wall mounting is common across both indoor and outdoor models.
Can it be pole mounted?
Yes. Some outdoor IP65 designs support both wall and pole installation.
What material is commonly used?
Depending on the model, 48-core boxes are available in ABS, PC+ABS, cold-rolled steel, aluminium and other protective materials.
Can it be used outside a commercial building?
Yes, provided an appropriately IP-rated outdoor box is selected.
Can unused ports remain empty?
Yes. Unused adapter positions can remain unpopulated, while installed adapters should be protected with dust caps.
What is the difference between a 24 Core and 48 Core box?
The 48-core box provides approximately twice the nominal fibre capacity and is better suited to larger distribution points.
What is the difference between a 48 Core and 96 Core box?
The 96-core enclosure provides twice the nominal fibre capacity and is more suitable for larger aggregation or backbone installations.
What is the difference between a termination box and an ODF?
A termination box is commonly wall-mounted and can be used indoors or outdoors, while an ODF is generally designed for more centralized rack- or cabinet-based fibre management.
What is the difference between a termination box and FAT box?
A termination box primarily focuses on fibre termination and splicing, while a FAT box emphasizes distribution to subscribers, although many modern FTTx enclosures perform both functions.
Does it require electricity?
No. The termination box, adapters, pigtails and splice trays are passive components.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply compatible SC/APC adapters.
Do you supply SC/UPC adapters?
Yes. Matching SC/UPC adapters can also be supplied.
Do you supply fibre pigtails?
Yes. Single-mode and multimode pigtails with SC, LC and other connector types can be supplied.
Do you supply PLC splitters?
Yes. Compatible PLC splitter options can be supplied for FTTH and PON deployments.
Do you supply fibre optic cable?
Yes. Indoor, outdoor, armoured, ADSS, FTTH and other fibre cable types can be supplied according to project requirements.
Do you supply fusion-splicing tools?
Yes. Fusion splicers, cleavers, strippers, splice sleeves and related fibre installation accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination, fusion splicing and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic equipment and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 48 Core Fibre Termination Box provides a secure, scalable and organized solution for terminating, splicing and distributing up to 48 optical fibres across FTTH, FTTB, ISP, telecommunications and enterprise networks.
Contact Fiber Optics Kenya for 48 Core Fibre Termination Boxes, SC/APC and SC/UPC adapters, pigtails, splice trays, PLC splitters, fibre cables, installation accessories, bulk orders and nationwide delivery across Kenya.
