48 Core Fibre Closure with Mid Span in Kenya
KSh 6,000.00
1 available
Continue shopping48 Core Fibre Closure with Mid Span in Kenya
The 48 Core Fibre Closure with Mid Span is an outdoor fibre optic splice enclosure designed to protect, organize and manage up to 48 optical fibre connections while allowing technicians to access selected fibres from a continuous backbone cable without cutting every fibre in the cable.
Mid-span access is particularly useful in FTTH, ISP and telecommunications networks where only a small number of fibres need to branch toward a new distribution point while the remaining fibres continue uninterrupted along the main route. The Fiber Optic Association describes mid-span access as opening the cable and accessing the required buffer tube or fibres while leaving the fibres that are not being dropped intact.
A 48-core closure provides protected space for fusion splices, fibre slack, buffer tubes and cable strength members. Depending on the model, closures may support inline or mid-span branching, multiple cable-entry ports and outdoor protection such as IP68. Commercial 48-core closures are available for aerial, duct, pole, wall and buried installations.
At Fiber Optics Kenya, the 48 Core Fibre Closure with Mid Span is suitable for ISPs, telecommunications contractors, FTTH installers, campus networks, CCTV fibre infrastructure and backbone fibre projects.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 48 Core Fibre Closure with Mid Span |
| Product Type | Fibre Optic Splice Closure |
| Also Known As | FOSC / Fibre Joint Closure / Mid-Span Closure |
| Nominal Fibre Capacity | Up to 48 Fibres |
| Typical Splice Capacity | Up to 48 Fusion Splices |
| Mid-Span Access | Supported on compatible model |
| Cable Branching | Supported |
| Closure Style | Horizontal / Inline or Dome depending on model |
| Typical Splice Tray Capacity | 12 / 24 Fibres |
| Fusion Splicing | Supported |
| Mechanical Splicing | Model dependent |
| Fibre Slack Storage | Integrated |
| Uncut Fibre Storage | Supported on mid-span designs |
| Cable Strength Member Fixing | Yes |
| Typical Cable Ports | Multiple |
| Common Entry Configuration | 2 In / 2 Out or multi-port |
| Typical Housing | ABS / PC / PP Engineering Plastic |
| Outdoor Protection | IP65 / IP67 / IP68 depending on model |
| Aerial Installation | Yes |
| Pole Mounting | Available |
| Wall Mounting | Available |
| Duct Installation | Yes |
| Underground Installation | Available on rated models |
| Electrical Power Required | No |
| Applications | FTTH, FTTx, ISP, Telecom, CCTV, Backbone Fibre |
48-core closures are commercially available with IP68 protection and capacities of 12–48 fibres, while other closure families provide multiple entry ports specifically for inline or mid-span branching.
What Is Mid-Span Fibre Access?
Mid-span access means accessing selected fibres inside a fibre optic cable at an intermediate point along the route without completely cutting the cable.
Instead of cutting all 48 fibres, the installer opens a section of the cable jacket, identifies the required buffer tube and accesses only the fibres that need to be dropped or spliced. The remaining fibres and tubes can continue uninterrupted through the closure.
| Mid-Span Element | Function |
|---|---|
| Continuous Backbone Cable | Passes through closure |
| Cable Jacket Window | Provides fibre access |
| Selected Buffer Tube | Opened for required fibres |
| Drop Fibres | Spliced toward branch network |
| Unused Fibres | Remain uncut |
| Uncut Tubes | Stored safely inside enclosure |
| Splice Tray | Protects branch splices |
| Closure Housing | Provides environmental protection |
Why Use Mid-Span Access?
A large backbone cable may contain many fibres even when only a few fibres are required at a particular location.
For example, a 48-core fibre cable may pass through an estate where only four fibres need to feed a local FAT box. Cutting and re-splicing all 48 fibres would create unnecessary work and additional splice loss.
With mid-span access, only the required fibres are accessed.
| Method | Normal Fibre Handling |
|---|---|
| Full Cable Cut | All fibres are interrupted |
| Mid-Span Access | Only selected fibres are accessed |
| Unselected Fibres | Continue without splicing |
| Required Fibres | Branched or dropped |
| Splice Count | Reduced |
| Installation Complexity | Lower when correctly designed |
This is one of the major advantages of mid-span fibre architecture.
How a 48 Core Mid-Span Closure Works
The backbone cable enters and exits the closure while remaining continuous. A section of the outer cable sheath is carefully removed to expose the internal buffer tubes.
The installer identifies the tube containing the fibres required at that location. Only those fibres are prepared and fusion-spliced toward a branch or drop cable.
| Stage | Function |
|---|---|
| Backbone Cable Entry | Main fibre route enters closure |
| Mid-Span Window | Cable jacket opened |
| Strength Member Fixing | Secures backbone cable |
| Buffer Tube Identification | Locates required fibre group |
| Unused Tubes | Remain intact |
| Selected Fibres | Prepared for branching |
| Fusion Splice | Joins fibre to branch cable |
| Splice Sleeve | Protects fusion joint |
| Splice Tray | Stores completed splice |
| Backbone Cable Exit | Main cable continues onward |
The FOA recommends keeping unneeded tubes carefully coiled and stored while isolating the tube containing the fibres that need to be spliced.
Example of a 48 Core Mid-Span Fibre Network
Consider a 48-core backbone fibre running through several locations.
| Fibre Allocation | Use |
|---|---|
| Fibres 1–4 | Branch to Building A |
| Fibres 5–8 | Branch to Building B |
| Fibres 9–12 | Reserved |
| Fibres 13–24 | Continue to Site C |
| Fibres 25–36 | Continue to Site D |
| Fibres 37–48 | Future Expansion |
At Building A, the closure might only access fibres 1–4. The remaining 44 fibres continue along the route without being cut.
Typical 48-Core Fibre Organization
| Fibre Range | Typical Group |
|---|---|
| 1–12 | Group 1 |
| 13–24 | Group 2 |
| 25–36 | Group 3 |
| 37–48 | Group 4 |
This grouping simplifies mid-span fibre identification and documentation.
Typical Fibre Colour Sequence
| Fibre | Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
For 48-core cables, this sequence is typically repeated across different tubes or bundles. The actual manufacturer's colour code should always be followed.
Mid-Span vs Full Cable Splicing
| Feature | Mid-Span Access | Full Cable Cut |
|---|---|---|
| All Fibres Cut | No | Yes |
| Selected Fibre Access | Yes | Yes |
| Unused Fibre Splices | Avoided | Required |
| Splice Count | Lower | Higher |
| Potential Added Loss | Lower | Higher |
| Installation Time | Often Lower | Higher |
| Backbone Continuity | Preserved | Interrupted |
| Ideal for Branching | Excellent | Possible |
Mid-Span vs Straight-Through Splicing
| Feature | Mid-Span | Straight-Through Joint |
|---|---|---|
| Backbone Cable Remains Continuous | Yes | No |
| Selected Fibres Branched | Yes | Not Usually |
| All Fibres Spliced | No | Usually Yes |
| Network Expansion | Excellent | Moderate |
| FTTH Distribution | Excellent | Good |
| Backbone Repair | Less Common | Excellent |
Typical Splice Tray Configuration
| Tray Capacity | Trays Required for 48 Splices |
|---|---|
| 12 Fibre | 4 |
| 24 Fibre | 2 |
| 48 Fibre | 1 High-Capacity System |
The exact arrangement depends on the closure design. A commercial 48-core dome enclosure, for example, supports 12/24-fibre splice trays and up to 48 fibres.
Cable Entry Configuration
Mid-span closures often need more flexible cable entry than simple straight-through closures.
| Entry Arrangement | Application |
|---|---|
| 2 In / 2 Out | Basic inline and branching |
| 3 In / 3 Out | Multiple branch cables |
| 4+ Ports | Larger distribution network |
| Oval Mid-Span Port | Allows continuous cable loop |
| Round Drop Ports | Branch or distribution cables |
Some fibre closures use six entry ports and are explicitly designed for inline or mid-span branching.
Mid-Span Cable Storage
One of the important functions of a mid-span closure is safely storing the uncut sections of fibre and buffer tube.
| Storage Requirement | Purpose |
|---|---|
| Uncut Buffer Tubes | Maintain backbone continuity |
| Fibre Slack | Allows future maintenance |
| Service Loops | Supports re-entry |
| Splice Fibres | Routes toward tray |
| Branch Cable Slack | Enables future repair |
Incorrectly bending or compressing uncut fibres can cause attenuation or fibre damage.
Fibre Bend Radius
Maintaining fibre bend radius is especially important in high-core-count mid-span installations.
A commercial 48-core closure specifies a 40 mm fibre bend radius without additional splice-tray loss, demonstrating the importance of controlled fibre routing inside the enclosure.
| Fibre Management Rule | Recommendation |
|---|---|
| Avoid Tight Bends | Maintain manufacturer limit |
| Avoid Fibre Kinks | Route smoothly |
| Store Slack Loosely | Prevent stress |
| Separate Uncut Tubes | Improve organization |
| Secure Without Crushing | Protect fibre geometry |
IP68 Protection
Many professional 48-core fibre closures provide IP68 protection.
| Protection Feature | Benefit |
|---|---|
| Dust-Tight Housing | Prevents contamination |
| Water Resistance | Protects outdoor fibre joints |
| Weather Protection | Suitable for outside plant |
| UV-Resistant Material | Helps outdoor longevity |
| Mechanical Sealing | Allows re-entry on compatible models |

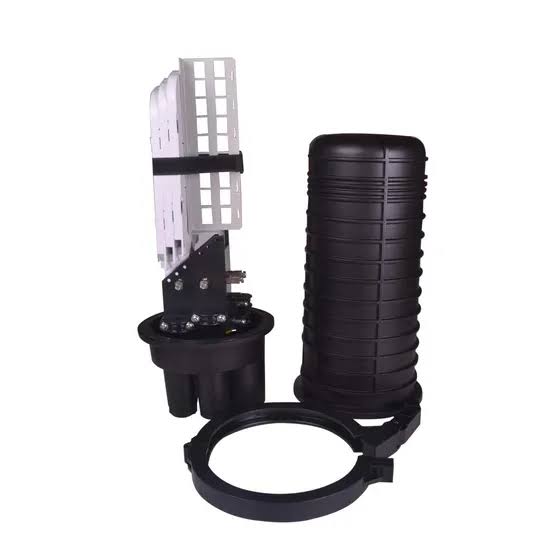

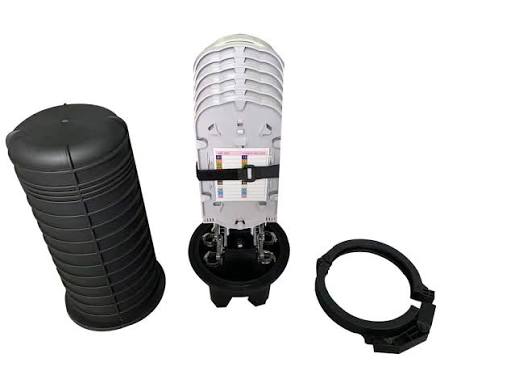

A 48-core dome closure from Norden uses high-strength polycarbonate and provides IP68-rated protection, while another 48-core mechanical enclosure also specifies IP68.
Aerial Mid-Span Installation
Mid-span closures are particularly useful on aerial fibre routes.
| Feature | Benefit |
|---|---|
| Backbone Cable Continuity | Cable remains uninterrupted |
| Branch Cable Connection | Easy local distribution |
| Pole Installation | Suitable for access networks |
| Low Splice Count | Only selected fibres spliced |
| Future Expansion | Additional fibres can be accessed later |
Underground Mid-Span Installation
Mid-span closures can also be installed in chambers or handholes where the product has an appropriate environmental rating.
| Requirement | Recommendation |
|---|---|
| IP Rating | Use rated outdoor enclosure |
| Water Protection | Critical |
| Cable Sealing | Install correctly |
| Service Slack | Leave sufficient length |
| Re-Entry Space | Allow technician access |
| OTDR Testing | Test after installation |
48 Core Mid-Span Closure vs Standard 48 Core Closure
| Feature | Mid-Span Closure | Standard Closure |
|---|---|---|
| Continuous Cable Access | Yes | Not Always |
| Selected Fibre Branching | Excellent | Possible |
| Uncut Fibre Storage | Designed For It | Model Dependent |
| Backbone Continuity | Excellent | Depends on installation |
| FTTH Branch Nodes | Excellent | Good |
| Network Expansion | Excellent | Moderate |
48 Core Mid-Span Closure vs FAT Box
| Feature | Mid-Span Closure | FAT Box |
|---|---|---|
| Main Function | Backbone fibre branching | Subscriber distribution |
| Uncut Cable Access | Yes | Usually No |
| Adapters | Usually No | Common |
| PLC Splitter | Usually No | Common |
| Fusion Splicing | Primary Function | Supported |
| Subscriber Drops | Indirect | Direct |
Mid-Span Closure vs ODF
| Feature | Mid-Span Closure | ODF |
|---|---|---|
| Typical Location | Outside Plant | Network Room |
| Backbone Cable Access | Excellent | Not Typical |
| Fusion Splicing | Yes | Yes |
| Patch Ports | Usually No | Yes |
| Weather Resistance | High | Limited |
| Rack Mounting | No | Yes |
Key Benefits of 48 Core Fibre Closure with Mid Span
Access Selected Fibres
Only the fibres needed at the branch location have to be accessed.
Maintain Backbone Continuity
Unneeded fibres remain continuous through the closure.
Reduce Unnecessary Splices
Avoiding splicing every fibre reduces installation work and unnecessary splice points.
Support Fibre Branching
Selected fibres can be routed toward FAT boxes, buildings, estates or other network branches.
48-Fibre Capacity
Provides sufficient capacity for medium and large fibre distribution routes.
Outdoor Protection
IP68-rated models are available for demanding outside-plant environments.
Future Network Expansion
Additional fibres can potentially be accessed later when the closure is designed for re-entry.
Passive Operation
No electricity or network configuration is required.
Watch 48 Core Fibre Closure with Mid Span
Watch on YouTube: https://youtu.be/XMkUcC80AHI
The 48 Core Fibre Closure with Mid Span is particularly valuable where a high-count fibre cable passes through several distribution points but only a few fibres are required at each location. Instead of cutting and re-splicing the complete backbone, technicians can open an access window in the cable, identify the required buffer tube and splice only the fibres being dropped. The FOA describes this as the standard principle behind mid-span access.
This approach can simplify FTTH and ISP network expansion because the majority of fibres remain uninterrupted while selected fibres are branched toward local distribution networks. Closures designed for mid-span branching provide cable-entry arrangements and internal storage space for continuous tubes, service loops and branch splices. Commercial closure systems with six entry ports are explicitly designed for inline or mid-span branching.
Proper cable preparation is especially important during mid-span work because technicians must expose the required fibres without damaging the fibres that continue through the network. Correct strength-member anchoring, fibre bend-radius control, splice protection and environmental sealing are therefore essential. Fiber Optics Kenya can supply the 48 Core Fibre Closure with Mid Span together with outdoor fibre cables, ADSS and armoured cables, fusion splice sleeves, fusion splicers, cable preparation tools, optical power meters, VFLs and OTDR equipment for complete installations.
Applications of 48 Core Fibre Closure with Mid Span
1. FTTH Networks
Allows selected backbone fibres to be dropped toward subscriber distribution points.
2. ISP Backbone Networks
Provides branch connections without interrupting all backbone fibres.
3. Residential Estates
Selected fibres can branch toward individual zones or blocks.
4. Apartment Developments
Allows a backbone cable to continue while fibres are dropped toward different buildings.
5. Telecommunications Networks
Supports structured branching along outside-plant fibre routes.
6. Campus Networks
Allows selected fibres to branch toward different buildings.
7. Aerial Fibre Networks
Provides convenient mid-span branching from backbone cables installed on poles.
8. Underground Networks
IP-rated closures can support mid-span branching in handholes and chambers.
9. CCTV Fibre Networks
Selected fibres can branch toward remote surveillance locations.
10. Metro Fibre Networks
Allows local access fibres to be dropped from larger backbone cables.
Typical FTTH Mid-Span Architecture
| Network Stage | Component |
|---|---|
| OLT / POP | Active Fibre Equipment |
| Backbone Cable | 48 Core Fibre |
| Mid-Span Point | 48 Core Fibre Closure |
| Selected Fibres | Fusion-Spliced |
| Unselected Fibres | Continue Through |
| Branch Cable | Distribution Fibre |
| FAT / FDB | Subscriber Distribution |
| FTTH Drop Cable | Customer Connection |
| ATB | Final Termination |
| ONT / ONU | Customer Equipment |
Typical Mid-Span Installation Process
| Step | Procedure |
|---|---|
| 1 | Identify required branch location |
| 2 | Open fibre closure |
| 3 | Measure required cable access length |
| 4 | Carefully remove outer cable jacket |
| 5 | Preserve continuous buffer tubes |
| 6 | Secure cable strength members |
| 7 | Identify required fibre tube |
| 8 | Open selected buffer tube |
| 9 | Identify fibres to be dropped |
| 10 | Prepare branch cable |
| 11 | Fusion-splice selected fibres |
| 12 | Install splice sleeves |
| 13 | Place splices in tray |
| 14 | Store uncut tubes safely |
| 15 | Store service slack |
| 16 | Seal cable ports |
| 17 | Close enclosure securely |
| 18 | Test branch and backbone fibres |
| 19 | Document fibre allocation |
The precise cable-opening procedure depends on the cable construction and closure manufacturer's instructions.
Installation Considerations
| Factor | Recommendation |
|---|---|
| Mid-Span Compatibility | Confirm closure supports access |
| Cable Diameter | Match entry ports |
| Cable Construction | Check loose tube/ribbon design |
| Access Window Length | Follow cable/closure guidance |
| Strength Members | Anchor correctly |
| Uncut Tubes | Protect carefully |
| Fibre Identification | Follow colour coding |
| Splice Sleeves | Protect every joint |
| Bend Radius | Maintain safe radius |
| Slack Storage | Leave maintenance length |
| Environmental Seal | Restore correctly |
| OTDR Testing | Test backbone and branch |
| Documentation | Record every accessed fibre |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| Fusion Splice Sleeves | Protect branch splices |
| Splice Trays | Organize fibre joints |
| 48 Core Fibre Cable | Backbone connectivity |
| ADSS Fibre Cable | Aerial backbone networks |
| Armoured Fibre Cable | Rugged outside-plant routes |
| Branch Fibre Cable | Distribution connection |
| Cable Slitter | Mid-span jacket preparation |
| Buffer Tube Slitter | Accesses fibres safely |
| Fibre Stripper | Removes fibre coating |
| Fibre Cleaver | Precision preparation |
| Fusion Splicer | Creates optical joints |
| Fibre Labels | Identifies fibres |
| Optical Power Meter | Measures optical levels |
| Visual Fault Locator | Checks continuity |
| OTDR | Tests backbone and splice performance |
Why Buy 48 Core Fibre Closure with Mid Span from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 48 Core Closures | High-capacity splice management |
| Mid-Span Solutions | Efficient backbone branching |
| Outdoor Fibre Cables | Complete network infrastructure |
| ADSS Fibre Cables | Aerial deployment |
| Armoured Fibre Cables | Rugged outdoor networks |
| Fusion Splice Sleeves | Professional splice protection |
| Fusion Splicers | Reliable fibre joining |
| Mid-Span Cable Tools | Easier cable access |
| Optical Testing Equipment | Verify network performance |
| Technical Guidance | Correct product matching |
| Bulk Supply | Suitable for ISPs and contractors |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions

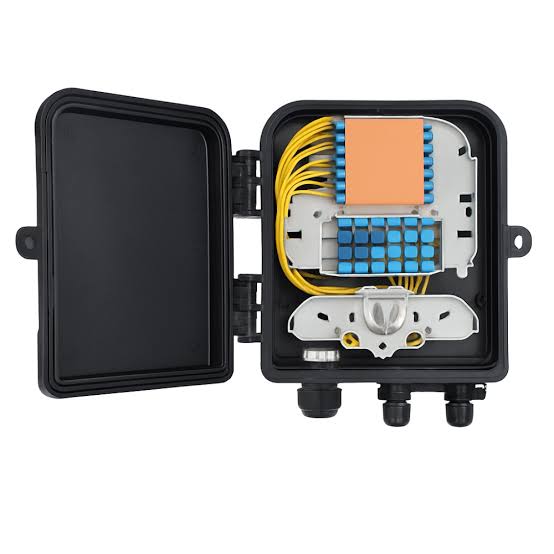

What is a 48 Core Fibre Closure with Mid Span?
It is a fibre optic splice enclosure that can protect up to 48 fibre connections while allowing selected fibres in a continuous cable to be accessed and branched without cutting every fibre.
What is mid-span fibre access?
Mid-span access involves opening the fibre cable at an intermediate point and accessing only the fibres required for a drop or branch while leaving other fibres intact.
Why use mid-span instead of cutting the whole cable?
It reduces unnecessary splicing and allows most backbone fibres to remain uninterrupted.
How many fibres can the closure handle?
A 48-core model can typically manage up to 48 fibres, depending on the exact tray and closure configuration.
Can only one fibre be accessed?
Technically, mid-span access can be used to access a small number of selected fibres while leaving others untouched.
Can several fibres be branched?
Yes. The number depends on the network design, available fibres, splice tray capacity and branch cable.
Do all 48 fibres need to be cut?
No. Avoiding this is one of the primary advantages of mid-span access.
Can unused fibres continue through the closure?
Yes. Unselected fibres can remain continuous through the enclosure.
Does the closure store uncut fibre tubes?
Mid-span-compatible closures provide space for safe routing and storage of continuous tubes and fibres.
Does it support fusion splicing?
Yes. Fusion splicing is the normal way to connect the selected fibres to a branch cable.
Is it suitable for FTTH?
Yes. Mid-span access is highly useful in FTTH backbone and distribution architectures.
Can ISPs use it?
Yes. It is especially useful where one backbone cable serves several distribution points.
Can it be used with 48 Core ADSS cable?
Yes, provided the closure, cable diameter and anchoring arrangement are compatible.
Can it be used with armoured cable?
Yes, with appropriate mechanical anchoring and sealing.
Can it be installed aerially?
Yes. Suitable closures can be deployed in aerial fibre networks.
Can it be installed underground?
Yes, provided the selected closure carries the appropriate environmental rating.
Are IP68 models available?
Yes. 48-core fibre closures with IP68 protection are commercially available.
How many cable entry ports can it have?
This depends on the model. Some mid-span branching closures provide six cable entries.
What is the difference between mid-span and straight splicing?
Straight splicing normally joins two cut cable ends, whereas mid-span access preserves the continuity of fibres that are not required at the branch point.
What is the difference between a mid-span closure and FAT box?
A mid-span closure primarily provides protected backbone fibre access and splicing, while a FAT box normally provides connectorized subscriber distribution and may contain PLC splitters.
Can the closure be reopened?
Many mechanical splice closures are designed for repeated re-entry and maintenance. A commercial 48-core closure, for example, specifies repeated opening and reuse of its sealing system.
Why is fibre slack required?
Slack provides working length for initial splicing and future maintenance.
Why must uncut tubes be stored carefully?
Excessive bending, crushing or twisting can damage the fibres or introduce optical loss.
Does it need electricity?
No. The closure is completely passive.
Do you supply 48 Core fibre cable?
Yes. Fiber Optics Kenya can supply compatible high-core fibre optic cables.
Do you supply ADSS fibre cable?
Yes. ADSS fibre cables can be supplied for aerial networks.
Do you supply armoured fibre cable?
Yes. Armoured fibre cables can be supplied for rugged outdoor installations.
Do you supply fusion splice sleeves?
Yes. Compatible fibre splice protection sleeves are available.
Do you supply fusion splicers?
Yes. Professional fusion-splicing equipment can be supplied.
Do you supply mid-span cable stripping tools?
Yes. Fibre cable preparation and stripping tools can be supplied.
Do you supply OTDRs?
Yes. OTDRs, optical power meters and VFLs can be supplied for fibre testing.
Do you provide fibre installation and splicing?
Yes. Professional fibre mid-span access, fusion splicing, closure installation and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 48 Core Fibre Closure with Mid Span provides an efficient way to branch selected fibres from a 48-core backbone cable while allowing the remaining fibres to continue uninterrupted. This makes it particularly useful for scalable FTTH, ISP, telecom, campus and outside-plant fibre networks.
Contact Fiber Optics Kenya for 48 Core Mid-Span Fibre Closures, ADSS and armoured fibre cables, fusion-splicing accessories, mid-span cable tools, optical testing equipment, bulk orders and nationwide delivery across Kenya.
