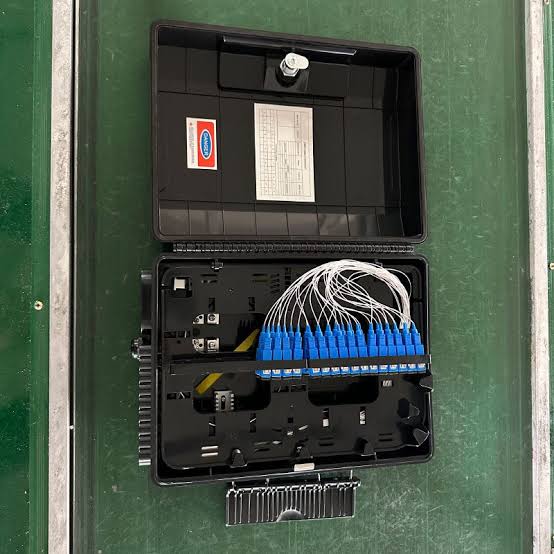

32 Core FAT Box 1x32 SC/UPC Splitter in Kenya
KSh 4,500.00
1 available
Continue shopping32 Core FAT Box 1x32 SC/UPC Splitter in Kenya
The 32 Core FAT Box 1x32 SC/UPC Splitter is a high-capacity fibre access terminal designed to combine optical splitting, fibre splicing, termination, protection, storage and subscriber distribution inside one organized enclosure. It is especially suitable for FTTH, GPON and other passive optical networks where a single feeder fibre needs to be distributed to as many as 32 downstream fibre connections.
A loaded 32-core FAT box typically incorporates a 1x32 PLC splitter and up to 32 SC/UPC subscriber interfaces. SC/UPC connectors are normally identified by their blue housings and provide convenient plug-and-play fibre connections. Commercial 32-port fibre distribution boxes are available specifically with 1x32 PLC splitter capacity and configurations for SC/UPC connectivity.
At Fiber Optics Kenya, the 32 Core FAT Box 1x32 SC/UPC Splitter is ideal for ISPs, fibre contractors, telecommunications companies, apartment developments, residential estates, commercial complexes and larger FTTH deployments. Matching SC/UPC patch cords, pigtails, fast connectors, FTTH drop cables, fusion-splicing accessories, optical power meters, PON meters and OTDRs can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 32 Core FAT Box 1x32 SC/UPC Splitter |
| Product Type | Fibre Access Terminal / Fibre Distribution Box |
| Core Capacity | 32 Core |
| Subscriber Capacity | Up to 32 connections |
| Splitter Configuration | 1x32 |
| Splitter Technology | PLC |
| Splitter Input | 1 |
| Splitter Outputs | 32 |
| Connector Type | SC/UPC |
| Typical Connector Colour | Blue |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Common Fibre Type | G.657A1 / G.652D depending on splitter |
| Typical Fibre Size | 9/125 µm |
| Split Type | Balanced / Symmetrical |
| Ideal Power Share per Output | Approx. 3.125% |
| Operating Wavelength | Typically 1260–1650 nm |
| Theoretical Split Loss | Approx. 15.05 dB |
| Typical Insertion Loss | Around 16.2–17.5 dB |
| Typical PDL | ≤0.3 dB |
| Typical Uniformity | Around ≤1.5–1.8 dB |
| Typical Return Loss | ≥50–55 dB |
| Typical Directivity | ≥55 dB |
| Splicing Capability | Yes |
| Fibre Storage | Yes |
| Drop Cable Management | Yes |
| Typical Enclosure Material | ABS / PC+ABS |
| Typical Protection Rating | IP65 on many outdoor models |
| Mounting | Wall / pole depending on model |
| Power Requirement | None |
| Applications | FTTH, GPON, EPON, FTTx, PON |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Representative 1x32 PLC splitter specifications commonly show 1260–1650 nm operation, approximately 16.2 dB typical insertion loss, around 17.1 dB maximum insertion loss, ≤0.3 dB PDL and ≥55 dB directivity.
What Is a 32 Core FAT Box 1x32 SC/UPC Splitter?
A 32 Core FAT Box 1x32 SC/UPC acts as a distribution point between one feeder fibre and up to 32 subscriber fibres.
| Component | Function |
|---|---|
| FAT Enclosure | Protects fibre components |
| Feeder Cable Entry | Receives incoming fibre |
| Splice Tray | Organizes fusion splices |
| 1x32 PLC Splitter | Divides one signal into 32 outputs |
| 32 SC/UPC Interfaces | Subscriber fibre connections |
| Cable Routing Guides | Maintains organized fibre paths |
| Drop Cable Ports | Routes subscriber fibres |
| Cable Clamps | Secures incoming/outgoing cables |
| Fibre Storage Area | Stores maintenance slack |
| Lockable Cover | Protects internal components |
Commercial 32-core FAT/ODP products are offered with 1x32 SC/UPC splitter configurations for FTTH networks.
What Does 32 Core 1x32 SC/UPC Mean?
| Term | Meaning |
|---|---|
| 32 Core | Up to 32 fibre distribution positions |
| FAT | Fiber Access Terminal |
| 1x32 | One optical input divided into 32 outputs |
| SC | Standard / Subscriber Connector |
| UPC | Ultra Physical Contact |
| PLC | Planar Lightwave Circuit |
| FTTH | Fibre to the Home |
| GPON | Gigabit Passive Optical Network |
The splitter itself is passive and does not require electricity or software configuration.
How the 1x32 SC/UPC FAT Box Works
The feeder fibre enters the FAT box and connects to the input of the internal PLC splitter. The splitter then distributes the signal across 32 downstream fibre paths.
| Stage | Function |
|---|---|
| Feeder Fibre | Carries upstream optical signal |
| Splitter Input | Receives optical power |
| 1x32 PLC Circuit | Divides signal into 32 outputs |
| Outputs 1–8 | Subscriber group 1 |
| Outputs 9–16 | Subscriber group 2 |
| Outputs 17–24 | Subscriber group 3 |
| Outputs 25–32 | Subscriber group 4 |
| SC/UPC Interfaces | Provide subscriber connection points |
| FTTH Drop Cables | Carry fibre toward customer premises |
Typical 1x32 Optical Distribution
| Parameter | Value |
|---|---|
| Inputs | 1 |
| Outputs | 32 |
| Ideal Power per Output | 3.125% |
| Theoretical Split Loss | ~15.05 dB |
| Typical Practical Insertion Loss | ~16.2–17.5 dB |
| Maximum Subscriber Branches | 32 |
| External Power Required | None |
Because the optical power is divided across 32 outputs, careful optical-budget planning is essential.
SC/UPC Connector Features
| Feature | Benefit |
|---|---|
| Typical Blue Housing | Easy UPC identification |
| SC Form Factor | Common fibre interface |
| UPC Polish | Low optical reflection |
| Push-Pull Connection | Easy installation |
| Factory-Terminated Ports | Faster subscriber activation |
| Single-Mode Compatibility | Excellent |
| ODF/FDB Compatibility | Excellent |
| Easy Cleaning and Maintenance | Yes |
SC/UPC interfaces are widely used in single-mode fibre networks and are especially useful where the surrounding equipment uses the same connector polish.
SC/UPC vs SC/APC FAT Box
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Colour | Blue | Green |
| Polish Type | Ultra Physical Contact | Angled Physical Contact |
| Back Reflection | Low | Lower |
| Enterprise Fibre | Very Common | Application dependent |
| FTTH / GPON | Used where UPC specified | Very Common |
| CATV | Less Preferred | Excellent |
| Direct UPC/APC Mating | No | No |
SC/UPC and SC/APC connectors should not be directly mated because their end-face geometries differ.
Typical 1x32 PLC Splitter Performance
| Parameter | Representative Value |
|---|---|
| Configuration | 1x32 |
| Operating Wavelength | 1260–1650 nm |
| Typical Insertion Loss | ~16.2 dB |
| Maximum Insertion Loss | ~17.1–17.5 dB |
| PDL | ≤0.3 dB |
| Uniformity | Around ≤1.5–1.8 dB |
| Directivity | ≥55 dB |
| Return Loss | ≥50–55 dB |
| Fibre Mode | Single Mode |
One published 1x32 PLC specification gives 16.2 dB typical insertion loss, 17.1 dB maximum insertion loss, ≤0.3 dB PDL and ≥55 dB directivity.
Why the 1260–1650 nm Range Matters
| Wavelength | Typical Application |
|---|---|
| 1310 nm | PON upstream |
| 1490 nm | GPON downstream |
| 1550 nm | Video / optical overlay |
| 1577 nm | Newer PON downstream |
| 1625 nm | Fibre testing and monitoring |
Professional PLC splitters commonly support a broad 1260–1650 nm optical window, allowing them to operate across several single-mode network wavelengths.
32 Subscriber Port Capacity
| Ports | Typical Assignment |
|---|---|
| 1–8 | Subscribers 1–8 |
| 9–16 | Subscribers 9–16 |
| 17–24 | Subscribers 17–24 |
| 25–32 | Subscribers 25–32 |
This makes the 32-core FAT box especially useful in high-density subscriber areas such as estates, apartments and commercial developments.
Loaded 32 Core FAT Box vs Empty 32 Core FAT Box
| Feature | Loaded 1x32 SC/UPC | Empty 32 Core FAT Box |
|---|---|---|
| Enclosure Included | Yes | Yes |
| 1x32 PLC Splitter | Included | Usually Not |
| SC/UPC Adapters | Included / configured | Usually Not |
| Ready for Distribution | High | Requires Assembly |
| Installation Speed | Faster | Slower |
| Configuration Flexibility | Moderate | Excellent |
| On-Site Fibre Work | Reduced | Higher |
| Best Use | Rapid FTTH Deployment | Customized Networks |
The connectorized loaded version is useful when faster deployment is more important than component-level customization.
32 Core vs 16 Core FAT Box
| Feature | 16 Core 1x16 | 32 Core 1x32 |
|---|---|---|
| Outputs | 16 | 32 |
| Ideal Power per Output | 6.25% | 3.125% |
| Theoretical Split Loss | ~12.04 dB | ~15.05 dB |
| Subscriber Capacity | Up to 16 | Up to 32 |
| Physical Size | Medium | Larger |
| Optical Budget Demand | High | Higher |
| Medium-Density FTTH | Excellent | Good |
| High-Density FTTH | Good | Excellent |
32 Core vs 8 Core FAT Box
| Feature | 8 Core 1x8 | 32 Core 1x32 |
|---|---|---|
| Outputs | 8 | 32 |
| Ideal Power per Output | 12.5% | 3.125% |
| Theoretical Split Loss | ~9.03 dB | ~15.05 dB |
| Subscriber Capacity | 8 | 32 |
| Small Subscriber Cluster | Excellent | Often Oversized |
| Large Estate / Apartment | Limited | Excellent |
| Optical Budget Requirement | Lower | Higher |
FAT Box vs ODF
| Feature | 32 Core FAT Box | ODF |
|---|---|---|
| Primary Role | Subscriber distribution | Central fibre management |
| Subscriber Ports | Excellent | Possible |
| 1x32 PLC Support | Excellent | Available |
| Outdoor Models | Common | Less Common |
| Wall Mounting | Common | Available |
| Pole Mounting | Common on suitable models | Rare |
| Rack Mounting | Rare | Very Common |
| FTTH Last-Mile Use | Excellent | Less Direct |
FAT Box vs Fibre Joint Closure
| Feature | FAT Box | Fibre Joint Closure |
|---|---|---|
| SC Adapter Ports | Common | Less Common |
| Subscriber Activation | Easy | Less Direct |
| PLC Splitter Integration | Excellent | Possible |
| Fusion Splicing | Yes | Yes |
| Drop Cable Distribution | Excellent | Good |
| Wall / Pole Installation | Common | Common |
| Maintenance Access | Excellent | More Involved |
Typical Enclosure Features
| Feature | Typical Description |
|---|---|
| Material | ABS / PC+ABS |
| Port Capacity | 32 |
| Protection Rating | IP65 on many models |
| UV Resistance | Available |
| Rain Resistance | Available |
| Wall Mounting | Yes |
| Pole Mounting | Available |
| Splitter Area | 1x32 compatible |
| Adapter Panel | Up to 32 positions |
| Splice Management | Integrated |
Professional 32-port FDBs are available with IP65 weather protection, 32 adapter positions and 1x32 splitter capability.
Advantages of 32 Core FAT Box 1x32 SC/UPC
High Subscriber Capacity
One distribution point can support up to 32 downstream fibre connections.
Integrated 1x32 Splitting
One feeder optical signal is passively divided across thirty-two outputs.
SC/UPC Plug-and-Play Connections
Blue SC/UPC interfaces simplify subscriber activation and maintenance.
Organized Fibre Management
Splices, splitter outputs and subscriber fibres can be protected and labelled within the enclosure.
Reduced Feeder Fibre Requirement
One feeder fibre can serve multiple subscribers rather than requiring a dedicated feeder fibre for every customer.
Outdoor Deployment Options
IP65-class 32-port boxes are available for outdoor FTTH installations.
Passive Operation
The PLC splitter needs no electrical power or software configuration.
Watch 32 Core FAT Box 1x32 SC/UPC Splitter
Watch on YouTube: https://youtu.be/oNf-k6ewj4s
The 32 Core FAT Box 1x32 SC/UPC Splitter provides a complete high-density FTTH distribution point by combining a 32-port fibre enclosure with a one-to-thirty-two PLC splitter and SC/UPC subscriber interfaces. Kenyan suppliers currently offer 32-core FAT/ODP products in this exact general configuration, making them suitable for larger residential, commercial and ISP distribution projects.
From an optical design perspective, the 1x32 splitter is one of the most important sources of loss in the link. A perfectly equal 32-way split introduces about 15.05 dB theoretical loss, while real professional PLC splitters commonly reach approximately 16.2–17.5 dB insertion loss after practical device losses are included. Installers should therefore calculate fibre attenuation, connectors, adapters, splices and engineering margin before deploying the box in a GPON or FTTH network.
The loaded SC/UPC configuration also simplifies day-to-day subscriber management. Technicians can identify individual blue SC/UPC ports, connect compatible subscriber fibres and test each output without rebuilding the splitter arrangement. Fiber Optics Kenya can supply the 32 Core FAT Box 1x32 SC/UPC Splitter together with SC/UPC patch cords, pigtails, fast connectors, FTTH drop cables, fusion-splicing accessories, optical power meters, PON meters and OTDR equipment, providing a complete solution for high-capacity fibre access deployments.
Applications of 32 Core FAT Box 1x32 SC/UPC
1. FTTH Networks
Distribute one feeder fibre to up to thirty-two subscriber connections.
2. GPON Networks
Provide passive optical distribution between an OLT and multiple ONTs.
3. EPON Networks
Support one-to-many passive optical distribution in compatible EPON deployments.
4. Residential Estates
Serve large clusters of homes from a centralized fibre distribution point.
5. Apartment Buildings
Provide fibre to multiple apartments or floors.
6. Commercial Buildings
Distribute optical services to offices, tenants or departments.
7. ISP Access Networks
Create standardized high-density subscriber distribution points.
8. Campus Networks
Distribute fibre to multiple network endpoints or buildings.
9. Telecommunications Networks
Provide protected passive optical splitting and termination.
10. Fibre Distribution Projects
Combine splicing, splitting, termination and subscriber fibre management in one enclosure.
Typical FTTH Architecture
| Network Stage | Typical Component |
|---|---|
| Service Provider Equipment | OLT |
| Feeder Fibre | Single Mode |
| FAT Box Input | Feeder Fibre / SC/UPC depending on configuration |
| PLC Splitter | 1x32 |
| Output Interfaces | 32 × SC/UPC |
| Subscriber Network | FTTH Drop Cable |
| Subscriber Equipment | ONT / ONU |
Optical Budget Considerations
| Loss Source | Include? |
|---|---|
| 1x32 PLC Splitter | Yes |
| Feeder Fibre Attenuation | Yes |
| Distribution Fibre | Yes |
| Drop Fibre | Yes |
| SC/UPC Connector Losses | Yes |
| Adapter Losses | Yes |
| Fusion Splices | Yes |
| Other Splitter Stages | Yes |
| Engineering Margin | Yes |
A 1x32 splitter can account for more than 16 dB of practical loss, so careful power-budget planning is essential.
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Connector Compatibility | Maintain SC/UPC interfaces |
| Connector Cleaning | Clean before every connection |
| Optical Budget | Calculate before deployment |
| Port Labelling | Clearly number 1–32 |
| Fibre Bend Radius | Avoid excessive bending |
| Cable Entry Sealing | Maintain environmental protection |
| Unused Ports | Keep dust caps fitted |
| Drop Cable Routing | Organize individually |
| Splice Protection | Use heat-shrink sleeves |
| Output Testing | Test every activated port |
| Subscriber Records | Document port assignments |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Patch Cord | Connects optical interfaces |
| SC/UPC Pigtail | Fibre termination |
| SC/UPC Fast Connector | Subscriber field termination |
| SC/UPC Adapter | Optical coupling |
| FTTH Drop Cable | Subscriber fibre link |
| Fusion Splice Sleeve | Protects fibre joints |
| Fusion Splicer | Creates permanent fibre splices |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Removes coating |
| Connector Cleaner | Cleans SC/UPC ferrules |
| Optical Power Meter | Measures optical power |
| PON Power Meter | Tests PON signals |
| Visual Fault Locator | Fibre tracing |
| OTDR | Diagnoses fibre links |
Why Buy 32 Core FAT Box 1x32 SC/UPC Splitter from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 32 Core FAT Boxes | High-capacity FTTH distribution |
| 1x32 PLC Splitters | Full 32-way optical distribution |
| SC/UPC Interfaces | Convenient subscriber connectivity |
| Matching Patch Cords | Complete fibre connections |
| Pigtails & Fast Connectors | Flexible termination options |
| FTTH Drop Cables | Complete subscriber links |
| Fusion-Splicing Accessories | Professional deployment |
| Optical Testing Equipment | Verify network performance |
| Technical Guidance | Help with split ratio and optical budget |
| Bulk Supply | Ideal for ISP projects |
| Competitive Pricing | Cost-effective high-density rollout |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 32 Core FAT Box 1x32 SC/UPC Splitter?
It is a 32-port fibre access terminal configured with a 1x32 PLC splitter and SC/UPC fibre connections for high-density subscriber distribution. Kenyan market listings include this configuration.
What does 32 Core mean?
It refers to capacity for approximately 32 fibre distribution positions or subscriber ports.
What does 1x32 mean?
It means one optical input is divided into 32 outputs.
What does SC/UPC mean?
SC/UPC is an SC fibre connector with an Ultra Physical Contact polished end face.
What colour are SC/UPC connectors?
SC/UPC connectors and adapters are commonly blue.
How many subscribers can it serve?
It can potentially support up to 32 subscriber fibre connections, subject to the network architecture and optical power budget.
Is the splitter single mode?
Yes. 1x32 PLC splitters used in FTTH are typically designed for single-mode fibre.
What is the operating wavelength?
Professional 1x32 PLC splitters commonly operate across 1260–1650 nm.
What is the theoretical splitting loss?
Approximately 15.05 dB.
What is the actual insertion loss?
Representative 1x32 PLC products specify approximately 16.2–17.5 dB, depending on construction and grade.
What is the typical PDL?
Representative 1x32 splitters specify around ≤0.3 dB PDL.
Does the splitter require electricity?
No. PLC splitters operate passively.
Is the FAT box suitable for FTTH?
Yes. 32-port distribution boxes are widely used for high-density FTTH deployments.
Can it be used for GPON?
Yes. A 1x32 splitter is commonly used in GPON networks where the optical budget supports the split ratio.
Can it be used for EPON?
Yes. PLC splitter-based fibre access boxes can also be used in compatible EPON networks.
Can one 1x32 splitter serve 32 customers?
Potentially yes. Each output can serve one subscriber, provided the total network optical budget remains within specification.
Can it be installed outdoors?
Yes, if the enclosure is appropriately rated. Many 32-port FDBs offer IP65 environmental protection.
Can it be wall mounted?
Yes. Wall mounting is common for 32-port FAT and FDB boxes.
Can it be pole mounted?
Many outdoor 32-port fibre boxes support pole mounting.
Does it support fibre splicing?
Yes. Splicing, splitter installation, fibre storage and termination are standard functions of professional 32-port distribution boxes.
Can SC/APC patch cords be connected to the SC/UPC ports?
No. Use matching SC/UPC connections. APC and UPC end-face geometries should not be directly mated.
What is the difference between SC/UPC and SC/APC?
SC/UPC is normally blue and uses an ultra-polished straight end face, while SC/APC is green and uses an angled end face designed for lower back reflection.
What is the difference between loaded and empty 32 Core FAT boxes?
The loaded version comes configured with the splitter and subscriber interfaces, while the empty version allows the installer to choose and add those components separately.
What is the difference between a 16 Core and 32 Core FAT Box?
The 32-core model provides twice the nominal subscriber capacity but requires a larger optical splitting ratio and therefore introduces more splitter loss.
Can unused ports remain empty?
Yes. Unused SC/UPC ports should remain protected with clean dust caps.
Do you supply SC/UPC patch cords?
Yes. Fiber Optics Kenya can supply compatible single-mode SC/UPC patch cords.
Do you supply SC/UPC pigtails?
Yes. Matching SC/UPC pigtails can be supplied.
Do you supply SC/UPC fast connectors?
Yes. SC/UPC fast connectors are available for field fibre termination.
Do you supply FTTH drop cables?
Yes. Indoor and outdoor FTTH drop cables can be supplied.
Do you supply fusion-splicing tools?
Yes. Fibre cleavers, strippers, fusion splicers and related accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, fusion splicing, termination and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 32 Core FAT Box 1x32 SC/UPC Splitter provides a practical high-capacity solution for distributing one feeder fibre to as many as 32 subscriber connections in FTTH, GPON and other passive fibre networks.
Contact Fiber Optics Kenya for competitive pricing, 32 Core SC/UPC FAT Boxes, matching fibre accessories, bulk orders and nationwide delivery across Kenya.
