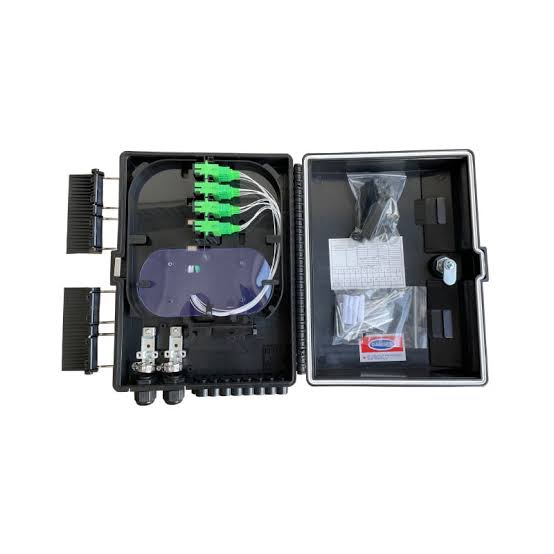

32 Core Empty FAT Box in Kenya

The 32 Core Empty FAT Box is a high-capacity fibre access terminal enclosure designed for organizing, protecting, splicing, terminating and distributing optical fibres in FTTH, GPON, EPON and other FTTx networks. Unlike a loaded FAT box, the empty version is supplied without a pre-installed PLC splitter, adapters or pigtails, allowing installers to configure the enclosure according to the requirements of a particular fibre network.

A 32-core empty FAT box can typically accommodate up to 32 fibre connections and a 1x32 PLC splitter. This makes it particularly useful for ISPs, telecommunications contractors and fibre installers who want to select their preferred splitter and connector configuration. A Kenyan 32 Core Empty FAT Box is specifically offered as an outdoor enclosure capable of housing a 1x32 splitter while supporting up to 32 fibre connections.

At Fiber Optics Kenya, the 32 Core Empty FAT Box is suitable for residential estates, apartment buildings, commercial developments, campuses, ISP networks and telecommunications infrastructure. Compatible 1x32 PLC splitters, SC/APC adapters, SC/UPC adapters, pigtails, fast connectors, FTTH drop cables and fibre installation tools can also be supplied.

Key Product Specifications

Specifications vary between manufacturers. For example, one current 32-port FDB uses an ABS enclosure, IP65 protection, 32 adapter positions and accommodation for one 1x32 or two 1x16 splitters.

What Is a 32 Core Empty FAT Box?

A 32 Core Empty FAT Box is essentially the enclosure and internal fibre-management platform without the optical splitter and termination components already installed.

The main advantage is configuration flexibility. Instead of purchasing a pre-loaded box, the fibre installer can select the exact components required for the network.

What Does 32 Core Mean?

The 32 Core designation refers to the enclosure's fibre-distribution capacity.

A 32-port FAT box can therefore become a significant local distribution point in a high-density FTTH network.

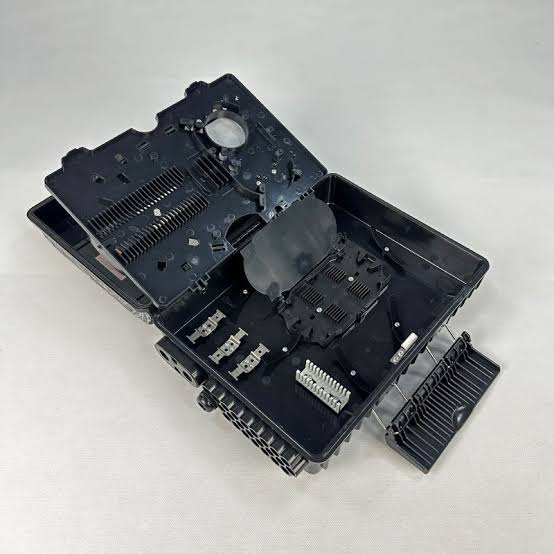

What Comes in an Empty 32 Core FAT Box?

The exact package varies, but the enclosure generally provides the infrastructure required to build a customized distribution point.

Professional 32-port distribution boxes are designed to support termination, splicing, fibre storage and optical splitting within the enclosure.

32 Core Empty FAT Box Capacity

A representative 32-port model accommodates 32 SC, FC, LC or E2K adapter positions, while supporting either one 1x32 splitter or two 1x16 splitters.

Why Choose an Empty FAT Box?

An empty enclosure gives installers greater freedom when designing fibre networks.

This flexibility is one of the main differences between an empty FAT box and a loaded FAT box.

32 Core Empty FAT Box vs Loaded 1x32 FAT Box

Loaded 32-core FAT boxes with 1x32 splitters are commercially available, confirming the same enclosure capacity can be configured as a complete 32-way distribution point.

1x32 PLC Splitter Compatibility

One of the most common ways to configure the enclosure is with a 1x32 PLC splitter.

The actual insertion loss is higher than the theoretical division loss because real PLC splitters introduce additional component losses.

A 32-port FDB can be specifically designed to accommodate a 1x32 PLC splitter.

Alternative Splitter Configurations

Depending on the internal design, installers may use different splitter arrangements.

One current 32-port enclosure specifically supports one 1x32 or two 1x16 splitters.

SC/APC Configuration

The empty FAT box can be fitted with SC/APC adapters and matching pigtails.

This configuration is widely suitable for PON networks where low back reflection is important.

SC/UPC Configuration

The enclosure can alternatively be fitted with SC/UPC adapters.

Kenyan suppliers also offer loaded 32-core boxes configured with 1x32 SC/UPC splitters, demonstrating this configuration option.

SC/APC vs SC/UPC Configuration

The advantage of purchasing the empty 32 Core FAT Box is that the installer can choose the interface that matches the existing fibre network.

Typical Enclosure Construction

A representative 32-port model is manufactured from ABS, provides IP65 protection and supports wall or pole installation.

IP65 Protection

Many professional 32-port FAT boxes provide IP65 environmental protection.

AOA Tech specifies its FDB-32 enclosure as IP65 waterproof and dustproof, anti-UV and rainfall resistant.

Always confirm the rating of the specific enclosure supplied rather than assuming every 32-core box has the same protection level.

Indoor and Outdoor Installation

32-port fibre distribution boxes are used in corridors, basements, rooms and exterior building locations.

Wall Mount vs Pole Mount

Current 32-port designs support both wall-mounted and pole-mounted deployment.

32 Core vs 16 Core FAT Box

32 Core vs 8 Core FAT Box

FAT Box vs Fibre Joint Closure

FAT Box vs ODF

Key Benefits of 32 Core Empty FAT Box

High Fibre Capacity

The enclosure provides space for up to 32 fibre distribution connections.

Flexible Configuration

Installers can choose their preferred splitter, adapters and pigtails.

1x32 PLC Splitter Support

Professional 32-port boxes are specifically designed to accommodate a 1x32 PLC splitter.

Fibre Splicing and Termination

The enclosure supports both fibre splicing and termination.

Organized Fibre Storage

Internal fibre-management sections keep excess fibre protected and organized.

Outdoor Protection

IP65 and UV-resistant versions are available for outside-plant deployments.

Wall or Pole Installation

This allows the enclosure to fit both building-based and aerial FTTH architectures.

Future Expansion

An empty box can be populated gradually as the subscriber network grows.

Watch 32 Core Empty FAT Box

https://youtu.be/oNf-k6ewj4s

The 32 Core Empty FAT Box provides fibre installers with greater configuration freedom than a pre-loaded enclosure. Instead of being restricted to a particular splitter or connector type, technicians can configure the box with the required 1x32, 1x16 or other compatible PLC splitter arrangement and select SC/APC or SC/UPC interfaces according to the network design. A Kenyan 32-core empty ODP/FAT box is specifically designed to accommodate a 1x32 splitter while supporting up to 32 fibre connections.

The enclosure is also designed to simplify splicing, fibre termination, cable routing and fibre storage. Professional 32-port distribution boxes provide dedicated internal areas for these functions, helping technicians maintain proper fibre organization and making future troubleshooting, maintenance and subscriber activation easier.

For larger FTTH deployments, the 32-core capacity makes the enclosure particularly suitable for residential estates, apartments, commercial developments and ISP distribution networks. Fiber Optics Kenya can supply the 32 Core Empty FAT Box together with 1x32 PLC splitters, SC/APC and SC/UPC adapters, fibre pigtails, fast connectors, FTTH drop cables, fusion-splicing accessories and optical testing equipment, allowing installers to build a complete customized distribution point.

Applications of 32 Core Empty FAT Box

1. FTTH Networks

Provides a centralized distribution point for multiple subscriber fibres.

2. GPON Networks

Can house a 1x32 PLC splitter for passive optical distribution.

3. EPON Networks

Suitable for customized EPON subscriber distribution.

4. ISP Fibre Networks

Useful for creating standardized high-capacity fibre access points.

5. Residential Estates

Supports distribution to large clusters of homes.

6. Apartment Buildings

Provides organized fibre distribution for multi-dwelling developments.

7. Commercial Buildings

Distributes fibre to offices, shops, departments or tenants.

8. Campus Networks

Suitable for distributing fibre to multiple buildings or endpoints.

9. CATV Networks

32-port distribution boxes can also be used in CATV fibre infrastructure.

10. Data Communication Networks

Suitable for fibre termination and distribution in data networks and LAN infrastructure.

Typical FTTH Configuration

Components Needed to Load the FAT Box

The exact components required depend on the intended fibre architecture.

Recommended Fibre Installation Tools

Installation Considerations

Why Buy 32 Core Empty FAT Box from Fiber Optics Kenya?

Frequently Asked Questions

What is a 32 Core Empty FAT Box?

It is a 32-port fibre access/distribution enclosure supplied without the complete splitter and termination configuration, allowing installers to customize it for their network.

How many fibre connections can it support?

It can typically support up to 32 fibre connections. A Kenyan 32 Core Empty FAT/ODP product is specifically rated for up to 32 connections.

Does the empty FAT box come with a splitter?

No. An empty version is intended to allow the installer to select and install the required splitter.

Can I install a 1x32 PLC splitter?

Yes. 32-port FAT/FDB enclosures are commonly designed to accommodate a 1x32 PLC splitter.

Can I install two 1x16 splitters?

Some models support two 1x16 splitters instead of one 1x32 splitter.

Can I use SC/APC adapters?

Yes. The empty configuration can be populated with compatible SC/APC adapters and pigtails.

Can I use SC/UPC adapters?

Yes. SC/UPC is another common configuration. Loaded 32-core SC/UPC FAT boxes are commercially available in Kenya.

Does it come with adapters?

An empty model normally does not include the complete adapter configuration. Confirm the exact supplied contents before purchase.

Does it come with pigtails?

Normally not when sold as an empty FAT box.

Is it suitable for FTTH?

Yes. 32-port distribution boxes are specifically designed for FTTH access networks.

Is it suitable for GPON?

Yes. It can be configured with PLC splitters for GPON distribution.

Can it be used for EPON?

Yes. It can also be configured for compatible EPON deployments.

Is it waterproof?

Many models provide IP65 water and dust protection, but this should be confirmed for the specific enclosure being purchased.

Is it UV resistant?

Professional outdoor models can use UV-resistant construction.

Can it be installed outdoors?

Yes, when the selected enclosure has the appropriate environmental rating.

Can it be wall mounted?

Yes. Wall mounting is a common installation method.

Can it be pole mounted?

Yes. Many 32-port FAT boxes support pole mounting.

Does it support fusion splicing?

Yes. Professional FDB-32 boxes support mechanical splicing and fusion splicing.

Can it store excess fibre?

Yes. Fibre storage and management are core functions of this type of enclosure.

What material is commonly used?

ABS plastic is commonly used for professional outdoor fibre access enclosures.

What is the difference between empty and loaded FAT boxes?

An empty FAT box lets the installer choose the splitter, adapters and termination components, while a loaded box arrives preconfigured with some or all of these components.

What is the difference between 16 Core and 32 Core FAT boxes?

The 16-core box supports a smaller number of distribution positions, while the 32-core box provides up to twice the nominal subscriber capacity.

Can I upgrade the box later?

Yes. One advantage of an empty enclosure is that compatible components can be added as the network is deployed, provided the final configuration remains within the box's supported capacity.

Do you supply 1x32 PLC splitters?

Yes. Fiber Optics Kenya can supply compatible 1x32 PLC splitters.

Do you supply SC/APC adapters?

Yes. Matching SC/APC adapters, pigtails and patch cords can be supplied.

Do you supply SC/UPC adapters?

Yes. SC/UPC adapters and related accessories can also be supplied.

Do you supply FTTH drop cable?

Yes. Indoor and outdoor FTTH drop cables can be supplied.

Do you supply fibre testing equipment?

Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.

Do you provide fibre installation and testing?

Yes. Professional fibre installation, fusion splicing, termination and optical testing support is available.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
