Sliding ODF Price in Kenya
24 Core Sliding ODF SC/UPC in Kenya
KSh 4,500.00
1 available
Continue shopping24 Core Sliding ODF SC/UPC in Kenya

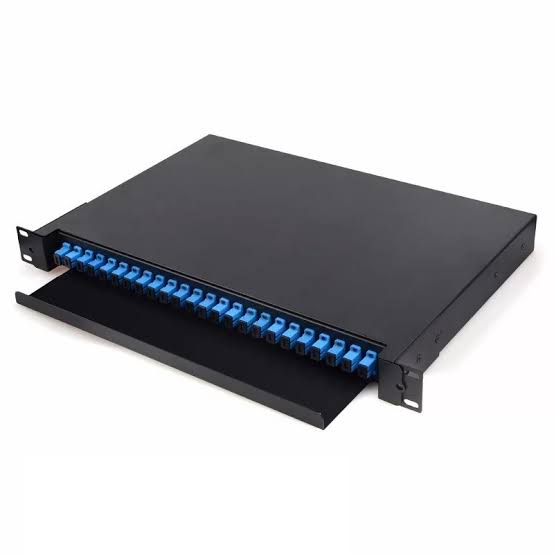

The 24 Core Sliding ODF SC/UPC is a rack-mounted optical distribution frame designed for the termination, fusion splicing, organization, protection and patching of up to 24 optical fibres. The sliding drawer construction allows technicians to pull the internal fibre-management section forward when installing, inspecting or maintaining fibres, providing easier access than a conventional fixed rack-mount fibre panel.
A typical 24-port sliding ODF is built around a 19-inch 1U rack format and can accommodate 24 SC simplex adapters. SC/UPC configurations use the familiar blue adapters and are commonly paired with single-mode SC/UPC pigtails. Current commercial sliding panels are available with 24 SC simplex ports, cold-rolled steel construction, integrated splice management and front-access sliding trays.
At Fiber Optics Kenya, the 24 Core Sliding ODF SC/UPC is suitable for ISPs, data rooms, server rooms, CCTV systems, enterprise networks, telecommunications installations, FTTH infrastructure and commercial fibre networks. Matching SC/UPC pigtails, SC/UPC patch cords, hybrid patch cords, fibre cables, splice sleeves, fusion-splicing tools and optical testing equipment can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 24 Core Sliding ODF SC/UPC |
| Product Type | Optical Distribution Frame / Fibre Patch Panel |
| Fibre Capacity | 24 Core |
| Typical Adapter Capacity | 24 SC Simplex |
| Connector Type | SC/UPC |
| Typical Connector Colour | Blue |
| Typical Rack Format | 19-Inch |
| Typical Rack Height | 1U |
| Tray Design | Sliding / Pull-Out |
| Fibre Mode | Single Mode commonly |
| Typical Fibre Category | OS2 |
| Fusion Splicing | Supported |
| Pigtail Termination | Supported |
| Splice Management | Integrated |
| Cable Entry | Multiple rear/side entries depending on model |
| Fibre Slack Storage | Integrated |
| Typical Housing | Cold-Rolled Steel |
| Typical Material Thickness | Around 1.0–1.2 mm depending on model |
| Typical Width | Approx. 482–483 mm |
| Typical Height | Approx. 44 mm |
| Indoor Installation | Yes |
| Rack Mounting | Yes |
| Power Requirement | None |
| Applications | FTTH, FTTB, LAN, WAN, ISP, CCTV, Telecom |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
One current 24-port SC/UPC sliding panel is specified as a 1U rack-mount unit measuring 483 mm wide × 44 mm high × 230 mm deep, using cold-rolled steel and 24 ports. Another professional sliding panel supports 24 SC simplex adapters within a standard 1U format.
What Is a 24 Core Sliding ODF?
A 24 Core Sliding ODF provides a centralized rack-mounted termination point for twenty-four optical fibres.
| Component | Function |
|---|---|
| Metal Enclosure | Protects fibre connections |
| Sliding Tray | Provides maintenance access |
| SC/UPC Adapter Panel | Creates 24 optical ports |
| Splice Tray | Stores fusion joints |
| SC/UPC Pigtails | Terminates incoming fibres |
| Cable Entry Ports | Receives fibre cable |
| Cable Fixing Points | Secures incoming cable |
| Routing Guides | Maintains fibre organization |
| Slack Storage | Stores excess fibre |
| Rack Mounting Ears | Secures ODF in cabinet |
Sliding fibre patch panels combine splicing, termination, distribution, patching, storage and management within a single rack unit.
What Does ODF Mean?
| Term | Meaning |
|---|---|
| ODF | Optical Distribution Frame |
| 24 Core | Twenty-four fibre termination positions |
| SC | SC Fibre Connector |
| UPC | Ultra Physical Contact |
| 1U | One Rack Unit |
| 19-Inch | Standard Network Rack Width |
| Pigtail | Connectorized fibre with one bare end |
| Patch Cord | Fibre cable with connectors at both ends |
An ODF provides a structured interface between installed fibre cables and active or passive optical equipment.
What Does SC/UPC Mean?
The 24 Core Sliding ODF uses SC/UPC optical interfaces.
| Feature | Description |
|---|---|
| Connector Format | SC |
| Polish Type | Ultra Physical Contact |
| Typical Colour | Blue |
| Connection Style | Push-Pull |
| Single Mode Use | Very Common |
| Patch Panel Use | Excellent |
| Enterprise Networks | Excellent |
| FTTx Use | Supported where UPC is specified |
SC/UPC interfaces should be matched with other UPC-polished connectors throughout the optical path.
How a 24 Core Sliding ODF Works
The incoming fibre cable enters through the rear or side of the ODF and is secured inside the enclosure. Individual fibres are then routed to the splice tray and fusion-spliced to SC/UPC pigtails.
| Stage | Function |
|---|---|
| Incoming Fibre Cable | Brings optical fibres |
| Cable Entry | Routes cable into ODF |
| Cable Clamp | Secures cable |
| Fibre Preparation | Separates individual cores |
| Fusion Splicing | Joins fibres to pigtails |
| Splice Sleeve | Protects fusion joints |
| Splice Tray | Stores completed splices |
| SC/UPC Pigtails | Connect to adapters |
| SC/UPC Adapters | Provide front-panel ports |
| Patch Cords | Connect network equipment |
Professional 24-port sliding panels may be supplied pre-loaded with adapters, pigtails and splice accessories or purchased as an enclosure for custom configuration.
24 SC/UPC Port Configuration
| Ports | Typical Fibre Assignment |
|---|---|
| 1–6 | Fibres 1–6 |
| 7–12 | Fibres 7–12 |
| 13–18 | Fibres 13–18 |
| 19–24 | Fibres 19–24 |
Numbered ports simplify patching, fibre identification and troubleshooting.
Why Use a Sliding ODF?
The sliding drawer design is one of the main advantages of this ODF.
| Feature | Benefit |
|---|---|
| Pull-Out Tray | Easier internal access |
| Front Maintenance | Less need to access rear of rack |
| Splice Accessibility | Easier fusion-splice servicing |
| Cable Organization | Better fibre management |
| Rack Efficiency | ODF remains installed during servicing |
| Safer Fibre Handling | Less unnecessary fibre movement |
| Faster Troubleshooting | Splices and pigtails remain accessible |
Commercial 19-inch sliding fibre panels use side rails or drawer mechanisms specifically to make internal fibre management more accessible.
24 Core Sliding ODF vs Fixed ODF
| Feature | Sliding ODF | Fixed ODF |
|---|---|---|
| Internal Access | Excellent | Moderate |
| Drawer Movement | Yes | No |
| Maintenance Convenience | Higher | Lower |
| Rack Mounting | Yes | Yes |
| Splice Access | Easier | Less Convenient |
| Cable Management | Excellent | Good |
| Initial Cost | Usually Higher | Usually Lower |
| Frequent Maintenance | Better | Adequate |
For busy network cabinets, the sliding mechanism can significantly simplify fibre servicing.
24 Core Sliding ODF vs 12 Core Sliding ODF
| Feature | 12 Core | 24 Core |
|---|---|---|
| SC/UPC Ports | 12 | 24 |
| Fibre Capacity | 12 | 24 |
| Typical Height | 1U | 1U |
| Rack Space Used | 1U | 1U |
| Port Density | Lower | Higher |
| Small Network | Excellent | Excellent |
| Medium Network | Moderate | Better |
| Future Expansion | Moderate | Higher |
The 24-core version offers twice the SC simplex port capacity while often retaining the same 1U rack footprint.
24 Core vs 48 Core Sliding ODF
| Feature | 24 Core | 48 Core |
|---|---|---|
| Typical SC Capacity | 24 | Up to 48 |
| Network Size | Small / Medium | Medium / Large |
| Patch Density | Moderate | Higher |
| Cable Management | Simpler | More Complex |
| Small Server Room | Excellent | Often More Than Needed |
| ISP POP | Excellent | Better for Larger POP |
| Expansion Capacity | Good | Higher |
Sliding 1U ODF platforms can support capacities ranging from 24 fibres to 48 fibres depending on adapter format and panel construction.
SC/UPC vs SC/APC ODF
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Colour | Blue | Green |
| Polish | Ultra Physical Contact | Angled Physical Contact |
| Back Reflection | Low | Lower |
| Enterprise Fibre | Very Common | Application dependent |
| FTTH / GPON | Used where UPC specified | Very Common |
| CATV | Less Preferred | Excellent |
| Direct UPC/APC Mating | No | No |
APC and UPC connectors should not be directly connected because their end-face geometries are different.
Typical SC/UPC Pigtail Configuration
A loaded 24-core ODF may use 24 SC/UPC pigtails.
| Specification | Typical Value |
|---|---|
| Quantity | 24 |
| Connector | SC/UPC |
| Typical Colour | Blue connector |
| Fibre Mode | Single Mode |
| Core / Cladding | 9/125 µm |
| Typical Fibre Category | OS2 |
| Buffer | 900 µm commonly |
| Bare End | Fusion-splice ready |
| Typical Length | Around 1 m depending on supplied model |
One current sliding 24-port ODF can be ordered with 24 SC simplex adapters and 24 matching pigtails.
Fusion Splicing Inside the ODF
| Step | Procedure |
|---|---|
| 1 | Pull sliding tray outward |
| 2 | Route incoming fibre cable |
| 3 | Secure cable |
| 4 | Prepare buffer tube |
| 5 | Identify individual fibres |
| 6 | Strip fibre coating |
| 7 | Clean fibre |
| 8 | Precision cleave |
| 9 | Fusion-splice to SC/UPC pigtail |
| 10 | Protect splice with sleeve |
| 11 | Place splice in tray |
| 12 | Route pigtail to adapter |
| 13 | Test optical connection |
| 14 | Slide tray back into rack |
Typical 24-Core Fibre Colour Organization
A 24-core cable commonly uses two groups of twelve fibres.
| Fibre | Typical Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
| 13–24 | Sequence repeated and identified by tube/bundle |
The exact colour coding should always be checked against the cable manufacturer's specification.
1U 19-Inch Rack Design
A major advantage of this product is its compact rack footprint.
| Feature | Typical Specification |
|---|---|
| Rack Width | 19 Inch |
| Rack Height | 1U |
| Height | Approx. 44 mm |
| Width | Approx. 482–483 mm |
| Typical Depth | 205–300 mm depending on model |
| Construction | Steel |
| Front Access | Sliding |
| Adapter Panel | 24 SC Simplex |
| Indoor Use | Yes |
One SC/UPC sliding model measures 483 × 44 × 230 mm, while another 24-core drawer-type ODF measures approximately 485 × 300 × 44 mm.
Cold-Rolled Steel Construction
| Feature | Benefit |
|---|---|
| Metal Housing | Mechanical fibre protection |
| Powder Coating | Corrosion and scratch resistance |
| Rack Stability | Secure installation |
| Rigid Adapter Panel | Stable optical interfaces |
| Long Service Life | Suitable for telecom environments |
A current 24-port SC/UPC sliding ODF specifies 1.2 mm cold-rolled steel with powder coating.
Cable Entry and Fibre Management
| Feature | Purpose |
|---|---|
| Rear Cable Entry | Brings cable into ODF |
| Cable Glands | Secures fibre cable |
| Strength Member Fixing | Anchors cable |
| Splice Tray | Organizes joints |
| Routing Rings | Controls fibre paths |
| Slack Storage | Stores excess pigtail/fibre |
| Front Adapter Panel | Provides patching interface |
| Port Labelling | Simplifies identification |
Some professional sliding 1U panels provide four rear cable entries and built-in strength-member fixing points.
Loaded vs Empty 24 Core Sliding ODF
| Feature | Loaded ODF | Empty ODF |
|---|---|---|
| Rack Enclosure | Included | Included |
| SC/UPC Adapters | Included | Usually Not |
| SC/UPC Pigtails | Included | Usually Not |
| Splice Sleeves | Often Included | May Be Separate |
| Installation Speed | Faster | Slower |
| Configuration Flexibility | Moderate | Excellent |
| On-Site Assembly | Reduced | Higher |
| Best For | Standardized Deployment | Custom Networks |
Professional sliding panels can be supplied either completely pre-loaded or pre-loaded with the required pigtails and splice accessories.
ODF vs Fibre Termination Box
| Feature | Sliding ODF | Fibre Termination Box |
|---|---|---|
| Typical Mounting | Rack | Wall |
| 19-Inch Rack | Yes | Usually No |
| Sliding Drawer | Yes | Rare |
| Server Room Use | Excellent | Good |
| Patch Cord Management | Excellent | Good |
| Outdoor Models | Rare | Common |
| FTTx Use | Excellent | Excellent |
| Enterprise Networks | Excellent | Excellent |
ODF vs FAT Box
| Feature | ODF | FAT Box |
|---|---|---|
| Primary Function | Termination and patching | Subscriber distribution |
| Typical Location | Server / Telecom Room | Access Network |
| Rack Mounting | Common | Rare |
| PLC Splitter | Possible | Common |
| Patch Cord Access | Excellent | Moderate |
| Subscriber Drop Ports | Less Direct | Excellent |
| Indoor Rack Use | Excellent | Limited |
Key Benefits of 24 Core Sliding ODF SC/UPC
24-Fibre Capacity
The ODF provides organized termination for twenty-four individual optical fibres.
Compact 1U Design
Twenty-four SC simplex ports can fit within a single rack unit.
Sliding Tray Access
The drawer can be pulled forward for easier fibre installation and maintenance.
SC/UPC Connectivity
Twenty-four blue SC/UPC interfaces provide convenient optical patching.
Fusion-Splicing Support
Installed fibres can be permanently fusion-spliced to SC/UPC pigtails.
Structured Fibre Management
Splice trays, routing guides and slack-storage areas keep fibres organized.
Standard Rack Compatibility
The panel fits standard 19-inch network racks.
Passive Operation
No electrical power is required.
Watch 24 Core Sliding ODF SC/UPC
Watch on YouTube: https://youtu.be/jageWOsahKE

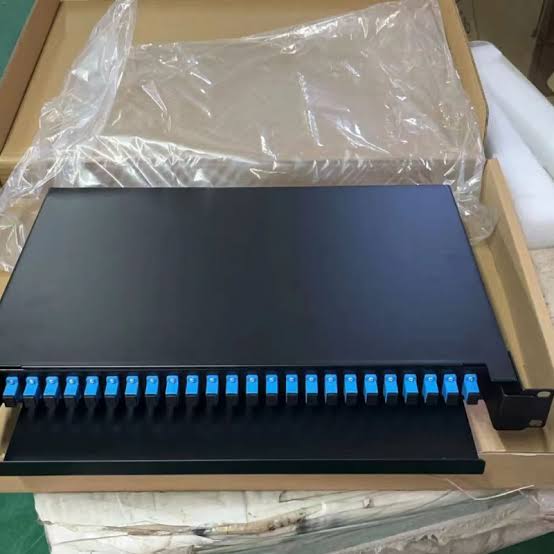

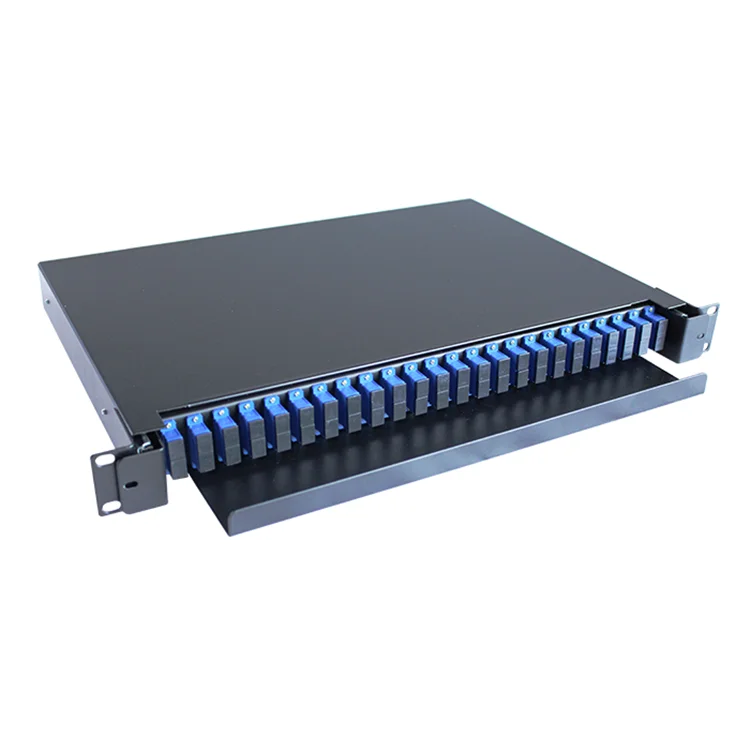

The 24 Core Sliding ODF SC/UPC provides a structured way to terminate twenty-four fibres inside a standard rack while keeping each optical connection accessible from the front panel. A typical installation fusion-splices the incoming fibres to SC/UPC pigtails, which then connect to twenty-four blue SC adapters. Current sliding panels are designed specifically to integrate splicing, termination, patching and cable storage into a compact 1U rack-mount enclosure.

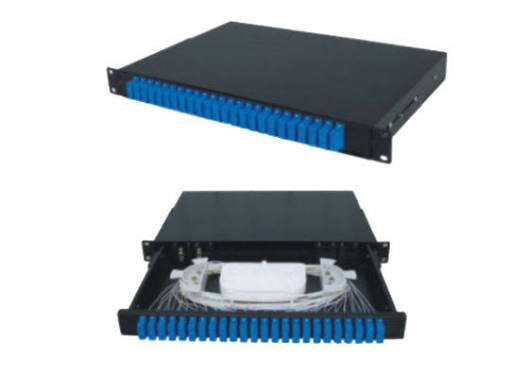

The sliding mechanism is especially valuable during installation and maintenance. Rather than removing the whole fibre panel or working through restricted rack openings, technicians can pull the tray forward to reach the splice tray, fibre routing area and pigtails. Professional designs use guided rails and front-access arrangements to improve fibre handling while allowing the unit to remain secured inside the rack.
For ISPs, offices and telecommunications networks, the 24-port capacity offers a useful balance between rack density and manageability. Fiber Optics Kenya can supply the 24 Core Sliding ODF SC/UPC together with SC/UPC pigtails, adapters, patch cords, hybrid SC-LC patch cords, fibre cables, fusion-splice sleeves, connector cleaners, optical power meters, VFLs and OTDR equipment for complete professional fibre installations.
Applications of 24 Core Sliding ODF SC/UPC
1. ISP Network Racks
Terminates distribution and backbone fibre inside ISP POPs.
2. Server Rooms
Provides organized rack-mounted fibre connectivity.
3. Data Rooms
Creates structured fibre patching between building cabling and active equipment.
4. FTTH Networks
Provides rack-side termination near OLT and distribution infrastructure.
5. FTTB Networks
Terminates building backbone fibres in telecommunications rooms.
6. CCTV Networks
Organizes fibre connections from multiple remote CCTV locations.
7. Campus Networks
Terminates building-to-building fibre links.
8. Enterprise LAN Networks
Provides fibre uplink termination for switches and backbone equipment.
9. Telecommunications Infrastructure
Creates standardized optical cross-connection points.
10. Industrial Fibre Networks
Provides protected termination for industrial optical links.
Typical Network Architecture
| Network Stage | Component |
|---|---|
| Incoming Cable | 24 Core Fibre Cable |
| Rack Termination | 24 Core Sliding ODF |
| Splicing | Fibre-to-SC/UPC Pigtails |
| Front Interfaces | 24 × SC/UPC |
| Patch Cord | SC/UPC or Hybrid Patch Cord |
| Active Equipment | Switch / OLT / Media Converter |
| Network Distribution | LAN / WAN / FTTH |
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Rack Compatibility | Confirm 19-inch rack |
| Rack Space | Reserve at least 1U |
| Connector Type | Maintain SC/UPC compatibility |
| Cable Entry | Secure incoming fibre |
| Strength Member | Anchor correctly |
| Splice Protection | Use heat-shrink sleeves |
| Fibre Bend Radius | Avoid tight routing |
| Port Labelling | Number 1–24 clearly |
| Connector Cleaning | Clean before mating |
| Unused Ports | Keep dust caps installed |
| Patch Cord Routing | Use horizontal/vertical managers |
| Testing | Test each terminated fibre |
| Documentation | Record fibre-to-port allocation |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Adapter | Optical coupling |
| SC/UPC Pigtail | Fusion-splice termination |
| SC/UPC Patch Cord | Fibre interconnection |
| SC/UPC–LC/UPC Patch Cord | Connects ODF to LC equipment |
| 24 Core Fibre Cable | Backbone/distribution connection |
| Fusion Splice Sleeve | Protects splice |
| Splice Tray | Organizes fibre joints |
| Fibre Cable Gland | Secures incoming cable |
| Rack Cable Manager | Organizes patch cords |
| Fibre Labels | Identifies connections |
| Fusion Splicer | Permanent fibre joining |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Removes fibre coating |
| Connector Cleaner | Cleans SC/UPC interfaces |
| Optical Power Meter | Measures optical power |
| Visual Fault Locator | Fibre tracing |
| OTDR | Diagnoses optical links |
Why Buy 24 Core Sliding ODF SC/UPC from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 24 Core Sliding ODFs | Organized rack fibre termination |
| SC/UPC Adapters | Standardized optical interfaces |
| SC/UPC Pigtails | Professional fusion-splice termination |
| SC/UPC Patch Cords | Complete fibre patching |
| Hybrid Patch Cords | Connect to different equipment interfaces |
| Sliding Tray Design | Easier installation and servicing |
| Fibre Optic Cables | Complete network infrastructure |
| Fusion-Splicing Accessories | Professional installation |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Correct component matching |
| Bulk Supply | Suitable for ISP and contractor projects |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 24 Core Sliding ODF SC/UPC?
It is a rack-mounted optical distribution frame designed to terminate and patch 24 fibres through SC/UPC interfaces while providing a sliding tray for easier fibre access. Current products are available in 24-port, 1U sliding configurations.
What does ODF mean?
ODF means Optical Distribution Frame.
How many fibres can it terminate?
It is designed to terminate 24 individual optical fibres in a typical SC simplex configuration.
How many SC/UPC ports does it have?
A standard configuration provides 24 SC simplex ports.
What colour are SC/UPC adapters?
SC/UPC adapters are normally blue.
Is it single mode?
The SC/UPC version is commonly configured for single-mode OS2 fibre, although the enclosure can support other fibre types when populated appropriately.
What is the advantage of the sliding tray?
It provides easier access to internal fibre splices, pigtails and routing without removing the ODF from the rack.
Does it fit a standard network rack?
Yes. Sliding ODFs of this type are designed around the 19-inch rack standard.
Is it 1U?
Most 24-port sliding SC panels use a 1U format of approximately 44 mm high.
What material is it made from?
Cold-rolled steel is common. One current SC/UPC sliding panel uses 1.2 mm cold-rolled steel with powder coating.
Does it support fusion splicing?
Yes. Sliding ODFs combine fibre splicing, termination, patching and management within the same enclosure.
Does it include a splice tray?
Typical complete sliding ODFs include or support internal splice cassettes/trays. Exact supplied accessories depend on the model.
Does it include SC/UPC adapters?
A loaded SC/UPC version includes the adapters. Empty versions may require them to be purchased separately.
Does it include pigtails?
Loaded configurations can include 24 adapters and 24 matching pigtails.
Can I connect SC/APC patch cords?
Not directly. SC/APC and SC/UPC use different ferrule end-face geometries and should not be directly mated.
Can it connect to equipment with LC ports?
Yes. A suitable SC/UPC-to-LC/UPC patch cord can connect the ODF to equipment using LC/UPC interfaces.
Can it use LC adapters?
The enclosure platform may support LC adapters, but a product specified as SC/UPC is populated for SC interfaces. Sliding panels commonly support SC and LC formats.
Can it terminate multimode fibre?
Yes, if populated with the correct multimode adapters, pigtails and patch cords.
Can it be used for FTTH?
Yes. Sliding ODFs are used for fibre termination and patching within FTTx infrastructure.
Can it be used for FTTB?
Yes. It is suitable for terminating building backbone fibres inside telecom rooms.
Can it be used for CCTV fibre?
Yes. Twenty-four ports provide structured termination for multiple CCTV fibre links.
Can it be installed in a server room?
Yes. Rack-mounted fibre patch panels are especially suited to server rooms and data-network cabinets.
Can it be used in an ISP POP?
Yes. It provides organized termination for backbone, distribution or access fibres.
Is it suitable for outdoor installation?
Normally the sliding rack ODF is intended for protected indoor racks and cabinets rather than direct outdoor exposure.
Does it require electricity?
No. The ODF is completely passive.
What is the difference between 12 Core and 24 Core Sliding ODF?
The 24-core version provides twice the nominal SC port capacity while still commonly occupying 1U of rack space.
What is the difference between 24 Core and 48 Core ODF?
A 48-core ODF offers higher density for larger networks, while the 24-core version provides simpler fibre management for small and medium installations.
What is the difference between sliding and fixed ODF?
A sliding ODF has a pull-out tray for easier internal access, while a fixed ODF's fibre-management section remains stationary.
Can fibre slack be stored inside?
Yes. Sliding panels are designed to provide internal storage and cable management.
Can unused ports remain unused?
Yes. Installed unused adapters should remain protected with clean dust caps.
Do you supply SC/UPC adapters?
Yes. Fiber Optics Kenya can supply matching SC/UPC adapters.
Do you supply SC/UPC pigtails?
Yes. Compatible single-mode SC/UPC pigtails can be supplied.
Do you supply SC/UPC patch cords?
Yes. SC/UPC patch cords and hybrid SC-to-LC patch cords can be supplied.
Do you supply fibre cables?
Yes. Indoor, outdoor, armoured, ADSS and other fibre optic cables can be supplied.
Do you supply fusion-splicing tools?
Yes. Fusion splicers, cleavers, fibre strippers, splice sleeves and related tools can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional rack installation, fibre termination, fusion splicing and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 24 Core Sliding ODF SC/UPC provides a compact, accessible and professional solution for terminating, fusion-splicing and patching twenty-four optical fibres inside standard network and telecommunications racks.
Contact Fiber Optics Kenya for 24 Core Sliding ODF SC/UPC units, SC/UPC adapters, pigtails, patch cords, fibre cables, installation accessories, bulk orders and nationwide delivery across Kenya.
