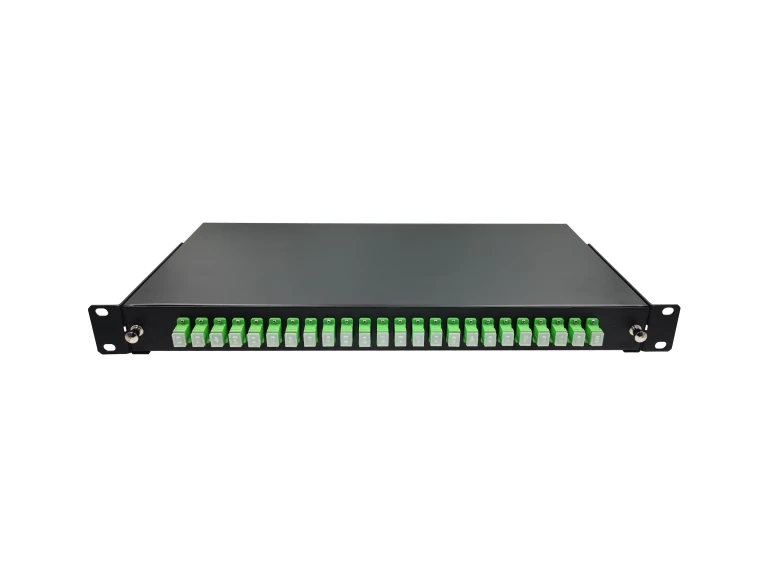

24 Core ODF with SC/APC Connectors in Kenya
KSh 4,000.00
1 available
Continue shopping24 Core ODF with SC/APC Connectors in Kenya
The 24 Core ODF with SC/APC Connectors is a rack-mounted Optical Distribution Frame designed to provide an organized and protected location for the termination, fusion splicing, storage, management and patching of up to 24 optical fibres. It is ideal for fibre installations that require structured connections between incoming backbone or distribution cables and network equipment.
This configuration uses SC/APC connectors and adapters, which are normally identified by their green colour. APC stands for Angled Physical Contact, a polished fibre end-face design that helps minimize back reflection. SC/APC interfaces are widely used in FTTH, GPON and other single-mode optical networks where low reflected optical power is desirable.
A Kenyan 24-core ODF product is available in a 19-inch standard rack format using cold-rolled steel and SC/APC connectors and pigtails, demonstrating the suitability of this configuration for local fibre deployments. At Fiber Optics Kenya, the 24 Core ODF with SC/APC Connectors can be supplied together with compatible pigtails, patch cords, adapters, fibre cables, splice sleeves and optical testing equipment.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 24 Core ODF with SC/APC Connectors |
| Product Type | Optical Distribution Frame |
| Fibre Capacity | 24 Core |
| Typical Port Capacity | 24 |
| Typical Adapter Type | SC Simplex |
| Connector Type | SC/APC |
| Typical Connector Colour | Green |
| Connector Polish | Angled Physical Contact |
| Fibre Mode | Single Mode commonly |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | 9/125 µm |
| Fusion Splicing | Supported |
| Pigtail Termination | Supported |
| Splice Management | Integrated |
| Fibre Slack Storage | Integrated |
| Cable Management | Integrated |
| Typical Rack Format | 19 Inch |
| Typical Rack Height | 1U depending on model |
| Typical Housing | Cold-Rolled Steel |
| Indoor Installation | Yes |
| Rack Mounting | Yes |
| Electrical Power Required | No |
| Applications | FTTH, GPON, FTTB, ISP, Telecom, LAN, WAN, CCTV |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Commercial 24-port ODFs are available as 1U 19-inch rack-mount fibre panels with SC/APC connectivity, while 24-port modular ODFs provide secure termination for up to 24 optical fibres in telecom, server-room and enterprise environments.
What Is a 24 Core ODF?
A 24 Core ODF is a fibre management enclosure that creates an organized interface between an installed fibre optic cable and patch cords leading to network equipment or other fibre infrastructure.
| Internal Component | Function |
|---|---|
| Metal Enclosure | Protects fibre components |
| SC/APC Adapter Panel | Provides accessible fibre interfaces |
| SC/APC Pigtails | Terminates incoming fibres |
| Splice Tray | Stores fusion splices |
| Cable Entry Points | Receives incoming fibre cables |
| Cable Clamps | Secures fibre cable |
| Routing Guides | Controls fibre routing |
| Slack Storage Area | Stores excess fibre |
| Front Port Labels | Identifies each fibre |
| Rack Mount Brackets | Secures ODF in network rack |
A current 24-core SC/APC ODF design uses 24 green SC/APC front-panel interfaces with pigtails and internal splice management.
What Does ODF Mean?
| Term | Meaning |
|---|---|
| ODF | Optical Distribution Frame |
| 24 Core | Twenty-four optical fibre positions |
| SC | SC Fibre Connector |
| APC | Angled Physical Contact |
| FTTH | Fibre to the Home |
| GPON | Gigabit Passive Optical Network |
| PON | Passive Optical Network |
| Pigtail | Connectorized fibre with one bare end |
| Patch Cord | Connectorized fibre cable |
An ODF helps keep fibre terminations clearly arranged so individual connections can be identified, tested, disconnected or repatched without disturbing the complete cable.
What Does SC/APC Mean?
SC/APC combines the SC connector format with an angled physical-contact fibre end face.
| SC/APC Feature | Description |
|---|---|
| Connector Format | SC |
| Polish Type | APC |
| Typical Colour | Green |
| Fibre Mode | Single Mode |
| Typical Core / Cladding | 9/125 µm |
| Connection Style | Push-Pull |
| Back Reflection | Very Low |
| FTTH Suitability | Excellent |
| GPON Suitability | Excellent |
| CATV Suitability | Excellent |
The green adapters shown on current 24-core rack ODF products are characteristic of SC/APC termination.
Why Use SC/APC Connectors?
The APC connector's angled end face helps redirect reflected optical energy away from the transmitting fibre.
| Advantage | Network Benefit |
|---|---|
| Low Back Reflection | Better optical return performance |
| Green Identification | Easy connector recognition |
| Single-Mode Support | Suitable for long-distance fibre |
| GPON Compatibility | Excellent |
| FTTH Compatibility | Excellent |
| Secure SC Format | Easy patching |
| Wide Availability | Easy replacement and expansion |
SC/APC is therefore commonly selected for PON and other single-mode optical infrastructures.
How the 24 Core ODF Works
The incoming multi-core fibre optic cable enters the ODF and is secured mechanically. Individual fibre cores are routed toward a splice tray, where they can be fusion-spliced to SC/APC pigtails.
| Network Stage | Function |
|---|---|
| Incoming Fibre Cable | Carries network fibres |
| Cable Entry | Routes cable into enclosure |
| Cable Fixing | Secures cable |
| Individual Fibres | Routed to splice tray |
| Fusion Splice | Joins fibre to pigtail |
| Splice Sleeve | Protects fusion joint |
| Splice Tray | Stores completed splice |
| SC/APC Pigtail | Connects splice to adapter |
| SC/APC Adapter | Provides front-panel interface |
| Patch Cord | Connects downstream equipment |
Rack-mounted ODFs are designed specifically for fibre connection, distribution, splicing, storage and protection.
24 SC/APC Port Configuration
| Port Range | Typical Allocation |
|---|---|
| 1–6 | Fibres 1–6 |
| 7–12 | Fibres 7–12 |
| 13–18 | Fibres 13–18 |
| 19–24 | Fibres 19–24 |
Each port can be labelled according to the fibre number, building, customer, network device or service assigned to that optical path.
Typical SC/APC Pigtail Configuration
| Specification | Typical Configuration |
|---|---|
| Quantity | Up to 24 |
| Connector | SC/APC |
| Typical Connector Colour | Green |
| Fibre Mode | Single Mode |
| Core / Cladding | 9/125 µm |
| Typical Fibre Category | OS2 |
| Typical Buffer | 900 µm |
| Bare End | Fusion-Splice Ready |
| Adapter Compatibility | SC/APC |
A loaded 24-core ODF can therefore provide matching adapters and pigtails for all 24 fibre positions.
24 Core ODF SC/APC vs SC/UPC
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Back Reflection | Lower | Low |
| FTTH / GPON | Very Common | Network dependent |
| CATV | Excellent | Less Preferred |
| Enterprise Networks | Application dependent | Very Common |
| Direct APC/UPC Mating | No | No |
SC/APC and SC/UPC connectors should not be directly mated, because their end faces have different geometries.
24 Core ODF vs 12 Core ODF
| Feature | 12 Core | 24 Core |
|---|---|---|
| Fibre Capacity | 12 | 24 |
| Typical SC Ports | 12 | 24 |
| Relative Capacity | 1× | 2× |
| Small Network | Excellent | Excellent |
| Medium Network | Good | Better |
| Rack Density | Lower | Higher |
| Expansion Capacity | Moderate | Higher |
A 24-core ODF gives twice the nominal fibre capacity of a 12-core panel while many rack designs still fit within a compact 1U footprint. 24-port 1U SC/APC panels are commercially available.
24 Core ODF vs 48 Core ODF
| Feature | 24 Core | 48 Core |
|---|---|---|
| Fibre Capacity | 24 | 48 |
| Network Size | Small / Medium | Medium / Large |
| Cable Management | Moderate | Higher |
| Small Server Room | Excellent | Often Larger Than Needed |
| ISP POP | Excellent | Better for Larger POP |
| Future Expansion | Good | Higher |
24 Core ODF vs Fibre Termination Box
| Feature | ODF | Fibre Termination Box |
|---|---|---|
| Typical Installation | Rack | Wall |
| Patch Cord Access | Excellent | Good |
| Fusion Splicing | Yes | Yes |
| Rack Integration | Excellent | Limited |
| Outdoor Use | Less Common | Common |
| Server Room Use | Excellent | Good |
| FTTH Use | Excellent | Excellent |
24 Core ODF vs FAT Box
| Feature | ODF | FAT Box |
|---|---|---|
| Main Function | Fibre termination and patching | Subscriber distribution |
| Typical Location | Equipment / Server Room | Access Network |
| Rack Mounting | Common | Rare |
| PLC Splitters | Optional | Common |
| Patch Cord Management | Excellent | Moderate |
| Drop Cable Distribution | Less Direct | Excellent |
19-Inch Rack-Mount Design
Many 24-core ODFs are designed to fit standard network cabinets.
| Feature | Typical Specification |
|---|---|
| Rack Width | 19 Inch |
| Typical Height | 1U |
| Adapter Panel | 24 SC Simplex |
| Housing | Cold-Rolled Steel |
| Front Access | Yes |
| Cable Entry | Rear / Side |
| Splice Management | Internal |
| Indoor Use | Yes |
SC/APC sliding panels are commercially available in 1U, 19-inch rack format, and one current model measures approximately 44.4 mm high by 482 mm wide.
Cold-Rolled Steel Construction
| Feature | Benefit |
|---|---|
| Strong Housing | Protects delicate fibre |
| Rigid Adapter Panel | Keeps connectors stable |
| Rack Mounting Strength | Supports long-term installation |
| Powder-Coated Finish | Protects enclosure surface |
| Indoor Telecom Suitability | Excellent |
A Kenyan 24-core SC/APC ODF listing specifies a cold-rolled steel enclosure with electrostatic surface treatment.
Fusion Splicing Inside the ODF
| Step | Procedure |
|---|---|
| 1 | Route incoming fibre cable into ODF |
| 2 | Secure cable mechanically |
| 3 | Prepare buffer tubes |
| 4 | Identify individual fibres |
| 5 | Strip fibre coating |
| 6 | Clean bare fibre |
| 7 | Precision cleave fibre |
| 8 | Fusion-splice to SC/APC pigtail |
| 9 | Fit splice protection sleeve |
| 10 | Store splice in tray |
| 11 | Route pigtail to adapter |
| 12 | Connect pigtail to SC/APC port |
| 13 | Label port |
| 14 | Test optical signal |
Typical 24-Core Fibre Colour Organization
| Fibre | Common Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
| 13–24 | Sequence typically repeated by tube or bundle |
Always confirm the actual cable manufacturer's colour coding before splicing.
Empty vs Loaded 24 Core ODF
| Feature | Empty ODF | Loaded SC/APC ODF |
|---|---|---|
| Enclosure | Included | Included |
| SC/APC Adapters | Usually Separate | Included |
| SC/APC Pigtails | Usually Separate | Included / commonly supplied |
| Splice Management | Included | Included |
| Ready for Installation | Lower | Higher |
| Customization | Excellent | Moderate |
| Installation Time | Longer | Faster |
| Best Use | Custom Networks | Standardized Projects |
A 24-core ODF sold with SC/APC connectors and pigtails can reduce the number of components technicians need to install separately.
Key Benefits of 24 Core ODF with SC/APC Connectors
24-Fibre Capacity
The ODF provides organized termination and patching for up to twenty-four optical fibres.
SC/APC Connectivity
Green APC interfaces make the panel suitable for compatible FTTH, GPON and PON networks.
Low Back Reflection
The angled connector polish is designed to reduce reflected optical power.
Professional Fusion Splicing
Incoming fibres can be fusion-spliced to factory-terminated SC/APC pigtails.
Compact Rack Installation
Commercial 24-port SC/APC panels can fit in a standard 1U 19-inch rack position.
Structured Cable Management
Splice trays, fibre routing and port numbering simplify network organization.
Easier Maintenance
Individual fibre ports can be patched, cleaned, tested or changed without disturbing the complete fibre cable.
Passive Operation
The ODF itself requires no electrical power.
Watch 24 Core ODF with SC/APC Connectors
Watch on YouTube: https://youtu.be/bBudokTQGMA
The 24 Core ODF with SC/APC Connectors provides a structured interface for converting an incoming multi-core fibre cable into twenty-four individually accessible optical connections. Each fibre can be fusion-spliced to an SC/APC pigtail and presented through a green SC/APC adapter on the front panel, allowing technicians to patch individual fibres toward OLTs, switches, transmission equipment or other optical infrastructure. 24-port ODFs are specifically designed to provide organized and accessible termination for up to 24 fibres.
Using SC/APC interfaces makes the ODF particularly relevant to FTTH and GPON networks. The angled end-face design minimizes optical reflection, while the standardized green connector identification helps technicians distinguish APC interfaces from blue UPC connections. Current 24-core products are available with full SC/APC adapter arrangements and internal pigtail management, creating a compact solution for subscriber access and telecommunications fibre networks.
For ISPs, telecommunications contractors and enterprise network installers, proper fibre termination makes future testing, maintenance and network expansion considerably easier. Fiber Optics Kenya can supply the 24 Core ODF with SC/APC Connectors together with SC/APC pigtails, adapters, patch cords, hybrid patch cords, fibre optic cables, splice sleeves, fusion-splicing equipment, connector cleaners, optical power meters, VFLs and OTDRs for complete professional fibre installations.
Applications of 24 Core ODF with SC/APC Connectors
1. FTTH Networks
Provides rack-mounted fibre termination at distribution and aggregation points.
2. GPON Networks
Supports structured SC/APC termination between PON infrastructure components.
3. ISP Network Racks
Terminates incoming backbone and access-network fibres.
4. Server Rooms
Provides organized fibre patching to switches and optical equipment.
5. FTTB Networks
Terminates building backbone fibre inside telecommunications rooms.
6. Telecommunications Networks
Creates structured optical cross-connection points.
7. CCTV Fibre Networks
Provides centralized termination for multiple fibre-based CCTV links.
8. Enterprise LAN Networks
Terminates optical uplinks between switches, departments and buildings.
9. Campus Networks
Organizes backbone fibres connecting different buildings.
10. Industrial Networks
Provides protected optical termination for industrial communications.
Typical Network Architecture
| Network Stage | Component |
|---|---|
| Incoming Cable | 24 Core Fibre Optic Cable |
| Termination Hardware | 24 Core ODF |
| Fusion Splicing | Fibre to SC/APC Pigtails |
| Front Interfaces | Up to 24 × SC/APC |
| Patch Cords | SC/APC / Hybrid APC |
| Active Equipment | OLT / Switch / Transmission Equipment |
| Distribution | FTTH / LAN / WAN / Telecom Network |
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Rack Compatibility | Confirm standard 19-inch rack |
| Rack Space | Confirm exact U height |
| Connector Polish | Maintain APC compatibility |
| Cable Entry | Secure incoming fibre |
| Strength Member | Fix correctly |
| Splice Protection | Use heat-shrink sleeves |
| Fibre Bend Radius | Avoid excessive bends |
| Port Labelling | Clearly number ports 1–24 |
| Connector Cleaning | Clean before mating |
| Unused Ports | Keep capped |
| Patch Cord Routing | Use rack cable managers |
| Optical Testing | Test each terminated fibre |
| Documentation | Record fibre-to-port assignments |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapter | Optical coupling |
| SC/APC Pigtail | Fusion-splice termination |
| SC/APC Patch Cord | Fibre interconnection |
| SC/APC to LC/APC Patch Cord | Connects compatible LC equipment |
| 24 Core Fibre Optic Cable | Backbone / distribution link |
| Fusion Splice Sleeve | Protects optical splice |
| Splice Tray | Organizes fibre joints |
| Cable Gland | Secures incoming cable |
| Rack Cable Manager | Organizes patch cords |
| Fibre Labels | Identifies connections |
| Fusion Splicer | Permanent fibre joining |
| Fibre Cleaver | Precision preparation |
| Fibre Stripper | Removes coating |
| SC/APC Cleaner | Cleans connector ferrules |
| Optical Power Meter | Measures optical signal |
| PON Power Meter | Tests PON levels |
| Visual Fault Locator | Checks fibre continuity |
| OTDR | Diagnoses optical fibre links |
Why Buy 24 Core ODF with SC/APC Connectors from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 24 Core ODFs | Organized fibre termination |
| SC/APC Connectivity | Suitable for compatible PON networks |
| SC/APC Pigtails | Professional fusion-splice termination |
| SC/APC Patch Cords | Complete fibre patching |
| Hybrid Patch Cords | Connect different optical interfaces |
| Fibre Optic Cables | Complete network infrastructure |
| Fusion-Splicing Accessories | Professional installation |
| Fibre Cleaning Equipment | Helps maintain connector performance |
| Optical Testing Equipment | Verify completed fibre links |
| Technical Guidance | Correct component selection |
| Bulk Supply | Suitable for ISPs and contractors |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 24 Core ODF with SC/APC Connectors?
It is an optical distribution frame designed to terminate, splice, organize and patch up to 24 optical fibres through SC/APC interfaces.
What does ODF mean?
ODF stands for Optical Distribution Frame.
How many fibres can it terminate?
It can typically terminate up to 24 individual optical fibres.
How many SC/APC connectors does it support?
A 24-port model can support 24 SC/APC interfaces, depending on the exact configuration. Current 24-port SC/APC ODF products use rows of 24 green adapters.
What colour are SC/APC adapters?
They are normally green.
What does APC mean?
APC means Angled Physical Contact.
Is SC/APC suitable for single-mode fibre?
Yes. SC/APC is primarily associated with single-mode optical networks such as FTTH and PON infrastructure.
Is the ODF rack mounted?
Yes. Common 24-port products are designed for standard 19-inch racks.
Is it 1U?
Many 24-port SC/APC panels are available in 1U format, although the exact enclosure should be confirmed before installation.
What material is commonly used?
Cold-rolled steel is widely used for rack-mount ODF enclosures. A Kenyan 24-core SC/APC product specifies cold-rolled steel construction.
Does it support fusion splicing?
Yes. ODFs are designed for fibre splicing, termination, storage and protection.
Does it come with SC/APC adapters?
A loaded model does. Empty ODF versions may require the adapters to be supplied separately.
Does it come with pigtails?
Loaded models can include matching SC/APC pigtails. A Kenyan 24-core SC/APC ODF listing includes connectors and pigtails as part of its configuration.
Can SC/UPC patch cords connect directly to SC/APC adapters?
No. SC/UPC and SC/APC ferrule end faces are different and should not be directly mated.
What is the difference between SC/APC and SC/UPC?
SC/APC normally uses a green connector with an angled ferrule, while SC/UPC normally uses a blue connector with an ultra-polished straight end face.
Can the ODF connect to equipment with LC/APC ports?
Yes. Use a compatible SC/APC-to-LC/APC single-mode patch cord.
Can it terminate multimode fibre?
The enclosure itself can accommodate different fibre components, but an SC/APC configuration is primarily intended for single-mode networks.
Is it suitable for FTTH?
Yes. 24-port SC/APC ODF products are specifically sold for FTTH and fibre distribution applications.
Can it be used for GPON?
Yes. SC/APC termination is well suited to compatible GPON networks.
Can it be used for CCTV fibre?
Yes. It can terminate multiple optical links used for CCTV transmission.
Can it be used in a server room?
Yes. Rack-mounted ODFs provide structured fibre termination for server and telecommunications rooms.
Can it be used in an ISP POP?
Yes. It is suitable for terminating access, distribution and backbone fibre inside ISP network racks.
Is it suitable for outdoor use?
Rack-mounted ODFs are normally designed for protected indoor network racks or cabinets.
Does it require electricity?
No. The ODF is a passive fibre-management component.
What is the difference between a 12 Core and 24 Core ODF?
A 24-core ODF provides twice the nominal fibre capacity of a 12-core ODF.
What is the difference between a 24 Core and 48 Core ODF?
A 48-core model provides higher capacity for larger fibre networks, while a 24-core panel is easier to manage in small and medium installations.
What is the difference between an ODF and a FAT box?
An ODF primarily handles rack-based fibre termination and patching, while a FAT box is generally used to distribute fibres toward multiple FTTH subscribers.
Can unused ports remain spare?
Yes. Unused SC/APC adapters should remain protected with dust caps.
Can fibre slack be stored inside?
Yes. Rack-mounted ODFs are designed to provide internal fibre storage and management.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply matching SC/APC adapters.
Do you supply SC/APC pigtails?
Yes. Compatible single-mode SC/APC pigtails can be supplied.
Do you supply SC/APC patch cords?
Yes. Matching SC/APC and hybrid patch cords can be supplied.
Do you supply fibre optic cables?
Yes. Indoor, outdoor, armoured, ADSS and other fibre optic cables can be supplied.
Do you supply fusion-splicing equipment?
Yes. Fusion splicers, cleavers, fibre strippers, splice sleeves and related installation tools can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON power meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, fusion splicing, rack installation and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 24 Core ODF with SC/APC Connectors provides a compact and professional solution for terminating, fusion-splicing and patching up to twenty-four optical fibres in FTTH, GPON, ISP, telecommunications, CCTV and enterprise networks.
Contact Fiber Optics Kenya for 24 Core SC/APC ODFs, adapters, pigtails, patch cords, fibre optic cables, fusion-splicing accessories, bulk orders and nationwide delivery across Kenya.
