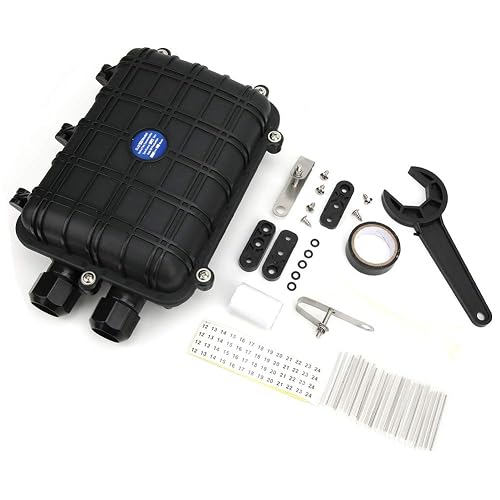

24 Core Fibre Termination Box in Kenya

The 24 Core Fibre Termination Box is a fibre optic enclosure designed to provide an organized and protected location for terminating, splicing, storing and distributing up to 24 optical fibres. It is commonly used in FTTH, FTTB, GPON, telecommunications, enterprise LAN, apartment, campus and ISP fibre networks where multiple fibres need to be managed from one distribution point.

A typical 24-core fibre termination box can accommodate up to 24 SC simplex adapter positions, fibre pigtails, splice protection sleeves and fibre-management trays. Depending on the particular enclosure, it may also support LC, FC or ST interfaces and optional PLC splitter installation. Current 24-port outdoor distribution boxes are available with IP65 protection, UV-resistant PC/ABS housings, integrated splice trays and wall- or pole-mounting options.

At Fiber Optics Kenya, the 24 Core Fibre Termination Box is suitable for ISPs, fibre installers, telecommunications contractors, offices, residential developments, data networks and commercial fibre installations. Compatible SC/APC and SC/UPC adapters, pigtails, patch cords, splice sleeves, PLC splitters, FTTH drop cables, fusion-splicing tools and optical testing equipment can also be supplied.

Key Product Specifications

Current 24-port distribution boxes are offered with IP65 protection, UV-resistant PC/ABS housing, integrated splice trays and optional PLC splitter areas, while Teleste's professional 24-fibre box is specifically designed for outdoor mounting and includes an integrated splice tray.

What Is a 24 Core Fibre Termination Box?

A 24 Core Fibre Termination Box provides a structured interface between incoming optical fibre cables and outgoing pigtails, patch cords or subscriber fibres.

Teleste's 24-fibre optical distribution box, for example, supports direct fibre termination as well as FTTH distribution through a mini splitter and provides protected splice management.

What Does 24 Core Mean?

The box does not itself determine whether the fibres are single mode or multimode. That depends on the cable, pigtails, adapters and patch cords installed.

How a 24 Core Fibre Termination Box Works

Incoming fibres are routed into the enclosure, prepared and either fusion-spliced to pigtails or terminated using compatible field connectors.

Teleste's installation documentation specifically describes routing 24 optical fibres into protective splice tubes and splicing them individually to pigtails inside the distribution enclosure.

24 Fibre Port Capacity

A fully populated box can therefore provide up to 24 individual connectorized fibre interfaces, depending on adapter type and enclosure design.

SC Adapter Configuration

SC is one of the most common connector formats for 24-core termination boxes.

A current 24-port wall-mount FTTH distribution box is specified with 24 SC ports, while other commercial 24-core designs can accommodate SC, FC, ST and LC interfaces.

SC/APC Configuration

A 24 Core Fibre Termination Box can be populated with green SC/APC adapters where low optical reflection is required.

Commercial 24-core FTTH boxes are available fully loaded with 24 SC/APC adapters.

SC/UPC Configuration

The box can alternatively use blue SC/UPC adapters.

Commercial 24-port termination boxes are also commonly illustrated with blue SC/UPC-style adapter arrangements.

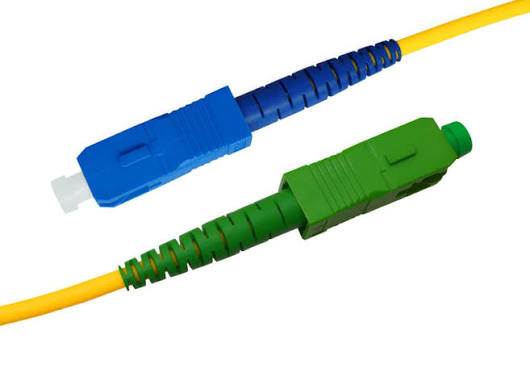

SC/APC vs SC/UPC

The connector type should match the rest of the installed fibre path.

LC Adapter Support

Some 24-core fibre boxes can use LC interfaces instead of SC.

Professional fibre panels are widely available with either SC or LC connectors, depending on the desired port density and application.

Fibre Pigtail Termination

Pigtails are commonly used to terminate fibres inside a 24-core box.

A 24-port enclosure can be supplied loaded with adapters and pigtails or populated by the installer according to project requirements.

Fusion Splicing Inside the Box

Teleste's 24F installation guide similarly instructs installers to splice all 24 fibres to pigtails and store them safely inside the protected splice area.

24 Core Empty vs Loaded Fibre Termination Box

An empty box is better for customized installations, while a loaded box can speed up large-scale deployments.

24 Core Indoor vs Outdoor Termination Box

Current 24-port products include IP65 outdoor designs with UV-resistant housings, while other 24-core enclosures are available with IP55 protection.

IP65 Outdoor Protection

Many professional 24-port boxes are available with IP65 protection.

TTI Fiber currently offers a 24-port outdoor distribution box with IP65 protection, UV-resistant PC/ABS housing, wall/pole mounting and integrated splice trays.

IP55 vs IP65 Fibre Boxes

A 24-core IP55 outdoor wall/pole box is commercially available, while other 24-port products offer IP65 protection.

24 Core vs 12 Core Fibre Termination Box

A 24-core box doubles the nominal fibre capacity of a 12-core enclosure.

24 Core vs 48 Core Termination Box

Fibre Termination Box vs FAT Box

The terms can overlap depending on how manufacturers classify the enclosure.

Fibre Termination Box vs ODF

Key Benefits of 24 Core Fibre Termination Box

24-Fibre Capacity

One enclosure can organize and terminate up to twenty-four optical fibres.

Fibre Splicing and Termination

The box provides protected space for pigtails, fusion splices and adapters.

Flexible Connector Options

SC, LC, FC and ST compatibility is available depending on enclosure design.

Indoor and Outdoor Options

IP65 outdoor versions are available alongside simpler indoor enclosures.

Wall and Pole Mounting

Outdoor 24-port boxes can be installed on either walls or poles.

PLC Splitter Compatibility

Some models include space for mini or cassette PLC splitters, allowing the same enclosure to function as an FTTH distribution point.

Organized Fibre Management

Splice trays and routing guides help protect bend radius and keep fibre connections identifiable.

Watch 24 Core Fibre Termination Box

Watch on YouTube: https://youtu.be/xPmDBSDy6Xc

The 24 Core Fibre Termination Box provides a structured location for terminating, splicing and distributing up to twenty-four optical fibres. Professional designs integrate adapter mounting, splice trays, cable-entry points and internal fibre-routing systems, allowing technicians to protect optical splices while maintaining accessible connectorized interfaces for downstream fibre links. Teleste's 24-fibre outdoor distribution box is specifically designed for connecting feeder and subscriber cables and provides protected splice management inside the enclosure.

The 24-core capacity provides a practical middle ground between smaller 8- or 12-core enclosures and larger 48-core distribution systems. Depending on the installation, the box can be configured using SC/APC, SC/UPC, LC or other compatible adapters, with matching pigtails fusion-spliced to the incoming fibres. Some designs can additionally accommodate mini PLC splitters, allowing the same enclosure to support FTTH subscriber distribution.

For outdoor fibre deployments, enclosure construction becomes especially important. Current professional 24-port models are available with IP65 protection, UV-resistant PC/ABS housing, integrated splice trays and wall/pole mounting, making them suitable for building exteriors, residential estates and ISP distribution networks when correctly installed. Fiber Optics Kenya can supply the 24 Core Fibre Termination Box together with adapters, pigtails, patch cords, FTTH drop cables, PLC splitters, fusion-splicing tools and fibre testing equipment.

Applications of 24 Core Fibre Termination Box

1. FTTH Networks

Provides fibre termination and distribution between feeder and subscriber fibres.

2. FTTB Networks

Terminates fibre within apartment buildings, offices and commercial properties.

3. GPON Networks

Provides organized passive fibre connections in GPON infrastructure.

4. EPON Networks

Supports termination and distribution in compatible EPON networks.

5. Apartment Buildings

Provides a centralized fibre termination point for several apartments.

6. Commercial Offices

Organizes fibre connections serving departments, floors or network equipment.

7. ISP Networks

Creates structured fibre distribution points throughout access networks.

8. Campus Networks

Provides fibre termination between buildings and network segments.

9. CCTV Fibre Networks

Provides organized termination for fibre-based CCTV transmission.

10. Data Networks

Supports enterprise and telecommunications fibre distribution.

Typical FTTH Architecture

Typical 24-Core Colour Sequence

For standard fibre cables, installers commonly identify fibres by standard colour coding.

The actual cable colour scheme should always be confirmed against the cable manufacturer's specification before splicing.

Installation Considerations

Recommended Accessories

Why Buy 24 Core Fibre Termination Box from Fiber Optics Kenya?

Frequently Asked Questions

What is a 24 Core Fibre Termination Box?

It is a fibre enclosure designed to terminate, splice, organize and distribute up to 24 optical fibres. Professional 24F boxes provide protected splice trays and interfaces for feeder and downstream fibres.

How many fibres can it hold?

It can accommodate up to 24 fibres, subject to the particular enclosure specification.

How many adapters can it support?

Many 24-port designs support up to 24 SC adapter positions.

Can it use SC/APC adapters?

Yes. 24-core FTTH boxes with 24 SC/APC adapters are commercially available.

Can it use SC/UPC adapters?

Yes. SC/UPC is another common configuration for 24-port termination boxes.

Can it use LC adapters?

Yes. Fibre distribution products can support LC interfaces where the enclosure panel is designed accordingly.

Does it support fusion splicing?

Yes. Fusion splicing is one of the primary functions of a fibre termination box. Teleste's 24F guide specifically describes splicing 24 fibres to pigtails within the enclosure.

Can pigtails be installed?

Yes. Fibre pigtails are commonly installed and fusion-spliced to the incoming fibres.

Does it come with adapters and pigtails?

That depends on whether the box is supplied empty or loaded. Always confirm the exact configuration before purchase.

Is it suitable for single-mode fibre?

Yes. It can be populated with single-mode adapters and pigtails.

Can it be used with multimode fibre?

Yes, provided multimode-compatible pigtails, adapters and patch cords are installed.

Is it suitable for FTTH?

Yes. Professional 24-port distribution boxes are specifically designed for FTTH applications.

Is it suitable for GPON?

Yes. It can provide fibre termination and distribution within GPON infrastructure.

Can a PLC splitter be installed?

Yes, on compatible models. Teleste's 24F box supports FTTH distribution through a mini splitter, and current 24-port outdoor boxes can include optional PLC splitter mounting areas.

Can it be installed outdoors?

Yes, if the selected enclosure has an appropriate environmental rating.

Are IP65 24 Core boxes available?

Yes. Current 24-port outdoor distribution boxes are available with IP65 protection.

Can it be wall mounted?

Yes. Wall mounting is one of the most common installation methods.

Can it be pole mounted?

Many outdoor 24-port designs support pole mounting.

What material is commonly used?

ABS and PC/ABS engineering plastics are widely used for outdoor fibre distribution enclosures.

Can the box store excess fibre?

Yes. Internal fibre-routing guides and storage areas are designed to accommodate service slack.

Can SC/APC connect directly to SC/UPC?

No. APC and UPC connector end-face geometries should not be directly mated.

What is the difference between a 24 Core termination box and a FAT box?

A termination box primarily focuses on fibre termination and splicing, while a FAT box typically emphasizes subscriber access and splitter-based distribution. Their functions can overlap.

What is the difference between a 24 Core termination box and an ODF?

A termination box is generally a smaller wall-mounted enclosure, while an ODF is typically designed for larger central fibre-management installations and may be rack mounted.

What is the difference between 12 Core and 24 Core boxes?

A 24-core box provides approximately twice the nominal fibre capacity and is better suited to larger distribution points.

Can unused ports remain empty?

Yes. Unused adapter positions can remain unpopulated, while installed unused adapters should be protected with dust caps.

Do you supply SC/APC adapters?

Yes. Fiber Optics Kenya can supply compatible SC/APC adapters.

Do you supply SC/UPC adapters?

Yes. Matching SC/UPC adapters can also be supplied.

Do you supply fibre pigtails?

Yes. Single-mode and multimode pigtails with several connector types can be supplied.

Do you supply FTTH drop cable?

Yes. Indoor and outdoor FTTH drop cables can be supplied.

Do you supply fusion-splicing tools?

Yes. Fibre cleavers, strippers, fusion splicers and related accessories can be supplied.

Do you supply fibre testing equipment?

Yes. Optical power meters, VFLs, PON meters and OTDRs can be supplied.

Do you provide fibre installation and testing?

Yes. Professional fibre installation, fusion splicing, termination and optical testing support is available.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
