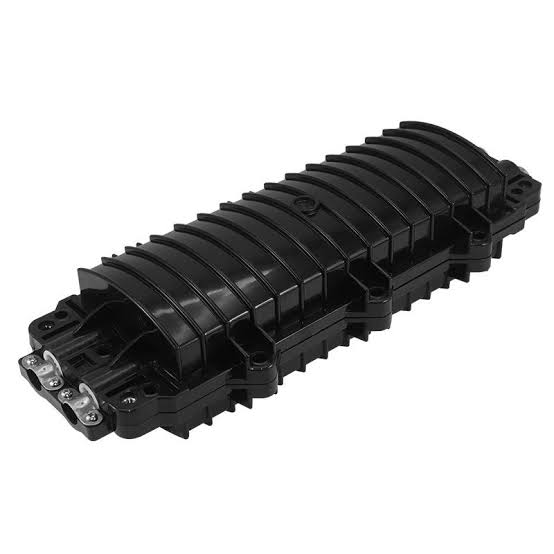

24 Core Fibre Closure in Kenya
KSh 4,000.00
1 available
Continue shopping24 Core Fibre Closure in Kenya
The 24 Core Fibre Closure is a fibre optic splice enclosure designed to protect, organize and manage up to 24 fibre optic splices. It provides a secure jointing point where fibre cables can be connected, extended, repaired or branched while protecting delicate fusion splices against moisture, dust and mechanical damage.
A typical 24-core horizontal closure uses internal splice trays to organize individual fibres and may feature a 2-in/2-out cable configuration. Depending on the specific model, outdoor closures can offer protection up to IP68 and support aerial, duct, wall-mounted or underground deployment.
At Fiber Optics Kenya, the 24 Core Fibre Closure is suitable for ISPs, fibre contractors, CCTV installers, telecommunications networks, FTTH projects, campus networks and enterprise fibre infrastructure.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 24 Core Fibre Closure |
| Product Type | Fibre Optic Splice Closure |
| Also Known As | FOSC / Fibre Joint Closure |
| Fibre Capacity | Up to 24 Fibres |
| Typical Splice Capacity | 24 Fusion Splices |
| Common Design | Horizontal / Inline |
| Typical Cable Configuration | 2 In / 2 Out |
| Splice Tray Capacity | 12 or 24 fibres depending on model |
| Fusion Splicing | Supported |
| Fibre Slack Storage | Yes |
| Typical Material | PP / PC / ABS Engineering Plastic |
| Mechanical Sealing | Available |
| Typical Protection | Up to IP68 depending on model |
| Aerial Installation | Yes |
| Wall Installation | Model Dependent |
| Duct Installation | Yes |
| Underground Installation | Yes on suitable models |
| Direct Burial | Available on rated models |
| Fibre Type | Single Mode / Multimode |
| Power Requirement | None |
| Applications | FTTH, FTTx, ISP, Telecom, CCTV |
For example, current 24-core horizontal closures are available with IP68 protection, 2-in/2-out ports and mechanical sealing, while other horizontal designs support aerial, duct and direct-buried deployment.
What Is a 24 Core Fibre Closure?
A 24 Core Fibre Closure is an enclosure installed at a fibre cable joint to protect fusion-spliced optical fibres.
| Component | Function |
|---|---|
| Outer Housing | Protects internal components |
| Cable Entry Ports | Receives fibre cables |
| Cable Clamps | Secures incoming cables |
| Strength Member Anchors | Provides mechanical support |
| Splice Trays | Organizes fibre joints |
| Splice Sleeves | Protects individual fusion splices |
| Fibre Routing Guides | Maintains correct routing |
| Slack Storage Area | Stores excess fibre |
| Sealing System | Prevents environmental contamination |
Unlike an ODF or fibre termination box, a standard splice closure primarily protects fibre-to-fibre joints rather than providing accessible patch-cord ports.
What Does 24 Core Mean?
| Term | Meaning |
|---|---|
| 24 Core | Capacity for up to 24 optical fibres |
| Fibre Closure | Protective fibre joint enclosure |
| FOSC | Fibre Optic Splice Closure |
| Fusion Splice | Permanent fibre-to-fibre connection |
| FTTH | Fibre to the Home |
| FTTx | Fibre to different network endpoints |
The exact internal arrangement varies. Some 24-core models use two 12-fibre trays, while others accommodate 24 fibres on a single tray.
How a 24 Core Fibre Closure Works
The incoming and outgoing fibre cables are routed into the closure through sealed cable ports. The cable jackets are prepared, strength members secured and individual optical fibres routed toward the splice trays.
| Stage | Function |
|---|---|
| Incoming Cable | Carries optical fibres |
| Cable Entry | Provides protected entry |
| Cable Fixing | Prevents movement |
| Strength Member Fixing | Provides mechanical support |
| Fibre Preparation | Separates individual fibres |
| Fusion Splicing | Joins corresponding fibres |
| Splice Sleeve | Protects fusion joint |
| Splice Tray | Organizes completed splices |
| Slack Storage | Stores maintenance fibre |
| Outgoing Cable | Continues network route |
Typical 24-Core Fibre Organization
A 24-core cable is commonly organized as two groups of twelve fibres.
| Fibre Range | Typical Group |
|---|---|
| 1–12 | First Fibre Group |
| 13–24 | Second Fibre Group |
Each group can follow the standard 12-colour fibre identification sequence.
Typical Fibre Colour Sequence
| Fibre | Typical Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
For fibres 13–24, the colour sequence may repeat within another identified tube or fibre group. Always follow the manufacturer's cable identification system.
2 In / 2 Out 24 Core Fibre Closure
A common configuration provides two incoming and two outgoing cable ports. Current 24-core IP68 closures are available in this 2-in/2-out configuration.
| Port | Typical Application |
|---|---|
| Input 1 | Main feeder fibre |
| Input 2 | Additional feeder / branch |
| Output 1 | Continuing fibre route |
| Output 2 | Distribution / branch fibre |
This makes the enclosure suitable for both straight-through fibre joints and network branching.
Straight-Through Fibre Jointing
A simple application involves joining two sections of the same 24-core fibre cable.
| Incoming Cable | Outgoing Cable |
|---|---|
| Fibre 1 | Fibre 1 |
| Fibre 2 | Fibre 2 |
| Fibre 3 | Fibre 3 |
| … | … |
| Fibre 22 | Fibre 22 |
| Fibre 23 | Fibre 23 |
| Fibre 24 | Fibre 24 |
Each pair is fusion-spliced individually and protected using a splice sleeve.
Fibre Branching
The 24-core capacity also provides flexibility for branching fibres to multiple destinations.
| Example Fibre Allocation | Destination |
|---|---|
| Fibres 1–8 | Main Route |
| Fibres 9–16 | Building A |
| Fibres 17–24 | Building B |
Actual fibre allocation should follow the network design and documentation.
IP68 24 Core Fibre Closure
IP68-rated 24-core splice closures are available for demanding outdoor applications. Current examples use engineering-plastic housings, mechanical seals, 2-in/2-out cable arrangements and 12- or 24-fibre splice trays.
| IP68 Feature | Benefit |
|---|---|
| Dust Protection | Helps prevent contamination |
| Water Protection | Suitable for demanding outdoor environments |
| Mechanical Sealing | Helps maintain enclosure integrity |
| Outdoor Installation | Excellent |
| Duct Installation | Excellent |
| Underground Installation | Suitable on approved models |
The exact environmental rating should always be confirmed for the specific closure being supplied.
Horizontal 24 Core Fibre Closure
Horizontal or inline closures are particularly useful where fibre cables continue along the same general route.
| Feature | Benefit |
|---|---|
| Horizontal Shape | Convenient inline installation |
| Multiple Cable Entries | Supports branching |
| Splice Tray Access | Simplifies maintenance |
| Compact Construction | Easier placement |
| Re-Entry | Available on mechanical models |
| Outdoor Protection | Suitable for outside plant |
Horizontal splice closures can be deployed in aerial, duct and direct-buried networks, depending on their construction.
24 Core Fibre Closure vs 12 Core Fibre Closure
| Feature | 12 Core | 24 Core |
|---|---|---|
| Fibre Capacity | 12 | 24 |
| Relative Capacity | 1× | 2× |
| Small FTTH Network | Excellent | Excellent |
| ISP Distribution | Small | Better |
| Future Expansion | Limited | Better |
| Physical Size | Smaller | Slightly Larger |
| Fibre Management | Simple | Higher Capacity |
24 Core Fibre Closure vs 48 Core Fibre Closure
| Feature | 24 Core | 48 Core |
|---|---|---|
| Fibre Capacity | 24 | 48 |
| Relative Capacity | 1× | 2× |
| Small Distribution Network | Excellent | Good |
| Medium ISP Network | Excellent | Excellent |
| Backbone Network | Moderate | Better |
| Future Expansion | Good | Higher |
| Physical Size | Smaller | Larger |
24 Core Fibre Closure vs 96 Core Fibre Closure
| Feature | 24 Core | 96 Core |
|---|---|---|
| Fibre Capacity | 24 | 96 |
| Relative Capacity | 1× | 4× |
| Small FTTH Route | Excellent | Oversized |
| Large Backbone | Limited | Excellent |
| Fibre Management | Simple | More Complex |
| Expansion Capacity | Moderate | High |
Fibre Closure vs ODF
| Feature | Fibre Closure | ODF |
|---|---|---|
| Main Function | Fibre joint protection | Termination and patching |
| Typical Location | Outdoor | Equipment Room |
| Fusion Splicing | Yes | Yes |
| Adapters | Usually No | Yes |
| Patch Cords | Usually No | Yes |
| Weather Protection | High on outdoor models | Limited |
| Underground Installation | Available | Normally No |
Fibre Closure vs FAT Box
| Feature | Fibre Closure | FAT Box |
|---|---|---|
| Primary Function | Cable joint protection | Subscriber distribution |
| Fusion Splicing | Excellent | Supported |
| PLC Splitters | Usually No | Common |
| Adapter Ports | Usually No | Common |
| Subscriber Drops | Limited | Excellent |
| FTTH Use | Feeder / Distribution | Subscriber Distribution |
Key Benefits of 24 Core Fibre Closure
24-Fibre Capacity
Provides twice the nominal fibre capacity of a standard 12-core closure.
Protected Fusion Splicing
Internal splice trays protect and organize individual fibre joints.
Outdoor Network Protection
Suitable models provide high levels of protection against moisture, dust and harsh environmental conditions.
Multiple Installation Options
Horizontal closures are available for aerial, duct and underground/direct-buried deployment.
Network Branching
Multiple cable entry ports allow fibres to continue or branch toward different network destinations.
Re-Enterable Design
Mechanical models can be reopened for network maintenance or expansion.
Fibre Slack Storage
Additional fibre can be stored inside for future maintenance and re-splicing.
Passive Operation
No electricity, network configuration or software is required.
Watch 24 Core Fibre Closure
https://youtu.be/sCCsPvBtG_8
The 24 Core Fibre Closure provides a protected and organized location for joining medium-count fibre optic cables. Its capacity makes it particularly useful for FTTH distribution networks, ISP fibre routes, CCTV backbone connections and building-to-building fibre infrastructure where a 12-core enclosure may provide insufficient capacity.
During installation, incoming fibre cables are mechanically secured before individual fibres are routed into the splice tray. Corresponding fibres are fusion-spliced, protected with heat-shrink sleeves and carefully arranged while maintaining the required bend radius. Installation guidance for 24-fibre closures emphasizes orderly fibre placement, correct sealing of unused cable ports and proper management of the fibres inside the splice tray.
For complete fibre projects, Fiber Optics Kenya can supply the 24 Core Fibre Closure together with outdoor fibre cables, armoured cables, ADSS fibre cables, splice protection sleeves, fusion splicers, fibre cleavers, stripping tools, optical power meters, VFLs and OTDR equipment.
Applications of 24 Core Fibre Closure
1. FTTH Networks
Protects feeder and distribution cable splices throughout fibre-to-the-home networks.
2. FTTx Networks
Provides protected fibre joints across access-network infrastructure.
3. ISP Networks
Suitable for joining and branching ISP distribution cables.
4. Telecommunications Networks
Provides outdoor splice protection for telecom fibre routes.
5. CCTV Fibre Networks
Protects optical backbone joints used for large surveillance systems.
6. Campus Fibre Networks
Joins fibre routes between buildings.
7. Aerial Fibre Networks
Compatible closures can be installed along overhead fibre routes.
8. Duct Fibre Networks
Suitable for fibre cable joints within telecom ducts.
9. Underground Fibre Networks
Appropriately rated closures can be deployed in underground infrastructure.
10. Fibre Cable Repairs
Provides permanent environmental protection around repaired fibre cable sections.
Typical Network Architecture
| Network Stage | Component |
|---|---|
| POP / Equipment Room | ODF |
| Feeder Network | Outdoor Fibre Cable |
| Fibre Joint | 24 Core Fibre Closure |
| Distribution Cable | Outdoor / ADSS Fibre |
| Subscriber Distribution | FAT / FDB |
| Drop Network | FTTH Drop Cable |
| Customer Termination | ATB |
| Customer Equipment | ONT / ONU |
Typical Installation Process
| Step | Procedure |
|---|---|
| 1 | Select closure location |
| 2 | Open enclosure |
| 3 | Route fibre cables through ports |
| 4 | Prepare cable jackets |
| 5 | Secure cable strength members |
| 6 | Route buffer tubes |
| 7 | Identify individual fibres |
| 8 | Strip fibre coating |
| 9 | Clean fibres |
| 10 | Precision cleave |
| 11 | Fusion-splice matching fibres |
| 12 | Protect splices with sleeves |
| 13 | Store splices in trays |
| 14 | Arrange excess fibre |
| 15 | Seal unused cable ports |
| 16 | Close enclosure |
| 17 | Test completed fibre links |
| 18 | Document fibre assignments |
Installation Considerations
| Factor | Recommendation |
|---|---|
| Capacity | Confirm 24 cores are sufficient |
| Cable Diameter | Match closure ports |
| Cable Entries | Confirm branching requirements |
| IP Rating | Match installation environment |
| Strength Members | Secure properly |
| Splice Sleeves | Protect every fusion splice |
| Fibre Bend Radius | Avoid sharp bends |
| Slack Storage | Leave maintenance fibre |
| Unused Ports | Seal correctly |
| Fibre Identification | Follow cable colour coding |
| Testing | Test after splicing |
| Documentation | Record all fibre assignments |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| Fusion Splice Sleeves | Protect completed joints |
| Splice Trays | Organize fibre splices |
| Outdoor Fibre Cable | Network backbone/distribution |
| Armoured Fibre Cable | Rugged outside-plant deployment |
| ADSS Fibre Cable | Aerial installations |
| Cable Sealing Material | Helps protect cable entries |
| Cable Ties | Internal organization |
| Fibre Labels | Fibre identification |
| Fusion Splicer | Creates permanent fibre joints |
| Fibre Cleaver | Precision fibre cutting |
| Fibre Stripper | Removes fibre coating |
| Cable Slitter | Prepares cable jacket |
| Optical Power Meter | Measures optical power |
| Visual Fault Locator | Checks continuity |
| OTDR | Tests fibre length, events and splice loss |
Why Buy 24 Core Fibre Closure from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 24 Core Fibre Closures | Medium-capacity fibre joint protection |
| Outdoor Fibre Cables | Complete fibre infrastructure |
| Armoured Fibre Cables | Rugged installations |
| ADSS Fibre Cables | Aerial network deployment |
| Fusion Splice Sleeves | Professional splice protection |
| Fusion Splicers | Fibre jointing equipment |
| Fibre Preparation Tools | Professional installation |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Correct component selection |
| Bulk Supply | Suitable for ISPs and contractors |
| Professional Installation | Fibre splicing and testing support |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions About 24 Core Fibre Closure
What is a 24 Core Fibre Closure?
A 24 Core Fibre Closure is a protective enclosure designed to organize and protect up to 24 optical fibre splices.
What does FOSC mean?
FOSC means Fibre Optic Splice Closure.
How many fibres can it accommodate?
A standard 24-core closure accommodates up to 24 fibres, although some enclosure families can be expanded to larger capacities.
Does it support fusion splicing?
Yes. Fusion splicing is one of its primary applications.
How many splice trays does it have?
This depends on the model. A 24-core enclosure may use one 24-fibre tray or two 12-fibre trays.
Does it have 2-in/2-out cable ports?
Many models do. 24-core horizontal IP68 closures with two inputs and two outputs are available.
Is a 24 Core Fibre Closure waterproof?
Outdoor models can provide high environmental protection, including IP68-rated configurations.
Can it be installed aerially?
Yes. Suitable horizontal closures support aerial deployment.
Can it be installed underground?
Yes, provided the specific closure is rated for underground or direct-buried deployment.
Can it be installed in a duct?
Yes. Horizontal closures are commonly used in fibre duct networks.
Can it be wall mounted?
Yes, on models designed with appropriate mounting hardware.
Is it suitable for FTTH?
Yes. 24-core horizontal closures are widely designed for FTTx and FTTH networks.
Can ISPs use a 24 Core Fibre Closure?
Yes. It is particularly suitable for small and medium ISP distribution networks.
Can it be used for CCTV fibre networks?
Yes. It can protect fibre joints in outdoor CCTV backbone networks.
Can it be used with single-mode fibre?
Yes. Single-mode fibre is commonly used with these closures.
Can it be used with multimode fibre?
Yes, provided the cable and splicing requirements are compatible.
Does it require adapters?
Normally no. A conventional splice closure primarily protects fibre-to-fibre splices.
Does it require pigtails?
Not for standard fibre-to-fibre fusion splicing.
Can it be used with armoured fibre cable?
Yes, provided the cable diameter and anchoring arrangement match the closure.
Can it be used with ADSS fibre cable?
Yes, with suitable cable preparation and mechanical anchoring.
Can the closure be reopened?
Many mechanical closures are specifically designed to be re-enterable for maintenance and network upgrades.
What is the difference between 12 Core and 24 Core Fibre Closures?
The 24-core model provides twice the nominal fibre capacity.
What is the difference between 24 Core and 48 Core Fibre Closures?
A 48-core closure provides twice the nominal splice capacity and is better suited to larger distribution routes.
What is the difference between a Fibre Closure and ODF?
A fibre closure primarily protects cable joints, while an ODF provides organized termination and patching through fibre adapters.
What is the difference between a Fibre Closure and FAT Box?
A fibre closure mainly protects fibre joints, while a FAT box is normally designed for distributing fibre connections toward subscribers.
Does it require electricity?
No. A fibre closure is completely passive.
Why are splice sleeves required?
They provide mechanical protection around the fragile fusion-spliced area.
Why should fibre slack be stored inside the closure?
Extra fibre provides sufficient working length for future maintenance, repairs and re-splicing.
Do you supply splice sleeves?
Yes. Fiber Optics Kenya can supply compatible fibre splice protection sleeves.
Do you supply fibre optic cables?
Yes. Outdoor, armoured, ADSS and other fibre optic cables can be supplied.
Do you supply fusion splicers?
Yes. Professional fibre fusion splicing equipment can be supplied.
Do you supply fibre cleavers and stripping tools?
Yes. Fibre preparation and installation tools are available.
Do you supply OTDRs and power meters?
Yes. OTDRs, optical power meters, VFLs and other fibre testing equipment can be supplied.
Do you provide fibre splicing and installation?
Yes. Professional fibre closure installation, fusion splicing and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 24 Core Fibre Closure in Kenya provides a reliable solution for protecting and organizing up to 24 optical fibre splices in FTTH, FTTx, ISP, telecommunications, CCTV and outdoor fibre networks. Its higher capacity compared with a 12-core closure makes it particularly suitable for growing distribution networks that require additional fibres and room for future expansion.
Contact Fiber Optics Kenya for 24 Core Fibre Closures, outdoor fibre cables, ADSS and armoured fibre cables, splice sleeves, fusion-splicing equipment, optical testing tools, bulk orders, professional installation and nationwide delivery across Kenya.
