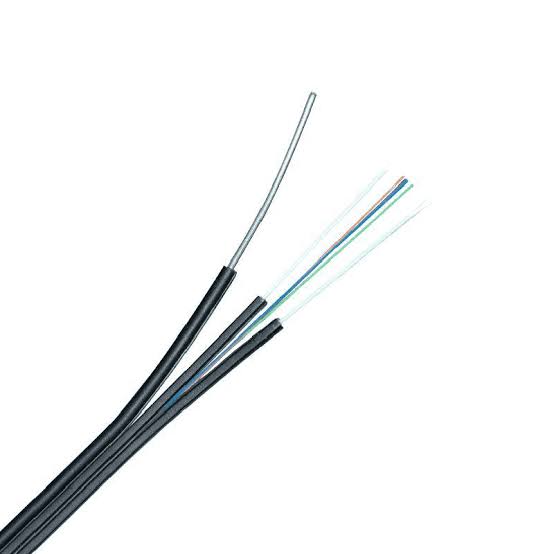

2 Core FTTH Drop Cable 2KM Outdoor Single Mode in Kenya
KSh 12,000.00
1 available
Continue shopping2 Core FTTH Drop Cable 2KM Outdoor Single Mode in Kenya
The 2 Core FTTH Drop Cable 2KM Outdoor Single Mode is a compact fibre optic cable designed for outdoor last-mile connections between fibre distribution infrastructure and homes, offices, apartments, shops and other subscriber premises. With two single-mode optical fibres and a 2,000-metre roll length, it is particularly suitable for ISPs, fibre contractors, residential developments and organisations completing multiple FTTH customer connections.
Outdoor FTTH drop cables of this type commonly use G.657A1 or G.657A2 bend-insensitive single-mode fibre. This construction is valuable in subscriber networks because cables frequently need to pass around corners, door frames, poles, walls and building entry points. Current FTTH cable families use G.657A1/A2 fibres together with FRP, steel-wire or other strength-member options, while self-supporting versions incorporate a messenger member for aerial deployment.
The typical GJYXCH-style self-supporting design combines the optical fibres, parallel strength members, an outer jacket and a separate messenger wire. This gives the cable a compact figure-8-style profile suitable for appropriate outdoor aerial subscriber drops. Commercial versions are available in 2 km and longer manufacturing lengths.
At Fiber Optics Kenya, the 2 Core FTTH Drop Cable 2KM Outdoor Single Mode is suitable for FTTH, FTTB, GPON, EPON and ISP access projects. Customers can also source compatible connectors, PLC splitters, fibre distribution boxes, clamps, pigtails, patch cords and other FTTH installation accessories.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 2 Core FTTH Drop Cable 2KM Outdoor Single Mode |
| Cable Category | Outdoor FTTH Drop Cable |
| Cable Length | 2,000 Metres / 2KM |
| Number of Fibres | 2 Cores |
| Fibre Mode | Single Mode |
| Common Fibre Types | G.657A1 / G.657A2 |
| Typical Fibre Size | Approx. 9/125 µm |
| Typical Cable Design | GJYXCH / GJYXFCH |
| Cable Profile | Flat / Bow-Type / Figure-8 |
| Strength Members | FRP / KFRP / Steel Wire depending on model |
| Messenger Wire | Available on self-supporting versions |
| Outer Jacket | LSZH / PE or other outdoor-rated material |
| Typical Outdoor Colour | Black |
| Common Wavelengths | 1310 nm / 1550 nm |
| Primary Application | Outdoor subscriber fibre drop |
| Network Compatibility | FTTH / FTTB / GPON / EPON |
| Installation | Outdoor wall, conduit or aerial depending on model |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
G.657A1 and G.657A2 are both bend-insensitive single-mode fibre categories used in FTTH networks, and commercial outdoor drop-cable families support a range of strength-member and self-supporting constructions.
What Does Outdoor Single Mode Mean?
The description Outdoor Single Mode identifies both the optical fibre technology and the cable's intended installation environment.
| Term | Meaning |
|---|---|
| Outdoor | Cable construction is designed for appropriate external installation |
| Single Mode | Fibre carries a single primary propagation mode for long-distance optical communication |
| 2 Core | Cable contains two individual optical fibres |
| FTTH | Fiber to the Home |
| Drop Cable | Final-access cable connecting distribution infrastructure to subscribers |
| 2KM | Supplied as a 2,000-metre cable length |
| G657 | Bend-insensitive single-mode fibre family commonly used for access networks |
| GJYXCH | Common self-supporting flat FTTH drop-cable construction |
Outdoor GJYXCH products are specifically available with G.657A2 fibre and self-supporting structures for FTTH deployment.
2 Core Outdoor FTTH Drop Cable Construction
A 2 Core Outdoor Single Mode Drop Cable is engineered to remain compact while protecting the optical fibres from normal installation stresses.
| Cable Component | Function |
|---|---|
| 2 Single-Mode Optical Fibres | Carry optical communication signals |
| G657A1 / G657A2 Fibre | Provides bend-insensitive optical transmission |
| Primary Fibre Coating | Protects the glass fibre |
| FRP Strength Members | Provide non-metallic tensile reinforcement |
| KFRP Members | Alternative dielectric strength elements |
| Steel Strength Members | Increase mechanical support on selected models |
| Messenger Wire | Supports suitable aerial installations |
| Outer Jacket | Protects internal cable elements |
| LSZH Sheath | Available on many drop-cable constructions |
| Cable Groove | Helps installers strip and access fibres |
Typical GJYXCH cross-sections show the two fibres positioned between parallel strength members, with a separate messenger wire above the optical section on self-supporting versions.
G657A1 vs G657A2 Single Mode Fibre
| Feature | G657A1 | G657A2 |
|---|---|---|
| Fibre Mode | Single Mode | Single Mode |
| Typical Geometry | Approx. 9/125 µm | Approx. 9/125 µm |
| Bend Insensitive | Yes | Yes |
| Bending Performance | Excellent | Enhanced |
| FTTH Networks | Excellent | Excellent |
| GPON Networks | Excellent | Excellent |
| EPON Networks | Excellent | Excellent |
| Building Entry Routes | Excellent | Excellent |
| Tight Corners | Very Good | Better |
| Subscriber Premises | Excellent | Excellent |
G.652.D, G.657.A1 and G.657.A2 share the same general 9/125 µm physical fibre geometry, while G.657 variants are specifically designed to offer improved bending performance.
G.657A2 is particularly useful where a subscriber route involves tighter bends, although the exact minimum bend radius should always be taken from the supplied fibre and cable manufacturer's specification.
Typical Optical Characteristics
| Optical Parameter | Typical Description |
|---|---|
| Fibre Mode | Single Mode |
| Common Fibre Grade | G657A1 / G657A2 |
| Typical Core/Cladding | Approx. 9/125 µm |
| Common Wavelength | 1310 nm |
| Common Wavelength | 1550 nm |
| Typical Maximum Attenuation @ 1310 nm | Around 0.35–0.40 dB/km depending on fibre |
| Typical Maximum Attenuation @ 1550 nm | Around 0.22–0.30 dB/km depending on fibre |
| Bend Performance | Excellent |
| FTTH Compatibility | Excellent |
| GPON Compatibility | Excellent |
| EPON Compatibility | Excellent |
| FTTB Compatibility | Excellent |
One representative 2-core G657A2 GJYXCH specification lists attenuation of approximately 0.4 dB/km at 1310 nm and 0.3 dB/km at 1550 nm.
Typical Mechanical Characteristics
Exact specifications vary by manufacturer, strength-member material and messenger design.
| Mechanical Parameter | Typical / Model-Dependent Description |
|---|---|
| Cable Profile | Flat / Figure-8 |
| Fibre Count | 2 |
| Strength Members | FRP / KFRP / Steel |
| Messenger Wire | Available |
| Outer Jacket | LSZH / PE depending on model |
| Typical Cable Dimension | Around 5 × 2 mm on representative designs |
| Cable Weight | Lightweight |
| Tensile Strength | Model dependent |
| Crush Resistance | Model dependent |
| Static Bend Radius | Model dependent |
| Dynamic Bend Radius | Model dependent |
| Installation Temperature | Manufacturer dependent |
| Outdoor Suitability | Yes when appropriately rated |
One representative G657A2 GJYXCH product specifies an approximately 5.0 × 2.0 mm profile and about 20 kg/km cable weight, although other constructions may differ substantially.
Why Choose a 2KM Cable Roll?
The 2KM length is particularly practical for ISPs and installation teams completing many subscriber connections.
| Advantage | Benefit |
|---|---|
| 2,000 Metres of Cable | Suitable for numerous subscriber drops |
| Fewer Roll Changes | Improves field productivity |
| Bulk Deployment | Ideal for ISPs and contractors |
| Flexible Cutting | Cut according to individual route length |
| Reduced Procurement Frequency | More cable available per purchase |
| Estate Projects | Suitable for multiple houses |
| Apartment Projects | Supports numerous subscriber runs |
| Commercial Projects | Suitable for several offices or shops |
| Field Stock Efficiency | Reduces repeated cable replacement |
Commercial outdoor FTTH drop-cable products are available with manufacturing lengths including 2 km, depending on supplier and construction.
Approximate Number of Customer Drops from 2KM
| Average Cable Per Subscriber | Approximate Number of Runs* |
|---|---|
| 20 m | 100 |
| 25 m | 80 |
| 40 m | 50 |
| 50 m | 40 |
| 80 m | 25 |
| 100 m | 20 |
| 125 m | 16 |
| 150 m | 13 |
| 200 m | 10 |
*Theoretical figures before allowing for installation slack, service loops, route deviations and cable wastage.
Why Choose 2 Cores?
A two-core cable provides greater flexibility than a single-fibre subscriber cable.
| Network Requirement | Benefit of 2 Cores |
|---|---|
| Primary FTTH Service | One fibre can carry the subscriber connection |
| Spare Capacity | Second fibre can remain unused |
| Redundancy | Spare fibre can assist future network changes |
| Additional Service | Second core may support another optical link where required |
| Future Expansion | Additional fibre already reaches the premises |
| Maintenance Flexibility | More options than a one-core cable |
In many PON access networks, a single optical fibre can carry bidirectional service, allowing the second core to remain spare depending on the network design.
1 Core vs 2 Core FTTH Drop Cable
| Feature | 1 Core | 2 Core |
|---|---|---|
| Optical Fibres | 1 | 2 |
| Primary FTTH Service | Yes | Yes |
| Spare Fibre | No | Yes |
| Redundancy Potential | Limited | Better |
| Future Expansion | Limited | Better |
| Cable Size | Slightly smaller | Compact |
| Residential FTTH | Excellent | Excellent |
| ISP Deployment | Excellent | Excellent |
| Network Flexibility | Basic | Higher |
1KM vs 2KM Outdoor Single Mode Drop Cable
| Feature | 1KM Roll | 2KM Roll |
|---|---|---|
| Cable Length | 1,000 m | 2,000 m |
| Small Projects | Excellent | More than may be required |
| Large Projects | Good | Excellent |
| Number of Potential Customer Drops | Lower | Higher |
| Roll Handling | Easier | Larger/heavier |
| Frequency of Roll Changes | Higher | Lower |
| ISP Deployment | Excellent | Excellent |
| Estate Rollout | Good | Better |
| Bulk Installation Efficiency | Good | Excellent |
Standard Outdoor vs Self-Supporting Outdoor Drop Cable
| Feature | Standard Outdoor Drop | Self-Supporting Outdoor Drop |
|---|---|---|
| 2 Optical Fibres | Yes | Yes |
| Parallel Strength Members | Yes | Yes |
| Messenger Wire | No | Yes |
| Wall Installation | Excellent | Excellent |
| Conduit Installation | Excellent | Construction dependent |
| Aerial Installation | Not primary purpose | Excellent for suitable spans |
| Pole-to-House Connection | Not preferred | Excellent |
| Cable Weight | Lower | Slightly higher |
| Mechanical Support | Standard | Enhanced |
Figure-8 self-supporting FTTH drop cables typically incorporate a built-in messenger wire for aerial deployment, while flat butterfly cables are more commonly used for wall routing and protected pathways.
Outdoor Single Mode Drop Cable vs Indoor Drop Cable
| Feature | Outdoor Single Mode Drop | Indoor Drop Cable |
|---|---|---|
| Primary Use | External subscriber route | Internal premises route |
| Typical Colour | Black | White |
| Weather Exposure | Designed for appropriate outdoor use | Usually limited |
| Messenger Wire | Available | Normally absent |
| Pole-to-Building Route | Excellent with proper design | Not recommended |
| Conduit Use | Yes where rated | Yes |
| Wall Routing | Excellent | Excellent |
| Building Entry | Excellent | Excellent |
| Typical Fibre | G657A1/A2 | G657A1/A2 |
2 Core Outdoor Single Mode Drop Cable vs ADSS Cable
| Feature | 2 Core Outdoor Drop Cable | ADSS Fibre Cable |
|---|---|---|
| Main Purpose | Subscriber last mile | Distribution/backbone |
| Typical Core Count | 2 | Much higher options available |
| Cable Size | Compact | Larger |
| Pole-to-Customer Drop | Excellent | Usually unnecessary |
| Long Aerial Span | Limited | Excellent |
| Self-Supporting Option | Yes | Yes |
| Backbone Capacity | Low | High |
| Building Entry | Easy | More cumbersome |
| Network Position | Last Mile | Feeder / Distribution |
Key Benefits of 2 Core FTTH Drop Cable 2KM Outdoor Single Mode
Bend-Insensitive Single Mode Fibre
G657A1 and G657A2 fibre provides excellent performance where cable must negotiate corners, building entrances and confined routing areas.
Two Optical Fibres
The two-core configuration provides an additional fibre for redundancy, future expansion or alternative optical services.
Long 2KM Roll
A 2,000-metre roll is highly practical for large FTTH deployments and installation teams completing multiple connections.
Outdoor Construction
Outdoor-rated versions are designed for appropriate exposure on subscriber access routes.
Self-Supporting Options
GJYXCH-style versions incorporate a messenger wire for suitable aerial pole-to-premises connections.
Compact Profile
The small, flat design simplifies wall routing, cable entry and subscriber termination.
GPON and EPON Compatible
The single-mode fibre is suitable for common passive optical access architectures.
Easy Cable Preparation
Drop-cable constructions are designed to simplify stripping and splicing during subscriber installations.
Watch 2 Core FTTH Drop Cable 2KM Outdoor Single Mode
Video Thumbnail
Watch on YouTube: https://youtu.be/cIwSWClP5-s
The 2 Core FTTH Drop Cable 2KM Outdoor Single Mode provides a practical fibre connection between an ISP's distribution infrastructure and individual subscriber premises. Its bend-insensitive G657 single-mode fibres make it particularly suitable for last-mile routes where cables need to pass around building corners, poles, door frames and other confined areas. Outdoor FTTH cable families are specifically available in flat and self-supporting constructions for these applications.
For aerial customer connections, a self-supporting GJYXCH-style cable uses an integrated messenger wire to carry the mechanical load while the optical fibres remain protected inside the lower cable section. Parallel strength members further reinforce the cable body, helping it withstand the handling and tensile stresses associated with installation.
The 2KM roll is particularly useful for ISPs, estates and contractors because individual subscriber routes can be cut to the required lengths while the remaining cable is retained for subsequent connections. Fiber Optics Kenya can also supply compatible SC/APC connectors, PLC splitters, FDB boxes, fibre rosettes, drop clamps, patch cords and other accessories, providing the components needed to complete professional FTTH subscriber installations.
Applications of 2 Core FTTH Drop Cable 2KM Outdoor Single Mode
1. Fiber to the Home
Connect residential subscribers directly to ISP optical distribution infrastructure.
2. ISP Last-Mile Networks
Ideal for customer activations from fibre distribution boxes, closures or poles.
3. GPON Networks
Use the cable between subscriber distribution infrastructure and ONTs.
4. EPON Networks
Suitable for compatible Ethernet Passive Optical Network access systems.
5. Residential Estates
The 2KM roll is practical for connecting multiple houses within a development.
6. Apartment Buildings
Connect individual apartments from central or floor distribution boxes.
7. Offices and SMEs
Provide dedicated fibre connections to businesses and commercial premises.
8. Hotels and Resorts
Suitable for appropriate optical access connections between distribution points and facilities.
9. Schools and Universities
Use for final fibre connections from network distribution points to buildings.
10. Commercial Developments
Connect shops, offices and tenants to shared fibre infrastructure.
Typical FTTH Network Architecture
| Network Component | Function |
|---|---|
| OLT | Provides optical access services |
| Feeder Fibre | Carries capacity from the network core |
| Fibre Joint Closure | Protects optical splices |
| PLC Splitter | Divides the PON optical signal |
| FAT / FDB | Provides subscriber fibre distribution |
| 2 Core Outdoor Drop Cable | Connects the subscriber premises |
| Fibre Rosette Box | Provides indoor termination |
| SC/APC Connector | Provides optical interface |
| Patch Cord | Connects termination to ONT |
| ONT / ONU | Terminates subscriber optical service |
| Router | Distributes internet connectivity |
Recommended FTTH Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Fast Connector | Fast subscriber termination |
| SC/UPC Fast Connector | Alternative optical connector |
| SC/APC Pigtail | Fusion-spliced termination |
| Fibre Rosette Box | Indoor subscriber fibre termination |
| FAT / FDB Box | Distributes fibre to customers |
| PLC Splitter | Splits the PON optical signal |
| Drop Cable Clamp | Supports appropriate aerial cable |
| Tension Clamp | Anchors self-supporting drop cable |
| Fibre Joint Closure | Protects outdoor fibre splices |
| Fusion Splice Sleeve | Protects completed fibre splice |
| SC/APC Patch Cord | Connects fibre termination equipment |
| ONT / ONU | Terminates subscriber service |
| Optical Power Meter | Measures received optical power |
| Visual Fault Locator | Helps identify fibre faults |
| Fusion Splicer | Produces permanent low-loss fibre joints |
Why Buy 2 Core FTTH Drop Cable 2KM Outdoor Single Mode from Fiber Optics Kenya?
Selecting the correct last-mile cable is important because the drop section is exposed to repeated handling, bends, outdoor routing and customer-premises installation.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 2KM Roll Options | Practical for larger installations |
| 2 Core Capacity | Active and spare fibre flexibility |
| Single Mode G657 Options | Excellent FTTH optical performance |
| Outdoor Cable Solutions | Suitable for external subscriber routes |
| Self-Supporting Options | Suitable for appropriate aerial drops |
| Bulk ISP Supply | Ideal for large customer rollouts |
| Technical Guidance | Help selecting the correct cable |
| Complete FTTH Accessories | Source cable and accessories together |
| Competitive Pricing | Suitable for project procurement |
| Professional Installation | Installation support available |
| Fusion Splicing | Professional fibre termination |
| Nationwide Delivery | Supply across Kenya |
Frequently Asked Questions
What is 2 Core FTTH Drop Cable 2KM Outdoor Single Mode?
It is a 2,000-metre outdoor fibre cable containing two single-mode optical fibres, designed primarily for FTTH and other last-mile access-network connections.
Is this a single-mode cable?
Yes. The product uses single-mode fibre, commonly G657A1 or G657A2, depending on the specific cable supplied.
What does 2 Core mean?
It means the cable contains two separate optical fibres.
What does 2KM mean?
The cable is supplied as a 2,000-metre length or roll.
What is G657A1 fibre?
G657A1 is a bend-insensitive single-mode fibre designed for access and FTTH applications.
What is G657A2 fibre?
G657A2 is a bend-insensitive single-mode fibre designed to tolerate tighter bends than G657A1 in appropriate installations.
Is it suitable for GPON?
Yes. G657 single-mode drop fibre is commonly used in FTTH and PON subscriber access networks.
Is it suitable for EPON?
Yes, provided the rest of the optical equipment and network architecture are compatible.
Can it be installed outdoors?
Yes, when the selected cable model carries the appropriate outdoor rating. Outdoor GJYXCH products are specifically manufactured for this type of deployment.
Can it be installed aerially?
Yes. Self-supporting figure-8 versions include a messenger member for appropriate aerial subscriber spans.
Can it be installed through conduit?
Yes, when the cable model is suitable for conduit installation and its bend-radius and pulling limitations are respected.
Why are there two fibres?
One fibre can provide the active subscriber connection while the second can remain spare or be used for another optical requirement depending on network design.
Does GPON need two fibres?
A standard PON subscriber connection can use a single fibre for bidirectional communication, so the second fibre may remain spare.
Is a 2KM roll better than 1KM?
For larger projects, 2KM provides more cable per roll and reduces roll changes. A 1KM roll may be easier to manage on smaller deployments.
How many customers can a 2KM roll serve?
That depends on each customer's cable route. At an average of 50 metres per customer, 2KM theoretically provides around 40 drops before allowing for slack, service loops and wastage.
What is GJYXCH cable?
GJYXCH is a common self-supporting FTTH drop-cable construction featuring optical fibre, parallel strength members and an integrated messenger for suitable aerial installation.
What connectors are commonly used?
SC/APC connectors are widely used in FTTH and PON systems, although connector choice should match the installed equipment.
Do you supply PLC splitters?
Yes. Fiber Optics Kenya can supply compatible PLC splitters and passive fibre distribution accessories.
Do you supply FDB and FAT boxes?
Yes. Fibre distribution and access boxes can be supplied together with the drop cable.
Do you provide fusion splicing and installation?
Yes. Professional fibre installation, termination, fusion splicing and testing can be provided according to project requirements.
Can ISPs order the cable in bulk?
Yes. Bulk quantities are suitable for ISPs, contractors, residential developments and larger FTTH projects.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic cables and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 2 Core FTTH Drop Cable 2KM Outdoor Single Mode combines bend-insensitive single-mode fibre, two-core flexibility and a practical 2,000-metre roll for larger FTTH and ISP deployments.
Contact Fiber Optics Kenya for competitive pricing, bulk orders, FTTH accessories, installation support and nationwide delivery across Kenya.
