1x8 SC/APC Splitter in Kenya
KSh 800.00
1 available
Continue shopping1x8 SC/APC Splitter in Kenya

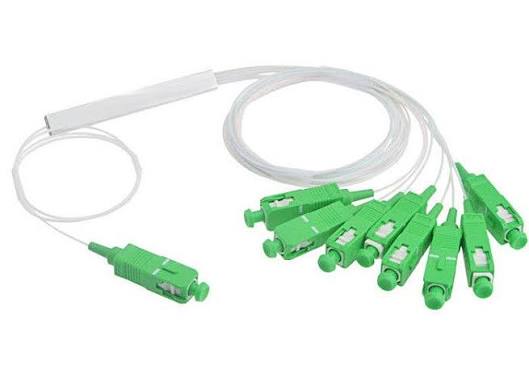

The 1x8 SC/APC Splitter is a passive fibre optic splitter designed to divide one incoming single-mode optical signal into eight output fibre paths. It uses Planar Lightwave Circuit (PLC) technology to distribute optical power across multiple outputs, making it ideal for FTTH, GPON, PON, telecommunications and other fibre access networks requiring efficient one-to-eight optical distribution.
The splitter uses SC/APC connectors, normally identified by their green housings. APC stands for Angled Physical Contact, and this connector geometry is designed to reduce optical back reflection. Corning currently offers 1x8 splitter solutions with SC/APC output connectors, while its PLC splitter modules support 1x8 configurations and SC/APC customization.
At Fiber Optics Kenya, the 1x8 SC/APC Splitter is suitable for ISPs, FTTH installers, telecommunications companies, fibre contractors, residential developments and commercial fibre projects. Customers can also source compatible SC/APC adapters, pigtails, patch cords, FDB/FAT boxes, ODFs, drop cables and fibre testing equipment for complete optical distribution installations.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 1x8 SC/APC Splitter |
| Product Type | PLC Fibre Optic Splitter |
| Configuration | 1 × 8 |
| Number of Inputs | 1 |
| Number of Outputs | 8 |
| Splitter Technology | Planar Lightwave Circuit |
| Split Type | Balanced / Symmetrical |
| Connector Type | SC/APC |
| Connector Colour | Green |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | 9/125 µm |
| Common Fibre Type | G.657A / G.652D depending on model |
| Operating Wavelength | Typically 1260–1650 nm |
| Ideal Power Share per Output | Approx. 12.5% |
| Theoretical Splitting Loss | Approx. 9.03 dB |
| Typical Practical Insertion Loss | Around 10–11.5 dB depending on design |
| Typical PDL | Low, model dependent |
| Typical Return Loss | High with APC interfaces |
| Typical Fibre Lead Length | 1 m / 1.5 m depending on model |
| Electrical Power Required | No |
| Applications | FTTH, GPON, PON, ODF, FDB, telecom |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Corning's PLC splitter module specification lists a maximum insertion loss of 11.5 dB for its 1x8 PLC configuration, with a 1260–1650 nm operating wavelength.
What Does 1x8 SC/APC Splitter Mean?
| Term | Meaning |
|---|---|
| 1x8 | One optical input divided into eight outputs |
| PLC | Planar Lightwave Circuit |
| SC | Standard / Subscriber Connector |
| APC | Angled Physical Contact |
| Single Mode | Fibre optimized for single-mode optical transmission |
| Balanced | Optical power distributed approximately equally |
| Splitter | Passive optical power distribution component |
| PON | Passive Optical Network |
The splitter requires no electricity, because the optical signal is divided passively inside the PLC circuit.
How a 1x8 PLC Splitter Works
One optical fibre enters the splitter, and the PLC circuit divides the signal into eight downstream optical paths.
| Stage | Function |
|---|---|
| Input Fibre | Receives incoming optical signal |
| PLC Circuit | Divides optical power |
| Output 1 | Carries first split signal |
| Output 2 | Carries second split signal |
| Output 3 | Carries third split signal |
| Output 4 | Carries fourth split signal |
| Output 5 | Carries fifth split signal |
| Output 6 | Carries sixth split signal |
| Output 7 | Carries seventh split signal |
| Output 8 | Carries eighth split signal |
A perfectly balanced 1x8 splitter gives approximately 12.5% of the input optical power to each output, corresponding to an ideal splitting loss of approximately 9.03 dB. Real splitters introduce additional excess optical loss.
Typical 1x8 Optical Distribution
| Parameter | Value |
|---|---|
| Inputs | 1 |
| Outputs | 8 |
| Ideal Power per Output | 12.5% |
| Theoretical Split Loss | ~9.03 dB |
| Representative Practical Loss | ~10–11.5 dB |
| External Power Requirement | None |
The exact signal level reaching each subscriber also depends on fibre length, splices, adapters, connector losses and additional splitter stages.
SC/APC Connector Features
| Feature | Benefit |
|---|---|
| Green Housing | Easy APC identification |
| Angled End Face | Reduced optical back reflection |
| SC Push-Pull Design | Easy installation and removal |
| Factory-Terminated Options | Faster field installation |
| Single-Mode Compatibility | Excellent |
| FTTH Compatibility | Excellent |
| GPON Compatibility | Excellent |
| FDB Compatibility | Excellent |
| ODF Compatibility | Excellent |
Current 1x8 PLC splitter products with SC/APC interfaces use the familiar green SC connectors, as shown in commercially available mini and ABS-box configurations.
Why SC/APC Is Common in FTTH Networks
The SC/APC connector is widely used in passive optical networks because its angled interface helps reduce reflected optical power.
| SC/APC Characteristic | Benefit |
|---|---|
| Angled Physical Contact | Lower reflected light |
| Green Identification | Easy to distinguish from UPC |
| Single-Mode Operation | Excellent |
| PON Suitability | Excellent |
| FTTH Suitability | Excellent |
| CATV Suitability | Excellent |
| Stable Optical Interface | Suitable for distribution networks |
Corning currently lists 1x8 splitter cassettes with SC/APC output connectors, confirming the connector's use in professional splitter systems.
Typical Optical Performance
| Optical Parameter | Typical / Representative Description |
|---|---|
| Splitter Configuration | 1x8 |
| Operating Wavelength | 1260–1650 nm |
| Fibre Mode | Single Mode |
| Connector Type | SC/APC |
| Theoretical Splitting Loss | ~9.03 dB |
| Practical Insertion Loss | Around 10–11.5 dB depending on product |
| Port Uniformity | Low channel variation |
| Polarization Dependent Loss | Low |
| Return Loss | High with APC connectors |
| Directivity | High |
Corning's PLC splitter module data specifies a maximum insertion loss of 11.5 dB and maximum uniformity of 1.2 dB for its 1x8 configuration.
Operating Wavelength Range
Professional PLC splitters typically support a wide portion of the single-mode optical spectrum.
| Wavelength | Typical Application |
|---|---|
| 1310 nm | Upstream PON transmission |
| 1490 nm | GPON downstream |
| 1550 nm | Video overlay / other services |
| 1577 nm | Newer PON downstream |
| 1625 nm | Optical testing and monitoring |
Corning's 1x8 PLC splitter module specification covers 1260–1650 nm.
1x8 SC/APC vs SC/UPC Splitter
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Back Reflection | Lower | Low |
| FTTH / GPON | Very Common | Network dependent |
| CATV | Excellent | Less preferred |
| Enterprise Networks | Application dependent | Common |
| Direct APC-to-UPC Mating | No | No |
Always match the splitter connector to the adapters, patch cords and network equipment already installed.
1x8 vs 1x4 PLC Splitter
| Feature | 1x4 | 1x8 |
|---|---|---|
| Outputs | 4 | 8 |
| Ideal Power per Output | 25% | 12.5% |
| Theoretical Split Loss | ~6.02 dB | ~9.03 dB |
| Subscriber Capacity | 4 | 8 |
| Optical Loss | Lower | Higher |
| FTTH Distribution | Excellent | Excellent |
A 1x8 splitter doubles subscriber capacity compared with a 1x4 but introduces approximately 3 dB more theoretical splitting loss.
1x8 vs 1x16 PLC Splitter
| Feature | 1x8 | 1x16 |
|---|---|---|
| Outputs | 8 | 16 |
| Ideal Power per Output | 12.5% | 6.25% |
| Theoretical Split Loss | ~9.03 dB | ~12.04 dB |
| Subscriber Capacity | 8 | 16 |
| Optical Budget Requirement | Moderate | Higher |
| Small FTTH Cluster | Excellent | Excellent |
1x8 vs 1x32 PLC Splitter
| Feature | 1x8 | 1x32 |
|---|---|---|
| Outputs | 8 | 32 |
| Ideal Power per Output | 12.5% | 3.125% |
| Theoretical Split Loss | ~9.03 dB | ~15.05 dB |
| Subscriber Capacity | 8 | 32 |
| Optical Budget | More Flexible | More Demanding |
| Small Deployment | Excellent | Often Excessive |
| Large Subscriber Area | Good | Excellent |
Mini 1x8 vs ABS Box 1x8 Splitter
| Feature | Mini / Steel Tube | ABS Box |
|---|---|---|
| Physical Size | Small | Larger |
| Mechanical Protection | Moderate | Higher |
| SC/APC Options | Yes | Yes |
| FDB Installation | Excellent | Excellent |
| ODF Installation | Excellent | Excellent |
| Fibre Lead Management | Requires Care | Easier |
| Outdoor Protected Enclosure | Excellent | Excellent |
Current SC/APC 1x8 products are available in both compact steel-tube and ABS-box configurations.
Connectorized 1x8 vs Bare 1x8 PLC Splitter
| Feature | SC/APC Connectorized | Bare 1x8 |
|---|---|---|
| Factory Connectors | Yes | No |
| Plug-and-Play | Yes | No |
| Fusion Splicing Required | Reduced | Usually Yes |
| Installation Speed | Faster | More Involved |
| Termination Flexibility | Lower | Higher |
| Maintenance | Easier | More Technical |
| FDB Installation | Excellent | Excellent |
| ODF Installation | Excellent | Excellent |
The connectorized version is particularly useful where fast installation and easy maintenance are priorities.
Key Benefits of 1x8 SC/APC Splitter
Eight Optical Outputs
A single incoming fibre can be distributed across eight downstream optical paths.
SC/APC Connectivity
Green SC/APC connectors provide ready-to-use interfaces for compatible PON infrastructure.
Low Back Reflection
The angled connector geometry helps reduce reflected optical power.
Wide Wavelength Operation
PLC splitters can support the broad optical wavelength range required by modern PON systems. Corning specifies 1260–1650 nm for its PLC splitter modules.
Compact Installation Options
Mini steel-tube, cassette and enclosure-integrated 1x8 splitter formats are available.
Passive Operation
No electrical power or network configuration is required.
Ideal FTTH Capacity
Eight outputs provide a practical balance between subscriber capacity and optical loss for many small- to medium-sized fibre distribution points.
Watch 1x8 SC/APC Splitter
Watch on YouTube: https://youtu.be/41DY1MVAWTY
The 1x8 SC/APC Splitter provides an efficient method of distributing one single-mode optical signal across eight downstream fibre paths. Current commercial versions are available with factory-installed green SC/APC connectors in mini, ABS-box and cassette configurations, making them suitable for different FTTH distribution environments.
The 1x8 split ratio provides a useful compromise between subscriber capacity and optical loss. In an ideal splitter, each output receives 12.5% of the original optical power, while real-world devices introduce some additional loss. Corning's PLC splitter module specification lists up to 11.5 dB insertion loss for a 1x8 configuration and supports a broad 1260–1650 nm wavelength range.
For FTTH contractors and ISPs, the SC/APC connectorized format simplifies network deployment because each output can connect directly to compatible adapters and patch cords. Fiber Optics Kenya can supply the 1x8 SC/APC Splitter together with SC/APC adapters, pigtails, patch cords, FDB/FAT boxes, ODFs, FTTH drop cables, optical power meters and PON testing tools, helping installers source complete fibre distribution solutions.
Applications of 1x8 SC/APC Splitter
1. FTTH Networks
Divide one feeder fibre into eight subscriber or downstream fibre connections.
2. GPON Networks
Provide passive optical distribution between an OLT and multiple ONTs.
3. Fibre Distribution Boxes
Install the splitter in an FDB or FAT box to provide subscriber outputs.
4. Optical Distribution Frames
Provide organized optical distribution within ODF infrastructure.
5. Residential Estates
Serve small clusters of homes from a common feeder fibre.
6. Apartment Buildings
Distribute fibre to several apartments or units.
7. Commercial Buildings
Provide fibre connectivity to multiple offices or tenants.
8. Telecommunications Networks
Provide passive one-to-eight single-mode fibre distribution.
9. CATV Fibre Networks
SC/APC interfaces can be useful in reflection-sensitive optical systems.
10. ISP Access Networks
Improve feeder-fibre utilization while serving multiple subscribers.
Typical FTTH Architecture Using 1x8 SC/APC Splitter
| Network Stage | Typical Component |
|---|---|
| Service Provider Equipment | OLT |
| Feeder Fibre | Single Mode |
| Splitter Input | SC/APC or spliced input depending on model |
| Optical Splitter | 1x8 PLC Splitter |
| Output Interfaces | 8 × SC/APC |
| Distribution Point | FDB / FAT |
| Subscriber Drop | FTTH Drop Cable |
| Subscriber Equipment | ONT / ONU |
Corning currently offers a 1x8 splitter cassette with a non-connectorized input and SC/APC outputs, demonstrating one common professional configuration.
Optical Budget Considerations
| Loss Source | Include in Calculation? |
|---|---|
| 1x8 Splitter Loss | Yes |
| Feeder Fibre Attenuation | Yes |
| Distribution Fibre Loss | Yes |
| Drop Fibre Loss | Yes |
| SC/APC Connector Loss | Yes |
| Adapter Loss | Yes |
| Fusion Splice Loss | Yes |
| Additional Splitters | Yes |
| Engineering Margin | Yes |
A 1x8 splitter normally requires substantially less optical budget than 1x16, 1x32 or 1x64 splitting, making it attractive where longer fibre distances or additional splitting stages are expected.
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Connector Polish | Use matching SC/APC interfaces |
| Connector Cleaning | Clean connectors before mating |
| Optical Budget | Calculate complete link loss |
| Splitter Housing | Protect according to installation environment |
| Fibre Bend Radius | Avoid excessive bending |
| Output Labelling | Label all eight channels |
| Unused Ports | Keep dust caps fitted |
| Testing | Measure optical power on outputs |
| Cable Management | Route leads neatly |
| Documentation | Record subscriber assignments |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapter | Couples compatible APC connectors |
| SC/APC Patch Cord | Connects splitter to downstream equipment |
| SC/APC Pigtail | Terminates installed fibre |
| FDB / FAT Box | Houses splitter and subscriber fibres |
| Optical Distribution Frame | Structured fibre management |
| FTTH Drop Cable | Subscriber fibre connection |
| Fibre Connector Cleaner | Cleans APC ferrules |
| Optical Power Meter | Measures optical power |
| PON Power Meter | Tests PON signals |
| Visual Fault Locator | Helps identify fibre paths |
| OTDR | Tests installed optical links |
| Fibre Patch Panel | Organizes fibre interfaces |
Why Buy 1x8 SC/APC Splitter from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 1x8 PLC Splitters | Reliable eight-way distribution |
| SC/APC Connector Options | Suitable for FTTH and PON |
| Single-Mode Solutions | Professional optical performance |
| SC/APC Adapters | Matching connectivity available |
| Patch Cords & Pigtails | Complete termination solution |
| FDB & FAT Boxes | Complete subscriber distribution |
| ODFs & Patch Panels | Professional fibre management |
| FTTH Drop Cables | Complete downstream connections |
| Testing Equipment | Verify installation performance |
| Technical Guidance | Help selecting split ratios and accessories |
| Bulk Supply | Suitable for ISPs and contractors |
| Competitive Pricing | Cost-effective fibre deployment |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 1x8 SC/APC Splitter?
It is a passive fibre optic splitter that divides one optical input into eight outputs using PLC technology and SC/APC fibre interfaces. Corning currently offers professional 1x8 splitter systems with SC/APC outputs.
What does 1x8 mean?
It means the splitter has one optical input and eight optical outputs.
What does PLC mean?
PLC means Planar Lightwave Circuit.
What does APC mean?
APC means Angled Physical Contact.
What colour are SC/APC connectors?
SC/APC connectors are normally green, as shown on current 1x8 PLC splitter products.
Is a 1x8 SC/APC Splitter single mode?
Yes. SC/APC PLC splitters are widely used with single-mode optical fibre in PON networks. Corning's splitter hardware includes 1x8 SC/APC configurations.
How many outputs does it have?
It provides eight downstream optical output channels.
How much power ideally reaches each output?
In a perfectly balanced 1x8 splitter, each output receives approximately 12.5% of the incoming optical power.
What is the theoretical splitting loss?
The theoretical loss is approximately 9.03 dB.
What is the practical insertion loss?
This depends on product design, fibre leads and connectors. Corning specifies up to 11.5 dB insertion loss for its 1x8 PLC splitter module design.
What wavelength range does it support?
Professional PLC splitter modules commonly support approximately 1260–1650 nm.
Does the splitter require electricity?
No. PLC fibre splitters are passive optical components.
Is it suitable for FTTH?
Yes. 1x8 splitters are widely used in FTTH distribution systems. Corning offers outdoor fibre terminals incorporating 1x8 SC/APC splitter modules.
Can it be used with GPON?
Yes. A 1x8 split ratio is commonly suitable for GPON where the optical budget supports the network design.
Can one 1x8 splitter serve eight customers?
Potentially yes. Each output can be assigned to a subscriber, provided the overall PON architecture and optical budget support the eight links.
Can it be installed inside an FDB?
Yes. FDB and FAT boxes are common installation points for 1x8 fibre splitters.
Can it be installed in an ODF?
Yes. PLC splitters can be integrated into compatible ODFs, panels and cassettes. Corning offers 1x8 splitter cassettes with SC/APC outputs.
Can SC/APC connect directly to SC/UPC?
No. APC and UPC connector end faces have different geometries and should not be directly mated.
What is the difference between a 1x8 SC/APC and 1x8 SC/UPC splitter?
The splitting function is similar, but the connector polish differs. SC/APC normally uses green angled connectors, while SC/UPC normally uses blue UPC-polished connectors.
Is 1x8 better than 1x16?
It depends on the project. A 1x8 has fewer outputs but lower optical loss, while a 1x16 provides more subscriber capacity with greater splitting loss.
Can the splitter be cascaded?
Yes. A 1x8 splitter can feed additional downstream splitters, but all splitter and connection losses must be added to the optical power budget.
Are mini 1x8 SC/APC splitters available?
Yes. Compact mini-module 1x8 SC/APC splitters are commercially available.
Are ABS-box 1x8 SC/APC splitters available?
Yes. ABS-box versions with SC/APC connectors are available for more protected installations.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply compatible SC/APC fibre adapters.
Do you supply SC/APC patch cords and pigtails?
Yes. Matching single-mode SC/APC patch cords and pigtails can be supplied.
Do you supply FDB and FAT boxes?
Yes. Compatible fibre distribution boxes and fibre access terminals can be supplied.
Do you supply ODFs?
Yes. Fibre ODFs and related termination products are available for structured fibre networks.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDR equipment can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination, splicing and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 1x8 SC/APC Splitter provides reliable eight-way passive optical distribution for FTTH, GPON, FDB, ODF and other single-mode fibre networks.
Contact Fiber Optics Kenya for competitive pricing, 1x8 SC/APC splitters, matching accessories, bulk orders and nationwide delivery across Kenya.
