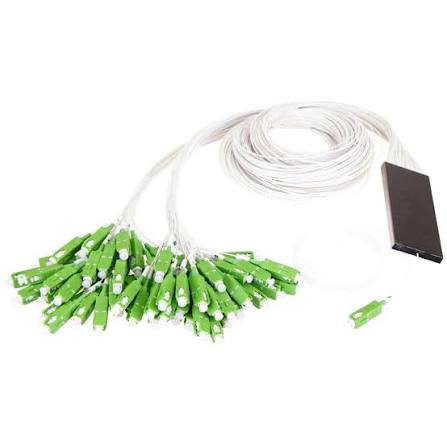

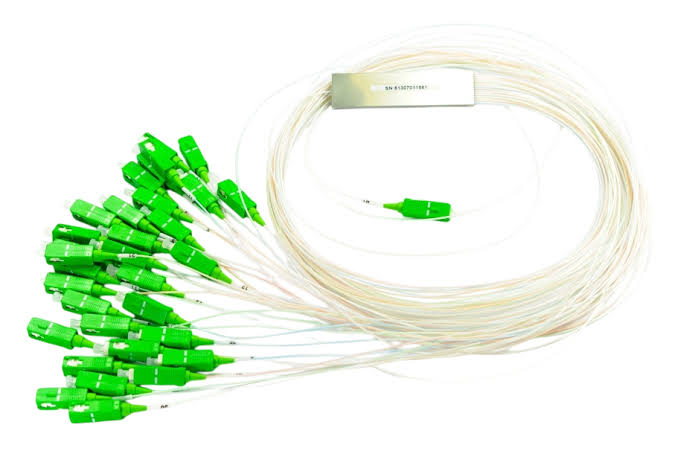

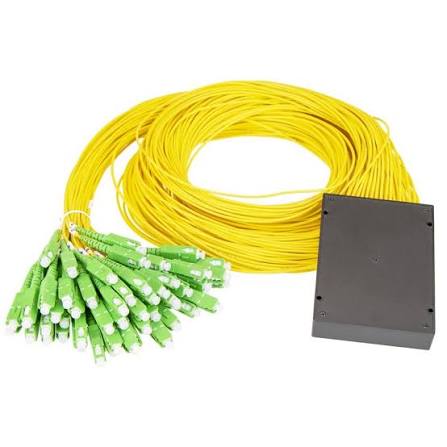

1x64 Splitter with SC/APC Connectors in Kenya
KSh 3,500.00
1 available
Continue shopping1x64 Splitter with SC/APC Connectors in Kenya
The 1x64 Splitter with SC/APC Connectors is a high-density passive fibre optic splitter designed to divide one incoming single-mode optical signal into 64 separate output paths. It uses Planar Lightwave Circuit (PLC) technology, making it suitable for FTTH, GPON, PON, CATV and carrier networks where a large number of downstream fibre connections must be served from a single feeder fibre. Corning currently offers a professional 1x64 single-mode OS2 splitter module with SC/APC input and output connectors specifically for carrier and CATV environments.
The splitter's green SC/APC connectors provide an angled physical-contact interface designed for high return-loss performance and low optical back reflection. Professional 1x64 PLC splitter specifications commonly cover a broad optical wavelength range, with one current product family specifying 1260–1650 nm operation, typical 20.1 dB insertion loss, maximum 20.8 dB insertion loss, ≤0.5 dB PDL and ≥55 dB return loss for APC connectors.
At Fiber Optics Kenya, the 1x64 Splitter with SC/APC Connectors is ideal for ISPs, fibre contractors, telecommunications operators, residential estates, apartment developments, commercial buildings and large FTTH projects. Matching SC/APC adapters, patch cords, pigtails, FDB/FAT boxes, ODFs, fibre distribution cabinets, optical power meters and PON testing equipment can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 1x64 Splitter with SC/APC Connectors |
| Product Category | PLC Fibre Optic Splitter |
| Configuration | 1 × 64 |
| Number of Inputs | 1 |
| Number of Outputs | 64 |
| Splitter Technology | Planar Lightwave Circuit |
| Split Type | Balanced / Symmetrical |
| Connector Type | SC/APC |
| Connector Colour | Green |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Common Fibre Type | G.657A / G.657A2 depending on manufacturer |
| Typical Fibre Size | 9/125 µm |
| Operating Wavelength | Typically 1260–1650 nm |
| Ideal Power Share per Output | Approx. 1.5625% |
| Theoretical Splitting Loss | Approx. 18.06 dB |
| Typical Practical Insertion Loss | Around 19.8–20.1 dB |
| Typical Maximum Insertion Loss | Around 20.4–20.8 dB |
| Typical Uniformity | Approx. 1.8–2.0 dB |
| Typical PDL | Approx. ≤0.4–0.5 dB |
| Typical Return Loss | ≥55 dB |
| Typical Directivity | ≥55 dB |
| Operating Temperature | Commonly -40°C to +85°C |
| Electrical Power Required | No |
| Main Applications | FTTH, GPON, PON, CATV, ODF, FDB |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Corning's current 1x64 SC/APC splitter module specifies 19.8 dB typical insertion loss, 20.4 dB maximum insertion loss, 0.4 dB PDL, 1.8 dB uniformity, 55 dB directivity and return loss greater than 55 dB.
What Does 1x64 SC/APC Splitter Mean?
| Term | Meaning |
|---|---|
| 1x64 | One optical input divided into 64 output paths |
| PLC | Planar Lightwave Circuit |
| SC | Standard / Subscriber Connector |
| APC | Angled Physical Contact |
| Single Mode | Fibre optimized for single-mode optical transmission |
| Balanced | Optical power divided approximately evenly |
| Splitter | Passive optical power-distribution component |
| PON | Passive Optical Network |
| FTTH | Fibre to the Home |
A 1x64 PLC splitter performs its function without electrical power or active switching electronics. PLC splitter technology supports high split ratios such as 1x64 and even 1x128, depending on manufacturer.
How a 1x64 PLC Splitter Works
The optical signal enters through one SC/APC input and is divided by the PLC optical circuit into sixty-four downstream channels.
| Stage | Function |
|---|---|
| SC/APC Input | Receives feeder optical signal |
| PLC Optical Circuit | Divides optical power |
| Outputs 1–16 | First group of downstream channels |
| Outputs 17–32 | Second group |
| Outputs 33–48 | Third group |
| Outputs 49–64 | Fourth group |
| SC/APC Connectors | Provide ready-to-use output interfaces |
A perfectly equal 1x64 split produces approximately 18.06 dB of theoretical splitting loss before real component losses are considered. Practical professional devices are therefore typically around 20 dB total insertion loss. Corning's current 1x64 model specifies 19.8 dB typical and 20.4 dB maximum loss.
Typical 1x64 Optical Distribution
| Parameter | Value |
|---|---|
| Input Channels | 1 |
| Output Channels | 64 |
| Ideal Optical Share per Output | 1.5625% |
| Theoretical Split Loss | ~18.06 dB |
| Typical Real Insertion Loss | ~19.8–20.1 dB |
| Maximum Representative Loss | ~20.4–20.8 dB |
| Power Requirement | None |
A 1x64 splitter therefore requires significantly more optical budget than smaller 1x8, 1x16 or 1x32 splitters.
SC/APC Connector Features
| Feature | Benefit |
|---|---|
| Green Housing | Easy APC identification |
| Angled Physical Contact | Reduced optical back reflection |
| SC Push-Pull Format | Easy connection and removal |
| Factory Termination | Faster installation |
| Single-Mode Compatibility | Excellent |
| FTTH / PON Suitability | Excellent |
| CATV Suitability | Excellent |
| ODF Integration | Excellent |
| FDB Integration | Excellent |
The supplied connectorized 1x64 format is visually recognizable by its large number of green SC/APC connectors, as shown in current commercial products.
Why APC Connectors Are Important on a 1x64 Splitter
High split-ratio PON networks benefit from connector interfaces that minimize reflected optical energy.
| APC Characteristic | Network Benefit |
|---|---|
| Angled End Face | Reduces reflected light |
| Typical Green Identification | Prevents UPC/APC confusion |
| High Return Loss | Supports reflection-sensitive links |
| PON Compatibility | Excellent |
| CATV Compatibility | Excellent |
| FTTH Use | Very Common |
Professional splitter specifications list ≥55 dB return loss for APC connector versions.
Typical Optical Performance
| Optical Parameter | Representative Value |
|---|---|
| Configuration | 1x64 |
| Fibre Mode | Single Mode |
| Operating Wavelength | 1260–1650 nm on broad-band product families |
| Typical Insertion Loss | ~20.1 dB |
| Maximum Insertion Loss | ~20.8 dB |
| Uniformity | ≤2.0 dB |
| PDL | ≤0.5 dB |
| Return Loss – APC | ≥55 dB |
| Directivity | ≥55 dB |
| Operating Temperature | -40°C to +85°C |
These values are representative and may vary between manufacturers. Softel's 1x64 specification lists 20.1 dB typical and 20.8 dB maximum insertion loss, while Corning lists 19.8 dB typical and 20.4 dB maximum for its current 1x64 SC/APC module.
Operating Wavelength Range
Many professional PLC splitters operate across a wide portion of the single-mode spectrum. Softel specifies 1260–1650 nm, while Corning's cited 1x64 module covers 1260–1360 nm and 1480–1625 nm.
| Wavelength | Common Fibre Application |
|---|---|
| 1310 nm | PON upstream |
| 1490 nm | GPON downstream |
| 1550 nm | Video overlay / additional optical services |
| 1577 nm | Newer-generation PON downstream |
| 1625 nm | Testing and monitoring |
Single-Mode Fibre Construction
| Fibre Feature | Typical Description |
|---|---|
| Fibre Mode | Single Mode |
| Fibre Category | OS2 |
| Typical Core / Cladding | 9/125 µm |
| Common Fibre Type | G.657A / G.657A2 |
| Typical Lead Colour | Yellow / white depending on package |
| Connector Type | SC/APC |
| Connector Colour | Green |
| Bend-Improved Fibre | Available |
Corning's current 1x64 SC/APC splitter is classified as single-mode OS2 and uses bend-improved fibre on its input and output legs. CommScope's PLC splitter family uses G.657.A2 fibre and supports SC/APC connector configurations.
G.657A1 vs G.657A2 Fibre
| Feature | G.657A1 | G.657A2 |
|---|---|---|
| Mode | Single Mode | Single Mode |
| Bend Insensitive | Yes | Yes |
| Tight-Bend Performance | Excellent | Enhanced |
| FTTH Distribution | Excellent | Excellent |
| High-Density Enclosures | Excellent | Excellent |
| FDB Routing | Excellent | Excellent |
| ODF Routing | Excellent | Excellent |
Bend-insensitive fibre is particularly useful with a 1x64 splitter because sixty-four output fibres often need to be managed inside a relatively compact enclosure. CommScope specifies G.657.A2 for its PLC splitter products.
1x64 SC/APC vs 1x64 SC/UPC Splitter
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Connector Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Return Reflection | Lower | Higher |
| FTTH / GPON | Very Common | Network dependent |
| CATV | Excellent | Less preferred |
| Enterprise LAN | Application dependent | Common |
| Direct APC/UPC Mating | No | No |
SC/APC and SC/UPC connectors should not be directly mated because their ferrule end-face geometries differ.
1x64 vs 1x32 Splitter
| Feature | 1x32 | 1x64 |
|---|---|---|
| Outputs | 32 | 64 |
| Ideal Power per Output | 3.125% | 1.5625% |
| Theoretical Split Loss | ~15.05 dB | ~18.06 dB |
| Representative Max PLC Loss | ~17 dB | ~20.5 dB |
| Subscriber Capacity | 32 | 64 |
| Optical Budget Requirement | High | Higher |
| Network Density | High | Very High |
CommScope's published splitter data lists 17.0 dB maximum insertion loss for unconnectorized 1x32 and 20.5 dB for 1x64, illustrating roughly a 3.5 dB increase in practical loss as the number of outputs doubles.
1x16 vs 1x32 vs 1x64 PLC Splitter
| Feature | 1x16 | 1x32 | 1x64 |
|---|---|---|---|
| Outputs | 16 | 32 | 64 |
| Ideal Power per Output | 6.25% | 3.125% | 1.5625% |
| Theoretical Loss | 12.04 dB | 15.05 dB | 18.06 dB |
| Representative Max Loss | ~13.7 dB | ~17.0 dB | ~20.5 dB |
| Subscriber Capacity | 16 | 32 | 64 |
| Optical Budget Demand | High | Higher | Very High |
The published CommScope specifications show how insertion loss rises as the split ratio increases.
Connectorized 1x64 vs Bare 1x64 Splitter
| Feature | SC/APC Connectorized | Bare 1x64 |
|---|---|---|
| Factory Connectors | Yes | No |
| Plug-and-Play Connection | Yes | No |
| Fusion Splicing | Reduced | Usually Required |
| Installation Speed | Faster | More Involved |
| Termination Flexibility | Lower | Higher |
| Connector Cleaning | Required | After termination |
| Maintenance | Easier | More technical |
| FDB / ODF Use | Excellent | Excellent |
CommScope supports PLC splitter configurations with and without connectors, including SC/APC interfaces.
Mini Module vs Rack-Mount 1x64 Splitter
| Feature | Mini / Compact Module | Rack-Mount |
|---|---|---|
| Physical Size | Compact | Larger |
| Installation Location | FDB / cabinet / enclosure | Equipment rack |
| Connector Accessibility | Fibre leads | Front panel |
| Protection Level | Moderate | High |
| Port Organization | Requires fibre management | Excellent |
| Data Room Use | Possible | Excellent |
| Outdoor FDB Use | Excellent with proper enclosure | Usually No |
Commercial 1x64 SC/APC splitters are available both as compact fibre-lead modules and 1U rack-mounted units with organized front-facing APC ports.
Why Choose a 1x64 Split Ratio?
| Deployment | Why 1x64 Can Be Useful |
|---|---|
| Large Residential Estate | Supports many subscriber branches |
| Apartment Development | High user density |
| Commercial Complex | Multiple tenant fibre outputs |
| ISP FTTH Network | Maximizes feeder-fibre utilization |
| Campus Network | High endpoint capacity |
| Carrier Network | High-density passive distribution |
| Large FDB Deployment | Up to 64 output channels |
A 1x64 splitter should only be selected when the optical budget of the chosen PON system can accommodate its approximately 20 dB splitter loss.
Optical Budget Considerations
| Loss Source | Must Be Included? |
|---|---|
| 1x64 Splitter Loss | Yes |
| Feeder Fibre Attenuation | Yes |
| Distribution Fibre Loss | Yes |
| Drop Fibre Loss | Yes |
| SC/APC Connector Loss | Yes |
| Adapter Loss | Yes |
| Fusion Splices | Yes |
| Additional Splitter Stages | Yes |
| Engineering Margin | Yes |
A 1x64 PLC splitter alone can contribute roughly 20 dB of insertion loss, so careful OLT-to-ONT optical budget calculation is essential.
Key Benefits of 1x64 Splitter with SC/APC Connectors
High Subscriber Capacity
One optical feeder can provide up to 64 downstream fibre paths where the network design supports it.
Factory-Terminated SC/APC Interfaces
SC/APC connectors simplify installation and reduce the need for field connectorization.
Strong Return-Loss Performance
Professional APC splitter designs specify return loss of 55 dB or better.
Broad Wavelength Compatibility
PLC splitter families support wide single-mode wavelength ranges suitable for PON infrastructure.
Passive Operation
No mains power, power adapter, software or network configuration is required.
Bend-Improved Fibre Options
Corning's 1x64 splitter uses bend-improved input and output fibre legs to help minimize attenuation in dense installations.
Multiple Installation Formats
1x64 SC/APC splitters are available as compact modules, cabinet modules and rack-mounted systems.
Watch 1x64 Splitter with SC/APC Connectors
https://youtu.be/jXSwA-zA9JY
The 1x64 Splitter with SC/APC Connectors provides one of the highest-density commonly deployed passive splitting configurations, allowing a single feeder optical path to branch into 64 outputs. Professional examples include Corning's current single-mode OS2 1x64 splitter module with SC/APC connectors on both input and output sides, demonstrating that this architecture is suitable for carrier-grade fibre distribution.
The main design consideration is optical loss. An ideal 1x64 split has about 18.06 dB of theoretical splitting loss, while real professional devices are typically around 20 dB after excess splitter and connector losses are included. Softel specifies 20.1 dB typical insertion loss for its 1x64 PLC configuration, while Corning specifies 19.8 dB typical on its 1x64 SC/APC module.
For large FTTH deployments, residential estates, apartment complexes and ISP distribution networks, the connectorized design makes installation and maintenance easier because each output already provides a standardized SC/APC interface. Fiber Optics Kenya can supply the 1x64 Splitter with SC/APC Connectors alongside SC/APC adapters, patch cords, pigtails, FDB/FAT boxes, ODFs, fibre distribution cabinets, power meters, PON meters and fibre-cleaning accessories, giving installers a complete passive optical distribution solution.
Applications of 1x64 Splitter with SC/APC Connectors
1. FTTH Networks
Distribute one feeder fibre across up to sixty-four subscriber or downstream paths where the optical budget permits.
2. GPON Networks
Provide large-scale passive distribution from OLT infrastructure toward multiple ONTs.
3. Carrier Networks
Corning specifically identifies its current 1x64 SC/APC module for carrier-network applications.
4. CATV Fibre Networks
SC/APC interfaces and high return-loss performance make this configuration useful in CATV optical environments. Corning also lists CATV among the applications for its 1x64 module.
5. Residential Estates
Provide high-density fibre distribution to multiple homes from shared feeder infrastructure.
6. Apartment Buildings
Support large numbers of subscriber fibre connections from a centralized distribution point.
7. Optical Distribution Frames
Deploy high-density connectorized optical splitting within ODF infrastructure.
8. Fibre Distribution Cabinets
Organize large numbers of subscriber fibres through a centralized 1x64 splitter.
9. Commercial Developments
Distribute optical services to multiple offices, tenants or units.
10. ISP Access Networks
Increase subscriber density while reducing feeder-fibre requirements.
Typical FTTH Architecture Using a 1x64 Splitter
| Network Stage | Typical Component |
|---|---|
| Provider Equipment | OLT |
| Feeder Network | Single Mode Fibre |
| Splitter Input | SC/APC |
| Optical Splitter | 1x64 PLC Splitter |
| Output Interfaces | 64 × SC/APC |
| Distribution Point | FDB / FAT / Cabinet |
| Subscriber Fibre | FTTH Drop Cable |
| Subscriber Equipment | Compatible ONT / ONU |
Single-Stage vs Cascaded 1x64 Distribution
| Architecture | Potential Final Outputs |
|---|---|
| Single 1x64 | 64 |
| 1x2 → 1x32 | 64 |
| 1x4 → 1x16 | 64 |
| 1x8 → 1x8 | 64 |
Both single-stage and cascaded splitting can achieve 64 outputs, but the final network should be designed around the allowed PON optical budget, fibre topology and physical distribution requirements.
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Optical Budget | Calculate before deployment |
| Connector Compatibility | Use SC/APC throughout APC interfaces |
| Port Labelling | Clearly number all 64 outputs |
| Connector Cleaning | Clean before every connection |
| Cable Management | Maintain safe bend radius |
| Distribution Enclosure | Use sufficient-capacity FDB or cabinet |
| Unused Connectors | Keep dust caps fitted |
| Output Testing | Measure optical power on all required ports |
| Documentation | Record subscriber-to-port assignments |
| Engineering Margin | Maintain adequate spare optical budget |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/APC Adapters | Couple SC/APC fibre connectors |
| SC/APC Patch Cords | Connect splitter outputs |
| SC/APC Pigtails | Terminate distribution fibres |
| 64-Port FDB / Cabinet | Houses subscriber distribution |
| FAT Box | FTTH access distribution |
| Optical Distribution Frame | Structured fibre management |
| FTTH Drop Cable | Subscriber connection |
| Fibre Connector Cleaner | Keeps APC ferrules clean |
| Optical Power Meter | Measures optical levels |
| PON Power Meter | Tests passive optical network signals |
| Visual Fault Locator | Assists fibre identification |
| OTDR | Tests fibre link condition |
| Fibre Identification Labels | Organize 64 outputs |
Why Buy 1x64 Splitter with SC/APC Connectors from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 1x64 PLC Splitter Options | High-density fibre distribution |
| SC/APC Connectivity | Ideal for compatible PON infrastructure |
| Single-Mode Solutions | Suitable for FTTH and carrier networks |
| Matching SC/APC Adapters | Complete connector compatibility |
| Patch Cords & Pigtails | Complete fibre termination |
| FDB & FAT Boxes | Subscriber distribution infrastructure |
| ODFs & Fibre Cabinets | Professional fibre management |
| FTTH Drop Cables | Complete downstream connections |
| Testing Equipment | Verify optical power and performance |
| Technical Guidance | Help with splitter selection and optical budgets |
| Bulk Supply | Suitable for ISPs and contractors |
| Competitive Pricing | Cost-effective large-scale deployment |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 1x64 Splitter with SC/APC Connectors?
It is a passive PLC fibre splitter with one optical input and sixty-four output channels, terminated with SC/APC connectors. Corning currently offers a 1x64 single-mode module with SC/APC input and output connectors.
What does 1x64 mean?
It means one incoming optical signal is divided across 64 output paths.
What does PLC mean?
PLC means Planar Lightwave Circuit, a silica-waveguide technology used for optical power splitting.
What does SC/APC mean?
SC/APC means an SC fibre connector using an Angled Physical Contact optical interface.
What colour are SC/APC connectors?
SC/APC connectors are normally green, as shown on current 1x64 products.
Is the 1x64 splitter single mode?
Yes. Corning's current 1x64 SC/APC splitter module is specified as single-mode OS2.
What fibre type can be used?
Professional PLC splitter families use bend-insensitive single-mode fibres such as G.657A or G.657A2. Softel specifies G657A, while CommScope specifies G.657.A2 for its PLC range.
What is the operating wavelength?
Broad-band PLC product families commonly specify 1260–1650 nm.
How much power ideally reaches each output?
An equal 1x64 split provides approximately 1.5625% of the incoming optical power per output before excess device loss.
What is the theoretical splitting loss?
The ideal splitting loss is approximately 18.06 dB.
What is the typical actual insertion loss?
Professional 1x64 devices typically specify roughly 19.8–20.1 dB insertion loss.
What is the maximum insertion loss?
Representative specifications range around 20.4–20.8 dB depending on manufacturer.
What is the typical return loss?
APC versions commonly specify 55 dB or better return loss.
What is the typical PDL?
Representative 1x64 specifications give approximately 0.4–0.5 dB PDL.
Does it require electricity?
No. A PLC splitter is completely passive.
Can it be used for FTTH?
Yes. PLC splitters are widely designed for PON, FTTH and FTTx networks.
Can it be used with GPON?
Yes, provided the full 1x64 network remains within the optical budget of the selected GPON equipment.
Can it be used with CATV?
Yes. Corning lists CATV environments among the intended applications of its current 1x64 SC/APC splitter module.
Can one 1x64 splitter serve 64 customers?
Potentially yes. Each output can be allocated to a subscriber, provided the OLT, PON class, distance, connector loss and total network optical budget support the design.
Does a 1x64 splitter have more loss than 1x32?
Yes. CommScope lists maximum insertion loss of 17.0 dB for 1x32 versus 20.5 dB for 1x64 on its unconnectorized PLC splitter range.
Can SC/APC connect directly to SC/UPC?
No. APC and UPC ferrule end-face geometries differ and should not be directly mated.
Can it be installed inside an FDB?
Yes, provided the FDB or distribution cabinet has enough space and fibre-management capacity for 64 outputs.
Can it be rack mounted?
Yes. Commercial 1U 19-inch 1x64 SC/APC rack-mount splitters are available.
Are compact module versions available?
Yes. Compact 1x64 SC/APC mini-module versions are also commercially available.
Do you supply SC/APC adapters?
Yes. Fiber Optics Kenya can supply compatible SC/APC adapters.
Do you supply SC/APC patch cords and pigtails?
Yes. Matching SC/APC single-mode patch cords and pigtails can be supplied.
Do you supply high-capacity FDB and FAT boxes?
Yes. Compatible fibre distribution and access terminal enclosures can be supplied according to project requirements.
Do you supply ODFs and fibre cabinets?
Yes. ODFs and fibre distribution cabinets can be supplied for high-density installations.
Do you supply optical power and PON meters?
Yes. Fibre testing equipment can be supplied for installation, commissioning and maintenance.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, termination, testing and troubleshooting support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 1x64 Splitter with SC/APC Connectors provides high-capacity passive optical distribution for FTTH, GPON, CATV and carrier networks requiring up to 64 downstream fibre paths.
Contact Fiber Optics Kenya for competitive pricing, 1x64 SC/APC splitters, matching fibre accessories, bulk orders and nationwide delivery across Kenya.
