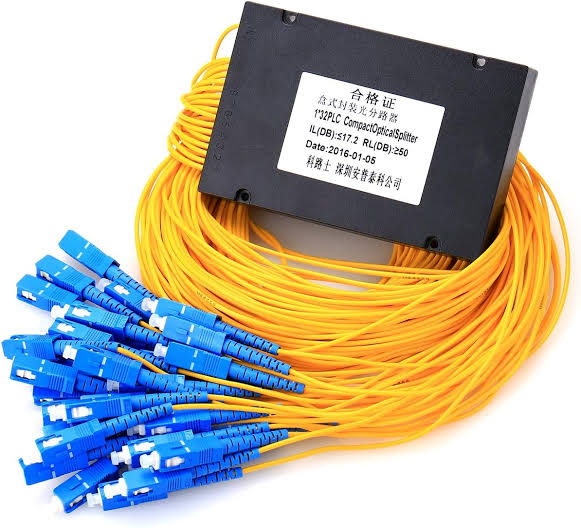

1x32 Splitter with SC/UPC Connectors in Kenya

The 1x32 Splitter with SC/UPC Connectors is a passive fibre optic splitter designed to divide one incoming single-mode optical signal into 32 output fibre paths. It uses Planar Lightwave Circuit technology to distribute the optical signal across multiple outputs and is widely suited to FTTH, GPON, EPON and FTTx networks where a single feeder fibre needs to serve many downstream connections.

Unlike a bare 1x32 splitter, this version is supplied with SC/UPC connectors, typically recognizable by their blue housings. Connectorized versions simplify installation because they can plug into compatible SC/UPC adapters, ODFs, fibre distribution panels and termination equipment without requiring a connector to be installed on every splitter lead in the field. Commercial 1x32 SC/UPC PLC splitter products are available in cassette, module and rack-mount formats.

At Fiber Optics Kenya, the 1x32 Splitter with SC/UPC Connectors is suitable for ISPs, FTTH installers, telecommunications contractors, commercial developments, residential estates and enterprise fibre projects requiring high-density passive fibre distribution. It can be deployed together with compatible SC/UPC adapters, patch cords, ODFs, FDB/FAT boxes and testing equipment.

Key Product Specifications

Representative 1x32 PLC splitter specifications show 1260–1650 nm operation, 16.2 dB typical insertion loss, 17.1 dB maximum insertion loss, ≤0.3 dB PDL, ≤0.5 dB wavelength-dependent loss and ≥55 dB directivity.

What Does 1x32 SC/UPC Splitter Mean?

A PLC splitter is passive equipment: it divides optical power without powered switching electronics. 1x32 products are specifically available for GPON, EPON, FTTH and FTTx distribution.

How a 1x32 PLC Splitter Works

The splitter accepts one optical fibre input and divides that signal into thirty-two optical output channels. In a balanced design, the outputs are intended to receive approximately equal portions of the available optical power.

Typical 1x32 Optical Distribution

Because practical devices introduce excess loss beyond ideal mathematical splitting, the actual insertion loss is higher than the theoretical 15.05 dB. Representative PLC splitter data gives typical 1x32 losses around 17.0 dB, with some products specifying approximately 16.2 dB typical and 17.1 dB maximum.

SC/UPC Connector Features

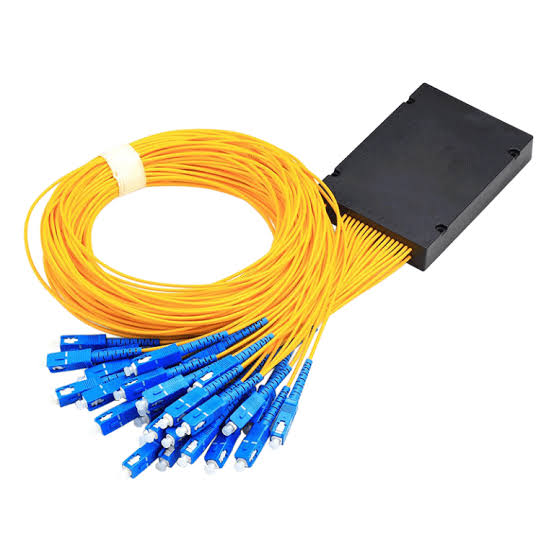

Commercial 1x32 SC/UPC splitters visibly use blue SC connectors on their output fibres, and dedicated SC/UPC 1x32 cassette-type models are commercially available.

Typical Fibre Construction

A representative 1x32 PLC specification uses single-mode G.657A1 or G.652D fibre, while other PLC splitter families support G.657A2 as well.

G.652D vs G.657A1 vs G.657A2 Fibre

PLC splitter manufacturers offer splitter constructions using SMF-28/G.652-compatible, G.657A1 and G.657A2 fibre, depending on the required package and network installation.

Typical Optical Performance

Published 1x32 PLC specifications vary slightly between manufacturers: one lists 16.2 dB typical and 17.1 dB maximum insertion loss, while another lists 17.0 dB typical and 17.5 dB maximum without additional TDL.

Why the 1260–1650 nm Range Matters

Professional PLC splitters commonly operate across 1260–1650 nm, allowing them to carry wavelengths used across different generations of passive optical networking.

1x32 SC/UPC vs 1x32 SC/APC Splitter

The connector polish must match the network interface. SC/UPC and SC/APC should not be treated as interchangeable even though both use the same general SC connector body.

Connectorized 1x32 vs Bare 1x32 PLC Splitter

Choose the SC/UPC connectorized version when faster connection, easier replacement and standardized optical interfaces are important.

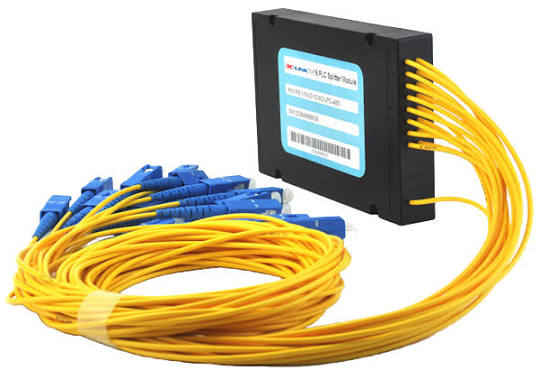

1x32 Cassette vs ABS Box vs Rack-Mount PLC Splitter

Commercial 1x32 SC/UPC versions are available as cassette modules and rack-mounted splitter assemblies, giving installers flexibility depending on the deployment environment.

1x8 vs 1x16 vs 1x32 PLC Splitter

Published PLC splitter specifications show the expected increase in insertion loss as the splitting ratio rises: approximately 10.3 dB typical for 1x8, 13.8 dB for 1x16 and 17.0 dB for 1x32 in one product family.

1x32 vs 1x64 PLC Splitter

PLC splitter product families support both 1x32 and 1x64 arrangements, but larger split ratios impose significantly more optical loss and require careful link-budget planning.

Why Choose a 1x32 Split Ratio?

A 1x32 split is widely used for high-density passive fibre distribution, but the final choice must be based on the PON class, network distance, connector/splice losses and available optical budget.

Optical Budget Considerations

Since a 1x32 splitter itself commonly contributes roughly 16–17.5 dB of insertion loss, it represents a major part of the PON optical power budget.

Key Benefits of 1x32 Splitter with SC/UPC Connectors

32 Optical Outputs

One feeder optical path can be distributed across as many as thirty-two downstream branches.

Factory-Installed SC/UPC Connectors

The connectorized design reduces field termination and enables convenient connection to compatible fibre infrastructure.

Plug-and-Play Installation

SC/UPC interfaces can connect directly to compatible adapters and panels.

Wide Wavelength Compatibility

Professional PLC splitters operate across approximately 1260–1650 nm.

High-Density Distribution

A 1x32 configuration can substantially reduce the number of feeder fibres needed to serve a subscriber area.

Passive Operation

No electrical power, software configuration or active switching is required.

Multiple Package Options

1x32 SC/UPC splitter products are available in cassette, module and rack-mount configurations.

Watch 1x32 Splitter with SC/UPC Connectors

https://youtu.be/L4lGcykRxLI

The 1x32 Splitter with SC/UPC Connectors provides a convenient high-density solution for dividing one optical feeder into thirty-two usable fibre outputs. Commercial SC/UPC versions are available with blue factory-terminated connectors, allowing each output to be plugged directly into compatible adapters, fibre panels and distribution equipment rather than requiring installers to connectorize each fibre individually.

PLC splitting technology is particularly suited to this type of high-port-count distribution because it provides equal-ratio splitting across a broad wavelength range. Representative 1x32 devices operate from 1260 to 1650 nm and specify approximately 16.2–17.5 dB insertion loss, depending on the particular product and construction. This loss should be included carefully when designing the optical path between the OLT and subscriber ONTs.

For installers building FTTH estates, apartment networks, commercial developments or ISP distribution infrastructure, a connectorized 1x32 splitter can make installation and future maintenance considerably easier. Fiber Optics Kenya can supply the splitter together with SC/UPC adapters, patch cords, ODFs, FDB/FAT boxes, fibre cleaners, optical power meters, PON meters and other fibre installation accessories for complete passive optical distribution projects.

Applications of 1x32 Splitter with SC/UPC Connectors

1. FTTH Networks

Distribute one feeder fibre across up to thirty-two subscriber or downstream optical paths, subject to the network's optical budget.

2. GPON Networks

Provide passive optical distribution between the OLT and multiple downstream ONTs. PLC splitters are designed for GPON and similar PON architectures.

3. EPON Networks

Provide one-to-many passive optical distribution without active switches.

4. Fibre Distribution Boxes

Install the splitter in suitable high-capacity FDB or FAT enclosures.

5. Optical Distribution Frames

Create organized SC/UPC connectorized distribution within ODF infrastructure.

6. Apartment Buildings

Distribute fibre connectivity to multiple units from one feeder fibre.

7. Residential Estates

Support high-density subscriber fibre distribution.

8. Commercial Buildings

Create multiple optical branches for offices, tenants or departments.

9. ISP Fibre Networks

Maximize feeder-fibre utilization across subscriber areas.

10. Telecommunications Networks

Provide high-density passive single-mode optical distribution.

Typical FTTH Architecture Using a 1x32 Splitter

Installation Considerations

Recommended Accessories

Why Buy 1x32 Splitter with SC/UPC Connectors from Fiber Optics Kenya?

Frequently Asked Questions

What is a 1x32 Splitter with SC/UPC Connectors?

It is a passive fibre optic splitter that accepts one optical input and distributes it across 32 outputs using SC/UPC connector interfaces. Commercial 1x32 SC/UPC models are available in cassette and rack-mount formats.

What does 1x32 mean?

It means the splitter has one input and thirty-two output channels.

What does PLC mean?

PLC means Planar Lightwave Circuit, the optical technology used to divide the incoming signal.

What does UPC mean?

UPC means Ultra Physical Contact, referring to the polish used on the connector ferrule.

What colour are SC/UPC connectors?

SC/UPC connectors are commonly identified by blue housings, as shown on commercial 1x32 SC/UPC splitter products.

Is the splitter single mode?

Yes. Commercial 1x32 PLC splitters are widely supplied as single-mode products.

What fibre types are available?

Representative models use G.652D, G.657A1 or G.657A2 single-mode fibre.

What wavelength range does it support?

Professional PLC splitter products commonly operate across 1260–1650 nm.

How much optical power ideally reaches each output?

With a perfectly equal 1x32 split, each output receives approximately 3.125% of the incoming optical power before excess losses are considered.

What is the theoretical splitting loss?

The ideal 1x32 splitting loss is approximately 15.05 dB.

What is the actual insertion loss?

Representative 1x32 PLC splitter specifications range around 16.2–17.5 dB, depending on design and product grade.

What is the typical PDL?

Representative 1x32 products specify approximately ≤0.3 dB polarization-dependent loss.

What is the typical directivity?

Representative 1x32 specifications list ≥55 dB directivity.

Does the splitter require electricity?

No. PLC splitters are passive optical components.

Does it require fusion splicing?

A fully connectorized SC/UPC version generally does not require fusion splicing simply to connect the splitter ports, provided the surrounding network already has compatible connectorized interfaces.

Can it be used for FTTH?

Yes. 1x32 PLC splitters are designed for FTTH and FTTx optical distribution.

Can it be used in GPON?

Yes. GPON is one of the primary applications of PLC splitter technology.

Can it be used in EPON?

Yes. PLC splitters are also suited to EPON passive optical distribution.

Can one 1x32 splitter serve 32 subscribers?

Potentially yes. Each output can feed a separate subscriber or downstream branch, provided the PON design, distance and total optical power budget support the deployment.

Can it be installed inside an FDB?

Yes, provided the FDB has sufficient splitter and fibre-management capacity.

Can it be installed in an ODF?

Yes. Connectorized 1x32 splitters are suitable for structured optical distribution environments, including compatible panels and ODF systems.

Can SC/UPC connect directly to SC/APC?

No. UPC and APC connector end-face geometries should not be directly mixed.

What is the difference between a connectorized and bare 1x32 splitter?

The connectorized version has factory-installed optical connectors for quicker connection, while a bare version has unconnectorized fibre leads that normally require fusion splicing.

Is a 1x32 splitter better than a 1x16 splitter?

Not automatically. A 1x32 provides twice as many outputs but also introduces roughly 3 dB more splitting loss. Published PLC data shows typical loss increasing from approximately 13.8 dB for 1x16 to 17.0 dB for 1x32.

Are cassette-type 1x32 SC/UPC splitters available?

Yes. Commercial 1x32 cassette-type SC/UPC PLC splitters are available.

Are rack-mount 1x32 SC/UPC splitters available?

Yes. 1U rack-mount versions with SC/UPC interfaces are commercially available for structured fibre distribution.

Do you supply SC/UPC adapters?

Yes. Fiber Optics Kenya can supply compatible SC/UPC adapters.

Do you supply SC/UPC patch cords and pigtails?

Yes. Matching SC/UPC patch cords and single-mode pigtails can be supplied.

Do you supply FDB and FAT boxes?

Yes. Compatible fibre distribution and access terminal boxes can be supplied.

Do you supply ODFs?

Yes. Fibre ODFs and related termination products can be supplied for structured fibre installations.

Do you provide fibre testing equipment?

Yes. Optical power meters, PON meters, VFLs and other fibre-testing equipment can be supplied.

Do you provide fibre installation and testing?

Yes. Professional fibre installation, termination and optical testing support is available.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.

Contact Fiber Optics Kenya

Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi

Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke

The 1x32 Splitter with SC/UPC Connectors provides convenient high-density optical distribution for FTTH, GPON, EPON and other passive fibre networks requiring up to 32 downstream paths.

Contact Fiber Optics Kenya for competitive pricing, 1x32 SC/UPC splitters, matching fibre accessories, bulk orders and nationwide delivery across Kenya.
