Fibre Access Terminal (FAT) Boxes Price in Kenya
16 Core Outdoor FAT with 1:16 SC/UPC Splitter in Kenya
KSh 2,500.00
1 available
Continue shopping16 Core Outdoor FAT with 1:16 SC/UPC Splitter in Kenya
The 16 Core Outdoor FAT with 1:16 SC/UPC Splitter is a fibre access terminal designed to provide optical splitting, fibre splicing, termination, storage and subscriber distribution within a weather-resistant enclosure. It is particularly suitable for outdoor FTTH and GPON networks where one incoming feeder fibre needs to be distributed to as many as 16 downstream subscriber connections.
A loaded 16-core FAT box typically combines a 1x16 PLC splitter with sixteen SC/UPC adapter ports, allowing technicians to connect subscriber drop fibres through standardized blue SC/UPC interfaces. Current commercial products are available pre-installed with 16 SC/UPC simplex couplers and a terminated 1x16 SC/UPC splitter, while outdoor 16-port FAT/NAP boxes are commonly offered with IP65 protection and wall- or pole-mounting options.
At Fiber Optics Kenya, the 16 Core Outdoor FAT with 1:16 SC/UPC Splitter is suitable for ISPs, telecommunications companies, fibre contractors, apartment developments, residential estates, commercial properties and other outside-plant fibre installations. Compatible SC/UPC patch cords, fast connectors, pigtails, FTTH drop cables, fusion-splicing accessories and fibre testing equipment can also be supplied.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 16 Core Outdoor FAT with 1:16 SC/UPC Splitter |
| Product Type | Outdoor Fibre Access Terminal / Fibre Distribution Box |
| Fibre Capacity | 16 Core |
| Subscriber Capacity | Up to 16 connections |
| Splitter Configuration | 1x16 |
| Splitter Technology | PLC |
| Number of Inputs | 1 |
| Number of Outputs | 16 |
| Connector Type | SC/UPC |
| Typical Connector Colour | Blue |
| Fibre Mode | Single Mode |
| Typical Fibre Category | OS2 |
| Split Type | Balanced / Symmetrical |
| Ideal Power per Output | Approx. 6.25% |
| Theoretical Splitting Loss | Approx. 12.04 dB |
| Typical Practical 1x16 Loss | Around 13–14.5 dB depending on splitter |
| Adapter Capacity | Up to 16 SC simplex ports |
| Splicing Capability | Yes |
| Fibre Storage | Yes |
| Drop Cable Management | Yes |
| Outdoor Protection | Commonly IP65 or IP66 depending on model |
| Typical Material | ABS / PC+ABS / engineering plastic |
| UV Resistance | Available |
| Wall Mounting | Yes |
| Pole Mounting | Yes on compatible models |
| Power Requirement | None |
| Applications | FTTH, GPON, EPON, FTTx, PON |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
A current 16-port outdoor terminal design provides IP65 dust and water protection, support for 16 drop cables, SC simplex adapters, PLC splitter mounting, anti-aging PC+ABS construction, and wall or pole mounting.

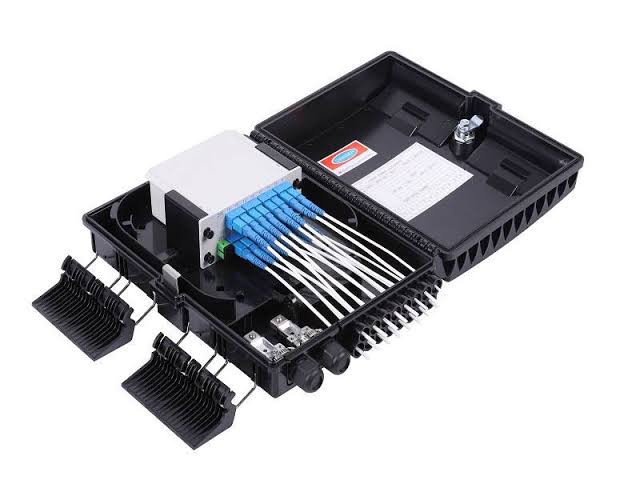

What Is a 16 Core Outdoor FAT Box?
A 16 Core Outdoor FAT Box acts as a protected fibre-distribution point between the feeder network and downstream customer drop fibres.
| Internal Section | Function |
|---|---|
| Feeder Cable Entry | Receives incoming optical cable |
| Cable Fixing Point | Secures feeder cable |
| Splice Tray | Stores fusion splices |
| 1x16 PLC Splitter | Divides one signal into 16 |
| SC/UPC Adapter Panel | Provides subscriber interfaces |
| Fibre Routing Guides | Maintains organized fibre paths |
| Drop Cable Ports | Routes customer drop fibres |
| Slack Storage Area | Stores excess fibre |
| Weather-Resistant Housing | Protects internal components |
| Lockable Cover | Improves security |
Outdoor FAT boxes integrate splicing, splitting, distribution, storage and cable connection within one protected enclosure.
What Does 1:16 SC/UPC Mean?
| Term | Meaning |
|---|---|
| 1:16 / 1x16 | One optical input divided into sixteen outputs |
| SC | Standard / Subscriber Connector |
| UPC | Ultra Physical Contact |
| PLC | Planar Lightwave Circuit |
| FAT | Fiber Access Terminal |
| FTTH | Fibre to the Home |
| GPON | Gigabit Passive Optical Network |
The 1:16 and 1x16 notations mean the same thing: one incoming optical path is distributed across sixteen downstream paths.
How the 1x16 SC/UPC FAT Box Works
The incoming feeder fibre is connected or fusion-spliced to the input of the internal PLC splitter. The splitter divides the optical power across sixteen output fibres, which are then presented through the SC/UPC subscriber ports.
| Stage | Function |
|---|---|
| Feeder Fibre | Brings optical signal from upstream network |
| Splitter Input | Receives incoming signal |
| 1x16 PLC Splitter | Divides signal |
| Outputs 1–4 | Subscriber group 1 |
| Outputs 5–8 | Subscriber group 2 |
| Outputs 9–12 | Subscriber group 3 |
| Outputs 13–16 | Subscriber group 4 |
| SC/UPC Ports | Provide connectorized access |
| FTTH Drop Fibres | Carry service to subscribers |
Commercial outdoor 16-core FAT boxes are available specifically with 1x16 PLC splitter configurations and SC/UPC interfaces.
Typical 1x16 Optical Distribution
| Parameter | Value |
|---|---|
| Inputs | 1 |
| Outputs | 16 |
| Ideal Optical Power per Output | 6.25% |
| Theoretical Split Loss | ~12.04 dB |
| Typical Practical Loss | ~13–14.5 dB |
| Maximum Subscriber Branches | 16 |
| Electrical Power Required | None |
The exact optical level at each subscriber depends on the splitter itself plus fibre distance, connectors, adapters, splices and any upstream splitters.
SC/UPC Connector Features
| Feature | Benefit |
|---|---|
| Typical Blue Housing | Easy UPC identification |
| SC Form Factor | Widely used fibre interface |
| UPC Polish | Low reflection |
| Push-Pull Coupling | Easy connection |
| Factory-Terminated Splitter | Faster deployment |
| Single-Mode Compatibility | Excellent |
| FTTH Compatibility | Excellent where UPC is specified |
| Easy Maintenance | Ports can be disconnected and cleaned |
A current loaded 16-port box is offered with 16 pre-installed SC/UPC simplex couplers and a 1x16 terminated SC/UPC splitter.
SC/UPC vs SC/APC Outdoor FAT Box
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Colour | Blue | Green |
| Polish Type | Ultra Physical Contact | Angled Physical Contact |
| Back Reflection | Low | Lower |
| FTTH / GPON | Used where UPC specified | Very Common |
| CATV | Less Preferred | Excellent |
| Enterprise Fibre | Common | Application dependent |
| Direct UPC/APC Mating | No | No |
The connector type should remain consistent throughout the fibre path.
Outdoor IP65 / IP66 Protection
Outdoor FAT boxes must protect fibre components from dust, water and environmental exposure.
| Outdoor Feature | Purpose |
|---|---|
| IP65 / IP66 Enclosure | Helps protect against dust and water |
| Sealed Cable Entries | Reduces water ingress |
| UV-Resistant Housing | Helps withstand sunlight |
| Lockable Cover | Improves security |
| Cable Glands | Secures feeder cables |
| Protected Drop Ports | Organizes outgoing fibres |
| Strong Engineering Plastic | Improves outdoor durability |
Current products include IP65 and IP66 16-core outdoor FTTH distribution boxes, confirming these protection levels are common options for this class of enclosure.
IP65 vs IP66 FAT Box
| Feature | IP65 | IP66 |
|---|---|---|
| Dust Protection | Dust-tight | Dust-tight |
| Water Protection | Water jets | Stronger water jets |
| Outdoor Wall Mount | Excellent | Excellent |
| Pole Mount | Excellent | Excellent |
| Exposed Outdoor Areas | Good | Better |
| Exact Suitability | Model dependent | Model dependent |
Always confirm the actual IP rating of the specific FAT box supplied, rather than assuming all outdoor 16-core boxes have the same rating.
Typical Enclosure Construction
| Feature | Typical Description |
|---|---|
| Material | ABS / PC+ABS |
| Colour | Black / White / Grey depending on model |
| Capacity | 16 subscriber ports |
| Splice Tray | Integrated |
| Splitter Mount | 1x16 compatible |
| Adapter Panel | Up to 16 SC positions |
| Cable Entries | Multiple |
| Drop Outputs | Up to 16 |
| Installation | Wall / Pole |
| Security | Lockable on many models |
One current outdoor design uses anti-aging PC+ABS material, while other units use durable weather-resistant housings with lockable access.
Loaded Outdoor FAT vs Empty Outdoor FAT
| Feature | Loaded 1x16 SC/UPC | Empty FAT Box |
|---|---|---|
| Enclosure Included | Yes | Yes |
| 1x16 Splitter | Included | Usually Not |
| SC/UPC Adapters | Included | Usually Not |
| Pigtails / Leads | Preconfigured | Added Separately |
| Ready for Deployment | Higher | Lower |
| Installation Time | Faster | Longer |
| Customization | Moderate | Excellent |
| Field Assembly | Lower | Higher |
A loaded unit is particularly useful where installers want to reduce field termination and standardize subscriber distribution.
16 Core vs 8 Core Outdoor FAT
| Feature | 8 Core | 16 Core |
|---|---|---|
| Subscriber Capacity | 8 | 16 |
| Typical Splitter | 1x8 | 1x16 |
| Ideal Power per Output | 12.5% | 6.25% |
| Theoretical Split Loss | ~9.03 dB | ~12.04 dB |
| Physical Size | Smaller | Larger |
| Small Subscriber Cluster | Excellent | Good |
| Medium-Density FTTH | Good | Excellent |
The 16-core version doubles the nominal subscriber capacity while requiring approximately 3 dB more theoretical splitting budget.
16 Core vs 32 Core Outdoor FAT
| Feature | 16 Core | 32 Core |
|---|---|---|
| Subscriber Capacity | 16 | 32 |
| Common Splitter | 1x16 | 1x32 |
| Ideal Optical Share | 6.25% | 3.125% |
| Theoretical Split Loss | ~12.04 dB | ~15.05 dB |
| Optical Budget Demand | High | Higher |
| Enclosure Size | Medium | Larger |
| Medium Subscriber Cluster | Excellent | Good |
| High-Density Area | Good | Excellent |
Outdoor FAT Box vs Fibre Joint Closure
| Feature | Outdoor FAT | Joint Closure |
|---|---|---|
| Subscriber Adapter Ports | Common | Less Common |
| PLC Splitter | Common | Possible |
| Drop Cable Distribution | Excellent | Good |
| Fusion Splicing | Yes | Yes |
| Subscriber Activation | Easier | More Involved |
| Wall / Pole Mounting | Common | Common |
| Outdoor Protection | Excellent on rated models | Excellent |
Outdoor FAT Box vs ODF
| Feature | Outdoor FAT Box | ODF |
|---|---|---|
| Primary Purpose | Subscriber distribution | Central fibre management |
| Outdoor Installation | Common | Less Common |
| Pole Mounting | Common | Rare |
| Subscriber Drop Ports | Excellent | Less Direct |
| PLC Splitter Integration | Excellent | Available |
| Rack Mounting | Rare | Common |
| FTTH Last Mile | Excellent | Less Direct |
Key Benefits of 16 Core Outdoor FAT with 1:16 SC/UPC Splitter
Up to 16 Subscriber Connections
A single outdoor distribution point can support up to sixteen downstream fibre branches.
Integrated 1x16 PLC Splitter
One feeder optical signal is divided into sixteen outputs without powered electronics.
SC/UPC Interfaces
Blue SC/UPC ports provide convenient connectorized subscriber access.
Outdoor Protection
IP65 and IP66 products are available for outdoor FTTH deployments.
Wall or Pole Installation
Professional 16-port boxes are designed for flexible deployment on buildings and telecom poles.
Fibre Management
Splicing, splitting, storage and cable distribution can all be handled within one enclosure.
Passive Operation
The PLC splitter and FAT enclosure require no electrical power.
Watch 16 Core Outdoor FAT with 1:16 SC/UPC Splitter
Watch on YouTube: https://youtu.be/9KuxVijNet4
The 16 Core Outdoor FAT with 1:16 SC/UPC Splitter provides an efficient outdoor distribution point for FTTH networks requiring up to sixteen customer connections. Commercial products combine a 1x16 PLC splitter with SC/UPC adapters inside a weather-resistant enclosure, allowing the box to handle fibre splicing, splitting, storage and subscriber distribution from one protected location.
For outdoor deployment, enclosure protection is especially important. Current 16-port terminal boxes are available with IP65-rated housings, support for 16 drop fibres, wall and pole mounting, and splitter mounting areas, while other 16-core designs reach IP66 protection. This makes them well suited to building exteriors, telecom poles and outdoor FTTH distribution points when correctly installed.
The loaded SC/UPC design also simplifies subscriber activation because technicians can connect compatible drop fibres through standardized interfaces instead of rebuilding the splitter configuration each time a customer is connected. Fiber Optics Kenya can supply the 16 Core Outdoor FAT with 1:16 SC/UPC Splitter together with SC/UPC patch cords, pigtails, fast connectors, FTTH drop cables, fusion-splicing tools, optical power meters, PON meters and related fibre accessories.
Applications of 16 Core Outdoor FAT with 1:16 SC/UPC Splitter
1. FTTH Residential Networks
Distribute one feeder fibre to up to sixteen homes.
2. GPON Networks
Provide passive fibre distribution from upstream OLT infrastructure toward subscriber ONTs.
3. EPON Networks
Support compatible one-to-many passive optical distribution.
4. Residential Estates
Create outdoor subscriber distribution points for clusters of homes.
5. Apartment Buildings
Install the FAT box outside or in common areas to distribute fibre to multiple apartments.
6. Commercial Buildings
Provide fibre distribution to shops, offices and tenants.
7. ISP Networks
Create standardized outdoor access nodes throughout a subscriber network.
8. Aerial FTTH Networks
Pole-mountable designs are suitable for aerial fibre distribution.
9. Building Exterior Installations
Outdoor-rated enclosures can be wall-mounted on suitable external building surfaces.
10. Telecommunications Networks
Provide protected outdoor optical splitting and termination.
Typical FTTH Architecture
| Network Stage | Typical Component |
|---|---|
| OLT | Service Provider Equipment |
| Feeder Fibre | Single Mode Fibre |
| Outdoor Distribution Point | 16 Core FAT Box |
| PLC Splitter | 1x16 |
| Subscriber Interfaces | 16 × SC/UPC |
| Drop Network | FTTH Drop Cable |
| Customer Termination | ATB / Wall Outlet |
| Subscriber Equipment | ONT / ONU |
Typical Port Allocation
| Port Group | Subscriber Assignment |
|---|---|
| Ports 1–4 | Subscribers 1–4 |
| Ports 5–8 | Subscribers 5–8 |
| Ports 9–12 | Subscribers 9–12 |
| Ports 13–16 | Subscribers 13–16 |
Optical Budget Considerations
| Loss Source | Include in Calculation? |
|---|---|
| 1x16 PLC Splitter | Yes |
| Feeder Fibre Attenuation | Yes |
| Distribution Fibre | Yes |
| FTTH Drop Fibre | Yes |
| SC/UPC Connectors | Yes |
| Adapters | Yes |
| Fusion Splices | Yes |
| Upstream Splitters | Yes |
| Engineering Margin | Yes |
A 1x16 splitter represents a significant part of the optical budget, so total OLT-to-ONT loss should be calculated before deployment.
Outdoor Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| IP Rating | Confirm before installation |
| Connector Type | Maintain SC/UPC consistency |
| Cable Entry | Seal correctly |
| Pole / Wall Fixing | Use proper hardware |
| UV Exposure | Use outdoor-rated housing |
| Connector Cleaning | Clean before mating |
| Bend Radius | Avoid tight fibre routing |
| Port Labelling | Clearly number all 16 ports |
| Unused Ports | Keep protected |
| Optical Testing | Test every activated connection |
| Weather Sealing | Maintain enclosure seals after servicing |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Patch Cord | Optical interconnection |
| SC/UPC Pigtail | Fibre termination |
| SC/UPC Fast Connector | Subscriber field termination |
| SC/UPC Adapter | Replacement optical coupling |
| FTTH Drop Cable | Customer connection |
| Fusion Splice Sleeve | Protects fibre joints |
| Fusion Splicer | Permanent fibre joining |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Removes fibre coating |
| Connector Cleaner | Cleans SC/UPC ports |
| Optical Power Meter | Measures signal strength |
| PON Power Meter | Tests PON levels |
| VFL | Fibre continuity testing |
| OTDR | Fibre fault diagnostics |
Why Buy 16 Core Outdoor FAT with 1:16 SC/UPC Splitter from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 16 Core Outdoor FAT Boxes | Medium-density FTTH distribution |
| 1x16 PLC Splitters | Reliable sixteen-way optical splitting |
| SC/UPC Interfaces | Convenient subscriber connectivity |
| Outdoor-Rated Options | Suitable for external deployment |
| Wall & Pole Installation Options | Flexible network design |
| SC/UPC Patch Cords | Complete optical connections |
| Pigtails & Fast Connectors | Multiple termination options |
| FTTH Drop Cables | Complete subscriber links |
| Fusion-Splicing Accessories | Professional installation |
| Testing Equipment | Verify optical performance |
| Bulk Supply | Suitable for ISP deployments |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 16 Core Outdoor FAT with 1:16 SC/UPC Splitter?
It is an outdoor fibre access terminal configured with a 1x16 PLC splitter and SC/UPC subscriber interfaces for up to sixteen downstream fibre connections. Commercial loaded boxes with 16 SC/UPC couplers and a 1x16 splitter are available.
What does FAT mean?
FAT means Fiber Access Terminal.
What does 16 Core mean?
It refers to capacity for approximately 16 subscriber fibre outputs or termination positions.
Is 1:16 the same as 1x16?
Yes. Both mean one optical input divided into sixteen outputs.
What does SC/UPC mean?
SC/UPC refers to an SC fibre connector with an Ultra Physical Contact polished end face.
What colour are SC/UPC adapters?
SC/UPC adapters and connectors are normally blue.
How many subscribers can it serve?
It can potentially serve up to 16 subscribers, subject to the network topology and optical power budget.
Does it include a 1x16 splitter?
A loaded product sold as a 16 Core Outdoor FAT with 1:16 SC/UPC Splitter includes the 1x16 splitter configuration. Current commercial units are sold with a terminated 1x16 SC/UPC splitter.
Does it include SC/UPC adapters?
Loaded models can include 16 SC/UPC simplex adapters or couplers.
Is it suitable for outdoor installation?
Yes, where the specific enclosure is outdoor-rated. Current 16-port boxes are available with IP65 and IP66 protection.
What does IP65 mean?
It indicates a dust-tight enclosure with protection against water jets.
Can it be wall mounted?
Yes. Outdoor 16-port FAT boxes commonly support wall mounting.
Can it be pole mounted?
Yes. Current 16-port FTTH boxes support pole mounting as well.
Is it suitable for FTTH?
Yes. These enclosures are specifically designed as FTTH distribution points.
Can it be used for GPON?
Yes. The 1x16 passive splitter architecture is suitable for GPON where the overall optical budget permits.
Can it be used for EPON?
Yes. It can also be used in compatible EPON passive optical networks.
Does it support fibre splicing?
Yes. Outdoor FAT boxes integrate fibre splicing and distribution functions.
Can SC/APC patch cords connect directly to SC/UPC?
No. SC/APC and SC/UPC should not be directly mated because their ferrule end-face geometries differ.
What is the difference between SC/UPC and SC/APC?
SC/UPC is normally blue and uses an ultra-polished end face, while SC/APC is normally green and uses an angled end face with lower reflection.
What is the theoretical 1x16 splitting loss?
An ideal 1x16 equal split introduces approximately 12.04 dB of optical power division.
Does the FAT box require electricity?
No. The FAT enclosure and PLC splitter are passive optical components.
Can unused ports remain disconnected?
Yes. Unused ports should remain covered with clean protective caps.
What is the difference between an 8 Core and 16 Core outdoor FAT?
The 16-core unit provides twice the nominal subscriber capacity but introduces more optical splitting loss when configured with a 1x16 splitter.
What is the difference between an empty and loaded FAT box?
An empty FAT box requires adapters, pigtails and splitter components to be installed separately, while a loaded unit is preconfigured for quicker network deployment.
Do you supply SC/UPC patch cords?
Yes. Fiber Optics Kenya can supply compatible single-mode SC/UPC patch cords.
Do you supply SC/UPC pigtails?
Yes. Matching SC/UPC pigtails can be supplied.
Do you supply SC/UPC fast connectors?
Yes. SC/UPC fast connectors are available for field fibre termination.
Do you supply FTTH drop cables?
Yes. Indoor and outdoor FTTH drop cables can be supplied.
Do you supply fusion-splicing tools?
Yes. Fibre cleavers, strippers, fusion splicers and related accessories can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, fusion splicing, termination and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 16 Core Outdoor FAT with 1:16 SC/UPC Splitter provides a durable and organized outdoor solution for splitting and distributing one feeder fibre to as many as sixteen FTTH subscriber connections.
Contact Fiber Optics Kenya for 16 Core Outdoor FAT Boxes, 1x16 SC/UPC splitters, matching FTTH accessories, bulk supply and nationwide delivery across Kenya.
