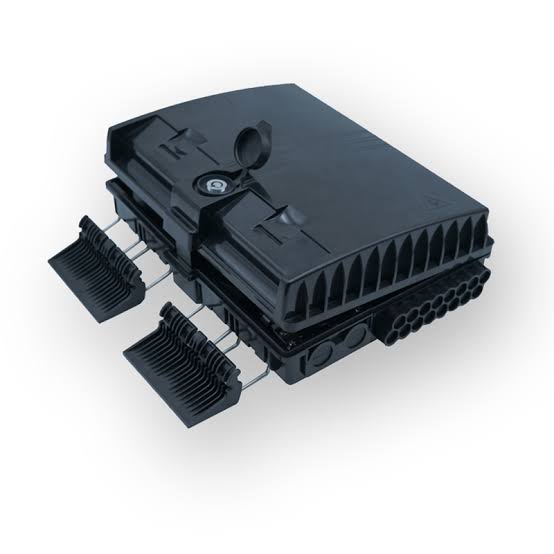

16 Core FAT Box 1x16 in Kenya
KSh 2,300.00
1 available
Continue shopping16 Core FAT Box 1x16 in Kenya
The 16 Core FAT Box 1x16 is a fibre access terminal designed to combine fibre splicing, optical splitting, termination, storage and subscriber distribution inside one protected enclosure. It is particularly suitable for FTTH, GPON and other FTTx networks where one incoming feeder fibre needs to be distributed to as many as sixteen downstream fibre connections.
A typical 16-port FAT box can accommodate a 1x16 PLC splitter, up to 16 fibre drop connections, adapter mounting positions and splice-management components. A current 16-fibre access terminal specification supports both 1x8 and 1x16 PLC splitters, up to 16 FTTH drops, two inlet ports and 16 outlet ports, with wall and pole mounting capability.
At Fiber Optics Kenya, the 16 Core FAT Box 1x16 is ideal for ISPs, telecommunications contractors, fibre installers, apartment developments, residential estates, campuses and commercial properties requiring a larger local fibre distribution point. Customers can also source compatible 1x16 PLC splitters, SC/APC and SC/UPC adapters, pigtails, fast connectors, FTTH drop cables, splice sleeves, optical power meters, VFLs and other fibre installation tools.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 16 Core FAT Box 1x16 |
| Product Type | Fibre Access Terminal / Fibre Distribution Box |
| Fibre Capacity | 16 Core |
| Subscriber Capacity | Up to 16 connections |
| Splitter Capacity | 1x16 PLC Splitter |
| Alternative Splitter Support | 1x8 on some designs |
| Splitter Technology | PLC |
| Number of Splitter Inputs | 1 |
| Number of Outputs | 16 |
| Adapter Capacity | Up to 16 SC positions depending on model |
| Connector Options | SC/APC / SC/UPC depending on configuration |
| Fibre Mode | Single Mode commonly |
| Typical Fibre Category | OS2 |
| Typical PLC Fibre Type | G.657A1 / G.657A or specified equivalent |
| Typical PLC Wavelength Range | 1260–1650 nm |
| Ideal Power Share per Output | Approx. 6.25% |
| Theoretical 1x16 Split Loss | Approx. 12.04 dB |
| Typical 1x16 Insertion Loss | ≤13.5 dB typical |
| Typical Maximum Splitter Loss | Around ≤13.8 dB |
| Splicing Capability | Yes |
| Drop Cable Capacity | Up to 16 |
| Typical Inlet Ports | 2 on representative model |
| Typical Outlet Ports | 16 |
| Mounting | Wall / pole |
| Typical Material | ABS / ABS+PC |
| Outdoor Suitability | Yes on rated models |
| Electrical Power Required | No |
| Applications | FTTH, GPON, EPON, FTTx, CATV, LAN |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
A professional 1x16 PLC splitter specifies a 1260–1650 nm operating range, ≤13.5 dB typical insertion loss and ≤13.8 dB maximum insertion loss, with SC/APC, SC/UPC and LC/UPC connector options.
What Is a 16 Core FAT Box 1x16?
A 16 Core FAT Box acts as a local fibre distribution point between the feeder network and individual customer drop fibres.
| Internal Section | Function |
|---|---|
| Feeder Cable Entry | Receives incoming fibre cable |
| Cable Fixing Area | Secures feeder strength members |
| Splice Management | Protects fusion splices |
| 1x16 PLC Splitter Area | Houses optical splitter |
| Adapter Panel | Holds subscriber fibre interfaces |
| Drop Cable Ports | Routes up to 16 subscriber fibres |
| Fibre Routing Guides | Controls bend radius |
| Storage Area | Stores service fibre loops |
| Enclosure Cover | Protects internal components |
A documented 16-port FTTH box supports a 1x16 PLC splitter, 16 SC adapter positions and splice trays for up to 16 fibres.
What Does 16 Core 1x16 Mean?
| Term | Meaning |
|---|---|
| FAT | Fiber Access Terminal |
| 16 Core | Up to sixteen fibre distribution positions |
| 1x16 | One optical input split into sixteen outputs |
| PLC | Planar Lightwave Circuit |
| FTTH | Fibre to the Home |
| PON | Passive Optical Network |
| SC/APC | Green angled fibre connector option |
| SC/UPC | Blue UPC-polished connector option |
A 1x16 configuration allows one feeder optical path to be distributed across sixteen downstream branches without active switching equipment.
How the 1x16 FAT Box Works
The feeder fibre enters the box and is connected to the internal PLC splitter. The splitter distributes the incoming optical signal to sixteen downstream paths.
| Network Stage | Function |
|---|---|
| Feeder Fibre | Carries upstream optical signal |
| Splitter Input | Receives incoming optical power |
| 1x16 PLC Splitter | Divides signal into 16 outputs |
| Outputs 1–4 | Subscriber group 1 |
| Outputs 5–8 | Subscriber group 2 |
| Outputs 9–12 | Subscriber group 3 |
| Outputs 13–16 | Subscriber group 4 |
| Drop Cables | Carry fibre to subscriber premises |
A 1x16 PLC splitter is designed for FTTH and GPON distribution to sixteen downstream paths and typically has insertion loss around 13.5 dB.
Typical 1x16 Optical Distribution
| Parameter | Value |
|---|---|
| Inputs | 1 |
| Outputs | 16 |
| Ideal Power per Output | 6.25% |
| Theoretical Split Loss | ~12.04 dB |
| Typical Practical Insertion Loss | ~13.5 dB |
| Representative Maximum | ~13.8 dB |
| Maximum Subscriber Branches | 16 |
| External Power Required | None |
The actual optical signal reaching each ONT also depends on fibre distance, connectors, adapters, splices and any upstream splitter stages.
1x16 PLC Splitter Specifications
| Optical Parameter | Representative Specification |
|---|---|
| Split Ratio | 1x16 |
| Operating Wavelength | 1260–1650 nm |
| Typical Insertion Loss | ≤13.5 dB |
| Maximum Insertion Loss | ≤13.8 dB |
| Fibre Type | Single Mode |
| Connector Options | SC/APC, SC/UPC, LC/UPC |
| Package Options | ABS, steel tube, LGX, rack mount |
| FTTH Compatibility | Yes |
| GPON Compatibility | Yes |
Current 1x16 PLC products are available with several package and connector formats, making them suitable for installation inside compatible FAT boxes and distribution enclosures.
Why the 1260–1650 nm Range Matters
| Wavelength | Common Application |
|---|---|
| 1310 nm | PON upstream |
| 1490 nm | GPON downstream |
| 1550 nm | Video / optical overlay |
| 1577 nm | Newer PON downstream |
| 1625 nm | Fibre testing and monitoring |
Professional PLC splitter products commonly support the full 1260–1650 nm range.
16 Subscriber Port Capacity
| Port | Typical Assignment |
|---|---|
| 1 | Subscriber 1 |
| 2 | Subscriber 2 |
| 3 | Subscriber 3 |
| 4 | Subscriber 4 |
| 5 | Subscriber 5 |
| 6 | Subscriber 6 |
| 7 | Subscriber 7 |
| 8 | Subscriber 8 |
| 9 | Subscriber 9 |
| 10 | Subscriber 10 |
| 11 | Subscriber 11 |
| 12 | Subscriber 12 |
| 13 | Subscriber 13 |
| 14 | Subscriber 14 |
| 15 | Subscriber 15 |
| 16 | Subscriber 16 |
A 16F terminal can accommodate up to 16 FTTH drops, making it suitable for medium-density subscriber clusters.
SC/APC vs SC/UPC Configuration
A 16 Core FAT box may be configured with different SC interfaces depending on the network.
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Typical Colour | Green | Blue |
| Polish Type | Angled Physical Contact | Ultra Physical Contact |
| Back Reflection | Lower | Low |
| FTTH / GPON | Very Common | Used where specified |
| CATV | Excellent | Less preferred |
| Direct APC/UPC Mating | No | No |
A current 16-core FAT box image shows a loaded configuration using green SC/APC interfaces, while other models support SC adapter options depending on deployment.
Typical Enclosure Construction
| Feature | Typical Description |
|---|---|
| Housing Material | ABS / ABS+PC |
| Colour | White / Grey commonly |
| Mounting | Wall and Pole |
| Cable Inlets | Multiple |
| Drop Outputs | Up to 16 |
| Splice Area | Integrated |
| Splitter Area | 1x16 compatible |
| Adapter Panel | Up to 16 positions |
| Moisture Resistance | Available |
| UV Resistance | Available |
The PPC 16F access terminal uses ABS or ABS+PC construction, supports wall and pole mounting, and is designed to resist UV and moisture.
Outdoor 16 Core FAT Box
For outside-plant installation, a FAT enclosure should provide suitable environmental protection.
| Outdoor Requirement | Why It Matters |
|---|---|
| Water Resistance | Protects fibre components |
| Dust Protection | Prevents contamination |
| UV Resistance | Improves enclosure life |
| Secure Closure | Prevents accidental access |
| Cable Sealing | Protects entry points |
| Impact Resistance | Protects internal fibre |
| Pole Mounting | Useful in aerial FTTH networks |
Commercial 16-port terminal boxes are available with IP65-rated enclosures for indoor/outdoor wall or pole mounting.
16 Core FAT Box vs 8 Core FAT Box
| Feature | 8 Core | 16 Core |
|---|---|---|
| Subscriber Outputs | 8 | 16 |
| Common Splitter | 1x8 | 1x16 |
| Ideal Power per Output | 12.5% | 6.25% |
| Theoretical Split Loss | ~9.03 dB | ~12.04 dB |
| Practical Splitter Loss | ~10.3 dB | ~13.5 dB |
| Physical Size | Smaller | Larger |
| Small Subscriber Cluster | Excellent | Good |
| Higher Density Deployment | Moderate | Excellent |
A 16-core box doubles the potential subscriber capacity of an 8-core box but requires approximately another 3 dB of splitter power budget.
16 Core FAT Box vs 24 Core FAT Box
| Feature | 16 Core | 24 Core |
|---|---|---|
| Nominal Capacity | 16 | 24 |
| Physical Size | Medium | Larger |
| Small Estate Use | Excellent | Often Oversized |
| Apartment Distribution | Excellent | Excellent |
| Port Management | Moderate | Higher |
| Expansion Capacity | Good | Better |
16 Core FAT Box vs ODF
| Feature | 16 Core FAT Box | ODF |
|---|---|---|
| Primary Role | Subscriber distribution | Central fibre management |
| Subscriber Drop Ports | Excellent | Less direct |
| Outdoor Models | Common | Less common |
| Wall Mounting | Common | Available |
| Pole Mounting | Common | Rare |
| Rack Mounting | Rare | Very Common |
| PLC Splitter Integration | Excellent | Excellent |
| Last-Mile FTTH Use | Excellent | Less direct |
FAT Box vs Fibre Joint Closure
| Feature | FAT Box | Joint Closure |
|---|---|---|
| Subscriber Adapter Ports | Common | Less Common |
| Drop Cable Management | Excellent | Good |
| PLC Splitter Housing | Common | Possible |
| Fusion Splicing | Yes | Yes |
| Easy Customer Activation | Excellent | Lower |
| Underground Installation | Product dependent | Common |
| Wall / Pole Mounting | Common | Common |
Loaded vs Empty 16 Core FAT Box
| Feature | Loaded 1x16 Box | Empty 16 Core Box |
|---|---|---|
| Enclosure | Included | Included |
| 1x16 PLC Splitter | Usually Included | Usually Not |
| Adapters | Usually Included | Usually Not |
| Ready for Distribution | Higher | Requires Assembly |
| Installation Speed | Faster | Slower |
| Customization | Moderate | Excellent |
| Initial Hardware Cost | Higher | Lower |
| Best For | Fast Deployment | Custom Network Design |
Advantages of a 16 Core FAT Box 1x16
Higher Subscriber Capacity
A single FAT point can provide up to sixteen downstream FTTH connections.
Integrated Optical Splitting
A 1x16 PLC splitter distributes one feeder signal across sixteen branches.
Organized Fibre Management
The enclosure keeps splices, splitters, adapters and drop fibres protected and labelled.
Wall and Pole Mounting
Professional 16F terminals support both mounting methods.
Indoor and Outdoor Options
IP65-class products are available for protected outside-plant deployment.
No Electrical Power
The FAT box and PLC splitter are passive fibre components.
Flexible Connector Options
1x16 splitters can be supplied with SC/APC, SC/UPC and other interfaces.
Watch 16 Core FAT Box 1x16
Watch on YouTube: https://youtu.be/ZzYMJBEa3H0
The 16 Core FAT Box 1x16 provides a higher-capacity FTTH distribution point for installations where an 8-core enclosure would not provide enough subscriber outputs. Professional 16-fibre access terminals can accommodate 1x16 PLC splitters and up to 16 FTTH drop connections, while providing protected space for splicing, fibre routing and cable management.
The 1x16 PLC splitter divides one feeder optical signal across sixteen output paths. Professional splitter specifications commonly provide 1260–1650 nm wavelength operation and approximately ≤13.5 dB typical insertion loss, allowing the splitter to support GPON, FTTH and other single-mode passive optical network architectures.
For residential estates, apartment buildings, campuses and ISP subscriber networks, the 16-port configuration offers a useful balance between subscriber density and enclosure size. Fiber Optics Kenya can supply the 16 Core FAT Box 1x16 together with PLC splitters, SC/APC or SC/UPC adapters, pigtails, fast connectors, FTTH drop cables, fusion-splicing accessories, optical power meters and PON testing equipment, providing a complete solution for professional fibre distribution.
Applications of 16 Core FAT Box 1x16
1. FTTH Networks
Distribute one feeder fibre to up to sixteen subscriber connections.
2. GPON Networks
Provide passive optical distribution between an OLT and multiple ONTs using a 1x16 splitter.
3. EPON Networks
Provide one-to-sixteen passive optical distribution in compatible EPON networks.
4. Residential Estates
Serve medium-sized clusters of homes from one distribution point.
5. Apartment Buildings
Provide fibre access to up to sixteen apartment or tenant connections.
6. Commercial Buildings
Distribute fibre to offices, shops, departments or tenants.
7. ISP Access Networks
Create standardized medium-capacity subscriber distribution points.
8. Campus Networks
Distribute fibre to multiple buildings, offices or network endpoints.
9. CATV Fibre Networks
16F access terminals are also used in CATV fibre networks.
10. LAN and Data Communications
Professional 16F access terminals can also support fibre distribution in LAN and data communications environments.
Typical FTTH Architecture Using 16 Core FAT Box
| Network Stage | Typical Component |
|---|---|
| Provider Equipment | OLT |
| Feeder Network | Single Mode Fibre |
| FAT Input | Feeder Fibre |
| Optical Splitter | 1x16 PLC Splitter |
| Output Capacity | 16 Fibres |
| Subscriber Distribution | FTTH Drop Cables |
| Customer Equipment | ONT / ONU |
Typical Internal Components
| Component | Function |
|---|---|
| 1x16 PLC Splitter | Divides incoming optical signal |
| Up to 16 SC Adapters | Subscriber interfaces |
| Pigtails | Fibre termination |
| Splice Tray | Organizes fusion splices |
| Fusion Sleeves | Protects splices |
| Fibre Routing Guides | Maintains bend radius |
| Cable Clamps | Secures feeder/drop cables |
| Drop Cable Seals | Protects outlet points |
| Port Labels | Identifies subscribers |
| Dust Caps | Protects unused ports |
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Optical Budget | Include full 1x16 splitter loss |
| Splitter Type | Confirm compatibility with enclosure |
| Connector Polish | Maintain APC or UPC consistency |
| Drop Port Labelling | Number all 16 outputs |
| Cable Entry Sealing | Secure and seal feeder cable |
| Fibre Bend Radius | Avoid tight bends |
| Splice Protection | Use heat-shrink sleeves |
| Unused Ports | Keep capped |
| Testing | Measure signal on active outputs |
| Documentation | Record subscriber-to-port assignment |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| 1x16 PLC Splitter | Creates sixteen optical outputs |
| SC/APC Adapters | APC subscriber interfaces |
| SC/UPC Adapters | UPC subscriber interfaces |
| SC/APC Pigtails | APC fibre termination |
| SC/UPC Pigtails | UPC fibre termination |
| SC Fast Connectors | Field fibre termination |
| FTTH Drop Cable | Subscriber connection |
| Fusion Splice Sleeves | Protect fibre joints |
| Fibre Cleaver | Precision fibre preparation |
| Fusion Splicer | Creates fibre joints |
| Optical Power Meter | Measures optical signal |
| PON Power Meter | Tests PON levels |
| VFL | Helps trace fibre faults |
| OTDR | Tests complete fibre paths |
Why Buy 16 Core FAT Box 1x16 from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 16 Core FAT Boxes | Higher subscriber capacity |
| 1x16 PLC Splitters | Complete optical distribution |
| SC/APC & SC/UPC Options | Match different fibre networks |
| Pigtails & Fast Connectors | Complete termination solutions |
| FTTH Drop Cables | Complete subscriber links |
| Splicing Accessories | Professional installation |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Help with FAT configuration and power budget |
| Bulk Supply | Ideal for ISP deployments |
| Competitive Pricing | Cost-effective network rollout |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 16 Core FAT Box 1x16?
It is a fibre access terminal designed to accommodate up to sixteen FTTH drop connections and a 1x16 PLC splitter.
What does FAT mean?
FAT means Fiber Access Terminal.
What does 16 Core mean?
It refers to a capacity of approximately sixteen fibre or subscriber distribution positions.
What does 1x16 mean?
It means one optical input is divided into sixteen optical outputs.
How many subscribers can it serve?
A 16F terminal can accommodate up to 16 FTTH drops, subject to the network configuration.
Does it support a 1x16 PLC splitter?
Yes. Professional 16F access terminals are specifically designed to accommodate 1x16 PLC splitters.
Can it also use a 1x8 splitter?
Some 16F FAT designs accommodate both 1x8 and 1x16 PLC splitters.
What is the operating wavelength of a typical 1x16 PLC splitter?
A representative professional 1x16 splitter operates across 1260–1650 nm.
What is the typical insertion loss?
A representative 1x16 PLC splitter specifies around ≤13.5 dB typical insertion loss and ≤13.8 dB maximum.
What is the theoretical split loss?
An ideal 1x16 split has approximately 12.04 dB of theoretical power division loss.
Does the FAT box require electricity?
No. The enclosure and PLC splitter are passive optical components.
Is it suitable for FTTH?
Yes. 16F fibre access terminals are specifically designed for FTTH access networks.
Can it be used for GPON?
Yes. 1x16 PLC splitters are designed for GPON and FTTH deployment.
Can it be used for EPON?
Yes. PLC splitter-based FAT boxes can also be used in compatible EPON architectures.
Can it be installed outdoors?
Yes, where the selected enclosure has a suitable environmental rating. Commercial 16-port boxes are available with IP65 protection.
Is it UV resistant?
Some professional 16F terminals are specifically rated as UV and moisture resistant.
Can it be wall mounted?
Yes. Wall mounting is supported by professional 16F access terminals.
Can it be pole mounted?
Yes. Pole mounting is also supported on representative 16F FAT designs.
How many cable outlets can it have?
One professional 16F terminal provides 16 outlet ports and two inlet ports.
What material is typically used?
Representative 16F terminals use ABS or ABS+PC construction.
Can I use SC/APC adapters?
Yes. 1x16 PLC splitter systems can be configured with SC/APC connectors.
Can I use SC/UPC adapters?
Yes. SC/UPC is another standard connector option for 1x16 PLC splitters.
Can SC/APC connect directly to SC/UPC?
No. APC and UPC ferrule geometries should not be directly mated.
What is the difference between an 8 Core and 16 Core FAT Box?
The 16-core version provides twice the subscriber capacity, while a typical 1x16 splitter introduces approximately 3 dB more theoretical optical splitting loss than a 1x8 splitter.
Can the box be supplied empty?
Yes, depending on model. Empty FAT boxes allow the installer to choose the splitter, adapters and pigtails separately.
Can it be supplied fully loaded?
Yes. Commercial 16-port FTTH boxes are available with a 1x16 splitter and 16 adapter positions already integrated or supported.
Do you supply 1x16 PLC splitters?
Yes. Fiber Optics Kenya can supply compatible 1x16 PLC splitters.
Do you supply SC/APC and SC/UPC adapters?
Yes. Both connector options can be supplied according to your network design.
Do you supply FTTH drop cables?
Yes. Compatible indoor and outdoor FTTH drop cables can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, PON meters, VFLs and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre installation, fusion splicing, termination and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 16 Core FAT Box 1x16 provides a practical high-capacity solution for organizing, splitting and distributing fibre to as many as sixteen FTTH subscriber connections.
Contact Fiber Optics Kenya for competitive pricing, 16 Core FAT Boxes, 1x16 PLC splitters, fibre accessories, bulk orders and nationwide delivery across Kenya.
