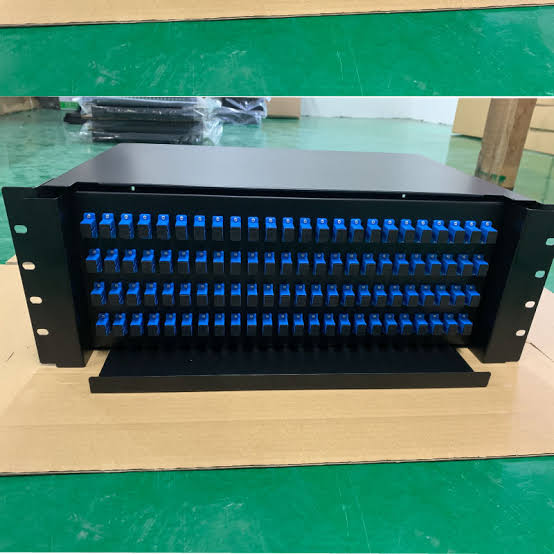

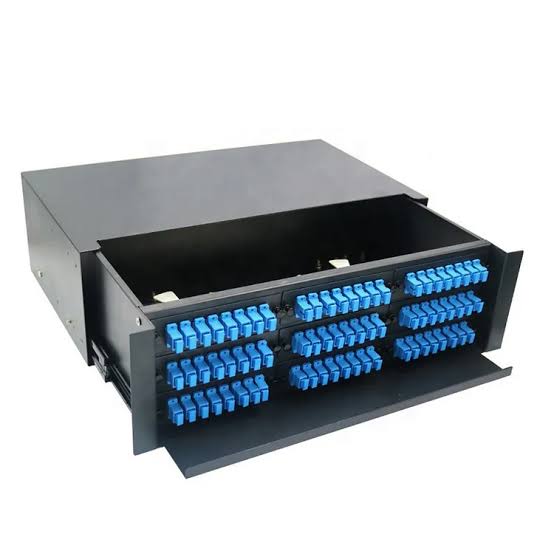

144 Core Sliding ODF SC/UPC in Kenya
KSh 11,500.00
1 available
Continue shopping144 Core Sliding ODF SC/UPC in Kenya
The 144 Core Sliding ODF SC/UPC is a high-capacity Optical Distribution Frame designed to provide centralized termination, fusion splicing, protection, organization and patching for up to 144 optical fibres. It is particularly suitable for fibre networks where large numbers of backbone or distribution fibres need to be managed inside a standard telecommunications or network rack.
Unlike smaller 12-core and 24-core ODFs, a 144-core model provides significantly greater fibre density while maintaining organized access to individual connections. Commercial 144-core ODFs are available in standard 19-inch rack-mount designs, commonly using 3U or 4U enclosures depending on construction, with sliding or modular trays for easier maintenance.
The SC/UPC configuration normally uses blue SC simplex adapters paired with single-mode SC/UPC pigtails. A fully configured 144-core system can therefore provide 144 individually patchable SC/UPC fibre connections, making it ideal for ISP POPs, telecommunications facilities, data centres, enterprise campuses, FTTH aggregation sites and high-density backbone networks.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 144 Core Sliding ODF SC/UPC |
| Product Type | Optical Distribution Frame |
| Maximum Fibre Capacity | 144 Cores |
| Typical SC Adapter Capacity | 144 SC Simplex |
| Connector Type | SC/UPC |
| Typical Adapter Colour | Blue |
| Typical Fibre Type | Single Mode |
| Typical Fibre Size | 9/125 µm |
| Typical Fibre Category | OS2 |
| Rack Format | 19-Inch |
| Typical Rack Height | 3U / 4U depending on model |
| Design | Sliding / Pull-Out |
| Fusion Splicing | Supported |
| Maximum Typical Splices | 144 |
| Pigtail Termination | Supported |
| Splice Trays | Multiple |
| Typical Tray Capacity | 12 / 24 Fibres |
| Fibre Slack Storage | Integrated |
| Cable Management | Integrated |
| Typical Material | Cold-Rolled Steel |
| Cable Entry | Rear / Side depending on model |
| Indoor Installation | Yes |
| Rack Mounting | Yes |
| Electrical Power Required | No |
| Applications | ISP, Telecom, FTTH, FTTB, Data Centres, LAN/WAN |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
A representative 144-core sliding model uses 1.2 mm cold-rolled steel, a standard 19-inch format and pull-out fibre modules. Other designs use 3U or 4U housings, so the exact rack height should always be confirmed for the specific unit being purchased.
What Is a 144 Core Sliding ODF?
A 144 Core Sliding ODF is a high-density rack-mounted fibre enclosure that combines fibre splicing and patching within one organized system.
| Component | Function |
|---|---|
| Metal Enclosure | Protects optical components |
| Sliding Fibre Section | Provides easier internal access |
| SC/UPC Adapter Panels | Creates patchable fibre ports |
| Splice Trays | Organizes fusion splices |
| SC/UPC Pigtails | Terminates incoming fibres |
| Cable Entry Ports | Receives high-count fibre cables |
| Cable Fixing Points | Secures incoming cables |
| Fibre Routing Guides | Maintains correct routing |
| Slack Storage Area | Stores excess fibre |
| Rack Mounting Ears | Secures ODF inside rack |
144-core ODFs are specifically intended for high-density fibre aggregation and backbone applications, with products supporting up to 144 splices and 144 SC simplex connections.
What Does 144 Core Mean?
| Term | Meaning |
|---|---|
| 144 Core | Capacity for 144 individual optical fibres |
| ODF | Optical Distribution Frame |
| SC | SC Fibre Connector |
| UPC | Ultra Physical Contact |
| Sliding | Pull-out internal fibre-management system |
| 19-Inch | Standard telecommunications rack width |
| Pigtail | Connectorized fibre with one bare end |
| Patch Cord | Fibre cable connectorized at both ends |
| Splice Tray | Stores protected fibre fusion joints |
What Is SC/UPC?
SC/UPC combines an SC push-pull connector with an Ultra Physical Contact polished ferrule.
| SC/UPC Feature | Description |
|---|---|
| Connector | SC |
| Polish | UPC |
| Typical Colour | Blue |
| Fibre Type | Single Mode commonly |
| Typical Fibre | 9/125 µm |
| Patch Panel Use | Excellent |
| Enterprise Networks | Excellent |
| Telecommunications | Excellent |
| Backbone Networks | Excellent |
How a 144 Core Sliding ODF Works
High-count backbone or distribution fibre cables enter the rear or side of the enclosure. Individual fibres are separated, routed through the internal management system and fusion-spliced to SC/UPC pigtails.
The pigtails terminate on SC/UPC adapters at the front of the ODF, creating accessible patching points.
| Stage | Function |
|---|---|
| Incoming Fibre Cable | Carries backbone fibres |
| Cable Entry | Routes cable inside |
| Cable Fixing | Provides mechanical support |
| Fibre Separation | Separates individual fibres |
| Fusion Splicing | Joins fibre to pigtail |
| Splice Sleeve | Protects fusion joint |
| Splice Tray | Stores completed splice |
| SC/UPC Pigtail | Links splice to adapter |
| SC/UPC Adapter | Provides front connection |
| Patch Cord | Connects active/passive equipment |
Typical 144-Port Organization
A 144-core ODF can be divided into manageable groups of twelve fibres.
| Fibre Range | Group |
|---|---|
| 1–12 | Group 1 |
| 13–24 | Group 2 |
| 25–36 | Group 3 |
| 37–48 | Group 4 |
| 49–60 | Group 5 |
| 61–72 | Group 6 |
| 73–84 | Group 7 |
| 85–96 | Group 8 |
| 97–108 | Group 9 |
| 109–120 | Group 10 |
| 121–132 | Group 11 |
| 133–144 | Group 12 |
This arrangement makes port identification, fusion splicing, documentation and troubleshooting easier.
Typical Splice Tray Configuration
| Tray Capacity | Number Needed for 144 Fibres |
|---|---|
| 12 Fibres | 12 Trays |
| 24 Fibres | 6 Trays |
| 36 Fibres | 4 Trays |
| 48 Fibres | 3 Trays |
Actual tray arrangement depends on the ODF design. For example, one 144-core rack ODF uses 12 modular splice trays, while other 4U systems use six higher-capacity trays.
Sliding Design
The sliding mechanism improves access to the high number of internal fibre connections.
| Sliding Feature | Benefit |
|---|---|
| Pull-Out Access | Easier installation |
| Splice Tray Access | Simplifies maintenance |
| Pigtail Access | Easier troubleshooting |
| Fibre Routing Access | Better cable management |
| Rack Integration | Unit remains rack mounted |
| Reduced Fibre Disturbance | Protects neighbouring connections |
| Front Servicing | Useful in dense cabinets |
Commercial high-density ODFs use pull-out or sliding fibre modules specifically to improve access and cable management.
19-Inch Rack-Mount Design
| Feature | Typical Specification |
|---|---|
| Rack Standard | 19 Inch |
| Typical Height | 3U / 4U |
| Mounting | Rack Mounted |
| Construction | Cold-Rolled Steel |
| Front Access | Sliding / Hinged depending on design |
| Cable Entry | Rear / Side |
| Splice Management | Integrated |
| Patch Management | Integrated |
One commercial 144-core ODF uses a 3U 19-inch enclosure measuring approximately 480 × 400 × 178 mm, while another high-density sliding version uses a 4U format.
Cold-Rolled Steel Construction
High-density ODFs require a strong enclosure to support large numbers of adapters, pigtails and splice trays.
| Construction Feature | Benefit |
|---|---|
| Cold-Rolled Steel | Strong enclosure |
| Powder Coating | Improved surface protection |
| Rigid Front Panel | Keeps adapters stable |
| Rack Mounting Ears | Secure cabinet installation |
| Metal Covers | Protect internal fibres |
| Structured Interior | Better cable organization |
A representative 4U 144-core sliding model uses 1.2 mm cold-rolled steel with powder coating.
SC/UPC Adapter Configuration
A 144 Core SC/UPC ODF can provide 144 SC simplex interfaces.
| Feature | Specification |
|---|---|
| Adapter Format | SC Simplex |
| Quantity | Up to 144 |
| Polish | UPC |
| Typical Colour | Blue |
| Fibre Mode | Single Mode commonly |
| Pigtail Compatibility | SC/UPC |
| Patch Cord Compatibility | SC/UPC |
Commercial 144-core ODFs are available with a full 144 × SC simplex configuration.
SC/UPC vs SC/APC
| Feature | SC/UPC | SC/APC |
|---|---|---|
| Typical Colour | Blue | Green |
| Polish | Ultra Physical Contact | Angled Physical Contact |
| Back Reflection | Low | Lower |
| Enterprise Networks | Very Common | Application Dependent |
| Data Networks | Excellent | Application Dependent |
| FTTH / GPON | Used where specified | Very Common |
| CATV | Less Preferred | Excellent |
| Direct UPC/APC Mating | No | No |
SC/UPC and SC/APC connectors should not be directly mated.
Typical SC/UPC Pigtail Configuration
| Specification | Typical Configuration |
|---|---|
| Maximum Quantity | 144 |
| Connector | SC/UPC |
| Fibre Mode | Single Mode |
| Core / Cladding | 9/125 µm |
| Typical Fibre Category | OS2 |
| Typical Buffer | 900 µm |
| Connector Colour | Blue |
| Bare End | Fusion-Splice Ready |
Some commercial 144-core ODFs can be supplied fully loaded with SC/UPC adapters, pigtails and splice trays.
Fusion Splicing Inside the 144 Core ODF
| Step | Procedure |
|---|---|
| 1 | Route high-count cable into ODF |
| 2 | Secure cable and strength member |
| 3 | Separate buffer tubes |
| 4 | Identify fibre groups |
| 5 | Route fibres to correct splice trays |
| 6 | Strip fibre coating |
| 7 | Clean bare fibre |
| 8 | Precision cleave |
| 9 | Fusion-splice to SC/UPC pigtail |
| 10 | Protect joint with splice sleeve |
| 11 | Store splice inside tray |
| 12 | Route pigtail to adapter |
| 13 | Label port |
| 14 | Test optical connection |
| 15 | Record fibre-to-port assignment |
144 Core Sliding ODF vs 24 Core Sliding ODF
| Feature | 24 Core | 144 Core |
|---|---|---|
| Fibre Capacity | 24 | 144 |
| Relative Capacity | 1× | 6× |
| Typical Rack Height | 1U | 3U / 4U |
| Small Office | Excellent | Usually Oversized |
| Large ISP POP | Moderate | Excellent |
| Data Centre | Good | Excellent |
| Backbone Aggregation | Moderate | Excellent |
| Cable Management Complexity | Lower | Higher |
| Expansion Capacity | Good | Very High |
144 Core Sliding ODF vs 48 Core ODF
| Feature | 48 Core | 144 Core |
|---|---|---|
| Capacity | 48 | 144 |
| Relative Capacity | 1× | 3× |
| Small Network | Excellent | Oversized |
| Medium Network | Excellent | Excellent |
| Large Backbone | Moderate | Excellent |
| ISP Core Network | Good | Excellent |
| Rack Density | Moderate | High |
| Future Expansion | Good | Excellent |
144 Core Sliding ODF vs 96 Core ODF
| Feature | 96 Core | 144 Core |
|---|---|---|
| Maximum Fibres | 96 | 144 |
| Additional Capacity | — | 48 More Fibres |
| High-Density Network | Excellent | Excellent |
| Large ISP POP | Good | Better |
| Backbone Fibre | Excellent | Excellent |
| Future Expansion | High | Higher |
Sliding ODF vs Fixed ODF
| Feature | Sliding ODF | Fixed ODF |
|---|---|---|
| Internal Access | Excellent | Moderate |
| Pull-Out Section | Yes | No |
| Maintenance | Easier | Less Convenient |
| Rack Installation | Yes | Yes |
| Splice Access | Easier | More Restricted |
| High-Density Use | Excellent | Good |
| Cable Management | Excellent | Good |
ODF vs Fibre Termination Box
| Feature | 144 Core ODF | Fibre Termination Box |
|---|---|---|
| Typical Mounting | Rack | Wall / Pole |
| Capacity | Very High | Low to High |
| Indoor Server Room | Excellent | Good |
| Outdoor Installation | Usually No | Available |
| Patching | Excellent | Good |
| Splicing | Excellent | Excellent |
| Rack Integration | Excellent | Limited |
| Data Centre Use | Excellent | Less Common |
Key Benefits of 144 Core Sliding ODF SC/UPC
High 144-Fibre Capacity
One ODF can terminate and manage up to 144 optical fibres.
High Port Density
It provides significantly more fibre capacity than conventional 12, 24 and 48-core ODFs.
Sliding Access
The pull-out design makes internal fibre-management areas easier to access.
SC/UPC Connectivity
The ODF can provide up to 144 standardized SC/UPC patching interfaces.
Organized Fusion Splicing
Multiple splice trays divide 144 fibres into manageable groups.
Standard Rack Installation
Commercial versions are designed for standard 19-inch telecommunications racks.
Backbone Network Scalability
The high fibre count makes the ODF suitable for large network expansion.
Passive Operation
The ODF requires no electrical power.
Watch 144 Core Sliding ODF SC/UPC
Watch on YouTube: https://youtu.be/j6Bwv5wQwDM
The 144 Core Sliding ODF SC/UPC provides the capacity required for large fibre networks where dozens or hundreds of optical connections must be managed within the same rack. Instead of distributing fibre terminations across many smaller panels, a high-density 144-core ODF can consolidate splicing, pigtail termination and patching into one structured system. Commercial 144-core frames support high-density SC configurations while integrating splice trays and fibre-guiding systems.
The sliding design is particularly valuable at this fibre density. Technicians need sufficient access to fibre trays, pigtails and cable-routing areas without disturbing adjacent connections. Pull-out modules and adjustable fibre-management rings help simplify servicing while maintaining safe fibre routing and bend radii.
For ISP POPs, data centres, telecommunications facilities and enterprise backbone installations, proper documentation and cable management are especially important when dealing with 144 individual fibres. Fiber Optics Kenya can supply the 144 Core Sliding ODF SC/UPC together with SC/UPC adapters, pigtails, patch cords, 144-core fibre cables, fusion-splicing accessories, connector cleaners, optical power meters, VFLs and OTDR equipment for complete high-capacity fibre installations.
Applications of 144 Core Sliding ODF SC/UPC
1. ISP Core Networks
Provides centralized termination for high-count backbone and distribution cables.
2. ISP Points of Presence
Ideal for high-density fibre aggregation inside POP network racks.
3. Data Centres
Provides structured optical patching between backbone cabling and network equipment.
4. Telecommunications Networks
Supports large-scale fibre termination and cross-connection.
5. FTTH Networks
Provides high-density termination at central or aggregation locations.
6. FTTB Networks
Terminates large building and campus distribution cables.
7. Enterprise Campuses
Manages fibre connections between multiple buildings.
8. Metropolitan Fibre Networks
Provides structured termination for metro fibre infrastructure.
9. CCTV Fibre Networks
Supports large surveillance systems with multiple optical links.
10. Industrial Fibre Networks
Provides organized termination for high-capacity industrial communications.
Typical Network Architecture
| Network Stage | Component |
|---|---|
| Backbone Network | High-Core Fibre Cable |
| Incoming Cable | 96 / 144 / Higher-Core Fibre |
| Termination Point | 144 Core Sliding ODF |
| Splicing | Fibre-to-SC/UPC Pigtail |
| Front Interfaces | Up to 144 SC/UPC |
| Patch Cords | SC/UPC / Hybrid Patch Cord |
| Active Equipment | OLT / Switch / Transmission Equipment |
| Distribution | ISP / FTTH / Enterprise Network |
Installation Considerations
| Installation Factor | Recommendation |
|---|---|
| Rack Type | Confirm standard 19-inch compatibility |
| Rack Space | Verify exact 3U/4U requirement |
| Rack Depth | Confirm ODF depth |
| Fibre Capacity | Plan active and spare fibres |
| SC/UPC Interfaces | Maintain UPC throughout connection |
| Cable Entry | Secure high-count cable |
| Strength Member | Anchor correctly |
| Splice Tray Allocation | Organize fibre groups systematically |
| Bend Radius | Maintain safe fibre bends |
| Port Labelling | Clearly label 1–144 |
| Patch Cord Routing | Use rack cable managers |
| Connector Cleaning | Clean before every mating |
| Optical Testing | Test every terminated fibre |
| Documentation | Record all fibre-to-port mappings |
Recommended Accessories
| Accessory | Purpose |
|---|---|
| SC/UPC Adapter | Provides optical coupling |
| SC/UPC Pigtail | Fibre termination |
| SC/UPC Patch Cord | Fibre interconnection |
| SC/UPC–LC/UPC Patch Cord | Connects to LC equipment |
| 144 Core Fibre Cable | Backbone connectivity |
| Fusion Splice Sleeve | Protects fusion joints |
| Splice Tray | Organizes fibre splices |
| Cable Glands | Secures incoming cables |
| Rack Cable Manager | Organizes patch cords |
| Fibre Labels | Identifies ports |
| Fusion Splicer | Joins fibres |
| Fibre Cleaver | Precision fibre preparation |
| Fibre Stripper | Removes fibre coating |
| Connector Cleaner | Cleans SC interfaces |
| Optical Power Meter | Measures optical power |
| Visual Fault Locator | Identifies fibre continuity/faults |
| OTDR | Diagnoses fibre links |
Why Buy 144 Core Sliding ODF SC/UPC from Fiber Optics Kenya?
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 144 Core ODF Solutions | High-density fibre management |
| SC/UPC Adapters | Standard optical interfaces |
| SC/UPC Pigtails | Professional fibre termination |
| SC/UPC Patch Cords | Complete optical patching |
| Hybrid Patch Cords | Connect different equipment interfaces |
| High-Core Fibre Cables | Complete backbone solutions |
| Fusion-Splicing Accessories | Professional installation |
| Fibre Cleaning Tools | Reliable connector maintenance |
| Testing Equipment | Verify optical performance |
| Technical Guidance | Correct product selection |
| Bulk Supply | Ideal for ISPs and contractors |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is a 144 Core Sliding ODF SC/UPC?
It is a high-density rack-mounted Optical Distribution Frame designed to terminate, splice, organize and patch up to 144 optical fibres using SC/UPC interfaces.
What does ODF mean?
ODF means Optical Distribution Frame.
How many fibres can it terminate?
It can typically terminate up to 144 individual optical fibres.
How many SC/UPC adapters can it support?
A full SC simplex configuration can provide 144 adapter ports.
What colour are SC/UPC adapters?
They are normally blue.
Is it suitable for single-mode fibre?
Yes. SC/UPC configurations are commonly used with single-mode fibre.
Can it support multimode fibre?
The ODF enclosure itself can support multimode configurations when populated with appropriate adapters and pigtails.
Is the ODF sliding?
Yes. Sliding versions use pull-out trays or modules to improve access to fibre-management components.
What rack size does it use?
Commercial models are available for standard 19-inch racks.
Is a 144 Core ODF 3U or 4U?
Both configurations exist. Some 144-core models use 3U, while other sliding designs use 4U, so the exact product specification should be confirmed.
Does it support fusion splicing?
Yes. Fusion-splice management is one of the primary functions of an ODF.
How many splice trays are required?
This depends on tray capacity. Twelve 12-fibre trays or six 24-fibre trays can accommodate 144 fibres.
Can it come fully loaded?
Yes. Some 144-core ODFs are available with adapters, pigtails and splice trays already installed.
Can it be purchased empty?
Yes. Certain manufacturers offer empty customizable enclosures that can later be populated with the required adapter plates and splice trays.
Can I use SC/APC patch cords with SC/UPC adapters?
Not directly. APC and UPC connector end faces should not be directly mated.
Can it connect to LC equipment?
Yes. Use an appropriate SC/UPC-to-LC/UPC patch cord.
Can it be used for FTTH?
Yes. High-density ODFs are commonly used at FTTH distribution and aggregation locations.
Can it be used for ISP networks?
Yes. ISP core networks and POPs are major applications for high-density ODFs.
Can it be used in a data centre?
Yes. 144-core ODFs are designed for high-density fibre environments including data centres.
Can it be used for enterprise networks?
Yes. It is suitable for large campus and enterprise backbone networks.
Can it be used for CCTV fibre networks?
Yes. It can terminate and organize multiple optical CCTV links.
Is it suitable for outdoor installation?
Rack-mounted sliding ODFs are normally intended for protected indoor environments.
Does it require electricity?
No. The ODF itself is passive.
What is the difference between a 24 Core and 144 Core ODF?
A 144-core ODF provides six times the nominal fibre capacity of a 24-core unit.
What is the difference between a 48 Core and 144 Core ODF?
A 144-core unit provides three times the nominal capacity of a 48-core ODF.
What is the difference between a 96 Core and 144 Core ODF?
The 144-core model provides 48 additional fibre positions.
Why use a sliding ODF?
The sliding mechanism makes internal splice trays, pigtails and fibre-routing areas easier to access during installation and maintenance.
Can unused ports remain spare?
Yes. Spare ports can be reserved for future network expansion and should remain protected with dust caps.
Can fibre slack be stored inside?
Yes. High-density ODFs include fibre-routing and slack-management provisions.
Do you supply SC/UPC adapters?
Yes. Fiber Optics Kenya can supply matching SC/UPC adapters.
Do you supply SC/UPC pigtails?
Yes. Matching single-mode SC/UPC pigtails can be supplied.
Do you supply SC/UPC patch cords?
Yes. SC/UPC and hybrid fibre patch cords can be supplied.
Do you supply 144 Core fibre optic cable?
Yes. High-core-count fibre cables can be supplied for backbone and distribution networks.
Do you supply fusion-splicing equipment?
Yes. Fusion splicers, fibre cleavers, strippers, splice sleeves and other installation tools can be supplied.
Do you supply fibre testing equipment?
Yes. Optical power meters, VFLs, PON testing equipment and OTDRs can be supplied.
Do you provide fibre installation and testing?
Yes. Professional fibre termination, fusion splicing, rack installation and optical testing support is available.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic products and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
The 144 Core Sliding ODF SC/UPC is an excellent high-density fibre-management solution for ISP POPs, telecommunications facilities, data centres, FTTH aggregation networks and enterprise backbone infrastructure. Its combination of 144-fibre capacity, SC/UPC connectivity, rack-mounted construction, fusion-splice management and sliding access provides a scalable and organized platform for large fibre networks.
Contact Fiber Optics Kenya for 144 Core Sliding ODF SC/UPC units, adapters, pigtails, patch cords, high-core fibre cables, fusion-splicing accessories, installation services, bulk orders and nationwide delivery across Kenya.
