144 Core ADSS Single Mode Fibre Optic Cable G652D in Kenya

The 144 Core ADSS Single Mode Fibre Optic Cable G652D is a high-capacity outdoor optical cable engineered for aerial telecommunications, ISP backbone, FTTH distribution, utility communication and metropolitan fibre networks. With 144 individual single-mode fibres, it provides substantial capacity for large-scale infrastructure where many network connections need to be carried over a common aerial route.

ADSS stands for All-Dielectric Self-Supporting. Unlike aerial fibre cables that depend on a metallic messenger wire, ADSS uses dielectric strength components to support the cable between poles or towers. Commercial 144-core constructions commonly use FRP central strength members, PBT loose tubes, aramid yarn and PE outer jackets.

The G652D fibre used in this cable is a widely adopted single-mode fibre standard for telecommunications and outside-plant networks. A current Corning 144-fibre ADSS cable, for example, uses 144 OS2 fibres compliant with ITU-T G.652.D, arranged as 12 tubes containing 12 fibres each.  At Fiber Optics Kenya, this makes the cable an excellent option for ISPs, telecom contractors, utility networks, government infrastructure, campuses and large-scale fibre deployment projects.

Key Product Specifications

Corning's current 144-fibre ADSS specification confirms a loose-tube, round, outdoor cable with 144 G.652.D OS2 fibres, a dielectric central element and all-dielectric self-supporting construction.

What Is 144 Core ADSS Fibre Optic Cable?

A 144 Core ADSS cable contains 144 individual optical fibres protected inside a self-supporting aerial cable structure. It is designed for networks where significantly more capacity is required than can be provided by smaller 12-, 24-, 48- or 96-core cables.

144 Core ADSS Cable Construction

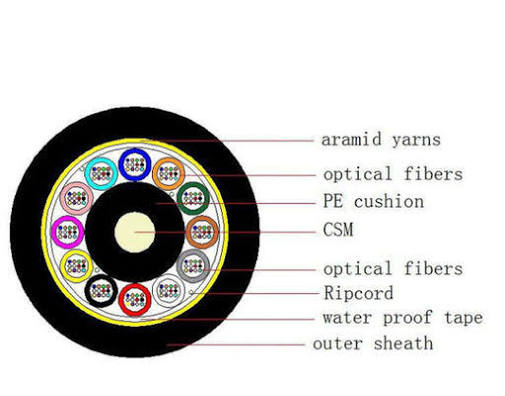

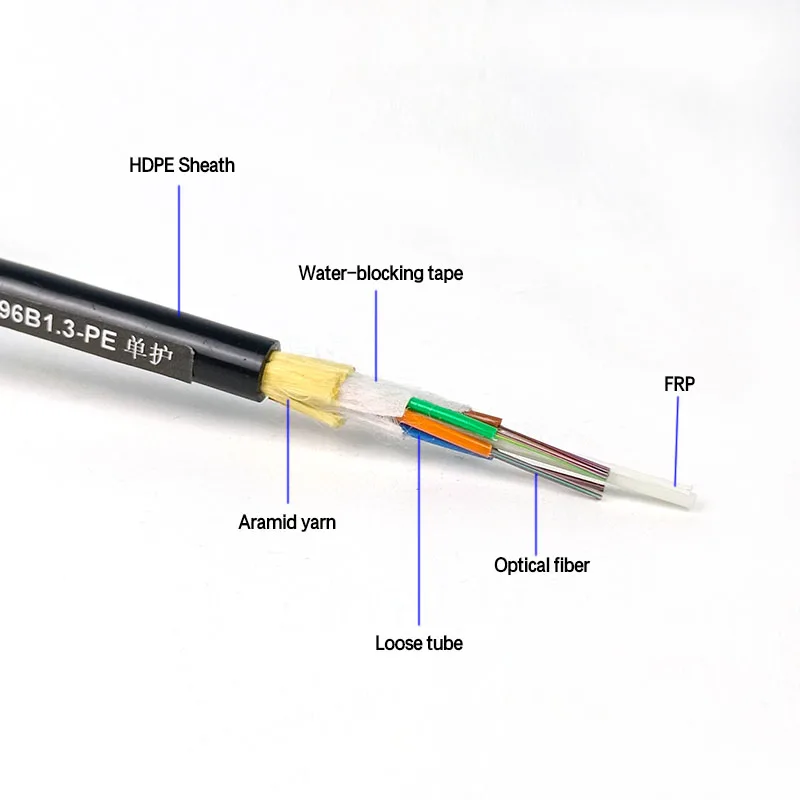

A typical 144-core ADSS construction uses 12 loose tubes with up to 12 fibres per tube, arranged around a central FRP strength member. Aramid yarn provides the tensile reinforcement needed for self-supporting aerial installation.

Typical 144-Core Fibre Arrangement

High-core-count fibre needs an organised structure so technicians can identify individual fibres during splicing and maintenance.

A recent 144-core ADSS specification shows a 1+12 configuration with 12 fibres per loose tube, demonstrating a common architecture for this high fibre count.

G652D Single Mode Fibre Specifications

For reference, Corning specifies a 9.2 µm mode-field diameter at 1310 nm, 10.4 µm at 1550 nm and 1260 nm cable cutoff wavelength for its current 144-fibre G.652.D ADSS product.

Why Choose 144 Cores?

The major advantage of a 144-core cable is the amount of network capacity available within a single aerial cable.

This is only an example. Actual allocation should be determined by the network design.

With traditional duplex optical connections using two fibres per link, 144 fibres could theoretically provide up to 72 duplex links. PON, BiDi and WDM architectures may use the fibres differently.

144 Core vs 96 Core ADSS Cable

For networks expected to expand substantially, the additional 48 fibres available in a 144-core cable can provide valuable long-term capacity.

Typical Mechanical & Environmental Characteristics

Exact values vary according to manufacturer, span rating and single- versus double-jacket construction.

For comparison, Corning's 144-core ADSS model weighs approximately 300 kg/km and specifies operating temperatures from -30°C to +70°C, storage from -40°C to +70°C, and installation from -5°C to +50°C. These figures apply to that specific model and should not be assumed for every 144-core cable.

ADSS Span Length Options

Span length is one of the most important factors when ordering ADSS cable.

Commercial G652D ADSS cable families are available with span configurations such as 100, 120, 200, 300 and 400 metres, but the appropriate cable must be selected according to its actual mechanical design.

Why Span Rating Matters

Two cables can both contain 144 G652D fibres but have completely different mechanical capabilities.

For this reason, Fiber Optics Kenya should be provided with the required span length and installation environment when quoting a 144-core ADSS project.

Single Jacket vs Double Jacket 144 Core ADSS

Commercial 144-core G652D ADSS cables are available in double-jacket PE long-span configurations as well as other constructions.

Key Benefits of 144 Core ADSS Single Mode Fibre Optic Cable

Extremely High Fibre Capacity

With 144 optical fibres, the cable can support major ISP, telecom, FTTH and enterprise distribution infrastructure.

Excellent Long-Distance Performance

G652D single-mode fibre is designed for low-loss optical transmission over long network distances.

Self-Supporting Aerial Installation

ADSS is engineered to support itself between appropriate poles or towers without requiring a separate metallic messenger cable.

All-Dielectric Construction

The use of FRP and aramid strength components avoids conductive metallic strength members.

Excellent Network Expansion Capacity

A portion of the 144 fibres can be left unused and activated as the network expands.

Suitable for ISP and FTTH Infrastructure

The combination of high fibre count and G652D single-mode performance makes it particularly attractive for large feeder, backbone and distribution routes.

Reduced Need for Future Cable Installation

Installing sufficient fibre capacity initially can reduce the need to install additional aerial backbone cables as customer demand increases.

Watch 144 Core ADSS Single Mode Fibre Optic Cable G652D

Watch 144 Core ADSS Single Mode Fibre Optic Cable G652D on YouTube

The 144 Core ADSS Single Mode Fibre Optic Cable G652D is built for high-capacity aerial networks where scalability is a major requirement. With 144 individual single-mode fibres, it allows network operators to consolidate a large number of optical connections within one cable route. Current commercial designs use loose-tube G652D fibres together with dielectric strength components such as FRP and aramid yarn, creating a robust self-supporting cable for outdoor aerial deployment.

For ISPs and telecommunications operators, the large fibre count provides significant flexibility when planning backbone and distribution networks. Fibres can be allocated to POPs, FTTH distribution points, enterprise customers, mobile sites, CCTV networks or other services while a substantial number of dark fibres remain available for redundancy and future expansion. This can make a 144-core deployment more economical over the long term where demand is expected to grow substantially.

The cable should nevertheless be selected according to the actual aerial route rather than fibre count alone. Span length, cable tension, sag, wind loading, pole configuration, cable diameter, jacket design and supporting hardware all influence the correct ADSS specification. Fiber Optics Kenya can assist with selecting the appropriate cable construction and matching suspension clamps, tension clamps, closures, ODFs and termination accessories for the project.

Applications of 144 Core ADSS G652D Cable

1. ISP Backbone Networks

The very high fibre count makes 144-core ADSS particularly suitable for ISP backbone and major distribution routes.

2. FTTH Feeder Networks

A single high-count cable can provide fibre capacity to multiple distribution areas, splitters and network nodes.

3. Telecommunications Networks

G652D single-mode fibre is widely suited to long-distance telecommunications infrastructure.

4. Metropolitan Fibre Networks

144 cores provide substantial capacity for connecting multiple areas across metropolitan fibre infrastructure.

5. Utility Communication Networks

The all-dielectric construction makes ADSS suitable for appropriately engineered utility communication routes.

6. Mobile Network Infrastructure

The cable can provide backbone capacity between telecommunications sites and network aggregation locations.

7. Government Networks

High fibre capacity makes it suitable for extensive institutional and public infrastructure.

8. University and Hospital Campuses

Large campuses can allocate fibres to individual buildings, network cabinets and redundant links.

9. Industrial Parks

Connect factories, warehouses, offices, CCTV systems and other facilities over a shared aerial backbone.

10. Large Enterprise Networks

Major commercial developments can use the cable to establish high-capacity fibre infrastructure with substantial future expansion capability.

ADSS vs Figure 8 Fibre Cable

144 Core ADSS vs Underground Fibre Cable

Fibre Colour Identification

A 144-core cable requires organised fibre and loose-tube colour identification for efficient splicing.

In a common 12 × 12 construction, the colour sequence can be used for both fibre and tube identification. Always follow the exact manufacturer's colour chart during installation.

Recommended ADSS Installation Accessories

Why Buy 144 Core ADSS Fibre Optic Cable from Fiber Optics Kenya?

For a high-capacity aerial backbone, buying the right cable and matching hardware from the beginning can reduce installation problems and unnecessary future upgrades.

Frequently Asked Questions

What is 144 Core ADSS Fibre Optic Cable?

It is a self-supporting outdoor aerial cable containing 144 individual optical fibres and dielectric strength components.

What does ADSS mean?

ADSS means All-Dielectric Self-Supporting. The cable is designed for aerial installation without a separate metallic messenger wire.

Is this cable G652D?

Yes. This product uses G652D single-mode optical fibre, which is widely used in telecommunications, ISP and backbone networks. Corning currently offers a 144-fibre ADSS cable compliant with ITU-T G.652.D.

How are the 144 fibres arranged?

A common configuration is 12 loose tubes × 12 fibres, although exact construction should be confirmed from the supplied cable datasheet.

How many duplex links can 144 fibres provide?

If each conventional duplex link uses two fibres, 144 fibres can theoretically provide 72 duplex links.

Is 144 Core ADSS suitable for an ISP?

Yes. Its high fibre capacity makes it particularly suitable for ISP backbone, feeder and distribution networks.

Can it be used for FTTH?

Yes. It is suitable for high-capacity FTTH feeder and distribution infrastructure.

Does ADSS require a messenger wire?

No separate metallic messenger wire is normally required because ADSS is designed to be self-supporting.

What span lengths are available?

ADSS products can be manufactured for different spans, with commercial examples including 100 m, 120 m, 200 m, 300 m and 400 m configurations.

Can I simply choose a longer span cable?

The span must match the engineering requirements of the route. Pole loading, sag, tension, wind conditions and hardware should all be considered.

Is 144 Core ADSS waterproof?

Outdoor ADSS cables commonly use water-blocking yarns, tapes or gel-filled loose tubes, depending on construction.

Is the cable metallic?

True ADSS uses an all-dielectric construction, meaning its supporting structure is non-metallic.

What is the difference between 96 Core and 144 Core ADSS?

The main difference is capacity. A 96-core cable contains 96 fibres, while a 144-core cable provides 50% more individual fibres, offering greater expansion capacity.

Do you supply ADSS accessories?

Yes. Fiber Optics Kenya can supply suspension clamps, tension clamps, joint closures, ODFs, pigtails and other fibre installation accessories.

Do you provide fusion splicing?

Yes. Professional fusion splicing can be arranged for high-core-count fibre installations.

Do you provide OTDR testing?

Yes. Fibre testing can be included as part of professional installation and commissioning.

Do you deliver outside Nairobi?

Yes. Fiber Optics Kenya supplies fibre optic cables and accessories to customers throughout Kenya.
