12 Core ADSS Single Mode Fibre Optic Cable G652D in Kenya
KSh 160.00
1 available
Continue shopping12 Core ADSS Single Mode Fibre Optic Cable G652D in Kenya
The 12 Core ADSS Single Mode Fibre Optic Cable G652D is an outdoor self-supporting fibre cable designed for aerial telecommunications, ISP, FTTH, CCTV, campus and enterprise network installations. It contains 12 G652D single-mode optical fibres, providing enough capacity for multiple fibre connections while remaining relatively compact and economical for small-to-medium aerial backbone projects.
ADSS stands for All-Dielectric Self-Supporting. The cable is designed without conductive metallic strength members and uses components such as FRP strength members and aramid yarn to provide the tensile strength required for aerial installation. Commercial 12-core ADSS constructions use G652D fibres, loose tubes, water-blocking components and durable outdoor jackets, with products available for approximately 100 m spans and other span classes.
At Fiber Optics Kenya, the 12 Core ADSS G652D Fibre Optic Cable is suitable for ISPs, network contractors, schools, hospitals, hotels, industrial facilities, commercial properties and organizations extending fibre connectivity between buildings or network distribution points. We also supply compatible ADSS clamps, fibre closures, ODFs, pigtails, patch cords and networking accessories for complete installations.
Key Product Specifications
| Specification | Details |
|---|---|
| Product Name | 12 Core ADSS Single Mode Fibre Optic Cable G652D |
| Cable Type | All-Dielectric Self-Supporting |
| Cable Abbreviation | ADSS |
| Fibre Count | 12 Cores |
| Fibre Mode | Single Mode |
| Fibre Standard | ITU-T G.652.D |
| Typical Fibre Category | OS2 |
| Typical Fibre Size | Approx. 9/125 µm |
| Cable Construction | Loose Tube |
| Central Strength Member | FRP |
| Additional Strength Element | Aramid Yarn |
| Metallic Messenger Wire | Not required |
| Water Blocking | Gel / water-blocking tape or yarn depending on construction |
| Outer Jacket | PE / MDPE / HDPE depending on model |
| Typical Jacket Colour | Black |
| Common Wavelengths | 1310 nm / 1550 nm |
| Installation Method | Aerial |
| Self-Supporting | Yes |
| Common Span Options | 50-200 m depending on cable design |
| Applications | ISP, FTTH, CCTV, telecom and campus networks |
| Professional Installation | Available |
| Delivery | Available throughout Kenya |
Commercial 12-core G652D ADSS products are available in single-jacket designs with spans from roughly 50 m to 200 m, while specific 100 m and 120 m variants are also manufactured.
What Does ADSS Mean?
ADSS means All-Dielectric Self-Supporting. This cable architecture is specifically developed for aerial fibre installations.
| ADSS Feature | Benefit |
|---|---|
| All-Dielectric Construction | No conductive metallic strength member |
| Self-Supporting Design | Does not normally require separate messenger wire |
| Aerial Installation | Ideal for pole-to-pole network routes |
| FRP Strength Member | Adds dielectric structural strength |
| Aramid Yarn | Provides tensile reinforcement |
| Loose-Tube Construction | Helps protect fibres from mechanical stresses |
| Water Blocking | Helps prevent moisture migration |
| Outdoor PE Jacket | Protects cable against environmental exposure |
| Multiple Span Designs | Allows cable to be matched to different routes |
ADSS cable is strong enough to support itself between structures without conductive metallic support elements, and manufacturers design different versions according to span, voltage environment and required tensile force.

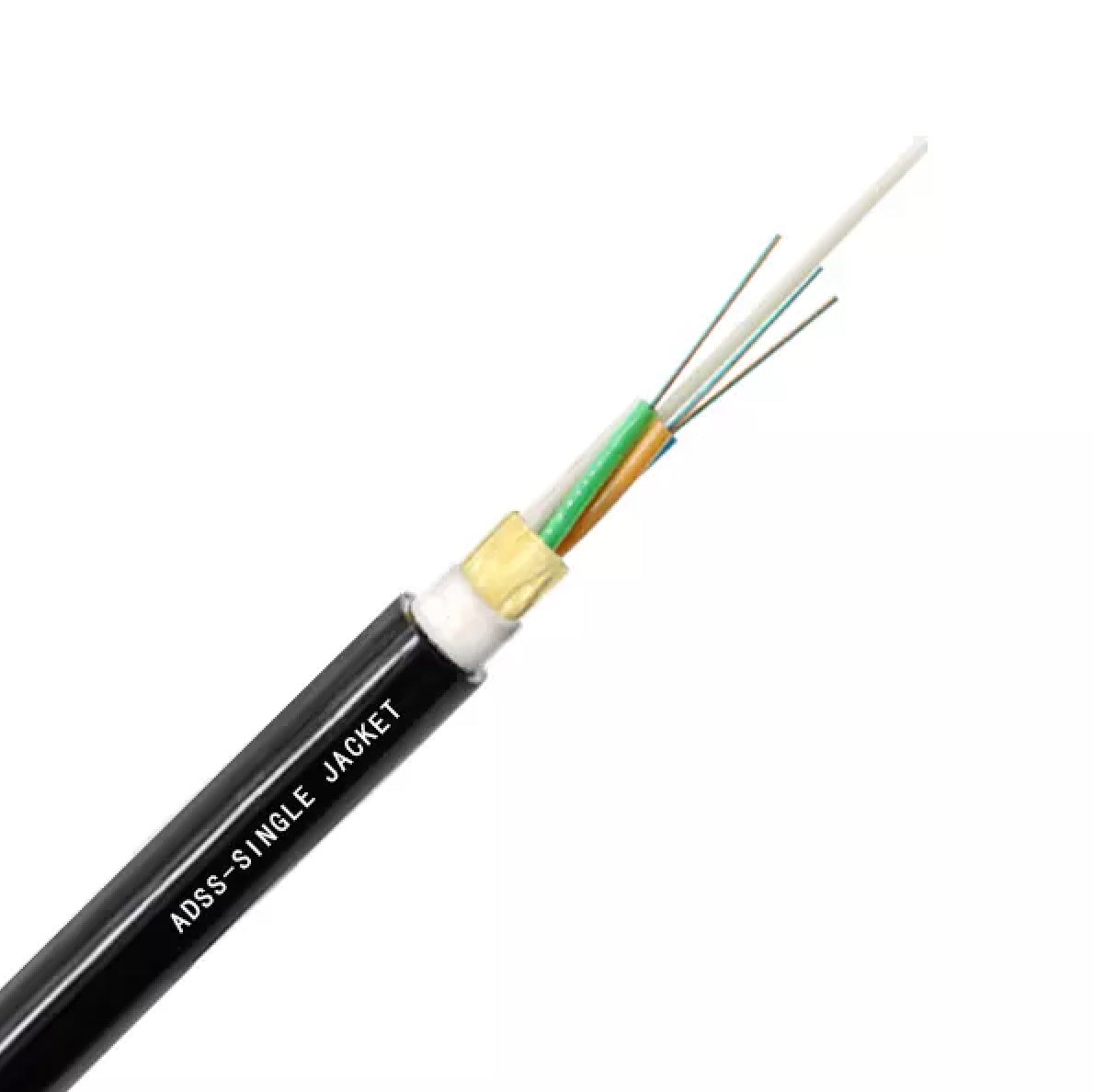

12 Core ADSS Cable Construction
A typical 12 Core ADSS cable protects its optical fibres through several mechanical and environmental layers.
| Cable Component | Function |
|---|---|
| G652D Optical Fibres | Transmit optical data |
| Primary Fibre Coating | Protects individual glass fibres |
| PBT Loose Tube | Houses and protects optical fibres |
| Tube Filling Compound | Helps protect fibres against moisture |
| Cable Filling Compound | Provides additional environmental protection |
| FRP Strength Member | Provides non-metallic structural reinforcement |
| Water-Blocking Tape | Restricts longitudinal moisture migration |
| Aramid Yarn | Provides tensile strength |
| Inner Sheath | Used on selected double-jacket designs |
| Outer PE/HDPE Jacket | Protects against outdoor conditions |
| Ripcord | Helps technicians open the cable jacket |
A representative 12-core construction shows optical fibres, PBT loose tubes, filling compound, FRP strength member, water-blocking tape, aramid yarn and outer sheath.
12 Core Fibre Capacity
A 12-core cable provides more flexibility than basic 2- or 4-core cables while remaining suitable for smaller aerial network projects.
| Example Fibre Allocation | Number of Fibres |
|---|---|
| Primary Network Connection | 2 |
| Secondary Building Link | 2 |
| CCTV Backbone | 2 |
| Backup / Redundancy | 2 |
| Future Expansion | 4 |
| Total | 12 |
With conventional duplex networking, where one connection uses two fibres, 12 fibres can theoretically provide up to six duplex optical links.
Actual allocation can differ significantly in PON, BiDi or WDM network architectures.
G652D Single Mode Fibre Characteristics
G652D is a widely used single-mode fibre type for telecommunications and outside-plant networks.
| Characteristic | Typical Description |
|---|---|
| Fibre Standard | ITU-T G.652.D |
| Mode | Single Mode |
| Typical Category | OS2 |
| Core Diameter | Approx. 8-9 µm |
| Cladding Diameter | 125 µm |
| Common Wavelengths | 1310 nm / 1550 nm |
| Transmission Distance | Long |
| Optical Loss | Low |
| ISP Networks | Excellent |
| FTTH Networks | Excellent |
| Telecommunications | Excellent |
| Campus Backbone | Excellent |
| CCTV Backbone | Excellent |
A commercial 12-core G652D cable specification lists maximum attenuation around 0.40 dB/km at 1310 nm and 0.25 dB/km at 1550 nm, while exact performance varies by fibre manufacturer.
Typical Span Options
The required distance between poles is one of the most important specifications to confirm before purchasing ADSS cable.
| Approximate Span | Typical Application |
|---|---|
| 50 m | Short building or urban links |
| 80 m | Access and neighbourhood networks |
| 100 m | Common ISP and FTTH distribution |
| 120 m | Medium aerial network routes |
| 150 m | Longer distribution sections |
| 200 m | Higher-strength engineered ADSS |
| Above 200 m | Specially engineered cable required |
Commercial 6-, 8- and 12-core G652D ADSS products are available with 50-200 m span options, while dedicated 12-core designs are also manufactured for 100 m and 120 m routes.
Why Span Length Matters
Two 12-core G652D cables can contain exactly the same optical fibres but have very different mechanical capabilities.
| Route Factor | Importance |
|---|---|
| Pole Distance | Determines required cable span |
| Cable Sag | Affects ground and obstacle clearance |
| Wind Loading | Increases cable mechanical load |
| Cable Weight | Influences tension and sag |
| Pole Strength | Must support cable loading |
| Route Direction Changes | Require appropriate tension hardware |
| Temperature Variation | Affects cable tension and sag |
| Installation Hardware | Must match cable diameter and load |
| Electrical Environment | May influence jacket selection |
A current 12-core 120 m ADSS design, for example, specifies approximately 1,100 N/100 mm long-term crush resistance, 2,200 N/100 mm short-term crush resistance and bend-radius requirements of 15× OD static and 20× OD dynamic. Those values apply only to that particular design.
Single Jacket vs Double Jacket 12 Core ADSS
| Feature | Single Jacket | Double Jacket |
|---|---|---|
| Number of Sheaths | One | Two |
| Cable Weight | Lower | Higher |
| Cable Diameter | Smaller | Larger |
| Mechanical Protection | Good | Enhanced |
| Short Span | Excellent | Excellent |
| Medium Span | Excellent | Excellent |
| Longer Span | Design dependent | Often used for more demanding applications |
| Installation Handling | Easier | Heavier |
| Cost | Generally lower | Generally higher |
| Environmental Protection | High | Higher |
Cable construction should be selected according to actual route conditions rather than assuming double jacket is automatically required.
Key Benefits of 12 Core ADSS G652D Cable
Long-Distance Optical Performance
G652D single-mode fibre provides low-loss transmission suitable for telecommunications, ISP and backbone networks.
Practical 12-Core Capacity
Twelve fibres provide enough capacity for several connections without the size and cost associated with very high-core-count cables.
Self-Supporting Aerial Installation
ADSS does not normally need a separate metallic messenger wire.
All-Dielectric Construction
Its non-metallic strength structure can be advantageous for suitably engineered aerial and utility installations.
Network Expansion
Unused fibres can remain available for backup links or future network growth.
Reduced Underground Civil Works
Where suitable pole routes already exist, ADSS can reduce or eliminate extensive trenching and duct installation.
Suitable for Small and Medium ISPs
Twelve cores can provide a practical starting capacity for local fibre distribution while leaving spare fibres available.
Watch 12 Core ADSS Single Mode Fibre Optic Cable G652D
Watch on YouTube: https://youtu.be/V8eaxP0WbzM
The 12 Core ADSS Single Mode Fibre Optic Cable G652D offers a practical combination of long-distance optical performance, manageable fibre capacity and self-supporting aerial construction. Its 12 G652D fibres can carry several network connections between buildings, distribution points, CCTV switches or telecommunications sites while still leaving spare fibres available for redundancy and future expansion. Commercial 12-core ADSS products are specifically available for aerial applications and common span requirements such as 100 metres.
For ISPs and network contractors, the 12-core configuration can be particularly useful on smaller distribution routes where installing a 48-, 96- or 144-core cable would provide unnecessary capacity. It can theoretically support six conventional duplex connections, while PON or BiDi network architectures may make different use of the available fibres. The ability to retain spare fibres can also reduce the need to install another aerial cable when the network expands.
The correct ADSS cable should nevertheless be selected according to the actual route. Span distance, wind conditions, cable tension, pole configuration, sag and supporting hardware all influence the mechanical specification required. Fiber Optics Kenya can help customers select the appropriate cable construction and compatible clamps, closures, ODFs and termination accessories for their project.
Applications of 12 Core ADSS Fibre Optic Cable
1. ISP Distribution Networks
Suitable for connecting POP sites, fibre distribution points and customer areas over aerial routes.
2. FTTH Networks
Can be used within feeder and distribution portions of appropriately designed aerial FTTH infrastructure.
3. Building-to-Building Networks
Connect office blocks, schools, hospitals, warehouses and other buildings across a compound.
4. CCTV Networks
Provide fibre backbone connectivity between remotely located CCTV switches and monitoring centres.
5. Telecommunications Networks
G652D single-mode fibre is suitable for long-distance telecom connections.
6. Schools and Universities
Connect administration buildings, ICT laboratories, libraries and other campus facilities.
7. Hospitals
Deploy high-speed fibre links between network cabinets and buildings.
8. Hotels and Resorts
Connect accommodation blocks, CCTV infrastructure, server rooms and network distribution areas.
9. Industrial Facilities
Provide reliable data transmission between factories, warehouses and offices.
10. Enterprise Networks
Use aerial fibre to interconnect network distribution points across large commercial properties.
12 Core vs 6 Core ADSS Cable
| Feature | 6 Core | 12 Core |
|---|---|---|
| Total Fibres | 6 | 12 |
| Potential Duplex Links | 3 | 6 |
| Network Capacity | Medium | Higher |
| Small Network | Excellent | Excellent |
| Expansion Capacity | Moderate | High |
| Cable Size | Smaller | Slightly larger |
| Initial Cost | Lower | Higher |
| Future Scalability | Good | Better |
12 Core vs 24 Core ADSS Cable
| Feature | 12 Core | 24 Core |
|---|---|---|
| Total Fibres | 12 | 24 |
| Potential Duplex Links | 6 | 12 |
| Small Distribution Network | Excellent | Excellent |
| Medium ISP Network | Good | Better |
| Expansion Capacity | High | Very High |
| Splicing Workload | Lower | Higher |
| Cable Size | Smaller | Generally larger |
| Initial Cost | Lower | Higher |
A 12-core cable can be more economical when the route is unlikely to require the additional capacity of a 24-core cable.
ADSS vs Figure 8 Fibre Cable
| Feature | ADSS | Figure 8 |
|---|---|---|
| Self-Supporting | Yes | Yes |
| All-Dielectric | Yes | Not necessarily |
| Metallic Messenger Wire | No | Often included |
| Aerial Installation | Excellent | Excellent |
| Electrical Environment | Advantageous dielectric construction | Depends on construction |
| ISP Distribution | Excellent | Excellent |
| Pole-to-Pole Installation | Excellent | Excellent |
Fibre Colour Identification
A 12-core cable commonly uses the standard 12-colour fibre identification sequence.
| Fibre Number | Colour |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate/Grey |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose/Pink |
| 12 | Aqua |
Always follow the exact manufacturer's colour chart during splicing and termination.
Recommended ADSS Installation Accessories
| Accessory | Purpose |
|---|---|
| ADSS Suspension Clamp | Supports cable at intermediate poles |
| ADSS Tension Clamp | Anchors cable at tension points |
| Dead-End Grip | Secures cable at route ends |
| Pole Bracket | Holds aerial cable hardware |
| Stainless Steel Banding | Attaches brackets to poles |
| Cable Storage Bracket | Stores spare cable loops |
| Fibre Joint Closure | Protects aerial fibre splices |
| 12 Core ODF | Organises and terminates fibres |
| SC/APC Pigtails | Common FTTH/PON termination |
| SC/UPC Pigtails | Single-mode termination |
| LC Pigtails | Equipment termination |
| Fusion Splice Sleeves | Protect completed fibre splices |
| SFP/SFP+ Modules | Connect fibre to network equipment |
| OTDR | Tests fibre links and identifies faults |
Why Buy 12 Core ADSS Fibre Optic Cable from Fiber Optics Kenya?
Choosing the correct ADSS cable involves matching the fibre count, span rating and supporting hardware to the actual project.
| Why Choose Fiber Optics Kenya? | Customer Benefit |
|---|---|
| 12 Core Capacity | Practical capacity for small and medium networks |
| G652D Single Mode | Excellent long-distance transmission |
| ADSS Aerial Solutions | Designed for overhead deployment |
| Technical Guidance | Assistance selecting the correct specification |
| Span Selection Support | Helps match cable to pole spacing |
| ADSS Accessories | Clamps and aerial hardware available |
| Complete Fibre Solutions | Cable, ODFs, closures and pigtails |
| Competitive Pricing | Cost-effective network procurement |
| Bulk Supply | Suitable for contractors and ISPs |
| Professional Installation | Installation support available |
| Fusion Splicing | Professional fibre termination |
| OTDR Testing | Helps verify installed network performance |
| Nationwide Delivery | Supply throughout Kenya |
Frequently Asked Questions
What is 12 Core ADSS Fibre Optic Cable?
It is an outdoor All-Dielectric Self-Supporting fibre cable containing 12 optical fibres for aerial network installation.
What does G652D mean?
G652D is a widely used single-mode optical fibre specification suitable for telecommunications, ISP, backbone and access networks.
How many connections can 12 fibres support?
A conventional duplex fibre connection uses two cores, so 12 cores can theoretically support six duplex links.
Is 12 Core ADSS suitable for an ISP?
Yes. It is particularly suitable for smaller ISP feeder and distribution routes where 12 fibres provide sufficient current and future capacity.
Can it be used for FTTH?
Yes. G652D ADSS can be used in suitably designed aerial FTTH feeder and distribution networks.
Does ADSS require a messenger wire?
No separate metallic messenger wire is normally required because the cable is designed to be self-supporting.
What span lengths are available?
Commercial 12-core ADSS products are available for 50-200 m spans and other engineered distances, depending on the cable construction.
Is 100 m ADSS available?
Yes. Dedicated 12-core G652D 100 m span ADSS cable is commercially available.
Can 12 Core ADSS support a 120 m span?
Yes, specific 12-core G652D models are manufactured for approximately 120 m aerial spans.
Can I use any 12 Core ADSS cable for any span?
No. The cable's tensile rating and construction must match the actual span, environmental loads and supporting hardware.
Is ADSS waterproof?
Outdoor ADSS cable commonly incorporates gel, water-blocking yarn or water-blocking tape to help control moisture.
Can it be installed near power infrastructure?
The dielectric construction can be useful for properly engineered utility installations, but electrical clearances, field conditions, jacket requirements and local safety regulations must be professionally assessed.
What is the difference between ADSS and normal aerial fibre?
ADSS is specifically designed to be self-supporting, while some other aerial cable types rely on a separate or integrated messenger wire.
Do you supply ADSS suspension clamps?
Yes. Fiber Optics Kenya can supply compatible suspension clamps, tension clamps, pole brackets and related aerial hardware.
Do you provide fusion splicing?
Yes. Professional fibre splicing and termination can be provided according to project requirements.
Do you provide OTDR testing?
Yes. Fibre testing can be incorporated into professional installation and commissioning.
Do you deliver outside Nairobi?
Yes. Fiber Optics Kenya supplies fibre optic cables and accessories throughout Kenya.
Contact Fiber Optics Kenya
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi
Phone: +254 704 991 492
Email: info@fibreopticskenya.co.ke
Order 12 Core ADSS Single Mode Fibre Optic Cable G652D in Kenya
Choose Fiber Optics Kenya for reliable 12 Core ADSS G652D Fibre Optic Cable, compatible aerial accessories and professional technical support.
Contact Fiber Optics Kenya today for competitive pricing, installation support and nationwide delivery across Kenya.
