UPC Fibre Pigtails Price in Kenya
UPC (Ultra Physical Contact) Fibre Pigtails are factory-terminated fibre optic cables featuring a UPC polished connector on one end and a bare optical fibre on the other for permanent fusion splicing. UPC connectors are designed with a highly polished ferrule that minimizes insertion loss and significantly reduces optical reflections compared to standard PC connectors. They are widely used in enterprise networks, data centres, telecommunications, fibre patch panels, Optical Distribution Frames (ODFs), and Fibre-to-the-Home (FTTH) installations. Their excellent optical performance and broad compatibility make them one of the most commonly deployed fibre termination solutions worldwide.
At Fiber Optics Kenya, we supply premium SC/UPC, LC/UPC, FC/UPC, and ST/UPC Fibre Pigtails manufactured using high-quality OS2 Single Mode and OM2, OM3, and OM4 Multimode optical fibres. Every UPC fibre pigtail is factory polished, individually tested, and certified to ensure low insertion loss, excellent return loss, and dependable long-term network performance. Our pigtails are ideal for GPON, enterprise LANs, CCTV fibre systems, data centres, ISP networks, and telecommunications infrastructure.
Our range includes SC/UPC, LC/UPC, FC/UPC, ST/UPC, G657A2 Bend-Insensitive UPC Fibre Pigtails, 12-Core UPC Pigtail Kits, Armoured UPC Fibre Pigtails, and custom fibre assemblies designed for professional fibre optic installations.

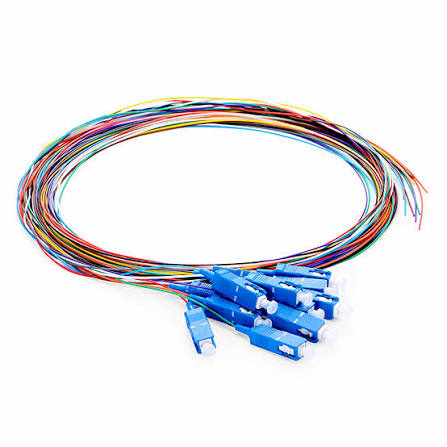

UPC Fibre Pigtail Image
UPC Fibre Pigtails Price List in Kenya
| UPC Fibre Pigtail | Approximate Price (KES) |
|---|---|
| SC/UPC OS2 Pigtail | 80 – 180 |
| LC/UPC OS2 Pigtail | 100 – 220 |
| FC/UPC OS2 Pigtail | 120 – 250 |
| ST/UPC OS2 Pigtail | 120 – 250 |
| OM3 UPC Fibre Pigtail | 150 – 300 |
| OM4 UPC Fibre Pigtail | 180 – 350 |
| 12 Core UPC Pigtail Kit | 1,500 – 3,000 |
| Armoured UPC Pigtail | 300 – 600 |
| Custom UPC Fibre Pigtail | Available on Request |
Note: Prices vary depending on connector type, fibre specification, polishing quality, and quantity ordered. Attractive discounts are available for contractors, ISPs, government institutions, enterprise customers, and data centre operators.
UPC Fibre Pigtail Specifications
| Specification | Details |
|---|---|
| Connector Types | SC/UPC, LC/UPC, FC/UPC, ST/UPC |
| Fibre Type | OS2, OM2, OM3, OM4 |
| Fibre Size | 9/125µm, 50/125µm, 62.5/125µm |
| Cable Diameter | 0.9mm Tight Buffered |
| Polish Type | UPC (Ultra Physical Contact) |
| Ferrule Material | Zirconia Ceramic |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB (typically ≥55 dB) |
| Standard Length | 1.5 Metres |
| Standards | IEC, TIA/EIA, RoHS |
Types of UPC Fibre Pigtails
| UPC Fibre Pigtail | Recommended Application |
|---|---|
| SC/UPC Pigtail | Enterprise Networks |
| LC/UPC Pigtail | Data Centres |
| FC/UPC Pigtail | Telecommunications |
| ST/UPC Pigtail | Industrial Networks |
| OM3 UPC Pigtail | High-Speed LANs |
| OM4 UPC Pigtail | Cloud Infrastructure |
| 12 Core UPC Kit | ODF Terminations |
Features of UPC Fibre Pigtails
Ultra Physical Contact (UPC) polishing
Factory-polished connectors
Low insertion loss
Excellent return loss
Precision zirconia ceramic ferrules
Single Mode and Multimode options
Tight-buffered construction
Compatible with all major fibre equipment
Ideal for fusion splicing
Factory-tested optical performance
Benefits of UPC Fibre Pigtails
| Benefit | Description |
|---|---|
| Excellent Optical Performance | Low insertion loss ensures efficient signal transmission |
| Reduced Signal Reflection | Better return loss than standard PC connectors |
| Reliable Fibre Termination | Ideal for permanent fusion splicing |
| Broad Compatibility | Works with switches, ODFs, patch panels, and telecom equipment |
| Easy Installation | Factory-polished connectors simplify deployment |
| Cost-Effective | Reduces installation time and maintenance |
| Long Service Life | Built for dependable long-term operation |
| Future-Ready Networks | Supports high-speed fibre communication systems |
Applications of UPC Fibre Pigtails
UPC Fibre Pigtails are widely used in:
Enterprise Networks
Data Centres
FTTH Networks
GPON Networks
Telecommunications Networks
Internet Service Providers (ISPs)
Optical Distribution Frames (ODFs)
Fibre Patch Panels
CCTV Fibre Systems
Server Rooms
Campus Networks
Government Fibre Infrastructure
Smart Buildings
Cloud Computing Facilities
Why Buy UPC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya supplies genuine UPC Fibre Pigtails manufactured to international quality standards for reliable optical performance and long-term durability. Every UPC fibre pigtail is factory polished, individually tested, and ready for professional fusion splicing, ensuring low insertion loss, high return loss, and dependable fibre optic connectivity.
Our experienced fibre optic engineers help customers select the correct connector type, fibre specification, polishing option, and accessories required for every installation. Whether you require UPC fibre pigtails for enterprise networking, telecommunications, data centres, FTTH, or ISP infrastructure, we provide expert technical support, competitive prices, and fast nationwide delivery.
Besides UPC Fibre Pigtails, Fiber Optics Kenya also supplies fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing machines, and complete fibre optic installation solutions.
UPC Fibre Pigtail Buying Guide
| Project Type | Recommended UPC Pigtail |
|---|---|
| Enterprise LAN | SC/UPC |
| Data Centre | LC/UPC |
| Telecommunications | FC/UPC |
| Industrial Network | ST/UPC |
| ODF Installation | 12 Core UPC Kit |
| High-Speed LAN | OM4 UPC Pigtail |

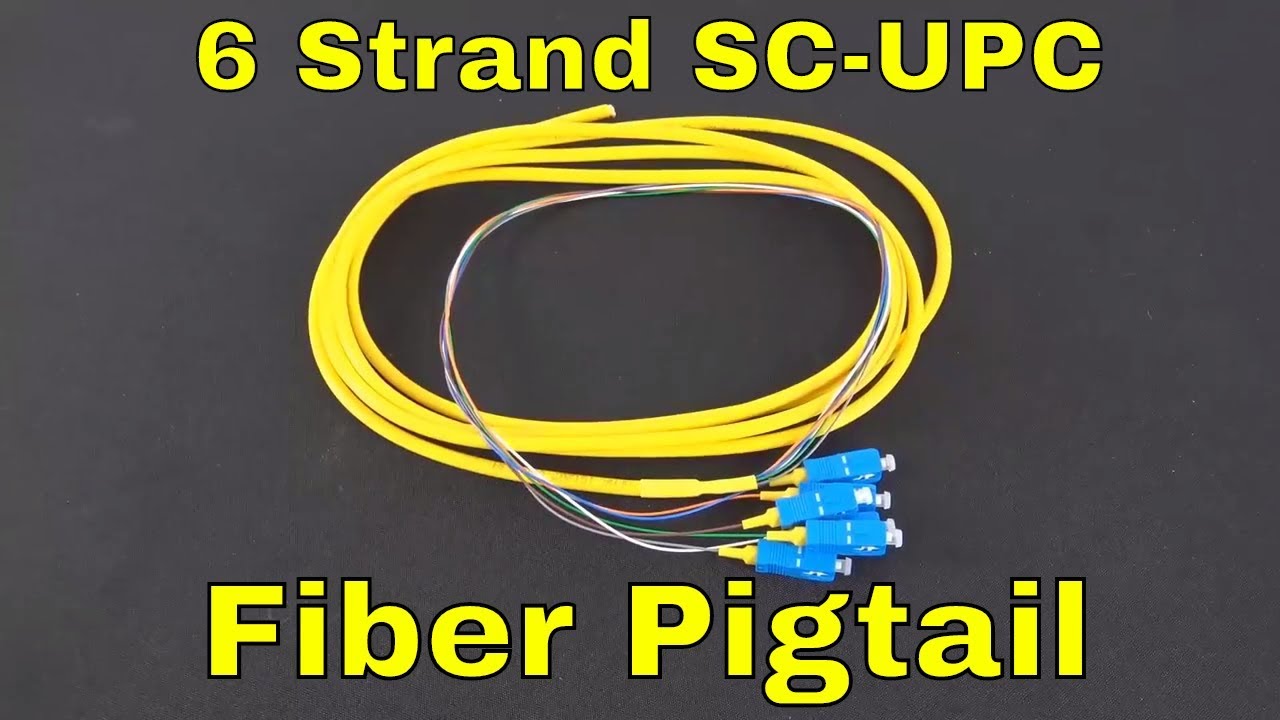

Watch UPC Fibre Pigtail Installation
YouTube Video
Video Thumbnail
UPC Fibre Pigtails are widely used because they combine low insertion loss, excellent return loss, and reliable long-term performance for permanent fibre terminations. The video above demonstrates how UPC fibre pigtails are prepared, fusion spliced, and installed inside optical distribution frames, fibre termination boxes, splice closures, and patch panels to create dependable optical connections.
UPC (Ultra Physical Contact) connectors feature a highly polished ferrule that provides better optical contact than older PC connectors, reducing signal reflections and improving network performance. With a typical return loss of 50 dB or higher, UPC fibre pigtails are suitable for enterprise networks, telecommunications, data centres, and many FTTH installations where extremely low back reflection is not required. APC connectors generally provide even higher return loss and are preferred for GPON and CATV systems, while UPC connectors remain the most common choice for general optical networking.
At Fiber Optics Kenya, we supply premium UPC Fibre Pigtails together with fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing services, and complete fibre optic networking solutions. Our experienced engineers provide expert consultation, professional installation support, and nationwide delivery for projects throughout Kenya.
Frequently Asked Questions (FAQs)
1. What is a UPC Fibre Pigtail?
A UPC Fibre Pigtail is a fibre optic cable with a UPC polished connector on one end and a bare fibre on the other for permanent fusion splicing.
2. What is the price of UPC Fibre Pigtails in Kenya?
UPC Fibre Pigtails generally cost between KES 80 and KES 350, depending on the connector type, fibre specification, and polishing quality.
3. What does UPC mean?
UPC stands for Ultra Physical Contact, referring to an improved connector polishing process that minimizes insertion loss and improves return loss compared to standard PC connectors.
4. What is the difference between UPC and APC?
UPC connectors use a flat ultra-polished ferrule and typically provide 50–55 dB return loss, while APC connectors use an 8-degree angled polish and typically achieve 60 dB or higher return loss, making APC better suited for GPON and CATV applications.
5. Where are UPC Fibre Pigtails commonly used?
They are widely used in enterprise networks, data centres, telecommunications, FTTH installations, fibre patch panels, ODFs, server rooms, and ISP infrastructure.
6. Can UPC and APC connectors be connected together?
No. UPC and APC connectors should not be directly connected because their different ferrule geometries can increase signal loss and degrade optical performance.
7. Why buy UPC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya offers genuine fibre optic products, competitive prices, expert technical support, professional installation services, nationwide delivery, and dependable after-sales support.
8. Do you deliver UPC Fibre Pigtails across Kenya?
Yes. We supply and deliver UPC Fibre Pigtails throughout Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Nyeri, Machakos, Meru, Kakamega, Kisii, Bungoma, Kitale, and all counties across Kenya.
Contact Fiber Optics Kenya Today
Whether you require UPC Fibre Pigtails for enterprise networking, FTTH, telecommunications, data centres, or ISP infrastructure, Fiber Optics Kenya is your trusted supplier of premium fibre optic networking products.
Our Contact Information
Location:
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
Phone Number:
Call/Text/WhatsApp: +254 704 991 492
Email:
info@fibreopticskenya.co.ke
UPC Fibre Pigtails provide dependable, low-loss, and cost-effective fibre terminations for enterprise networks, telecommunications systems, data centres, and FTTH infrastructure. Their ultra-polished connectors deliver excellent optical performance, long service life, and broad compatibility with modern fibre optic equipment.
Choose Fiber Optics Kenya for genuine UPC Fibre Pigtails, competitive prices, expert technical guidance, nationwide delivery, and professional fibre optic installation services. Contact us today for a free quotation and let our experienced team help you build a reliable, scalable, and future-ready fibre optic network.
