SC Fibre Pigtails Price in Kenya
SC fibre pigtails are factory-terminated fibre optic cables with an SC connector on one end and a bare fibre on the other, specifically designed for permanent fibre termination through fusion splicing. They are widely used in Optical Distribution Frames (ODFs), fibre termination boxes, splice closures, patch panels, FTTH installations, enterprise networks, and telecommunications infrastructure. Since the connector is factory polished, SC fibre pigtails provide lower insertion loss and more reliable optical performance than field-installed connectors.
At Fiber Optics Kenya, we supply premium SC/APC and SC/UPC fibre pigtails manufactured using high-quality Single Mode (OS2) and Multimode (OM2, OM3, and OM4) optical fibres. Every pigtail is factory tested to ensure low insertion loss, excellent return loss, and dependable long-term performance. Our SC fibre pigtails are ideal for GPON, EPON, FTTH, enterprise LANs, CCTV fibre systems, and high-speed telecommunications networks.
Our range includes SC/APC, SC/UPC, Single Mode, Multimode, 0.9mm tight-buffered pigtails, and 12-colour pigtail kits, all designed for fast, reliable fusion splicing and long-lasting optical connectivity.

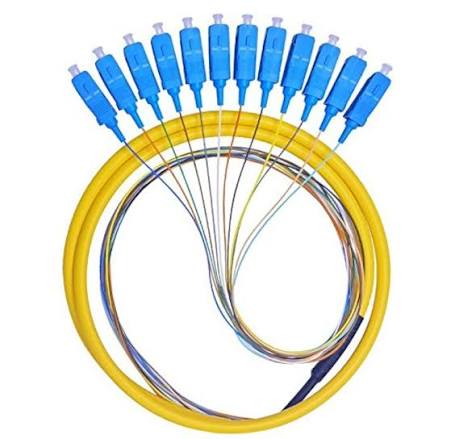

SC Fibre Pigtail Image
SC Fibre Pigtails Price List in Kenya
| SC Fibre Pigtail | Approximate Price (KES) |
|---|---|
| SC/UPC Single Mode Pigtail | 80 – 180 |
| SC/APC Single Mode Pigtail | 100 – 220 |
| SC Multimode Pigtail | 120 – 250 |
| 12 Core SC Pigtail Kit | 1,200 – 2,500 |
| SC/APC G657A2 Pigtail | 120 – 250 |
| SC/UPC OS2 Pigtail | 100 – 220 |
| Armoured SC Pigtail | 250 – 500 |
| Custom SC Fibre Pigtail | Available on Request |
Note: Prices vary depending on fibre type, connector polish, fibre standard, and order quantity. Bulk discounts are available for ISPs, contractors, government institutions, and enterprise customers.
SC Fibre Pigtail Specifications
| Specification | Details |
|---|---|
| Connector Type | SC/APC or SC/UPC |
| Fibre Type | OS2, OM2, OM3, OM4 |
| Fibre Size | 9/125µm, 50/125µm, 62.5/125µm |
| Cable Diameter | 0.9mm Tight Buffered |
| Connector Ferrule | Zirconia Ceramic |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB (APC), ≥50 dB (UPC) |
| Standard Length | 1.5 Metres |
| Operating Temperature | -20°C to +70°C |
| Standards | IEC, TIA/EIA, RoHS |
Types of SC Fibre Pigtails
| SC Fibre Pigtail | Recommended Application |
|---|---|
| SC/APC OS2 | FTTH GPON Networks |
| SC/UPC OS2 | Enterprise Networks |
| SC Multimode OM3 | Data Centres |
| SC Multimode OM4 | Campus Networks |
| Armoured SC Pigtail | Industrial Installations |
| 12 Core SC Pigtail | ODF Terminations |
| Bend-Insensitive SC Pigtail | Fibre Distribution Boxes |
Features of SC Fibre Pigtails
Factory-polished SC connector
Available in APC and UPC polishing
Low insertion loss
High return loss
Premium zirconia ceramic ferrule
Tight-buffered fibre construction
Single Mode and Multimode options
Ideal for fusion splicing
Long service life
Factory tested for quality
Benefits of SC Fibre Pigtails
| Benefit | Description |
|---|---|
| Permanent Fibre Termination | Ideal for fusion splicing applications |
| Reliable Optical Performance | Factory-polished connector minimizes signal loss |
| Easy Installation | Simplifies fibre termination in ODFs and patch panels |
| Excellent Compatibility | Works with SC adapters and SC patch panels |
| Cost-Effective | Reduces installation time and maintenance costs |
| Long-Term Reliability | Stable performance over many years |
| Low Reflection | APC version minimizes back reflection |
| High Network Availability | Improves reliability of fibre optic infrastructure |
Applications of SC Fibre Pigtails
SC fibre pigtails are commonly used in:
FTTH Networks
GPON & EPON Networks
Optical Distribution Frames (ODFs)
Fibre Patch Panels
Fibre Distribution Boxes
Telecommunications Networks
Enterprise Networks
Internet Service Providers (ISPs)
CCTV Fibre Systems
Campus Networks
Data Centres
Fusion Splicing Projects
Government Networks
Smart Building Infrastructure
Why Buy SC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya supplies genuine SC fibre pigtails manufactured to international quality standards for dependable optical performance. Every SC pigtail is factory polished, precision tested, and ready for fusion splicing, ensuring low attenuation and excellent long-term network reliability.
Our experienced fibre optic engineers help customers choose the correct SC connector type, APC or UPC polishing, fibre mode, and accessories required for each installation. Whether you require SC pigtails for FTTH, GPON, enterprise networking, or telecommunications infrastructure, we provide competitive pricing, professional technical support, and fast nationwide delivery.
Besides SC fibre pigtails, Fiber Optics Kenya also supplies fibre optic cables, patch cords, ODFs, splice closures, adapters, media converters, SFP modules, OTDR testing equipment, fusion splicing machines, and complete fibre optic installation solutions.
SC Fibre Pigtail Buying Guide
| Project Type | Recommended SC Pigtail |
|---|---|
| FTTH GPON | SC/APC OS2 |
| Enterprise LAN | SC/UPC OS2 |
| Data Centre | SC OM4 |
| CCTV Fibre | SC/UPC |
| ODF Installation | 12 Core SC Kit |
| Industrial Network | Armoured SC Pigtail |
Watch SC Fibre Pigtail Installation
YouTube Video
Video Thumbnail
SC fibre pigtails are among the most widely used fibre termination products because they provide a permanent, low-loss connection between fibre optic cables and networking equipment. The video above demonstrates how SC fibre pigtails are prepared, fusion spliced, and installed inside Optical Distribution Frames (ODFs), fibre termination boxes, splice closures, and patch panels to create reliable fibre optic connections.
Unlike fibre patch cords that have connectors on both ends, SC fibre pigtails feature a factory-polished SC connector on one end and a bare fibre on the other. This design allows technicians to perform precision fusion splicing, producing lower insertion loss, better optical performance, and improved long-term reliability. SC/APC pigtails are commonly used in FTTH and GPON networks because their angled connector polish significantly reduces back reflection, while SC/UPC pigtails are widely used in enterprise and telecommunications applications.
At Fiber Optics Kenya, we supply premium SC fibre pigtails together with fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing services, and complete fibre optic networking solutions. Our experienced engineers provide professional installation support and nationwide delivery for projects of every size.
Frequently Asked Questions (FAQs)
1. What is an SC fibre pigtail?
An SC fibre pigtail is a fibre optic cable with an SC connector on one end and a bare fibre on the other for permanent fusion splicing.
2. What is the price of SC fibre pigtails in Kenya?
SC fibre pigtails generally cost between KES 80 and KES 250, depending on the connector type, fibre specification, and polishing.
3. What is the difference between SC/APC and SC/UPC?
SC/APC connectors have an angled green polish that minimizes back reflection and are ideal for FTTH and GPON networks, while SC/UPC connectors have a flat blue polish and are commonly used in enterprise and telecom networks.
4. What is the difference between a fibre pigtail and a fibre patch cord?
A fibre pigtail has one connector and one bare fibre for fusion splicing, whereas a fibre patch cord has connectors on both ends for direct equipment connections.
5. Are SC fibre pigtails available in Single Mode and Multimode?
Yes. Fiber Optics Kenya supplies OS2 Single Mode and OM2, OM3, and OM4 Multimode SC fibre pigtails.
6. Where are SC fibre pigtails commonly used?
They are commonly used in FTTH, GPON, EPON, ODFs, patch panels, splice closures, telecommunications, enterprise networks, and data centres.
7. Why buy SC fibre pigtails from Fiber Optics Kenya?
Fiber Optics Kenya offers genuine fibre optic products, competitive pricing, expert technical support, professional installation services, nationwide delivery, and dependable after-sales support.
8. Do you deliver SC fibre pigtails across Kenya?
Yes. We supply and deliver SC fibre pigtails throughout Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Nyeri, Machakos, Meru, Kakamega, Kisii, Bungoma, Kitale, and all counties across Kenya.
Contact Fiber Optics Kenya Today
Whether you require SC fibre pigtails for FTTH, GPON, enterprise networking, data centres, or telecommunications infrastructure, Fiber Optics Kenya is your trusted supplier of premium fibre optic networking products.
Our Contact Information
Location:
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
Phone Number:
Call/Text/WhatsApp: +254 704 991 492
Email:
info@fibreopticskenya.co.ke
SC fibre pigtails are an essential component of professional fibre optic installations, providing permanent, low-loss terminations for FTTH, telecommunications, enterprise networks, and data centres. Their factory-polished connectors, excellent optical performance, and compatibility with modern fibre infrastructure make them the preferred choice for fusion splicing applications.
Choose Fiber Optics Kenya for genuine SC fibre pigtails, competitive prices, expert technical guidance, nationwide delivery, and professional fibre optic installation services. Contact us today for a free quotation and let our experienced team help you build a reliable, high-performance, and future-ready fibre optic network.
