Figure 8 Fibre Cables Price in Kenya
Figure 8 fibre optic cables are specially engineered for aerial fibre optic installations where the cable must support its own weight over long spans. Their distinctive figure-8 cross-sectional design incorporates an integrated galvanized steel messenger wire, eliminating the need for a separate support cable while providing outstanding mechanical strength and stability. This makes Figure 8 cables ideal for overhead fibre deployments along roads, utility poles, railway lines, rural broadband networks, and metropolitan telecommunications infrastructure.
At Fiber Optics Kenya, we supply premium-quality Figure 8 fibre optic cables designed to deliver exceptional optical performance, durability, and long-term reliability. Manufactured using high-quality Single Mode (OS2) fibres, our cables offer low attenuation, excellent tensile strength, UV resistance, water-blocking technology, and superior weather protection, making them ideal for Kenya's diverse climatic conditions.
Whether you are deploying Fibre-to-the-Home (FTTH), building an ISP backbone, connecting commercial buildings, or extending telecommunications infrastructure into remote locations, Fiber Optics Kenya provides genuine Figure 8 fibre optic cables together with professional consultation, installation support, fibre splicing, OTDR testing, and fast nationwide delivery.

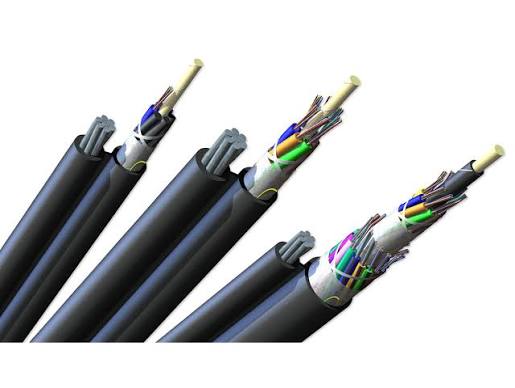

Figure 8 Fibre Cable Image
Figure 8 Fibre Cables Price List in Kenya
| Figure 8 Fibre Cable | Approximate Price (KES) |
|---|---|
| 12 Core Figure 8 Fibre Cable | 180 – 260 per metre |
| 24 Core Figure 8 Fibre Cable | 240 – 340 per metre |
| 48 Core Figure 8 Fibre Cable | 380 – 580 per metre |
| 72 Core Figure 8 Fibre Cable | 520 – 720 per metre |
| 96 Core Figure 8 Fibre Cable | 650 – 900 per metre |
| 144 Core Figure 8 Fibre Cable | 900 – 1,300 per metre |
Bulk discounts are available for ISPs, contractors, utility companies, county governments, and telecommunications projects.
Figure 8 Fibre Cable Specifications
| Specification | Details |
|---|---|
| Fibre Type | Single Mode OS2 (ITU-T G.652D) |
| Core Counts | 12, 24, 48, 72, 96, 144 Core |
| Cable Construction | Figure 8 Self-Supporting |
| Messenger Wire | Galvanized Steel Strand |
| Jacket Material | UV Resistant HDPE |
| Water Blocking | Yes |
| Installation | Aerial Pole-to-Pole |
| Tensile Strength | High |
| Operating Temperature | -40°C to +70°C |
| Expected Service Life | 25+ Years |
Types of Figure 8 Fibre Cables
| Cable Type | Recommended Application |
|---|---|
| 12 Core Figure 8 Cable | FTTH Distribution |
| 24 Core Figure 8 Cable | Schools & Commercial Buildings |
| 48 Core Figure 8 Cable | Enterprise Networks |
| 72 Core Figure 8 Cable | Municipal Fibre Networks |
| 96 Core Figure 8 Cable | ISP Backbone Networks |
| 144 Core Figure 8 Cable | National Telecommunications Infrastructure |
Features of Figure 8 Fibre Cables
Integrated galvanized steel messenger wire
Self-supporting aerial design
Excellent tensile strength
UV-resistant HDPE outer jacket
Waterproof construction
Low optical attenuation
Long-distance transmission capability
High resistance to harsh weather
Easy aerial installation
Long operational lifespan
Benefits of Figure 8 Fibre Cables
| Benefit | Description |
|---|---|
| Self-Supporting Design | Eliminates the need for a separate messenger wire |
| Faster Installation | Reduces labour and installation time |
| High Mechanical Strength | Suitable for long aerial spans |
| Reliable Performance | Stable optical transmission over long distances |
| Weather Resistant | Performs well under UV exposure, rain, and wind |
| Low Maintenance | Durable construction minimizes maintenance costs |
| High-Speed Connectivity | Supports Gigabit, 10G, 40G, 100G and beyond |
| Cost Effective | Reduces infrastructure and installation costs |
Applications of Figure 8 Fibre Cables
Figure 8 fibre optic cables are widely used in:
Internet Service Providers (ISPs)
Telecommunications Networks
Fibre-to-the-Home (FTTH)
Rural Broadband Projects
Utility Companies
Smart Cities
Railway Communication Systems
Highway Communication Networks
County Government Networks
Commercial Buildings
Industrial Parks
University Campuses
Airport Communication Systems
Metropolitan Fibre Networks
Why Buy Figure 8 Fibre Cables from Fiber Optics Kenya?
Fiber Optics Kenya is a trusted supplier of genuine Figure 8 fibre optic cables for aerial fibre deployments across Kenya. Our products are sourced from reputable manufacturers and comply with international standards to deliver excellent optical performance, outstanding mechanical strength, and long-term reliability. Whether your project involves overhead fibre installation across rural communities or metropolitan telecommunications infrastructure, our Figure 8 cables provide dependable performance in demanding environments.
Our experienced technical team helps customers select the ideal Figure 8 fibre cable based on span length, fibre count, installation conditions, and project requirements. We also stock aerial fibre clamps, suspension clamps, dead-end clamps, splice closures, optical distribution frames (ODFs), patch panels, fibre accessories, and complete installation equipment, making Fiber Optics Kenya your one-stop supplier for professional aerial fibre networking solutions.
Figure 8 Fibre Cable Buying Guide
| Project | Recommended Cable |
|---|---|
| Rural FTTH | 12 Core Figure 8 Cable |
| School Network | 24 Core Figure 8 Cable |
| Commercial Buildings | 48 Core Figure 8 Cable |
| County Government Network | 72 Core Figure 8 Cable |
| ISP Distribution | 96 Core Figure 8 Cable |
| National Telecom Backbone | 144 Core Figure 8 Cable |
Watch Figure 8 Fibre Cable Installation
YouTube Video
Video Thumbnail
The video above demonstrates how Figure 8 fibre optic cables are installed for aerial fibre deployments. It explains how the integrated galvanized steel messenger wire supports the cable between utility poles, eliminating the need for a separate support cable while maintaining excellent mechanical stability. Proper tensioning, sag calculation, and cable handling techniques are also highlighted to ensure reliable long-term performance.
Figure 8 fibre optic cables are widely used for overhead fibre installations because they combine structural strength with high-speed optical transmission. Their robust construction enables them to withstand wind, rain, UV exposure, and other challenging outdoor conditions while protecting the delicate optical fibres inside. These characteristics make them an excellent choice for Internet Service Providers, utility companies, telecommunications operators, and government infrastructure projects.
At Fiber Optics Kenya, we supply premium Figure 8 fibre optic cables together with aerial installation accessories, suspension clamps, dead-end clamps, splice closures, ODFs, and professional fibre installation services. Our experienced engineers also provide network design consultation, fibre splicing, OTDR testing, and nationwide delivery, ensuring every project is completed to the highest industry standards.
Frequently Asked Questions (FAQs)
1. What is a Figure 8 fibre optic cable?
A Figure 8 fibre optic cable is a self-supporting aerial cable that incorporates a galvanized steel messenger wire into its figure-8-shaped construction, allowing it to be installed directly between poles without a separate support cable.
2. What is the price of Figure 8 fibre cables in Kenya?
Prices generally start from approximately KES 180 per metre for 12 Core cables and increase depending on the fibre count, cable construction, and project requirements.
3. What are Figure 8 fibre cables used for?
They are commonly used for aerial telecommunications networks, FTTH deployments, ISP backbone infrastructure, rural broadband projects, utility companies, and long-distance overhead fibre installations.
4. What is the advantage of a Figure 8 cable?
The integrated steel messenger wire provides excellent mechanical support, allowing the cable to span long distances without requiring an additional supporting wire, thereby reducing installation costs and simplifying deployment.
5. Can Figure 8 fibre cables withstand harsh weather?
Yes. Figure 8 cables are designed with UV-resistant HDPE jackets, water-blocking technology, and high-strength messenger wires to withstand rain, wind, sunlight, and other challenging outdoor conditions.
6. What fibre core counts are available?
Fiber Optics Kenya supplies Figure 8 fibre optic cables in 12 Core, 24 Core, 48 Core, 72 Core, 96 Core, and 144 Core configurations to suit projects of all sizes.
7. Why should I buy Figure 8 fibre cables from Fiber Optics Kenya?
Fiber Optics Kenya offers genuine products, competitive prices, expert technical consultation, professional installation support, nationwide delivery, bulk discounts, and excellent after-sales service.
8. Do you deliver Figure 8 fibre cables across Kenya?
Yes. We deliver Figure 8 fibre optic cables to Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Nyeri, Machakos, Meru, Kakamega, Kisii, Bungoma, Kitale, and every county across Kenya.
Contact Fiber Optics Kenya Today
Whether you require Figure 8 fibre optic cables for a small aerial fibre project or a large telecommunications backbone network, Fiber Optics Kenya is your trusted supplier of genuine fibre optic networking products. Our experienced team is ready to help you select the right cable, prepare competitive quotations, and provide expert technical support.
We supply premium Figure 8 fibre optic cables, aerial installation accessories, splice closures, optical distribution frames (ODFs), networking equipment, and complete fibre installation solutions for contractors, Internet Service Providers, utility companies, enterprises, and government institutions across Kenya.
Our Contact Information
📍 Location:
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
📞 Phone:
Call | Text | WhatsApp: +254 704 991 492
📧 Email:
info@fibreopticskenya.co.ke
Figure 8 fibre optic cables are the preferred choice for overhead fibre optic installations because they combine an integrated steel messenger wire with high-performance optical fibres in a single, durable cable. Their self-supporting design reduces installation costs, accelerates deployment, and provides exceptional reliability for telecommunications, FTTH, utility, and ISP networks.
Choose Fiber Optics Kenya for genuine Figure 8 fibre optic cables, competitive pricing, expert technical guidance, nationwide delivery, and professional installation services. Contact us today for a free quotation and let our experienced team help you build a reliable, high-capacity aerial fibre optic network anywhere in Kenya.
