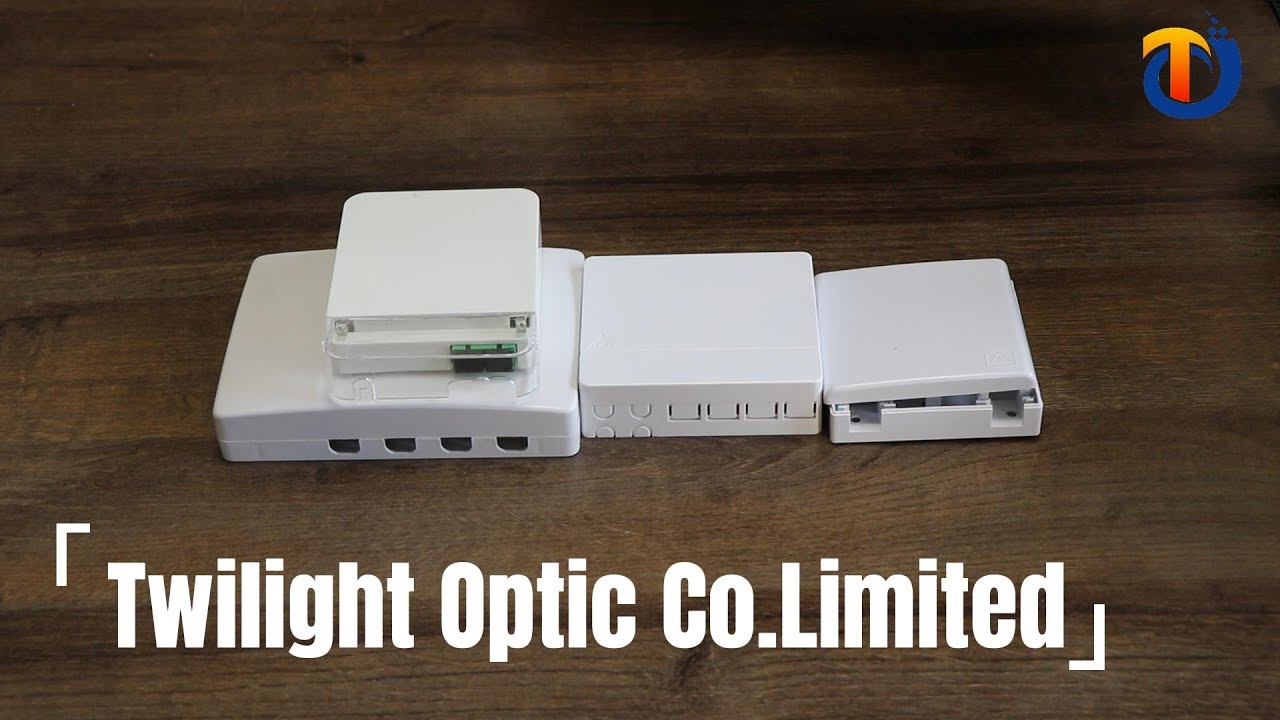

Fibre Wall Outlet Boxes Price in Kenya
Fibre Wall Outlet Boxes are compact enclosures installed at the final termination point of a fibre optic connection inside a home, office, apartment, hotel room, or commercial building. They provide a clean and protected interface between an incoming FTTH drop cable and the fibre patch cord connected to an Optical Network Terminal, router, media converter, or other optical network equipment. A wall outlet box protects delicate fibre splices, adapters, pigtails, and stored fibre from bending, contamination, accidental pulling, and physical damage.
These products are also called FTTH wall outlets, fibre faceplates, optical wall sockets, fibre subscriber outlets, fibre rosettes, optical terminal outlets, or fibre termination faceplates. Most models are designed for one to four fibre connections and support SC simplex or LC duplex adapters. Manufacturer specifications commonly describe compact two-port models that can accommodate two SC connections or four fibres when LC duplex adapters are used.
At Fiber Optics Kenya, we supply Fibre Wall Outlet Boxes for FTTH, GPON, EPON, XGS-PON, enterprise LAN, fibre-to-the-office, telecommunications, and residential broadband projects. Available options include empty outlet boxes, adapter-loaded units, pre-terminated outlets, pigtail-loaded boxes, fusion-splice models, and mechanical-splice wall sockets. Our team can also supply matching SC/APC adapters, SC/UPC adapters, LC adapters, pigtails, patch cords, drop cables, mechanical connectors, and installation accessories.
Fibre Wall Outlet Boxes Price List in Kenya
The prices below are indicative market estimates. Final prices may vary depending on the port count, material, adapter type, included pigtails, splice accessories, quantity ordered, and brand.
| Fibre Wall Outlet Box | Typical Configuration | Estimated Price in Kenya |
|---|---|---|
| 1-Port Fibre Wall Outlet Box | Empty box | KES 350–700 |
| 1-Port SC/APC Wall Outlet | Adapter included | KES 500–1,000 |
| 1-Port Loaded FTTH Outlet | Adapter and pigtail included | KES 700–1,400 |
| 2-Port Fibre Wall Outlet Box | Empty box | KES 500–1,000 |
| 2-Port SC/APC Fibre Outlet | Two adapters included | KES 900–1,800 |
| 2-Port Loaded Fibre Outlet | Adapters and pigtails included | KES 1,200–2,500 |
| 4-Port Fibre Wall Outlet Box | Empty box | KES 1,000–2,000 |
| 4-Port Loaded Fibre Outlet | Adapters and pigtails included | KES 1,800–3,800 |
| Pre-Terminated Fibre Wall Outlet | Supplied with fibre cable | KES 2,000–5,500 |
| Custom Fibre Outlet Configuration | Based on project requirements | Price on Request |
| Bulk FTTH Project Orders | Installer and ISP quantities | Wholesale Price Available |
A current Kenyan listing for a two-core FTTH fibre faceplate shows a price around KES 1,800, although loaded accessories and seller configurations may differ.
Important Pricing Note
The price of a Fibre Wall Outlet Box depends on whether it is supplied:
Empty or fully loaded
With SC/APC, SC/UPC, or LC adapters
With fibre pigtails
With heat-shrink splice protectors
With mechanical connectors
With a pre-installed drop cable
With one, two, or four termination ports
As a surface-mounted or flush-mounted unit
In retail or wholesale quantities
Contact Fiber Optics Kenya for an accurate quotation based on your required configuration and project quantity.
Fibre Wall Outlet Box Specifications
Specifications vary by model, but common Fibre Wall Outlet Boxes offer the following features:
| Specification | Typical Details |
|---|---|
| Product Type | FTTH Fibre Wall Outlet Box |
| Alternative Names | Fibre Faceplate, Optical Wall Socket, FTTH Rosette |
| Installation Environment | Indoor |
| Mounting Method | Surface Mount or Flush Mount |
| Port Capacity | 1, 2, or 4 Ports |
| Fibre Capacity | 1–4 Fibres |
| Adapter Compatibility | SC/APC, SC/UPC, LC Duplex |
| Splicing Method | Fusion Splicing or Mechanical Splicing |
| Enclosure Material | ABS or PC+ABS |
| Standard Colour | White |
| Cable Entry | Side, Rear, Top, or Bottom |
| Cable Compatibility | FTTH Drop Cable and Indoor Fibre Cable |
| Fibre Type | Single-Mode or Multimode, depending on adapter |
| Splice Storage | Integrated Splice Holder or Tray |
| Bend-Radius Control | Integrated Fibre Routing Guides |
| Typical Protection Rating | IP20 to IP45 for Indoor Models |
| Operating Temperature | Model Dependent |
| Main Application | Final Subscriber Fibre Termination |
A representative two-port model measures approximately 130 × 83 × 24 mm, supports two SC simplex or LC duplex adapters, accommodates two splices, and is specified for temperatures from approximately –40°C to +65°C.
Types of Fibre Wall Outlet Boxes Available in Kenya
1-Port Fibre Wall Outlet Box
A 1-port Fibre Wall Outlet Box provides a single optical connection and is commonly installed inside homes, small offices, hotel rooms, retail shops, and individual apartments. It normally accommodates one SC/APC or SC/UPC adapter and provides internal space for a pigtail splice and a small amount of fibre slack.
| Feature | Details |
|---|---|
| Adapter Capacity | 1 SC Simplex |
| Typical Fibre Capacity | 1–2 Fibres |
| Best Application | Single FTTH Subscriber |
| Common Connector | SC/APC |
| Installation | Surface or Flush Mount |
| Main Advantage | Compact and economical |
Mini-conclusion: A 1-port outlet is the most economical choice when only one ONT or fibre connection is required.
2-Port Fibre Wall Outlet Box
A 2-port Fibre Wall Outlet Box supports two SC simplex adapters or, in some models, two LC duplex adapters. It is suitable for homes requiring a primary and backup fibre, small businesses, dual-service connections, or networks that require separate data and voice fibre links. Two-port boxes commonly include internal fibre routing, splice protection, and cable-entry options.
| Feature | Details |
|---|---|
| Adapter Capacity | 2 SC Simplex or 2 LC Duplex |
| Typical Fibre Capacity | 2–4 Fibres |
| Best Application | Homes, Offices and Apartments |
| Common Connector | SC/APC or SC/UPC |
| Splice Capacity | Usually 2 Splices |
| Main Advantage | Flexible Dual-Port Termination |
Mini-conclusion: A 2-port Fibre Wall Outlet Box offers the best balance of size, capacity, affordability, and future expansion.
4-Port Fibre Wall Outlet Box
A 4-port wall outlet is designed for larger residential units, offices, businesses, communication rooms, schools, hospitals, and enterprise fibre installations. It can terminate up to four SC pigtails and provides more internal space for fibre storage and splice management. A current four-port manufacturer datasheet describes a box that allows four incoming fibre cables to be spliced to four SC pigtails connected to adapters.
| Feature | Details |
|---|---|
| Adapter Capacity | Up to 4 SC Ports |
| Typical Fibre Capacity | 4 Fibres or More |
| Best Application | Offices and Multi-Service Premises |
| Splice Support | Up to 4 Splices |
| Cable Management | Larger Internal Routing Area |
| Main Advantage | Higher Port Density |
Mini-conclusion: A 4-port outlet is ideal where multiple optical services or additional fibre connections may be required.
Loaded Fibre Wall Outlet Box
A loaded Fibre Wall Outlet Box is supplied with some or all of the required internal accessories, including adapters, pigtails, splice sleeves, cable clamps, and mounting hardware. Loaded models reduce installation time and help ensure that all internal components are compatible.
Empty Fibre Wall Outlet Box
An empty outlet box allows installers to select their preferred adapters, pigtails, cable type, and connector polish. It is suitable for customised fibre projects and is usually less expensive than a fully loaded unit.
Pre-Terminated Fibre Wall Outlet Box
A pre-terminated model is supplied with a factory-installed fibre cable and connectors. It can reduce the need for fusion splicing at the subscriber premises and is useful for rapid FTTH deployments, apartments, hotels, and standardised housing developments.
Comparison of Fibre Wall Outlet Box Types
| Box Type | Port Capacity | Supplied Accessories | Recommended Use |
|---|---|---|---|
| 1-Port Empty Outlet | 1 | None or mounting hardware | Basic FTTH termination |
| 1-Port Loaded Outlet | 1 | Adapter and pigtail | Single subscriber connection |
| 2-Port Empty Outlet | 2 | Box only | Custom installations |
| 2-Port Loaded Outlet | 2 | Adapters and pigtails | Homes and small offices |
| 4-Port Wall Outlet | 4 | Empty or loaded | Commercial and enterprise sites |
| Pre-Terminated Outlet | 1–4 | Cable and connectors | Rapid FTTH deployment |
| Mechanical-Splice Outlet | 1–2 | Mechanical splice components | Installations without fusion splicing |
| Fusion-Splice Outlet | 1–4 | Splice holder or tray | Permanent professional installations |
Main Features of Fibre Wall Outlet Boxes
Compact and attractive indoor enclosure
Surface-mounted or flush-mounted installation
One, two, or four optical ports
SC/APC, SC/UPC, and LC adapter compatibility
Integrated fibre routing and storage
Controlled fibre bend radius
Dedicated splice-protection area
Side and rear cable-entry options
Support for FTTH drop cables
Durable ABS or PC+ABS construction
Easy opening for maintenance
Protection against dust and accidental contact
Clean final connection point for the ONT
Suitable for fusion and mechanical splicing
Compatible with single-mode and multimode applications
Commercial wall outlets are typically designed for indoor customer premises and focus on providing mechanical protection, orderly fibre management, and an unobtrusive appearance.
Benefits of Fibre Wall Outlet Boxes
| Benefit | Explanation |
|---|---|
| Protects Fibre Connections | Shields pigtails, splices, and adapters from accidental damage |
| Maintains Bend Radius | Reduces the risk of excessive optical loss caused by sharp bends |
| Improves Appearance | Creates a clean and professional termination point |
| Simplifies ONT Connection | Provides an accessible port for the subscriber patch cord |
| Supports Maintenance | Allows technicians to inspect and test the final fibre connection |
| Reduces Cable Congestion | Stores excess fibre safely inside the enclosure |
| Supports Future Expansion | Multi-port models allow additional optical services |
| Reduces Contamination | Keeps adapters and splices protected from dust |
| Speeds Up Installation | Loaded and pre-terminated options reduce installation time |
| Improves Network Reliability | Protects the most vulnerable final section of the FTTH link |
Applications of Fibre Wall Outlet Boxes
Fibre Wall Outlet Boxes are suitable for:
Fibre-to-the-Home networks
Fibre-to-the-Office installations
GPON networks
EPON systems
XGS-PON deployments
Residential apartments
Private homes
Office buildings
Hotels and serviced apartments
Schools and universities
Hospitals and clinics
Shopping centres
Banks and financial institutions
Government offices
Industrial facilities
Data and voice fibre connections
CCTV fibre links
Campus networks
Enterprise LAN installations
Internet service provider projects
Components of a Fibre Wall Outlet Box
| Component | Purpose |
|---|---|
| Enclosure Base | Supports internal fibre components |
| Protective Cover | Prevents accidental contact and dust entry |
| Adapter Slot | Holds SC or LC fibre adapters |
| Splice Holder | Secures protected fusion splices |
| Fibre Routing Guides | Maintain safe cable routing and bend radius |
| Cable Clamp | Prevents drop cable movement |
| Cable Entry Port | Allows incoming fibre to enter the box |
| Pigtail | Connects the incoming fibre to the adapter |
| Adapter | Provides the removable connection to the patch cord |
| Splice Sleeve | Protects the fusion-spliced fibre joint |
| Mounting Holes | Allow secure wall installation |
SC/APC vs SC/UPC Fibre Wall Outlets
Choosing the correct connector polish is essential because SC/APC and SC/UPC connectors should not be mated together.
| Feature | SC/APC | SC/UPC |
|---|---|---|
| Connector Colour | Usually Green | Usually Blue |
| End-Face Type | Angled Polish | Ultra Physical Contact |
| Common Application | FTTH, GPON and CATV | Data and General Telecom |
| Back Reflection | Lower | Higher than APC |
| Recommended for PON | Yes | Depends on Network Design |
| Compatibility | Mate only with APC | Mate only with UPC |
SC/APC is commonly selected for FTTH and passive optical networks because the angled end face reduces reflected optical power. Installers should always match the wall outlet adapter with the connector type used by the service provider and ONT patch cord.
Fibre Wall Outlet Box Buying Guide
Choose the Correct Number of Ports
Select one port for a standard single-service FTTH connection. Choose two ports where redundancy, expansion, or an additional optical service may be required. Four-port models are better suited to offices and multi-service commercial premises.
Confirm the Adapter Type
Check whether the network uses SC/APC, SC/UPC, or LC connectors. SC/APC adapters are generally green, while SC/UPC adapters are usually blue.
Decide Between Empty and Loaded
An empty box is appropriate when the installer already has adapters and pigtails. A loaded box provides faster installation and reduces the risk of ordering incompatible accessories.
Check the Splicing Method
Choose a fusion-splice box for permanent, low-loss professional installations. Mechanical-splice options may be appropriate for smaller jobs where fusion-splicing equipment is unavailable.
Confirm Cable Entry Direction
Ensure that the outlet supports the direction from which the indoor drop cable approaches. Common entry options include the rear, top, bottom, or side.
Check the Available Fibre Storage
The enclosure should provide enough internal space for the splice, pigtail, and fibre slack without forcing the fibre into a sharp bend.
Recommended Fibre Wall Outlet by Project
| Project | Recommended Product |
|---|---|
| Single FTTH Home | 1-Port SC/APC Wall Outlet |
| Apartment Unit | 1-Port or 2-Port Loaded Outlet |
| Small Office | 2-Port Fibre Wall Outlet |
| Hotel Room | 1-Port Compact Fibre Rosette |
| Commercial Office | 2-Port or 4-Port Outlet |
| Enterprise Fibre Network | 4-Port Fibre Wall Outlet |
| ISP Mass Deployment | Loaded or Pre-Terminated Outlet |
| Dual-Service Installation | 2-Port SC Fibre Outlet |
| Custom Fibre Network | Empty Multi-Port Outlet |
Installation Guide for Fibre Wall Outlet Boxes
1. Select the Installation Position
Install the wall outlet near the Optical Network Terminal while keeping it away from water, excessive heat, high-traffic areas, and locations where the patch cord could be pulled or crushed.
2. Prepare the Drop Cable
Strip the outer sheath carefully and expose only the required length of fibre. Avoid damaging the coating or introducing tight bends.
3. Secure the Cable
Use the internal clamp or retention point to prevent movement of the incoming drop cable.
4. Route the Fibre
Guide the fibre around the internal routing path while maintaining the recommended bend radius.
5. Splice the Pigtail
Fusion-splice the incoming fibre to the correct pigtail. Protect the splice with a heat-shrink sleeve and secure it in the splice holder.
6. Connect the Adapter
Insert the pigtail connector into the rear of the SC or LC adapter and ensure that the connector is fully seated.
7. Store the Fibre Slack
Arrange spare fibre neatly inside the outlet without crossing, pinching, or sharply bending it.
8. Test the Optical Link
Use an optical power meter, visual fault locator, or OTDR where appropriate to verify continuity and acceptable signal levels.
9. Close and Label the Box
Secure the cover and label the outlet with the fibre number, subscriber information, or network identifier.
Installation Mistakes to Avoid
Bending the fibre too tightly
Mixing SC/APC and SC/UPC connectors
Leaving fibre connectors uncapped
Placing the splice outside the protective holder
Pulling the pigtail under tension
Trapping fibre between the cover and base
Installing the outlet in a wet outdoor location
Failing to clean connectors before mating
Leaving too little fibre for future maintenance
Mounting the box where furniture may crush the patch cord
Why Buy Fibre Wall Outlet Boxes from Fiber Optics Kenya?
Fiber Optics Kenya supplies reliable Fibre Wall Outlet Boxes for residential, commercial, telecommunications, and enterprise fibre projects. We stock compact one-port outlets, flexible two-port boxes, higher-capacity four-port outlets, empty enclosures, loaded units, and pre-terminated options.
Our technical team helps customers select the correct outlet according to the connector type, fibre count, splicing method, cable-entry direction, and installation environment. This reduces product incompatibility and ensures that the selected outlet works correctly with the drop cable, pigtail, patch cord, and ONT.
We also supply the accessories required to complete the installation, including SC/APC adapters, SC/UPC adapters, LC adapters, single-mode pigtails, patch cords, FTTH drop cables, splice sleeves, mechanical connectors, cable clips, visual fault locators, optical power meters, OTDRs, and fusion-splicing machines.
Reasons to Choose Fiber Optics Kenya
Competitive retail and wholesale prices
Fibre products for homes, offices, and ISP projects
Empty and fully loaded outlet boxes
SC/APC, SC/UPC, and LC options
Technical product-selection support
Nationwide delivery
Professional fibre installation
Fusion splicing and testing
Support for bulk FTTH projects
Dependable after-sales assistance
Related Fibre Optic Products Available
| Product Category | Available Options |
|---|---|
| Fibre Adapters | SC/APC, SC/UPC, LC, FC and ST |
| Fibre Pigtails | Single-Mode and Multimode |
| Fibre Patch Cords | Simplex, Duplex, UPC and APC |
| FTTH Drop Cables | Indoor and Outdoor |
| PLC Splitters | Bare, ABS, Cassette and Rack Mount |
| Distribution Boxes | Indoor and Outdoor |
| Termination Boxes | Plastic and Metal |
| FAT Boxes | 8, 12, 16, 24 and 32 Port |
| Splice Closures | Dome and Horizontal |
| ODF Units | Wall-Mount and Rack-Mount |
| Fibre Tools | Cleavers, Strippers and Splicing Kits |
| Test Equipment | VFL, Power Meter and OTDR |
| Fusion Splicers | Core Alignment and Cladding Alignment |
Frequently Asked Questions
1. What is a Fibre Wall Outlet Box?
A Fibre Wall Outlet Box is a compact indoor enclosure installed at the subscriber premises to terminate, splice, protect, and connect an incoming fibre cable to an ONT patch cord. It provides mechanical protection and organised fibre management at the final FTTH connection point.
2. What is the price of a Fibre Wall Outlet Box in Kenya?
Basic empty models may cost approximately KES 350–1,000, while loaded, multi-port, or pre-terminated models may cost from approximately KES 700 to KES 5,500. Prices depend on the included adapters, pigtails, port count, cable length, and brand. A Kenyan two-core faceplate listing shows a price around KES 1,800.
3. Which Fibre Wall Outlet Box is best for a home?
A one-port or two-port SC/APC wall outlet is generally suitable for a standard residential FTTH connection. A two-port model provides additional capacity for future use.
4. Can a Fibre Wall Outlet Box hold a fusion splice?
Yes. Most FTTH wall outlets provide an internal splice holder or compact splice tray for securing one or more protected fusion splices.
5. Which adapters can be installed?
Depending on the model, Fibre Wall Outlet Boxes may support SC/APC, SC/UPC, SC multimode, or LC duplex adapters. Some two-port products accommodate two SC simplex adapters or up to four fibres through LC duplex adapters.
6. Can Fibre Wall Outlet Boxes be installed outdoors?
Standard wall outlets are intended for indoor installation and commonly have ratings around IP20 to IP45. Outdoor locations require a properly rated outdoor termination box, fibre distribution box, or weatherproof enclosure.
7. What is the difference between a wall outlet and a fibre distribution box?
A wall outlet is a small final termination point serving one room or subscriber. A fibre distribution box is larger and distributes fibres to multiple users, outlets, or drop cables.
8. Do Fibre Wall Outlet Boxes include adapters and pigtails?
Some models are supplied empty, while loaded versions include adapters, pigtails, splice protectors, and mounting accessories. Always confirm the package contents before ordering.
Watch the Fibre Wall Outlet Box Video
YouTube Video
Video Thumbnail
The video demonstrates the role of a Fibre Wall Outlet Box as the final optical termination point inside a subscriber’s premises. It helps viewers understand how the incoming FTTH drop cable is routed into the enclosure, protected, spliced to a pigtail, and connected to an optical adapter. The adapter then provides a clean and accessible connection point for the patch cord running to the ONT.
The internal cable-management features shown in this type of installation are essential because optical fibres are more sensitive to sharp bends, pulling, and crushing than ordinary copper cables. Correctly routing the fibre around the designed guides protects the splice and helps avoid unnecessary attenuation. A quality enclosure should provide sufficient space for the protected splice and fibre slack without forcing the cable into an unsafe bend.
The video is useful for fibre technicians, ISPs, building contractors, homeowners, network engineers, and procurement teams comparing different FTTH termination methods. Fiber Optics Kenya supplies the wall outlets, adapters, pigtails, patch cords, drop cables, splice protectors, testing equipment, and installation services required to create a complete and professional subscriber connection.
Contact Fiber Optics Kenya
Contact Fiber Optics Kenya for Fibre Wall Outlet Boxes, accessories, wholesale prices, installation services, and nationwide delivery.
Office Location
Fiber Optics Kenya
Lyric House
7th Floor, Room S9
Kimathi Street
Nairobi, Kenya
Phone
Call, Text or WhatsApp: +254 704 991 492
Fibre Wall Outlet Boxes provide a safe, organised, and professional final termination point for FTTH and indoor fibre optic connections. They protect fusion splices, adapters, pigtails, and fibre slack while creating an accessible optical port for connecting an ONT or other subscriber equipment. Available in one-port, two-port, and four-port configurations, these compact enclosures are suitable for homes, apartments, offices, hotels, schools, hospitals, and enterprise premises.
Choosing the correct box requires consideration of the connector type, port capacity, splicing method, cable-entry direction, internal storage space, and whether the unit should be empty, loaded, or pre-terminated. SC/APC models are especially common in FTTH and GPON installations, while LC and SC/UPC options are available for other network designs.
Choose Fiber Optics Kenya for quality Fibre Wall Outlet Boxes, competitive prices, genuine fibre accessories, technical guidance, professional fusion splicing, optical testing, and delivery throughout Kenya. Contact our team today for a quotation tailored to your fibre project.
