APC Fibre Pigtails Price in Kenya
APC (Angled Physical Contact) Fibre Pigtails are factory-terminated fibre optic cables featuring an 8-degree angled polished connector on one end and a bare optical fibre on the other for permanent fusion splicing. The angled polish dramatically reduces back reflection by directing reflected light into the fibre cladding instead of back toward the laser source. This makes APC fibre pigtails the preferred choice for GPON, XGS-PON, FTTH, CATV, WDM, FTTx, and high-performance optical communication systems where low reflectance is critical.
At Fiber Optics Kenya, we supply premium APC Fibre Pigtails manufactured using high-quality OS2 Single Mode G.652D and G.657A2 bend-insensitive fibres. Every APC pigtail is precision factory-polished and individually tested to guarantee low insertion loss (≤0.3 dB) and excellent return loss (≥60 dB) for reliable long-term performance. Our APC pigtails are compatible with leading GPON equipment from Huawei, Nokia, ZTE, FiberHome, Ubiquiti, MikroTik, TP-Link, and many other networking platforms.
Our product range includes SC/APC, LC/APC, FC/APC, ST/APC, 12-Core APC Fibre Pigtails, G657A2 Bend-Insensitive APC Pigtails, Armoured APC Pigtails, and custom APC fibre assemblies suitable for fibre termination boxes, ODFs, splice closures, patch panels, and enterprise fibre networks.

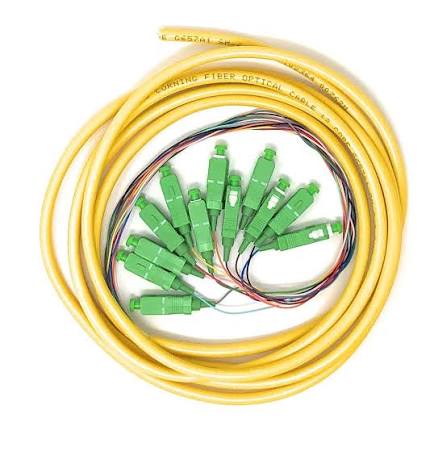

APC Fibre Pigtail Image
APC Fibre Pigtails Price List in Kenya
| APC Fibre Pigtail | Approximate Price (KES) |
|---|---|
| SC/APC OS2 Pigtail | 100 – 220 |
| LC/APC OS2 Pigtail | 120 – 250 |
| FC/APC OS2 Pigtail | 150 – 300 |
| ST/APC OS2 Pigtail | 180 – 350 |
| G657A2 APC Pigtail | 150 – 280 |
| Armoured APC Pigtail | 300 – 600 |
| 12 Core APC Pigtail Kit | 1,800 – 3,500 |
| 24 Core APC Pigtail Kit | 3,500 – 6,000 |
| Custom APC Fibre Pigtail | Available on Request |
Note: Prices vary depending on connector type, fibre specification, cable construction, and quantity ordered. Attractive discounts are available for ISPs, contractors, government institutions, data centres, and telecommunications companies.
APC Fibre Pigtail Specifications
| Specification | Details |
|---|---|
| Connector Types | SC/APC, LC/APC, FC/APC, ST/APC |
| Fibre Type | OS2 G.652D / G.657A2 |
| Polish Type | APC (8° Angled Polish) |
| Fibre Size | 9/125µm |
| Cable Diameter | 0.9mm Tight Buffered |
| Connector Ferrule | Zirconia Ceramic |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Standard Length | 1.5 Metres |
| Standards | IEC, TIA/EIA, RoHS |
Types of APC Fibre Pigtails
| APC Fibre Pigtail | Recommended Application |
|---|---|
| SC/APC Pigtail | FTTH & GPON |
| LC/APC Pigtail | High-Density Data Centres |
| FC/APC Pigtail | CATV Systems |
| ST/APC Pigtail | Industrial Networks |
| G657A2 APC Pigtail | FTTH Drop Networks |
| Armoured APC Pigtail | Outdoor & Industrial Applications |
| 12 Core APC Kit | ODF Terminations |
Features of APC Fibre Pigtails
8° angled polished ferrule
Extremely low back reflection
Factory-polished connectors
Low insertion loss
High return loss
Premium zirconia ceramic ferrule
G657A2 bend-insensitive fibre options
Single Mode OS2 fibre
Ideal for fusion splicing
Factory-tested optical performance
Benefits of APC Fibre Pigtails
| Benefit | Description |
|---|---|
| Extremely Low Back Reflection | Ideal for GPON, XGS-PON and CATV |
| Better Optical Performance | Improves signal quality and transmission stability |
| Reliable Fibre Termination | Factory-polished connectors ensure consistent performance |
| Longer Equipment Life | Reduced reflections help protect optical transmitters |
| High-Speed Compatibility | Supports modern passive optical networks |
| Permanent Fibre Connections | Ideal for fusion splicing applications |
| Lower Maintenance Costs | Reliable long-term fibre performance |
| Future-Proof Infrastructure | Suitable for next-generation fibre networks |
Applications of APC Fibre Pigtails
APC Fibre Pigtails are widely used in:
FTTH Networks
GPON Networks
XGS-PON Networks
EPON Networks
CATV Systems
WDM Networks
Fibre Distribution Hubs
Optical Distribution Frames (ODFs)
Fibre Patch Panels
Internet Service Providers (ISPs)
Telecommunications Networks
Smart City Infrastructure
Government Fibre Networks
Enterprise Fibre Networks
Why Buy APC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya supplies genuine APC Fibre Pigtails manufactured to international quality standards for superior optical performance. Every APC pigtail is factory polished, individually tested, and ready for professional fusion splicing, ensuring extremely low insertion loss, outstanding return loss, and dependable long-term network reliability.
Our experienced fibre optic engineers help customers select the correct APC connector type, fibre specification, bend-insensitive cable, and accessories required for each project. Whether you require APC pigtails for GPON, FTTH, CATV, telecommunications, or enterprise networking, we provide expert technical support, competitive prices, and fast nationwide delivery.
Besides APC Fibre Pigtails, Fiber Optics Kenya also supplies fibre optic cables, fibre patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing machines, and complete fibre optic networking solutions.
APC Fibre Pigtail Buying Guide
| Project Type | Recommended APC Pigtail |
|---|---|
| GPON Network | SC/APC OS2 |
| FTTH Installation | G657A2 SC/APC |
| XGS-PON | SC/APC |
| CATV Network | FC/APC |
| High-Density ODF | LC/APC |
| Outdoor Fibre Network | Armoured APC Pigtail |

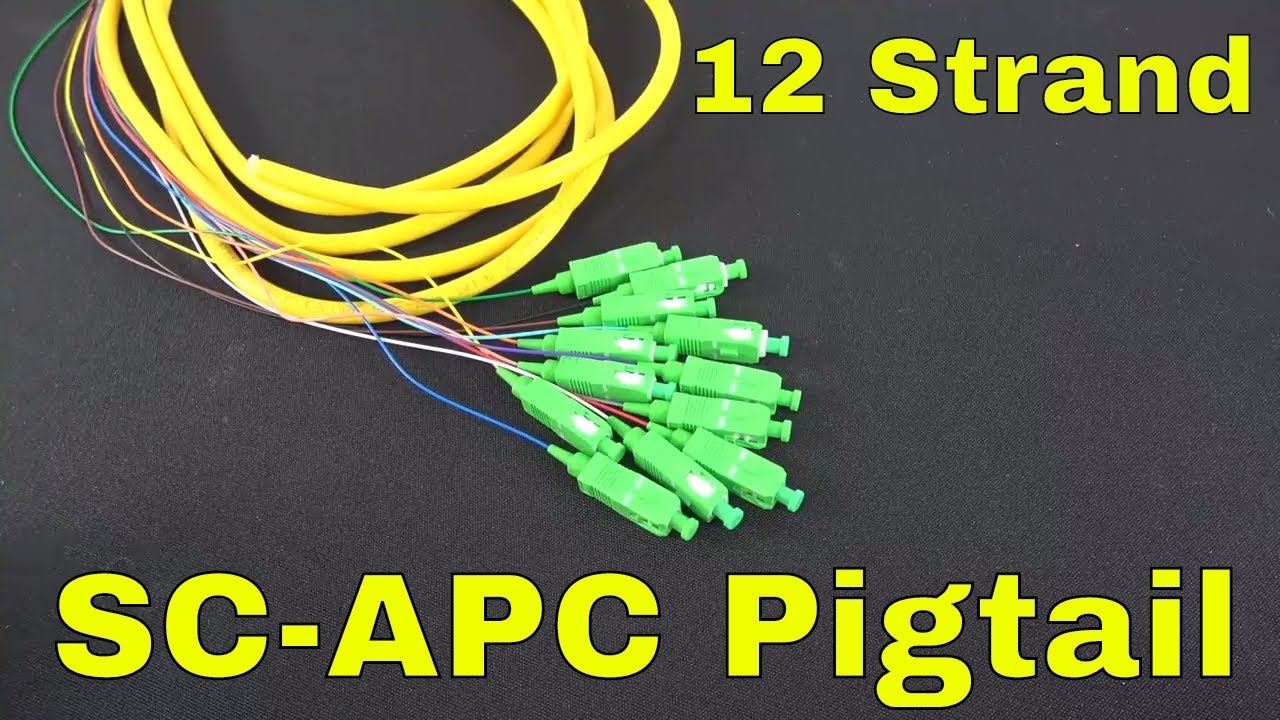

Watch APC Fibre Pigtail Installation
YouTube Video
Video Thumbnail
APC Fibre Pigtails are the industry standard for modern FTTH, GPON, and passive optical networks because they minimize optical reflections that can interfere with laser transmitters and degrade network performance. The video above demonstrates how APC fibre pigtails are prepared, fusion spliced, and installed inside fibre distribution boxes, optical distribution frames, splice closures, and patch panels to create permanent, low-loss optical terminations.
The defining feature of an APC connector is its 8-degree angled polished ferrule, which directs reflected light away from the fibre core instead of back toward the optical transmitter. This significantly improves return loss compared to UPC connectors, making APC pigtails the preferred choice for GPON, XGS-PON, CATV, and WDM systems where optical reflections must be kept to an absolute minimum. APC connectors are typically identified by their green connector housing, while UPC connectors are usually blue.
At Fiber Optics Kenya, we supply premium APC Fibre Pigtails together with fibre optic cables, patch cords, adapters, ODFs, splice closures, media converters, SFP modules, OTDR testing equipment, fusion splicing services, and complete fibre optic installation solutions. Our experienced engineers provide expert consultation, professional installation support, and nationwide delivery for projects throughout Kenya.
Frequently Asked Questions (FAQs)
1. What is an APC Fibre Pigtail?
An APC Fibre Pigtail is a fibre optic cable with an 8-degree angled polished connector on one end and a bare fibre on the other for permanent fusion splicing.
2. What is the price of APC Fibre Pigtails in Kenya?
APC Fibre Pigtails generally cost between KES 100 and KES 600, depending on the connector type, fibre specification, and cable construction.
3. What does APC mean?
APC stands for Angled Physical Contact, referring to the 8-degree polished ferrule that minimizes optical back reflection.
4. What is the difference between APC and UPC?
APC connectors have an 8-degree angled polish and typically provide ≥60 dB return loss, while UPC connectors have a flat ultra-physical polish with approximately ≥50 dB return loss. APC connectors are preferred for GPON, FTTH, CATV, and WDM systems.
5. Where are APC Fibre Pigtails commonly used?
They are widely used in GPON, XGS-PON, FTTH, CATV, telecommunications, fibre distribution boxes, ODFs, splice closures, and enterprise fibre networks.
6. Can APC and UPC connectors be connected together?
No. APC and UPC connectors should not be directly mated because the different polish angles can increase insertion loss and potentially damage the connector end faces.
7. Why buy APC Fibre Pigtails from Fiber Optics Kenya?
Fiber Optics Kenya offers genuine fibre optic products, competitive prices, expert technical support, professional installation services, nationwide delivery, and dependable after-sales support.
8. Do you deliver APC Fibre Pigtails across Kenya?
Yes. We supply and deliver APC Fibre Pigtails throughout Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Nyeri, Machakos, Meru, Kakamega, Kisii, Bungoma, Kitale, and all counties across Kenya.
Contact Fiber Optics Kenya Today
Whether you require APC Fibre Pigtails for GPON, FTTH, CATV, enterprise networking, or telecommunications infrastructure, Fiber Optics Kenya is your trusted supplier of premium fibre optic networking products.
Our Contact Information
Location:
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
Phone Number:
Call/Text/WhatsApp: +254 704 991 492
Email:
info@fibreopticskenya.co.ke
APC Fibre Pigtails are the preferred solution for fibre optic installations that demand extremely low back reflection, high return loss, and superior optical performance. Their angled polished connectors make them indispensable for GPON, FTTH, CATV, XGS-PON, and next-generation passive optical networks.
Choose Fiber Optics Kenya for genuine APC Fibre Pigtails, competitive prices, expert technical guidance, nationwide delivery, and professional fibre optic installation services. Contact us today for a free quotation and let our experienced team help you build a reliable, scalable, and future-ready fibre optic network.
